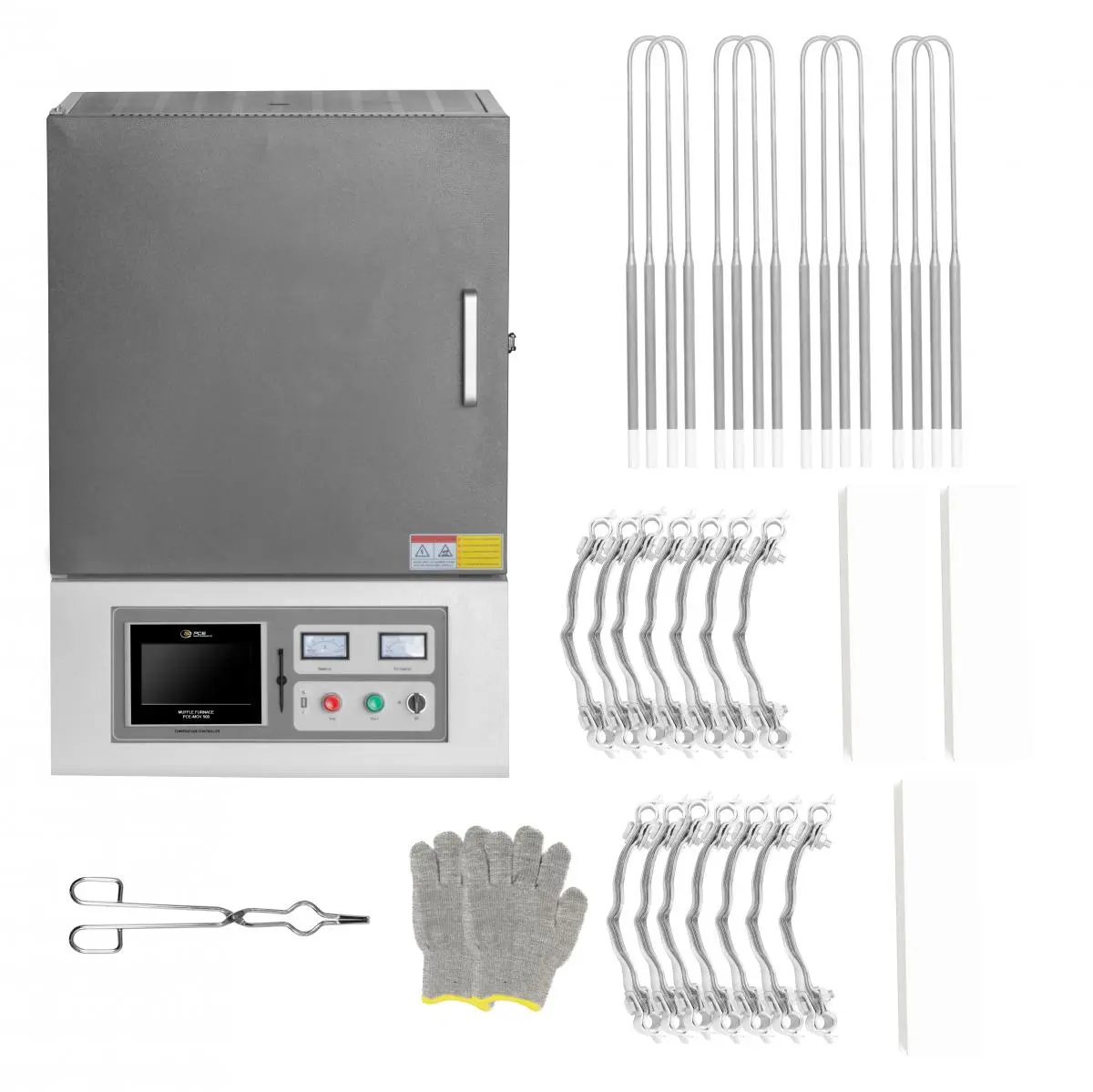

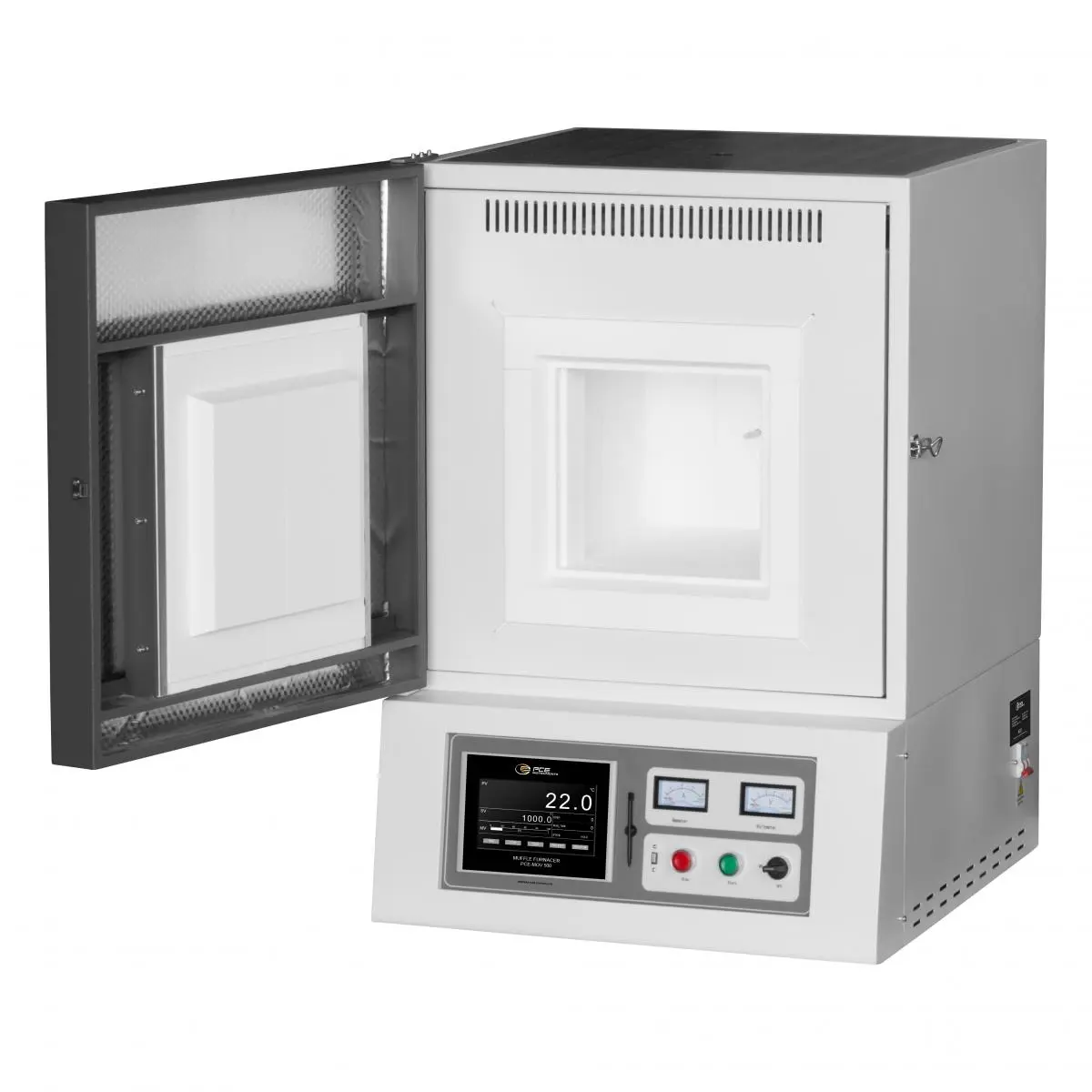

The high-temperature Material Tester is a professional device for laboratories, research and industry that is characterized by maximum precision and reliability. With a maximum temperature of 1700°C / 3092°F, this Material Tester is ideal for demanding applications such as the sintering of ceramics, the heat treatment of metals and material development in the high-temperature range. Thanks to state-of-the-art molybdenum disilicide heating elements and effective ceramic fiber insulation, the Material Tester ensures even temperature distribution and energy-efficient operation.

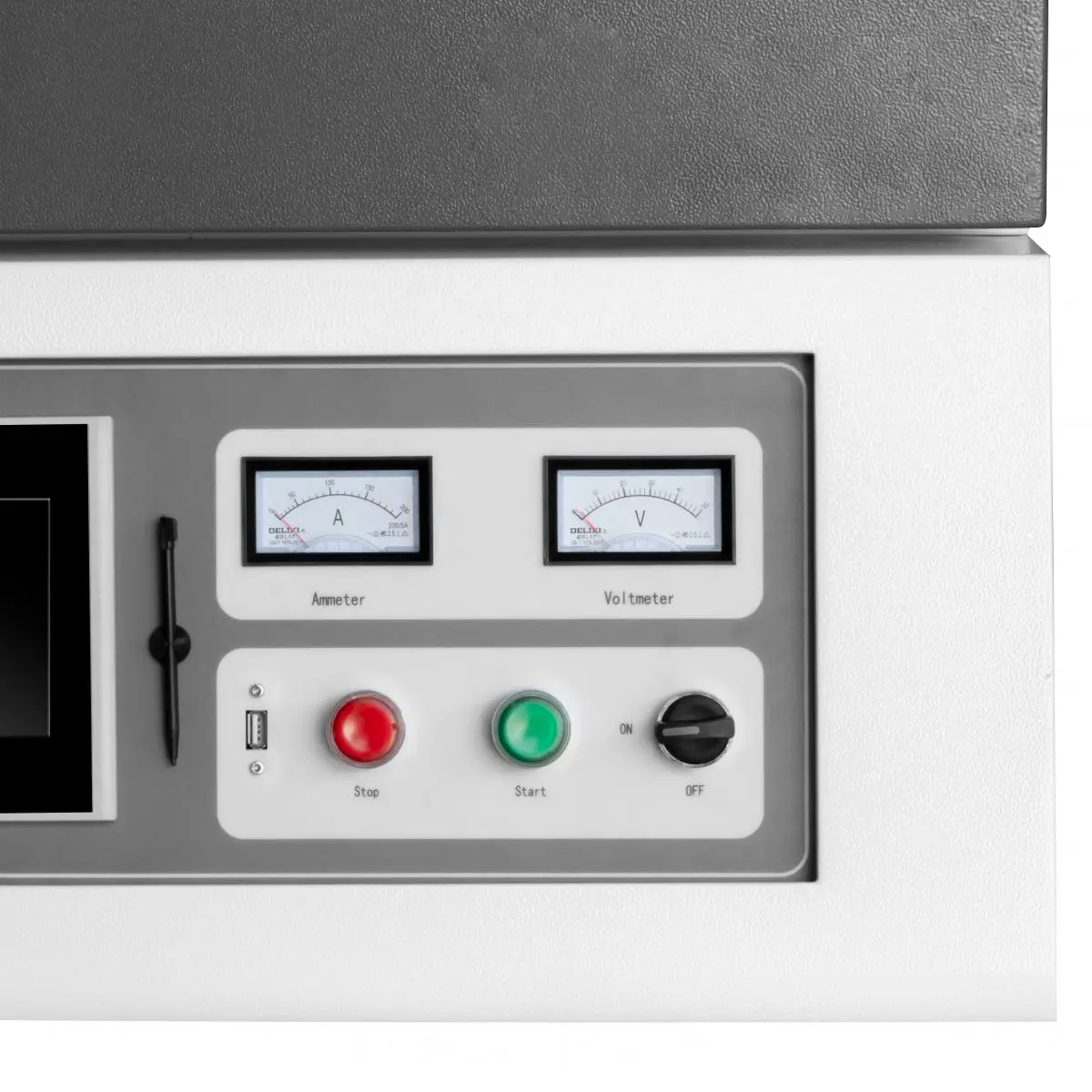

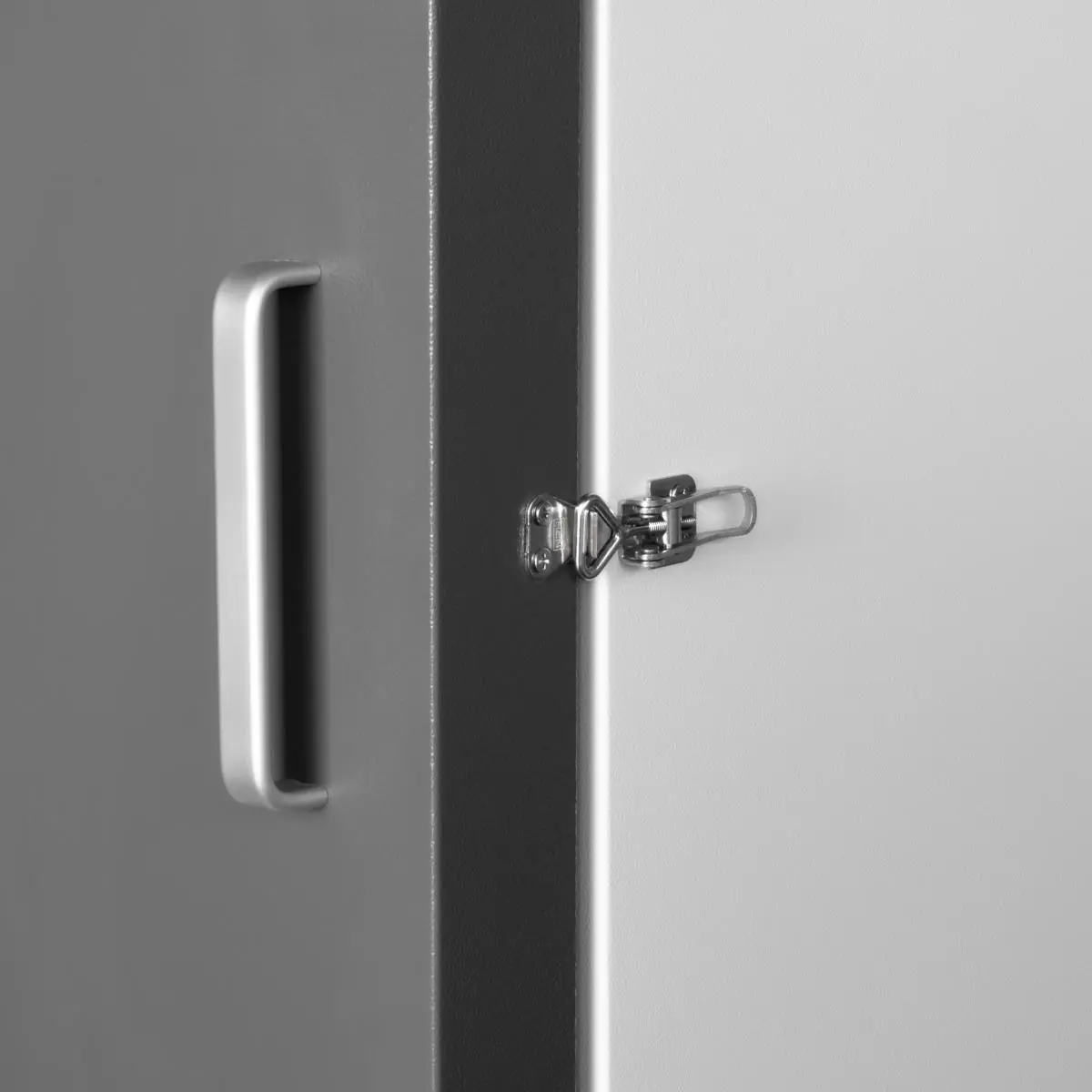

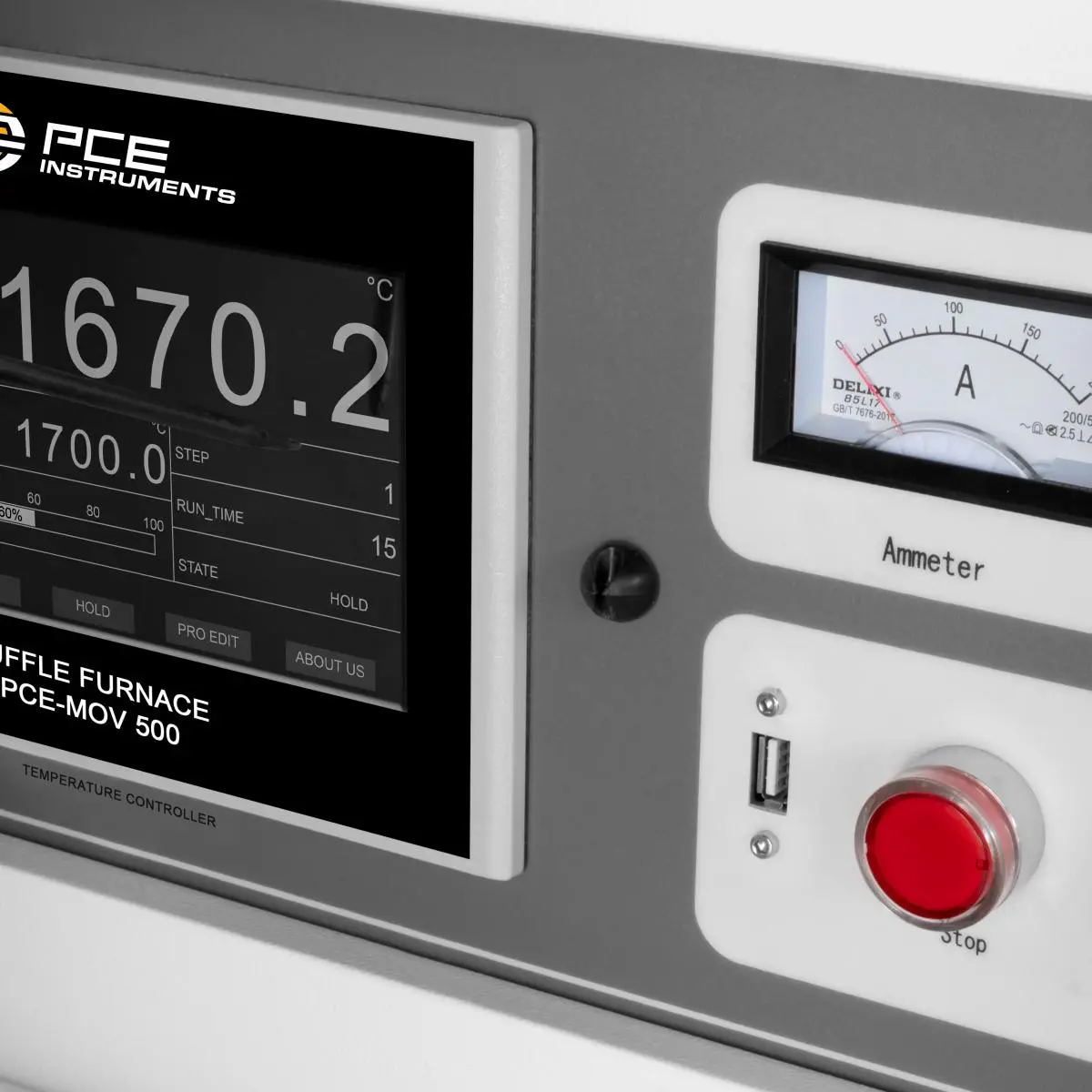

The temperature is controlled digitally via a PID-controlled system with up to 30 freely programmable heating, holding and cooling phases. An integrated safety system with door contact switch, overtemperature protection and acoustic alarms ensures reliable and safe operation of the Material Tester, even for sensitive processes. The robust design made of powder-coated steel protects against corrosion and ensures a long service life in daily use.
This Material Tester is particularly popular in research and university facilities, but is also widely used in industrial laboratories. With its combination of performance, durability and precision, the Material Tester is an excellent choice for anyone who requires the highest quality in high-temperature processes.
| Temperature | |
| Measuring range | 20 ... 1700 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| General technical data | |
| Cable length | 2,5 m |
| Sensor | Thermocouple Type B |
| Heating element | Molybdenum disilicide |
| Dimensions | Chamber size: 250 × 320 × 250 mm (W×D×H) |
| Menu language | English (GB), English |
| Protection class (device) | IP20 |

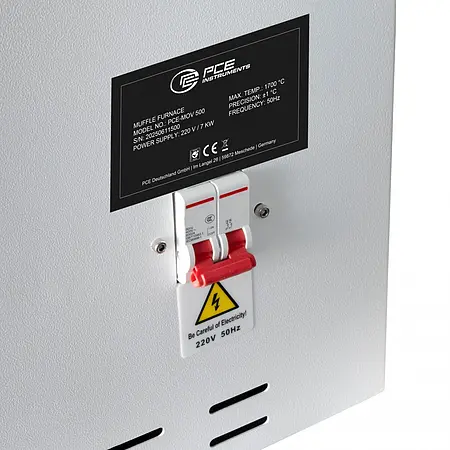

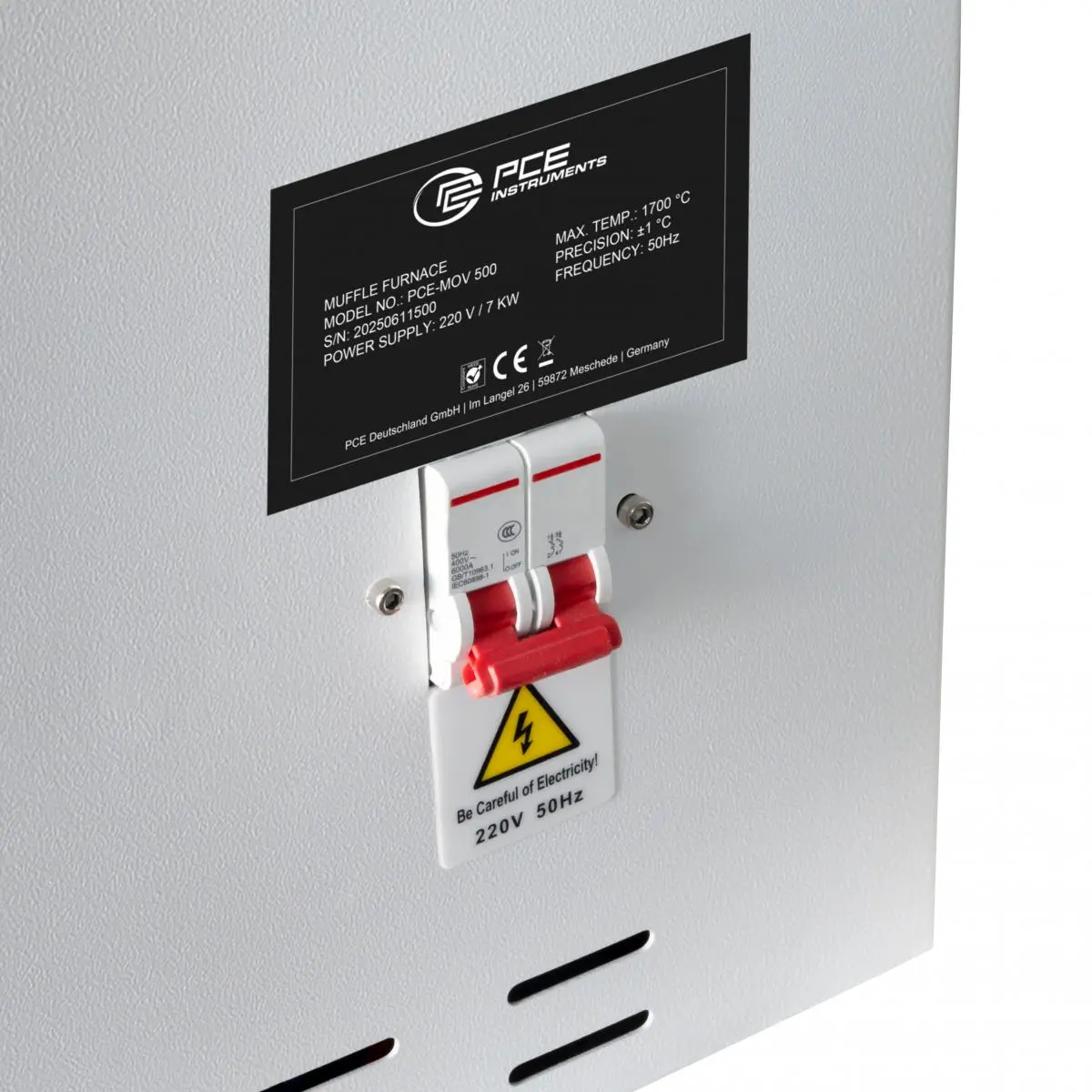

| Power supply | 220V / 7 KW |
| Operating conditions | 5 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 750 x 650 x 970 mm |
| Weight | 215000 g |
