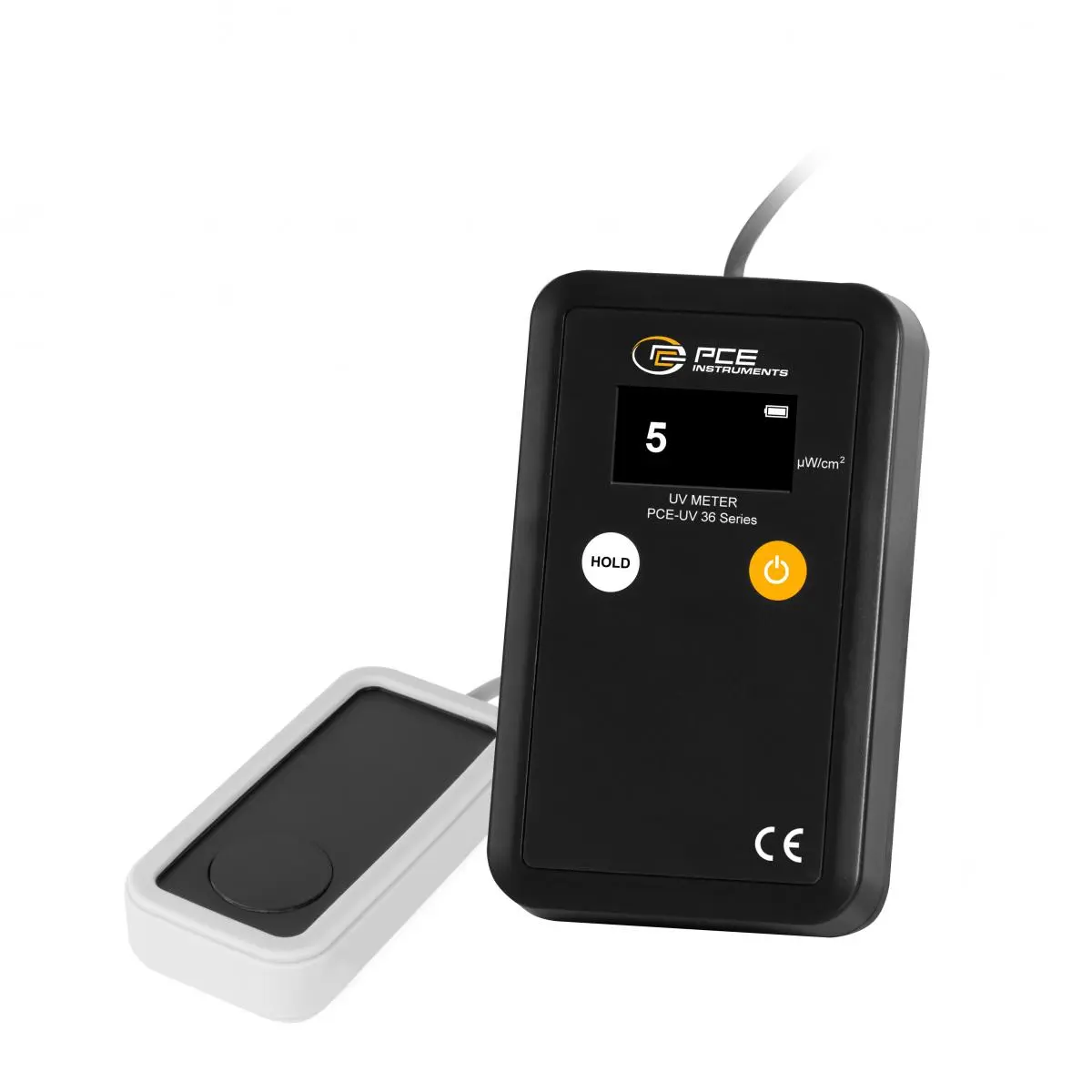

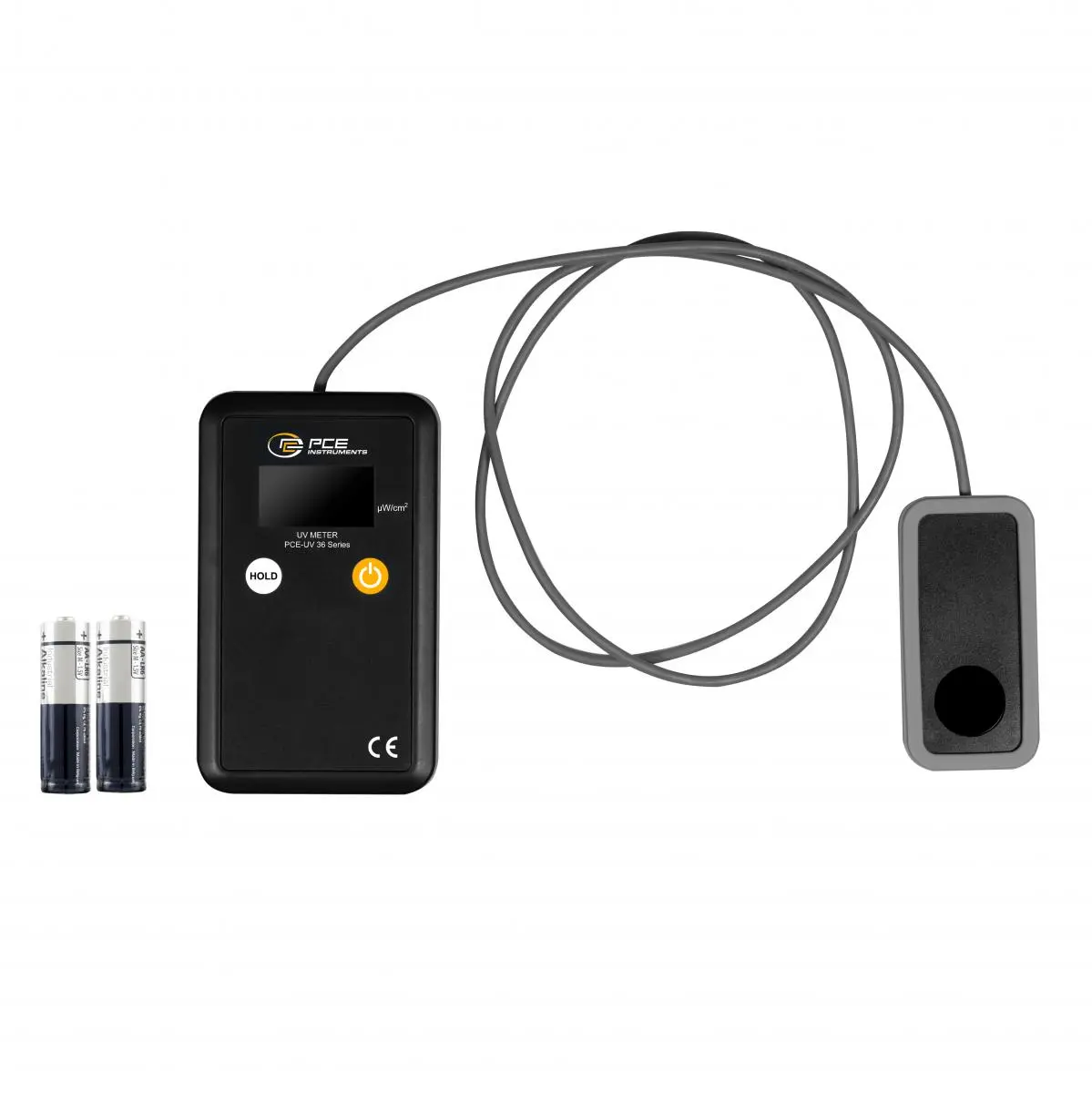

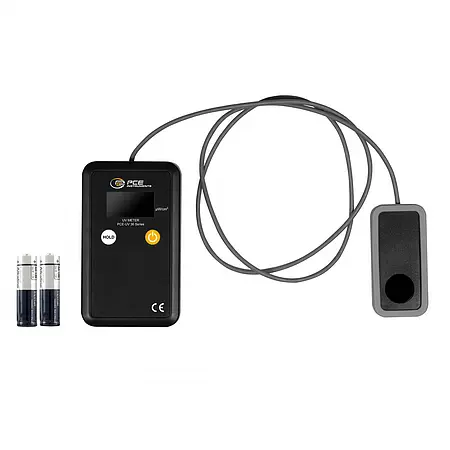

The Light Meter is a compact measuring device for detecting UV-A radiation in the range of 300 ... 390 nm, with a peak wavelength of 365 nm. The Light Meter measures radiation intensities from 0 ... 19,999 µW/cm² with a resolution of 1 µW/cm² and an accuracy of ±4% FS. The measuring rate is one measurement per second, a hold function enables the current value to be recorded.

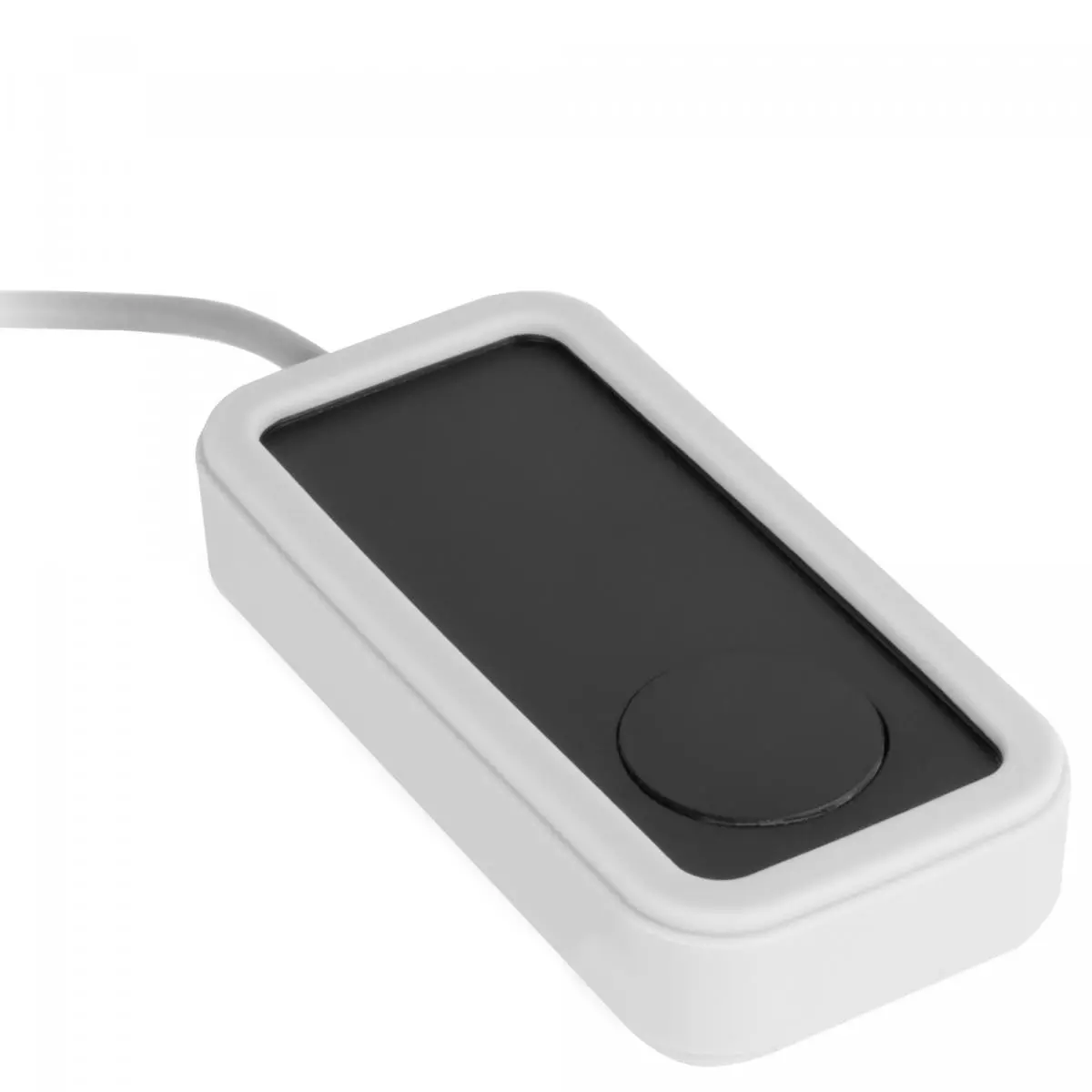

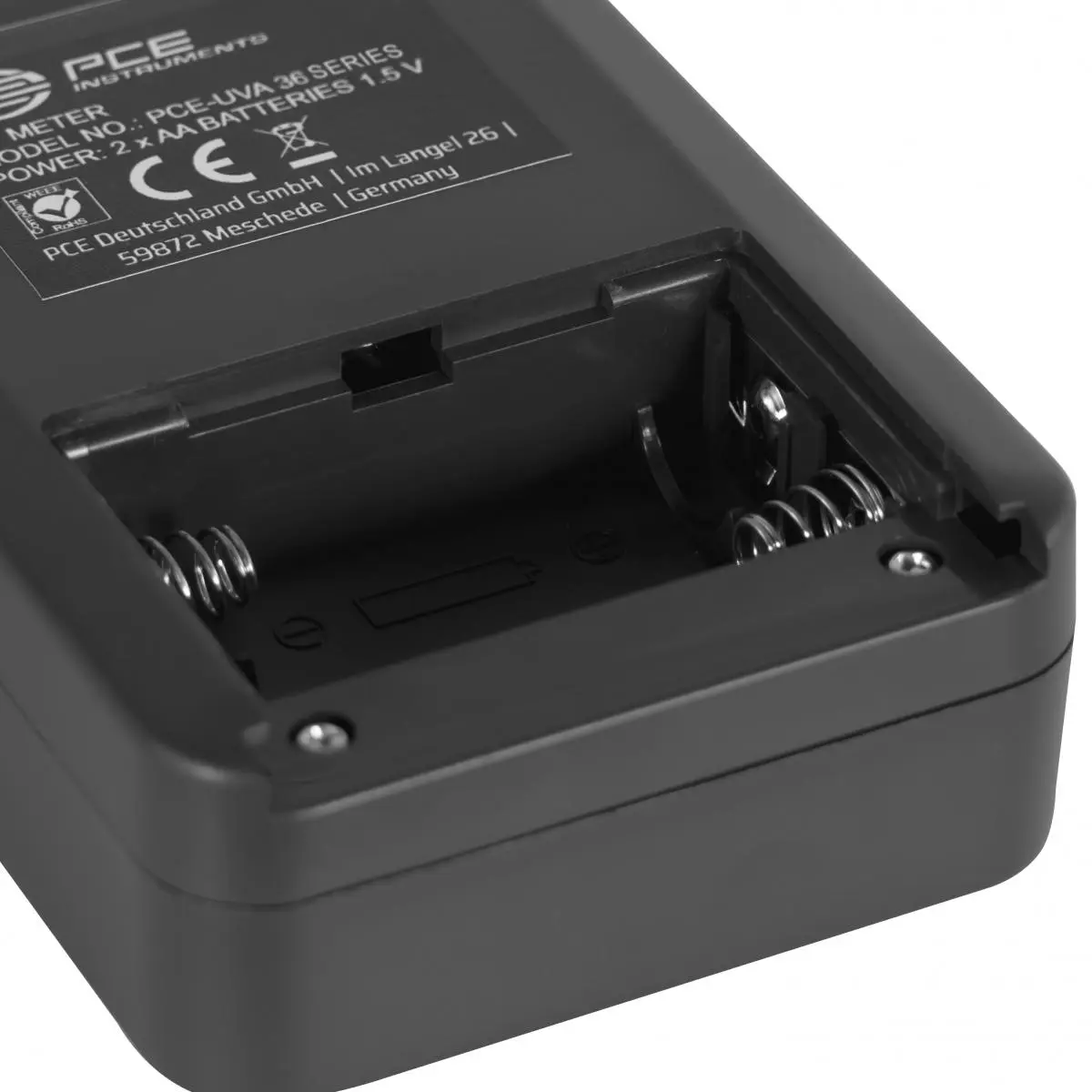

The Light Meter has an easy-to-read 1.4-inch LED display, a battery indicator and automatic switch-off after 4 minutes. The external sensor measures 78 × 38.5 × 15.5 mm and is connected via a 1 m cable - ideal for flexible applications. It is powered by two 1.5V AA batteries.
The Light Meter is suitable for numerous applications such as UV curing in industry, UV controls in medicine, occupational safety measurements and for laboratory and environmental technology. Thanks to the accuracy of the UVA radiation meter and its ease of use, the Light Meter is a reliable tool for many professional applications.
| UV | |
| Measurement range up to | 0 ... 19999 µW/cm² |
| Resolution | 1 µW/cm² |
| Accuracy | ±4% FS |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LED |
| Display size | 1,4 Inch |
| Measuring rate | 1 x per second |
| Automatic power-off | 4 min |
| Cable length | 1 m |
| Wavelength range | 300 ... 390 Nm |
| Dimensions | Sensor: 78 x 38.5 x 15.5 mm |
| Peak wavelength | 365 Nm |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 116 x 68 x 28 mm |
| Weight | 174 g |
