209,90 €

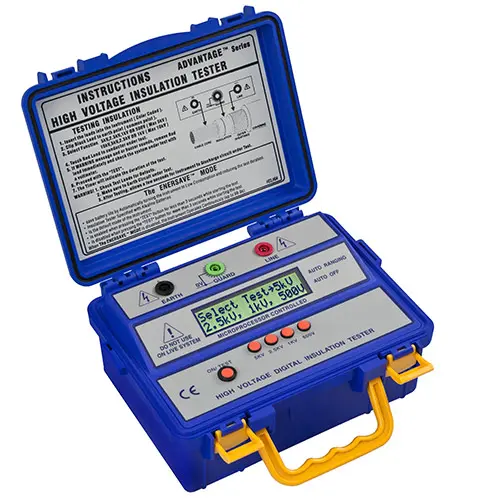

The Isolation Meter belongs to a series of highly accurate resistance devices that have a 6 digit display. These Isolation Meters have been developed specifically for technical service and for difficult measurement conditions.
One of the advantages is the built in protection to avoid errors originating from loss of current. The Isolation Meter contains a microprocessor and both optical and visual alarms. Factory calibration ensures the most accurate measurements with this series of Isolation Meters.
| Insulation resistance | |
| Test voltage DC | 500V |
| Measuring range | 0 ... 30 GΩ |
| Resolution | 0,1 GΩ |
| Accuracy | ±5% |
| Insulation resistance | |
| Test voltage DC | 1000V |
| Measuring range | 0 ... 60 GΩ |
| Resolution | 0,1 GΩ |
| Accuracy | ±5% M Ω |
| Insulation resistance | |
| Test voltage DC | 2500V |
| Measuring range | 0 ... 150 GΩ |
| Resolution | 0,1 GΩ |
| Accuracy | ±5% |
| Insulation resistance | |
| Test voltage DC | 5000V |
| Measuring range | 0 ... 300 GΩ |
| Resolution | 0,1 GΩ |
| Accuracy | ±5% |
| General technical data | |
| Performance | 1 W |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 8 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 250 x 110 x 190 mm |
| Weight | 1500 g |
