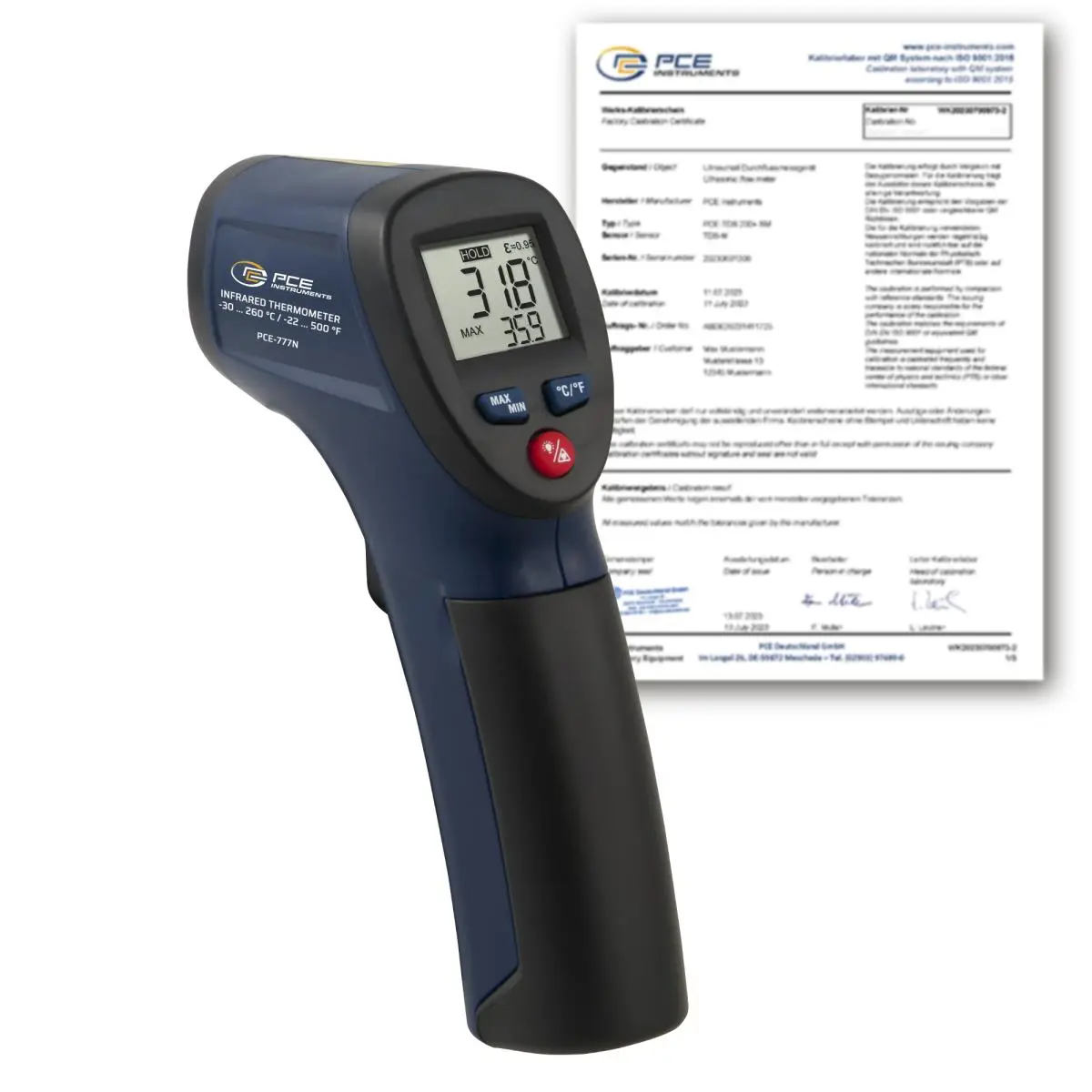

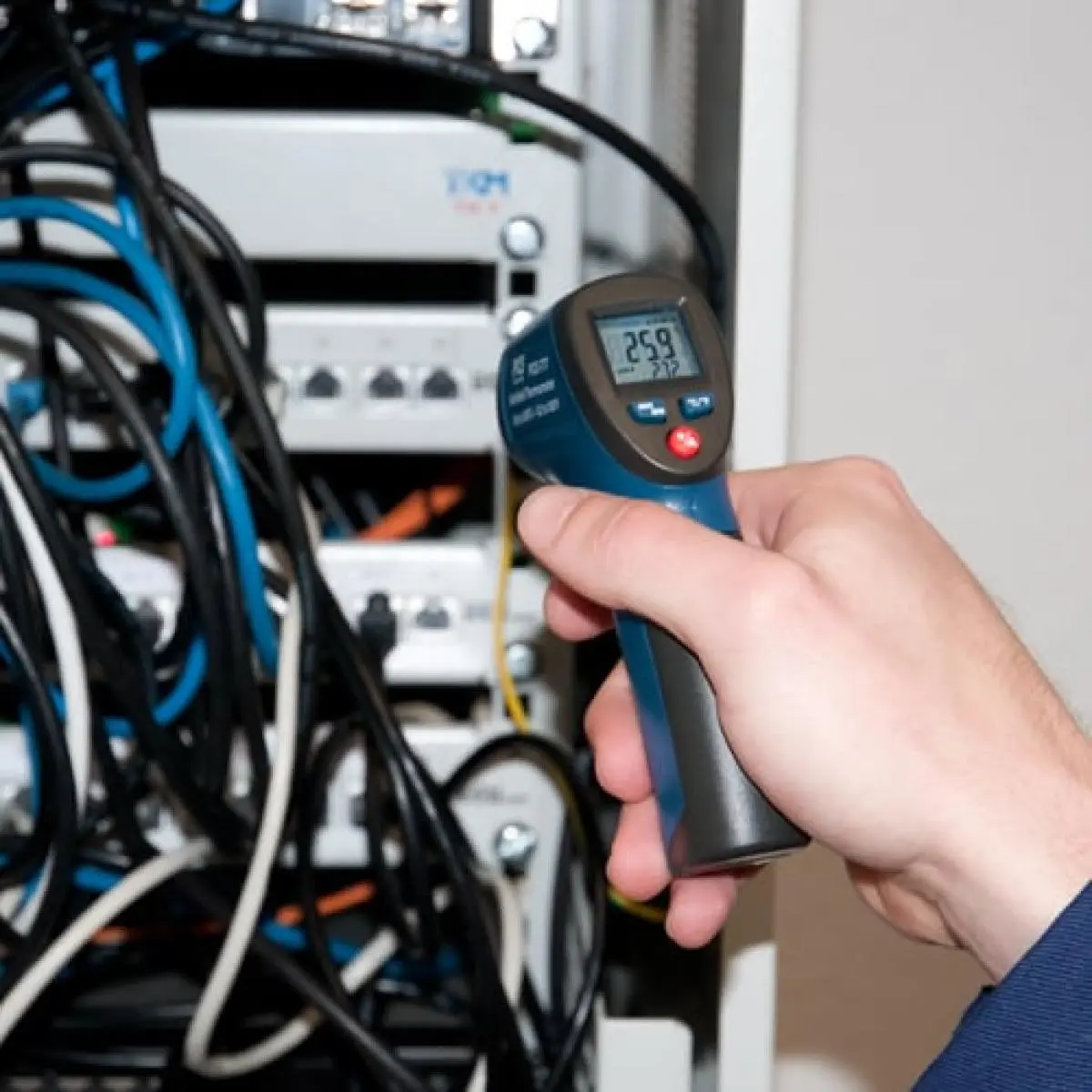

The contactless Infrared Thermometer PCE-777N measures the temperature of surfaces non-destructively and from a distance via an infrared beam. This light, contactless Infrared Thermometer is characterized by simple operation and the red sighting tool. So you can accurately measure the temperature of a particular area on a surface. The contactless Infrared Thermometer is for industry and craft, maintenance, and servicing, e.g. in the field of heating, ventilation, and air conditioning, automotive, and is useful in the control of electrical equipment and control systems.

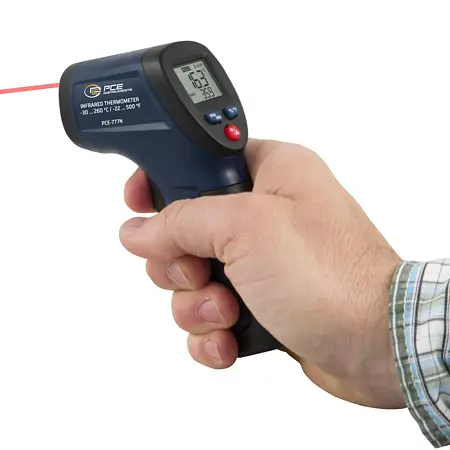

The contactless Infrared Thermometer PCE-777N can also be used under difficult conditions and provides you with measurement results. The backlight of the contactless Infrared Thermometer is selectively turned on or off. The contactless Infrared Thermometer has a visible sighting tool for precise contactless pointing and quick temperature measurement from a safe distance from hot or moving objects or difficult measuring points. The emission level is fixed for this contactless Infrared Thermometer at 0.95 and covers about 90% of all temperature measuring tasks.
| Infrared temperature | |
| Measuring range | -30 ... 0 °C |
| Resolution | 0,1 °C |
| Accuracy | ±4 °C |
| Infrared temperature | |
| Measuring range | 0 ... 260 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2% or ±2°C |
| General technical data | |

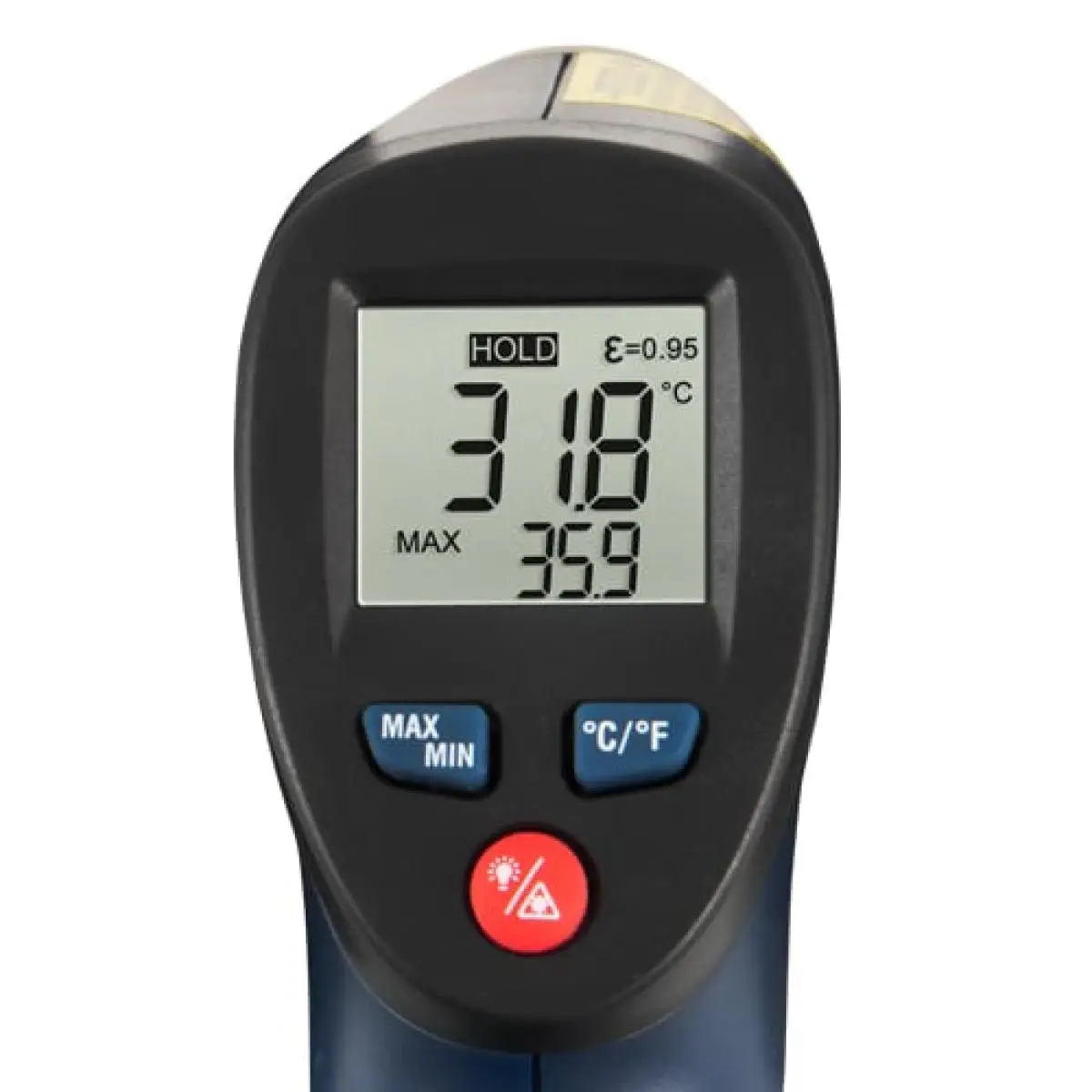

| Measuring functions | MIN, MAX, HOLD |
| Units | °C, °F |
| Display type | LCD |
| Response time | 1 s |
| Automatic power-off | 8 s |

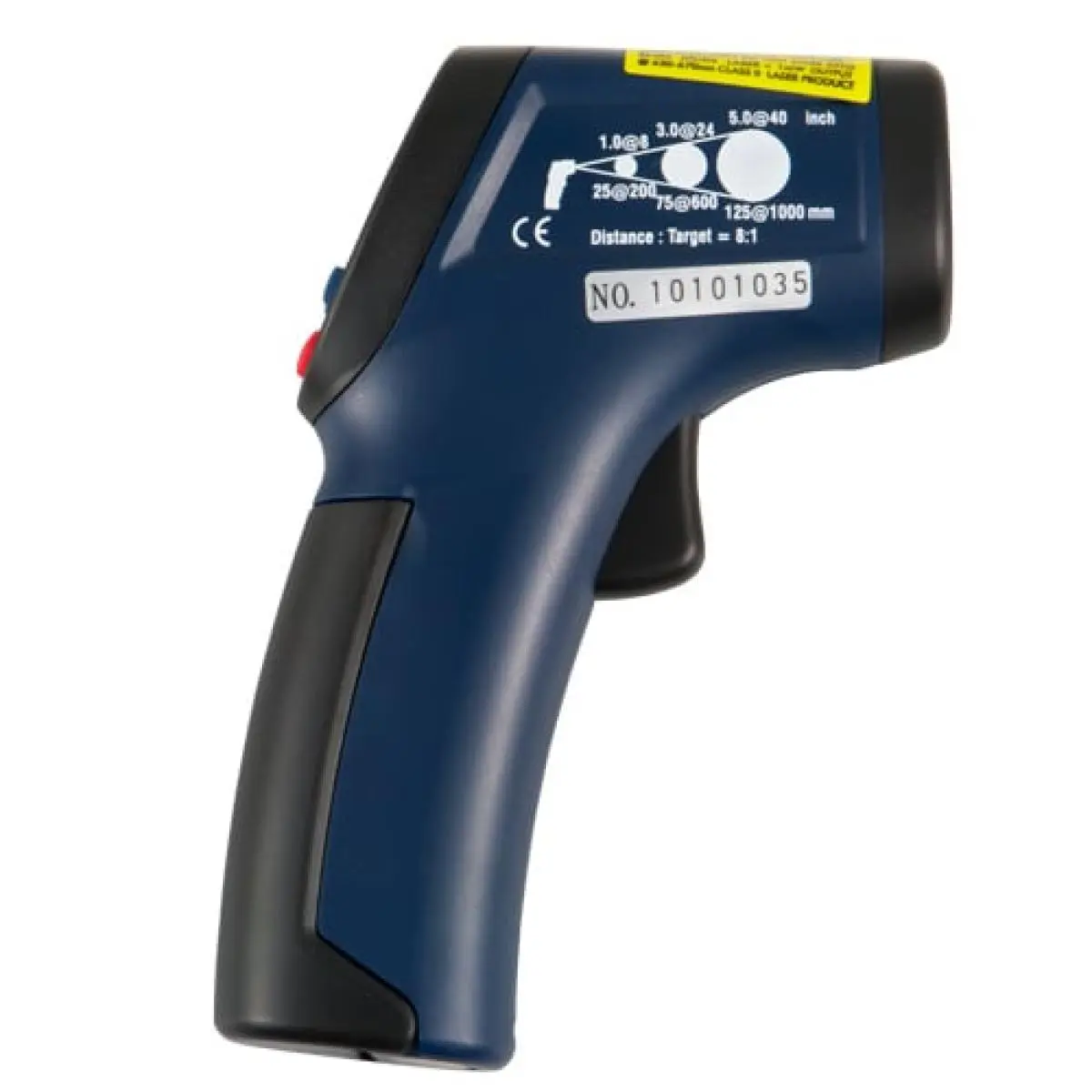

| Measurement spot | 8:1 |
| Laser | Class 2 <1mW |
| Emissivity | 0,95 |
| Spectral range | 6 ... 14 µm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 400 mAh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 80 x 35 x 135 mm |
| Weight | 94 g |
