Industrial Borescope PCE-VE 50N

Industrial Borescope PCE-VE 50N

Order no.: PCE-VE 50N
GTIN (EAN): 4250348739438
194,90 €
233,88 €
price ex. (VAT / delivery)
:
4250348739438
PCE-VE 50N
Delivery time:1-2 working days

Description

Industrial Borescope with LED lighting / Photo and video recording / memory function / Digital zoom / Wi-Fi / Battery operation

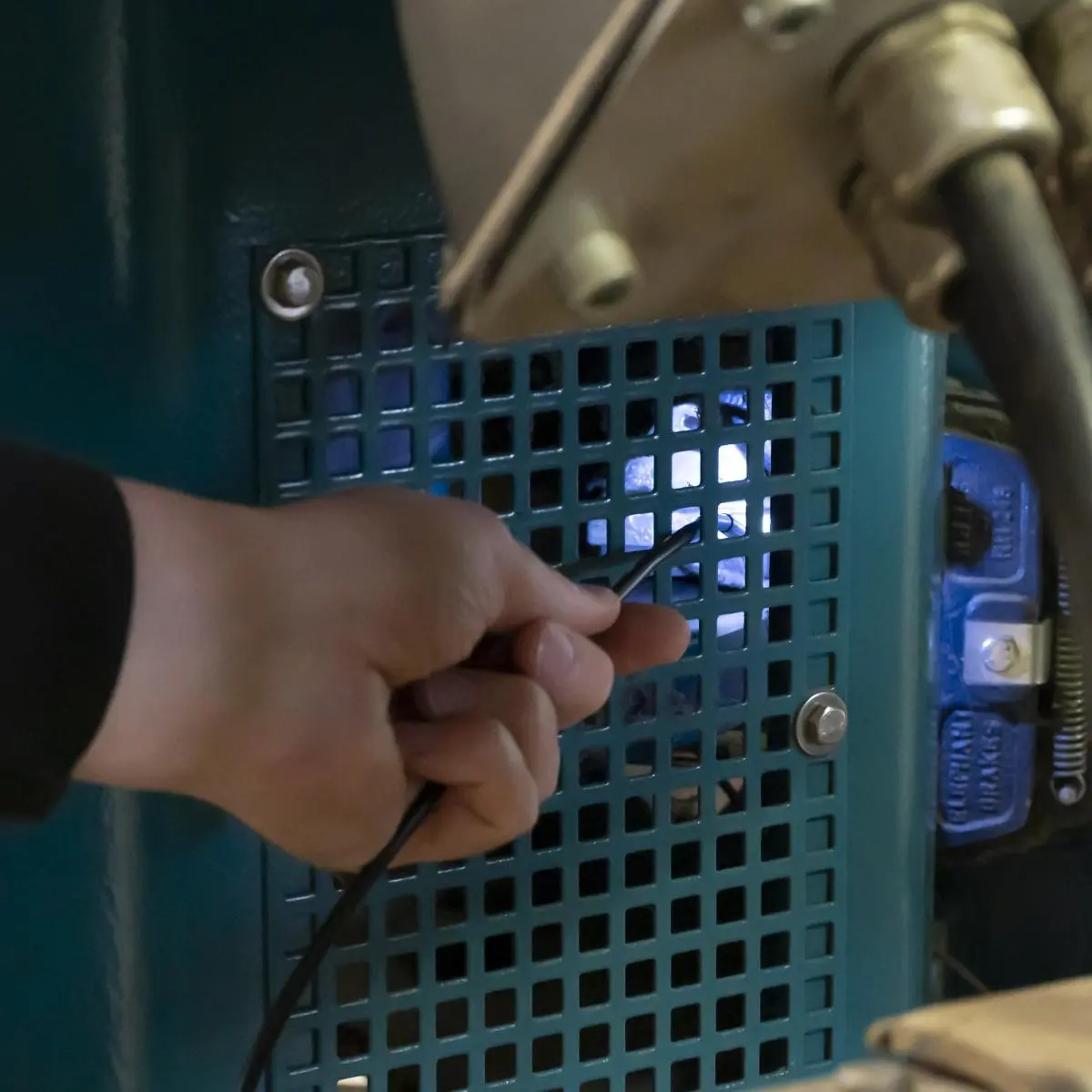

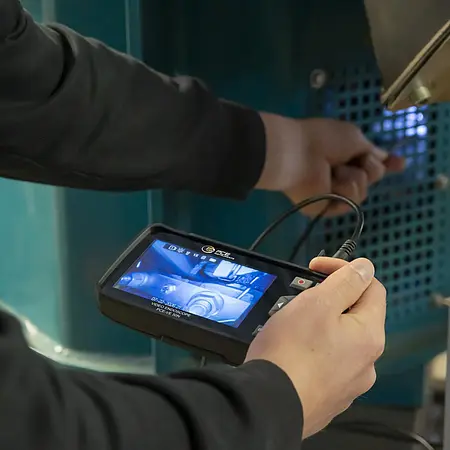

The Industrial Borescope is suitable for inspecting hard-to-reach areas such as engines, pipework, machinery, and cavities. It enables non-destructive visual inspection without the need to dismantle components.

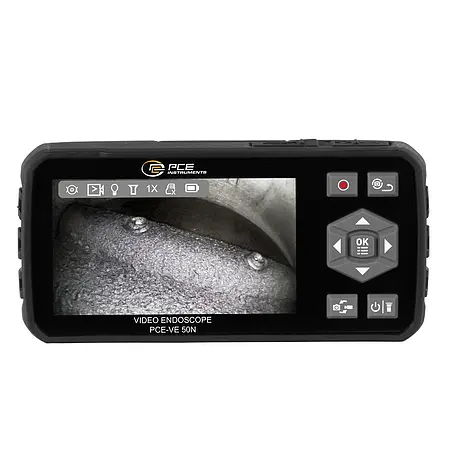

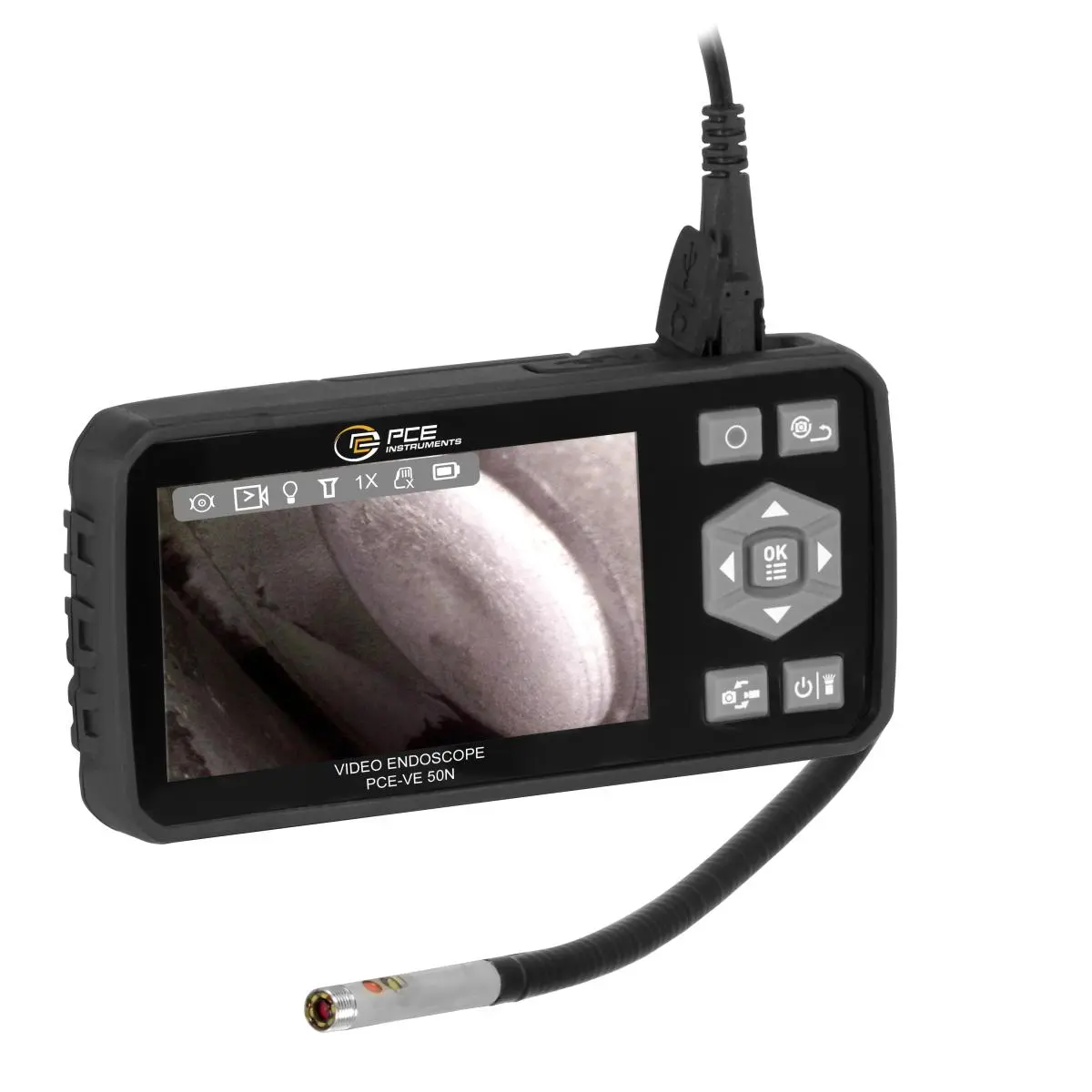

The Industrial Borescope features a 4.5-inch TFT color display with a resolution of 854 × 480 pixels and an HD camera probe with a resolution of up to 1280 × 720 pixels. Images and videos can be stored directly on a micro SD card, so no additional recording devices are required. The integrated WiFi function allows stored images and videos to be easily transferred to an Android device. Adjustable LED lighting on the camera probe ensures good illumination in dark areas. The digital zoom of the Industrial Borescope also allows detailed examination of test objects. The camera probe is IP67-rated and therefore suitable for use in demanding environments. The included attachments, such as the magnet, hook, and mirror, also make it possible to retrieve small items or inspect side areas more effectively.

The Industrial Borescope is used by mechanics, tradespeople and technicians to quickly and reliably detect damage, wear or blockages in hard-to-reach areas.

Not suitable for medical use.


Highlights

- Front and side camera
- Semi-rigid camera probe Ø 5.5 mm
- Camera resolution 1280 x 720
- Image and video recordings
- Digital zoom 1×, 2×, 3×
- 8 GB Micro SD card
- Probe attachments included in the scope of delivery
- Wi-Fi function for data transfer (Android)

Specification

General technical data
Type of cable  PVC
Cable length  3 m
Display type  TFT colour display
Display size  4,5 in
Display resolution  854 x 480 pixels
Storage medium  Micro SD card
Storage capacity  8 GB
Memory capacity (additional information)  Up to 128 GB possible
Interface  USB-C, WLAN
Camera resolution  1280 x 720
Camera orientation  front 0°
side 90°
Operating time  3 h
Automatic power-off from...to  30 ... 120 min.
Camera head diameter  5,5 mm
Camera probe length  32 mm
Camera probe material  Metal
Camera probe movement  semi-rigid
Protection class camera probe  IP67
Field of vision  70 °
Depth of field of vision  30 ... 80 mm
Luminous intensity  6 LEDs
Image / video format  mp4, JPG
Frame rate  25 FPS
Menu language  English, English (GB), French, Spanish
Protection class (device)  IP67
Power supply  5V DC, 1.5 A
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  2000 mAh
Operating conditions  -10 ... 50 °C , 0 ... 85 % RH
Storage conditions  -20 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  83 x 170 x 35 mm
Weight  250 g

Delivery Scope

1 x Industrial Borescope PCE-VE 50N
1 x 3 m PVC gooseneck camera
1 x Threaded cap for camera housing
1 x Mirror attachment
1 x Magnet attachment
1 x Hook attachment
1 x USB-C cable
1 x Device case
1 x 8 GB micro SD card
1 x Operating instructions
The app "Cem Wifi-File" can be found in the download section
