Industrial Borescope PCE-VE 40

Industrial Borescope PCE-VE 40

Order no.: PCE-VE 40
GTIN (EAN): 4250348739421
124,90 €
149,88 €
price ex. (VAT / delivery)
:
4250348739421
PCE-VE 40
Delivery time:1-2 working days

Description

Industrial Borescope with LED illumination / Photo and video recording / Memory function / Digital zoom / Battery operation

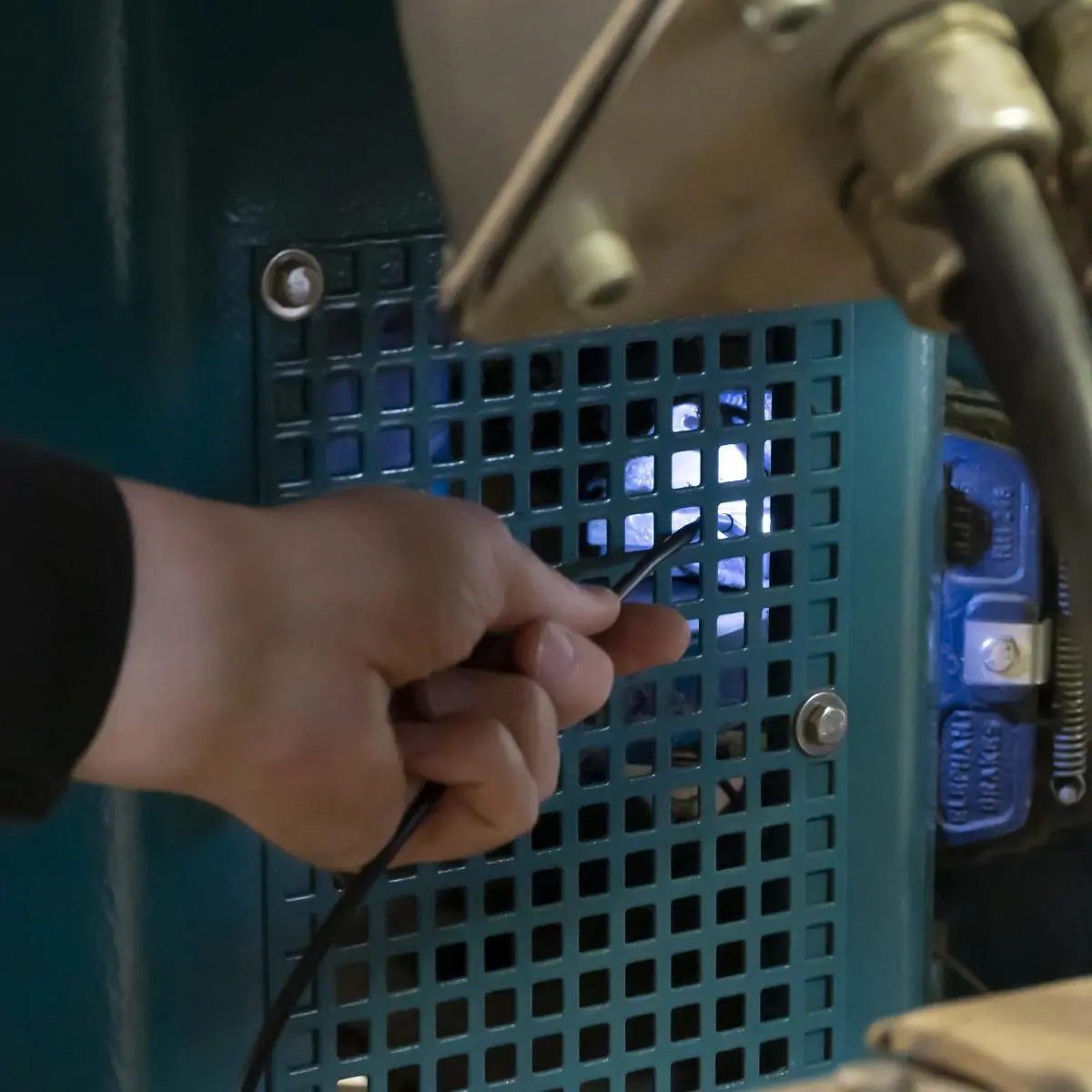

The Industrial Borescope is used for inspecting hard-to-reach areas such as engines, pipelines, machines and cavities, and enables non-destructive visual inspection without dismantling.

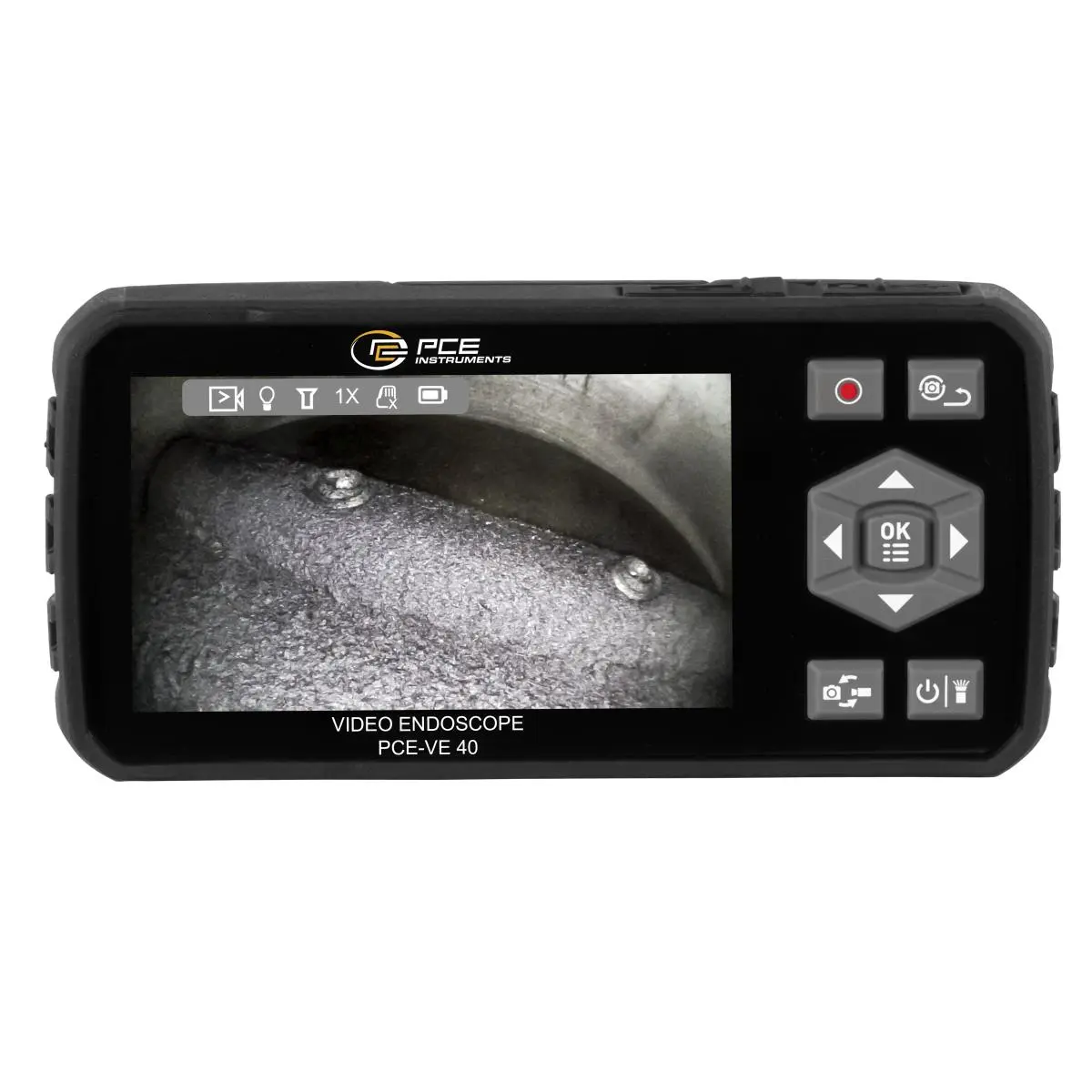

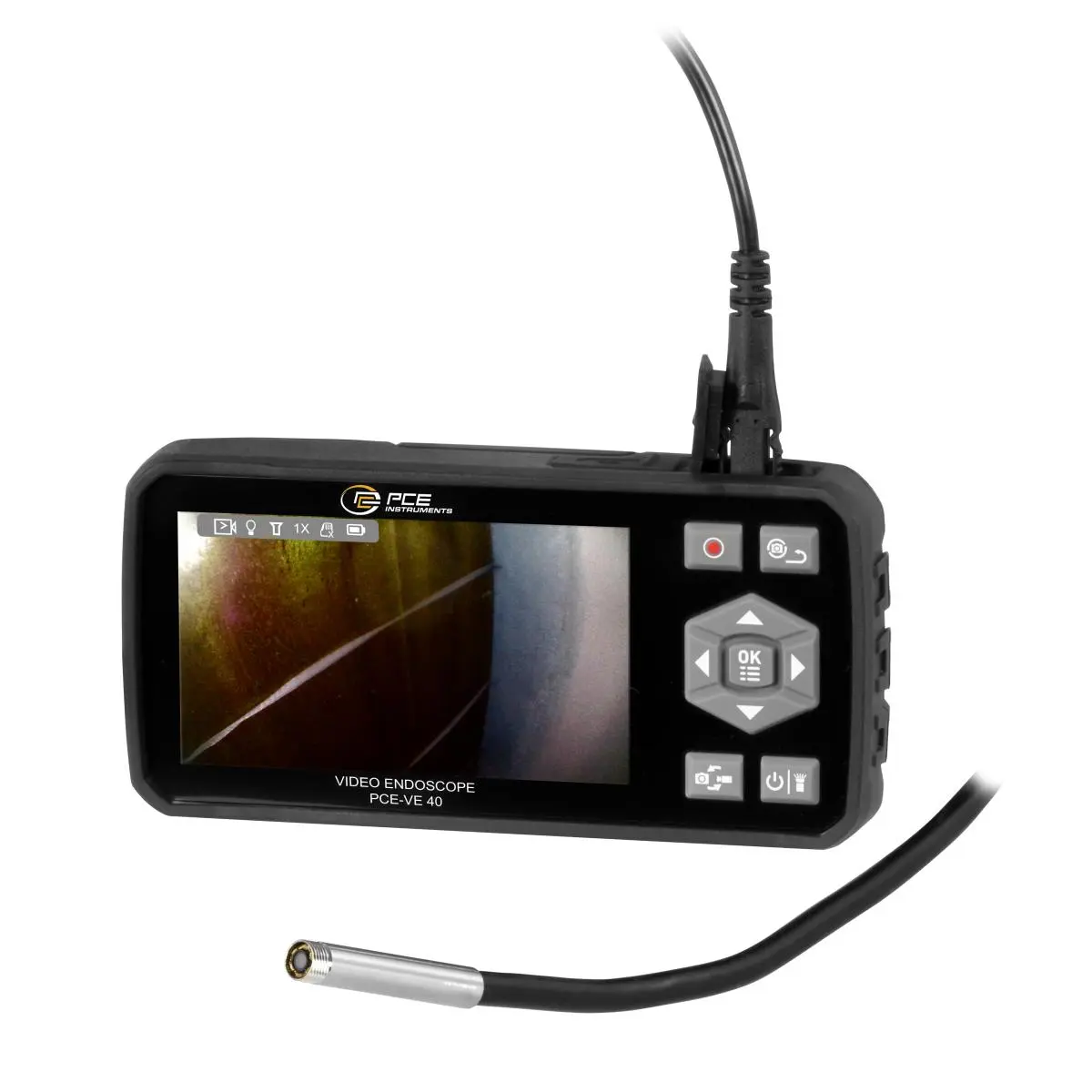

The Industrial Borescope has a 4.5-inch TFT colour display with a resolution of 854 × 480 pixels, as well as an HD camera probe with up to 1280 × 720 pixels. The Industrial Borescope offers direct image and video recording onto a Micro SD card, so no external devices are required. An integrated, adjustable LED illumination ensures good visibility even in dark areas, while the digital zoom allows details to be viewed more closely. The camera probe is also protected to IP67, making it suitable for use in demanding environments. In addition, various attachments such as a magnet, hook or mirror can be used to grip objects or access side viewing areas.

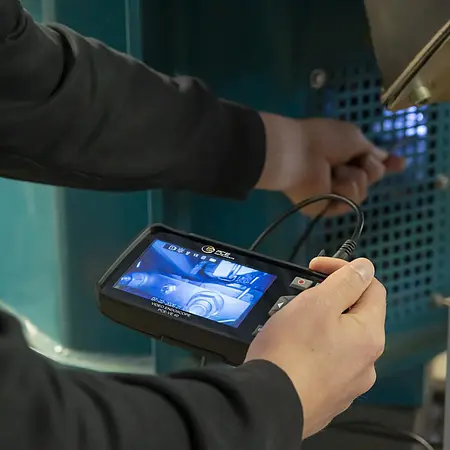

The Industrial Borescope is used by mechanics, tradespeople and technicians to quickly and reliably detect damage, blockages or wear in hard-to-reach areas.

Not suitable for medical use.


Highlights

- Semi-rigid camera probe Ø 5.5 mm
- Camera resolution 1280 x 720
- Image and video recording
- Digital zoom 1×, 2×, 3×
- 8 GB Micro SD card
- Probe attachments included

Specification

General technical data
Type of cable  PVC
Cable length  3 m
Display type  TFT colour display
Display size  4,5 in
Display resolution  854 x 480 pixels
Storage medium  Micro SD card
Storage capacity  8 GB
Memory capacity (additional information)  Up to 128 GB possible
Interface  USB-C
Camera resolution  1280 x 720
Camera orientation  frontal 0°
Operating time  3 h
Automatic power-off from...to  30 ... 120 min.
Camera head diameter  5,5 mm
Camera probe length  32 mm
Camera probe material  Metal
Camera probe movement  semi-rigid
Protection class camera probe  IP67
Field of vision  70 °
Depth of field of vision  30 ... 80 mm
Luminous intensity  6 LEDs
Image / video format  mp4, JPG
Frame rate  25 FPS
Menu language  English, English (GB), French, Spanish
Protection class (device)  IP67
Power supply  5V DC, 1.5 A
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  2000 mAh
Operating conditions  -10 ... 50 °C , 0 ... 85 % RH
Storage conditions  -20 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  35 x 170 x 83 mm
Weight  250 g

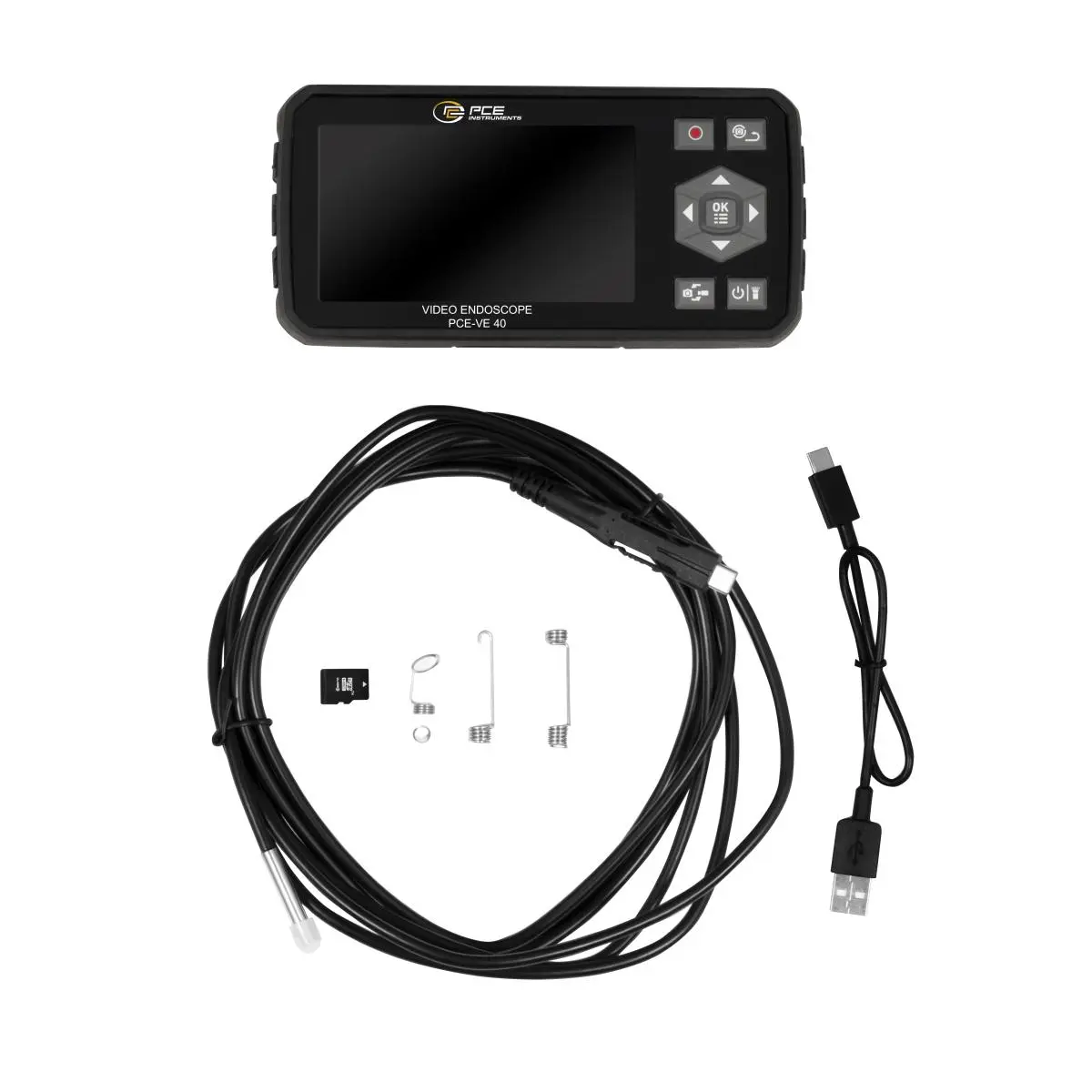

Delivery Scope

1 x Industrial Borescope PCE-VE 40
1 x 3 m PVC gooseneck camera
1 x Threaded cap for camera housing
1 x Mirror attachment
1 x Magnet attachment
1 x Hook attachment
1 x USB-C cable
1 x Equipment bag
1 x 8 GB Micro SD card
1 x operating instructions
