Industrial Borescope PCE-VE 270SV with side view camera

Industrial Borescope PCE-VE 270SV with side view camera

Order no.: PCE-VE 270SV
GTIN (EAN): 4250348722676

3.870,90 €
4.606,37 €
price ex. (VAT / delivery)
:
4250348722676
PCE-VE 270SV
Delivery time:1-2 working days
Flexible
3 mm
2 m
1600 x 1200 pixels
Video borescope
No
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)

Description

Battery-operated industrial borescope with 3 mm (0.11") diameter / For inspecting motors and machine parts / Memory / HDMI output / Various camera cables

The industrial borescope with side view camera gives you new, visual insights into the interior of motors and systems. The inspection camera is the ideal tool for maintenance and repair in workshops or industrial companies. Optical analysis with an inspection camera has never been so easy. Guide the flexible cable through a hole or a cavity near the point to be inspected and look at everything on the display from the inspection camera. Thanks to the flexible guidance, the low weight and the excellent optics, you can use this inspection camera to identify weak spots and problem areas very easily and early and thus take preventive measures without having to carry out complex disassembly first.

This industrial borescope with side view camera is extremely versatile, particularly due to the length of the flexible part (2000 mm / 6.56 ft) and the small diameter of 3 mm / 0.11". LEDs on the inspection camera illuminate the cavities. The waterproof lens and camera can also be used in liquids without hesitation. Make your daily work easier and use the inspection camera for the maintenance and inspection of your operational systems and machines. The inspection camera can be used to save images and videos for documentation on a memory card. The inspection camera can be connected to a monitor via the HDMI interface.

Highlights

- 2 m / 6.56 ft cable length
- 3 mm / 0.11" cable diameter
- Storage function on micro SD card
- LED light

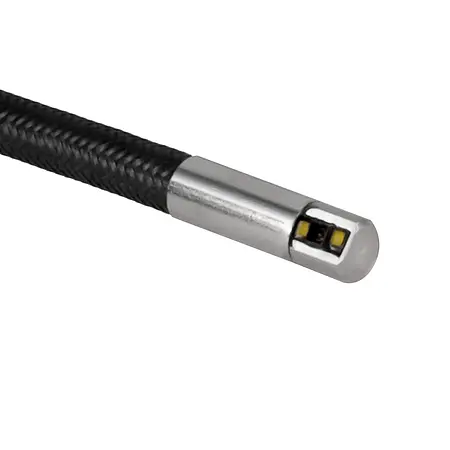

- 90° side viewing angle

Specification

General technical data
Resolution  Image: JPEG 400 x 400 px
Video: MP4 400 x 400 px
Cable length  2 m
Display type  TFT colour display
Display size  5 Inch
Display resolution  854 x 480 pixels
Storage medium  Micro SD card
Storage capacity  32 GB
Memory capacity (additional information)  SD card up to 32 GB (not included), memory options: image and video
Interface  Micro-USB, HDMI, Micro SD card
Sensor  CMOS
Camera resolution  400 x 400 pixels
Camera orientation  front: 0°
Operating time  6 h
Camera head diameter  3 mm
Camera probe movement  flexible
Protection class camera probe  IP67
Field of vision  120 °
Depth of field of vision  5 ... 50 mm
Luminous intensity  4 LEDs
Menu language  German, English, French, Chinese, Spanish, Japanese, Russian, Portuguese, Korean
Protection class (device)  IP52
Power supply  AV 100 ... 240 V | Hz 50/60
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V 18650 , Lithium-ion battery
Capacity  5200 mAh
Operating conditions  -10 ... 50 °C , 20 ... 90 % RH
Storage conditions  -10 ... 50 °C , 20 ... 90 % RH
Dimensions ( L x W x H )  200 x 130 x 58 mm
Weight  600 g

Delivery Scope

1 x Industrial borescope PCE-VE 270SV

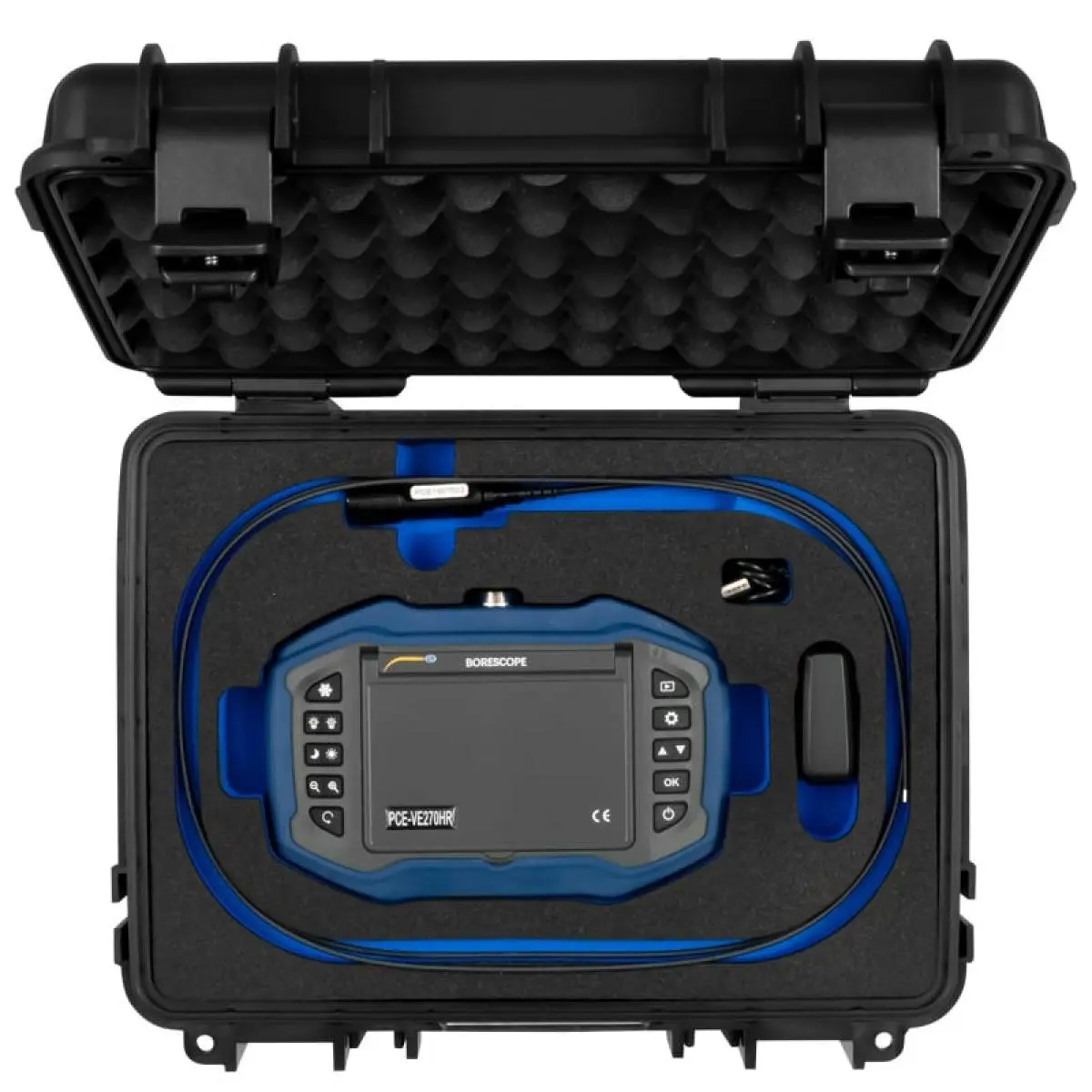

1 x Carrying case
1 x Charger
1 x HDMI cable
1 x Micro USB cable
1 x Stand
1 x Instructions
