Industrial Borescope PCE-VE 200-S

Industrial Borescope PCE-VE 200-S

Order no.: PCE-VE 200-S
GTIN (EAN): 4250348715937

569,90 €
678,18 €
price ex. (VAT / delivery)
:
4250348715937
PCE-VE 200-S
Delivery time:1-2 working days
Flexible
No
3.7 mm
1 m
1600 x 1200 pixels
Digital
No
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)

Description

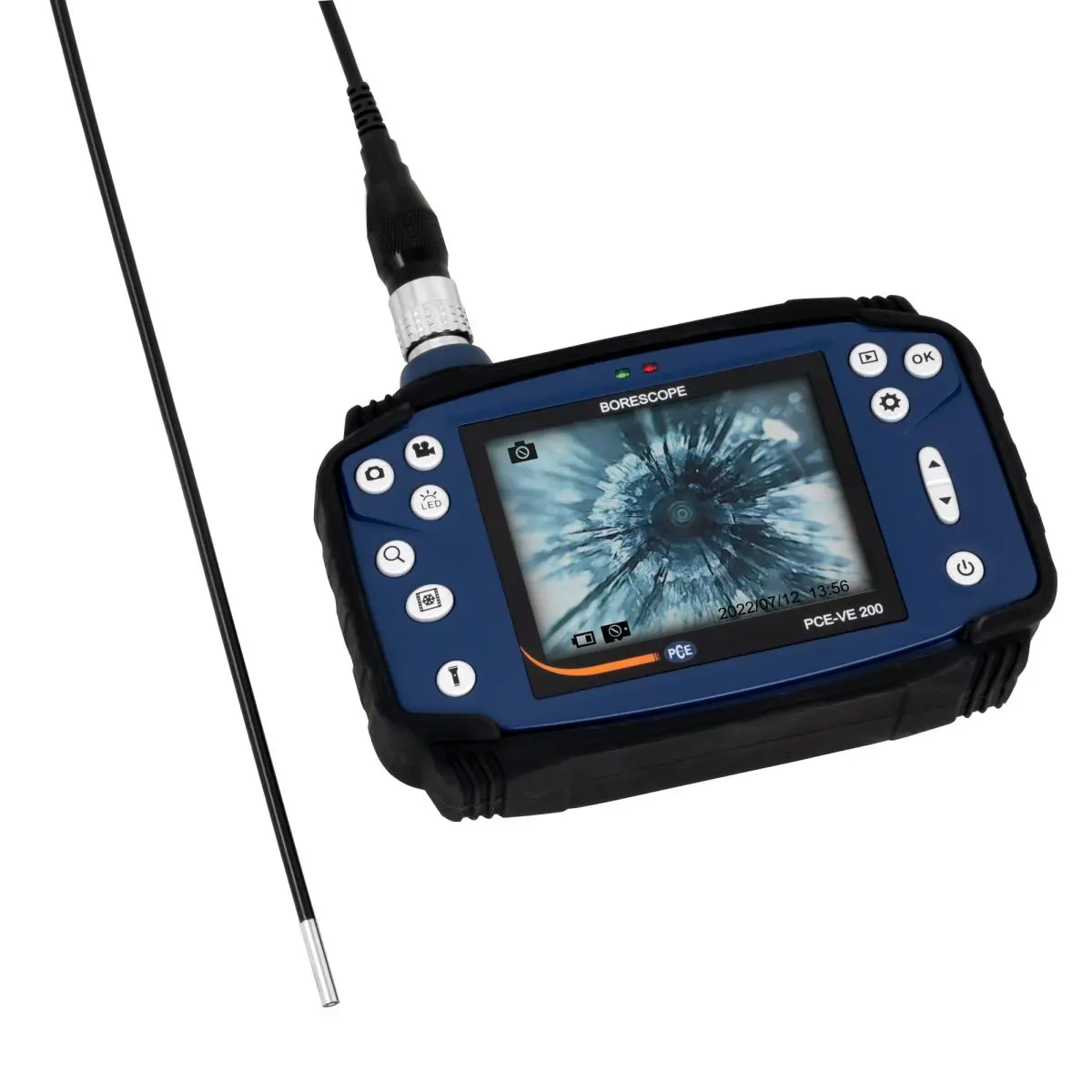

PCE-VE 200-S Industrial Borescope

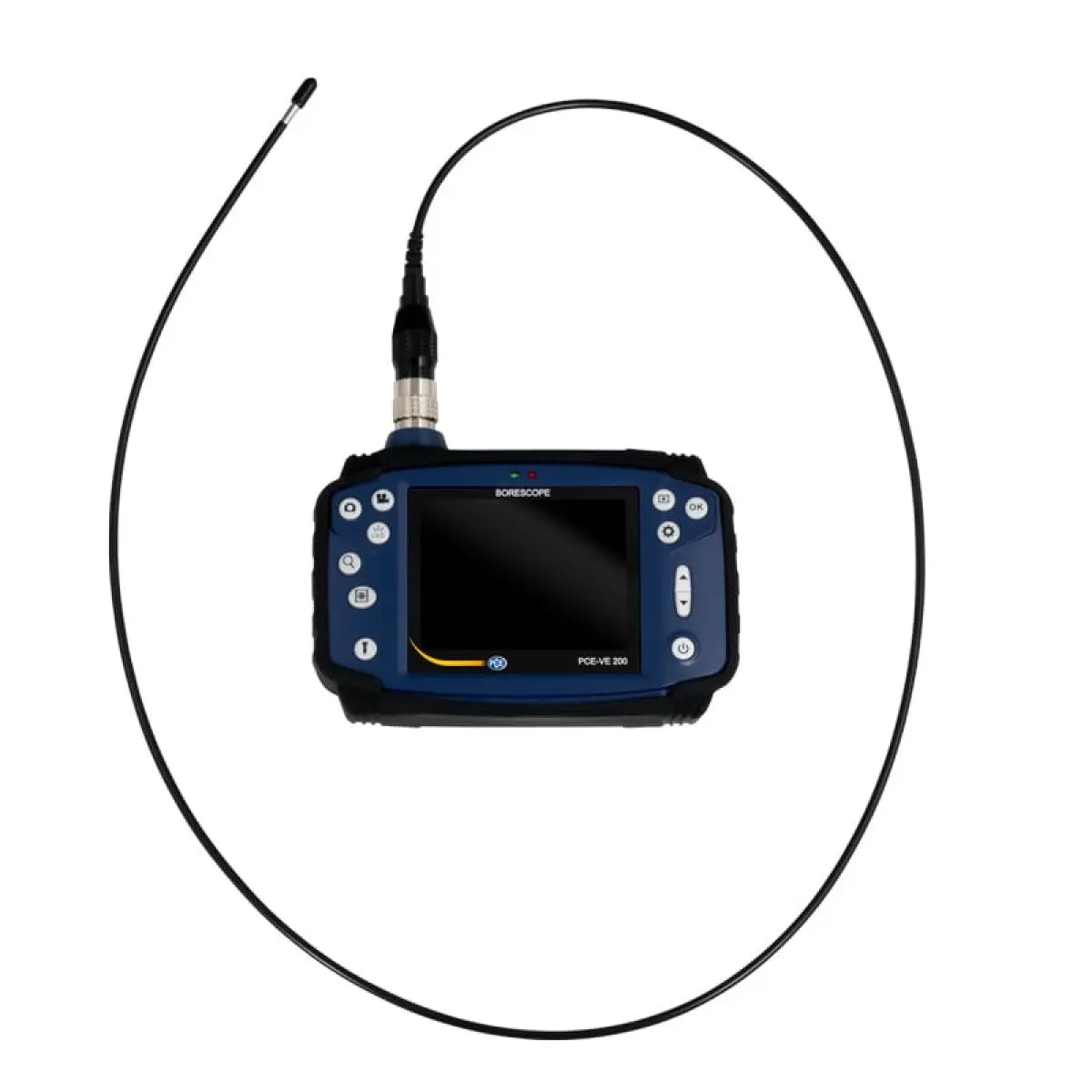

Extra small diameter (ø 3.7 mm) industrial endoscopic video inspection camera with 1 m / 3.28 ft long cable provides excellent image quality at an affordable price
PCE-VE 200-S is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

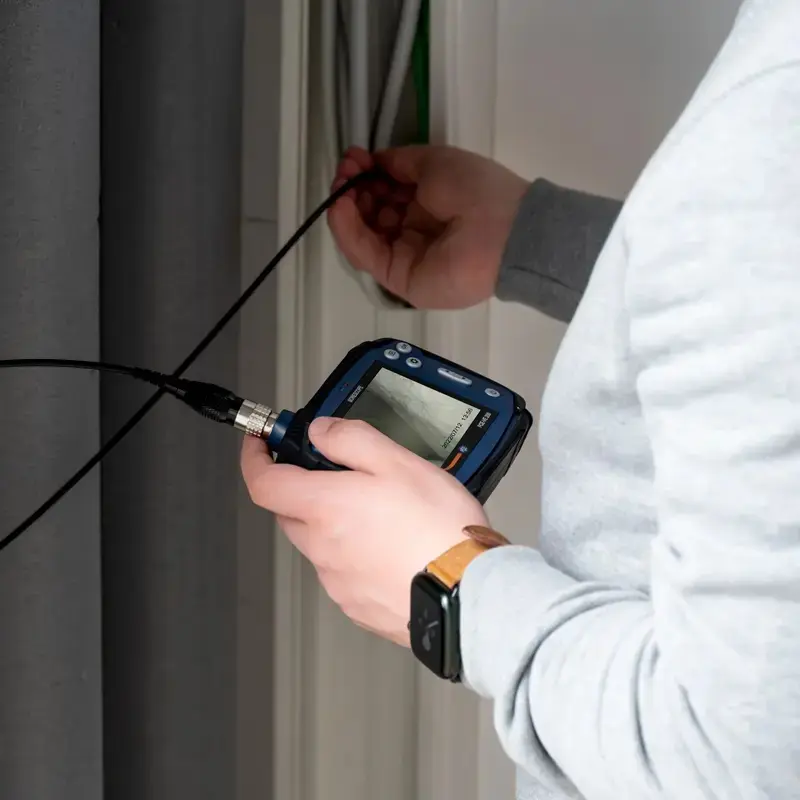

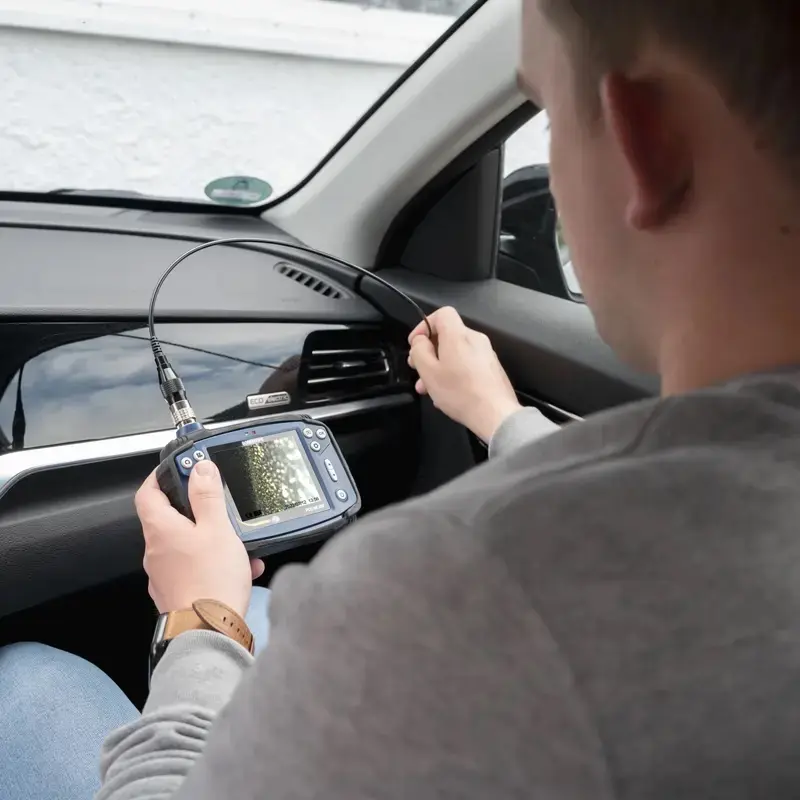

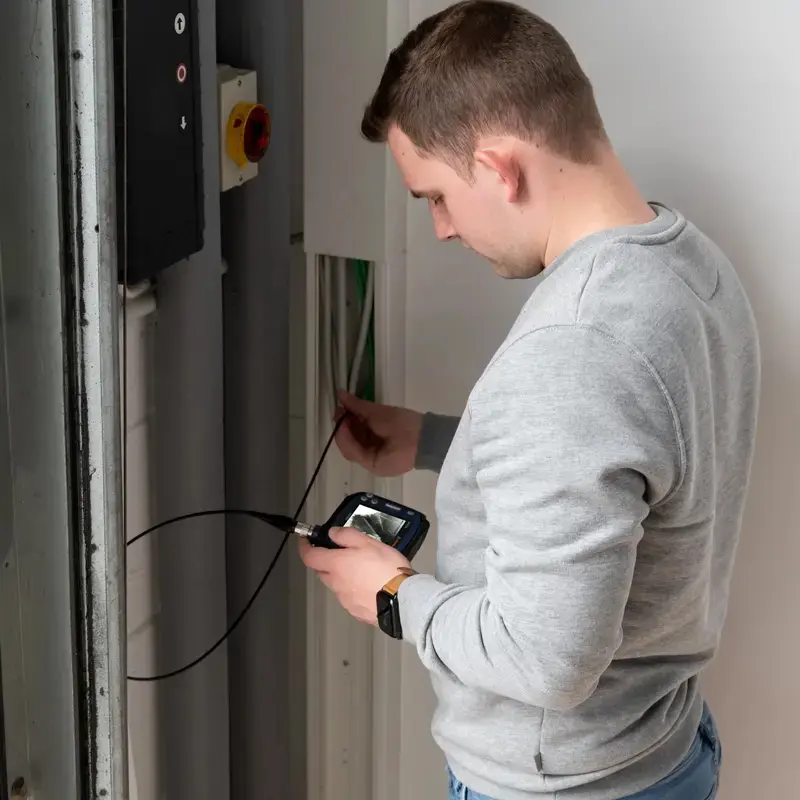

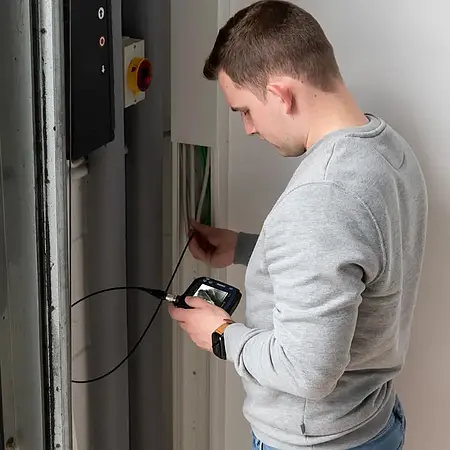

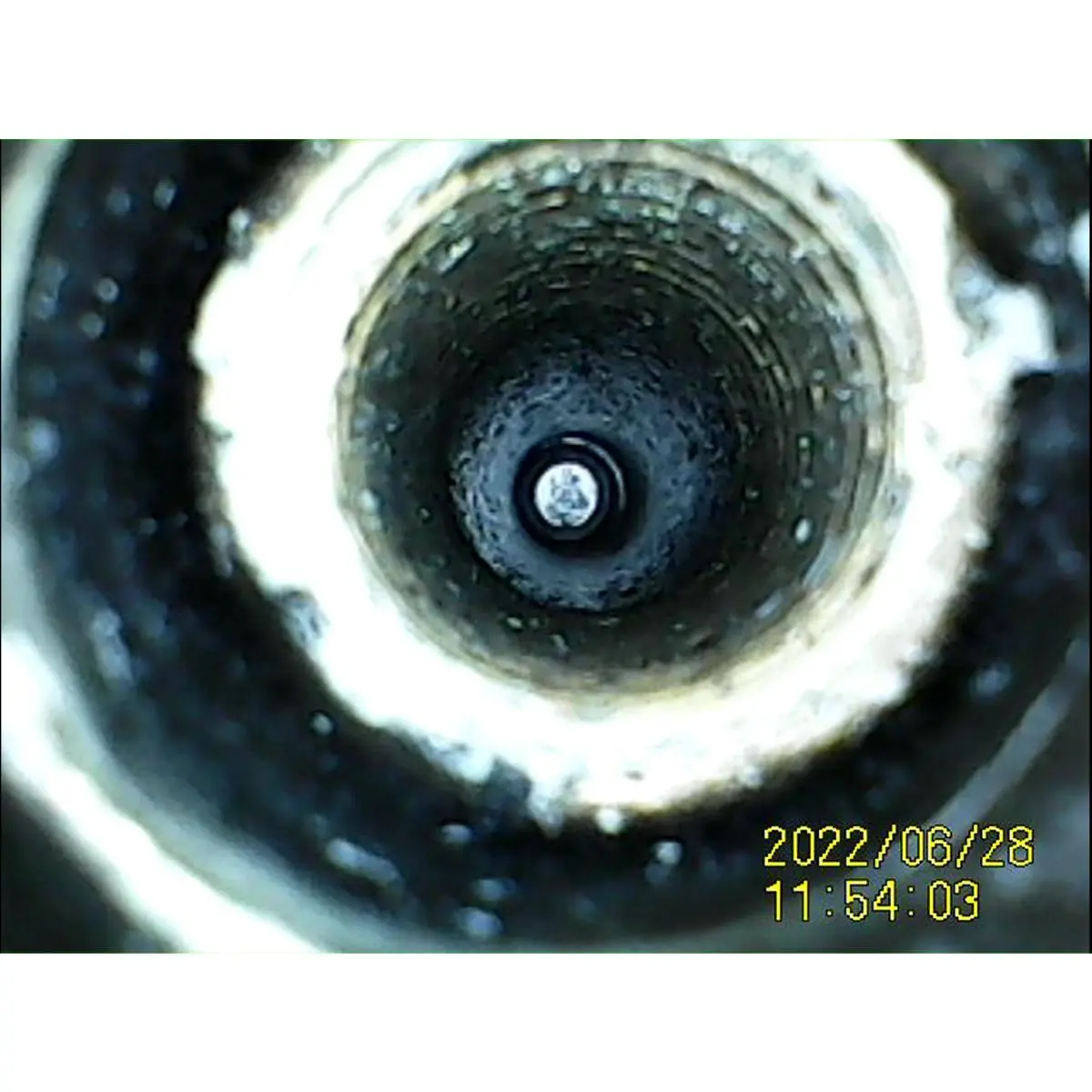

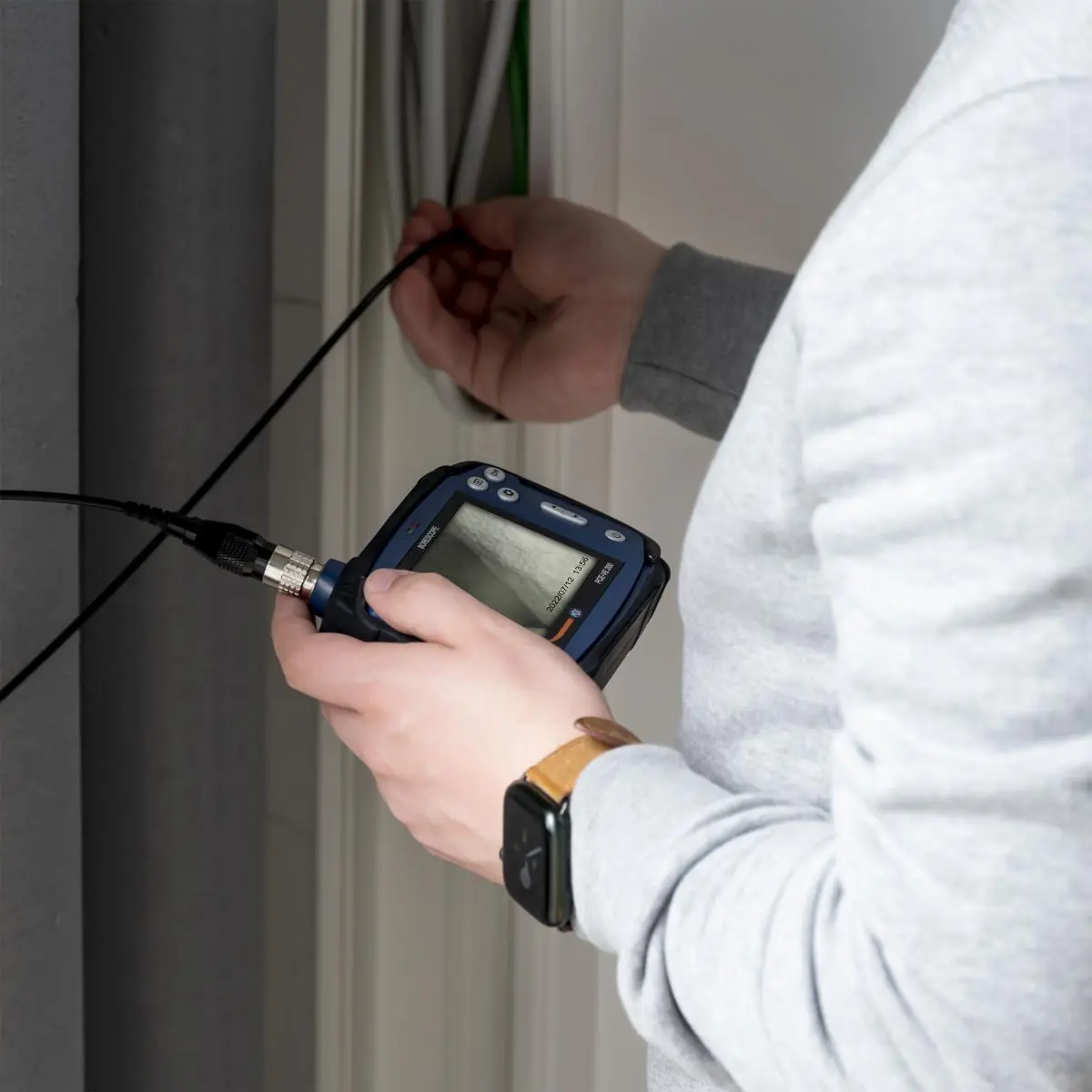

The borescope stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

Highlights

- Waterproof camera head (IP67 protection class)

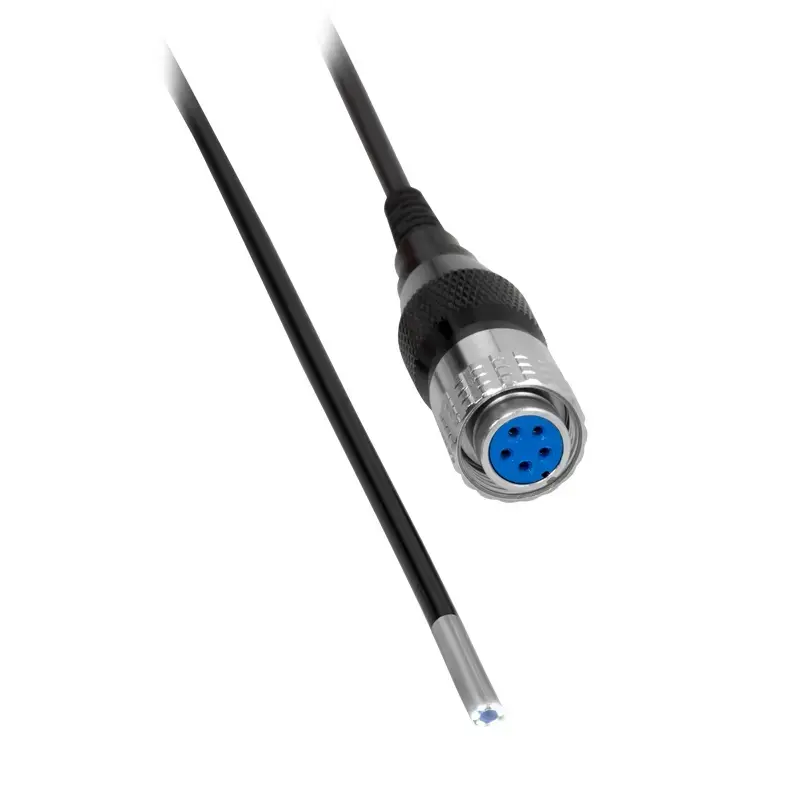

- 3.7 mm / 0.14 in diameter
- 1 m / 3.28 ft cable length
- 180° image rotation

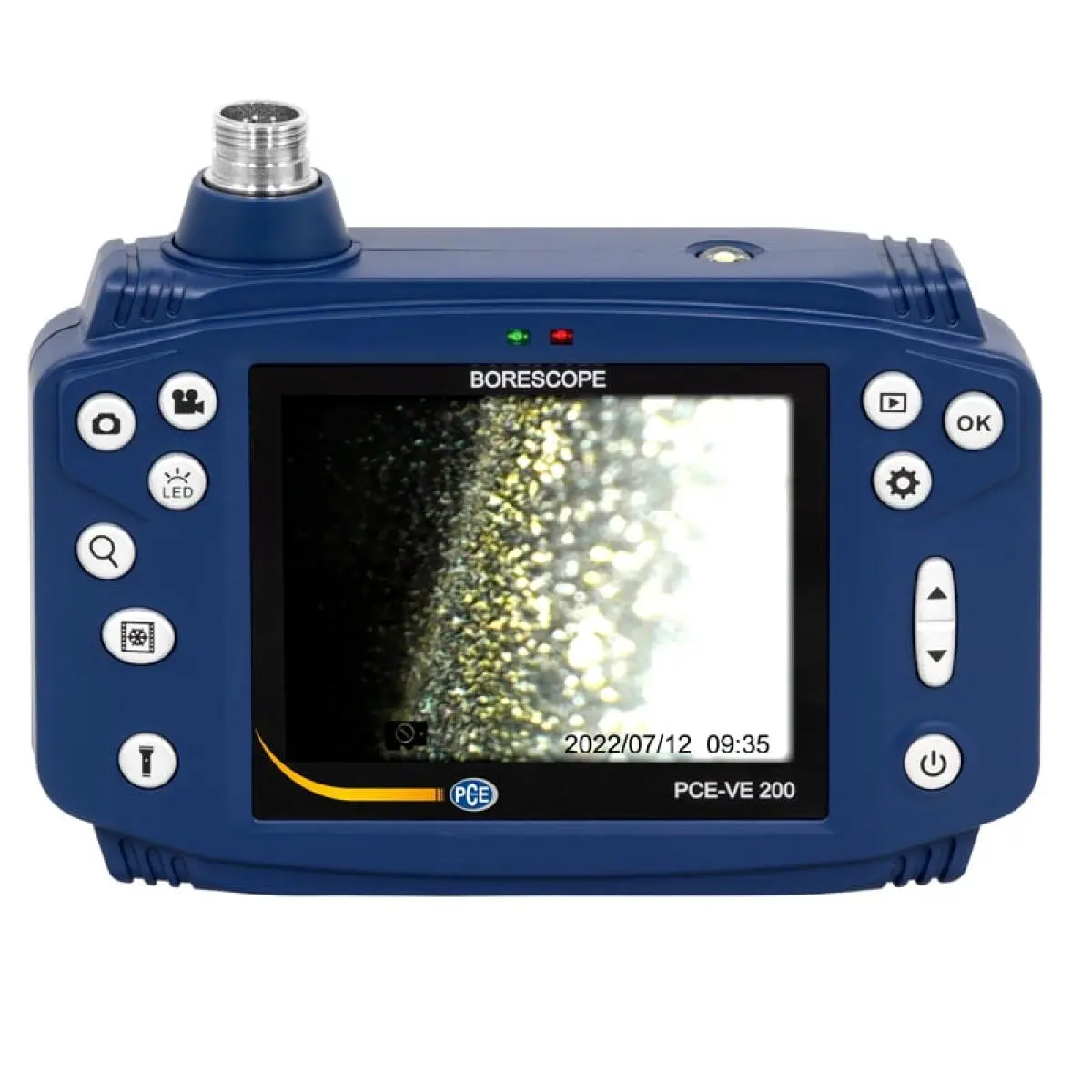

- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory

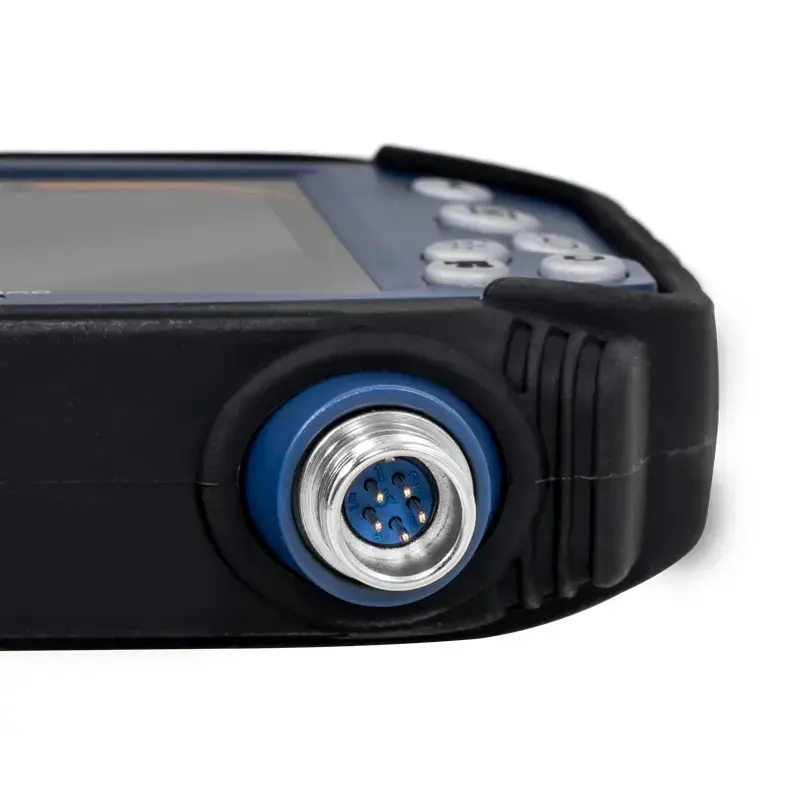

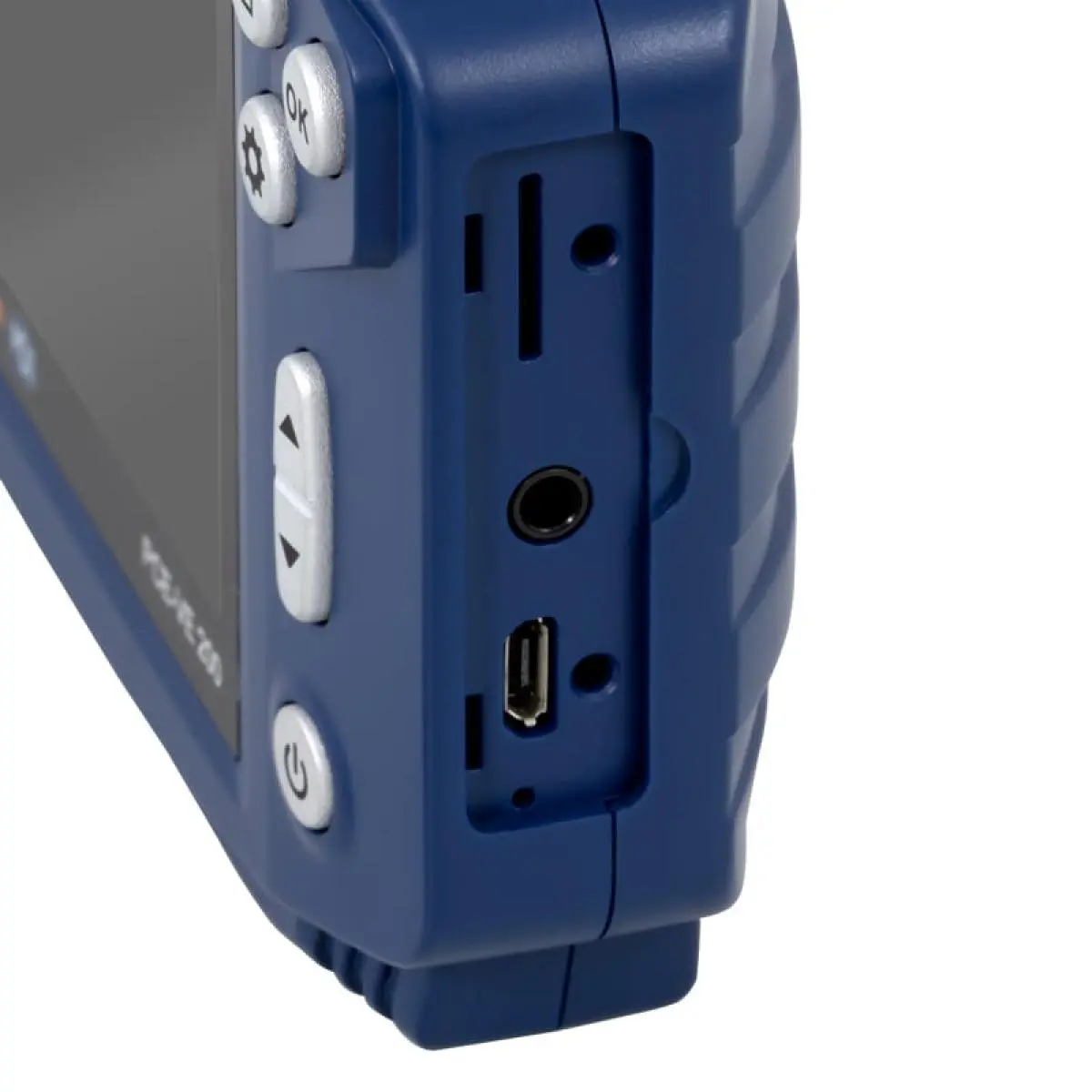

- Micro USB 2.0 and TV outputs

Specification

General technical data
Resolution  Video: AVI 640 x 480
Image: JPEG 1600 x 1200
Measuring functions (additional information)  HOLD
Display type  LCD
Display size  3,5 Inch
Storage medium  Micro SD card
Interface  Micro-USB, Micro SD card, TV output (PAL)
Sensor  CMOS
Camera resolution  640 x 480 Pixel
Camera orientation  frontal 0°
Operating time  5 h
Camera head diameter  3,7 mm
Camera probe length  1 m
Camera probe movement  semi-rigid
Protection class camera probe  IP67
Field of vision  90 °
Depth of field of vision  15 ... 100 mm
Luminous intensity  6 white LEDs (intensity adjustable)
Menu language  German, English, Chinese, French, Spanish, Japanese, Russian
Protection class (device)  IP54
Power supply  AC 100 ... 240 V | Hz 50/60
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V 18650 , Lithium-ion battery
Capacity  2600 mAh
Operating conditions  -10 ... 50 °C , 15 ... 90 % RH
Storage conditions  -10 ... 50 °C , 15 ... 90 % RH
Dimensions ( L x W x H )  110 x 145 x 38 mm
Weight  354 g

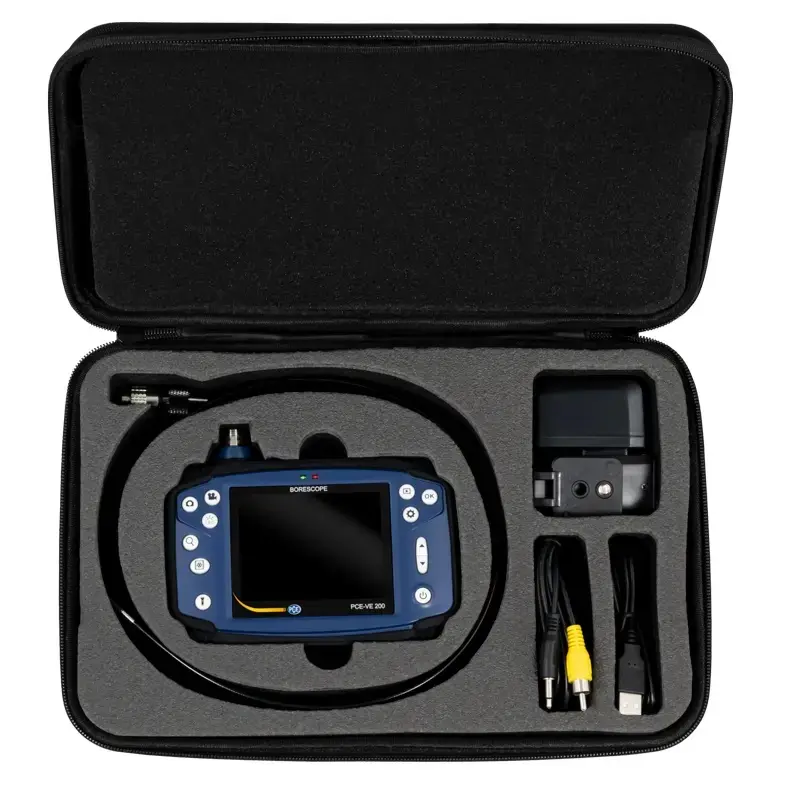

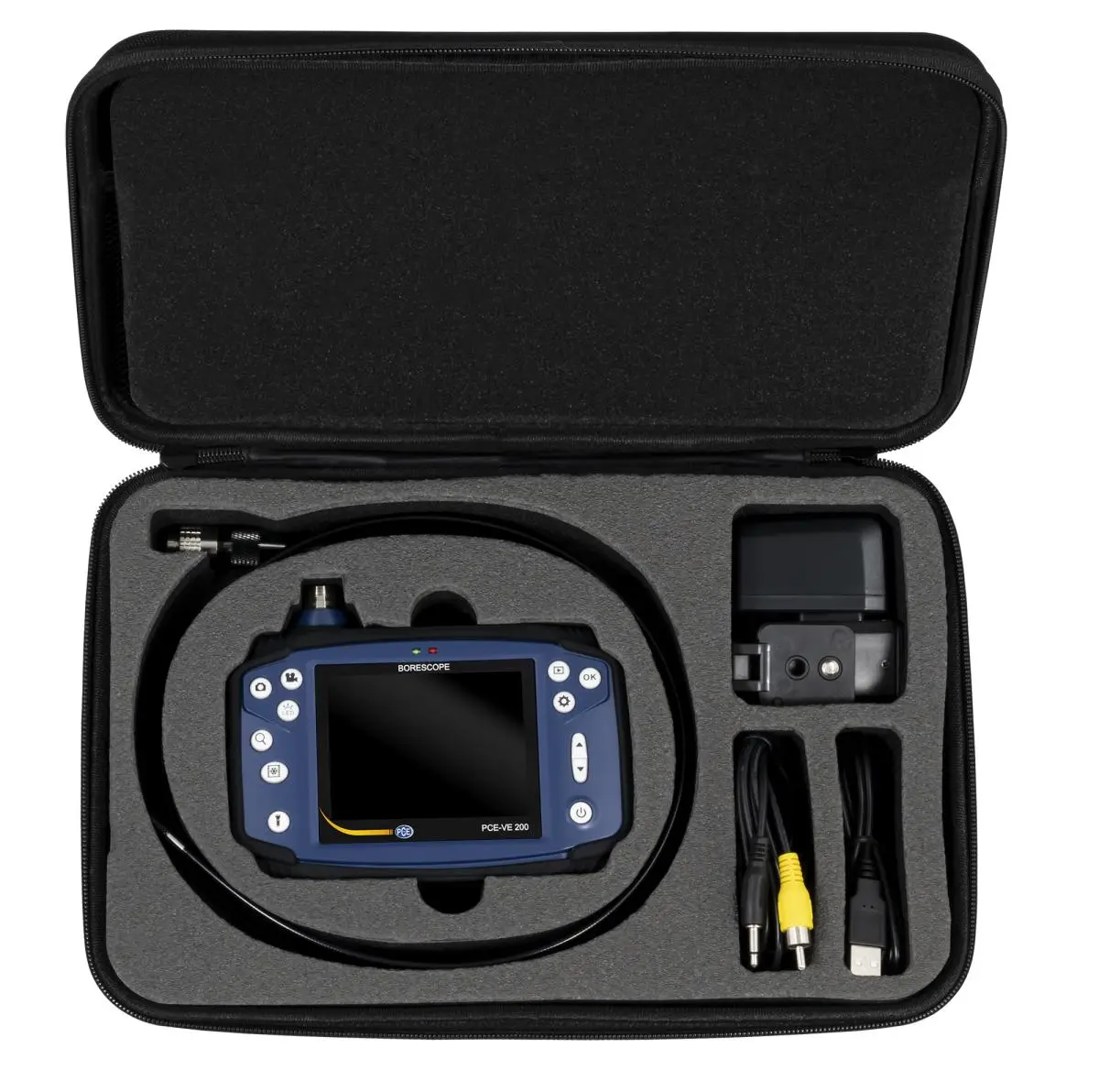

Delivery Scope

1 x PCE-VE 200-S Industrial Borescope
1 x Wall charger with detachable USB to Micro USB cable
1 x Video output cable
1 x User manual
