PCE-VE 180 Industrial Borescope
LED illumination / MicroSD memory / Detachable remote control display / 3.9 mm (.16 in) small diameter waterproof camera head / 1 m (3.28 ft) cable length

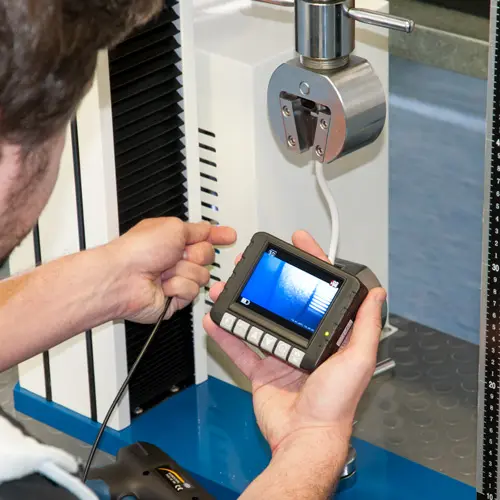

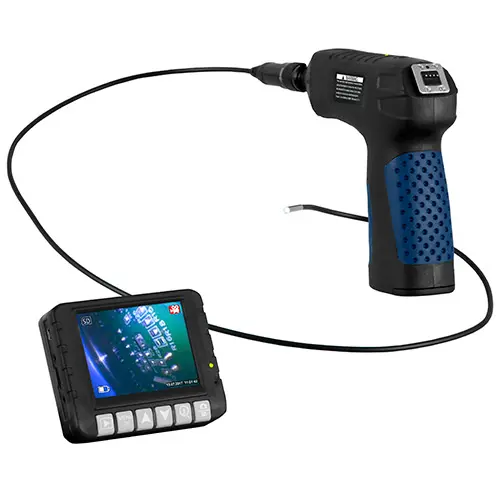

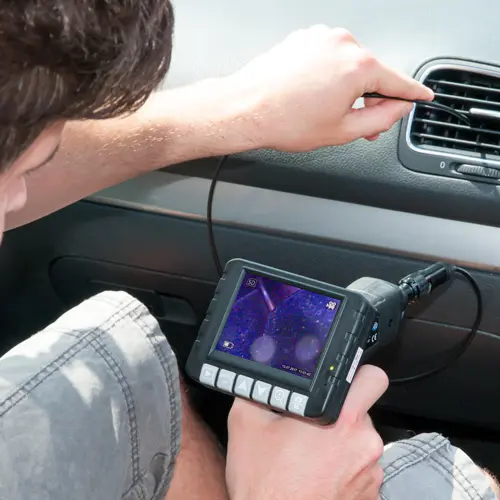

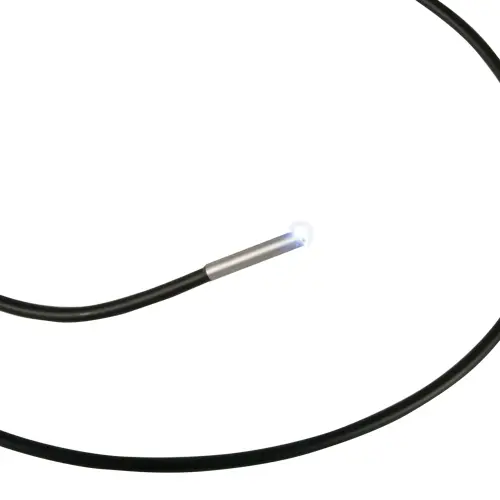

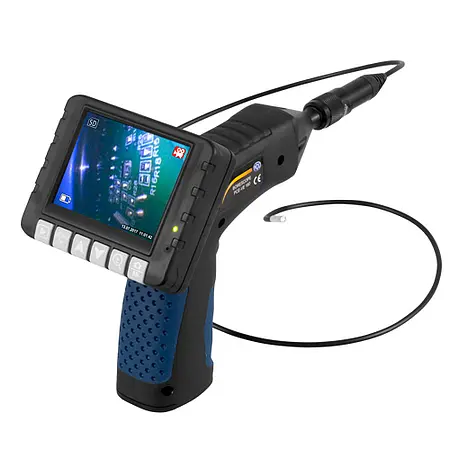

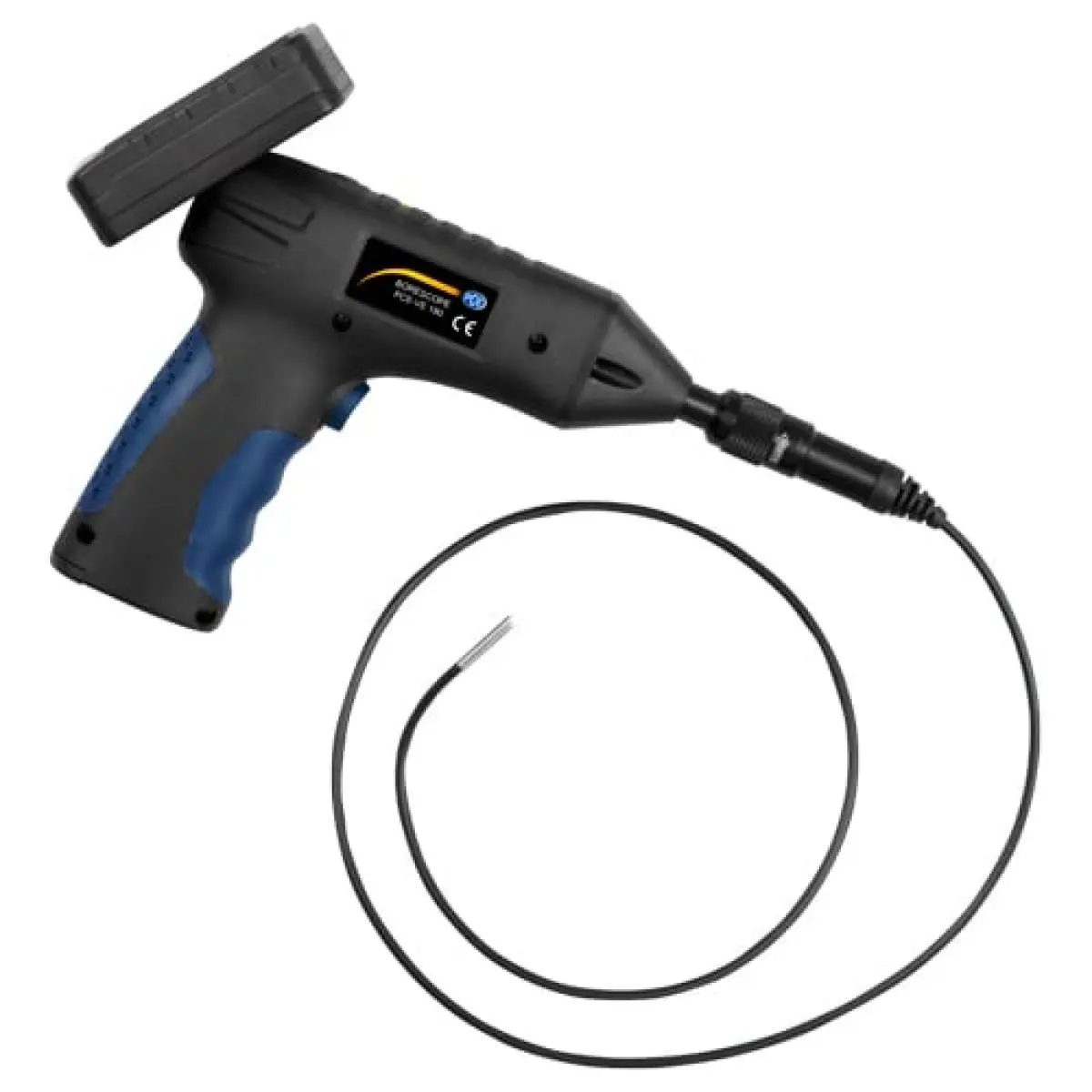

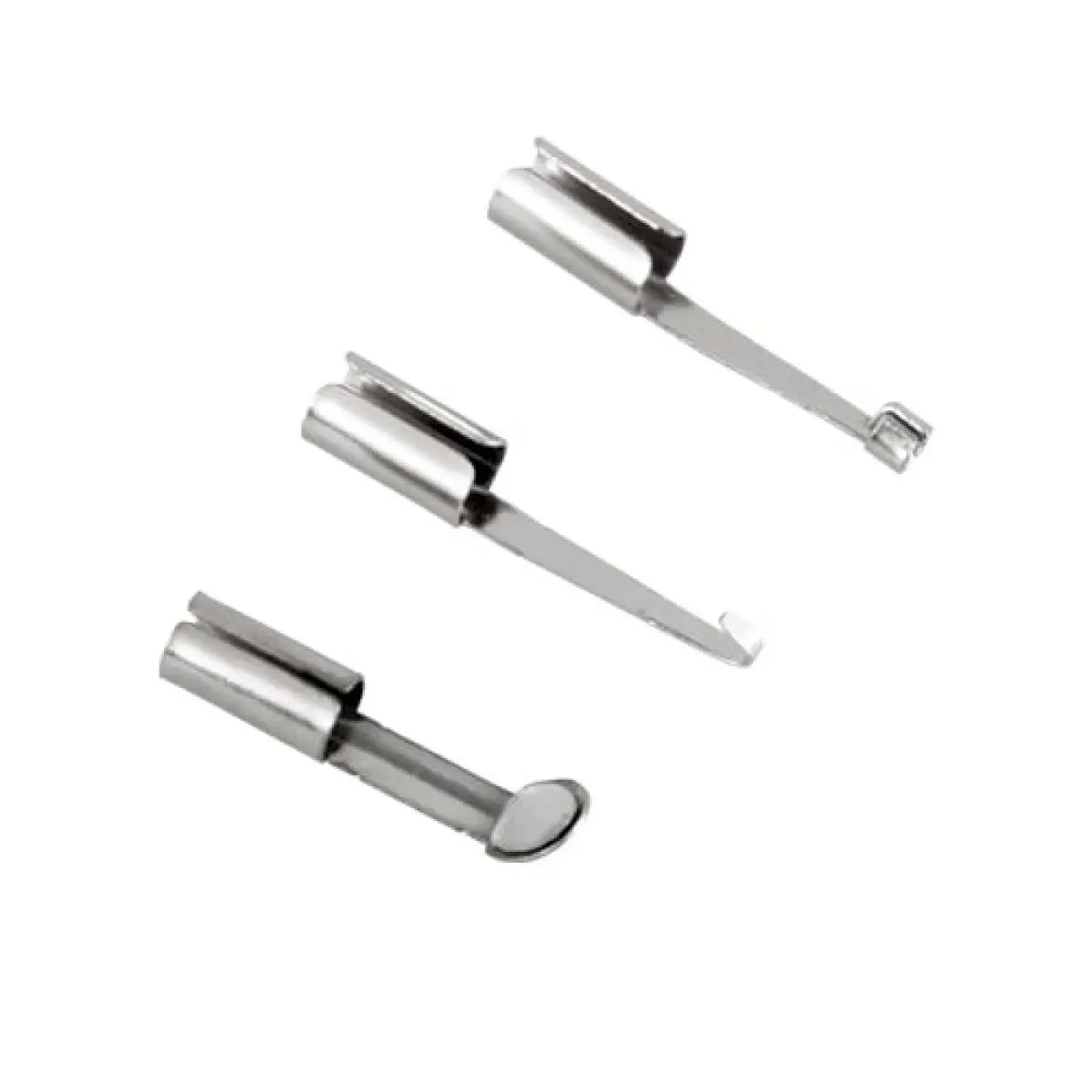

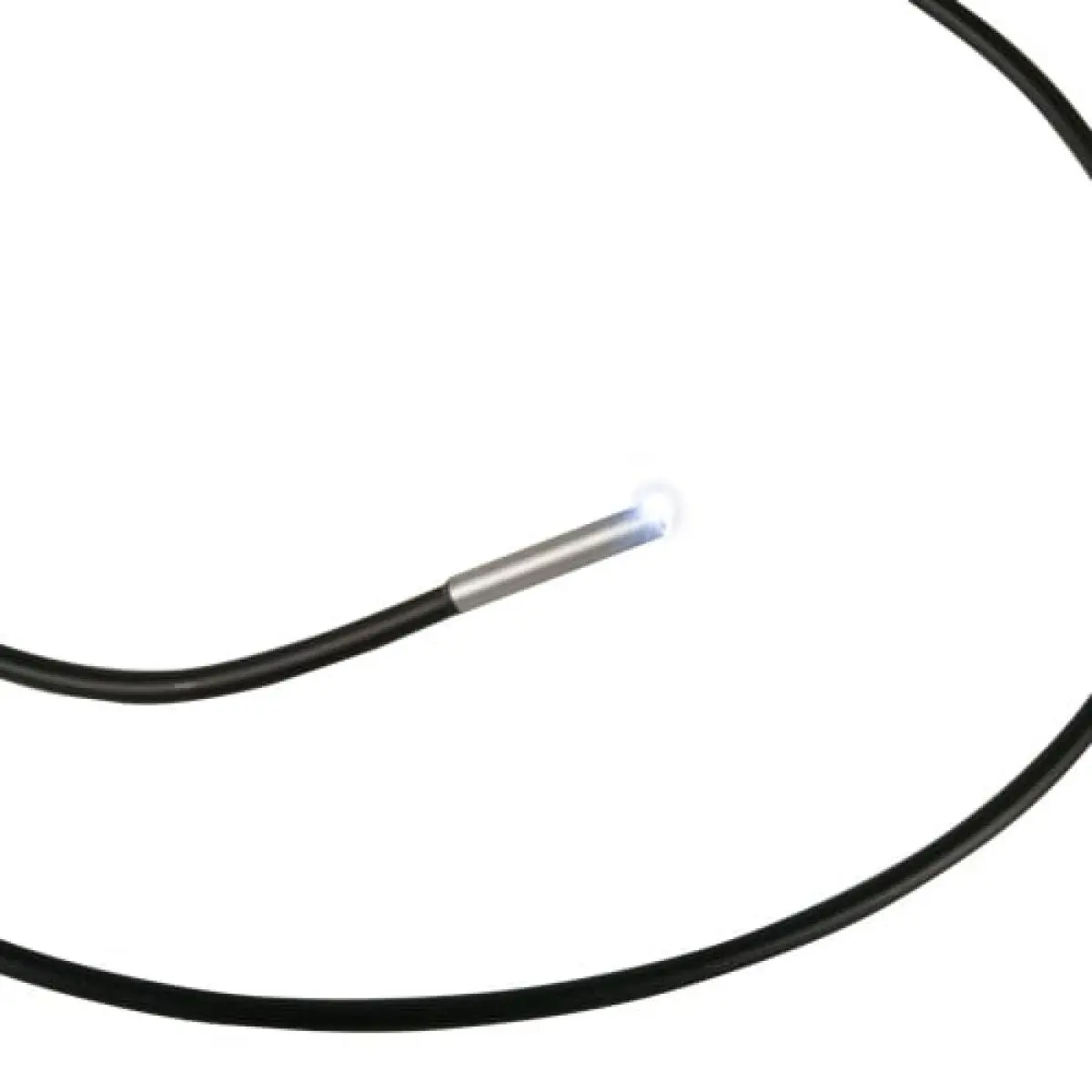

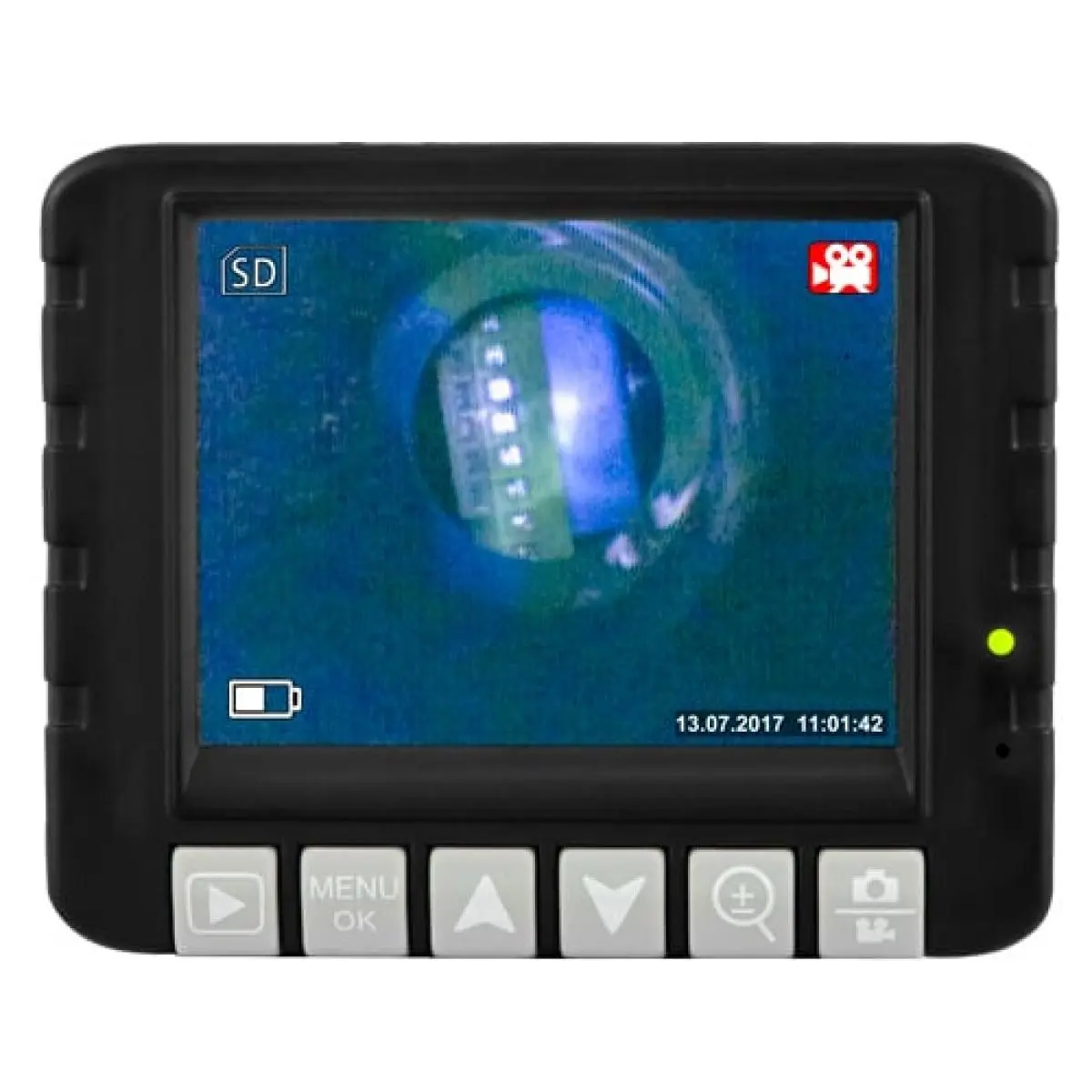

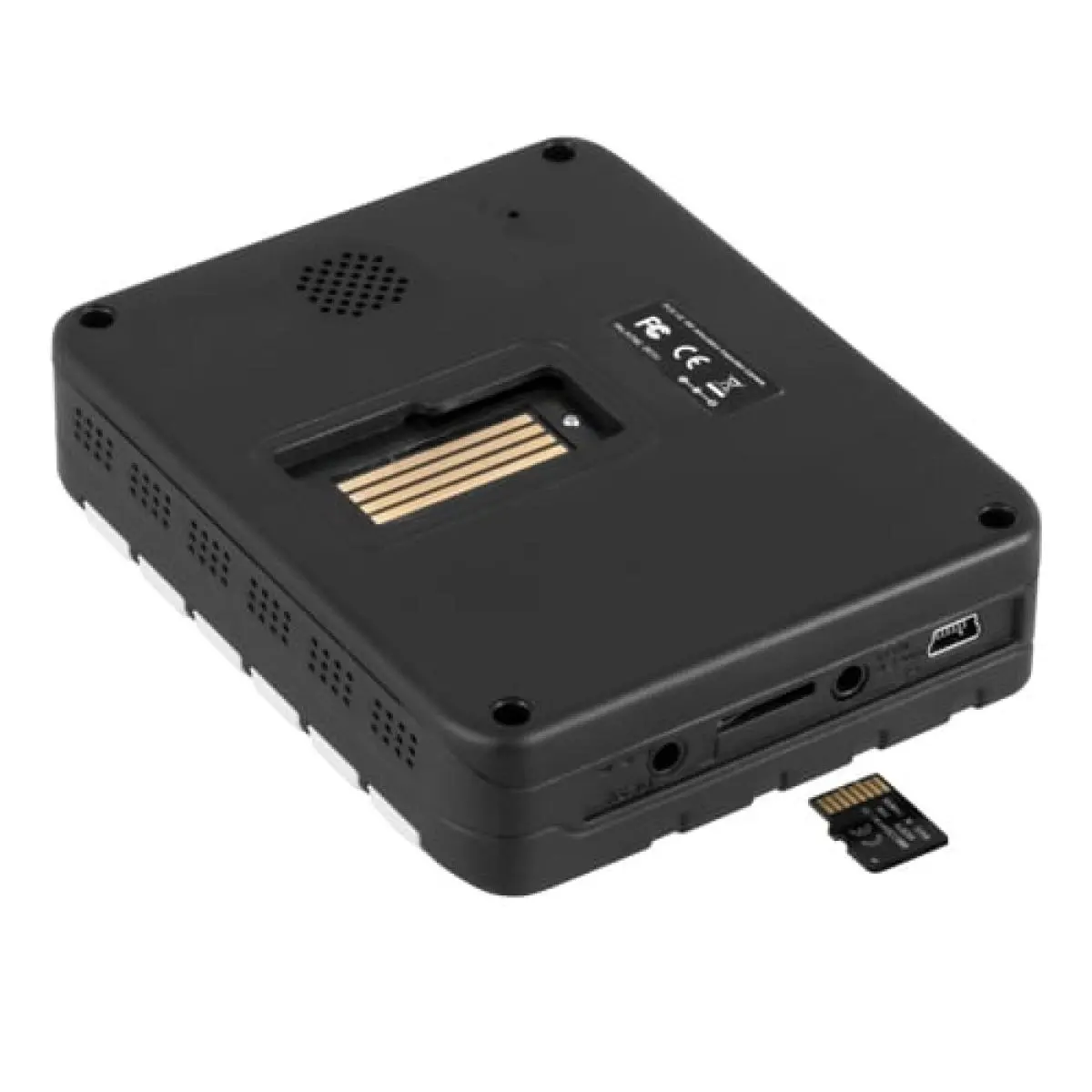

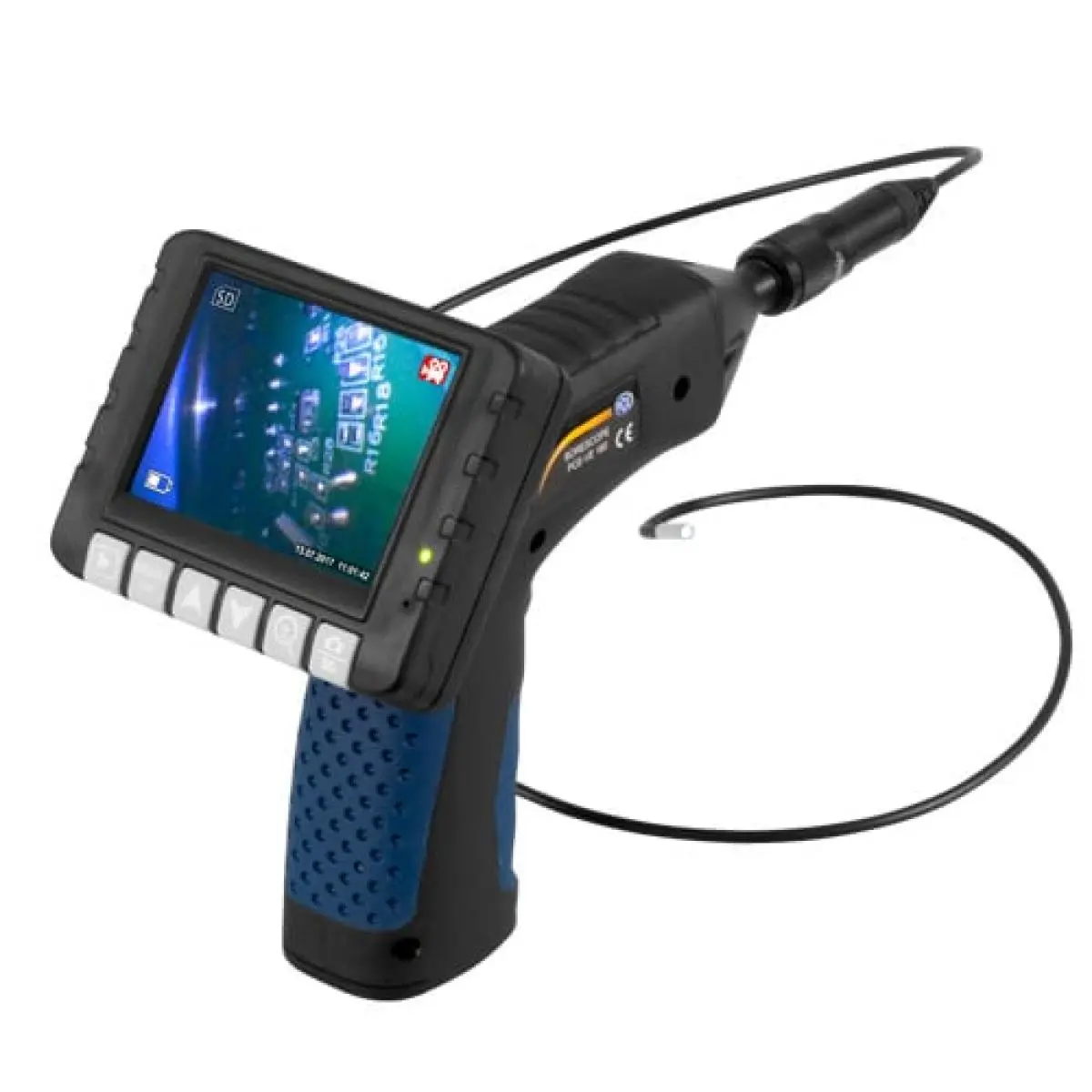

PCE-VE 180 is a rechargeable handheld pistol-grip industrial borescope inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the PCE-VE 180 industrial borescope features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz. The industrial borescope is powered by a rechargeable battery that allows for up to 3 hours of continuous use. Recorded images and videos are saved to a MicroSD memory card with a capacity of up to 32 GB. The semi-flexible gooseneck cable of the borescope has a small diameter of just 3.9 mm / .16 in for insertion into tiny cavities. An IP67 ingress protection rating protects the borescope's camera head against dust and water, allowing for use in adverse conditions. The borescope comes with three different attachments: a 90° angle mirror for viewing side walls and around corners, as well as a hook and a magnet for pulling parts out of cavities.
***Not for medical use***
| General technical data | |
| Resolution | 640 x 480 pixels (interpolated) |
| Cable length | 1 m |
| Display type | TFT colour display |
| Display size | 3,5 Inch |
| Display resolution | 640 x 480 pixels |
| Storage medium | Micro SD card |
| Storage capacity | 32 GB |

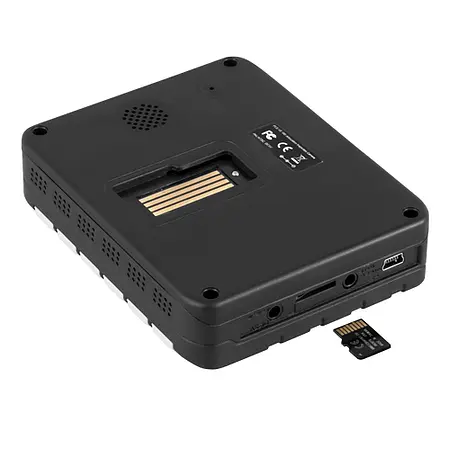

| Memory capacity (additional information) | 8 GB micro SD card included, SD card up to a maximum of 32 GB, memory formats: images: JPG / BMP / video format: AVI |
| Interface | Mini-USB, Micro SD card |
| Camera orientation | frontal 0° |
| Operating time | 3 h |
| Automatic power-off | 10 min |
| Camera head diameter | 3,9 mm |
| Camera probe movement | semi-rigid |
| Protection class camera probe | IP67 |
| Field of vision | 60 ° |
| Depth of field of vision | 30 ... 80 mm |
| Luminous intensity | 2 LEDs |
| Menu language | English, French, German, Italian, Spanish, Portuguese, Chinese, Japanese, Russian, Dutch, Danish, Polish, Czech, Hungarian, Swedish, Norwegian |
| Protection class (device) | IP20 |
| Power supply | AC 100 ... 240 V | Hz 50/60 |
| Connector type | Device-europlug |
| Capacity | 1600 mAh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 88 x 100 x 25 mm |
| Other dimensions | Handheld: 140 L x 190 W x 40 H |
| Weight | 173 g |
| Other weights | Handheld with probe: 285 g |
