Illuminometer PCE-170 A-ICA

Illuminometer PCE-170 A-ICA incl. ISO Calibration Certificate

Order no.: PCE-170 A-ICA
GTIN (EAN): 4250348724748
350,90 €
417,57 €
price ex. (VAT / delivery)
:
4250348724748
PCE-170 A-ICA
Delivery time:5-7 working days
Internal
No

Description

PCE-170 A-ICA Illuminometer with Built-In Sensor incl. ISO Calibration Certificate
Light Meter for fast and accurate measurement of light / Measurement range from 0.00 to 40,000 lux / Silicon photodiode sensor / Large 5-digit LCD display / Immediate and accurate response / Selectable manual or automatic range

The PCE-170 A Illuminometer is well-known for its durability as well as its good quality at a good price. The PCE-170 A Illuminometer has a wide measurement range. Thanks to its fast response time and compact housing you can use this meter with just one hand. The PCE-170 A Illuminometer can be used even by inexperienced personnel. With the PCE-170 A Illuminometer you will be able to perform a professional valuation. The PCE-170 A Illuminometer can be widely used within the industrial sector. For example, it is possible to check light conditions in workplaces, warehouses, industries and apartments with the PCE-170A Illuminometer. In addition, emergency escape routes can be tested with the PCE-170A Illuminometer for proper illumination.

The PCE-170 A Illuminometer is an irreplaceable instrument to prevent occupational hazards and it meets professional standards. Workplaces will become safer and you will save expenses. Latest research has discovered that too little as well as too much illumination in a workplace can be harmful for humans. You can also check illumination at home, in your dining-room for instance. The digital PCE-170 A Illuminometer  measures in Lux units (lumen/m² or lumen/foot²). This solid and portable PCE-170 A Illuminometer provides very accurate results and comes with a zero-reset function when it is on. It also has a sensor with a response curve for all the visible spectrum. Light is measured by means of a silicon photodiode independently from the extension and direction of the light source. With the ease of use and rapid measurement methods, the device quickly becomes a familiar tool, and an inseparable part of the working day.


Highlights

- Large 5-digit LCD display
- Measurement range from 0.00 to 40,000 lux
- Resolution of 0.01 lux in a range up to 39.99 lux
- Sensor: silicon photodiode
- Corrected cosine angle
- HOLD function
- Fast and accurate response
- Auto shut-off after 30 min.
- 1 x 9V battery and carrying case
- Selectable units: lx and fc (fc = footcandle; 1 fc=10,764 lx)
- Selectable manual or automatic range
- Auto reset to zero

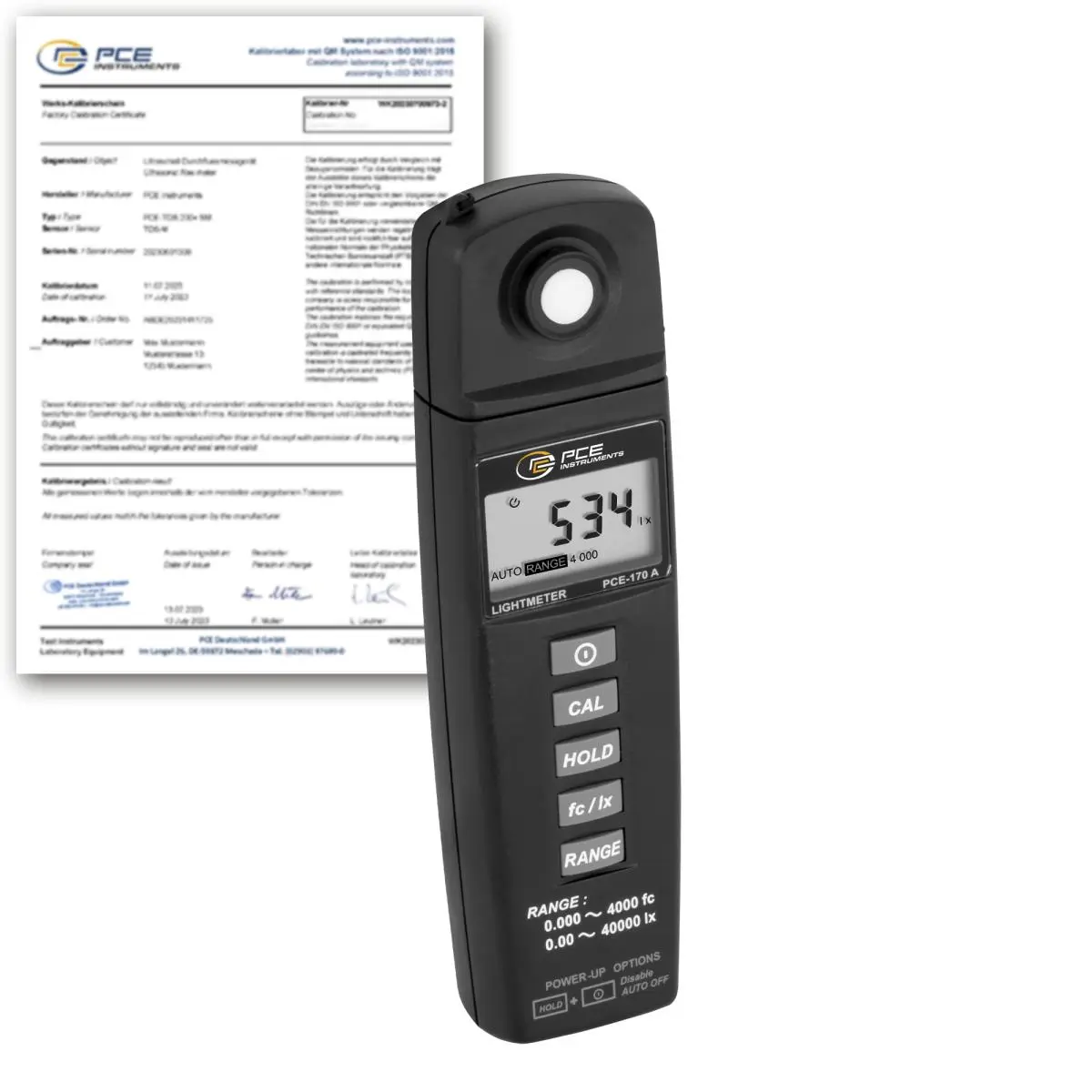

- incl. ISO-Calibration Certificate

Specification

Light
Measuring range  0 lx ... 40 klx
Resolution  0,01 lx
Accuracy  ±10 % of Rd +5 digits (corresponds to class B / DIN 5032 part 7)

Light
Measuring range  0 fc ... 4 kfc
Resolution  0,001 fc
Accuracy  ±10 % of Rd +5 digits (corresponds to class B / DIN 5032 part 7)

General technical data
Units  lx, FC
Display type  LCD
Measuring rate  2 Hz
Classification  Class B
Standard(s)  DIN 5032-7
Operating time  170 h
Measurement range selection  Manual, Automatic
Measurement range selection additional information  0.00 bis 39.99 / 399.9 / 3999 / 39990 lx
0.000 bis 3.999 / 39.99 / 399.9 / 3999 fc
Operating height  2000 m max. above sea level
Menu language  English
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 40 °C , 0 ... 90 % RH
Storage conditions  -10 ... 50 °C , 0 ... 70 % RH
Dimensions ( L x W x H )  196 x 54 x 34 mm
Weight  150 g

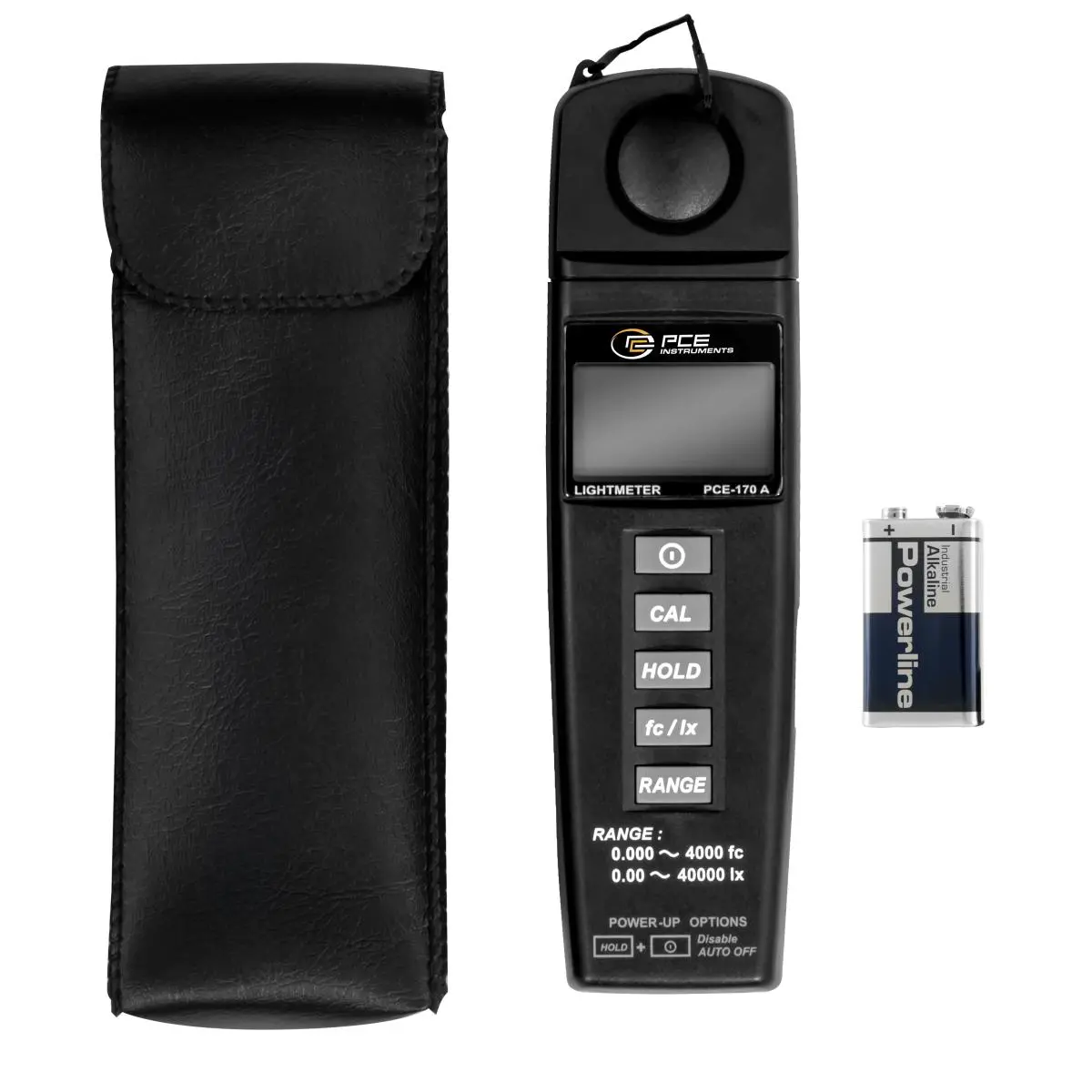

Delivery Scope

1 x PCE-170 A-ICA Illuminometer
1 x 9V battery
1 x Carrying case
1 x User manual
1 x ISO-Calibration Certificate
