304,90 €
| Differential pressure | ||
| Measurement range | 0 bar . ... +15 bar | |
| Resolution | 0,01 bar | |
| Accuracy | 0,5 % v. Mb. | |
| Dew point | ||
| Measurement range | -100 °C ... +50 °C | |
| Resolution | 0.1 °C | |
| Dew point | ||
| measurement range | 0 °C . .. +20°C | |
| Resolution | 0.1°C | |
| Accuracy | ± 1°C | |
| Dew point | ||
| measurement range | -60 °C . .. +50 °C | |
| Resolution | 0.1 °C | |
| Accuracy | ± 2°C | |
| Dew point | ||
| measuring range | -100 °C . .. -60 °C | |
| Resolution | 0.1 °C | |
| Accuracy | ± 3°C | |
| Temperature | ||
| measuring range | -30 °C . .. +50 °C | |
| Resolution | 0.1 °C | |
| Accuracy | ± 0.3 °C | |
| General technical data | ||
| Measurement functions | Average value, dew point forecast | |
| Units | °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm. | |

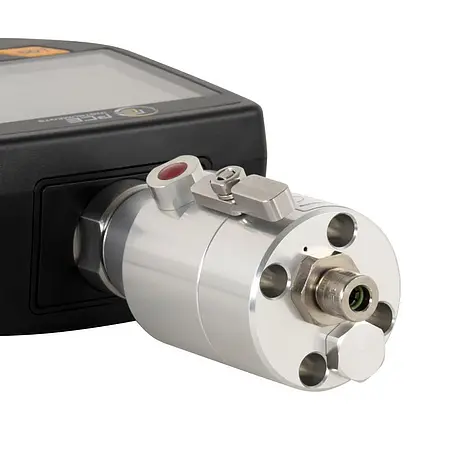

| Connections | G1/2" with 6mm quick coupling | |
| Display size | 3, 5 inch | |
| Display refresh rate | 1 x per second | |
| Storage medium | Internal memory | |
| Storage interval of | 1 s | |
| Storage interval up to | 60 s | |
| Storage capacity | 100 million values | |
| Other functions | PDF Export | |

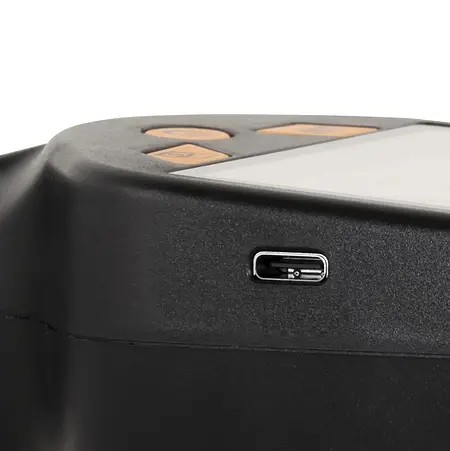

| Interface | USB- C | |
| Standard(s) | ISO8573- 1 | |
| Current consumption measuring device | 400 mA DC | |
| Response time | 1 s | |
| Measuring medium | Air, Nitrogen, Argon, Carbon Dioxide, Oxygen | |
| Camera resolution | 5 Megapixel | |
| Operating time | 8 h | |
| Operating time Additional information | Charging takes approx. 3h. | |
| Automatic shutdown adjustable | 10 ... 60 min. | |
| Menu language | English, German, French, Spanish, Chinese, Korean, Japanese | |
| Protection class (device) | IP30 | |
| Power supply | 5V DC 3 A (via USB C) | |
| Weight | 775 g | |
| Device weight with delivery | 2, 83 kg | |
| device weight with scope of delivery and outer packaging. outer packaging | 2,93 kg | |
| Dimensions (L x W x H) | 310 x 100 x 60 mm | |
| Other dimensions | PTFE hose 1, 5 m with 6mm quick coupling | |
| Operating conditions | 0 . .. 80 % RH | |
| Storage conditions | 0 ... 40 °C , 0 ... 80 % RH | |
| Instruction languages | German, English | |
| Battery | 3500 mAh, 3,7 V | |
