134,90 €

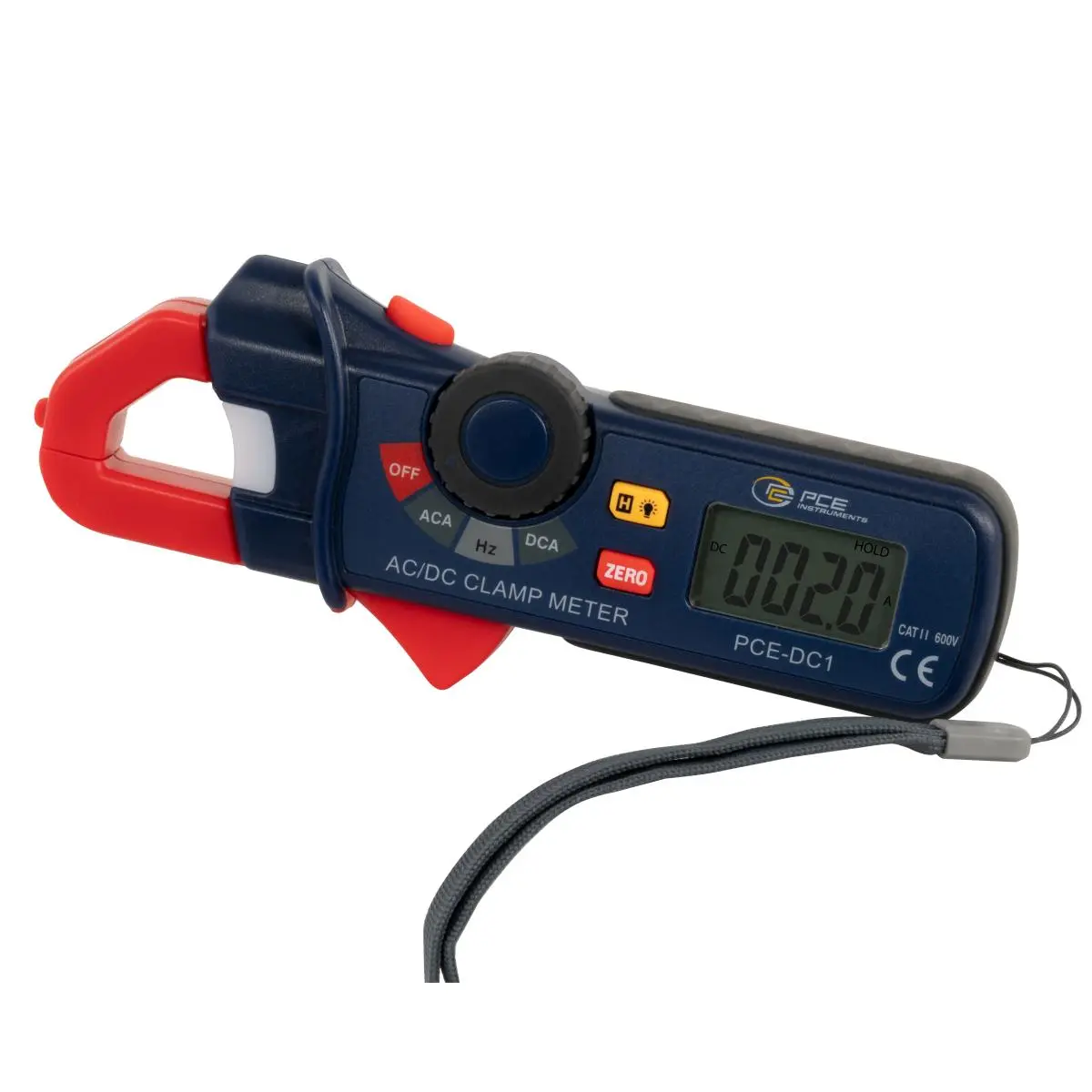

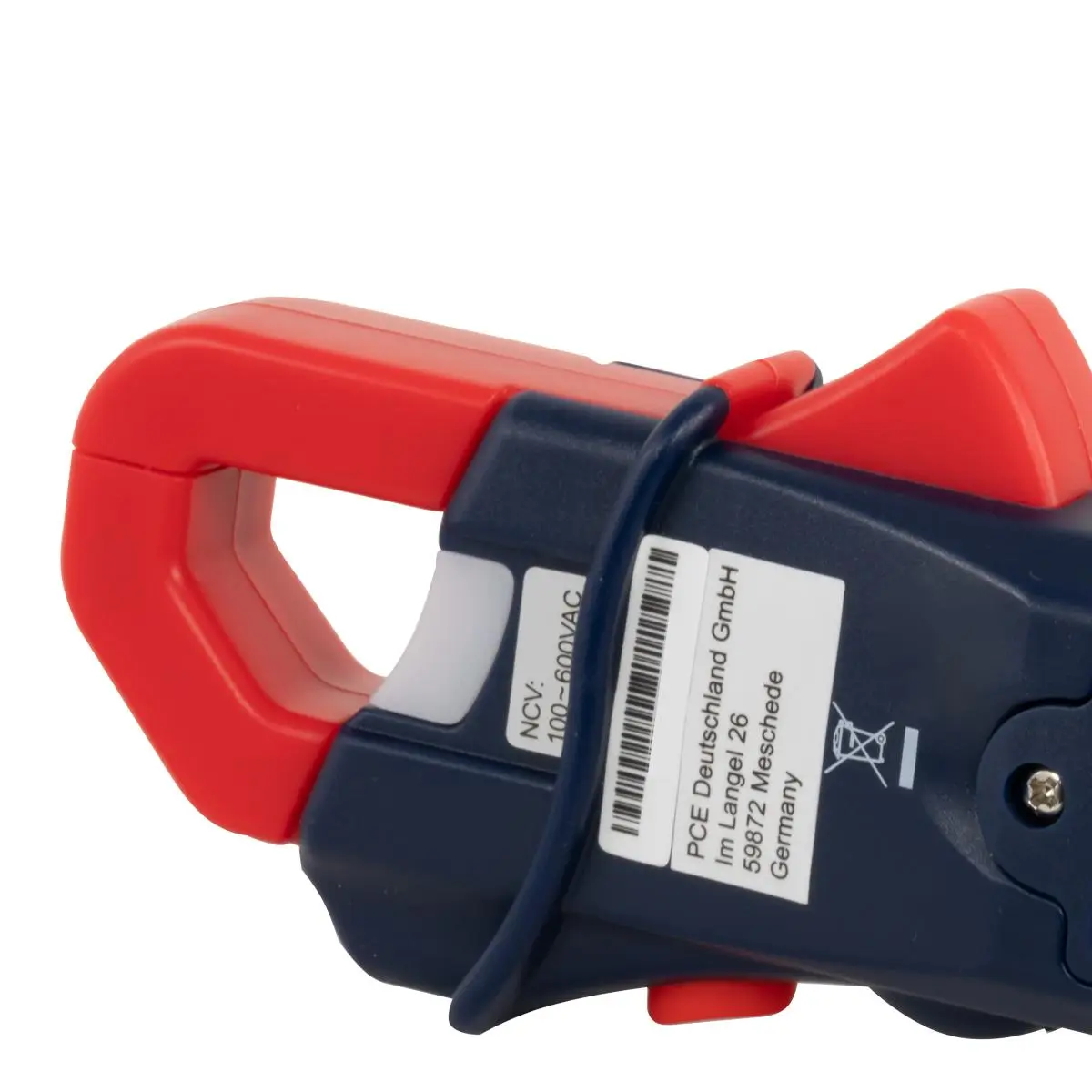

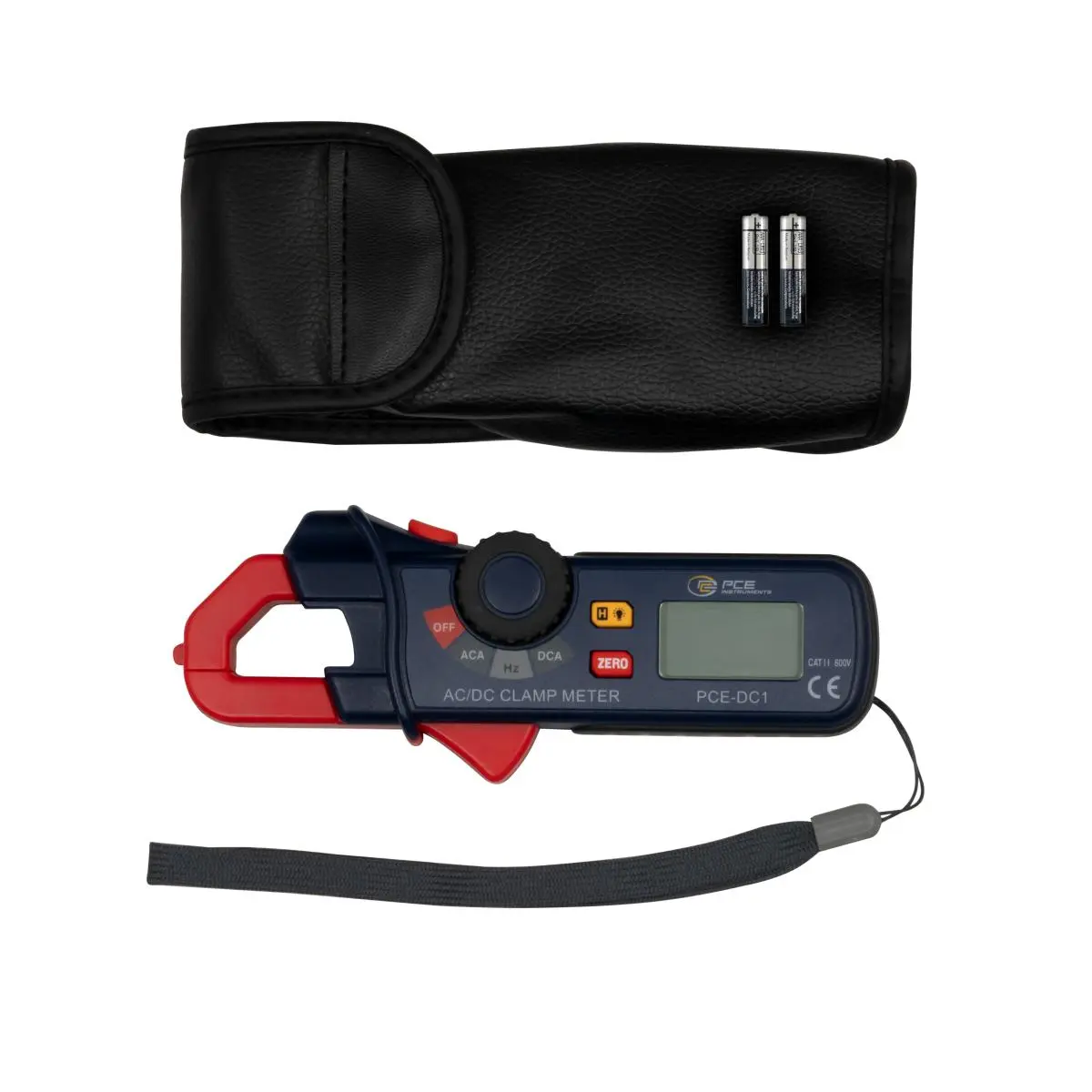

The HVAC Meter has been designed to detect, indirectly, AC/DC current and frequency. The HVAC Meter has a white LED integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this HVAC Meter allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it makes it easier to detect the location of cuts in power lines.
| Direct current DC | |
| Measuring range | 0 ... 200 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.8% of reading +8 digits) |
| Alternating current AC | |
| Measuring range | 0 ... 200 A |
| Resolution | 0,1 A |
| Accuracy | ±(3 % of Rd +8 digits) |
| Frequency | |
| Measuring range | 40 ... 50 Hz |
| Resolution | 0,01 Hz |
| Accuracy | ±(1.2 % +5 digits) |
| Frequency | |
| Measuring range | 51 ... 510 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±(1.2% +3 Digits) |
| Frequency | |
| Measuring range | 0,51 ... 1 kHz |
| Resolution | 0,001 kHz |
| Accuracy | ±(1.2% +3 Digits) |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 1,4 in |
| Standard(s) | EN 61010-1, EN 61010-2-032 |
| Maximum cable diameter | 18 mm |
| Automatic power-off | 7 min |
| Housing | PVC |
| Safety standard | CAT II / 600V |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 30 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 30 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 155 x 66 x 31 mm |
| Weight | 155 g |
