The HVAC Meter / HVACR Tester can measure material thicknesses of up to 300 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to save the corresponding sound velocity in the HVAC Meter / HVACR Tester. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sound velocities are already saved in the device library. This means that the HVAC Meter / HVACR Tester can be used universally.
Individual maximum and minimum values can be saved using the HVAC Meter / HVACR Tester's limit value function. If the measured value of the sample is outside the limits, the HVAC Meter / HVACR Tester signals this visually. If required, the HVAC Meter / HVACR Tester can also provide an acoustic signal in addition to the visual display. The HVAC Meter / HVACR Tester is therefore used, for example, in quality assurance and incoming goods inspection.
The HVAC Meter / HVACR Tester has a data memory in which the measured values can be recorded. After a measuring procedure, the saved readings can be analysed directly in the HVAC Meter / HVACR Tester. The saved data is displayed as a graph on the HVAC Meter / HVACR Tester. In addition, each individual measuring point can be approached and read in the graph of the HVAC Meter / HVACR Tester. To simplify the analysis of the measured values, the average, the highest and lowest measured values are displayed on the HVAC Meter / HVACR Tester. The HVAC Meter / HVACR Tester can optionally be supplied with an ISO calibration certificate.
| Material thickness | |
| Measurement range up to | 1,2 ... 99,99 mm |
| Resolution | 0,01 mm |
| Accuracy | ±0.5 % of Rd +0.05 mm |
| Material thickness | |
| Measurement range up to | 100 ... 300 mm |
| Resolution | 0,1 mm |
| Accuracy | ±0.5 % of Rd +0.05 mm |

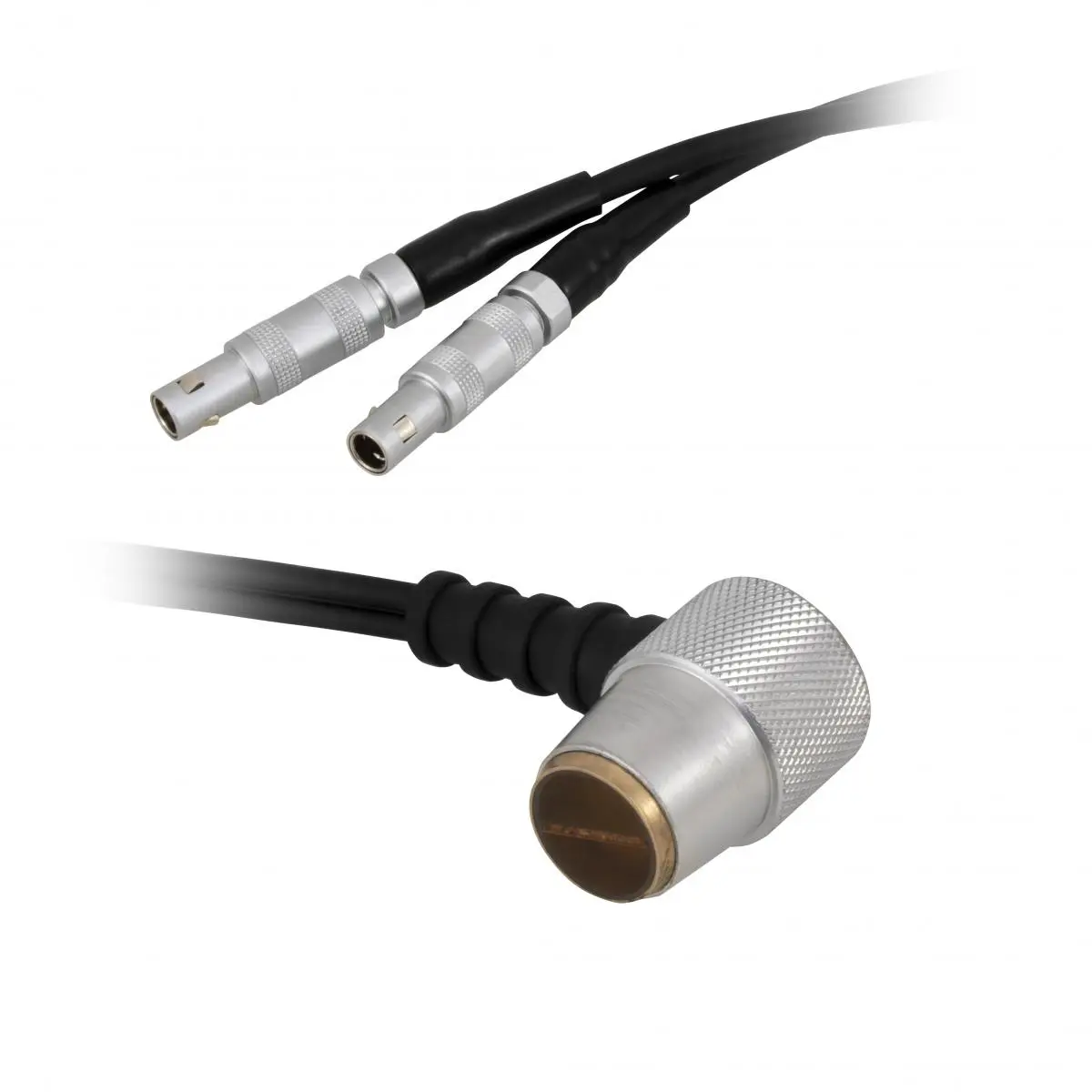

| Sensor | |
| Designation | PCE-TG 2.5M |
| Frequency | 2.5 MHz |
| Temperature range | -10 ... 60 °C |
| Measurable materials | Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials |
| Minimum diameter of pipes | 50 mm |
| Dimension | Ø 12 mm x 28.3 mm |
| Additional description | Thickness measurement of cast materials |
| General technical data | |
| Units | mm |
| Display type | TFT colour display |
| Display size | 2,4 Inch |
| Storage medium | Internal memory |
| Storage capacity | 1500 Values |
| Automatic power-off from...to | 2 ... 30 min. |
| Automatic power-off can be deactivated | Yes |
| Adjustable sound velocity | 1000 ... 9999 m/s |
| Menu language | English, Chinese |
| Protection class (device) | IP52 |
| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 168 x 87 x 35 mm |
| Weight | 230 g |
