HVAC Meter / HVACR Tester PCE-RVP 220

HVAC Meter / HVACR Tester PCE-RVP 220

Order no.: PCE-RVP 220
GTIN (EAN): 4250348738967
170,90 €
203,37 €
price ex. (VAT / delivery)
:
4250348738967
PCE-RVP 220
Delivery time:1-2 working days

Description

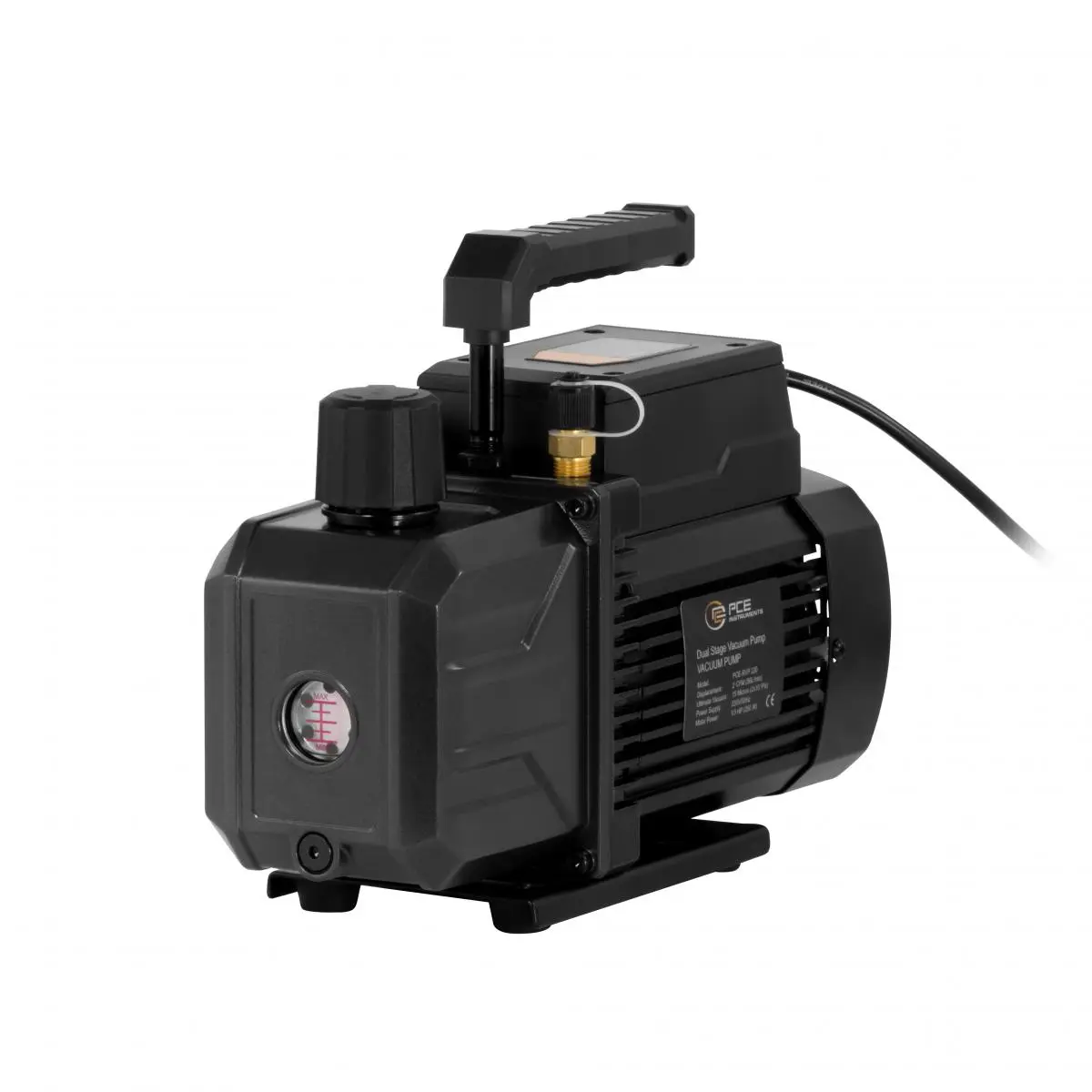

HVAC Meter / HVACR Tester in robust housing / Flow rate of 56 to 68 l/min / Filter for reducing oil mist / 1/4-inch connection

The HVAC Meter / HVACR Tester is equipped with a reliable motor that provides sufficient torque for stable operation. The motor power is 0.34 hp (250W) and ensures efficient and reliable performance. With a flow rate of 56 to 68 l/min, the HVAC Meter / HVACR Tester can quickly evacuate air and moisture from air conditioning systems, cooling systems or heat pumps. The pump has a 1/4-inch connection, which allows it to be used with various refrigerant hoses. An integrated filter element reduces oil mist, extends the service life of the HVAC Meter / HVACR Tester and ensures a cleaner working environment. The ergonomic rubber handle facilitates transport and handling. The HVAC Meter / HVACR Tester removes air and moisture from the system before refrigerant is filled, improving the efficiency and service life of the system.


Highlights

- For refrigerants (e.g. R12, R22, R134a)

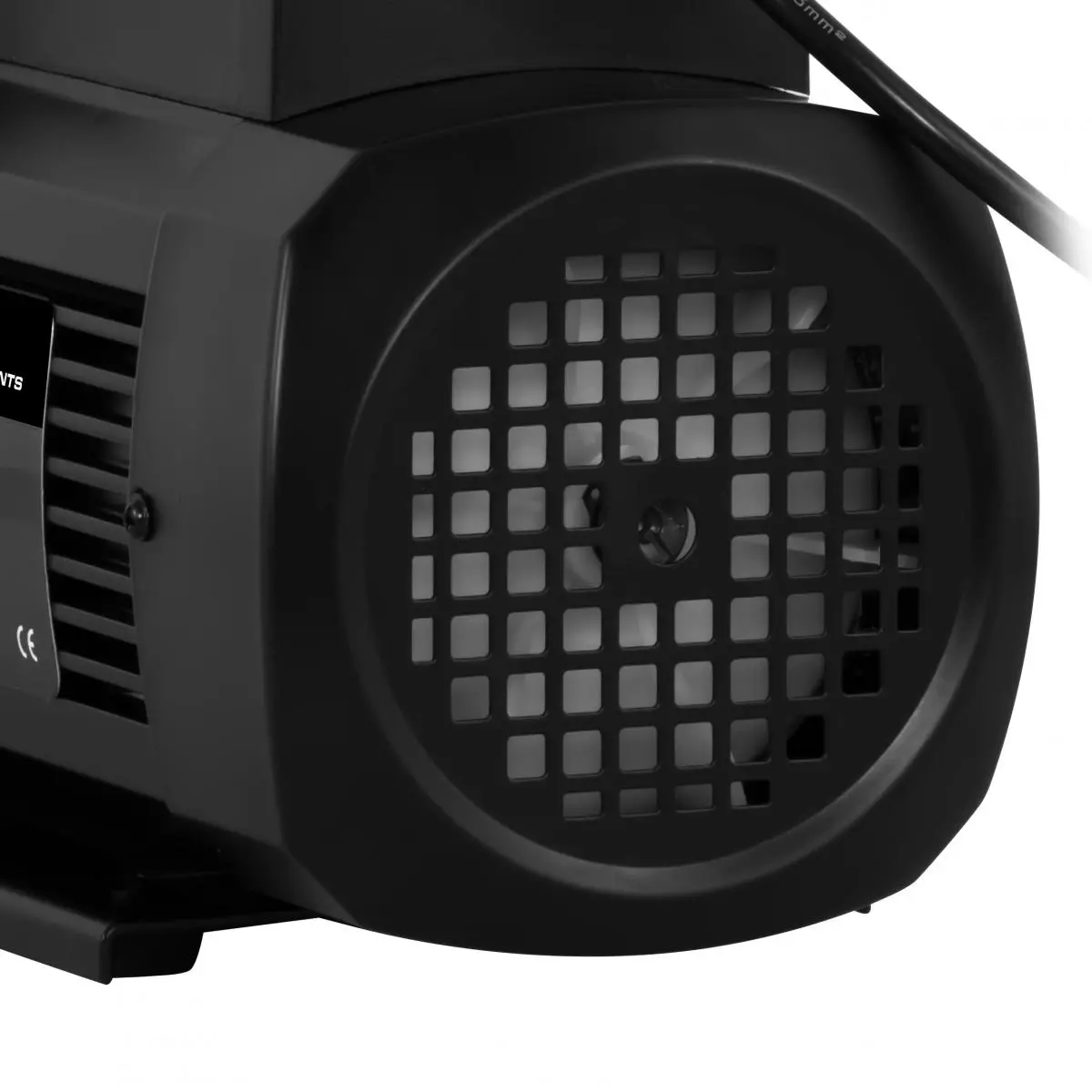

- High torque and efficient motor
- Motor power: 0.34 hp (250 W)
- Flow rate: 56 ... 68 l/min - Connection: 1/4 inch
- Ultimate vacuum: 15 microns / 0.02 mbar
- Filter element for reducing oil mist

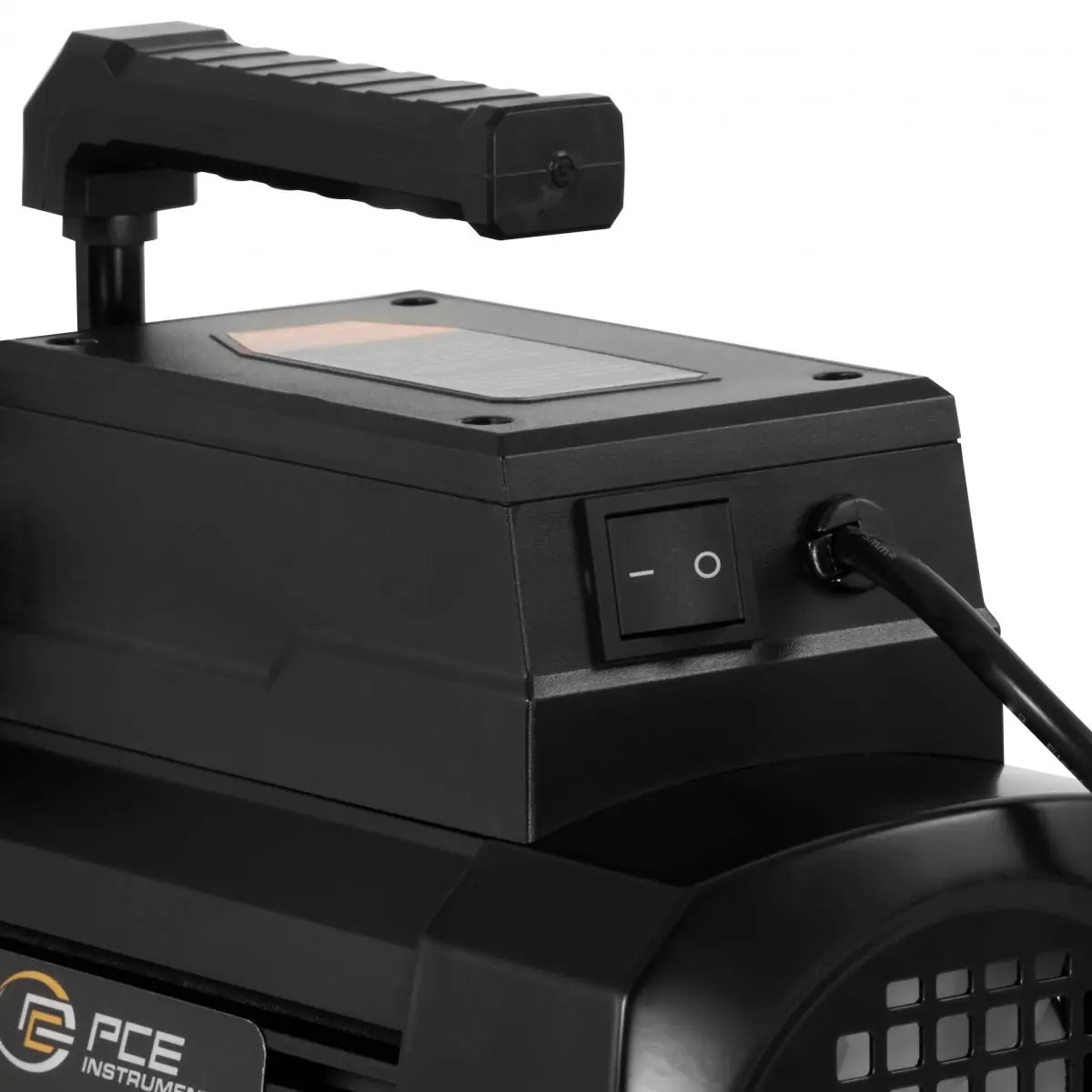

- Comfortable and robust rubber handle
- Two-stage

Specification

General technical data
Cable length  130 cm

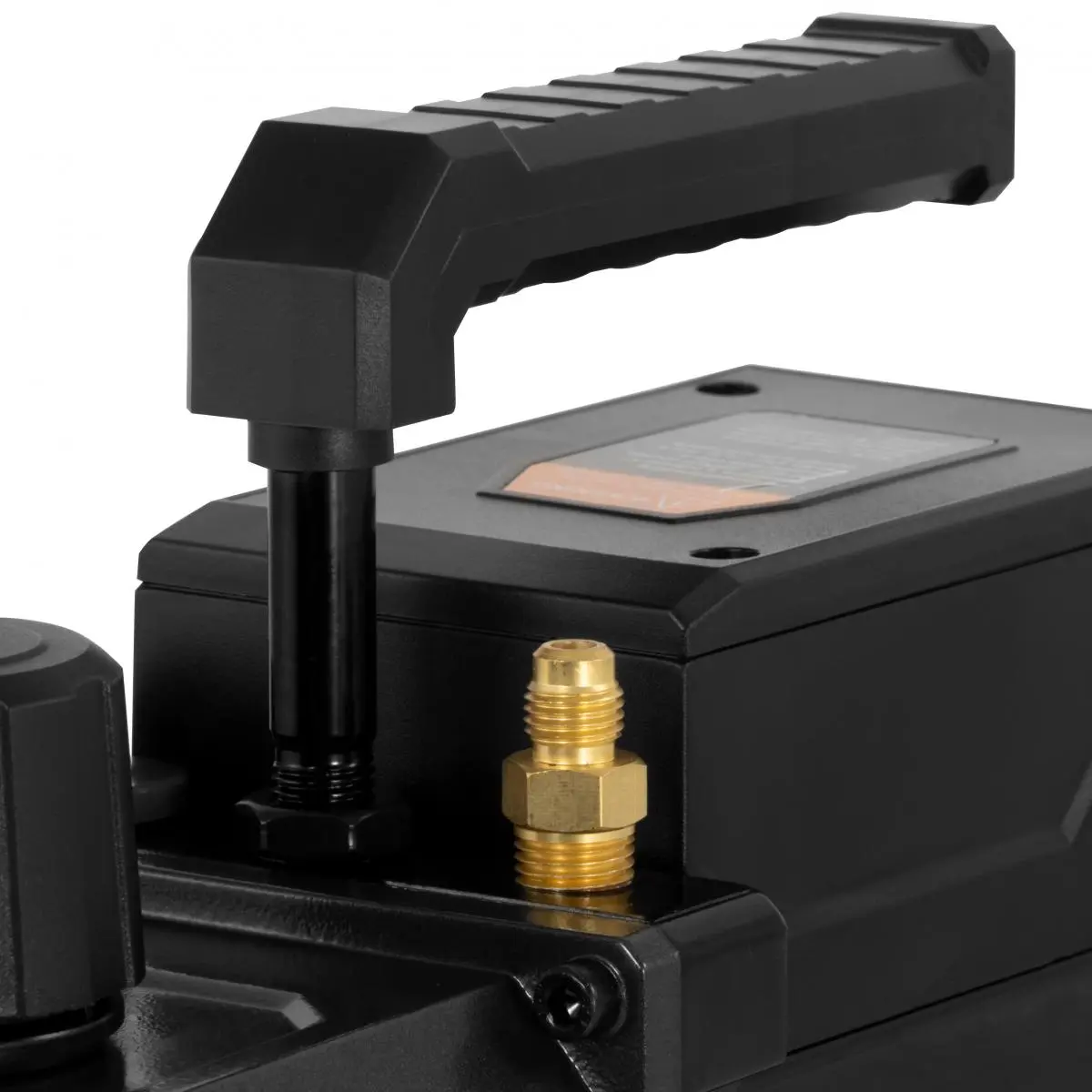

Connections  1/4 inch SAE
Motor power  0,34 PS
Oil capacity  280 ml
Ultimate vacuum  0,02 mbar
Flow rate  56 ... 68 l/min
Protection class (device)  IP20
Power supply  220 V AC | 50 Hz
Connector type  Schuko plug
Operating conditions  5 ... 40 °C , 20 ... 80 % RH
Storage conditions  5 ... 40 °C , 20 ... 80 % RH
Dimensions ( L x W x H )  305 x 123 x 230 mm
Weight  7863 g

Delivery Scope

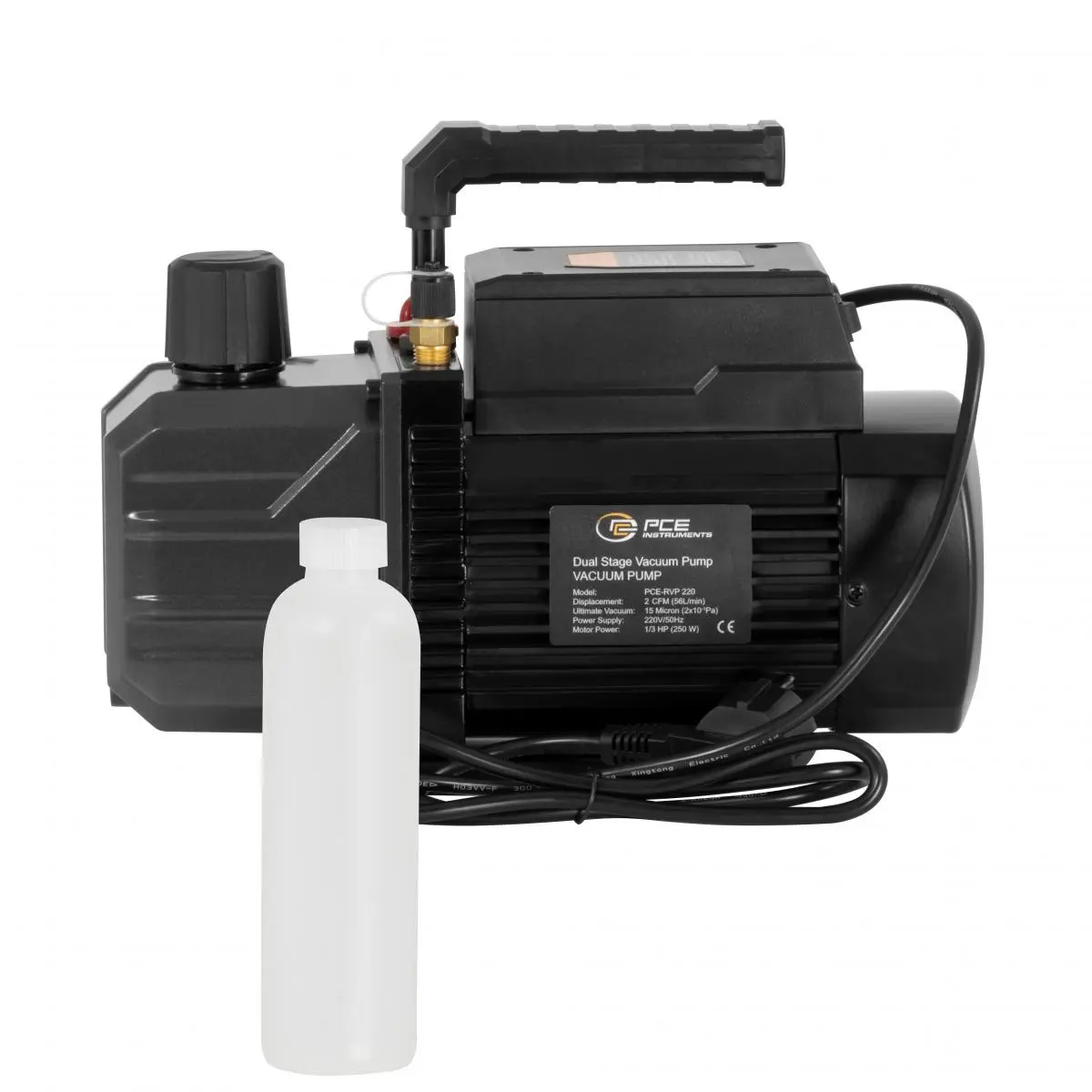

1 x HVAC Meter / HVACR Tester PCE-RVP 220
1 x HVAC Meter / HVACR Tester oil 300 ml
1 x Operating instructions
