159,90 €

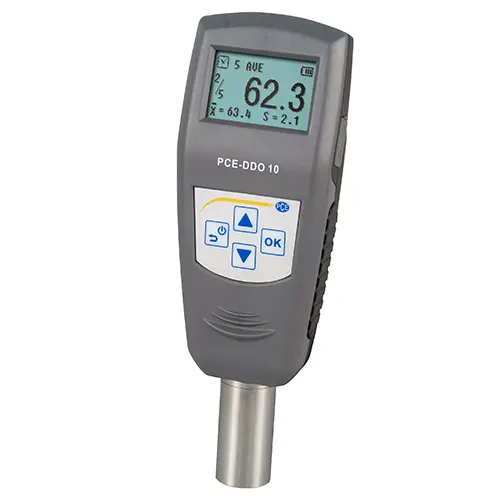

The PCE-DDO 10 durometer is an ergonomic device to check Shore hardness in gum. It has been designed with a high quality. The PCE-DDO 10 durometer is mainly used for soft gums. If the material thickness is not enough, it should be tightened on the back with the same material in order to increase its thickness.
| Hardness | |
| Measuring range | 0 ... 100 Shore O |
| Resolution | 0,1 Shore O |
| Accuracy | ±1 Shore O |
| General technical data | |

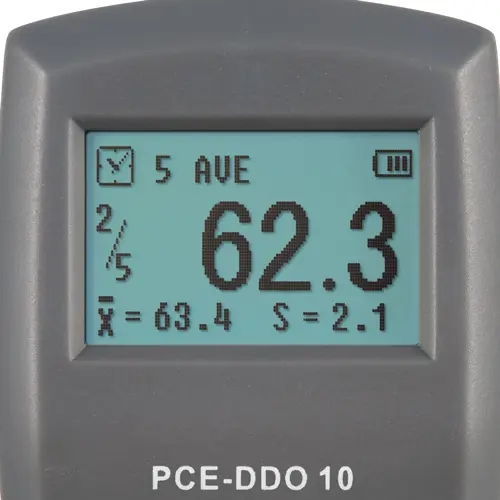

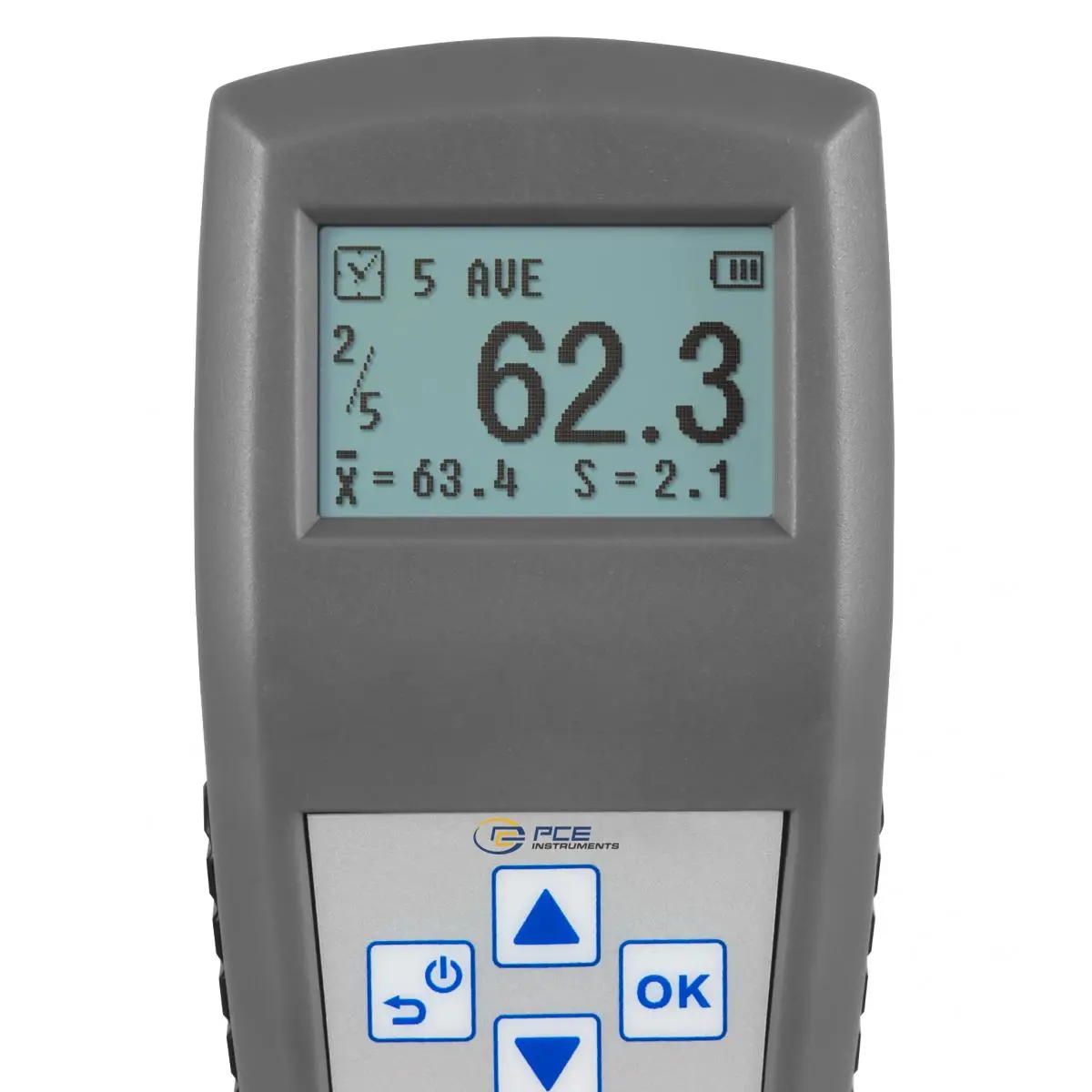

| Measuring functions | MAX, Average value |
| Measuring principle | Spring load |
| Storage medium | Internal memory |
| Storage capacity | 500 Measurements |

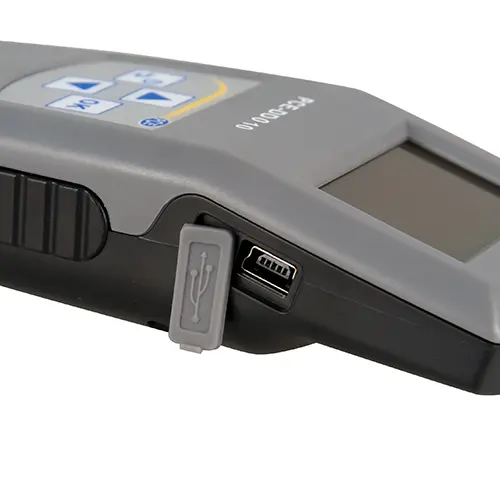

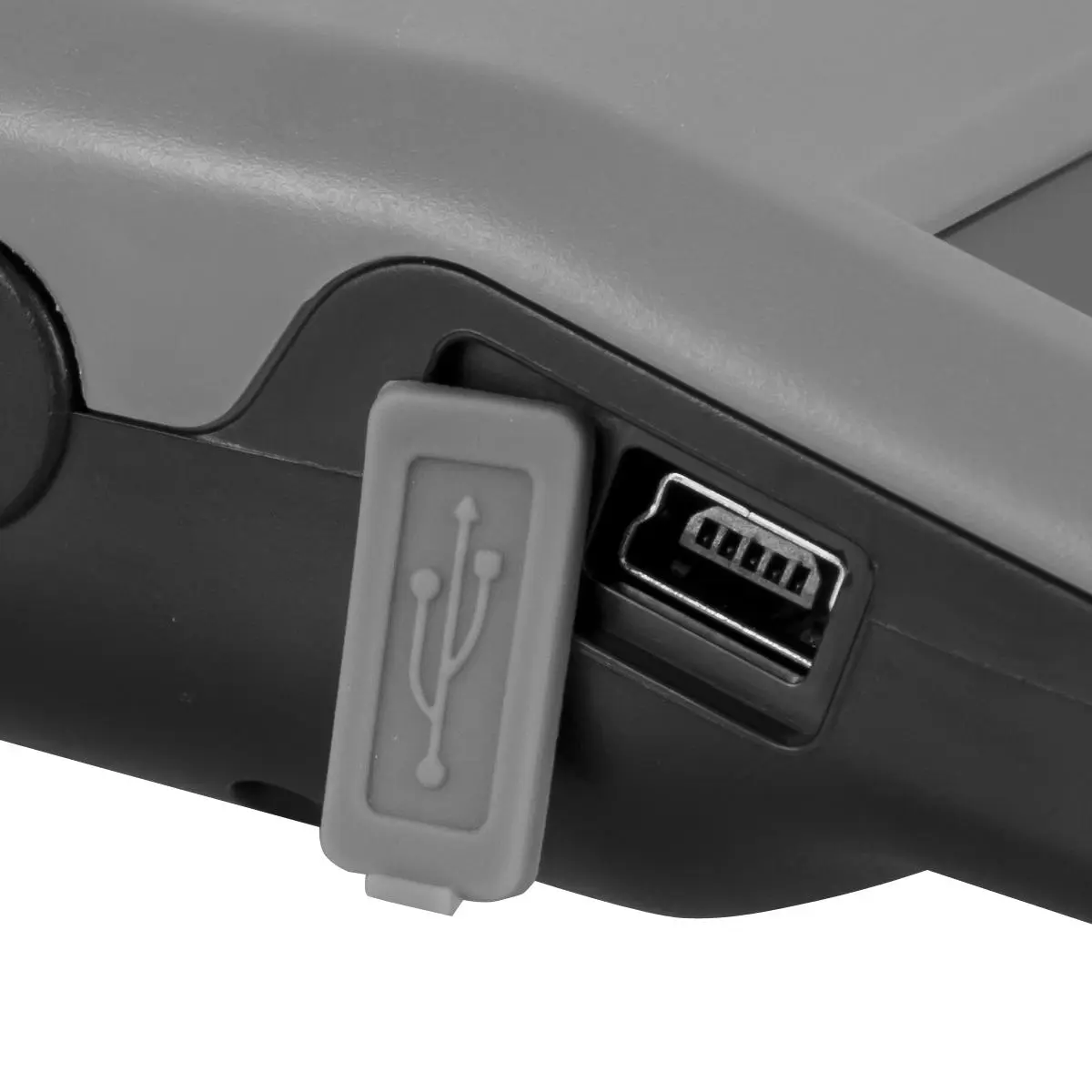

| Interface | Mini-USB |
| Standard(s) | GB/T 531.1, ISO7619-1, ASTM D 2240 |
| Operating time | 20 h |
| Charging time | 3 h |
| Impact device | D-type |

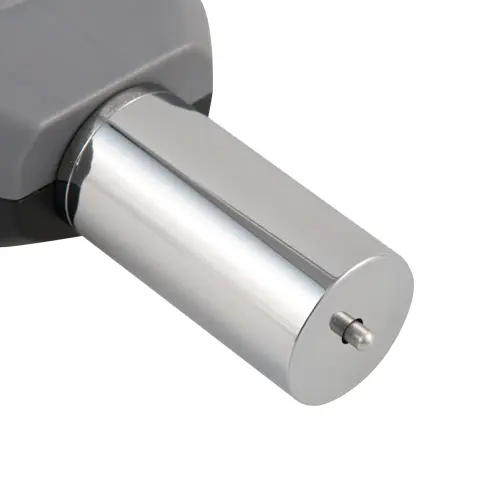

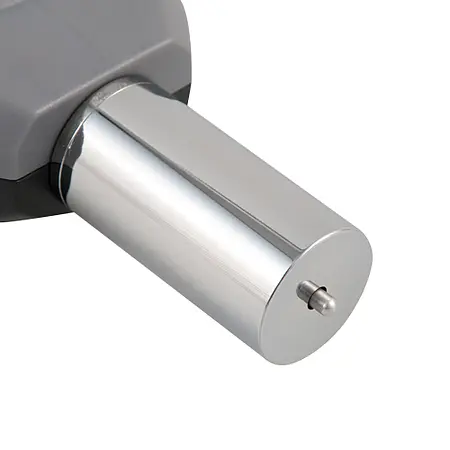

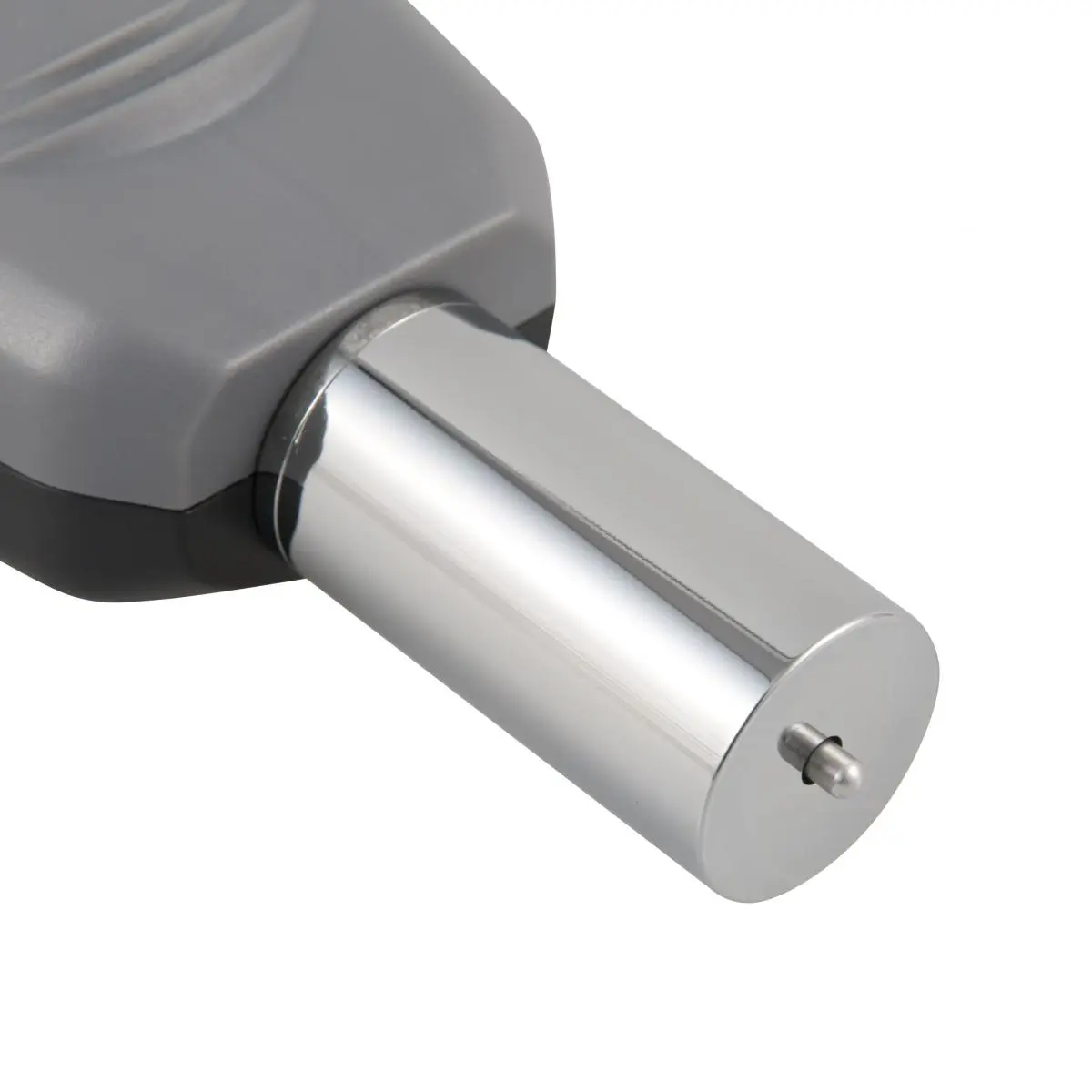

| Dimensions | Indentor / geometry: - Spring pin diameter: 2.38 mm ± 0.08 - Ball diameter: 1.19 mm ± 0.05 |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 3.6V |
| Connector type | Device-europlug |
| (Rechargeable) battery | 3 x 1,2 V AAA rechargeable battery , Nickel-metal hydride battery |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 20 ... 85 % RH |
| Storage conditions | -30 ... 80 °C , 5 ... 95 % RH |
| Dimensions ( L x W x H ) | 153 x 50 x 29 mm |
| Weight | 170 g |
