19,90 €

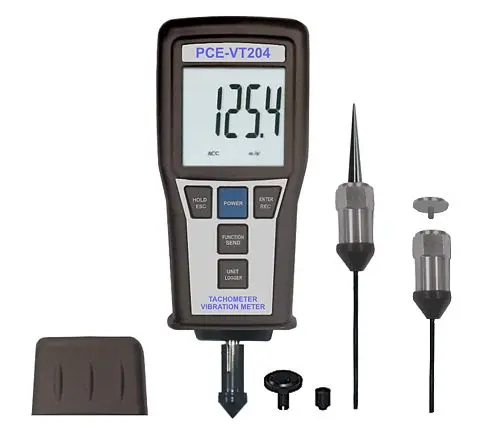

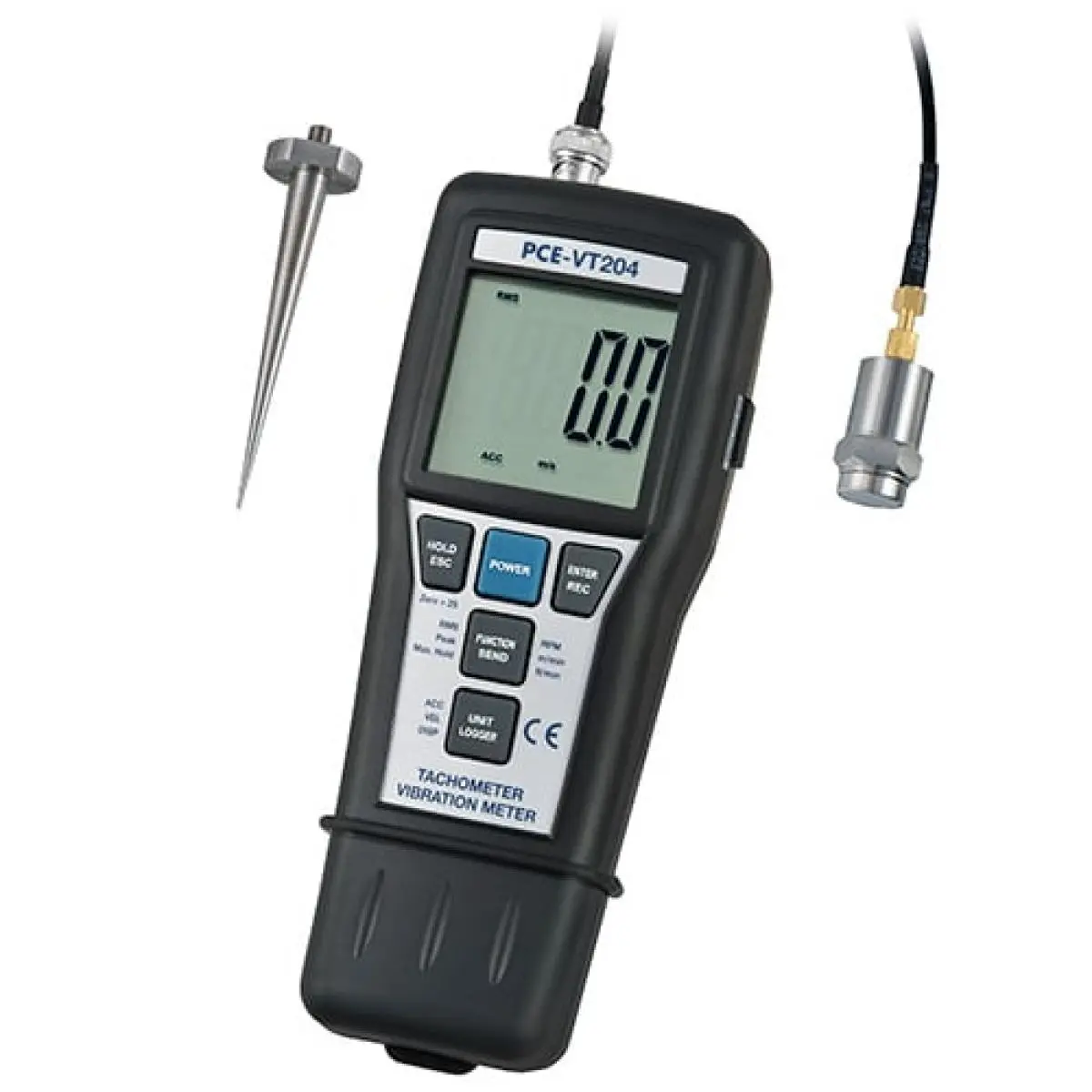

PCE-VT 204 Multifunction Handheld Tachometer
For contact (mechanical) and noncontact (optical) rotation measurements as well as 3-axis vibration measurements
The PCE-VT 204 is a multifunction handheld tachometer with the ability to accurately measure both rotation and vibration. An ideal tool for the testing and inspection of machine parts and components such as motors, transmissions, gears, gear boxes and wheels, this multi-purpose device measures revolutions per minute (RPMs) as well as three-axis vibration, i.e., velocity or speed, displacement and acceleration.

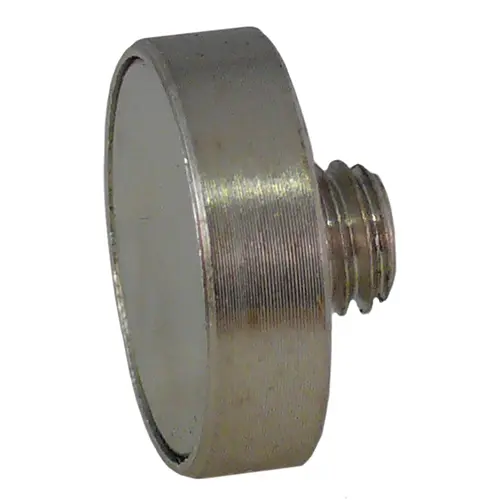

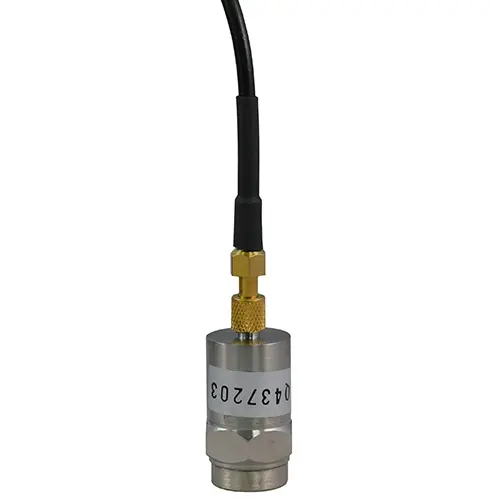

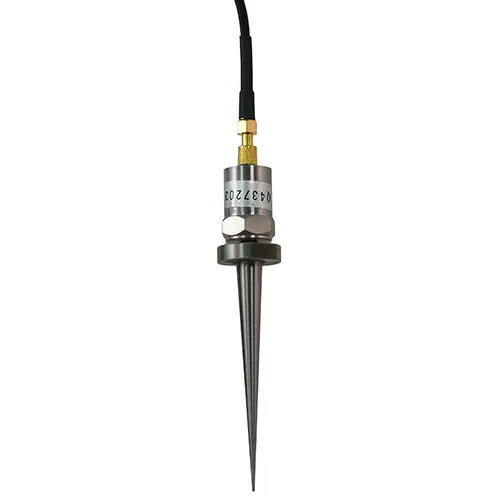

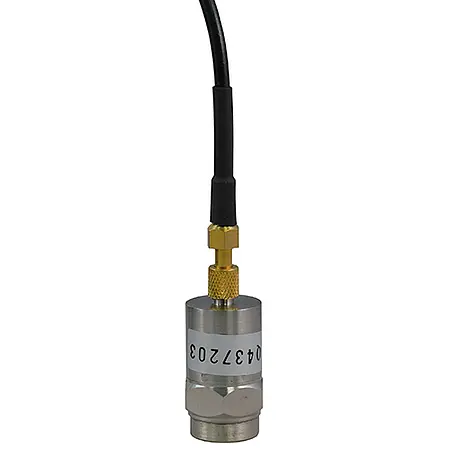

The handheld tachometer sensor can be set flat, equipped with a magnet or combined with the included fastening screw to make contact with a surface during vibration measurement. Internal frequency filters eliminate the effects of background noise, allowing the device to detect specific vibrations.
Note: If you wish to transfer the readings from the handheld device to a computer, the optional software package is required. See accessories for details.
| Acceleration | |
| Measuring range | 0,5 ... 199,9 m/s² |
| Resolution | 0,1 m/s² |
| Accuracy | ±(5% of reading ±2 digits) @ 160 Hz, 23 ±5°C |
| Mechanical speed | |
| Measuring range | 0,5 ... 999 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Mechanical speed | |
| Measuring range | 1000 ... 19999 rpm |
| Resolution | 1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Optical speed | |
| Measuring range | 10 ... 999 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Optical speed | |
| Measuring range | 1000 ... 99999 rpm |
| Resolution | 1 rpm |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Speed | |
| Measuring range | 0,5 ... 199,9 mm/s |
| Resolution | 0.1 mm/s |
| Accuracy | ±(5% of reading ±2 digits) @ 160 Hz, 23 ±5°C |
| Speed | |
| Measuring range | 0,05 ... 99,99 m/min |
| Resolution | 0.01 m/min |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Speed | |
| Measuring range | 100 ... 1999 m/min |
| Resolution | 0.1 m/min |
| Accuracy | ±(0.05% v.Mw. ±1 Digit) |
| Displacement | |
| Measuring range | 0,005 ... 1,999 mm |
| Resolution | 0,001 mm |
| Accuracy | ±(5% of reading ±2 digits) @ 160 Hz, 23 ±5°C |
| General technical data | |
| Measuring functions | HOLD, MIN, MAX, peak, RMS |
| Measuring interval | 1 ... 3600 s |
| Frequency | 10 ... 1000 Hz |
| Display type | LCD |
| Storage medium | Internal memory |
| Storage capacity | 1000 Values |
| Interface | RS232 |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Measuring distance | 50 ... 1500 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 4 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 188 x 76 x 47 mm |
| Weight | 400 g |
