239,90 €
Gas Detector for the detection of carbon dioxide (CO2) / 2 adjustable alarm thresholds /
4-digit digital display / Built-in alarm device / Easy wall mounting

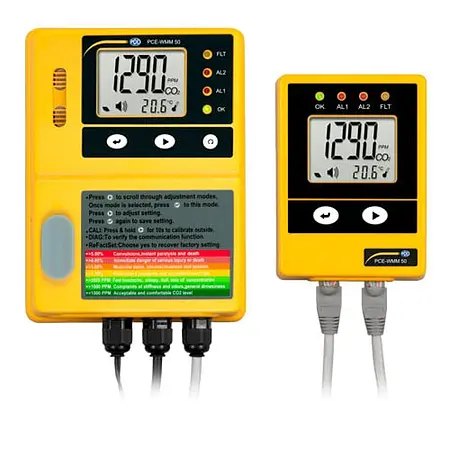

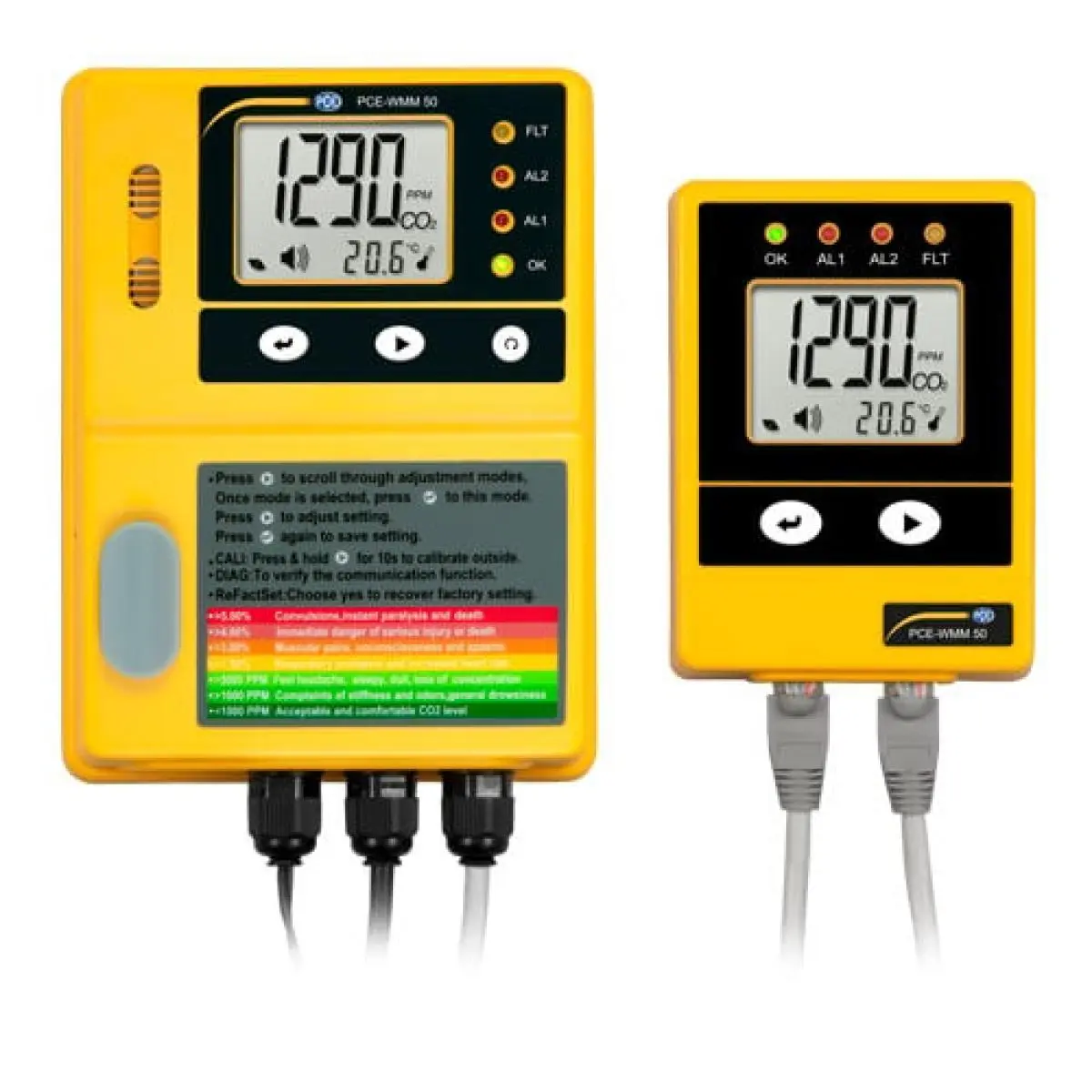

PCE-WMM 50 is a wall-mounted gas detector that uses diffusion to monitor carbon dioxide (CO2) gas levels and ambient temperature (ºC / ºF) indoors. This indoor air quality meter features an alarm-activated potential-free contact that can, for example, activate a fan to reduce CO2 gas concentration in the room.

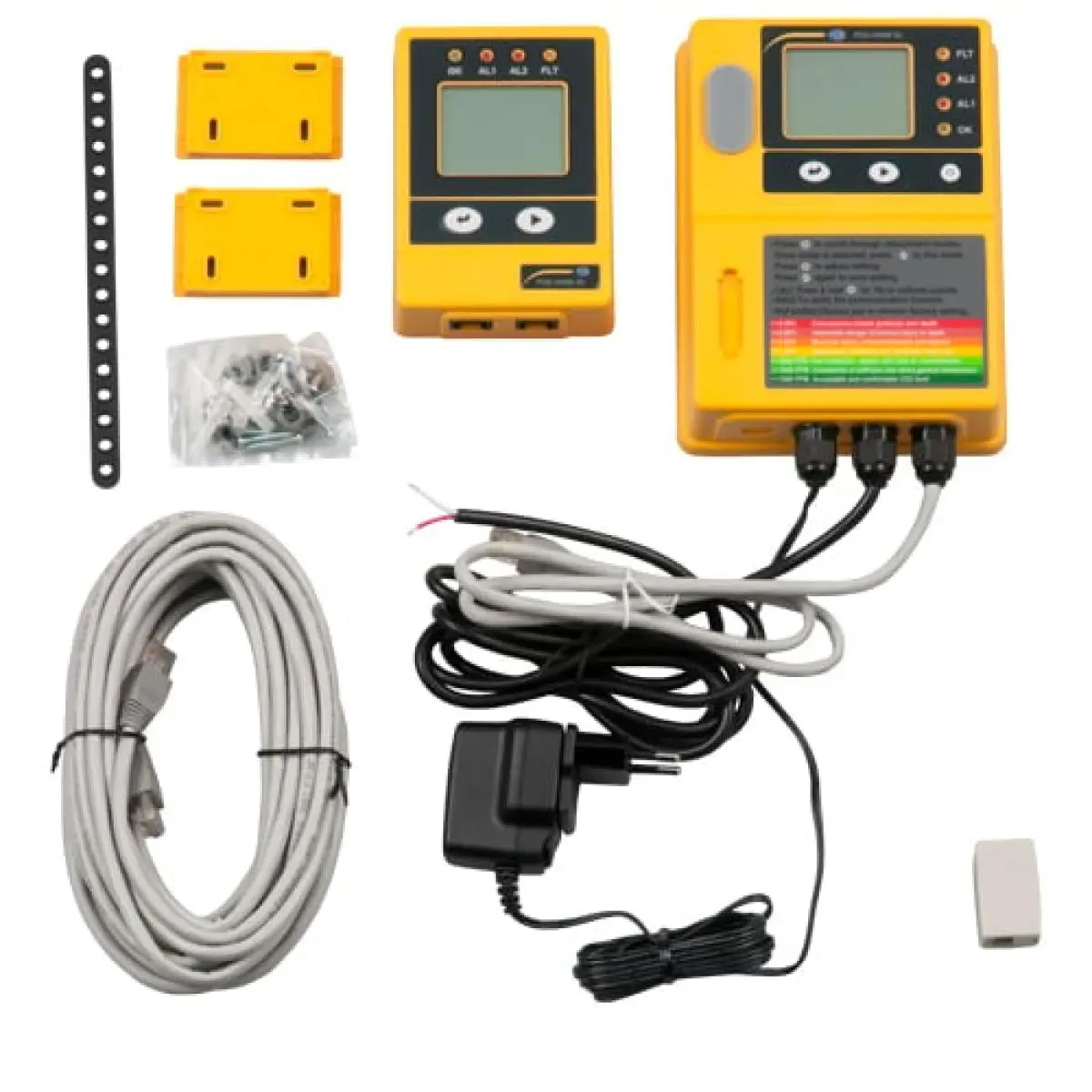

The PCE-WMM 50 alert meter consists of two parts: the sensor unit and the remote display unit. This allows for safe monitoring outside the exposure zone.
By monitoring CO2 concentration, the indoor air quality meter helps protect workers against the health hazards associated with CO2, a colorless and odorless gas used in the food, metal, chemical and waste management industries.
| CO² | |
| Measuring range | 0 ... 9999 ppm |
| Resolution | 10 ppm |
| Accuracy | ±(100 ppm +5% of mean value) |
| CO² | |
| Measuring range | 10000 ... 50000 ppm |
| Resolution | 1000 ppm |
| Accuracy | ±(100 ppm +5% of mean value) |
| Temperature | |
| Measuring range | 0 ... 45 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Temperature | |
| Measuring range | 32 ... 113 °F |
| Resolution | 0,18 °F |
| Accuracy | 1.8 °F |
| General technical data | |
| Repeat accuracy | ±20 ppm at 400 ppm |
| Display type | LCD |
| Housing | Plastic |
| Alarm | optical |
| Alarm modes | Alarm 1 0.5 / 1 / 1.5 / 2% Alarm 2 1.5 / 2 / 2.5 / 3 / 3.5 / 4% |
| Dimensions | Remote display: 118 x 85 x 34 mm (without connections) |
| Sensors | NDIR |
| Alarm volume | 80 dBA |
| Warm-up time | <60 s at 22°C |
| Response time (T 90) | <60 s |
| Additional description | Alarm relay: SPST normally open contact: 30V DC / 250V AC, max. 2 A |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| Power supply | 100 ... 240 V AC | 50/60 Hz |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 0 ... 95 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 168 x 125 x 47 mm |
| Weight | 450 g |
