Gas Detector / Gas Detection Instrument PCE-GA 12

Gas Detector PCE-GA 12

Order no.: PCE-GA 12
GTIN (EAN): 4250348719218
223,90 €
266,44 €
price ex. (VAT / delivery)
:
4250348719218
PCE-GA 12
Delivery time:1-2 working days

Description

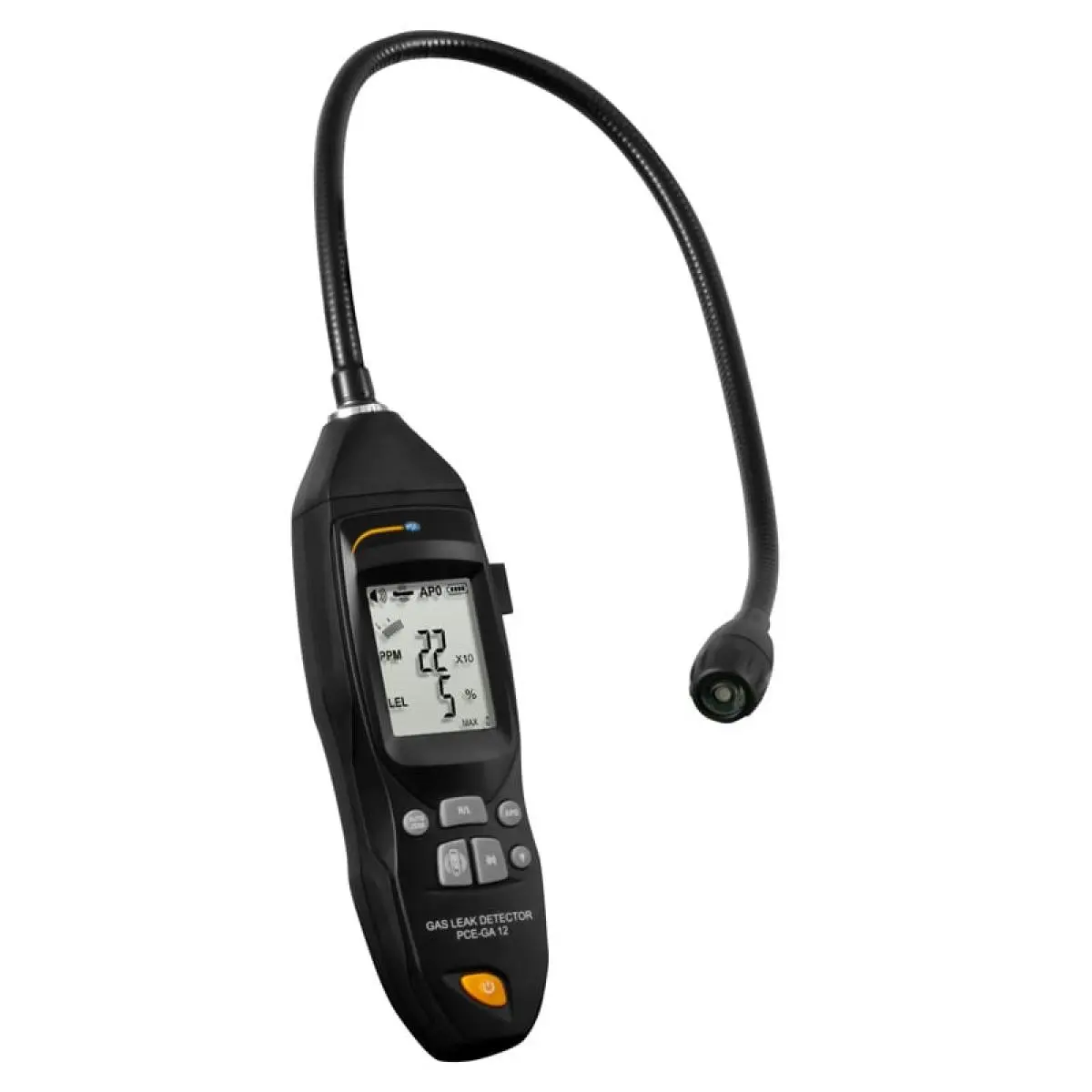

Gas detector PCE-GA 12
Gas flammable gas detector / Rechargeable battery / Audible alarm /  Semi-rigid 400 mm probe / Durability of the probe approx. 5 years / Vibration alarm / Measured value display up to 10000 ppm / Battery and mains operation (AC power adapter)

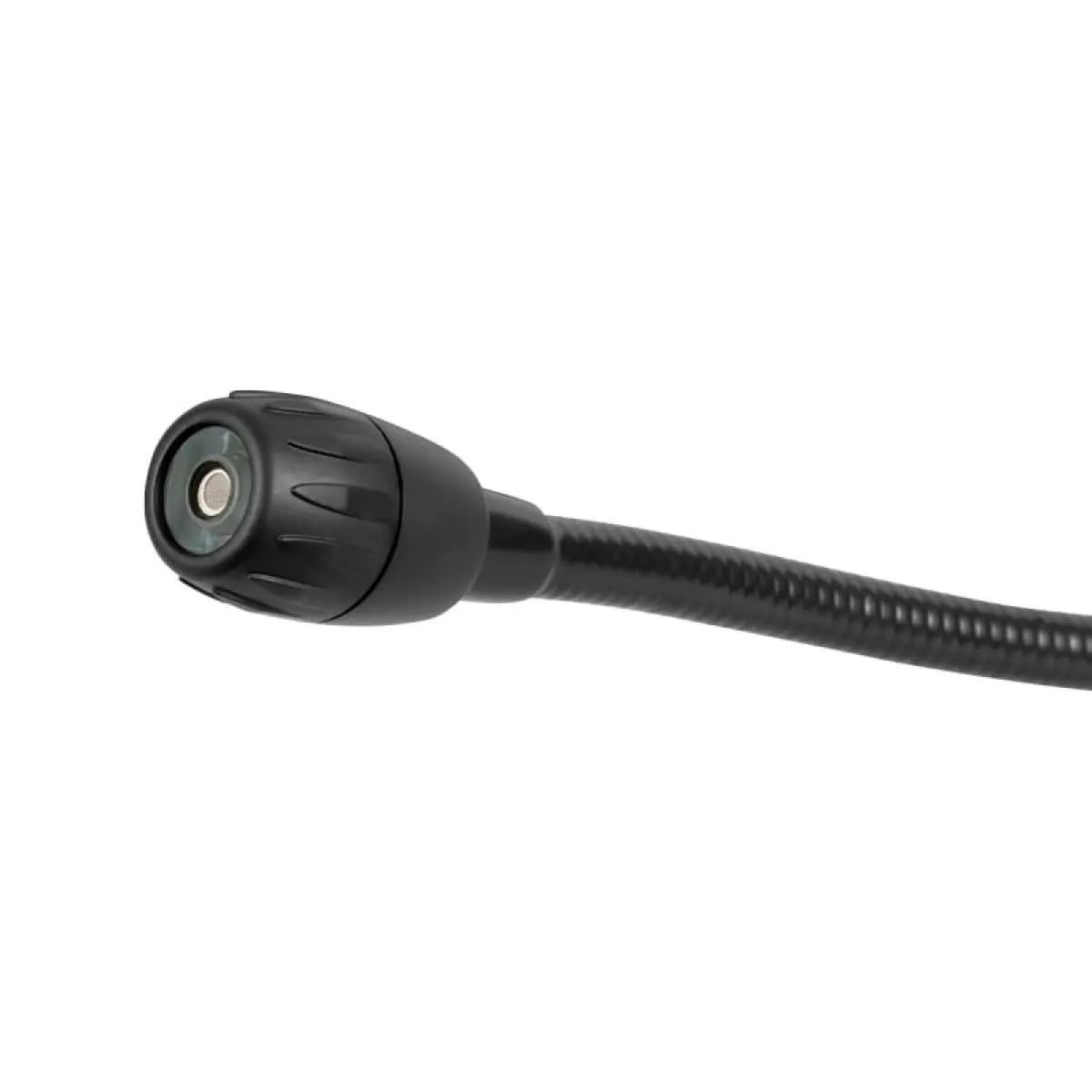

The gas detector PCE-GA 12 is a very easy-to-use measuring device. This gas detector detects combustible gases and emits a vibrating alarm as well as an audible alarm once a combustible gas has been detected by the gas detector. Thanks to the semi-rigid hose on the gas detection device, the sensor can be aligned in almost any position to reach even inaccessible places.

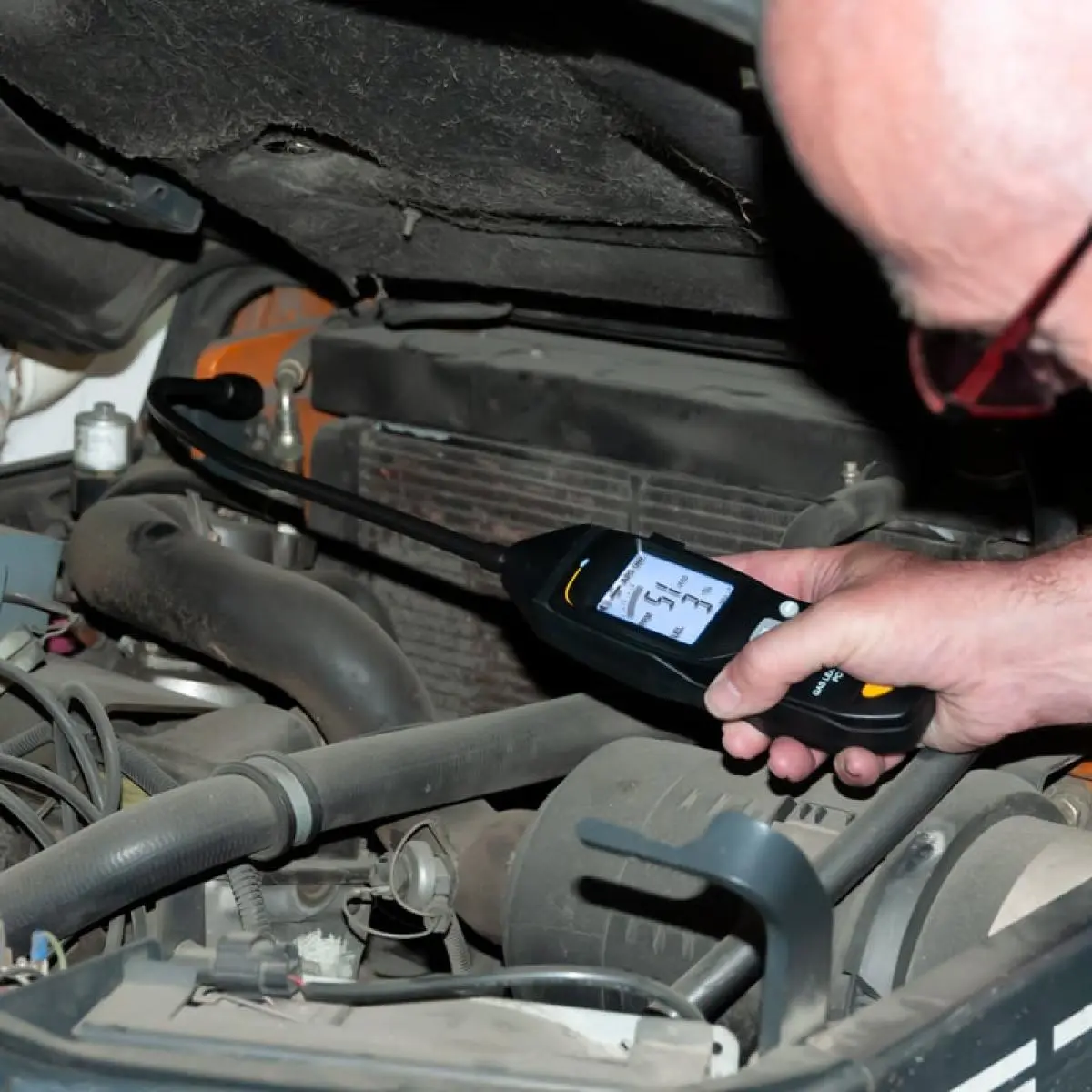

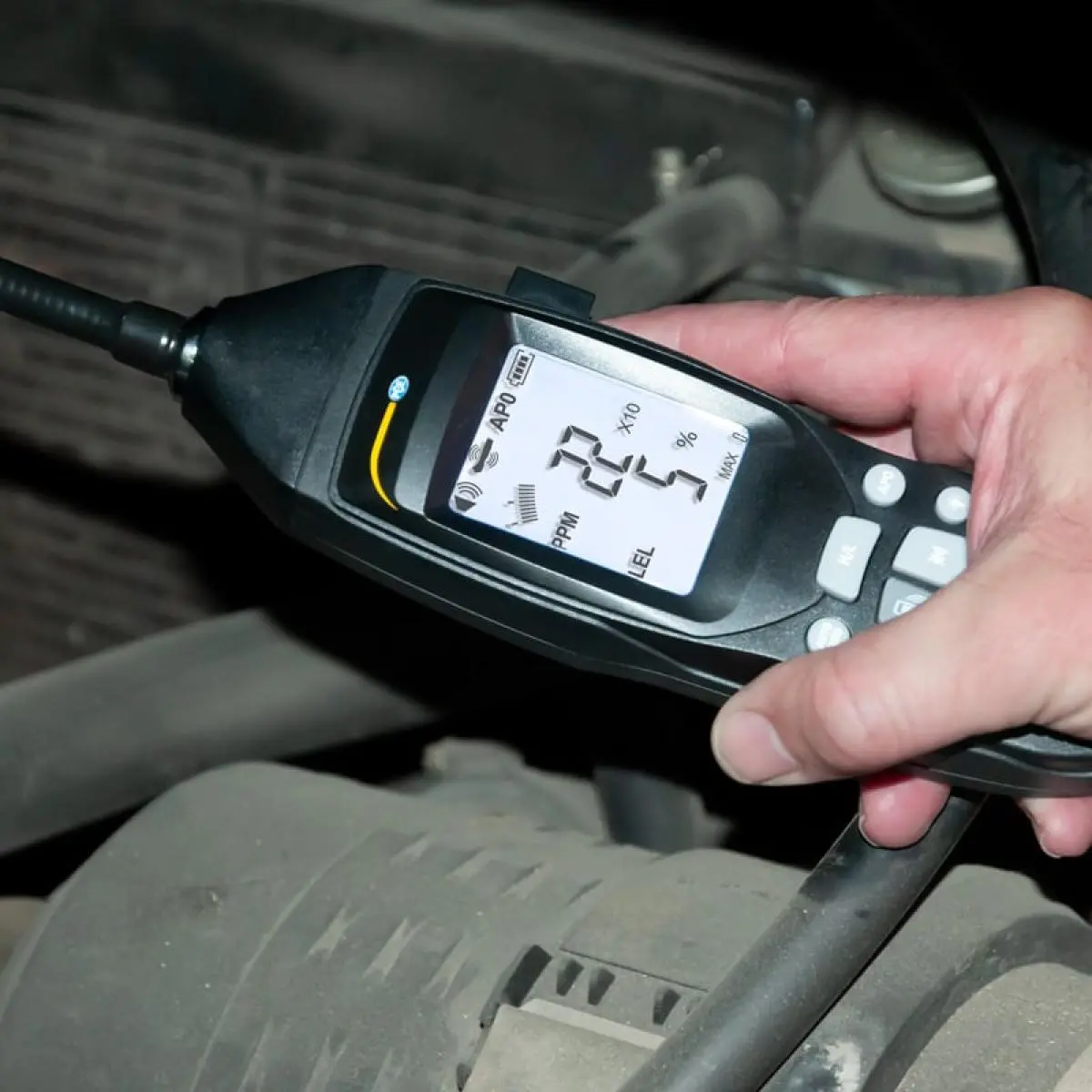

This makes the gas detection device an ideal measuring device for employees who want to detect sporadically escaping gases (testing of plants during a tour of the plant, checking engines and supply lines, testing gas supply lines). A manual setting of the gas detector is not necessary as the gas detector automatically calibrates.

Highlights

- Audible alarm with 85 dB
- Rechargeable battery for mobile use
- Automatic calibration
- Measuring range up to 10000 ppm
- For the detection of combustible gases
- Durability of the sensor about 5 years
- Vibrating alarm when detecting gases
- Sensor changeable

Specification

Gas
Measuring range  0 ... 10000 ppm
Resolution  10 ppm

General technical data
Type of cable  Semi-rigid approx. 500 mm / 16 inches

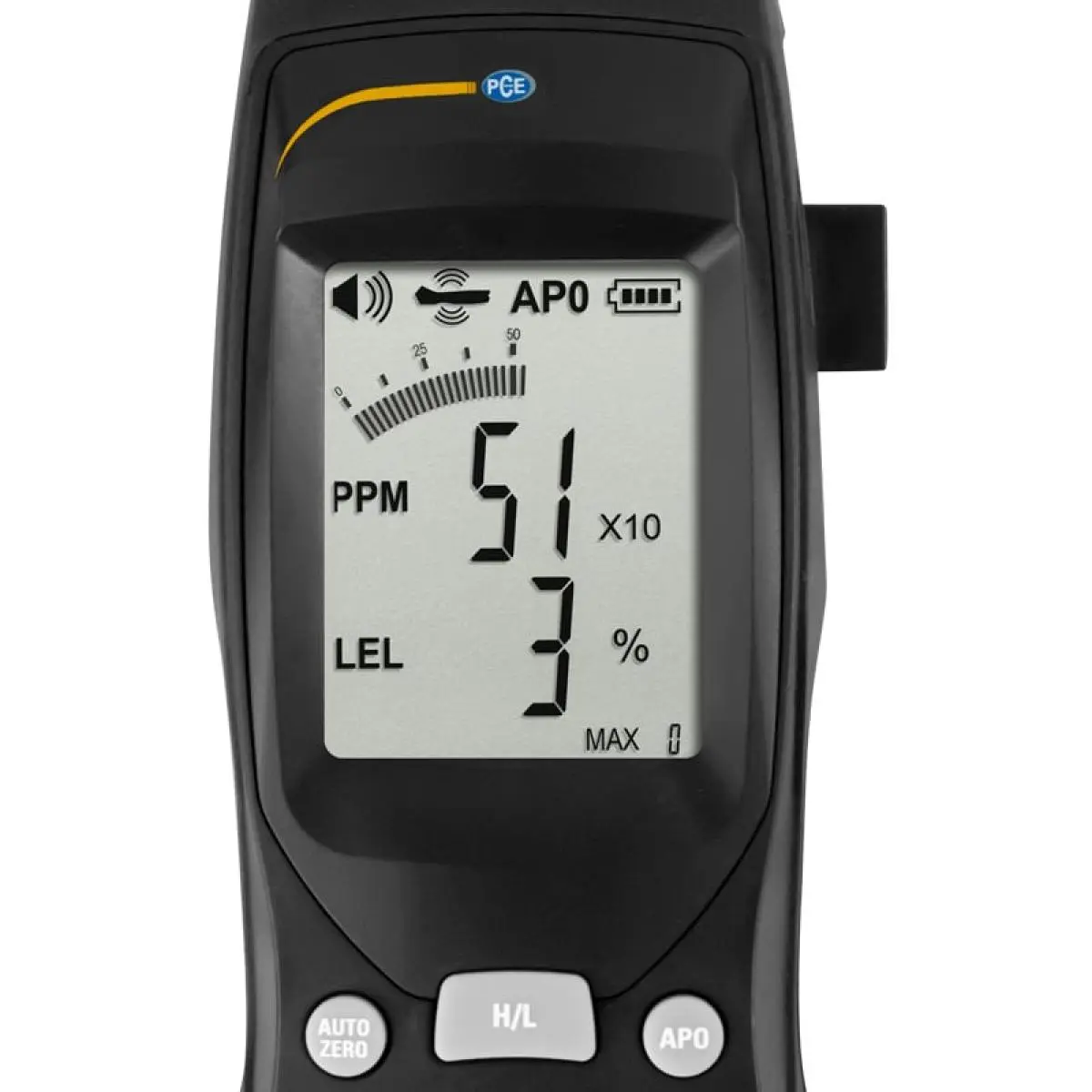

Display type  LCD
Warm-up time  40 s
Measured medium  Acetaldehyde, Ammonia, Benzene, Ethan, Ethanol, Ethylene, Formaldehyde, Hexan, ISO butane, Metan, Propane, P-Xylol, Hydrogen sulphide, Toluene, Hydrogen
Automatic power-off  10 min
Alarm  Acoustic, Vibration, optical
Calibration  automatic
Sensitivity  < 10 ppm (for methane)
Measuring interval  2 s
Alarm volume  85 dB
Menu language  English, English (GB)
Protection class (device)  IP20

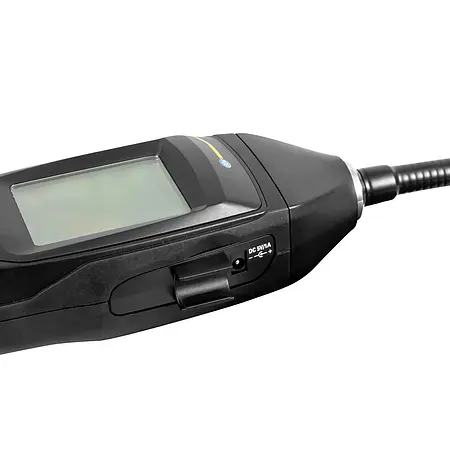

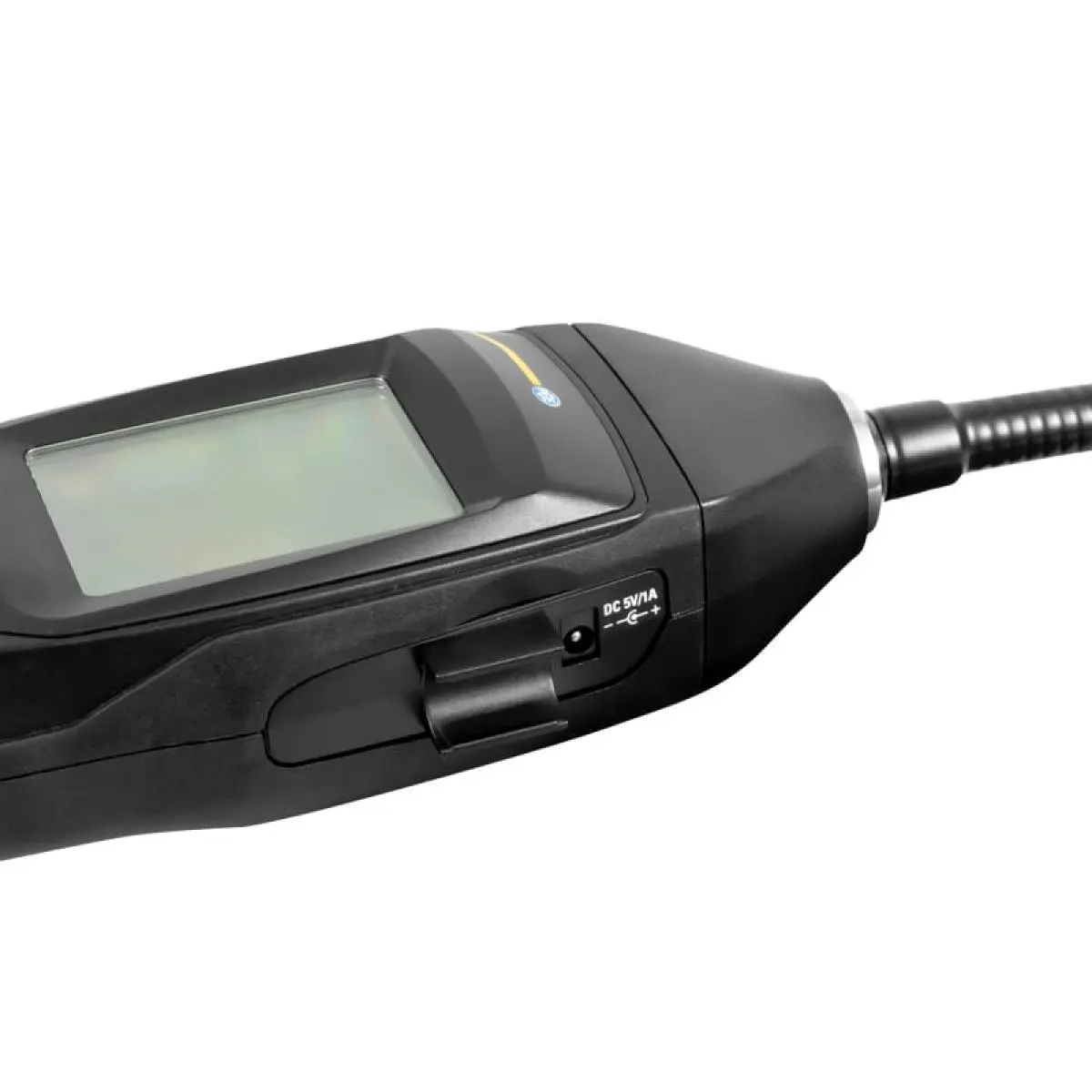

Power supply  5 V / 1 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  1400 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  211 x 70 x 45 mm
Weight  430 g

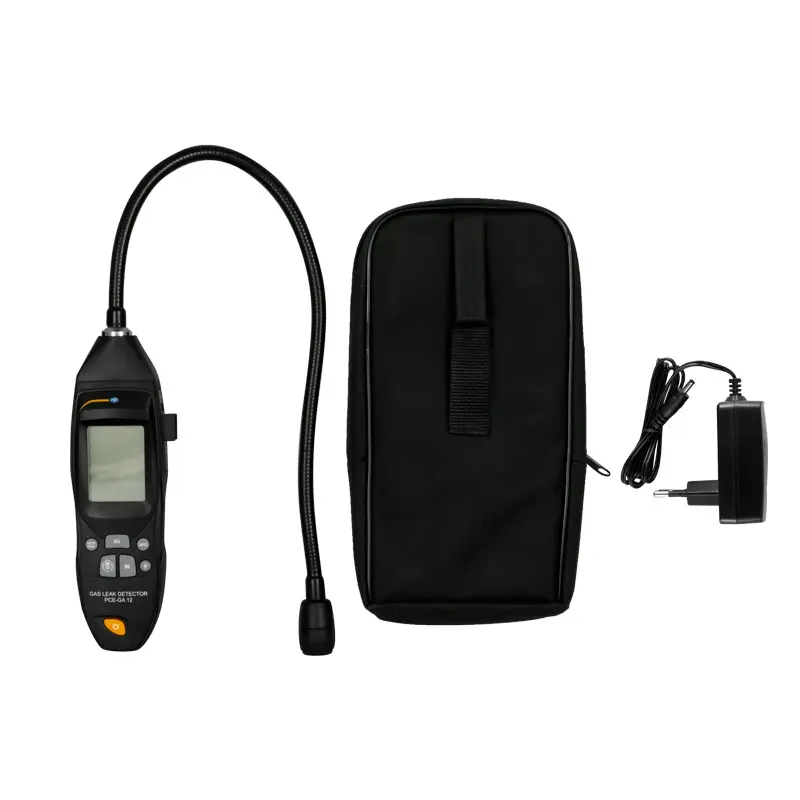

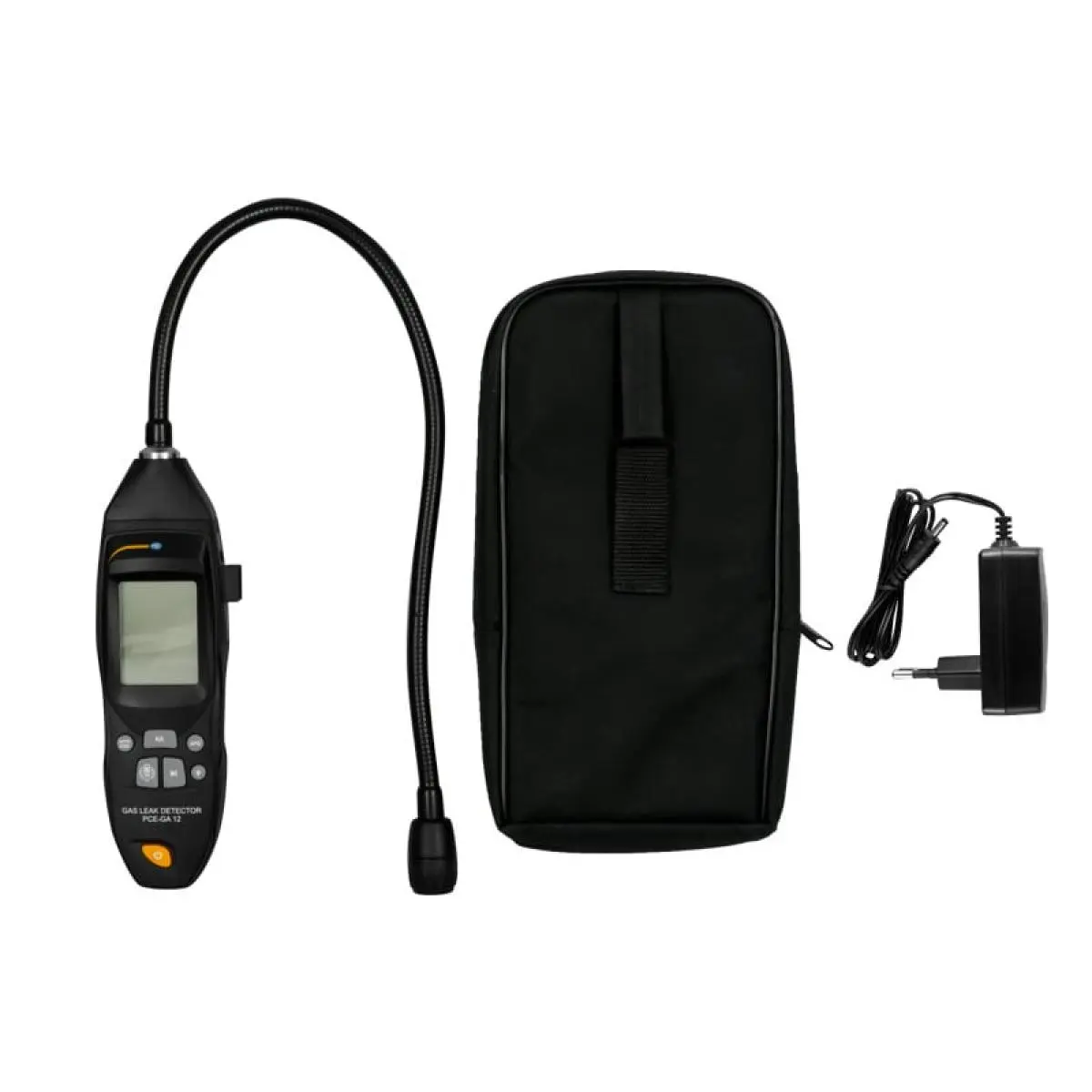

Delivery Scope

1 x Gas Detector / Gas Detection Instrument PCE-GA 12
1 x Charger
1 x User manual
