Force Gage PCE-FM 50N

Force Gage PCE-FM 50N [zoom]

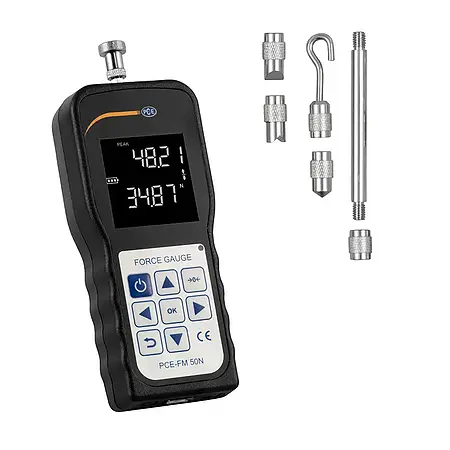

Force Gage PCE-FM 50N

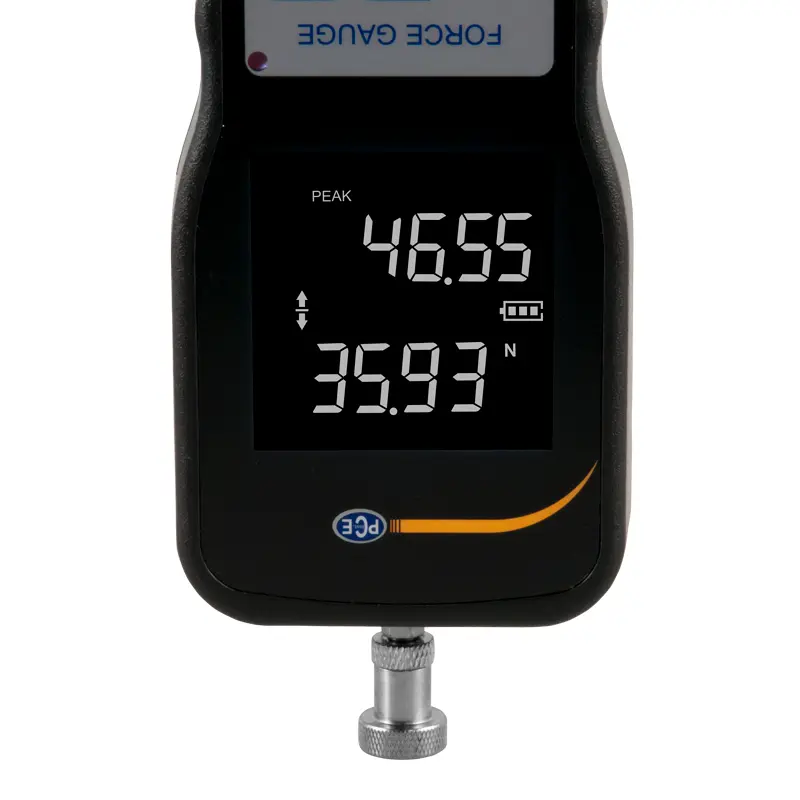

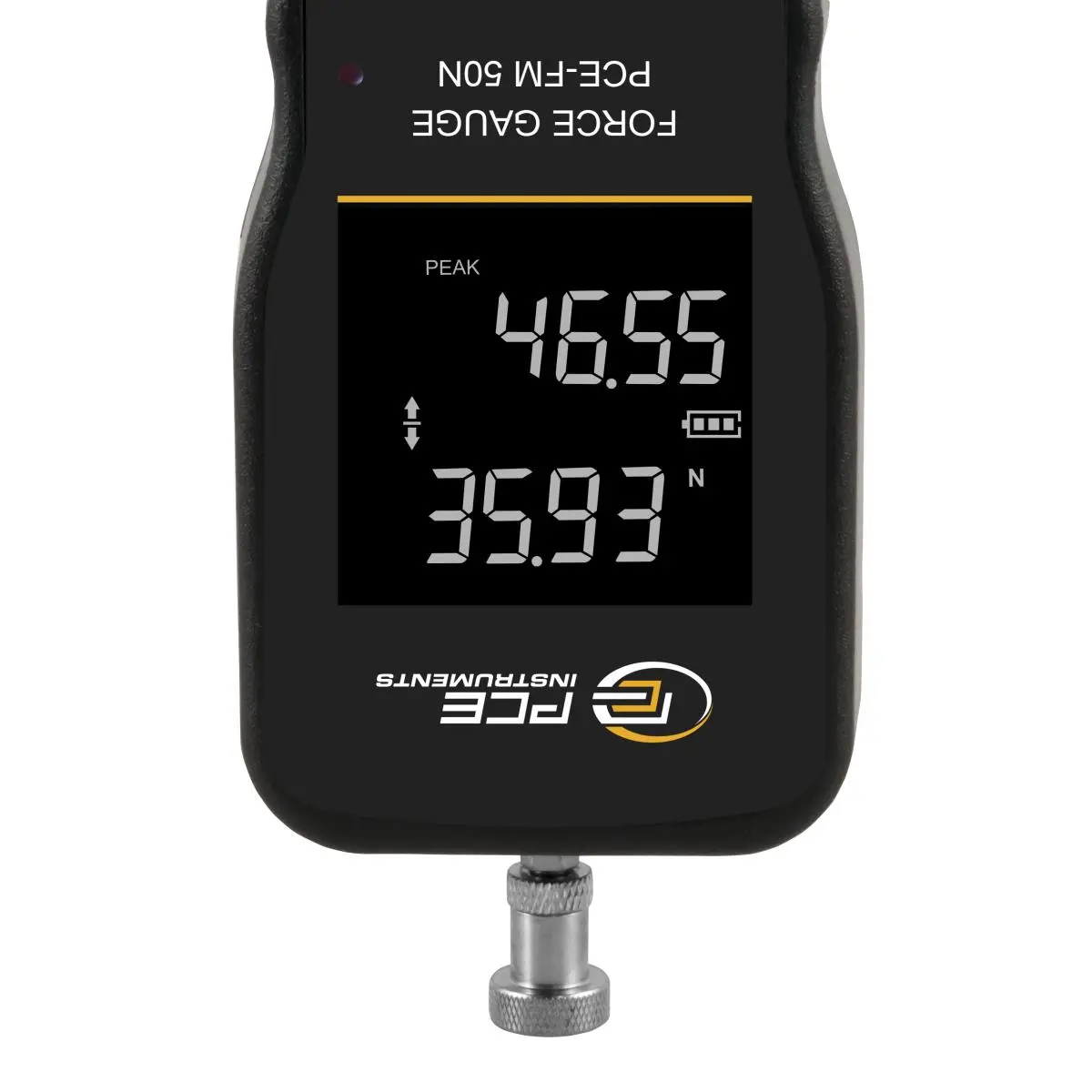

Force Gage PCE-FM 50N display

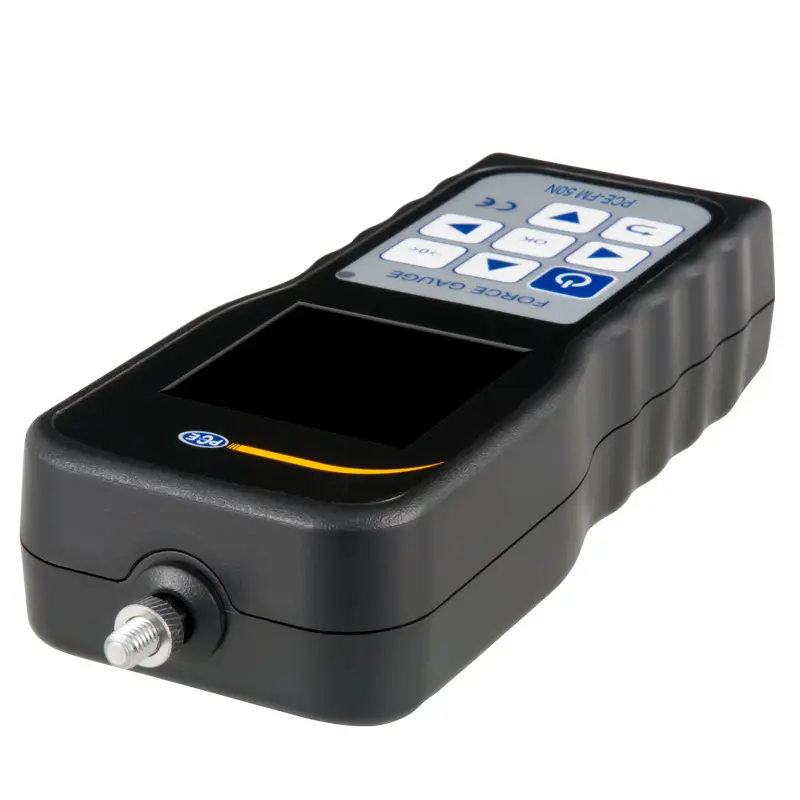

Force Gage PCE-FM 50N sensor

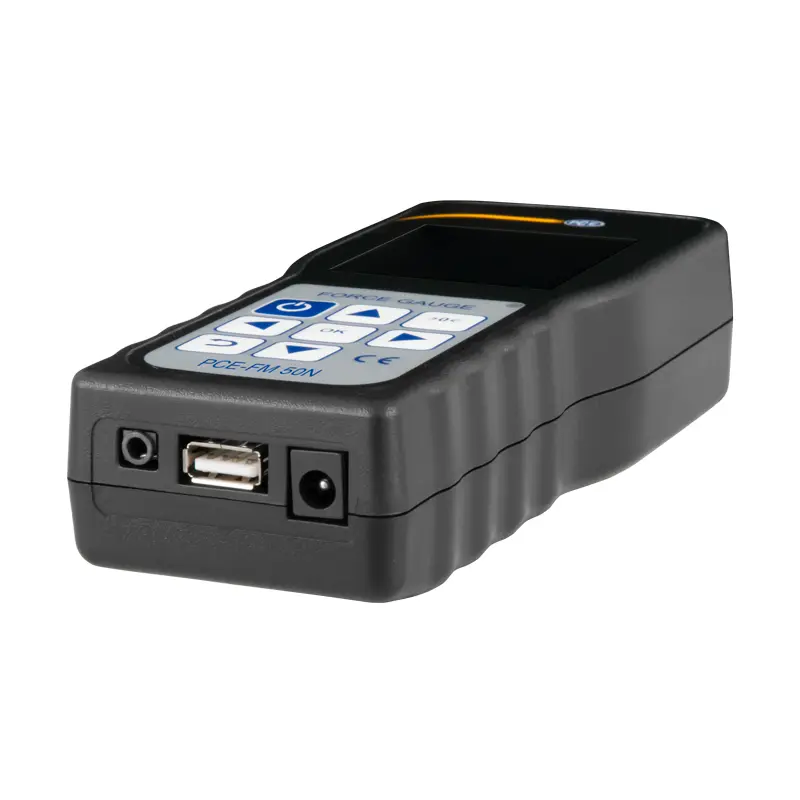

Force Gage PCE-FM 50N connections

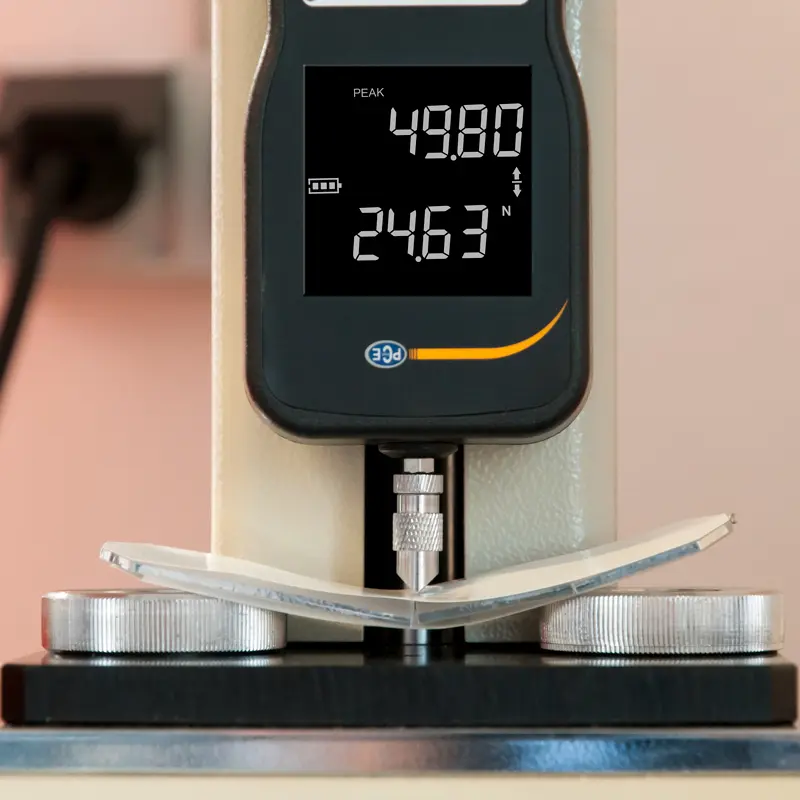

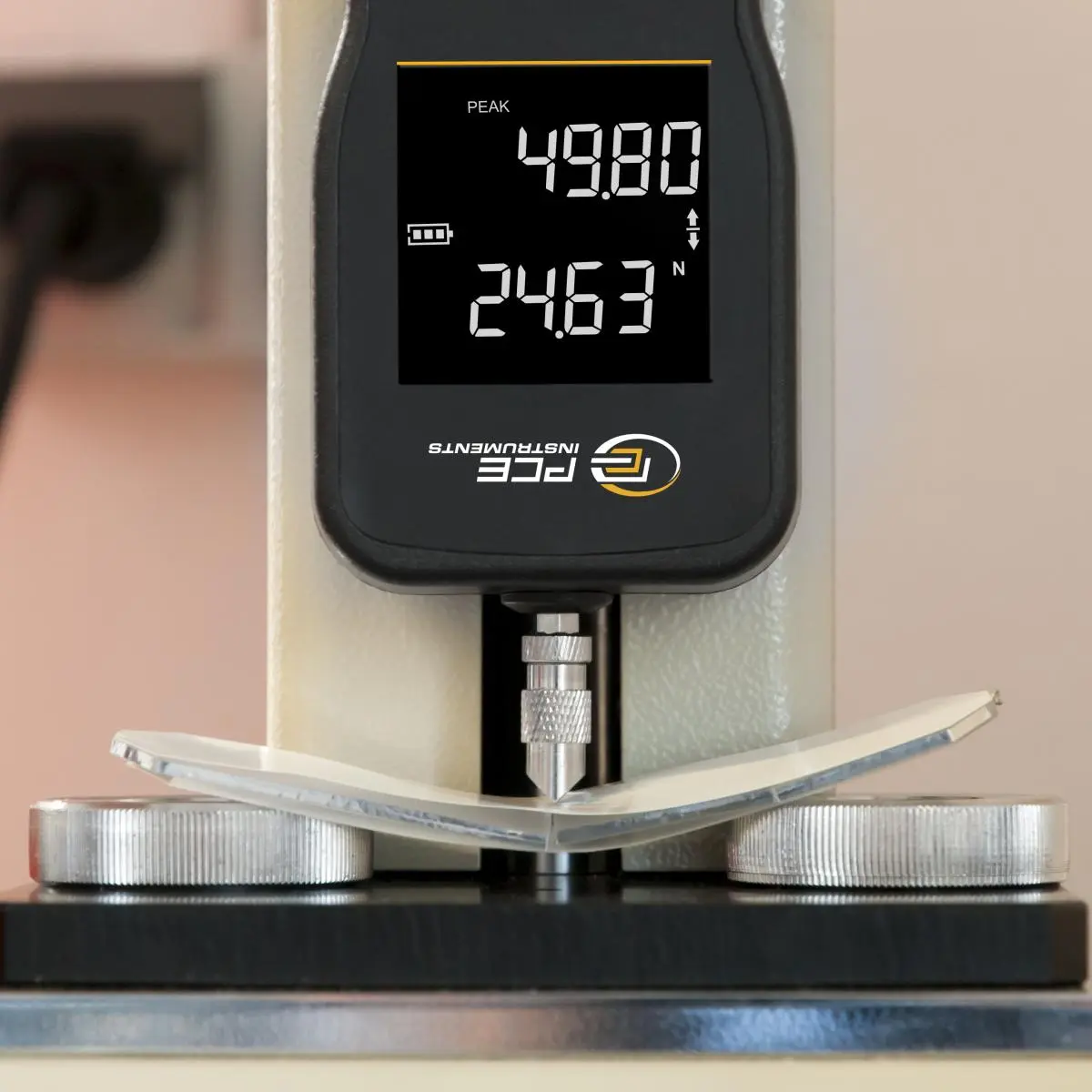

Force Gage PCE-FM 50N application

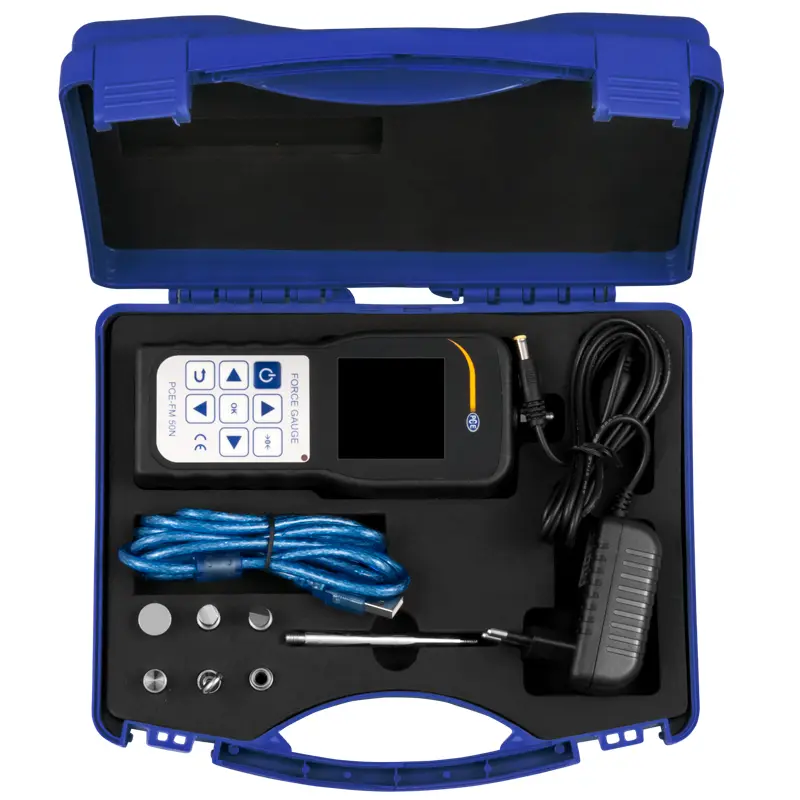

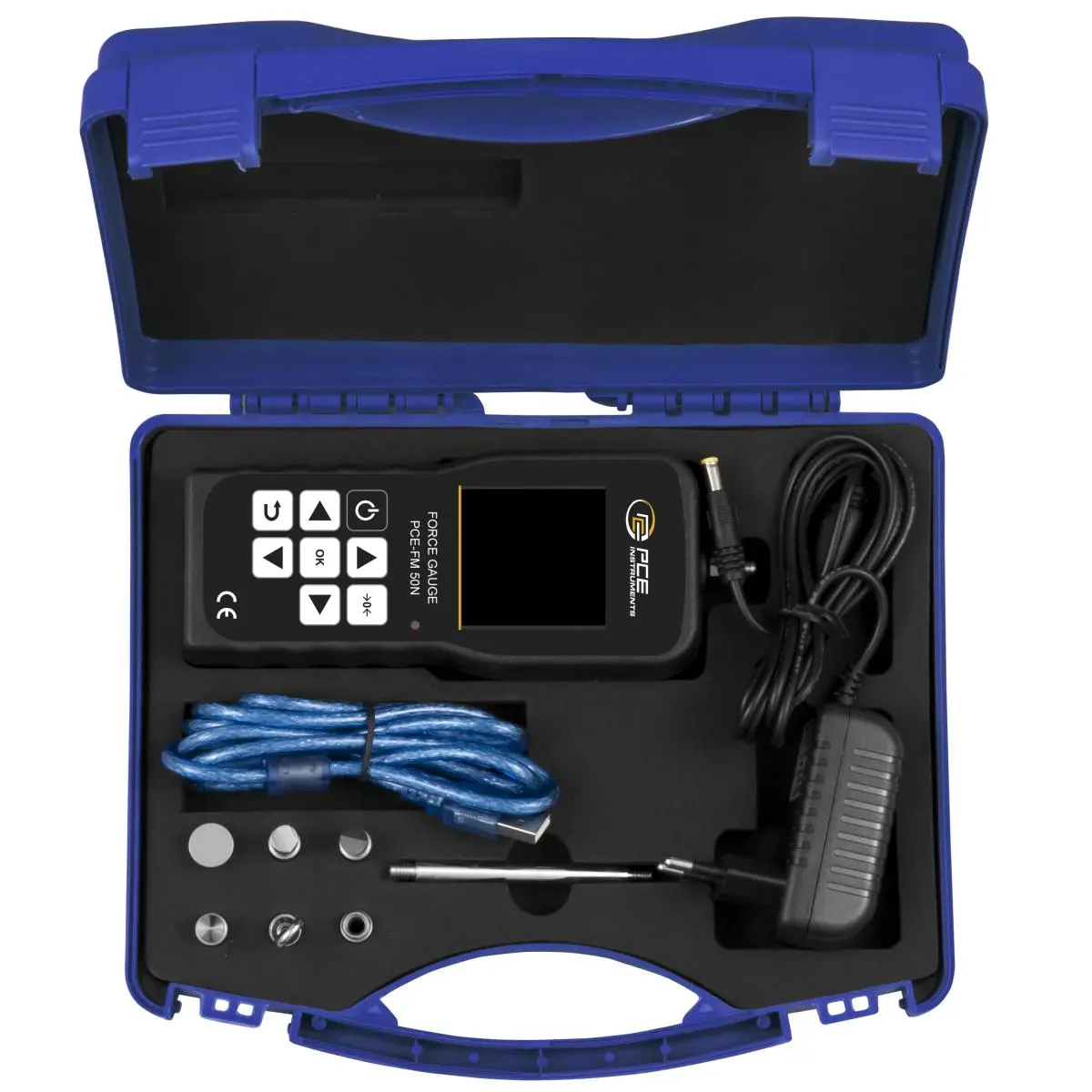

Force Gage PCE-FM 50N delivery

Force Gage PCE-FM 50N

Order no.: PCE-FM 50N
GTIN (EAN): 4250348718396
380,90 €
453,27 €
price ex. (VAT / delivery)
:
4250348718396
PCE-FM 50N
Delivery time: 1-2 working days

Accessory

Description

Force Gage PCE-FM 50N
Traction gauge / Compression force / USB interface
PEAK function / Different measuring units / Incl. Downloadable evaluation software


This force gage is a tensile / compressive force gage. This tensile / compressive force gage has an internal load cell. It is a portable traction / compression force gage that can be installed in a force measurement stand. The measuring range of this tensile and compressive force gage is up to 50 N / 11 lbs. So the meter is suitable for more precise tensile and compression tests.

The PCE-FM 50N force gage offers the option of mounting the force gauge on a test stand by means of threads on the rear of the device. Test stands are always used in a force gage if reproducible measurement results are required during the force measurement. These test stands are ideal additions to a force gage, because they are operated by a precise handwheel or a motor. In addition, both tensile and compressive force measurements can be performed on them. Experiments in the laboratory are thus possible with the force gage as well as the inspection of incoming goods.

The measurement results can be transferred directly to the PC via USB interface. There they can be archived and evaluated. An integrated statistical evaluation is used to evaluate the measurement results. The force measuring device is thus able to automatically store maximum and minimum measured values ​​in the display.



Highlights

- Different shaped measuring adapters
- Downloadable evaluation software
- Device for mounting on test stands
- Peak measurement
- Power supply via charging adapter
- Delivery with extension rod
- Evaluation via USB interface
- Fast measured value display

Specification

Measuring range0.5 ... 50 N / 0.1 ... 11 lbs
Resolution0.01 N / 0.002 lbs
Pressure calibration0.1 Mpa
Load cellIntegrated load cell with M6 connection
Measuring range 1 ... 100% of the full scale
Measurement accuracy± 0.5 %
UnitsN, kg, lb
DisplayLCD
Power supplyInternal battery, 12V / 1 A power adapter
Operating temperature10 ... 30 °C / 50 ... 86°F
Relative humidity15 ... 80 % relative humidity
Weight1 kg / 2.2 lbs

Working conditions
The device must not be near sources of vibration or corrosive substances

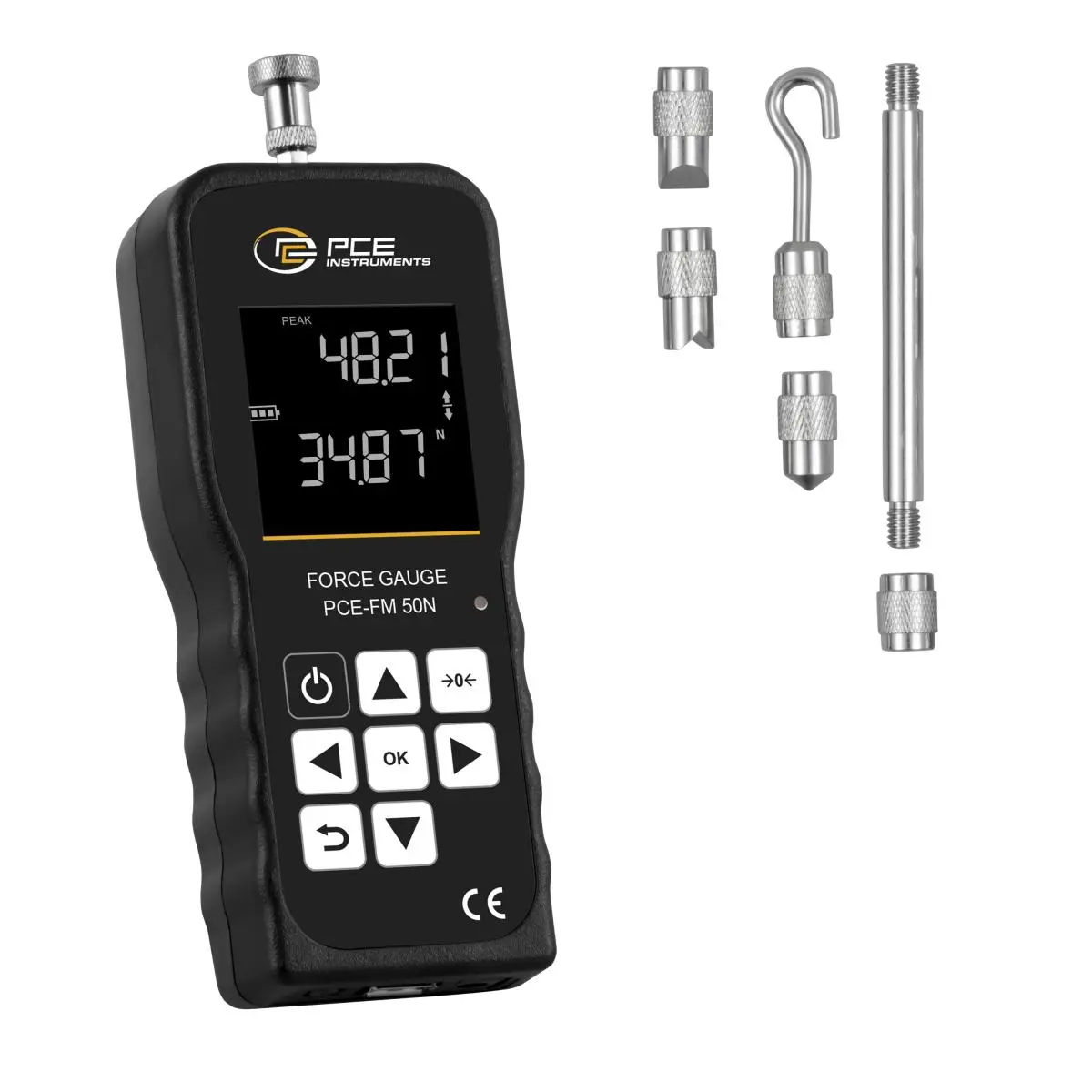

Delivery Scope

1 x PCE-FM 50N force gage with internal load cell
1 x Downloadable evaluation software
1 x USB cable
1 x Flat head adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notched head adapter
1 x Adapter for extension rod
1 x Extension bar (65 mm / 26 in)
1 x Charging adapter
1 x Device case
1 x User manual
