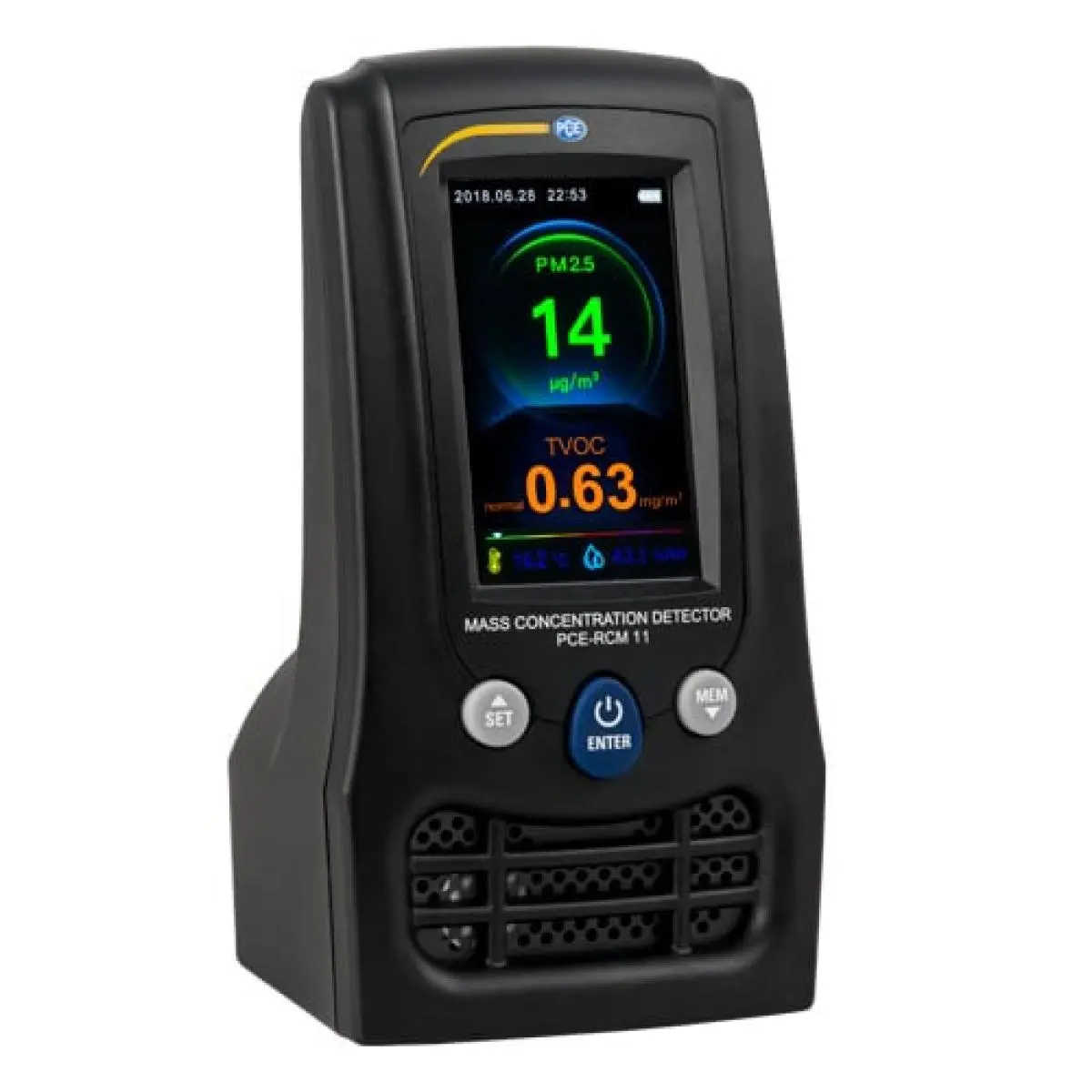

Food Hygiene / Hygiene Test Equipment PCE-RCM 11

Food Hygiene / Hygiene Test Equipment PCE-RCM 11 [zoom]
Food Hygiene / Hygiene Test Equipment PCE-RCM 11

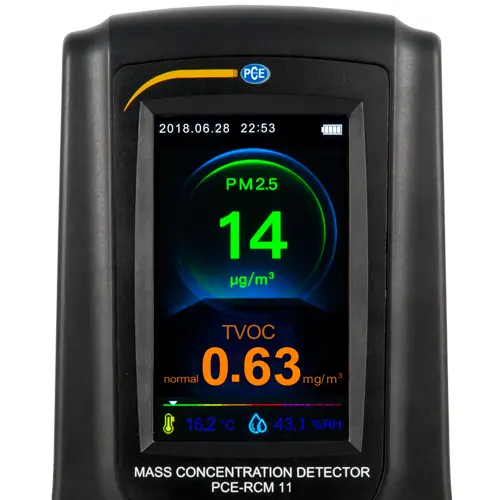

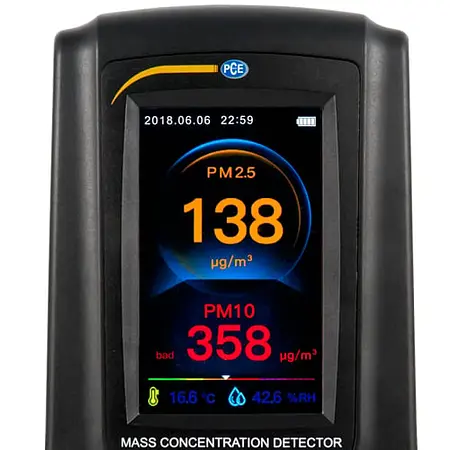

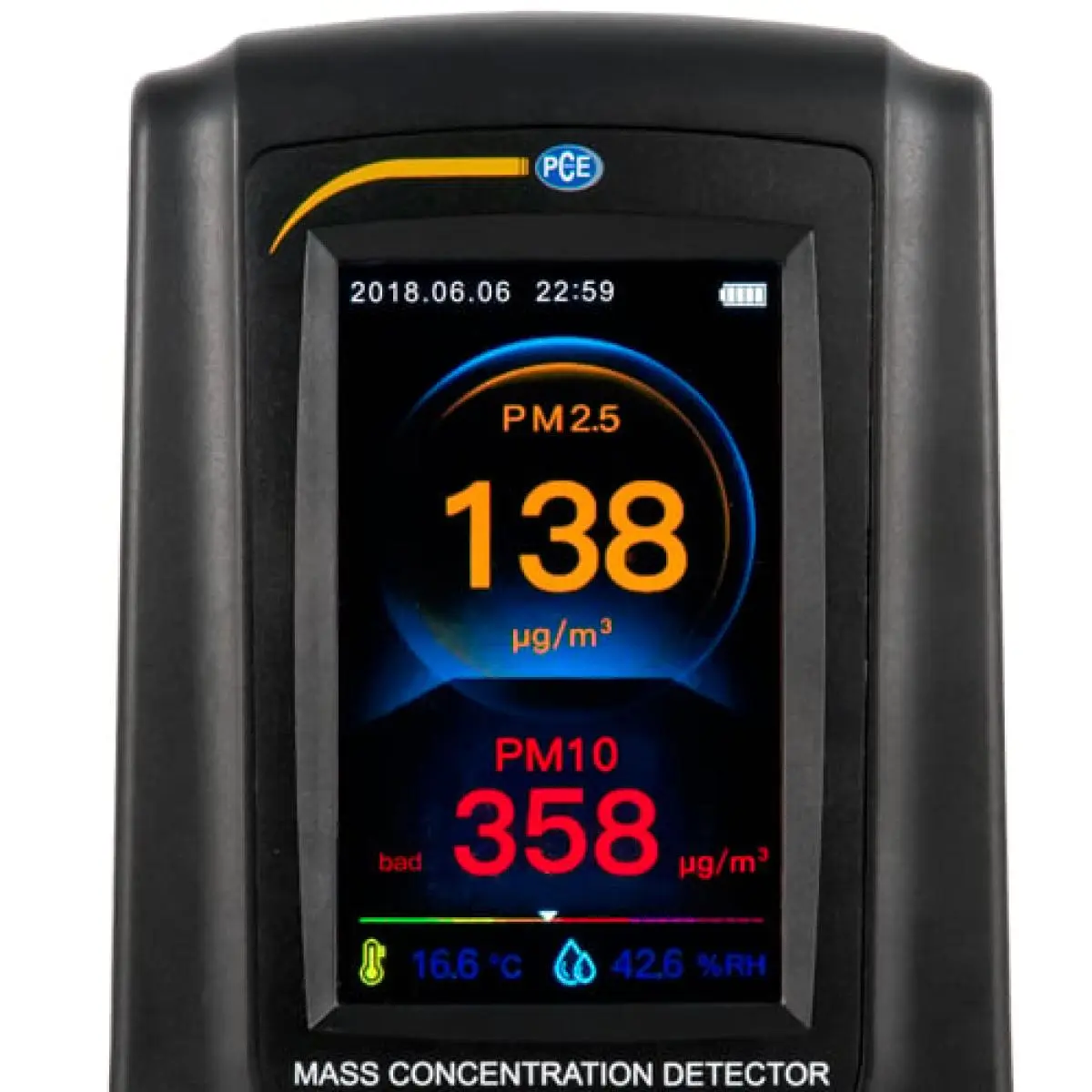

Food Hygiene / Hygiene Test Equipment Display

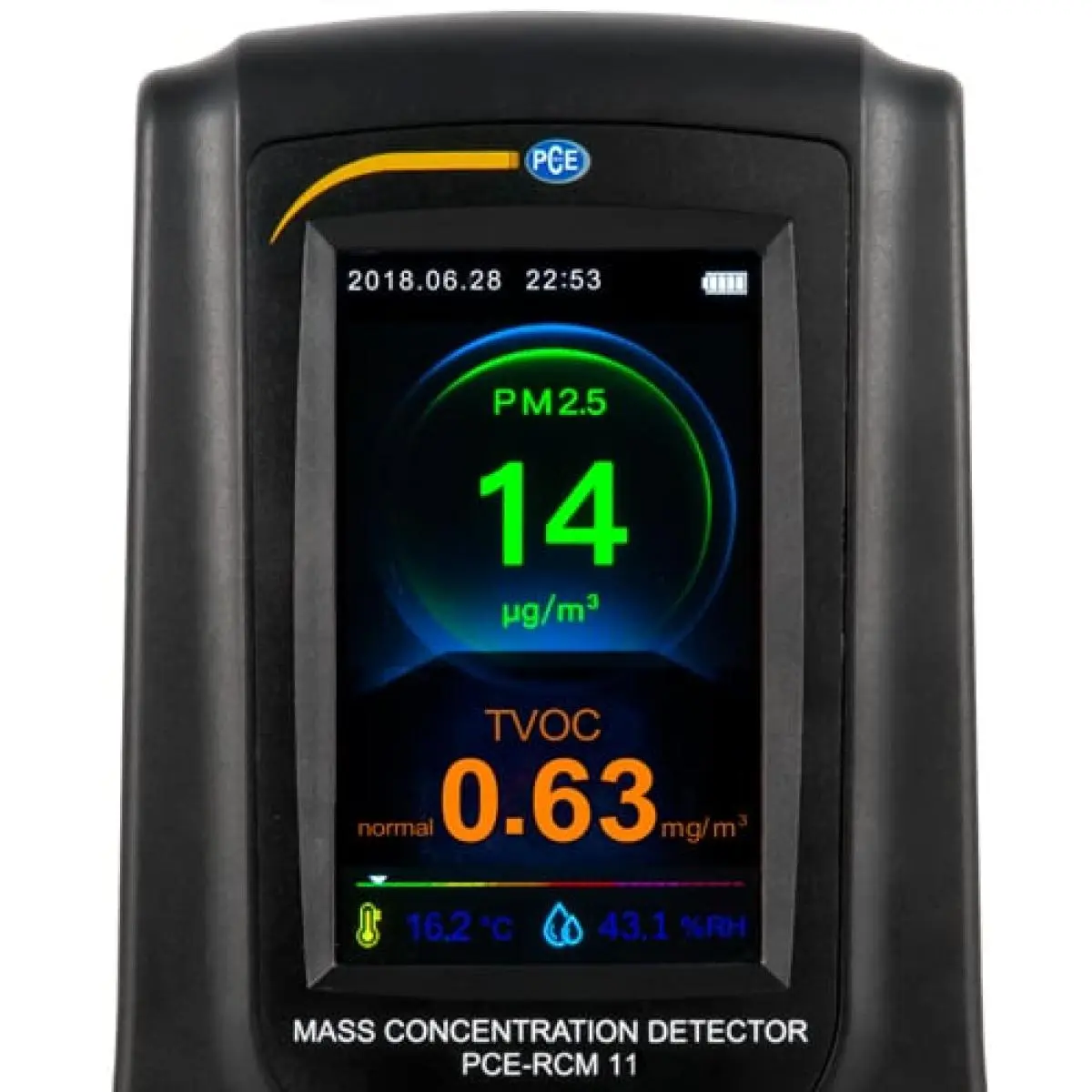

Food Hygiene / Hygiene Test Equipment Display
Food Hygiene / Hygiene Test Equipment Control panel

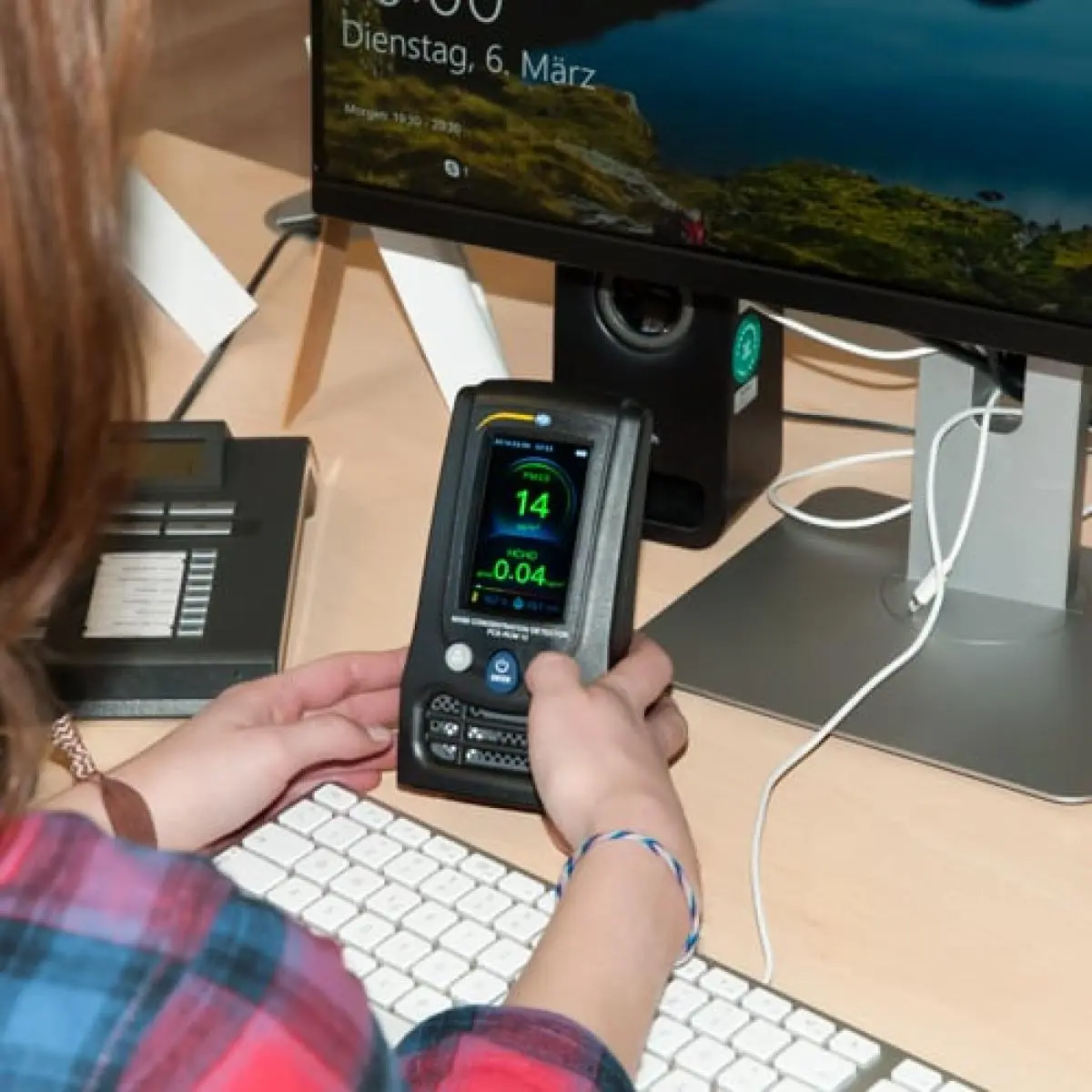

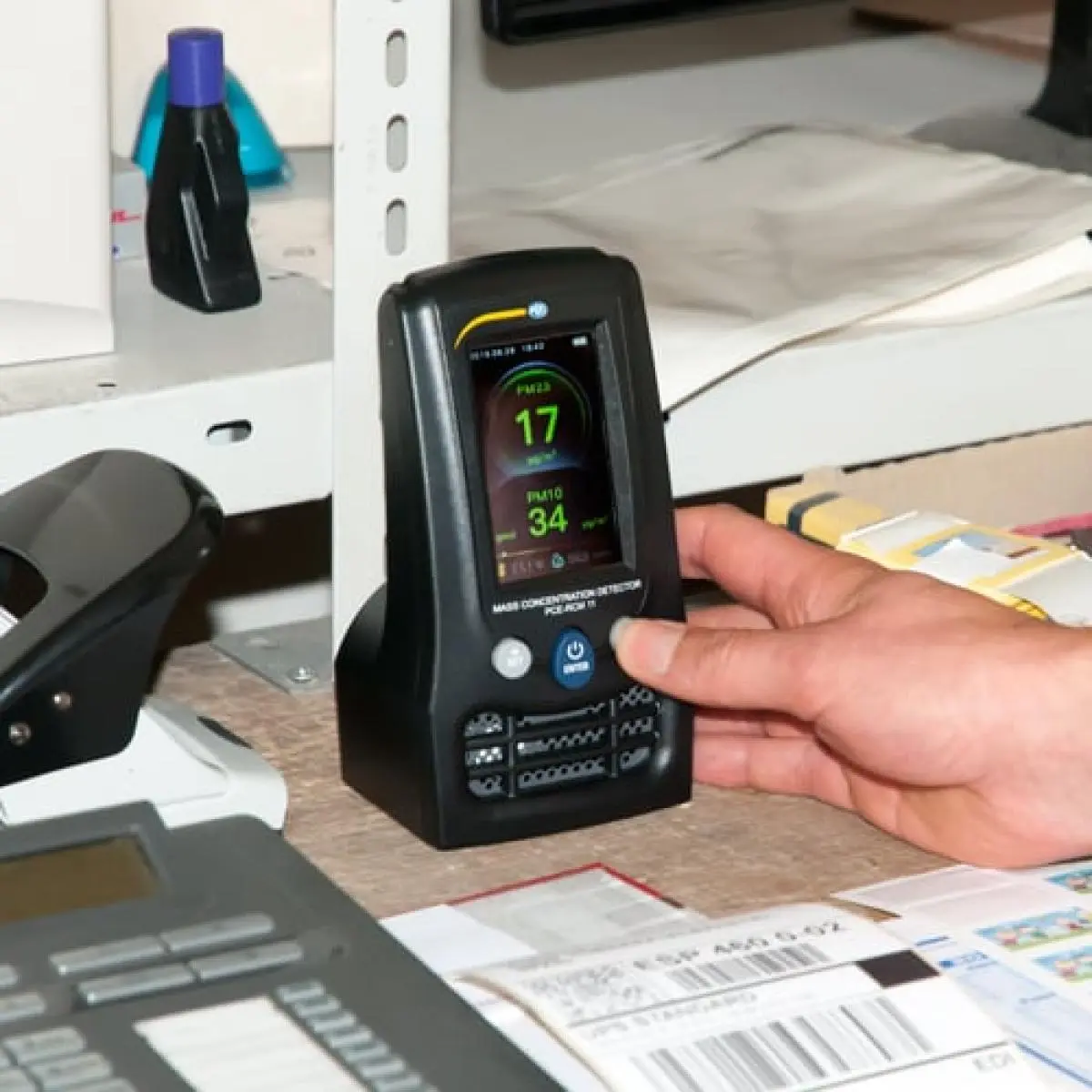

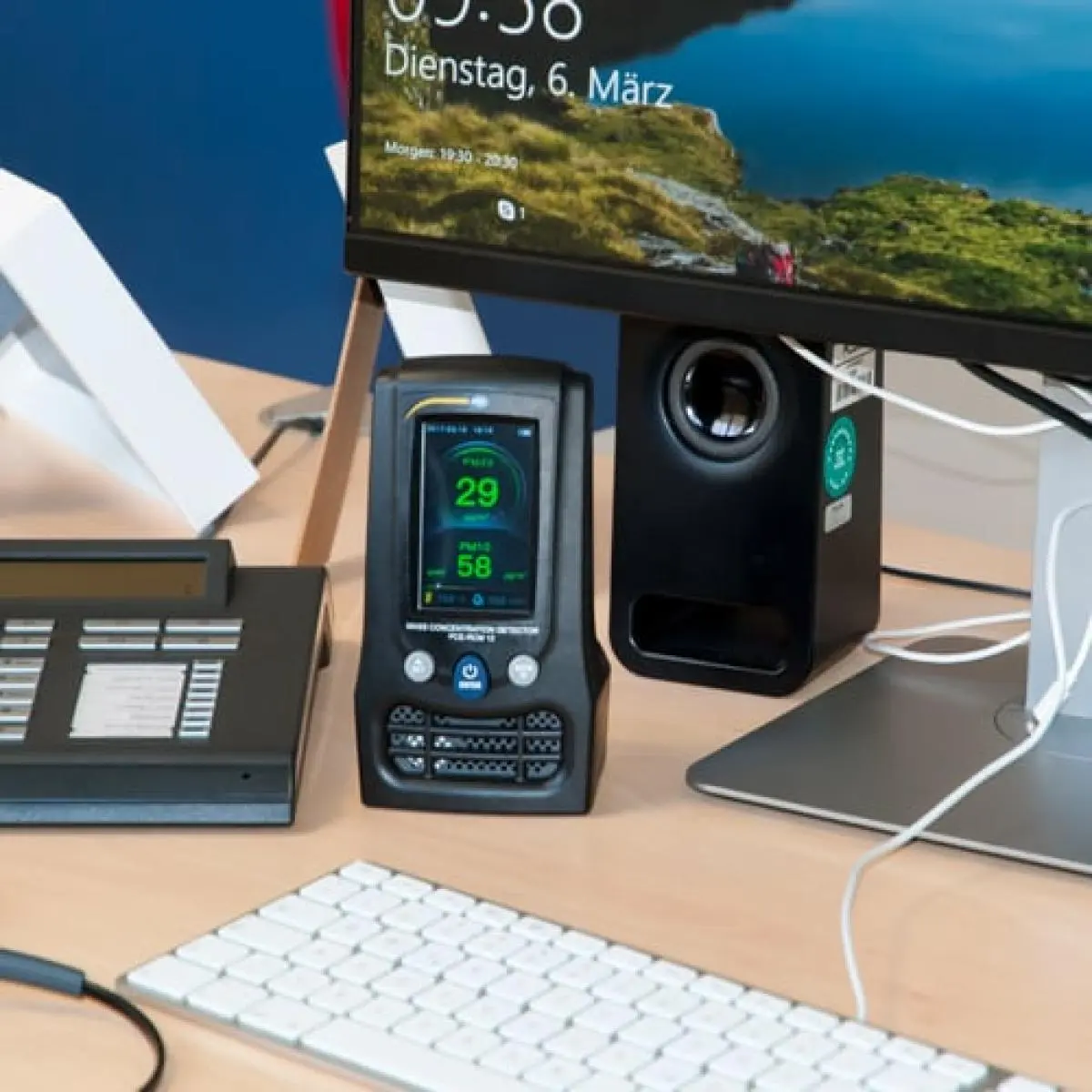

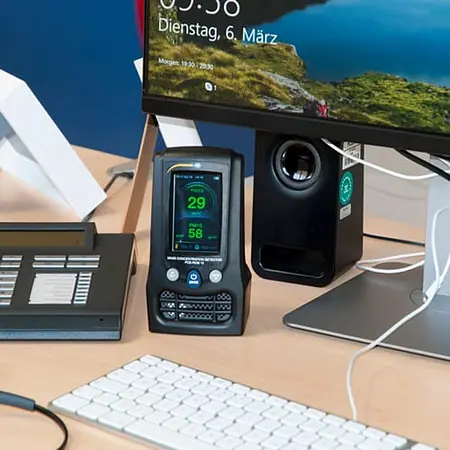

Food Hygiene / Hygiene Test Equipment Application picture
Food Hygiene / Hygiene Test Equipment Application picture
Food Hygiene / Hygiene Test Equipment Application picture

Airborne Particle-Counting Hygiene Meter PCE-RCM 11

Order no.: PCE-RCM 11
GTIN (EAN): 4250348718358
356,90 €
431,85 €
price ex. (VAT / delivery)
:
4250348718358
PCE-RCM 11
Delivery time:1-2 working days
Non-contact
Desktop
-20 ... 70 °C / -4 ... 158 °F
Yes (integrated)
Yes (USB)

Description

Airborne particle-counting hygiene meter PCE-RCM 11
Air Quality Monitor for Indicative Measurement of Environmental Conditions / Determination of HCHO, particulate matter (PM2.5 / PM10) / Temperature and relative humidity / 3" TFT LCD display


The air quality monitor PCE-RCM 11 serves the indicative examination of environmental parameters. The air quality monitor enables the measurement of fine dust, temperature and relative humidity. The bright display of the air quality monitor provides information about the already mentioned parameters. Environmental monitoring can be done continuously with the Air Quality Monitor for up to five hours without the device being connected to a power source.



For permanent measurement, the air quality monitor can be connected to the mains via a USB interface. The rechargeable battery will be recharged within two hours if the air quality monitor is turned off. The display of the concentrations is further simplified by the use of a color rating scale, as this directly provides information about the air quality to the user.

In addition to the indicative measurement of formaldehyde, which can be harmful to health, there is also an orienting measurement of particulate matter pollution to be carried out. A distinction is made between particles with a maximum diameter of up to 10 μm (PM10) and particles up to a diameter of 2.5 μm (PM2.5).


Highlights

- measurement of formaldehyde
- indication of the room temperature and humidity
- particulate matter measurement (PM2,5 / PM10)
- changing display of the measured values
- memory for up to 5000 measuring groups
- date and time display
- USB interface
- 3 "large TFT-LCD display
- safe and easy handling

Specification

Formaldehyde
Measuring range  0 ... 5 mg/m³
Resolution  0,01 mg/m³
Accuracy  ±5 % of range

Particle
Measuring channel sizes  PM2,5, PM10
Measuring range  2,5 ... 10 µm
Resolution  1 Particles
Accuracy  10 %

Particle
Measuring range  0 ... 2000 µm
Resolution  1 µg/m³
Accuracy  10 %
Measuring channel sizes  PM2,5, PM10

TVOC
Measuring range  0 ... 9,99 mg/m³
Resolution  0,01 mg/m³
Accuracy  ±5 % of range

Relative humidity
Measuring range  0 ... 20 % RH
Resolution  0,1 % RH
Accuracy  ±5 % RH

Relative humidity
Measuring range  20 ... 80 % RH
Resolution  0,1 % RH
Accuracy  ±3.5 % RH

Temperature
Measuring range  -20 ... +70 °C
Resolution  0,1 °C
Accuracy  ±2 °C

General technical data
Display type  TFT colour display
Display size  3 in
Display resolution  240 x 400 pixels
Storage medium  Internal memory
Storage capacity  5000 Data records
Interface  Micro-USB
Operating time  5 h
Automatic power-off from...to  10 ... 120 min.
Menu language  English, Chinese
Power supply  Rechargeable battery: 3.7V
USB: 5V
Connector type  Device-europlug
Capacity  2400 mAh
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  155 x 85 x 75 mm
Weight  360 g

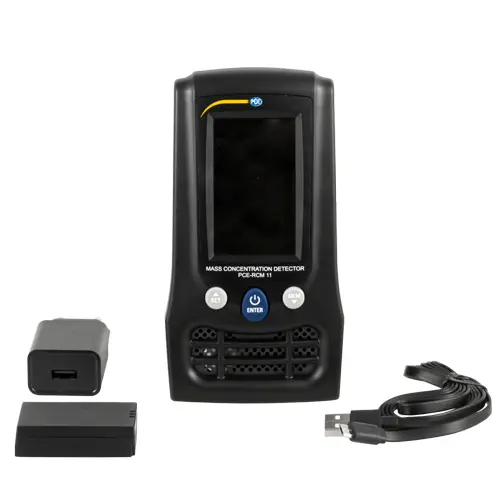

Delivery Scope

1 x Particle counter PCE-RCM 11
1 x USB cable
1 x Battery
1 x Charging adapter
1 x User manual
