Environmental Wind Direction Tester PCE-WV A

Order no.: PCE-WV A

GTIN (EAN): 4250348722416

Accessory

Optional Mounting Kit PCE-WS/MOUNT

69,90 €

Description

Robust Environmental Wind Direction Tester for fixed installation / 4 ... 20 mA output /

for wind warning systems, building services and building automation

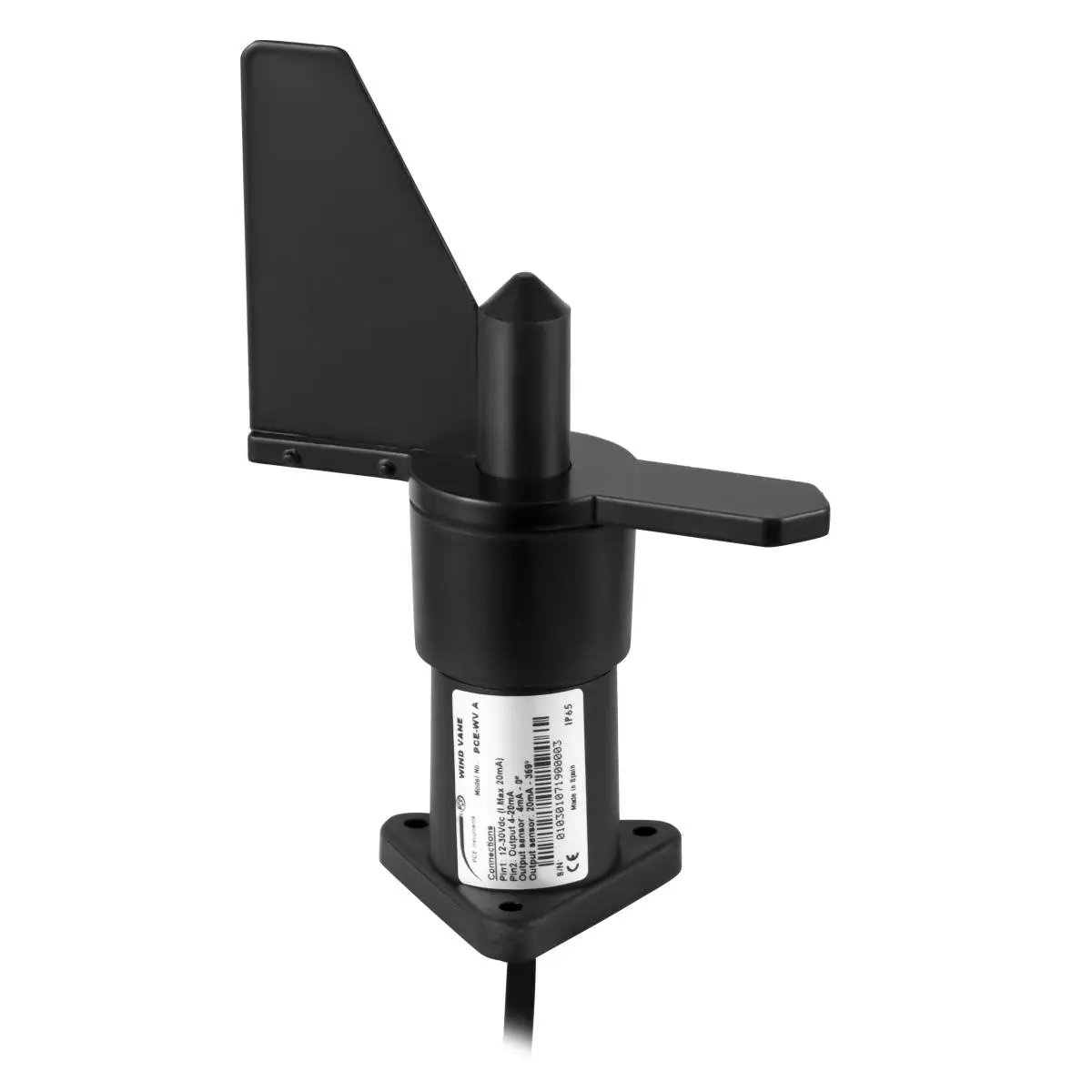

The Environmental Wind Direction Tester was developed to measure the wind direction in the industrial environment. This Environmental Wind Direction Tester can be connected to data loggers, process control systems, displays. A 4 ... 20 mA signal is available as an output signal on the Environmental Wind Direction Tester. The Environmental Wind Direction Tester has no dead center in the north and measures the wind direction from 0 ... 360 °. In order to protect the air flow meter from external weather influences, it is protected according to IP65.

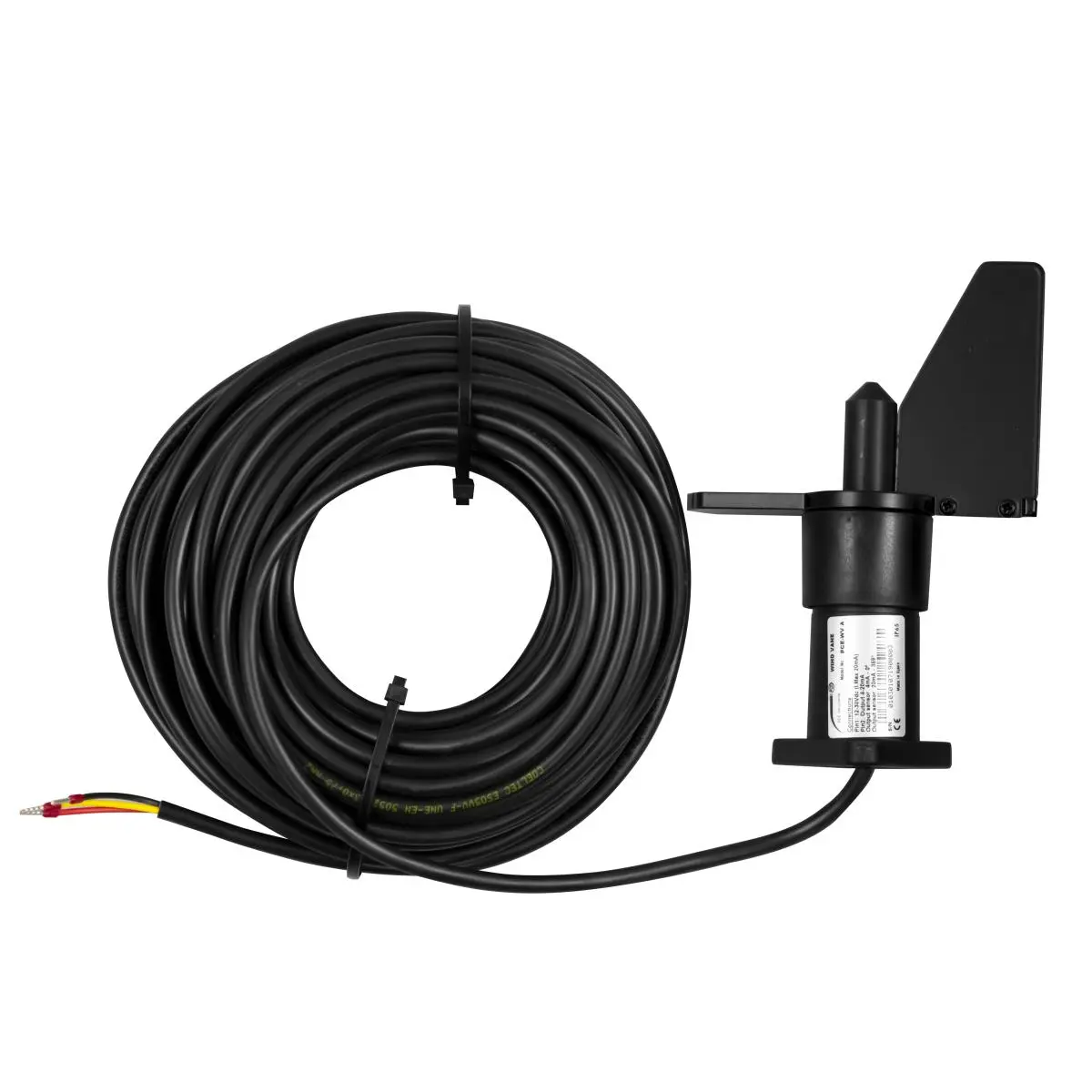

To connect the Environmental Wind Direction Tester to an evaluation, a 20 m cable is installed on the wind direction sensor. The Environmental Wind Direction Tester can be used for irrigation control, automation in greenhouses, on solar trackers, cable cars in ski areas, cranes, wind turbines, weather stations and wherever the wind or wind direction must be observed precisely.

Highlights

- Robust PA plastic housing

- IP 65 protection

- 4 ... 20 mA output

- Long lifetime

- 0 ... 360 ° measuring range

- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Wind direction
Measuring range	0 ... 360 °
Resolution	25,5 °
Accuracy	±3°

General technical data
Outputs	4 ... 20 mA
Cable length	20 m
Maximum current	20 A
maximum wind speed	200 km/h
Protection class (device)	IP65
Power supply	12 ... 30 V DC
Operating conditions	-20 ... 60 °C , 0 ... 95 % RH
Storage conditions	-35 ... 80 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	130 x 65 x 185 mm
Weight	170 g
