Environmental Tester PCE-WS P

Order no.: PCE-WS P

GTIN (EAN): 4250348722447

Accessory

Optional Mounting Kit PCE-WS/MOUNT

69,90 €

Description

Robust Environmental Tester for fixed installation / various output signals /

for wind warning systems, building services and building automation

The Environmental Tester impresses with its compact design and various output signals. The Environmental Tester can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Tester, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Environmental Tester is designed as a star, so that operation independent of the wind direction is guaranteed.

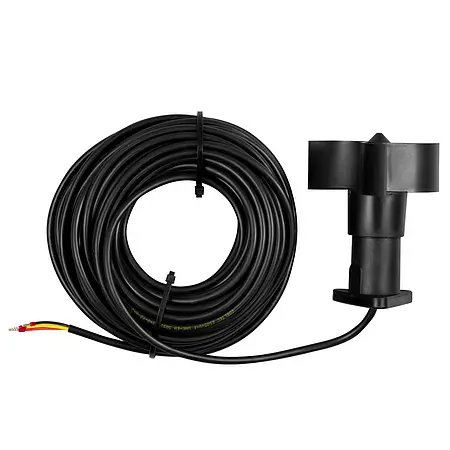

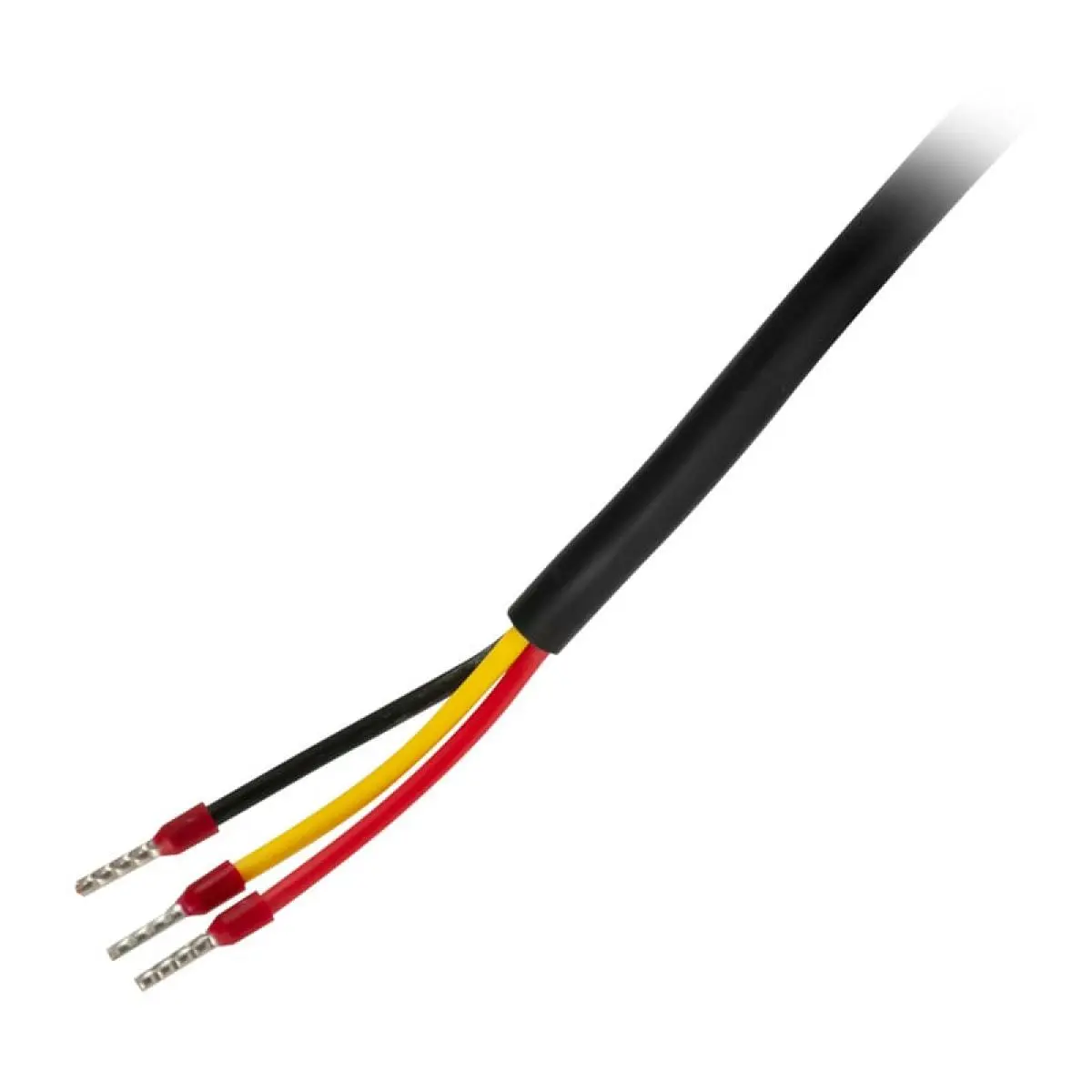

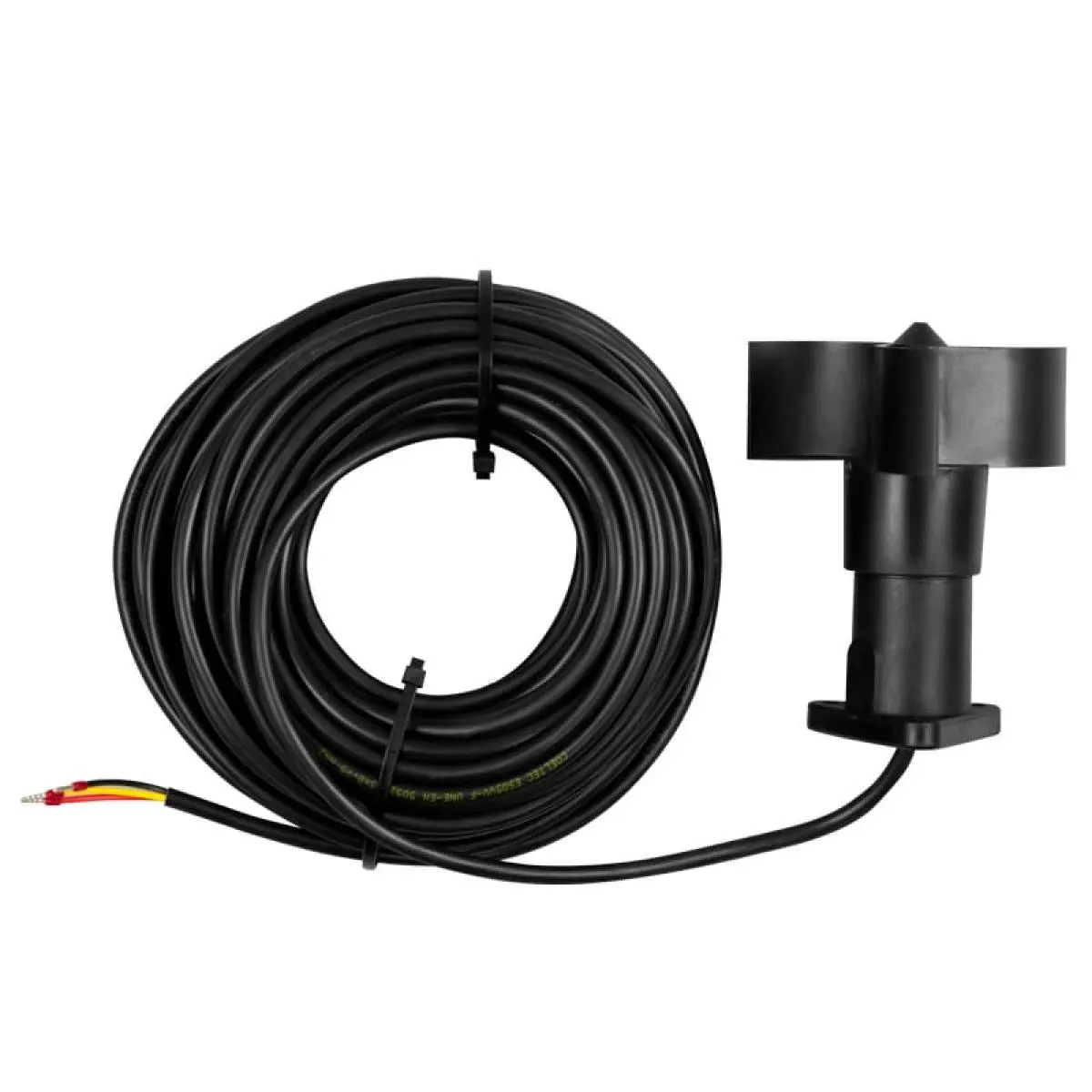

The Environmental Tester is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Tester is also protected to IP65. The design of the Environmental Tester also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Environmental Tester has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Tester is optionally available.

Highlights

- Robust PA plastic housing

- IP 65 protection

- mA, V, pulse or Modbus output

- Long lifetime

- Direct measurement of wind speed

- Measurement from 2.62 ft/s, 0.8 m/s

Specification

Speed
Measuring range	0,8 ... 4 m/s
Resolution	0.1 m/s
Accuracy	±0.27 m/s

Speed
Measuring range	4 ... 50 m/s
Resolution	0.1 m/s
Accuracy	±3%

General technical data
Outputs	Impulse (Reed contact)
Cable length	20 m
maximum wind speed	55 m/s
Protection class (device)	IP65
Power supply	3 ... 24 V DC
Operating conditions	-20 ... 80 °C , 0 ... 95 % RH
Storage conditions	-20 ... 80 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	139 x 123 x 123 mm
Weight	160 g
