Price excl. VAT &. delivery
2 year Warranty
- one channel
- 4 points per channel between -10 °C bis 140 °C
- Calibration for thermometers with external sensors up to dia = 12 mm in a dry block calibrator
Temperature Sensor | Measuring range | Resolution | Accuracy |
Type K | -200 ... 1370 °C / -328 … +2498 °F | 0.01 °C | ±0.3 % of rdg. +0.4 °C |
Type T | -200 ... 400 °C / -328 … 752 °F | 0.01 °C | ±0.3 % of rdg. +0.4 °C |
Type J | -200 ... 1200 °C / -328 … 2192 °F | 0.01 °C | ±0.3 % of rdg. +0.4 °C |
Units | °C / °F | ||
Number of channels | 2 | ||
Measuring rate | 2 Hz | ||
Data storage | 15,328 kB for 20,000 data points | ||
File formats | TXT, CSV, XLS, DLG | ||
Storage interval | 1 .... 86,399 s | ||

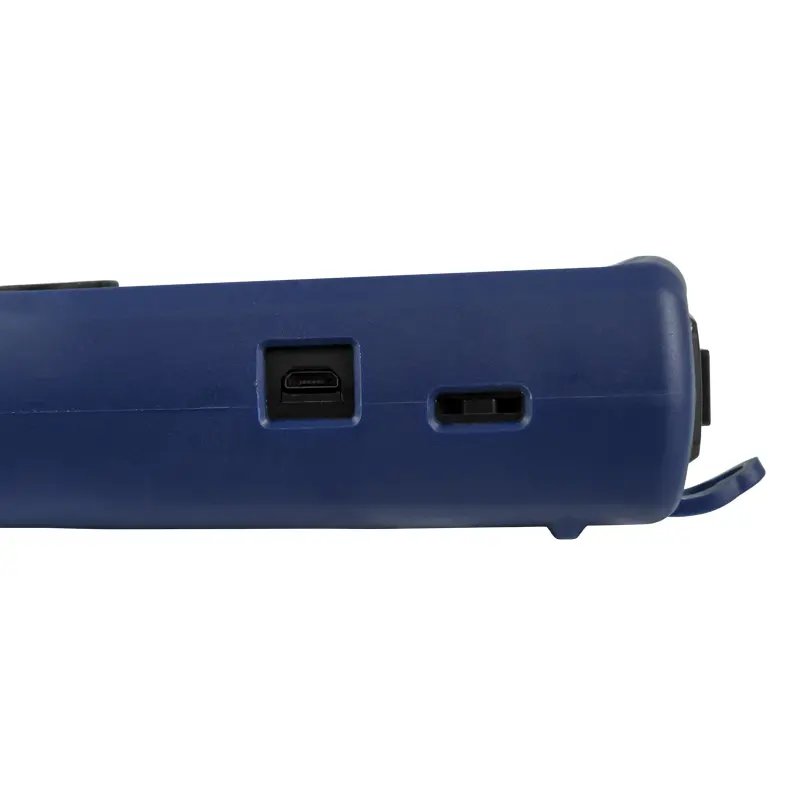

Interface | Micro-USB | ||
Power supply | 3 x 1.2 V AAA rechargeable batteries | ||
3 x 1.5 V AAA batteries | |||
Battery life | ca. 190 hours | ||
(without backlight, battery capacity | |||
1200 mAh, ambient temperature 25 °C) | |||
Operating conditions | -10 ... 50 °C / 14 … 122 °F | ||
Storage conditions | -20 ... 60 °C / -4 … +140 °F (without batteries) | ||
Dimensions | 173 x 71 x 38 mm / 6.8 x 2.8 x 1.5" | ||
Weight | ca. 226 g / 7.9 oz | ||
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Temperature contact sensor with Velcro tape
Price excl. VAT &. delivery
2 year Warranty
Female miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400
Price excl. VAT &. delivery
2 year Warranty
Male miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400
Price excl. VAT &. delivery
2 year Warranty
Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.
Price excl. VAT &. delivery
2 year Warranty
Extension cable for K-type temperature sensors with plug and socket for standard miniature connector
Price excl. VAT &. delivery
2 year Warranty
Magnetic surface sensor for secure fixation on metallic surfaces
Price excl. VAT &. delivery
2 year Warranty
Self-adhesive surface sensor with fiberglass insulation for permanent fixation (with adhesive patch) at a specific measuring point
Price excl. VAT &. delivery
2 year Warranty
Flexible sensor for air and liquids
Price excl. VAT &. delivery
2 year Warranty
Flexible ceramic-insulated wire probe for highest temperatures
Price excl. VAT &. delivery
2 year Warranty
Flexible sensor for air and liquids at higher temperatures
Price excl. VAT &. delivery
2 year Warranty
High-temperature surface sensor with resilient tip, angled 90° on a 1 m cable
Price excl. VAT &. delivery
2 year Warranty
Stainless steel air sensor with handle and 1 m cable for air and gases with fast response time
Price excl. VAT &. delivery
2 year Warranty
Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air
Price excl. VAT &. delivery
2 year Warranty
Flexible high temperature sensor, handle and 1 m coiled cable
Price excl. VAT &. delivery
2 year Warranty
Electrically insulated probe for measuring live surfaces
Price excl. VAT &. delivery
2 year Warranty
Temperature sensor with resilient plate tip and 1m cable
Price excl. VAT &. delivery
2 year Warranty
Ideal for measuring surface temperature
Price excl. VAT &. delivery
2 year Warranty
Surface temperature roller sensor for use on moving or rotating, smooth surfaces
