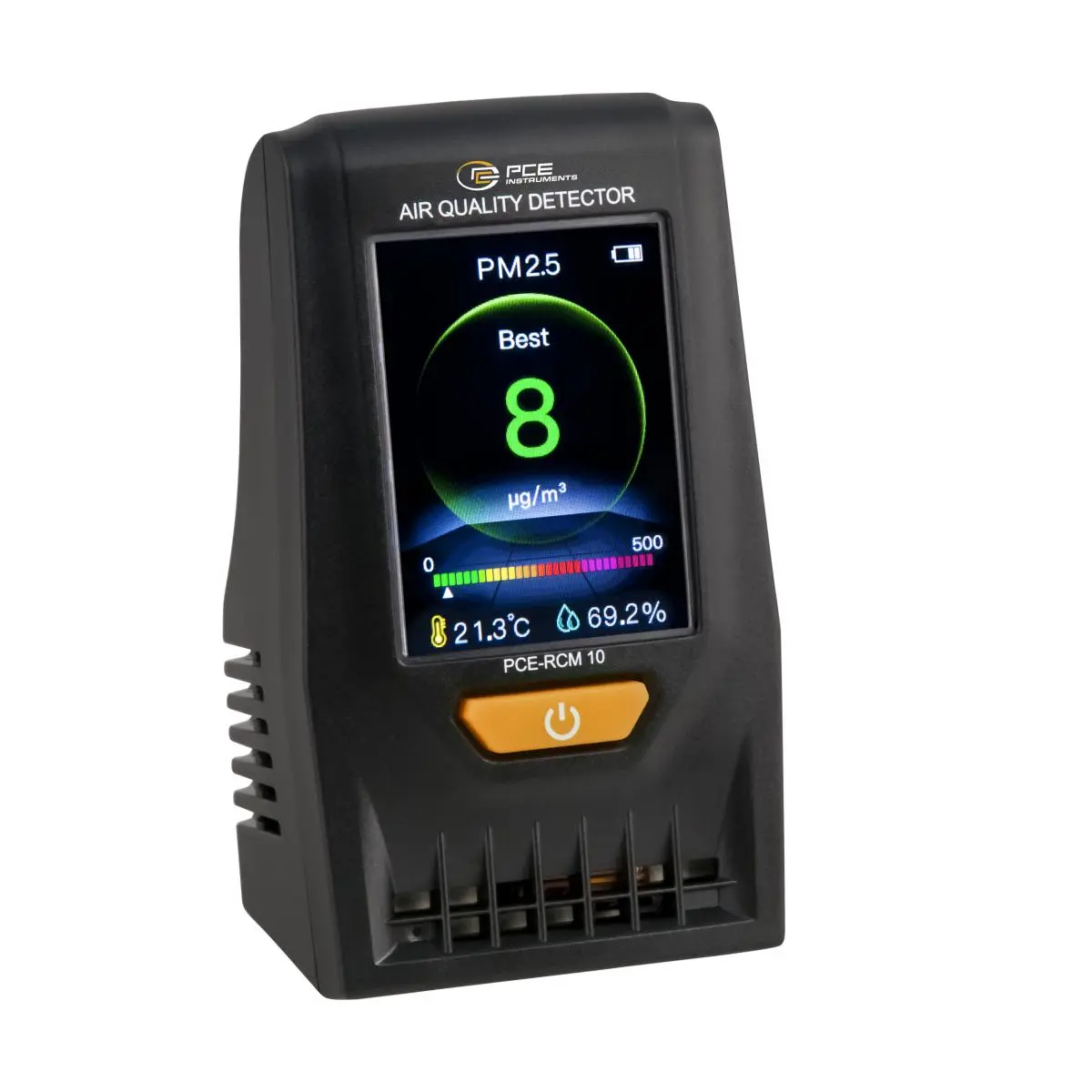

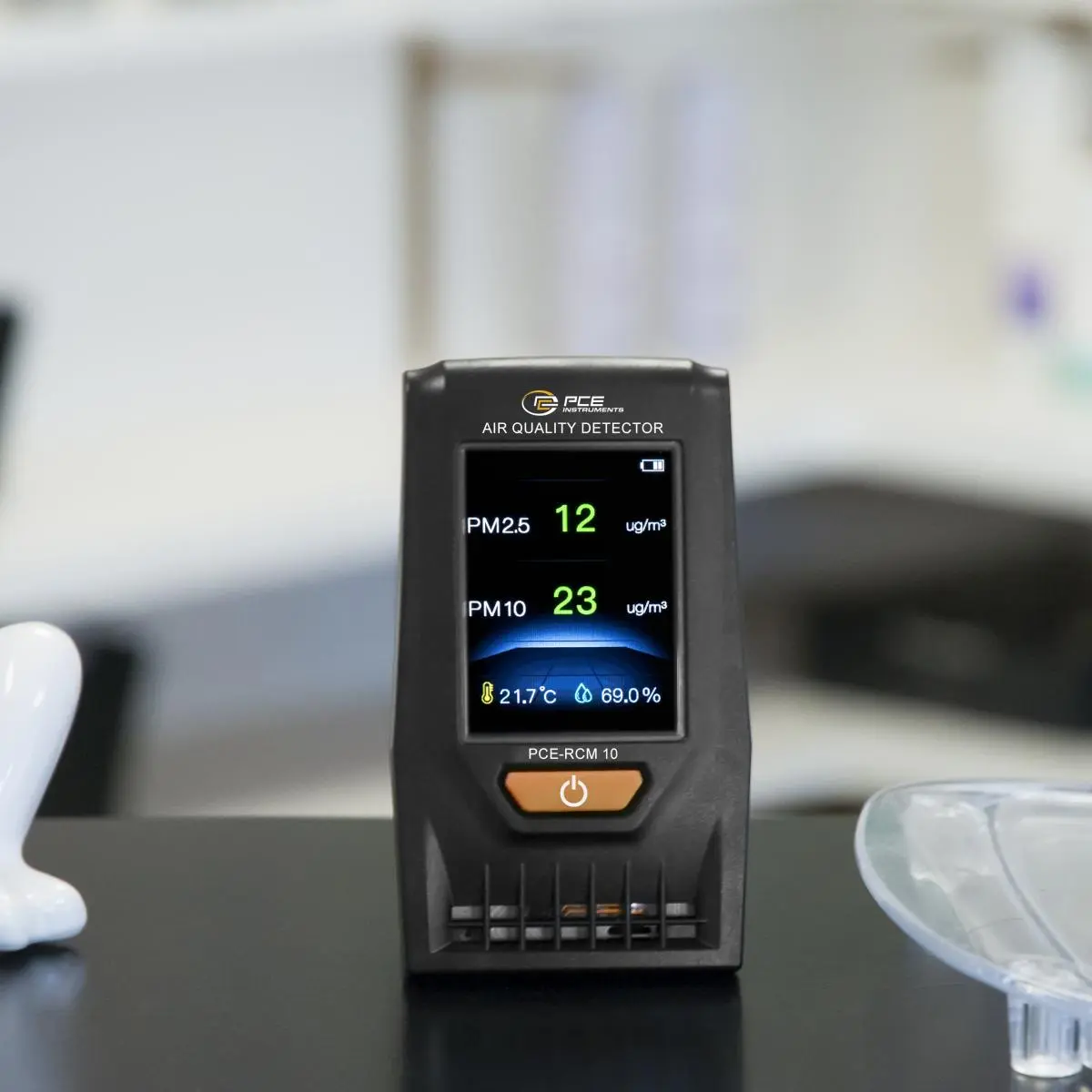

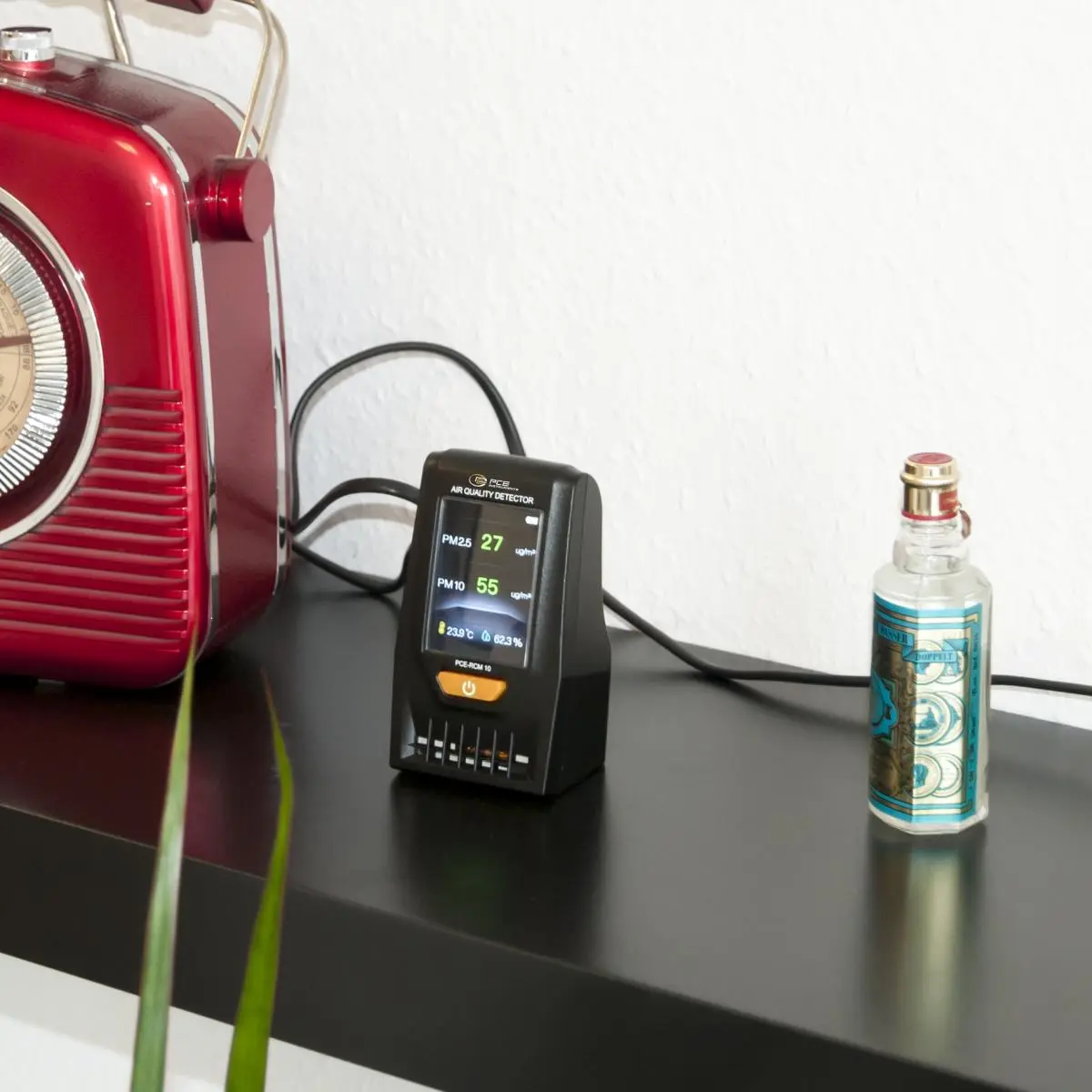

Environmental Meter PCE-RCM 10
Portable handheld particle counter for monitoring particulate matter (PM) concentrations in the air / 2.5 µm and 10 µm particle sizes / Measures air temperature and relative humidity

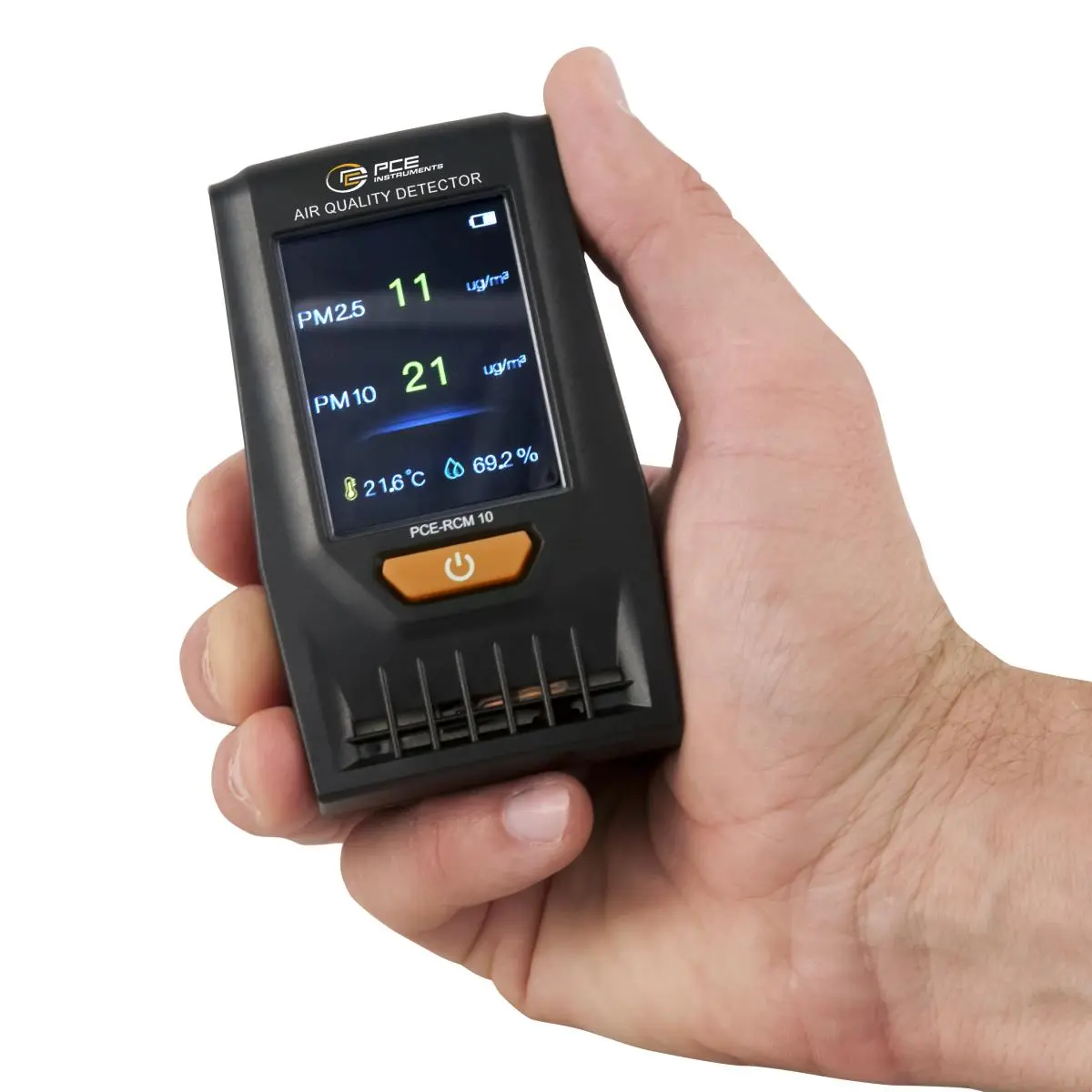

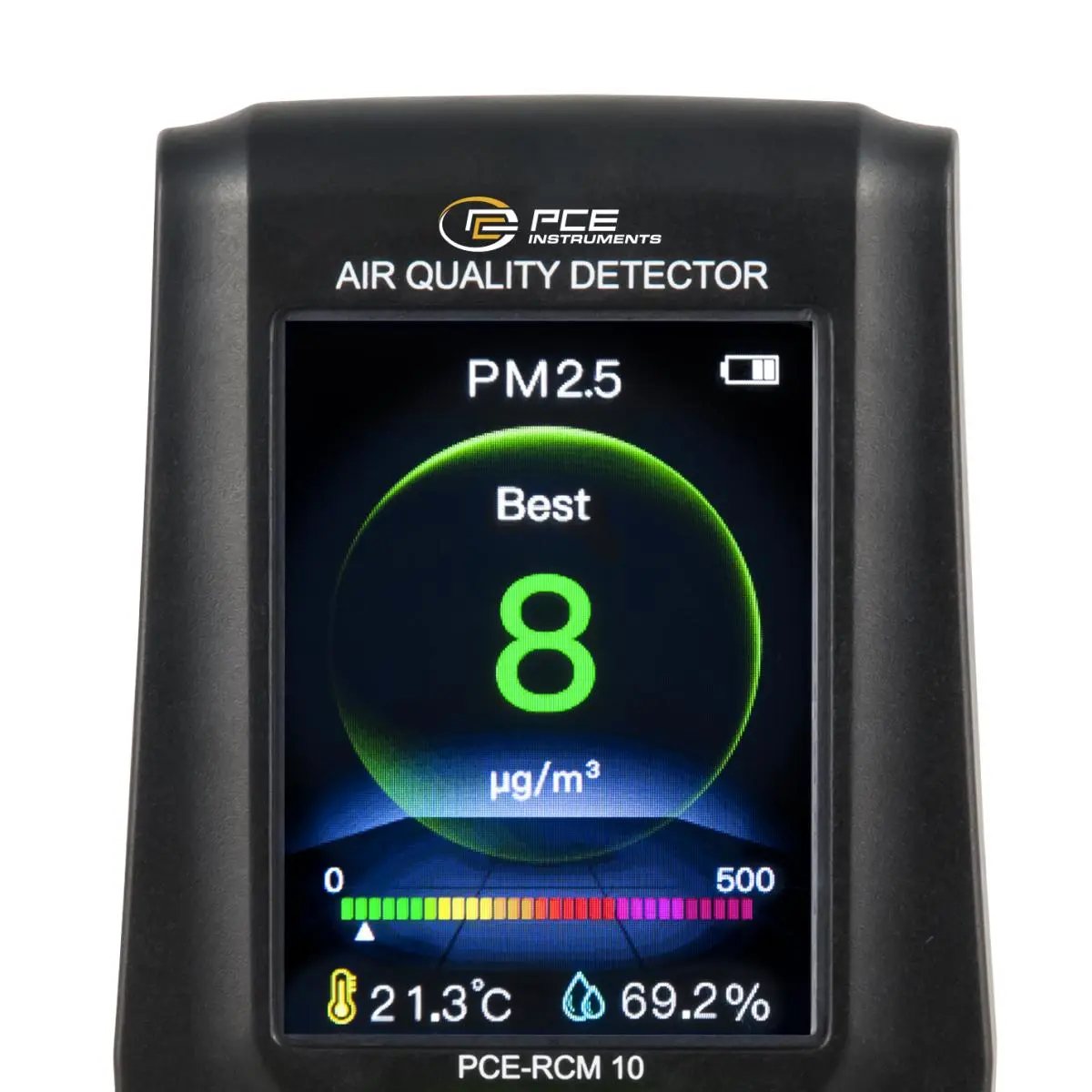

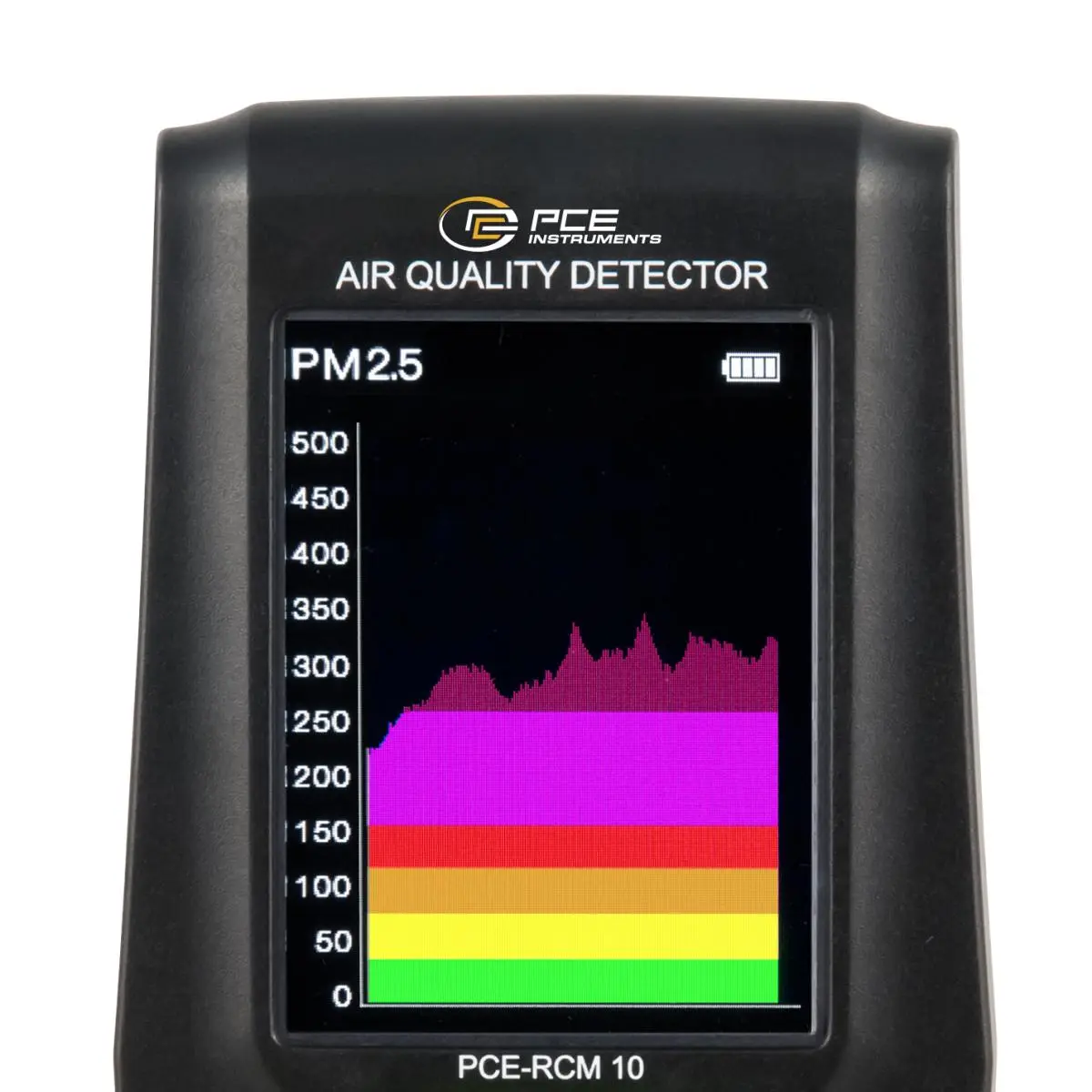

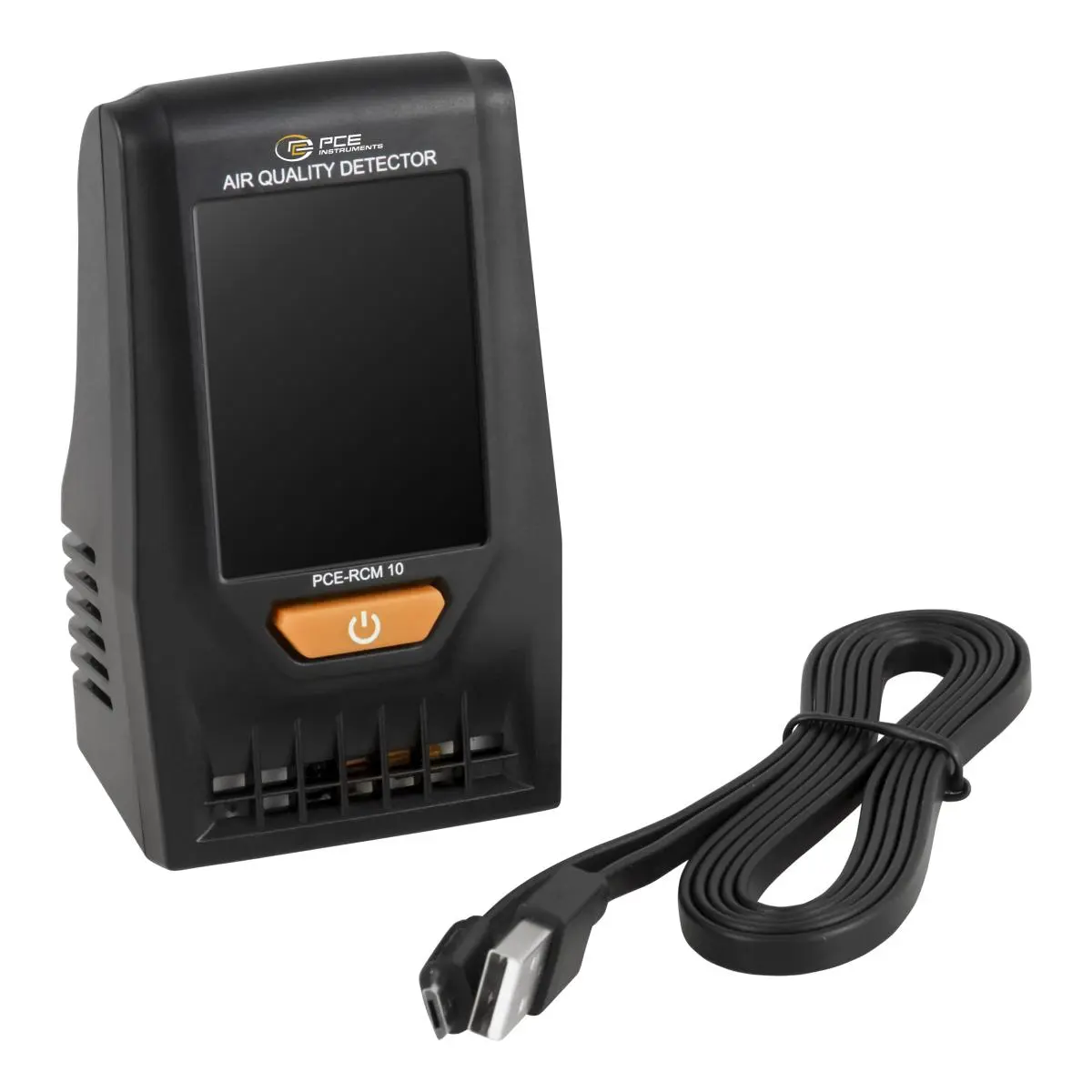

PCE-RCM 10 is a portable handheld environmental meter or particle counter used to monitor particulate matter (PM) concentrations in the air. Designed to aid in indoor air quality (IAQ) assessments, this environmental meter also measures air temperature and relative humidity (RH). The environmental meter can be powered either by the built-in rechargeable battery or the USB port. The USB port also is used to charge the battery. At full charge, the battery provides up to 5 hours of continuous operation or unlimited operation when plugged into a USB power source. The environmental meter displays all measurements simultaneously on the device's 2.4" full-color LCD screen. PM values appear the largest in the colors green, yellow, gold, orange, pink and red. This visual color-coding system makes it easy to recognize when PM concentration levels become dangerous, allowing for quick action.
When inhaled, PM 2.5 and PM 10 particles can settle deep into the lungs and result in damaging health effects. Since the environmental meter monitors PM 2.5 and PM 10 particles, the device has many practical health and safety applications. Heating, ventilation and air conditioning (HVAC) technicians use PM 2.5 and PM 10 environmental meter for HVAC system performance and filtration audits. In addition, industrial hygienists and workplace safety professionals rely on PM 2.5 and PM 10 environmental meter when evaluating occupational health and safety risks related to hazardous and combustible dust.
| Particle | |
| Measuring channel sizes | 2.5, 10 |
| Measuring range | 0 ... 2000 µm |
| Relative humidity | |
| Measuring range | 0 ... 100 |
| Resolution | 0,1 |
| Accuracy | ±3.5 % RH (20 ... 80 % RH) / ±5 % RH (0 ... 20 % RH / 80 ... 100 % RH) |
| Temperature | |
| Measuring range | -20 ... +70 °C |
| Accuracy | ±1 °C |
| General technical data | |
| Display type | TFT colour display |
| Display size | 2,4 in |
| Interface | Micro-USB |
| Operating time | 5 h |
| Automatic power-off | 30 min |
| Menu language | English |
| Power supply | 5V |
| Capacity | 1200 mAh |
| Dimensions ( W x H x D ) | 80 x 110 x 45 mm |
