Environmental Meter incl. ISO Cal Certificate PCE-007-ICA

Order no.: PCE-007-ICA

GTIN (EAN): 4250348727640

Description

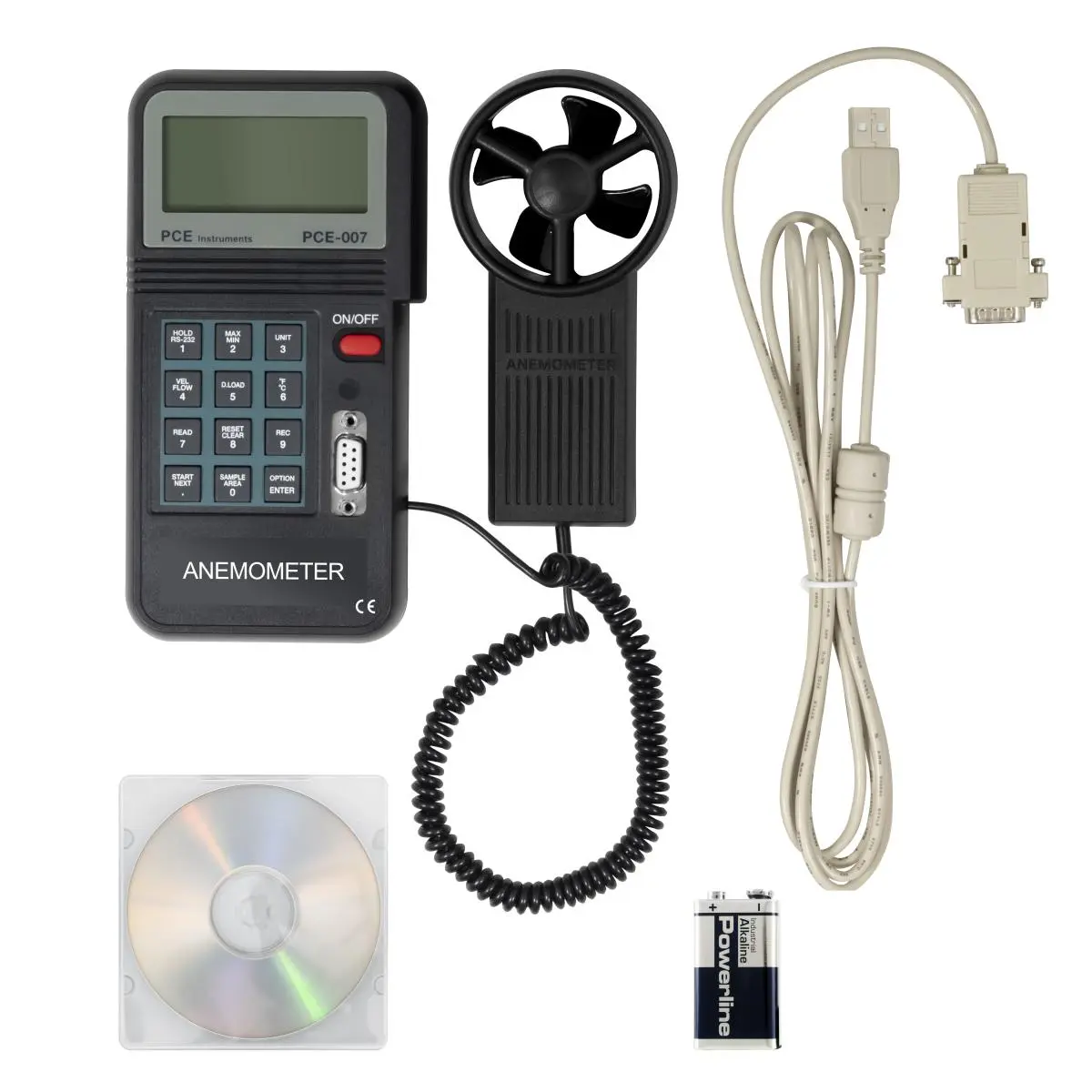

Accurate Data- Logger environmental meter with connection port, memory,

software for measuring wind speed, temperature and Data- Logger

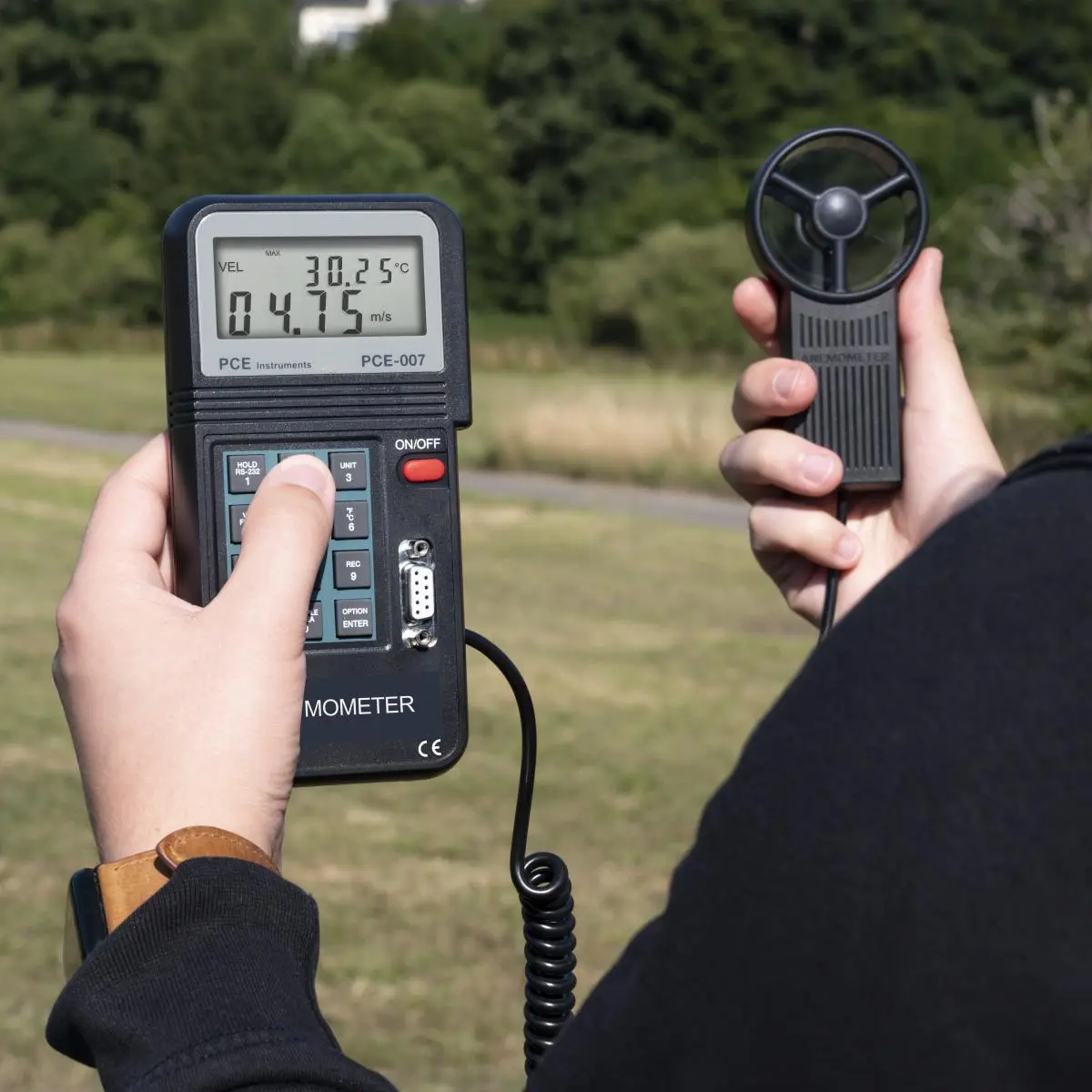

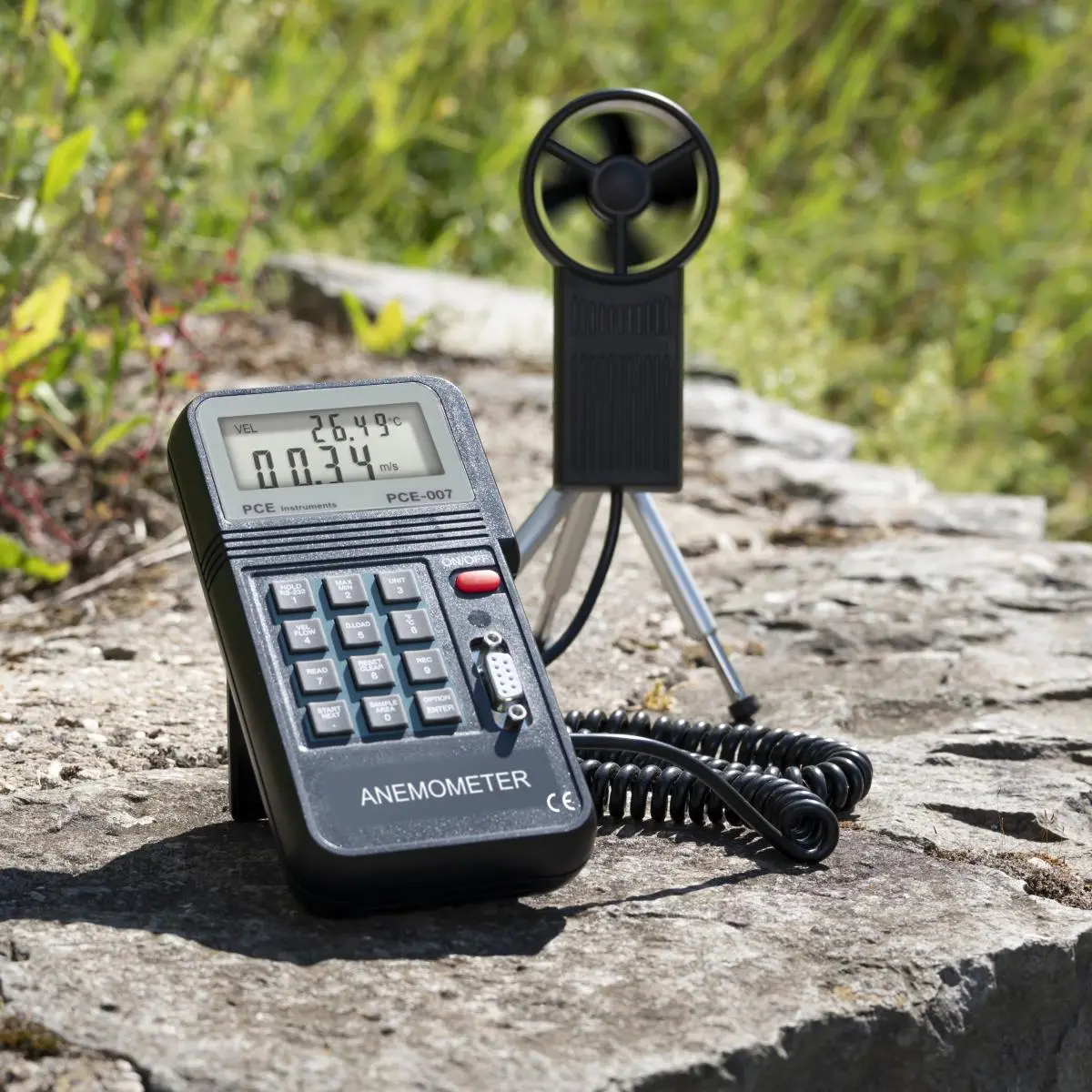

This environmental meter is very economical. With this environmental meter you can measure wind speed and air temperature. Once you have the right cross section, the environmental meter will show the air volume flow. The readings can be stored in the device and then transferred to a computer for further analysis. As such, you can take a series of measurements with the environmental meter off-site, then look closely at the data once back at the office. In this way, you save time and maintain a high level of accuracy in readings.

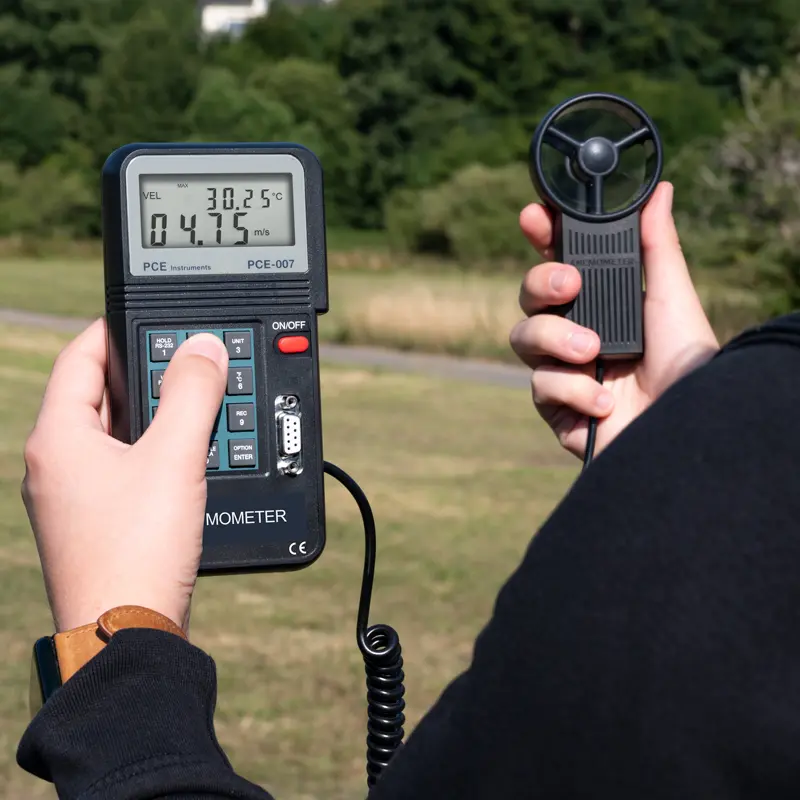

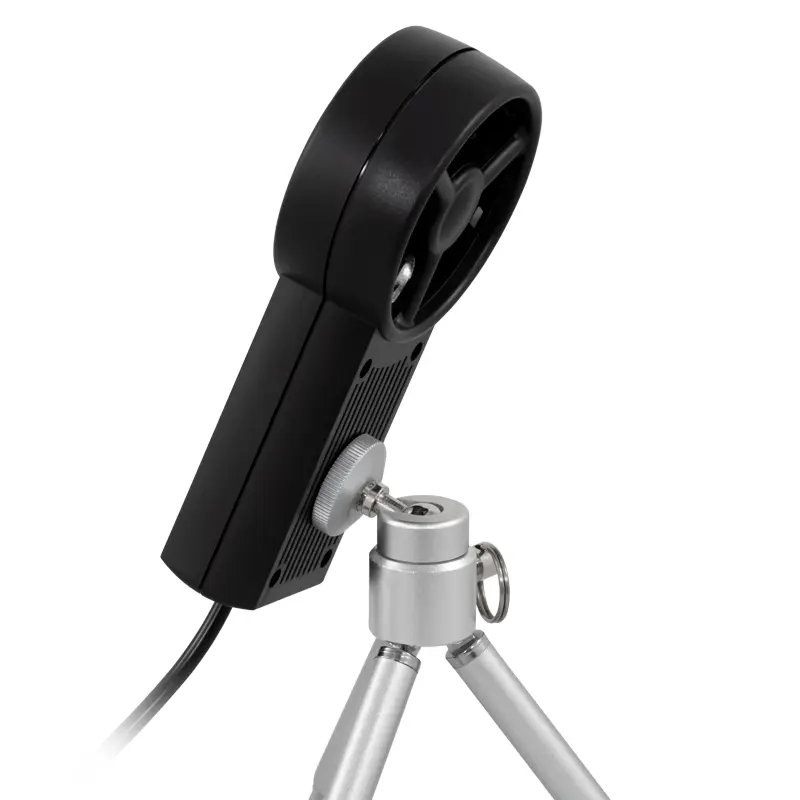

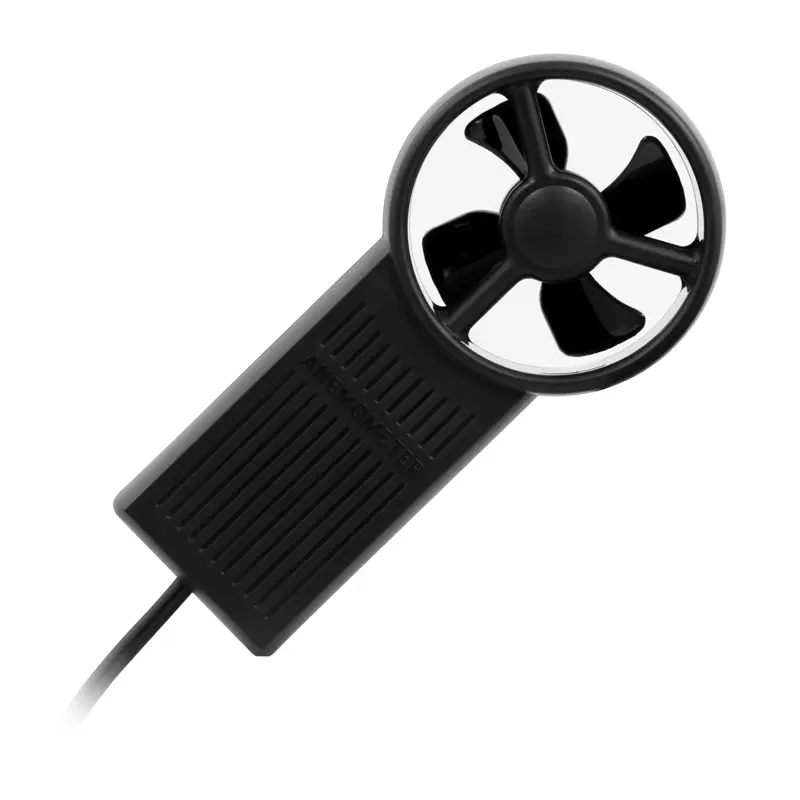

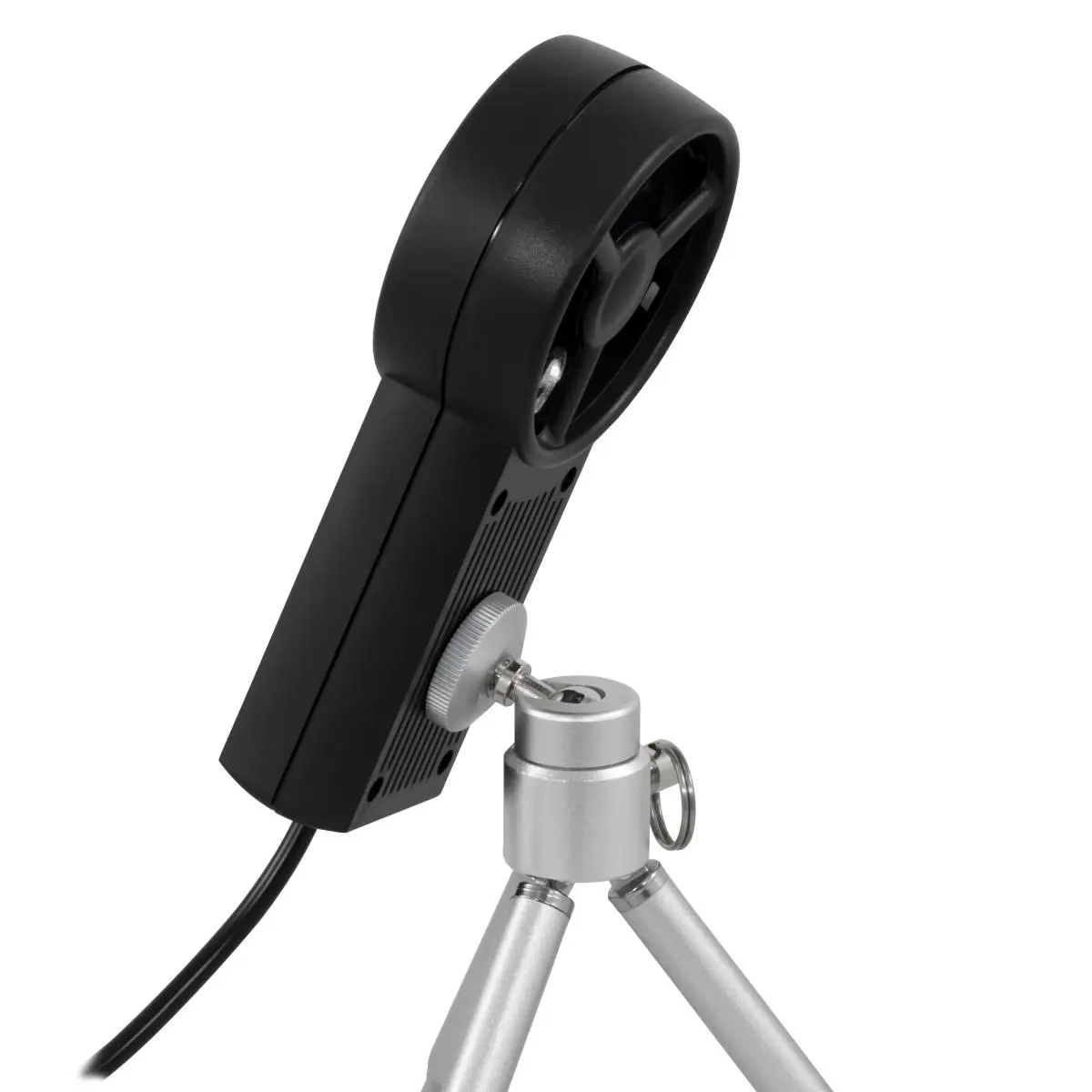

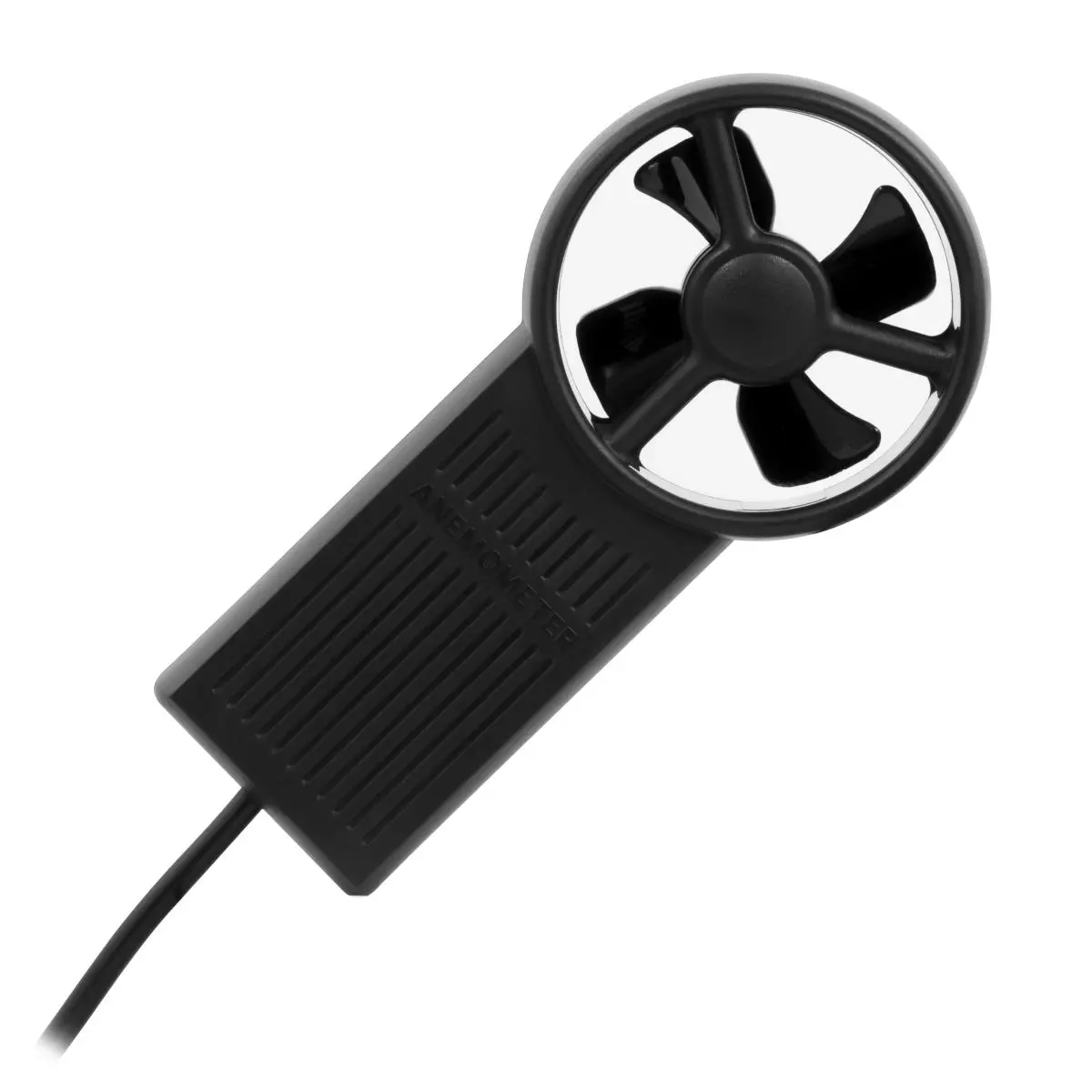

The external impeller, connected by a 1.5 m / 4.9 ft long cable, increases the mobility and flexibility of measurements of wind speed. These environmental meters form a part of the basic equipment of an installation technician for ventilation systems. The useful life of the battery is approx. 50 hours with a current of 300-mA/h. If you wish to take timed measurements over a period of time longer than 2 days, you will need to use a battery pack, or a power adapter.

Highlights

- Measures wind speed and air temperature

- Calculate and shows Data logger

- Stores up to 2000 readings

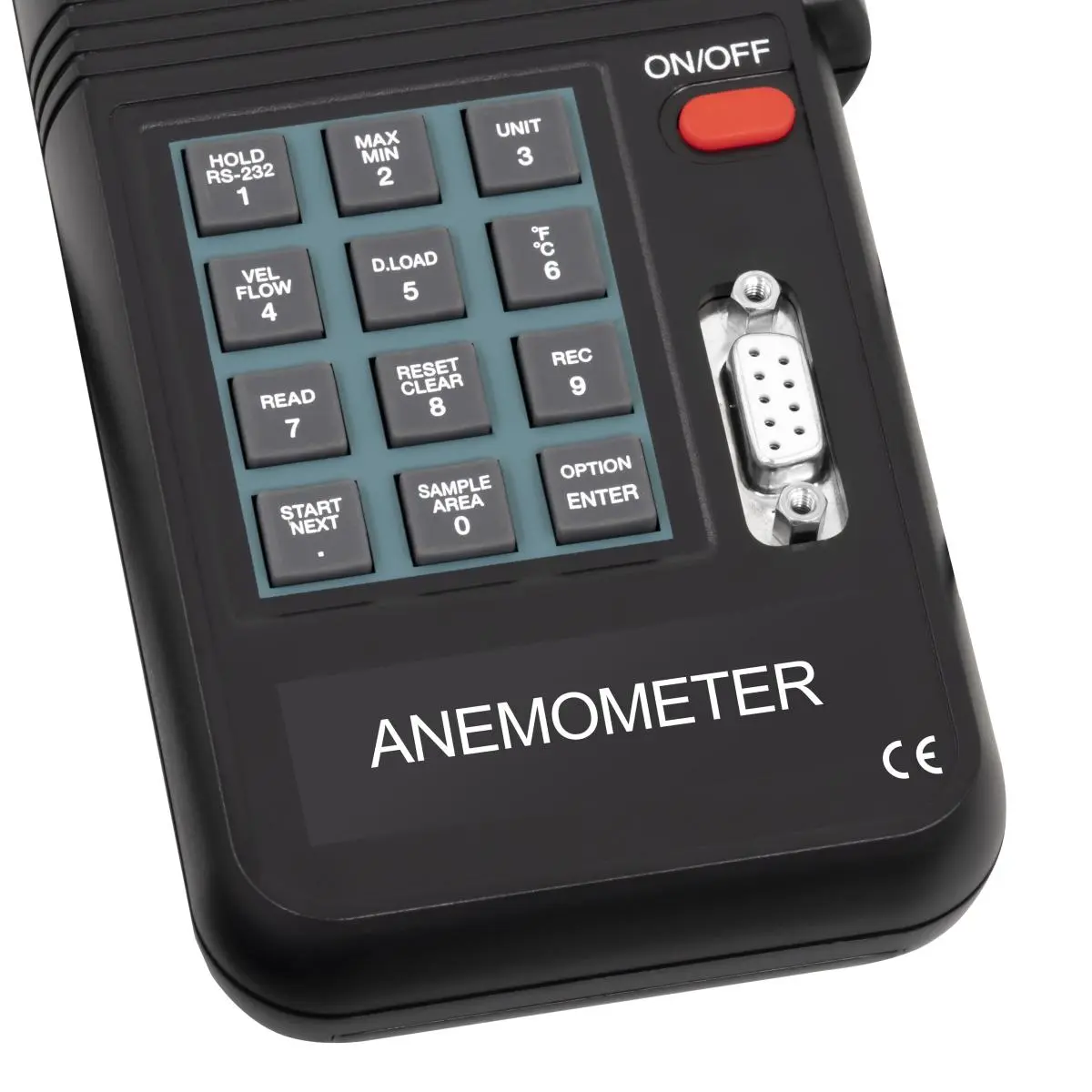

- Comes with an RS-232 interface

- Has software to transfer data

- Shows distinct units of measurement

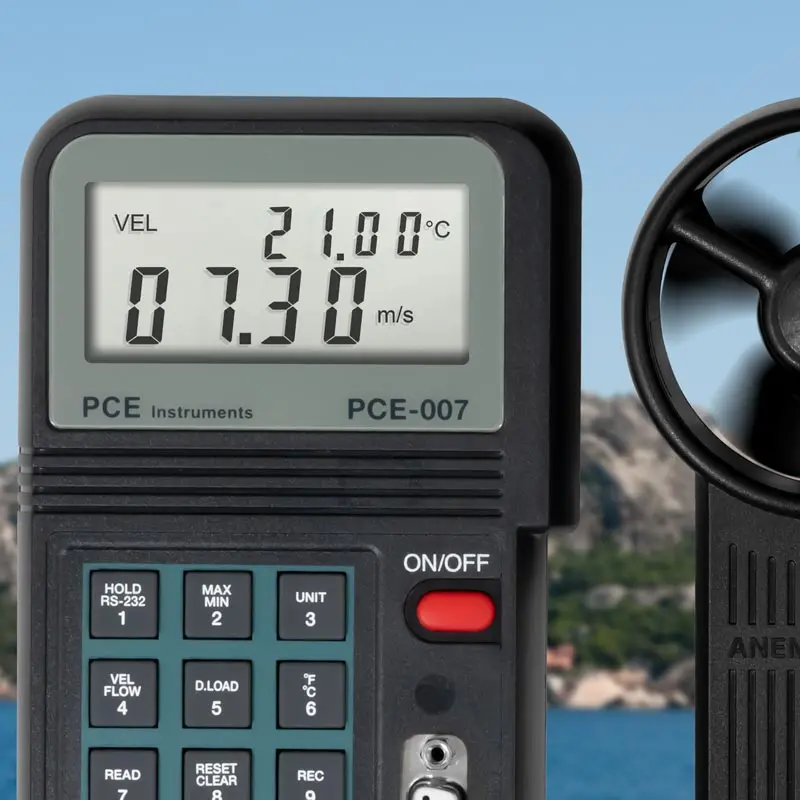

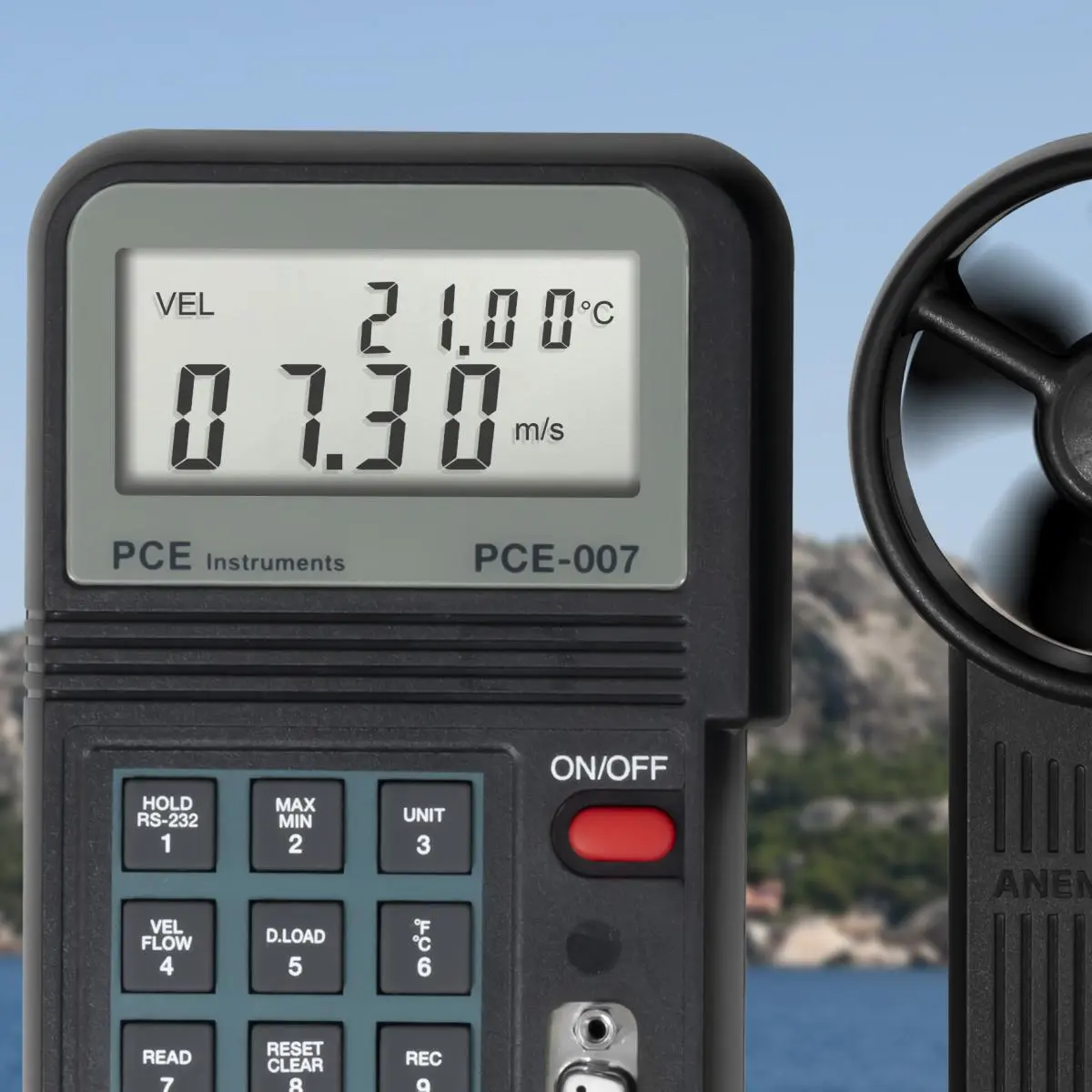

- Has a dual display

- Is easy to use

- Max/Min/Hold functions

- Auto-Power off

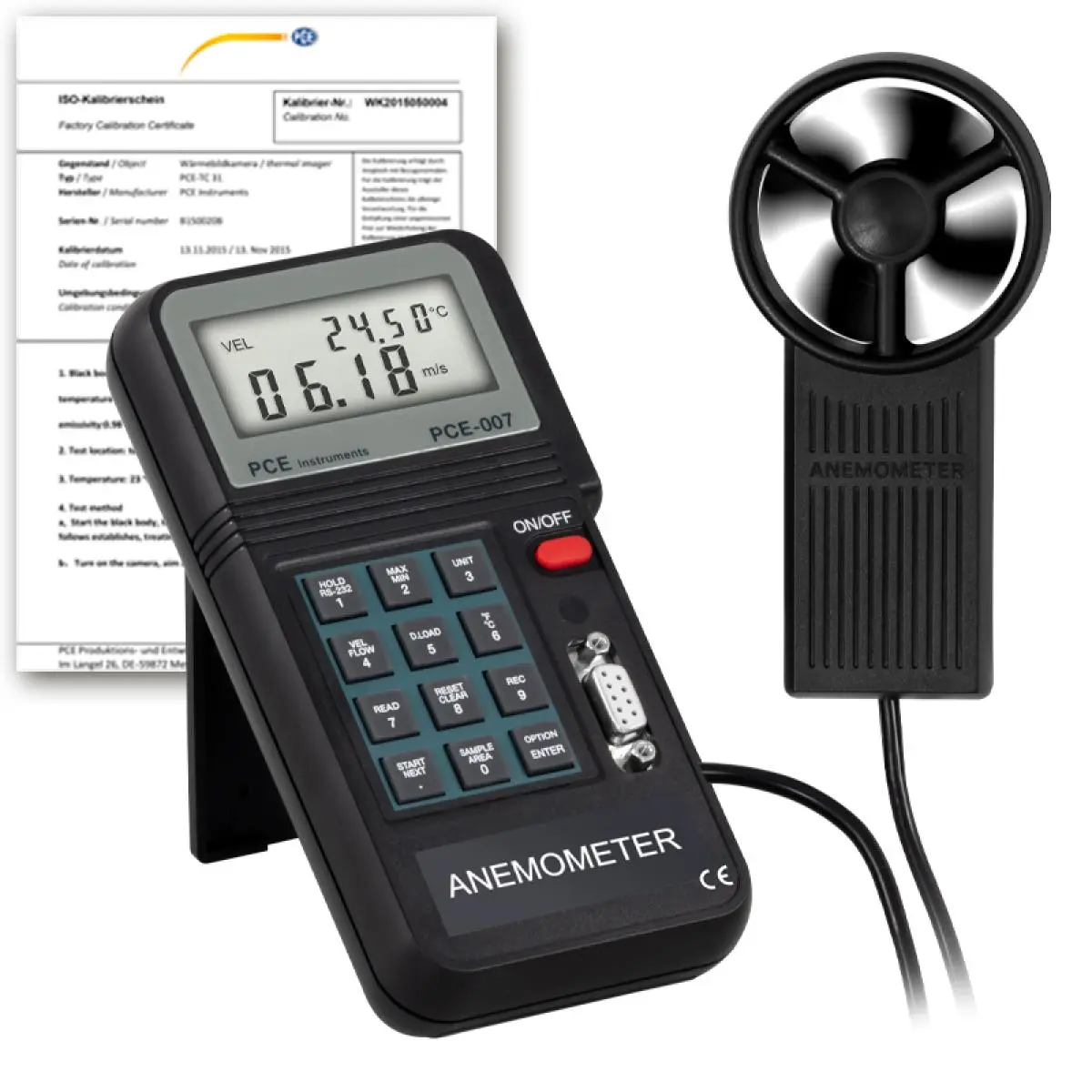

- incl. ISO-Calibration Certificate

Specification

Speed
Measuring range	0,3 ... 45 m/s
Resolution	0.01 m/s
Accuracy	±3 % ±0.1 (equal for all units)

Speed
Measuring range	0,3 ... 8800 ft/min
Resolution	0.01 ft/min
Accuracy	±3 % ±0.1

Speed
Measuring range	0,3 ... 88 knots
Resolution	0.01 knots
Accuracy	±3 % ±0.1

Speed
Measuring range	0,3 ... 140 km/h
Resolution	0.01 km/h
Accuracy	±3 % ±0.1

Speed
Measuring range	0,3 ... 100 mph
Resolution	0.01 mph
Accuracy	±3 % ±0.1

Volume flow
Measuring range	0 ... 99,95 m³/min
Resolution	0,05 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	100 ... 999,9 m³/min
Resolution	0,1 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	1000 ... 9999 m³/min
Resolution	1 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	10000 ... 99990 m³/min
Resolution	10 m³/min
Accuracy	calculated from wind speed and area

Volume flow
Measuring range	100000 ... 999900 m³/min
Resolution	100 m³/min
Accuracy	calculated from wind speed and area

Temperature
Measuring range	0 ... 45 °C
Resolution	0,01 °C
Accuracy	±1 °C

General technical data
Measuring functions	HOLD, MAX, MIN
Display type	LCD
Display size	2,5 in
Display refresh rate	2 x per second
Storage capacity	2000 Data records
Storage interval from	1 s
Storage interval to	4 min.
Interface	RS232
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)
Menu language	English
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	170 x 90 x 34 mm
Other dimensions	Sensor 132 x 64 x 32 mm
Weight	337 g
