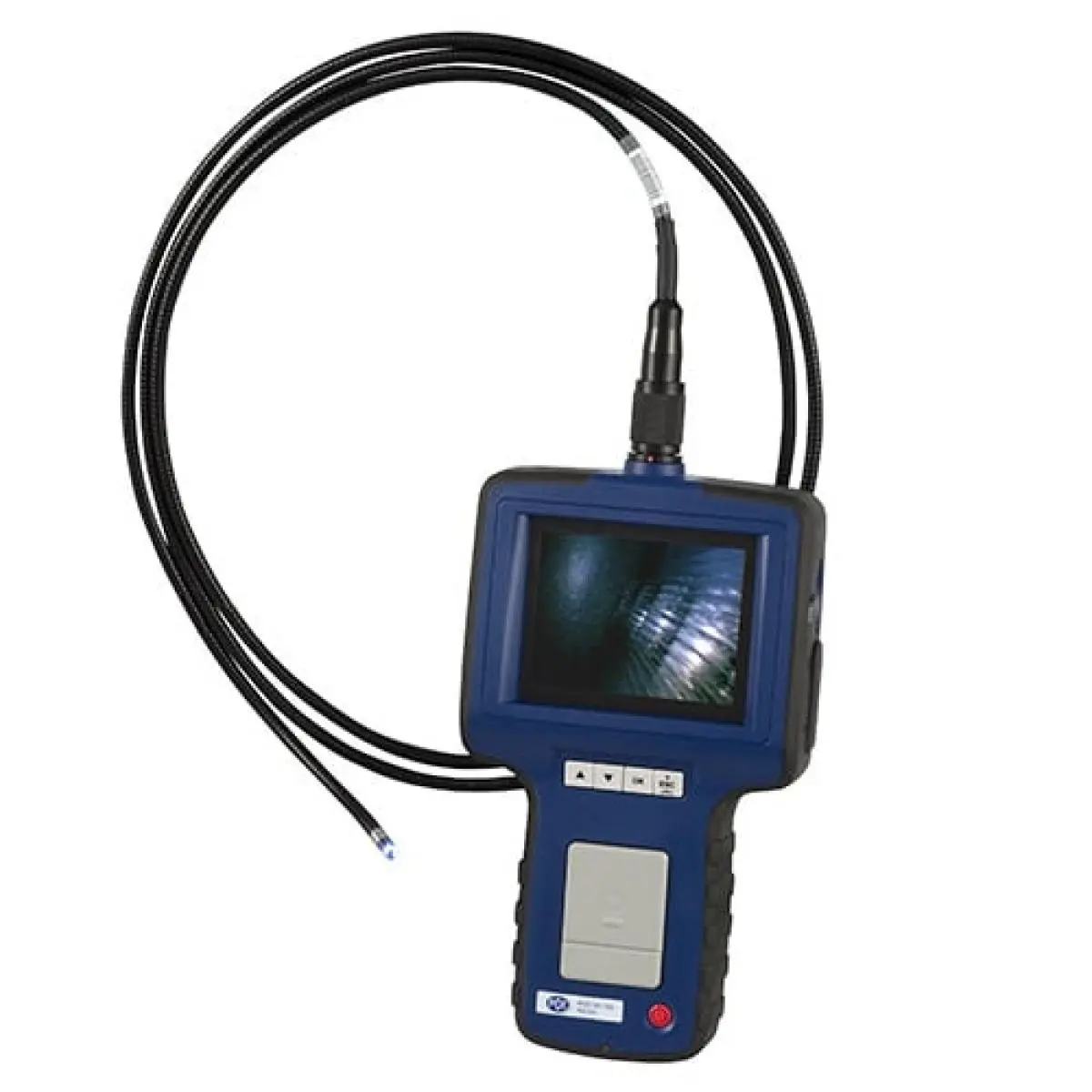

PCE-VE 330N is a Drain Camera, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This Drain Camera is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.
The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 2 m / 6.56 ft cable length and 5.5 mm / 0.22 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.
*Not for medical use*
| General technical data | |
| Resolution | Image format: JPEG (640 x 480) Video format: ASF (320 x 240) |
| Cable length | 2 m |
| Display type | TFT colour display |
| Display size | 3,5 Inch |
| Storage medium | SD card |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | Images and videos can be saved |

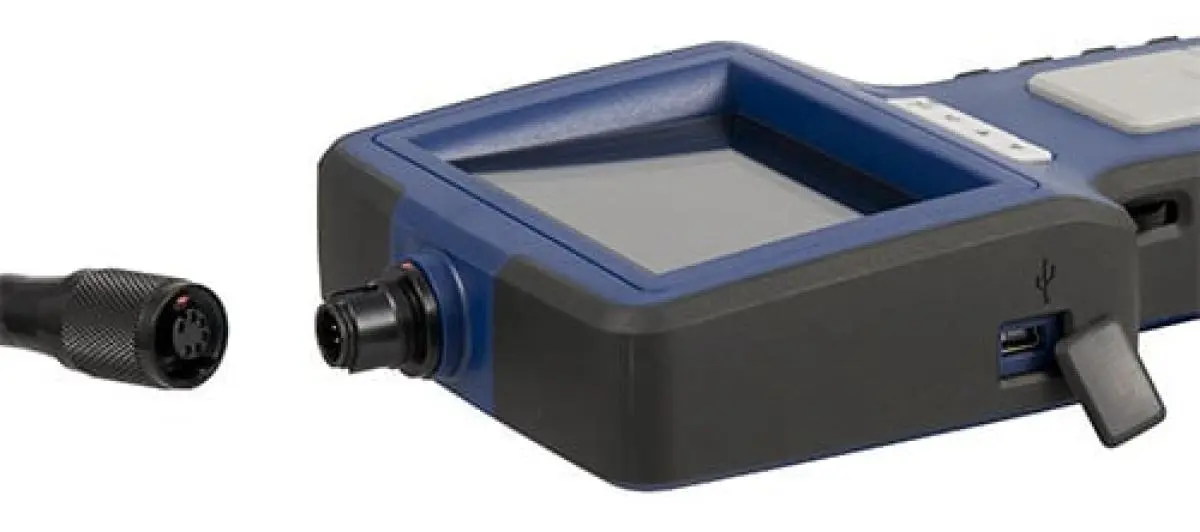

| Interface | Mini-USB, AV out, SD card |
| Sensor | CMOS |
| Camera resolution | 320 x 240 pixels |
| Camera orientation | frontal 0° |
| Operating time | 4 h |
| Camera head length | 18 mm |
| Camera head diameter | 5,5 mm |
| Camera probe movement | semi-rigid |
| Other dimensions | Handle width 79 mm |
| Field of vision | 56 ° |
| Depth of field of vision | 10 ... 60 mm |
| Luminous intensity | 4 LEDs |
| Menu language | English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Romanian, Swedish, Greek, Norwegian |
| Protection class (device) | IP52 |
| Power supply | AC 100 ... 240 V | 50 ... 60 Hz |
| Connector type | Device-europlug |
| Capacity | 2300 mAh |
| Operating conditions | 0 ... 45 °C , 0 ... 95 % RH |
| Storage conditions | 0 ... 45 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 207 x 118 x 37 mm |
| Weight | 390 g |
