59,90 €
PCE-917 Differential Pressure Meter
Portable handheld manometer measures differential pressure from ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory

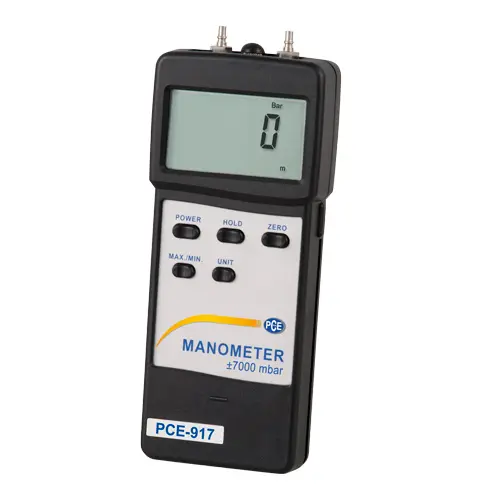

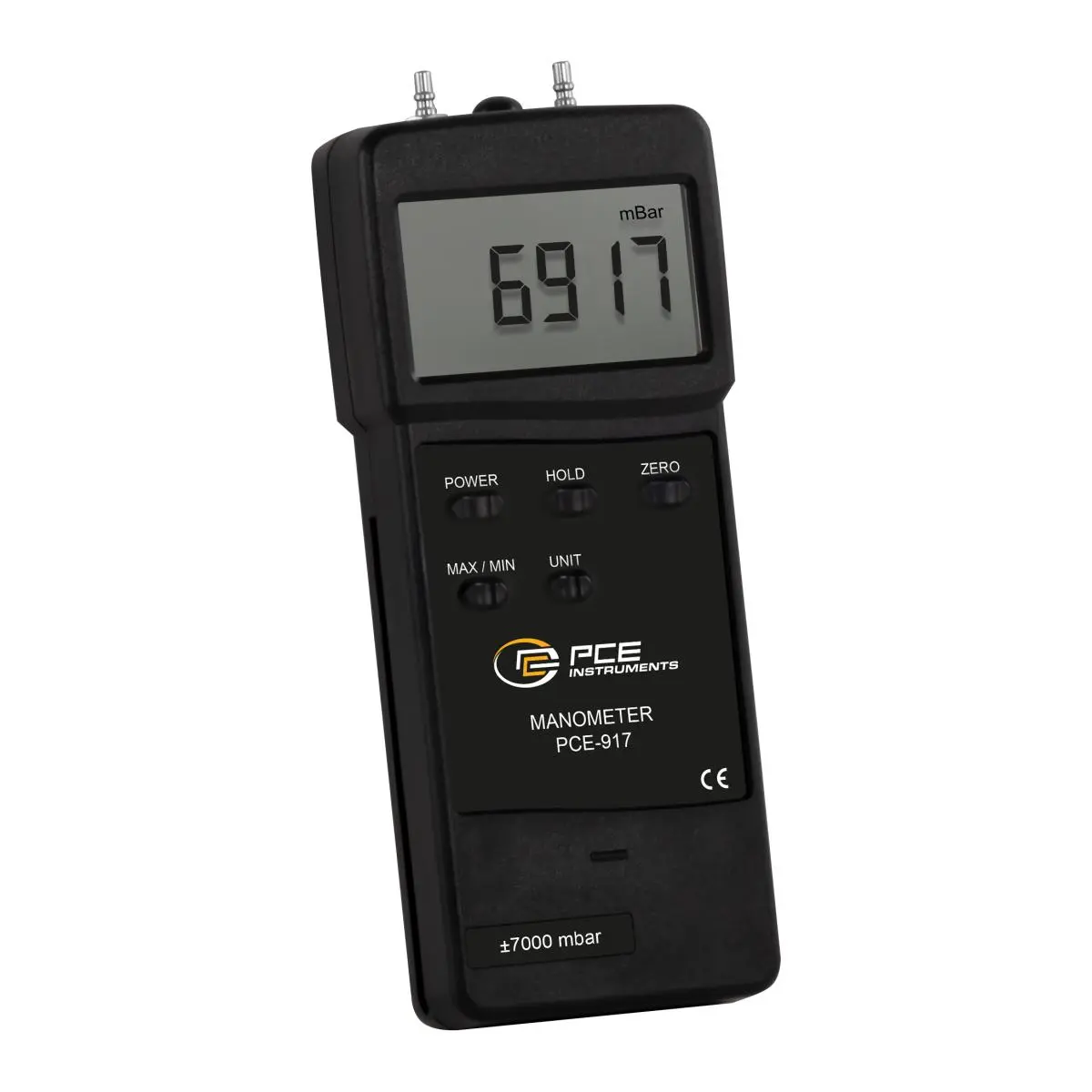

PCE-917 is a portable handheld digital differential pressure meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

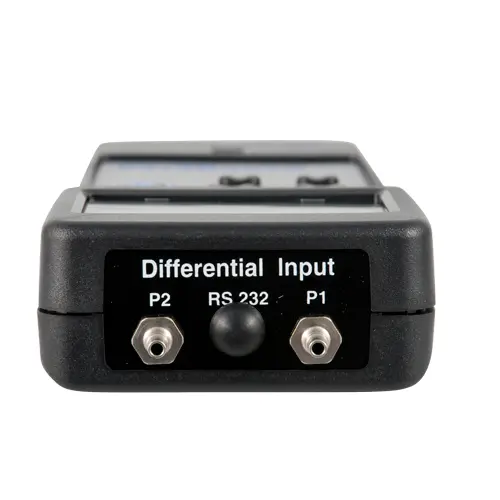

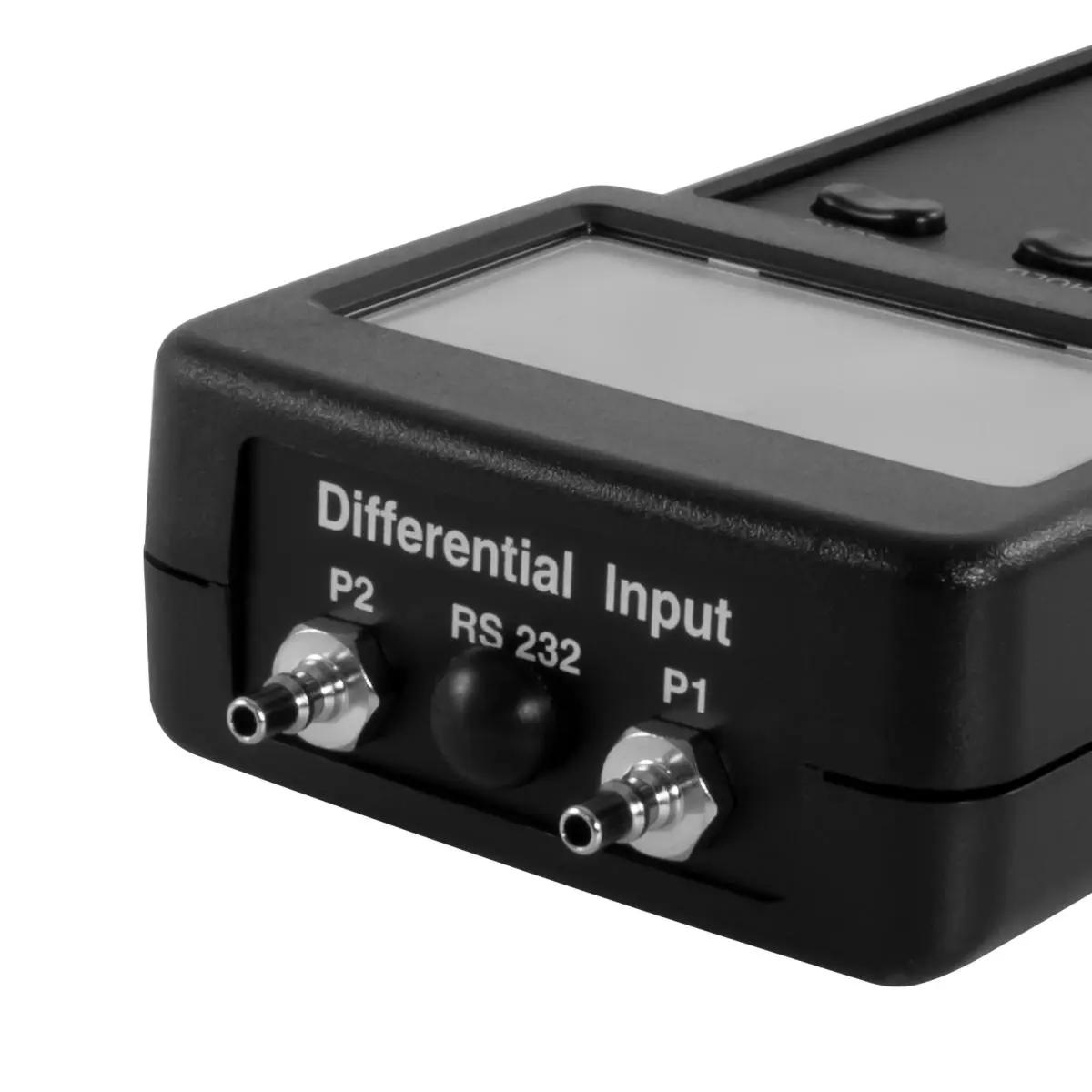

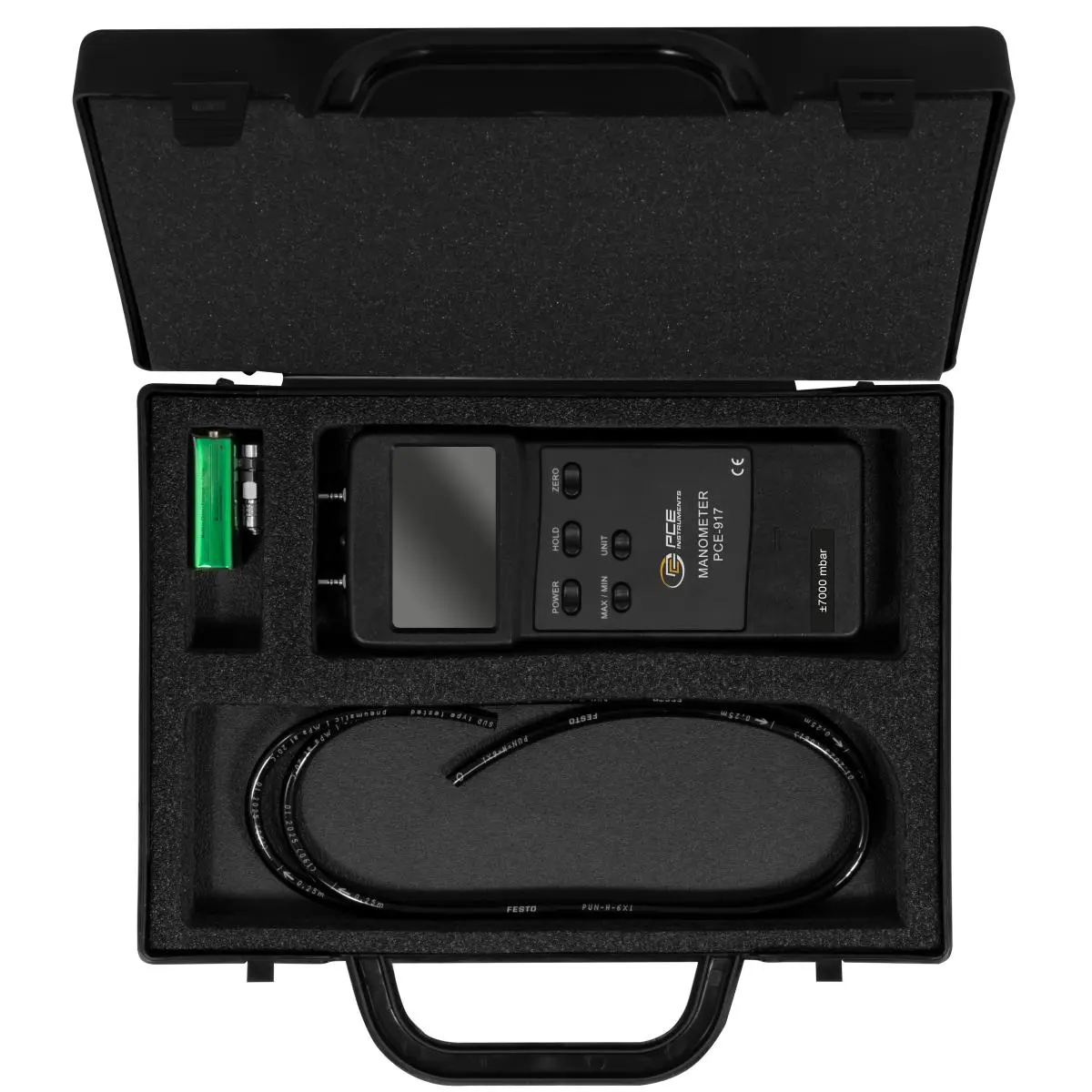

The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
| Pressure | |
| Measuring range | -7000 ... +7000 mbar |
| Resolution | 5 mbar |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -101,5 ... +101,5 psi |
| Resolution | 0,1 psi |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -2800 ... +2800 inH₂O |
| Resolution | 2 inH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -70 ... +70 mH₂O |
| Resolution | 0,05 mH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -206 ... +206 inHg |
| Resolution | 0,1 inHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -5250 ... +5250 mmHg |
| Resolution | 5 mmHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -6,905 ... +6,905 atm |
| Resolution | 0,005 atm |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -7 ... +7 kg/cm² |
| Resolution | 0,005 kg/cm² |
| Accuracy | ±2% FS |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, peak |
| Display type | LCD |
| Display size | 2,8 Inch |
| Interface | RS232 |
| Automatic power-off | 10 min |
| Repeatability | 1 % |
| Housing | Plastic |
| Measuring interval | 0,8 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery |

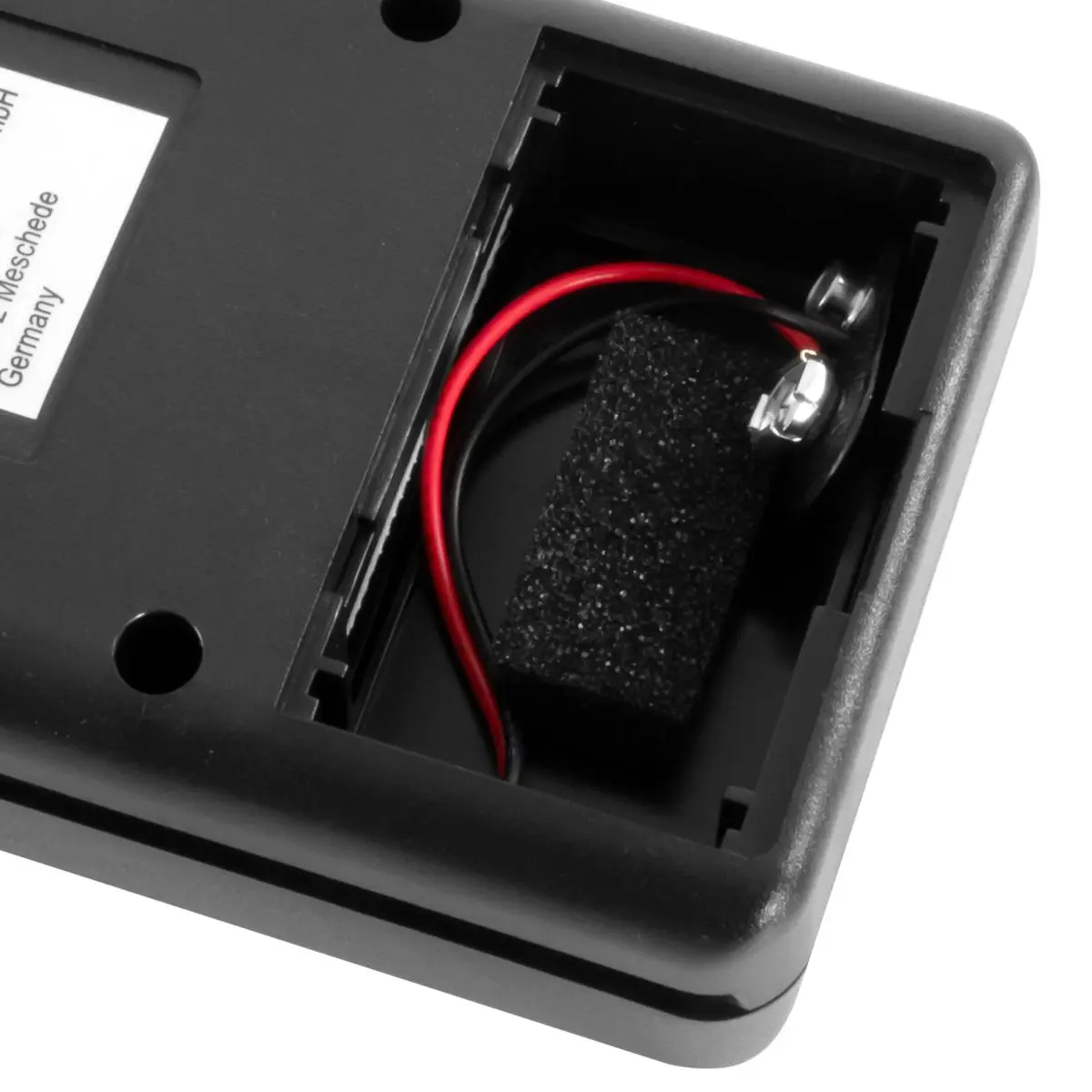

| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 550 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 190 x 76 x 32 mm |
| Weight | 205 g |
