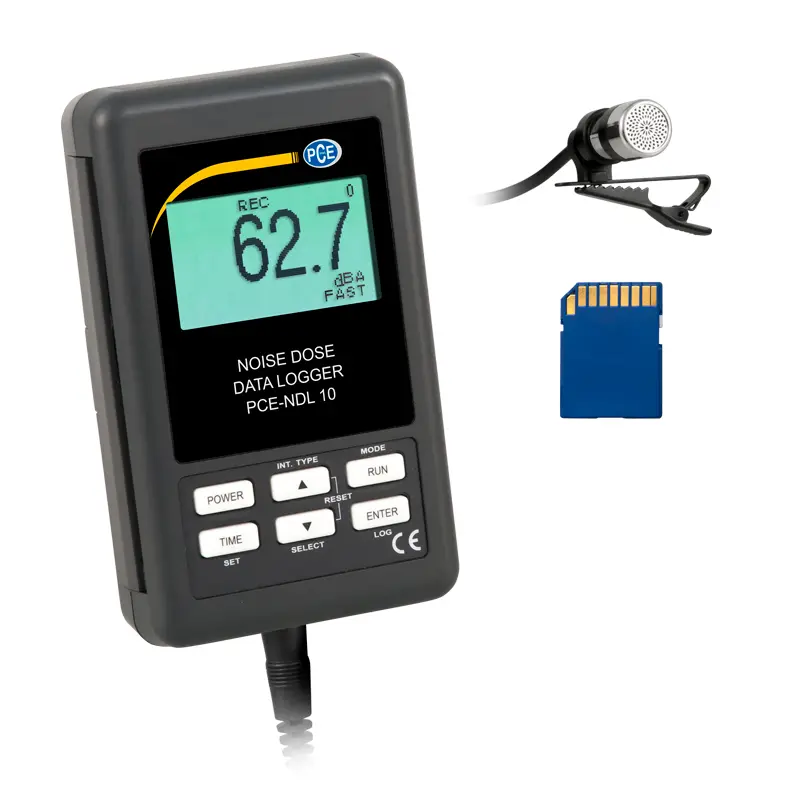

Decibel Meter PCE-NDL 10-ICA

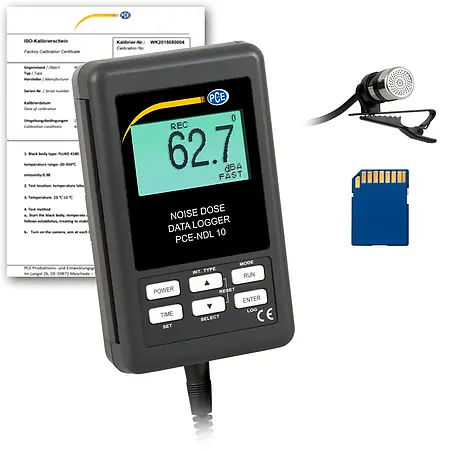

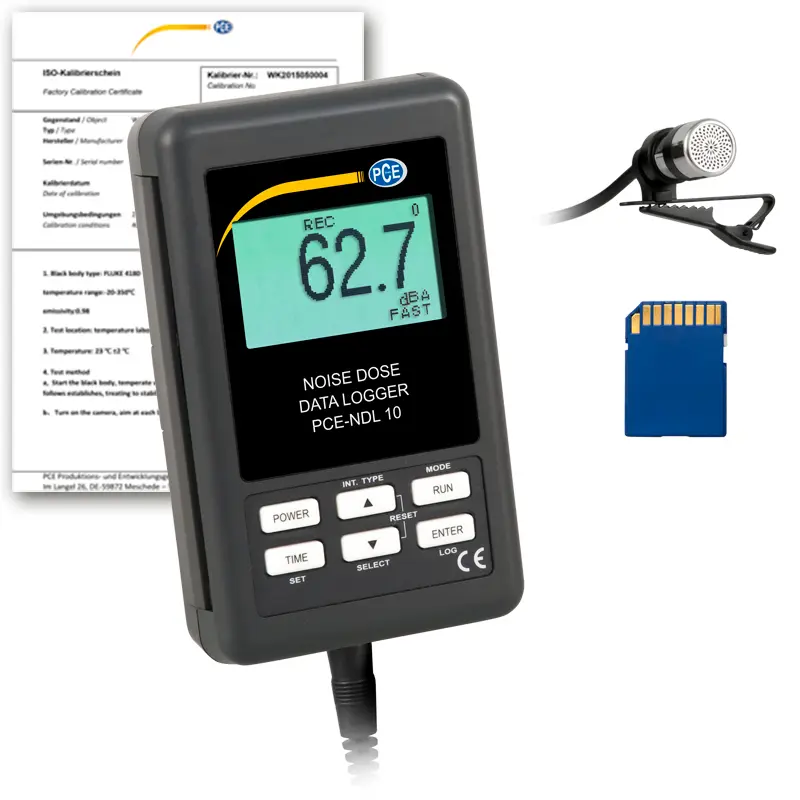

Data-Logging Decibel Meter PCE-NDL 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-NDL 10-ICA
GTIN (EAN): 4250348726377
895,90 €
1.075,08 €
price ex. (VAT / delivery)
:
4250348726377
PCE-NDL 10-ICA
Delivery time:5-7 working days

Description

Mobile dB meter with data logger / frequency weighting A and C / time weighting fast and slow / log interval from 1 ... 3600 seconds / RS-232 and USB interface / incl. ISO Calibration Certificate


The data-logging decibel meter is used to determine volume. The PCE-NDL 10 sound level meter is a handy measuring device that meets the highest requirements. In order to evaluate the measured data as best as possible, it is possible to use the internal measurement data memory on the sound level meter. In addition, the sound level meter has an SD card slot that enables the use of an SD card as an additional storage medium.

The sound data logger is not necessarily a device that has to be used for stationary monitoring of the noise level. After the measurements, the measurement data memories can be read out via the corresponding interfaces. This also enables analyzes. The sampling rate of the noise dosimeter is around one second and the storage interval can be set manually and is between one and 3600 seconds.

However, it must also be taken into account that the internal measured data memory of 16000 values will be filled quickly with a small storage interval and will then automatically overwrite the values measured first and thus delete them irretrievably.




Highlights

- Measures SPL and dose in dB
- Manual or adjustable automatic data logging
- Data hold, min / max, date / time, auto shutdown (on / off) and audible alarm (on / off) functionality

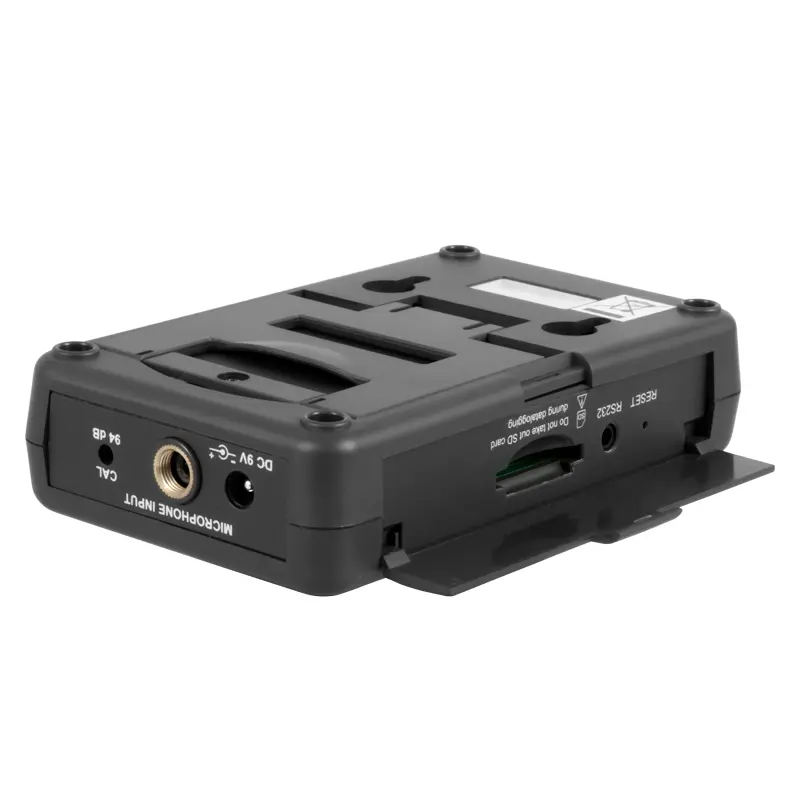

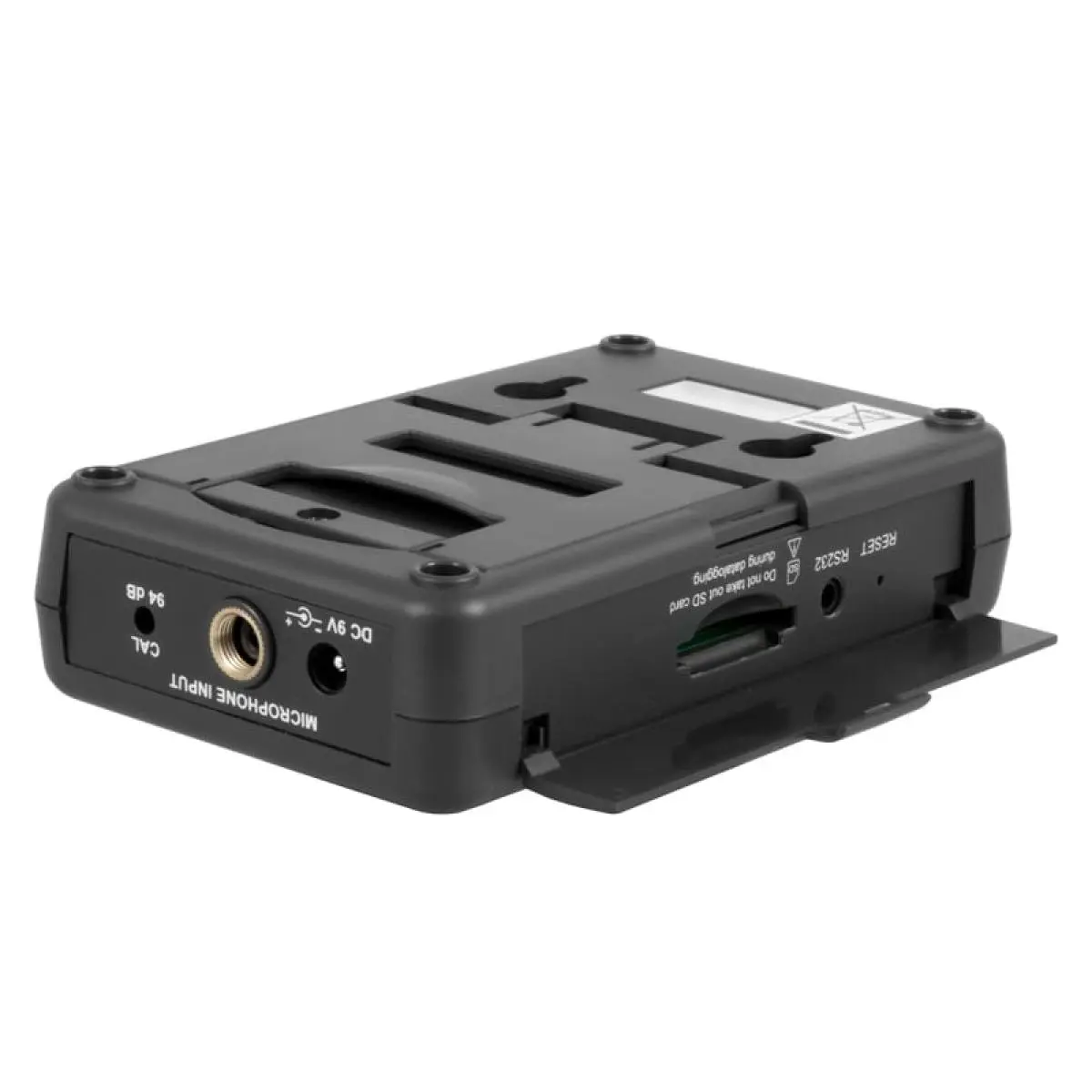

- Internal memory and SD card slot (SD card included)
- RS-232 and USB interface
- Backlit LCD screen
- Portable
- incl. ISO-Calibration Certificate

Specification

Sound level
Measuring range  30 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1 dB at 1 kHz

Sound level
Measuring range  70 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1 dB at 1 kHz

General technical data
Measuring functions  HOLD, MAX, MIN, Average value
Time weighting  slow (1 s), fast (125 ms)
Frequency weighting  C, A
Frequency  31.5 ... 8000 Hz
Display type  LCD with backlight
Display size  2,3 Inch
Measuring rate  1 x per second
Storage medium  SD card, Internal memory
Storage capacity  16000 Data records
Memory capacity (additional information)  additional memory SD card 1 ... 16 GB
Storage interval from  1 s
Storage interval to  60 min.
Microphone type  Electret capacitor
Interface  RS232, USB
Standard(s)  IEC 61672-1 (Class II)
Automatic power-off  10 min
Dimensions  Microphone: Ø12.7 mm
Measurement error  ≤0.1% of the total stored data
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  9 V/DC 0.8 A
Connector type  Device-europlug
(Rechargeable) battery  6 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  130 x 80 x 33 mm
Weight  200 g

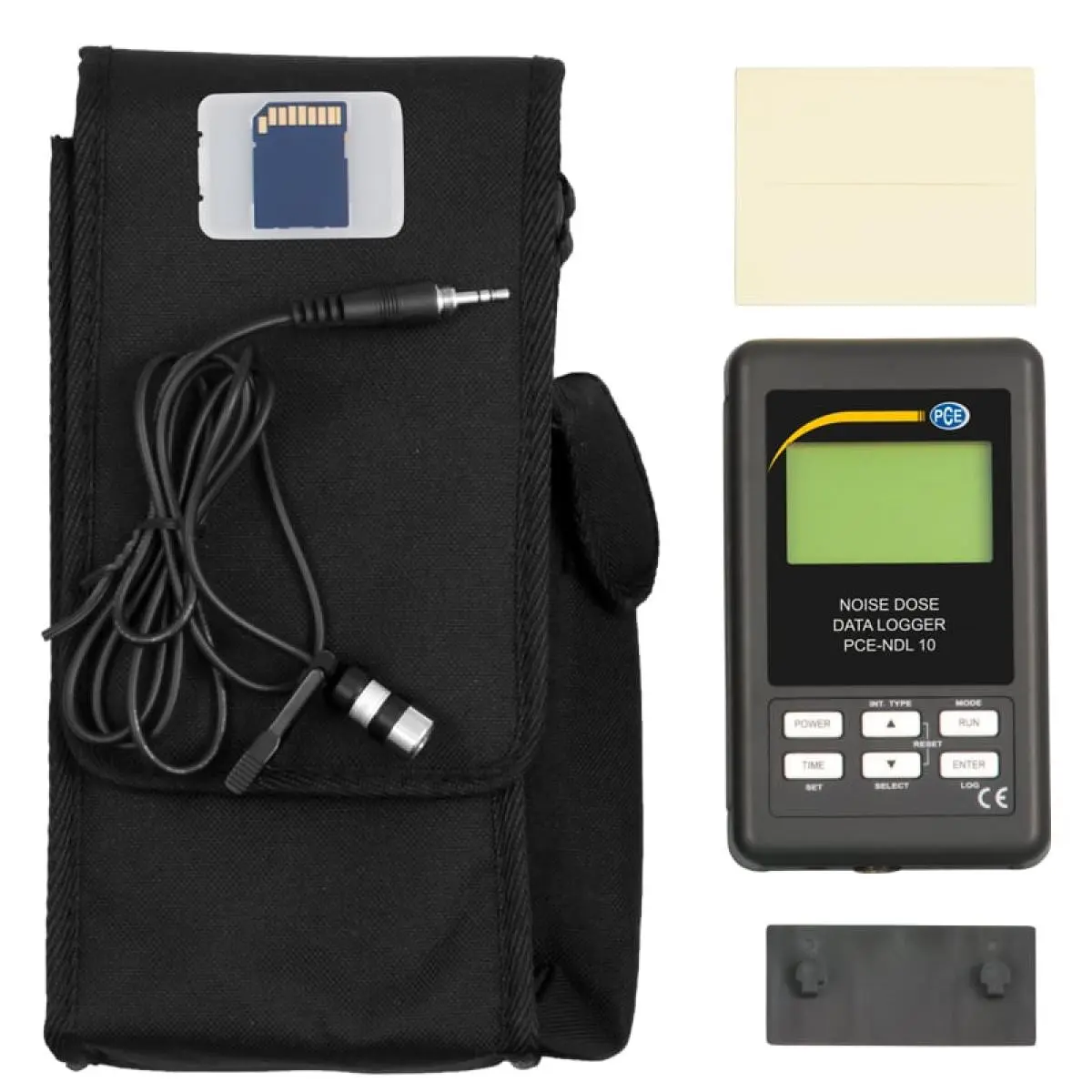

Delivery Scope

1 x Decibel Meter PCE-NDL 10-ICA

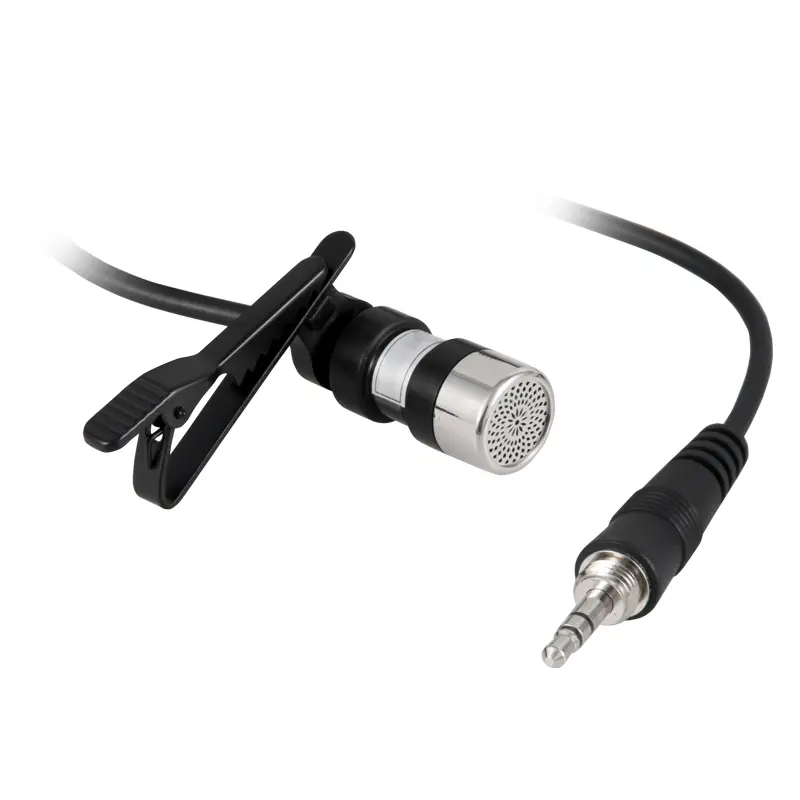

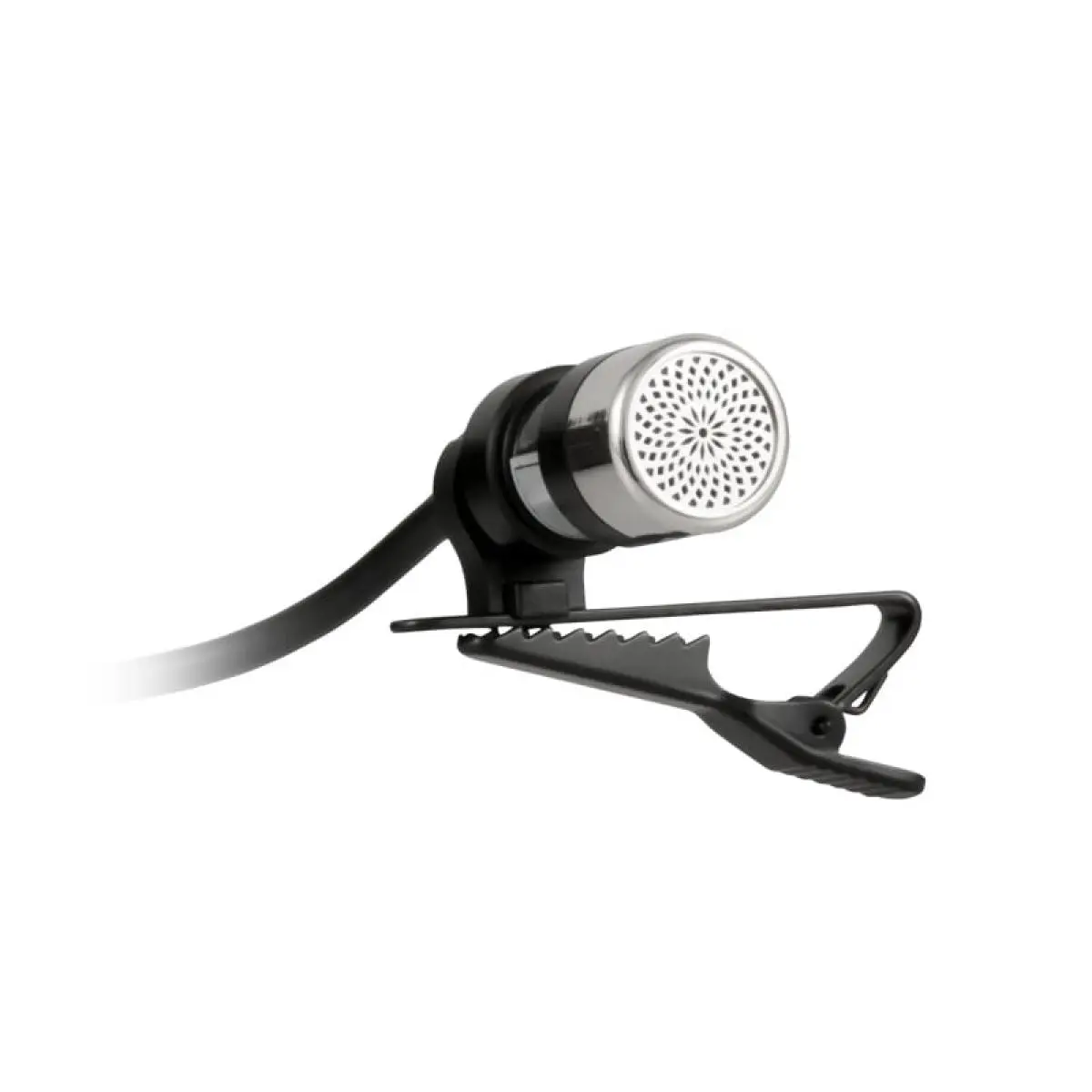

1 x microphone with clip
1 x SD card
1 x carrying case
1 x carrying strap
1 x user manual
1 x ISO-Calibration Certificate
