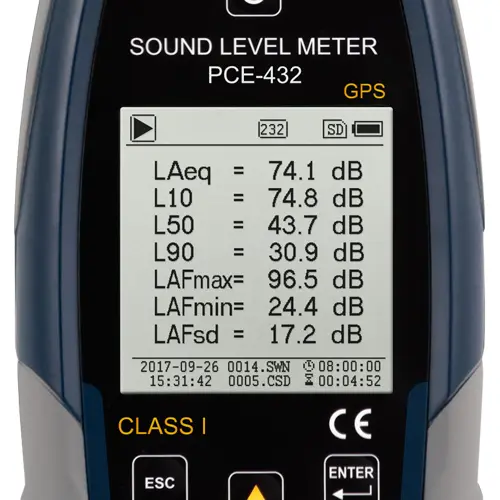

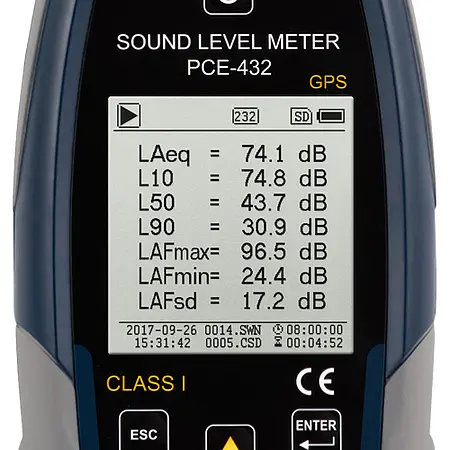

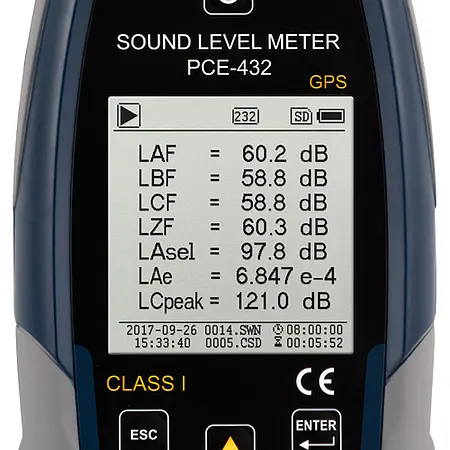

Display of Class 1 Decibel Meter PCE-432-SC 09 with Calibrator

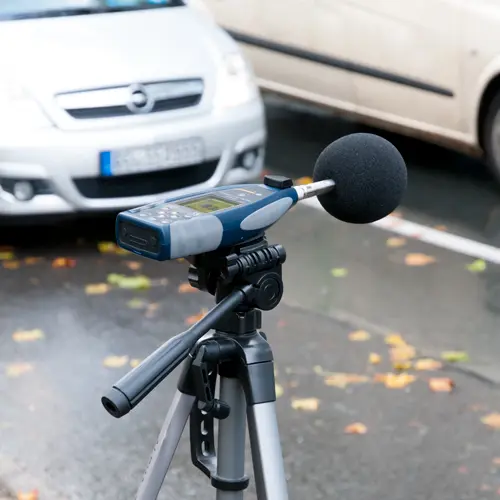

Application of Class 1 Decibel Meter PCE-432-SC 09 with Calibrator

Software of Class 1 Decibel Meter PCE-432-SC 09 with Calibrator

Delivery Content of Class 1 Decibel Meter PCE-432-SC 09 with Calibrator

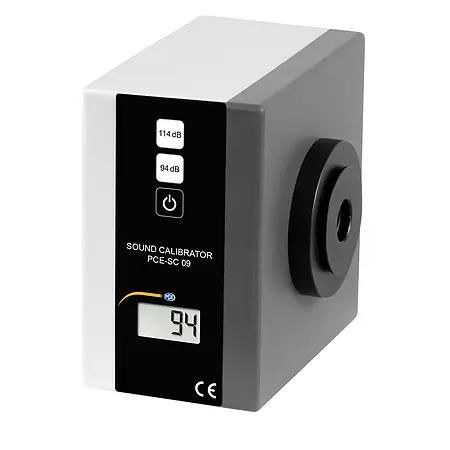

Class 1 Decibel Meter Calibrator PCE-SC 09

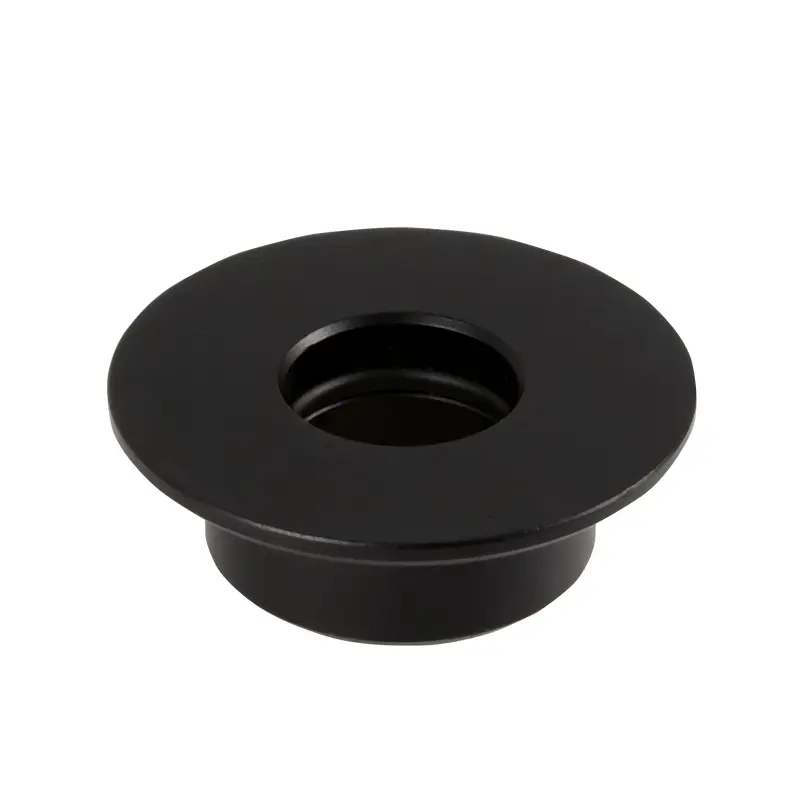

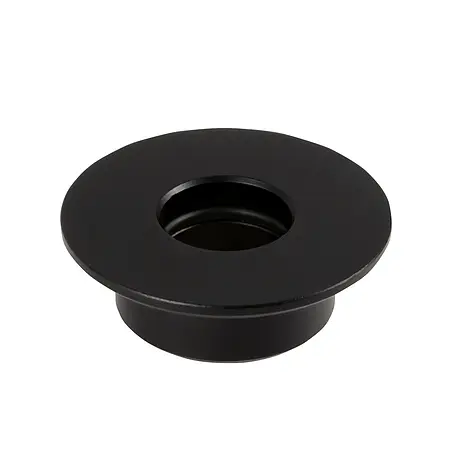

1/2 inch Adapter of Class 1 Decibel Meter Calibrator PCE-SC 09

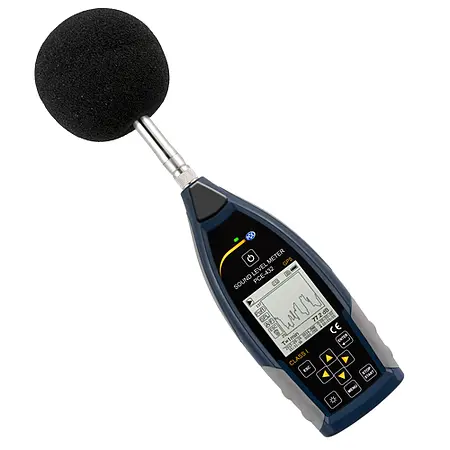

Class 1 Decibel Meter PCE-432-SC 09 with Calibrator

Order no.: PCE-432-SC 09

GTIN (EAN): 4250348728562

Accessory

ISO Calibration Certificate for Noise Meter CAL-SL

123,90 €

Tripod for Sound Level Meter

62,90 €

Kit for Retrofitting Outdoor Capability PE PCE-4xx-EKIT|emic-kit

265,00 €

Class 1 Noise Meter / Sound Meter Calibrator PCE-SC 09

Class 1 Noise Meter / Sound Level Calibrator PCE-SC 09

499,90 €

Outdoor Microphone Class 1 PCE-4xx-EMIC

1.730,90 €

DIN Rail Holder for PCE-4xx series

63,90 €

Mounting Bracket for External Microphone of the PCE-4xx Series

28,90 €

Microphone cable device connector for PCE-4xx Series

98,61 €

Outdoor Sound Monitor Kit PCE-4xx-EKIT

3.790,90 €

Class 1 Sound Level Meter Calibrator PCE-SC 10

459,90 €

Firmware Upgrade to 1/3 Octave Band Filter

405,90 €

Description

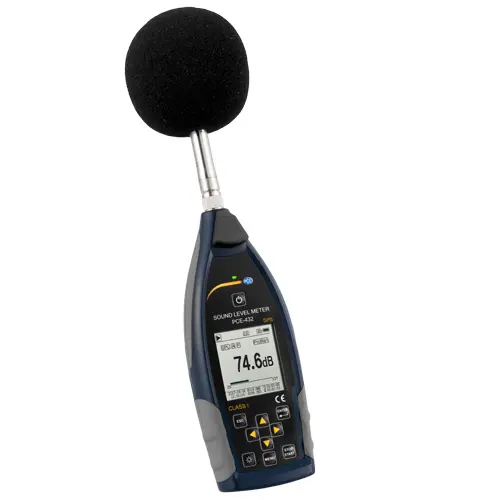

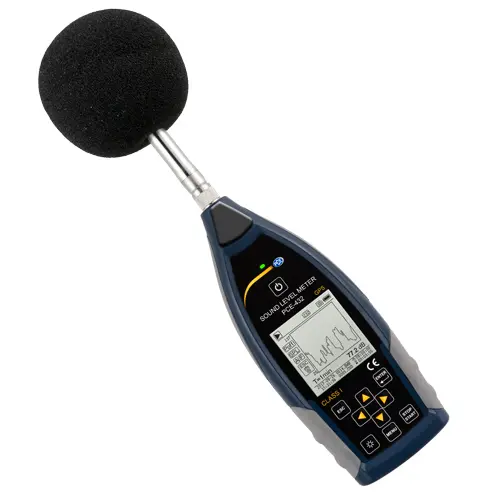

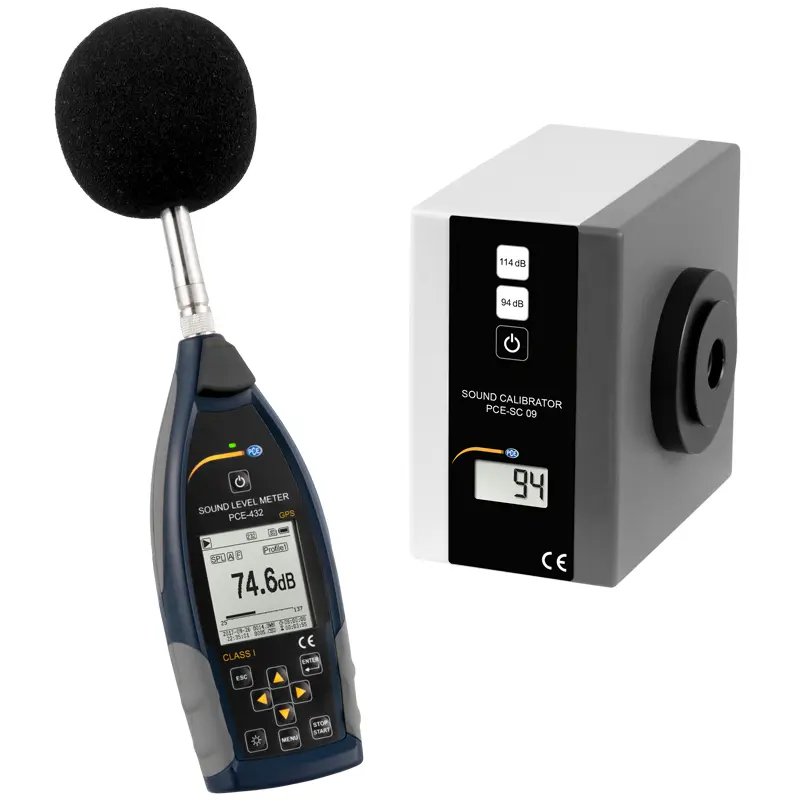

Handheld Decibel Meter with GPS (class 1) incl. Class 1 calibrator
Octave band filter / A, B, C and Z evaluation filter can be upgraded / Fast, slow and impulse evaluation / Data logger / USB

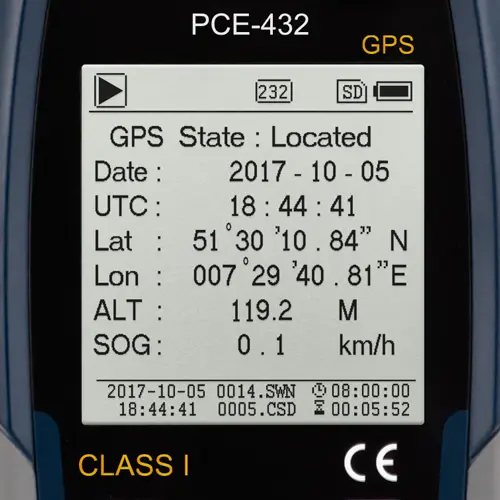

The Class 1 Decibel Meter meets all the requirements for noise measurement and frequency analysis. In addition to the sound measurement function, the Decibel Meter is equipped with a GPS receiver. The GPS function allows the user to assign the measured values to an exact position.

This integrating precision pulse Decibel Meter complies with all applicable standards and guidelines (Class 1 EN / IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN / IEC61260, etc.). The Decibel Meter has a very large illuminated display. The display of the Decibel Meter shows the sound pressure level numerically and graphically in real time. The professional Decibel Meter has an integrated data logger. The measurement data are saved on a micro SD card. This card can be read out directly on the PC.

The Decibel Meter can also be connected to the PC via USB and the memory can be read out. The post-processing software of the Decibel Meter allows convenient measurement data analysis. The typical areas of application for this device are the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector Selection, selection of suitable noise control measures and estimation of noise exposure.

The impulse function of the Decibel Meter enables short-term sound events to be recorded. Thanks to the integrated octave band function, even the slightest differences in the frequency band can be determined here. The frequency filter can be optionally upgraded. The measuring range of this professional Decibel Meter extends from 22 ... 136 db (A) at a frequency of 3 Hz ... 20 kHz.

Highlights

- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 1
- GPS receiver integrated
- A, B, C & Z frequency weighting
- Fast, Slow, Impulse and Peak time weighting

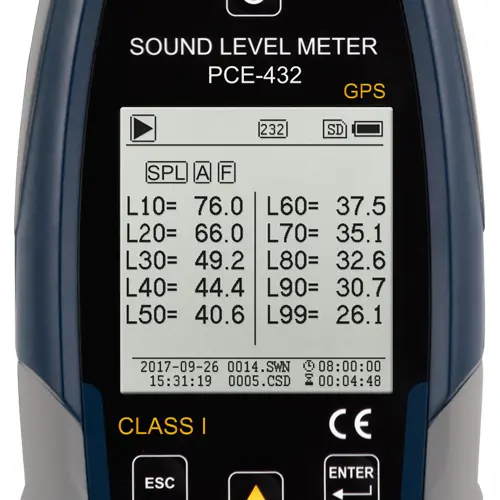

- Statistics function

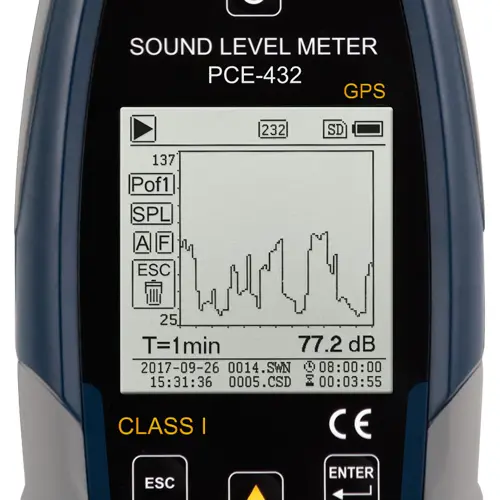

- Display of the sound course as a graph
- 3 measurement profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV / PA
- Adjustable alarm level
- Incl. class 1 sound calibrator

Specification

Measuring range	22 ... 136 db(A)
Accuracy	Class 1
Frequency range	3 Hz ... 20 kHz
Standards	GB/T 3785.1-2010 GB/T 3785.2-2010 IEC 60651:1979 IEC 60804:2000 IEC 61672-1:2013 ANSI S1.4-1983 ANSI S1.43-1997
Frequency analysis	1/1 Octave band filter: 8 Hz ... 16 kHz 1/3 Octave band filter: 6.3 Hz ... 20 kHz
Microphone	1/2" Microphone Class: 1 Sensitivity: 40 mV/PA Frequency range: 3 Hz ... 20 kHz Connection: TNC Power supply: ICCP Standard
Data-logging interval	1 s ... 24 h (adjustable)

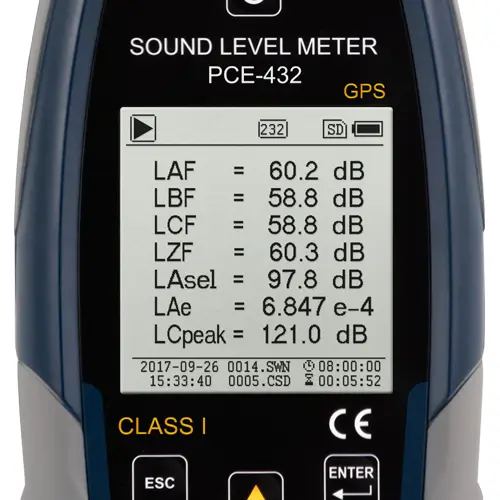

Measuring functions	LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
Measuring functions	X = Frequency weighting: A, B, C, Z Y = Time weighting: F, S, I N = Statistics in %: 1 ... 99 %
Frequency weightings	A, B, C, Z
Time weightings	Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
Inherent noise	Microphone: 19 db(A), 25 db(C), 31 db(Z) Electronics: 13 db(A), 17 db(C), 24 db(Z)
AD converter	24 Bit
Sample rate	Standard: 48 kHz LN Mode: 20 ms

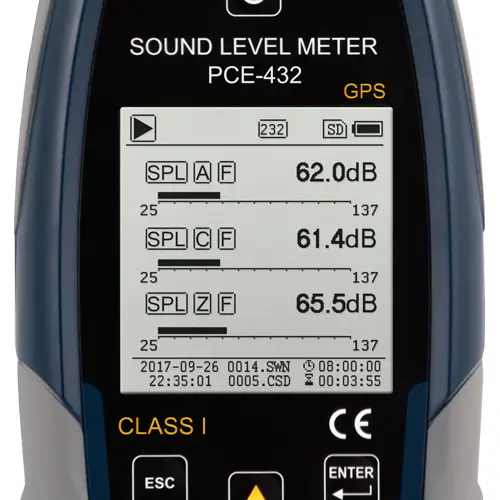

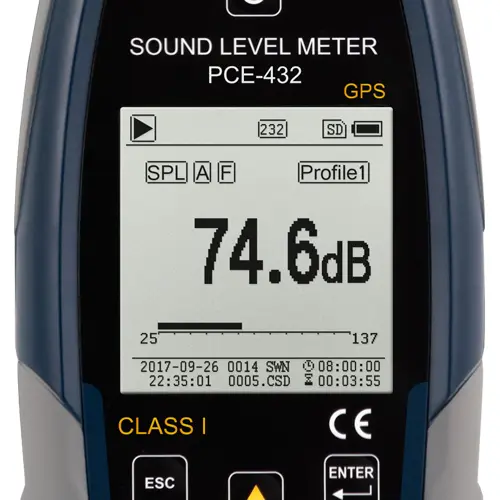

Measuring display	Numerical Bar graph Graphical
Display	160 x 160 pixel LCD with backlight
Memory	4 GB Micro SD card
Interface	USB (Memory readable via software or directly as mass storage) RS-232
Voltage output	AC 5V RMS DC 10 mV/db
Alarm	Adjustable
GPS	Yes, GPS receiver for location determination
Power supply	4 x 1.5 V AA Batteries 12 V / 1 A Power plug 5 V / 1 A USB
Battery life	Min. 10 h continuous use
Dimensions	70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)
Weight	Approx. 620 g / 1.4 lbs incl. batteries

Delivery Scope

1 x Decibel Meter PCE-432-SC 09
1 x 1/2 "measuring microphone class 1
1 x Wind noise suppressor (foam ball)
1 x USB interface cable
1 x Software
1 x Power supply
1 x Carrying case
1 x Operating instructions

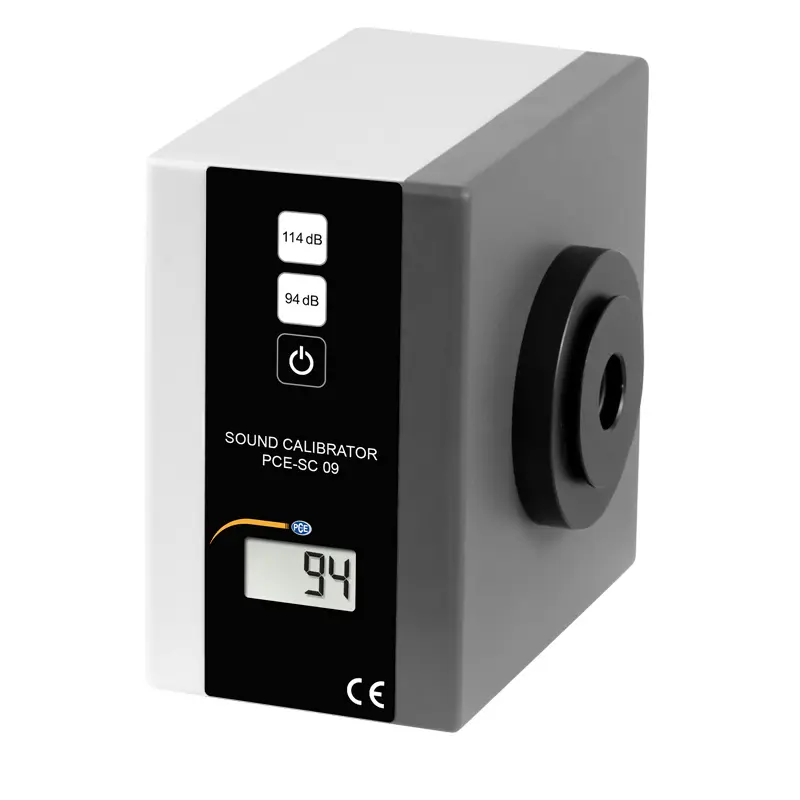

1 x Class I sound calibrator PCE-SC 09

Note: The Decibel Meter is supplied with an octave band filter. An upgrade with a 1/3 octave band filter is optionally possible (see selection option)
