Data Logger with USB Interface PCE-HT 114

Data Logger with USB Interface PCE-HT 114

Order no.: PCE-HT 114
GTIN (EAN): 4250348720115
145,90 €
182,38 €
price ex. (VAT / delivery)
:
4250348720115
PCE-HT 114
Delivery time:1-2 working days

Description

Data Logger with USB Interface PCE-HT 114
Refrigerator data logger for temperature and humidity / LCD / 25,920 Data Storage /  Fast reading via USB / Adjustable alarm limits / External sensor

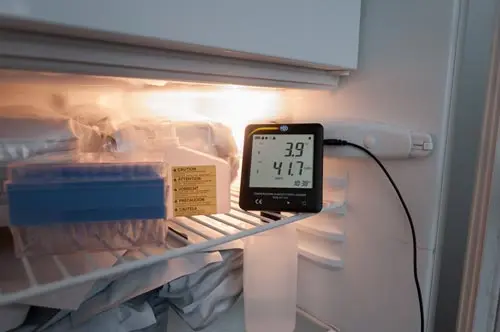

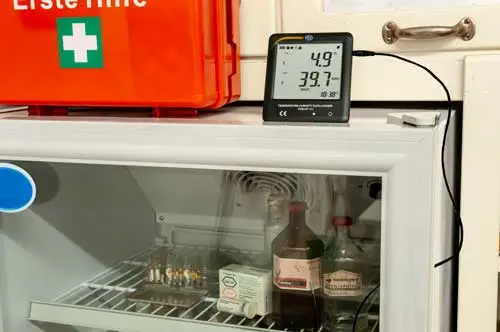

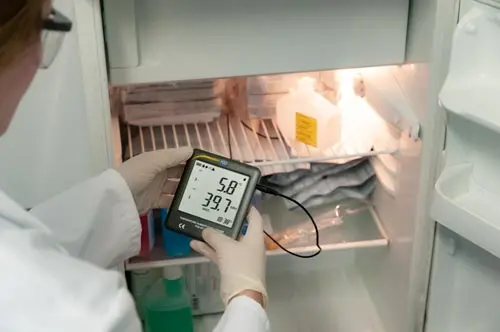

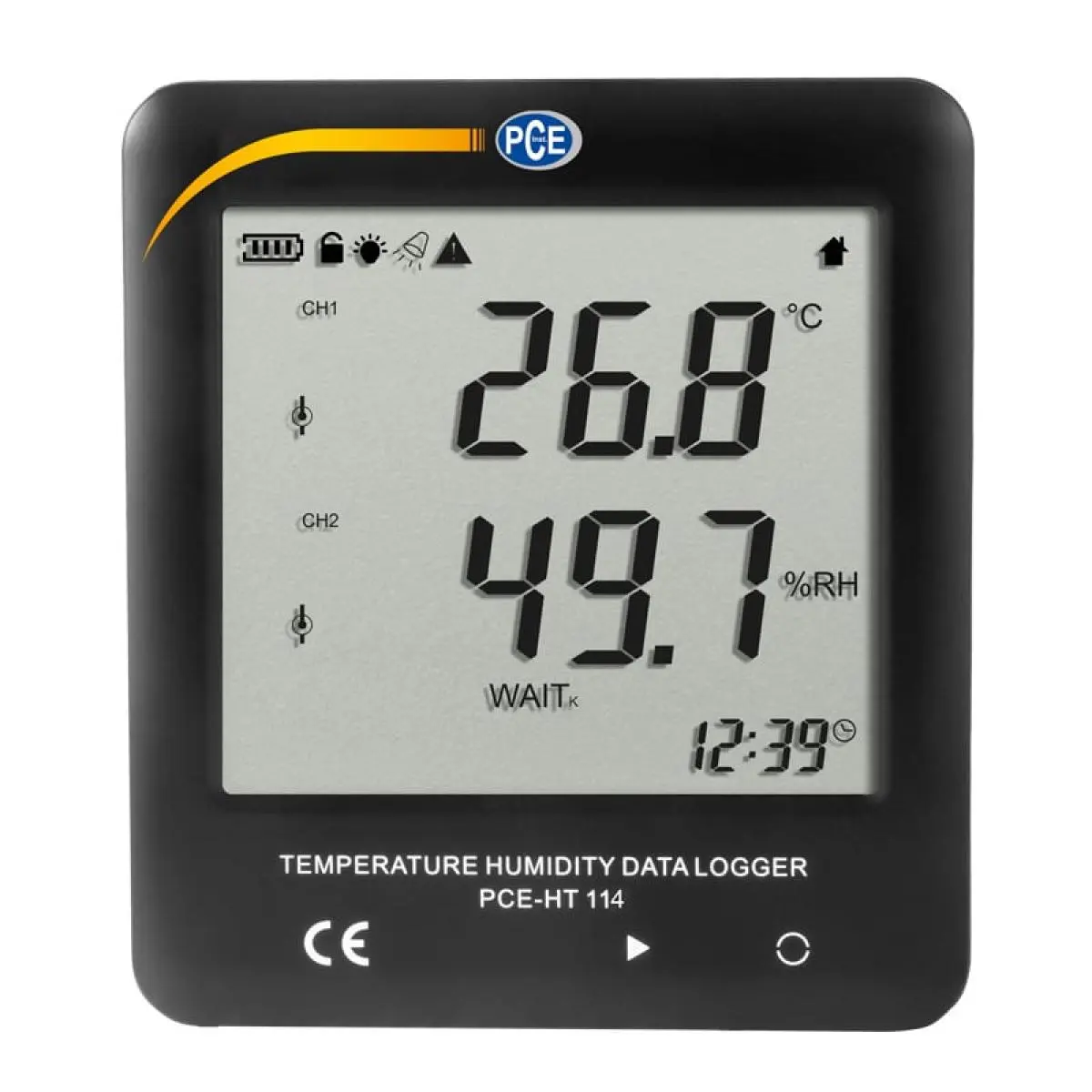

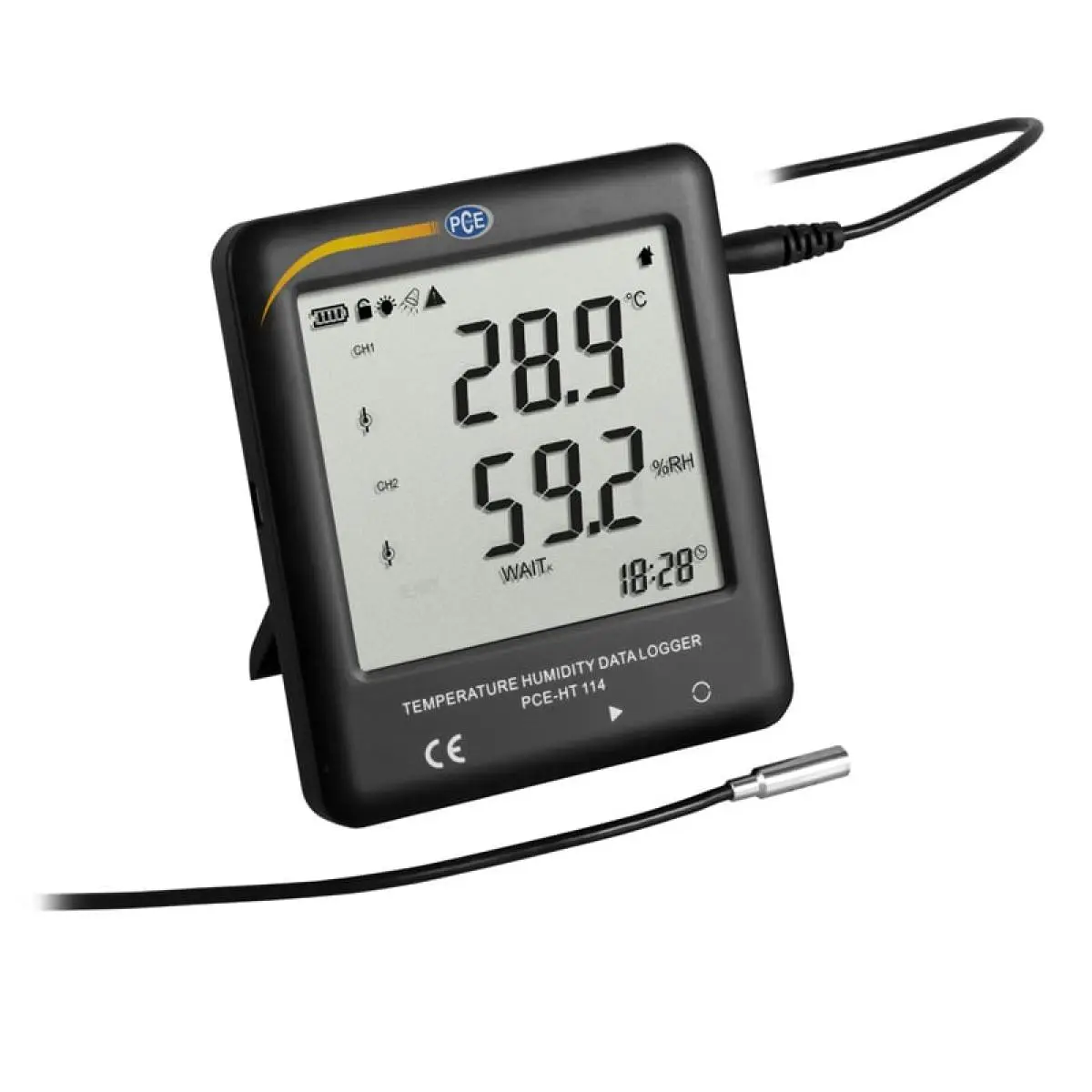

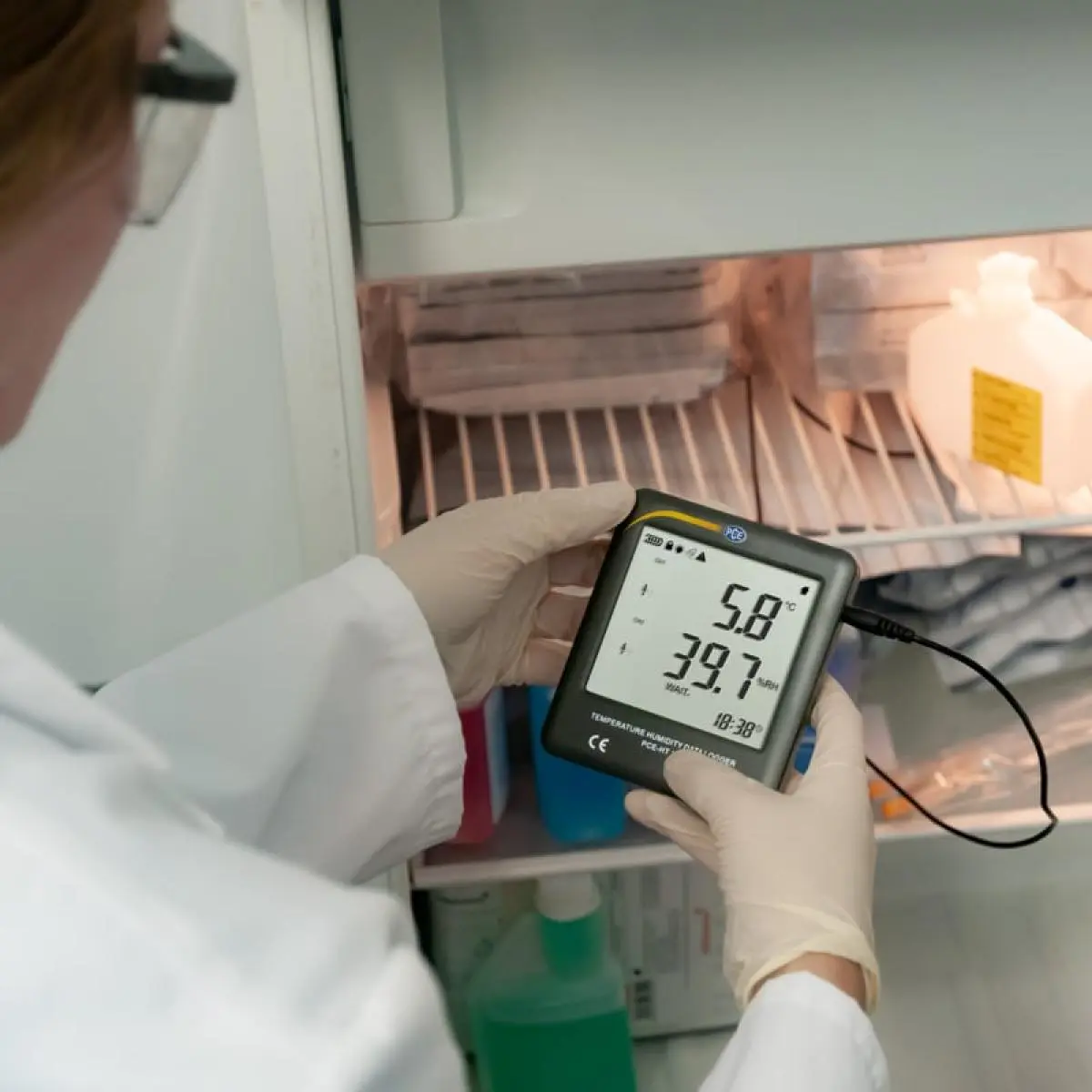

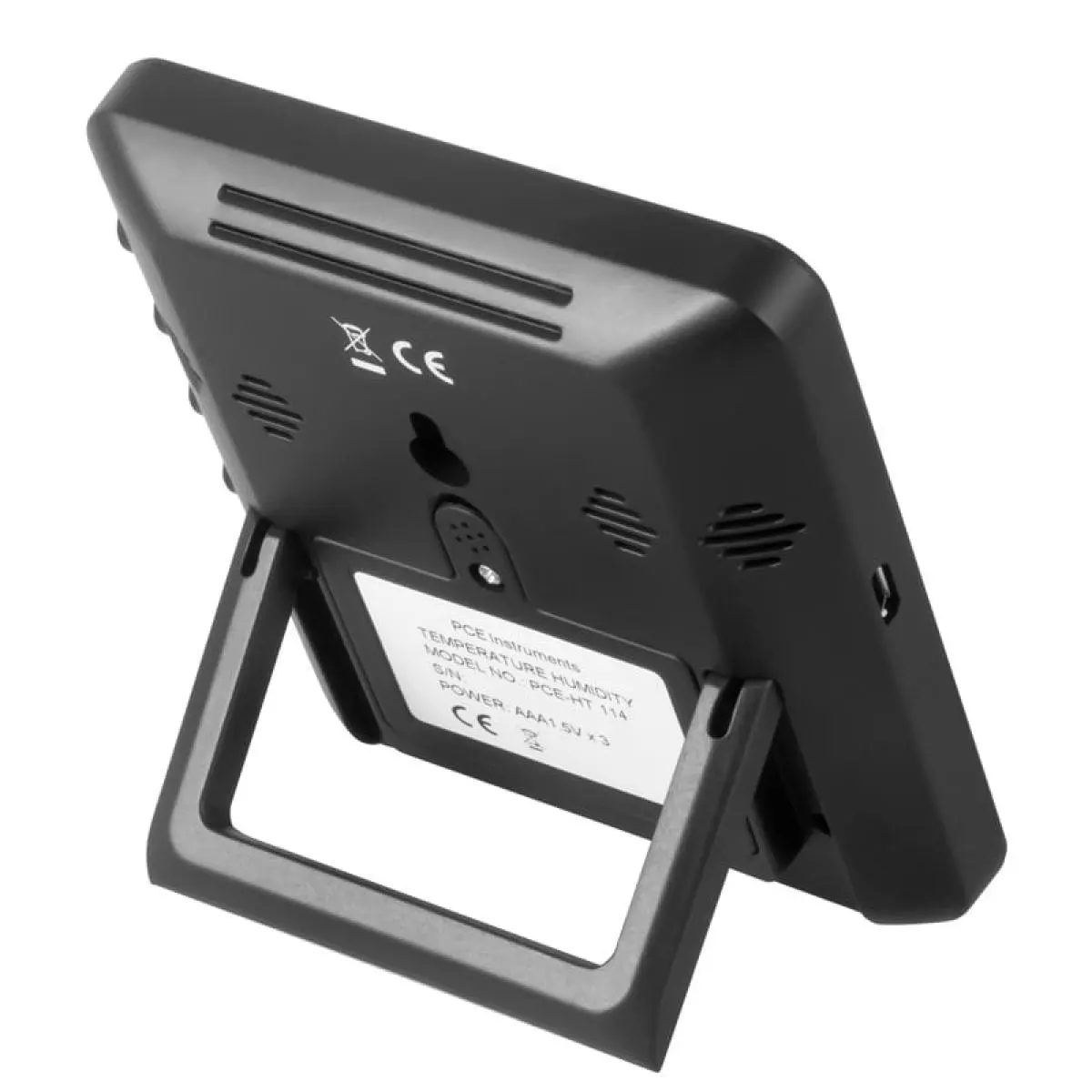

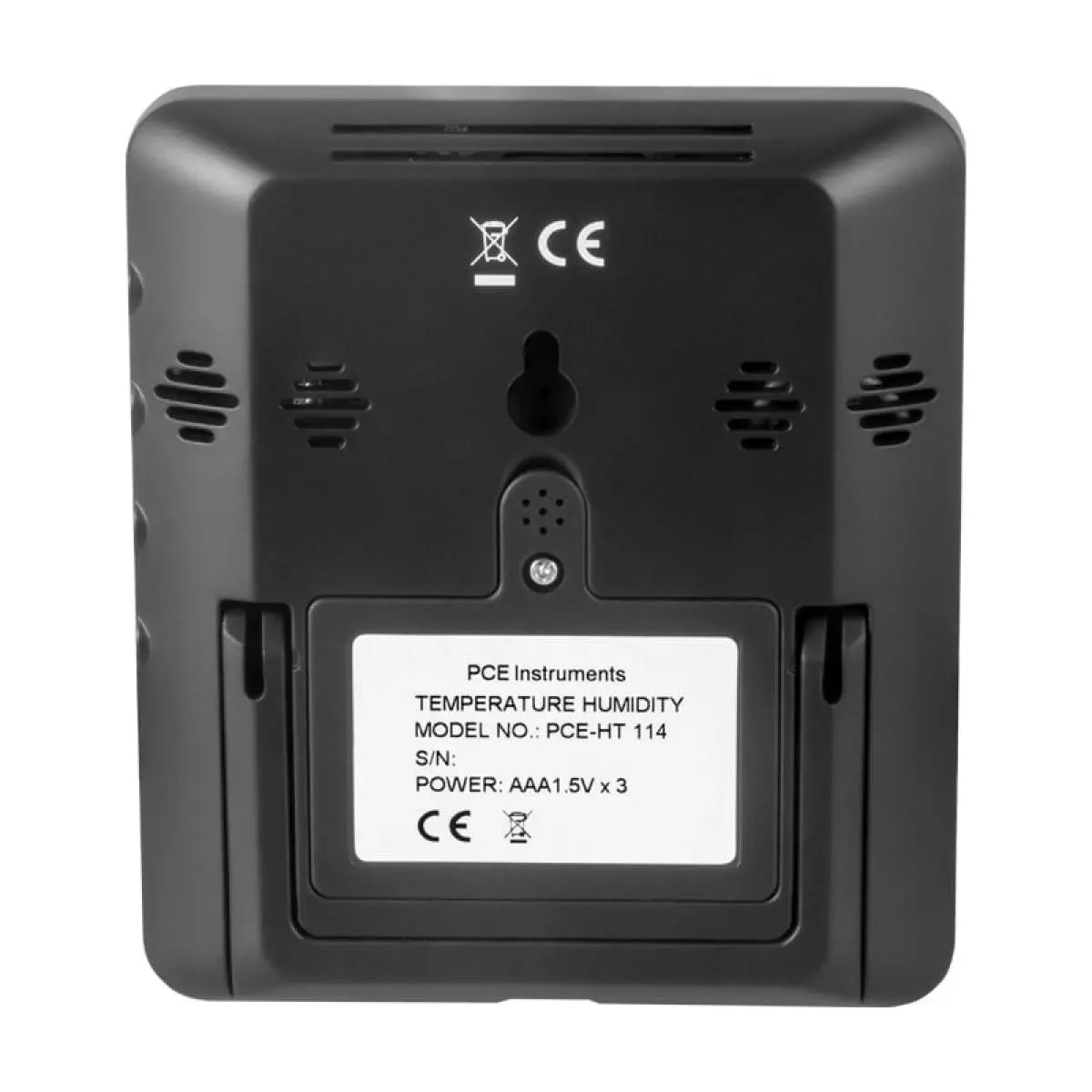

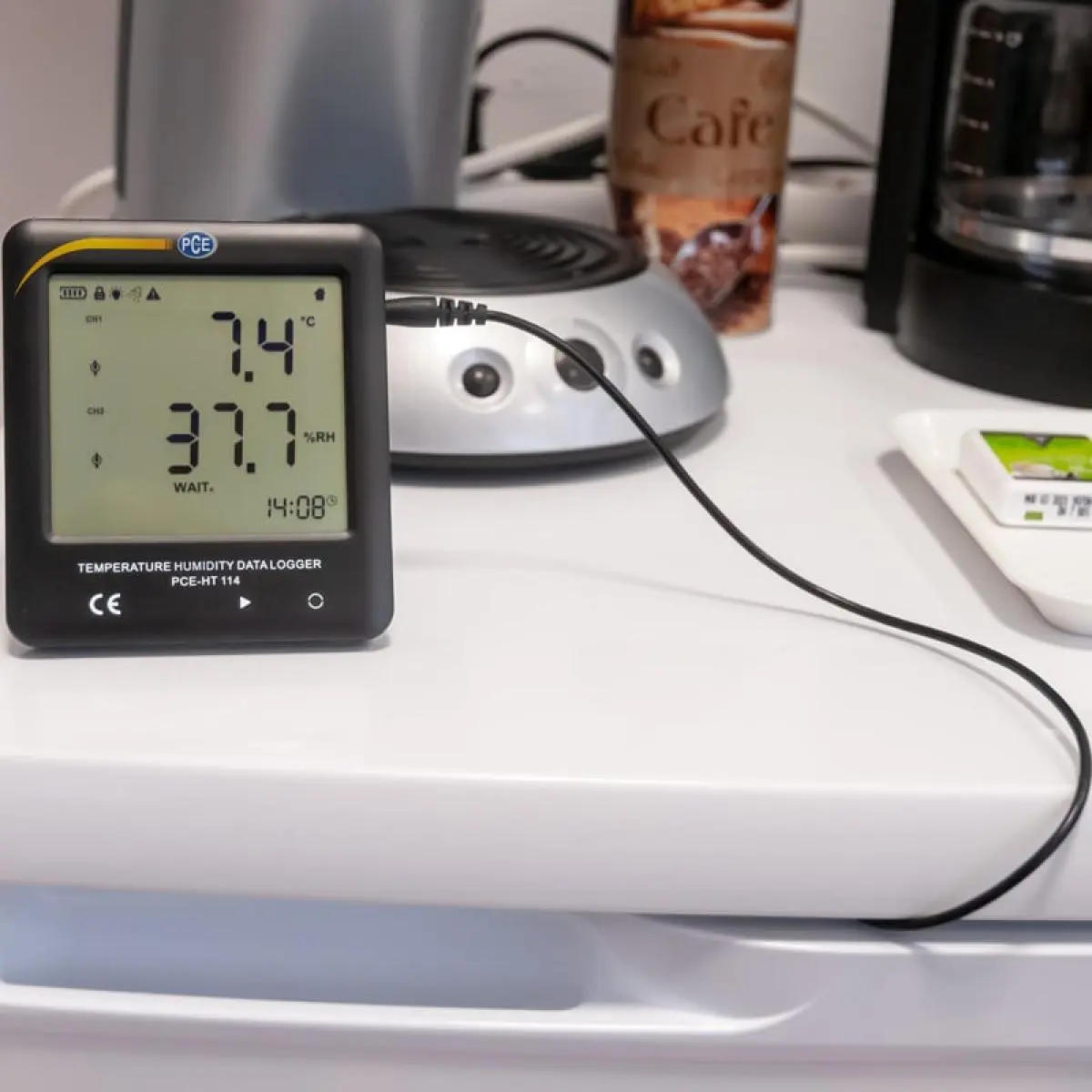

The data logger with USB interface has a temperature and humidity sensor on 2 m / 6.6 ft cable. The data logger with USB interface records the temperature and humidity in the interior of the refrigerator and simultaneously displays it via the LCD display. The data logger stores the measured values ​​in a format that is used by the software for analysis as well as in PDF format. In the PDF document that the data logger creates, a graph showing the course of the measurement is shown. Likewise, an overview of all measured values ​​is displayed directly in the measurement report. The data logger has a base and a mounting tab on the back. The display can be switched off for battery saver.

The data logger with USB interface can store up to 25,920 readings, which can be evaluated using the software. To connect to a PC, the data logger has a USB port. The software can also set alarms for high or low temperatures. It is also possible to switch over to the optionally available external sensor via the software.

Highlights

- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- External sensor

Specification

Relative humidity
Measuring range  0 ... 10
Resolution  0,1
Accuracy  ±3%

Temperature
Measuring range  -40 ... -10 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

General technical data
Display type  LCD
Display size  3,9 in
Display refresh rate  5 s
Storage capacity  2590 Values
Storage interval from  30 s
Storage interval to  1 h
Interface  Micro-USB
Response time  5 min
Operating time  1 Year(s)
Operating time additional information  approx. 1 year (without lighting / without alarm)
Alarm  Acoustic
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  3 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  -30 ... 65 °C , 0 ... 100 % RH
Storage conditions  -30 ... 65 °C , 0 ... 100 % RH
Dimensions ( L x W x H )  108 x 96 x 20 mm
Weight  120 g

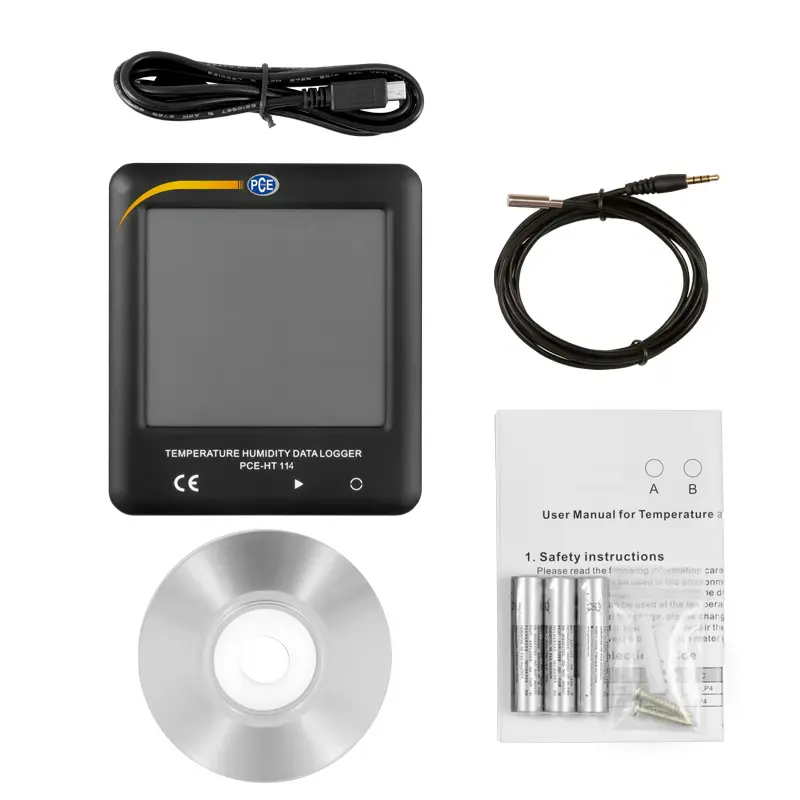

Delivery Scope

1 x Refrigerator Data Logger with USB Interface PCE-HT 114
1 x External sensor
3 x 1.5V AAA battery
1 x Micro USB cable
1 x Software on CD
1 x User manual
