Data Logger / Data Logging Instrument PCE-PHD 1-LF

Conductivity Data-logging Meter PCE-PHD 1-LF

Order no.: PCE-PHD 1-LF
GTIN (EAN): 4250348721587
431,90 €
513,96 €
price ex. (VAT / delivery)
:
4250348721587
PCE-PHD 1-LF
Delivery time:1-2 working days
Liquids
pH

Description

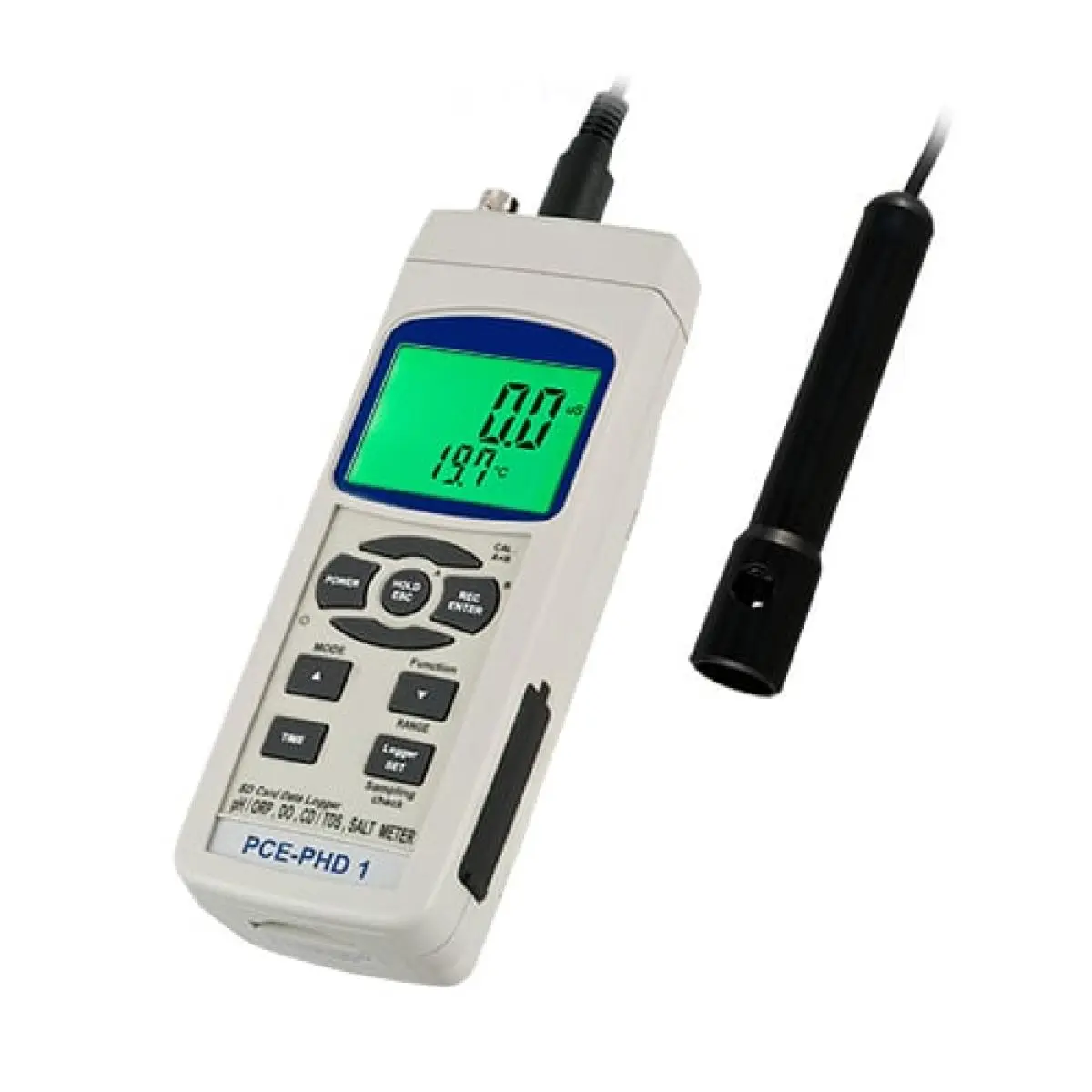

PCE-PHD 1-LF Conductivity Data-Logging Meter
SD card memory (1 ... 16 GB), stored data is stored as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC / Includes a conductivity electrode

PCE-PHD 1-LF Multifunction Conductivity Data-Logging Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Data-Logging Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.



Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-LF is supplied with a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.


Highlights

- Real-time data logger
- Compatibility with SD cards up to 16 GB
- The stored data is saved directly as an Excel file on the SD card (no
software needed for evaluation)
- RS-232 interface for online data transmission
- High precision
- Low battery indication
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site measurement
- Electrode for conductivity included

Specification

Conductivity
Measuring range  0 ... 200 µS/cm
Resolution  0,1 µS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  0,2 ... 2 mS/cm
Resolution  0,001 mS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  2 ... 20 mS/cm
Resolution  0,01 mS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  20 ... 200 mS/cm
Resolution  0,1 mS/cm
Accuracy  ±(2% FS +1 digit)

Electrode
Measuring range  0 µS/cm ... 200 mS/cm
Temperature range  0 ... 60 °C
Shank length  120 mm
Shank diameter  22 mm

General technical data
Temperature compensation  automatic, 0 to 60°C / 32 to 140°F
Display type  LCD
Display size  2,54 Inch
Storage medium  SD card
Storage capacity  16 GB
Storage interval from  1 s
Storage interval to  9 h
Interface  RS232
Calibration  at 1413 μS/cm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  177 x 68 x 45 mm
Weight  490 g

Delivery Scope

1 x PCE-PHD 1-LF Data Logger / Data Logging Instrument

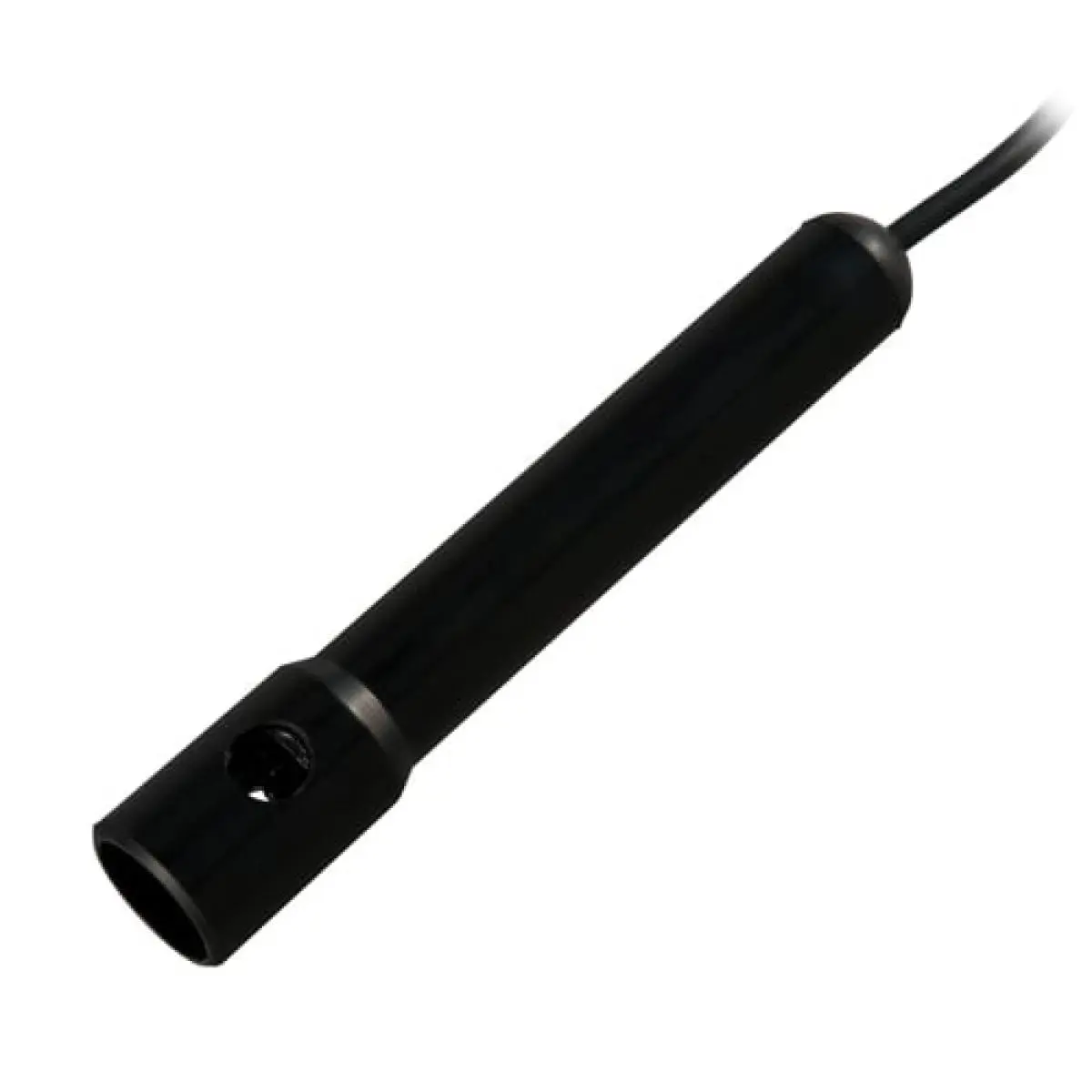

1 x conductivity electrode
1 x SD memory card 2GB
6 x 1.5 V AA batteries
1 x user manual
