Current Clamp PCE-DC1-ICA

[zoom]

Current Clamp PCE-DC1-ICA Incl. ISO Calibration Certificate

Order no.: PCE-DC1-ICA

GTIN (EAN): 4250348725431

Description

Current Clamp incl. ISO calibration certificate
for AC Power, AC Voltage, DC Power and frequency (3 in 1) / Clamp opening max. 18 mm

This Current Clamp was developed for the indirect detection of AC / DC currents as well as the frequency. A non-contact voltage tester function and a torch for illuminating the measuring point were also integrated in this Current Clamp. The small dimensions of this Current Clamp, allow use in hard to reach places.

The large illuminated display of the Current Clamp ensures a very good readability even in dark places, such as in control cabinets and cable ducts. The non-contact voltage tester not only helps you identify dangerous potentials, but also provides you with an accurate tool for finding broken wire positions.

Highlights

- LCD with 3 2/3 positions, backlit, clamp for continuous current

- Measures AC/DC current, AC voltage and frequency

- Memory function, zero reset for the DCA, test voltage without contact

- Integrated flashlight

- Automatic range selection

- Auto shut-off

- Aperture of the clamp: 18 mm / .7 in

- incl. ISO-Calibration Certificate

Specification

Direct current DC
Measuring range	0 ... 200 A
Resolution	0,1 A
Accuracy	±(2.8% of reading +8 digits)

Alternating current AC
Measuring range	0 ... 200 A
Resolution	0,1 A
Accuracy	±(3 % of Rd +8 digits)

Frequency
Measuring range	40 ... 50 Hz
Resolution	0,01 Hz
Accuracy	±(1.2 % +5 digits)

Frequency
Measuring range	51 ... 510 Hz
Resolution	0,1 Hz
Accuracy	±(1.2% +3 Digits)

Frequency
Measuring range	0,51 ... 1 kHz
Resolution	0,001 kHz
Accuracy	±(1.2% +3 Digits)

General technical data
Measuring functions	HOLD
Display type	LCD with backlight
Display size	1,4 Inch
Standard(s)	EN 61010-1, EN 61010-2-032
Maximum cable diameter	18 mm
Automatic power-off	7 min
Housing	PVC
Safety standard	CAT II / 600V
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	2 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 30 °C , 0 ... 90 % RH
Storage conditions	0 ... 30 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	155 x 66 x 31 mm
Weight	155 g

Delivery Scope

1 x PCE-DC1-ICA Current Clamp

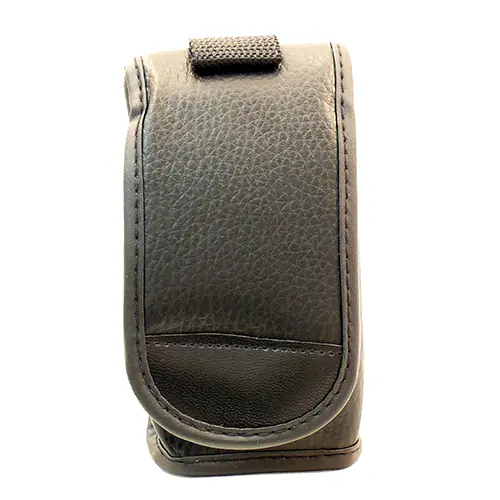

1 x Bag

2 x Batteries

1 x User's manual

1 x ISO-Calibration Certificate

Downloads

Datasheet

CE Certificate

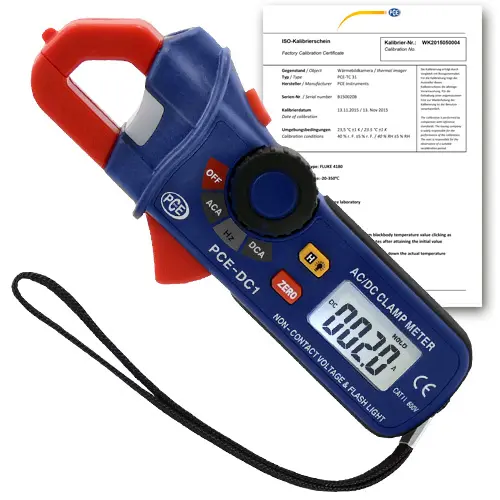

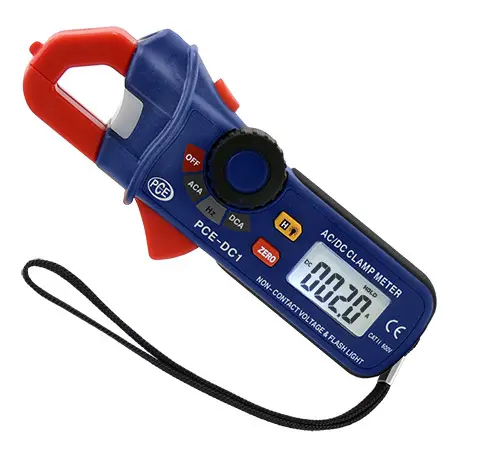

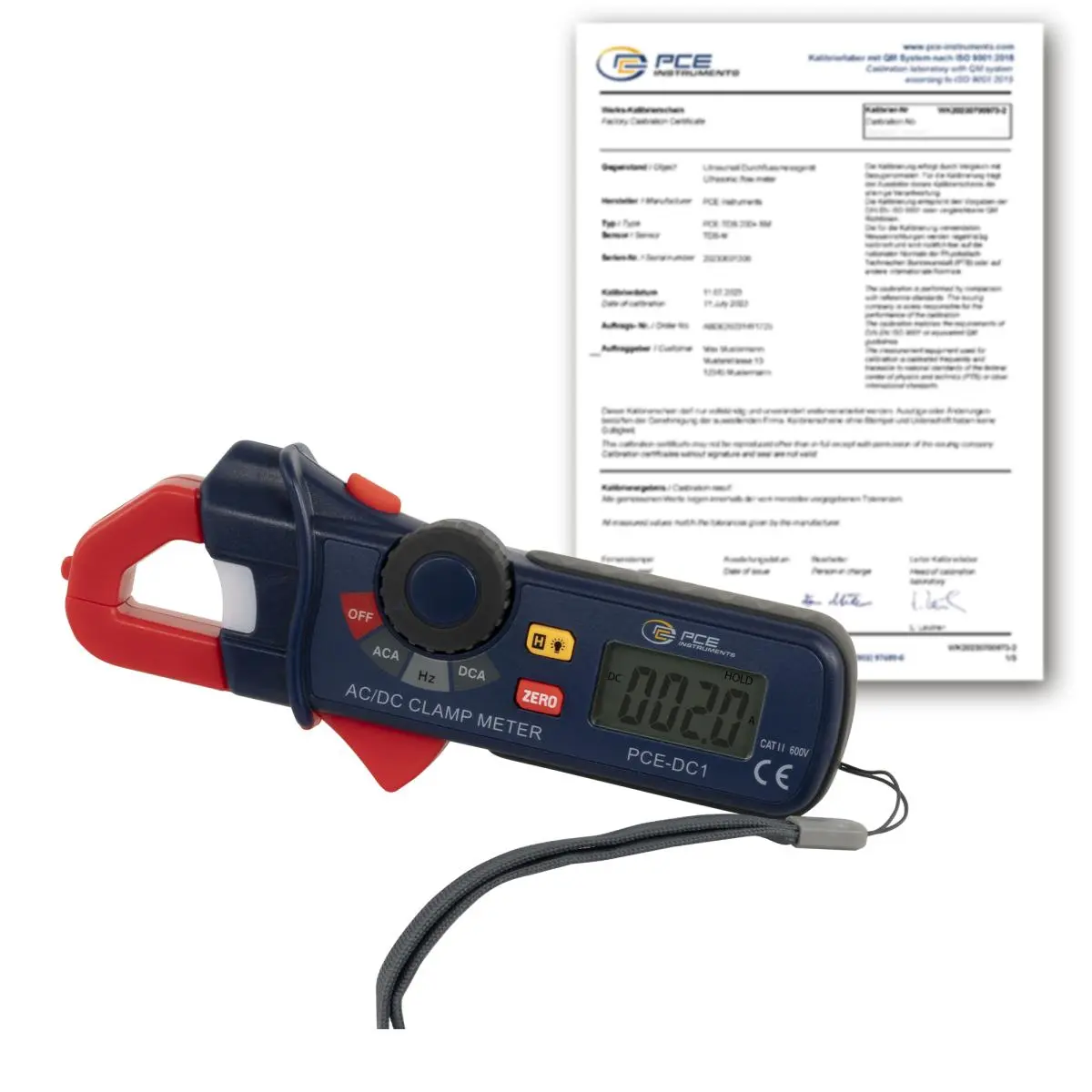

Current Clamp PCE-DC1-ICA

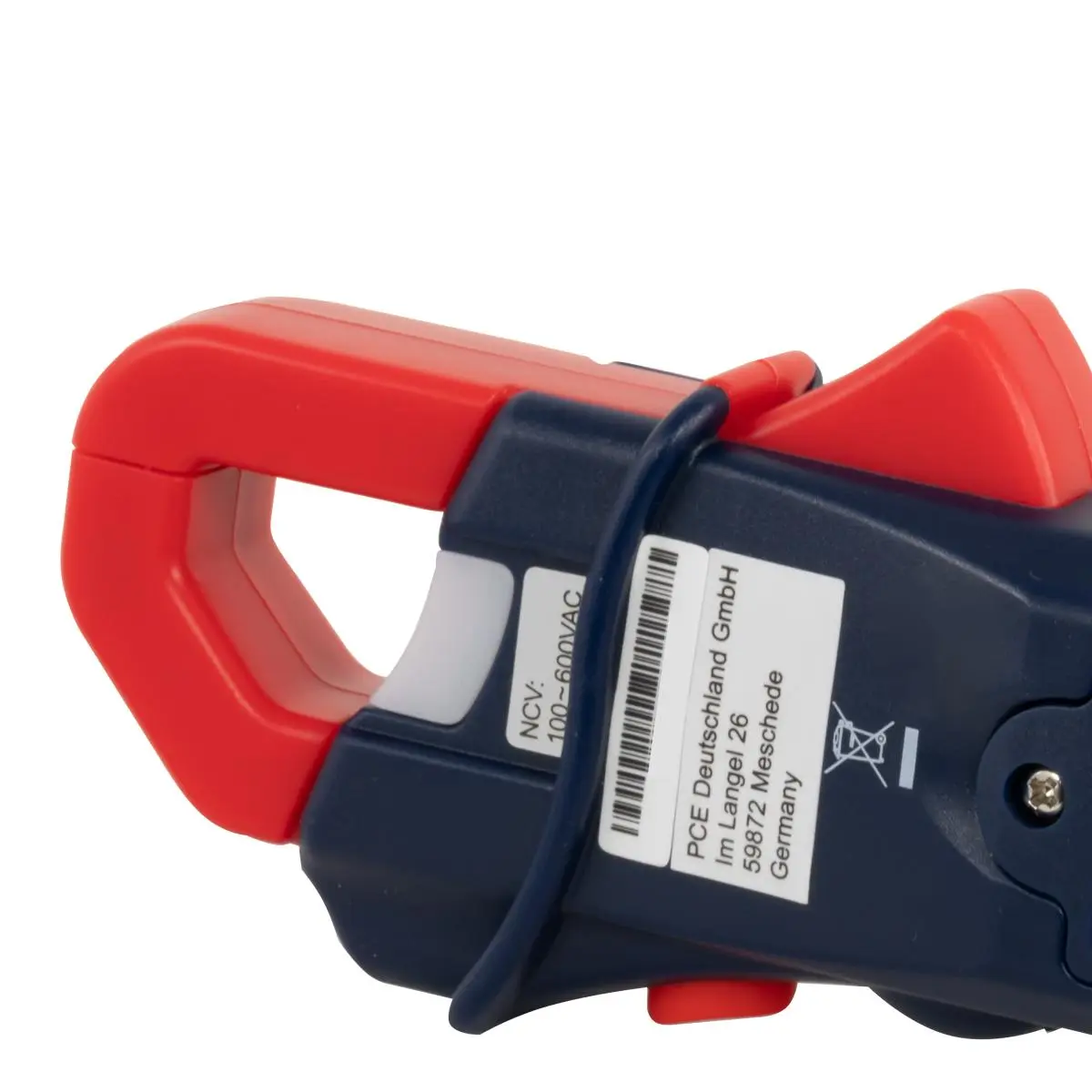

Current Clamp Rear side

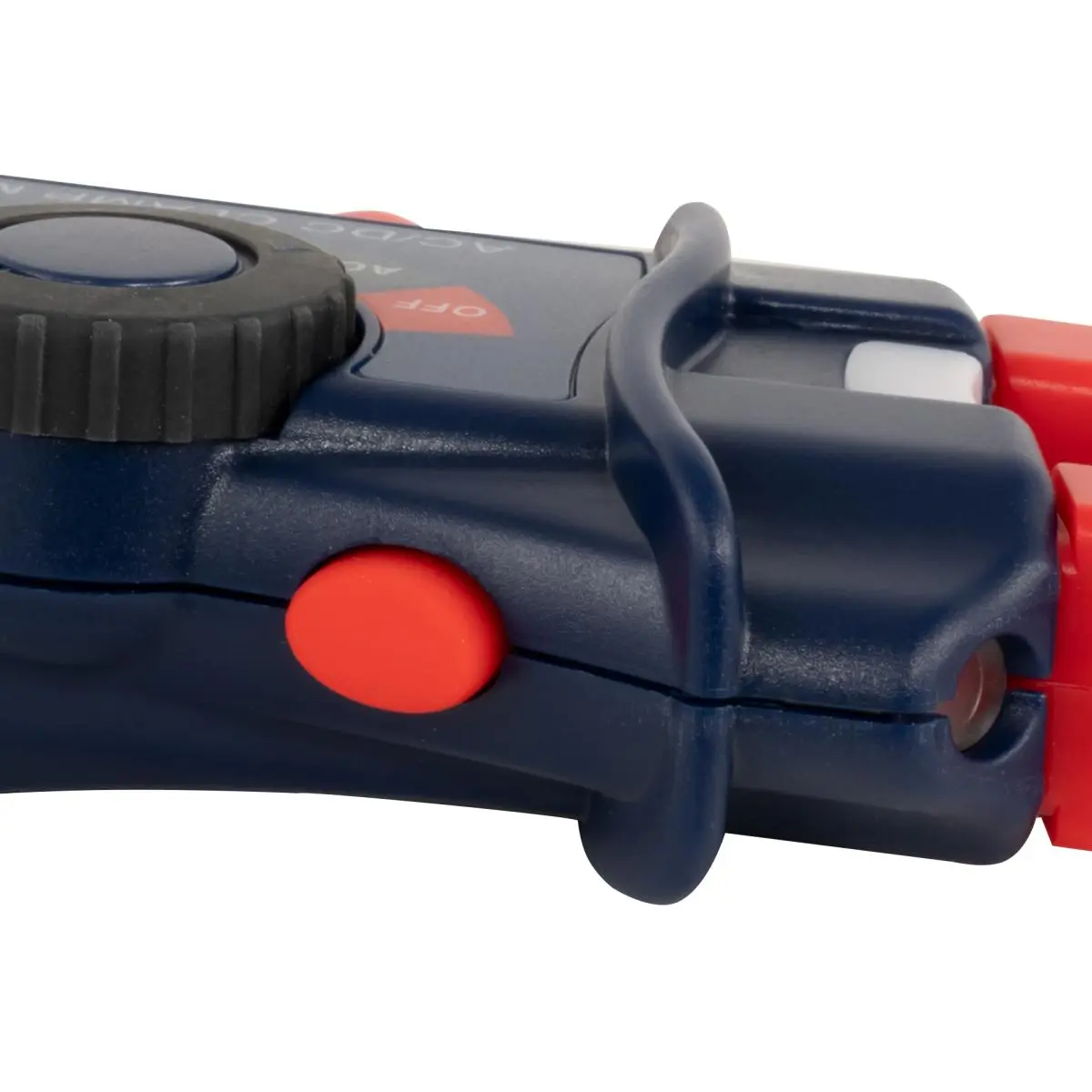

Current Clamp Handle

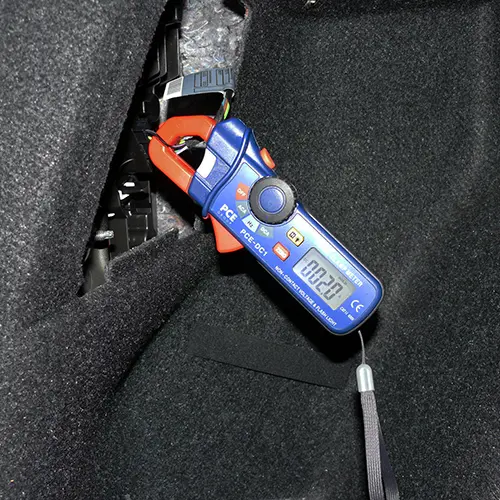

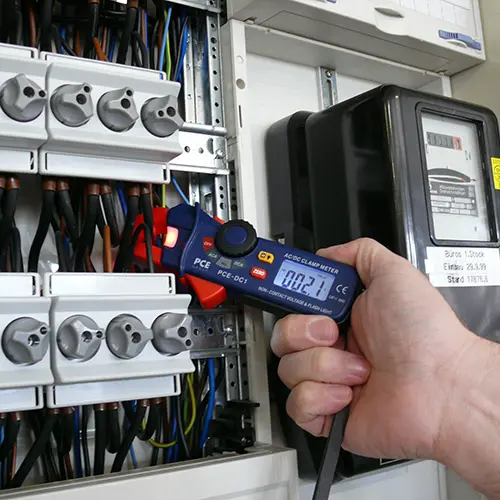

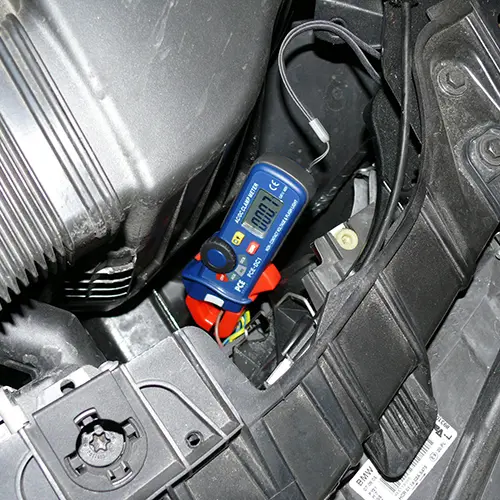

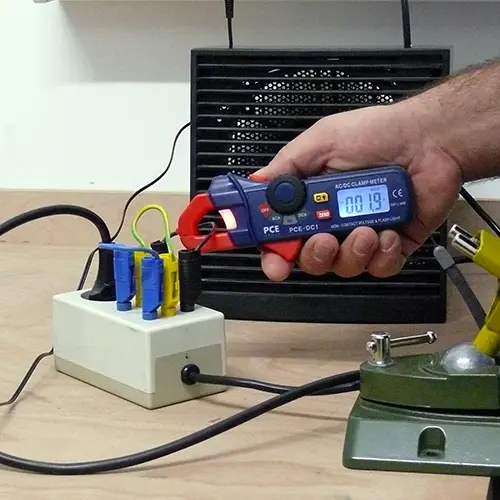

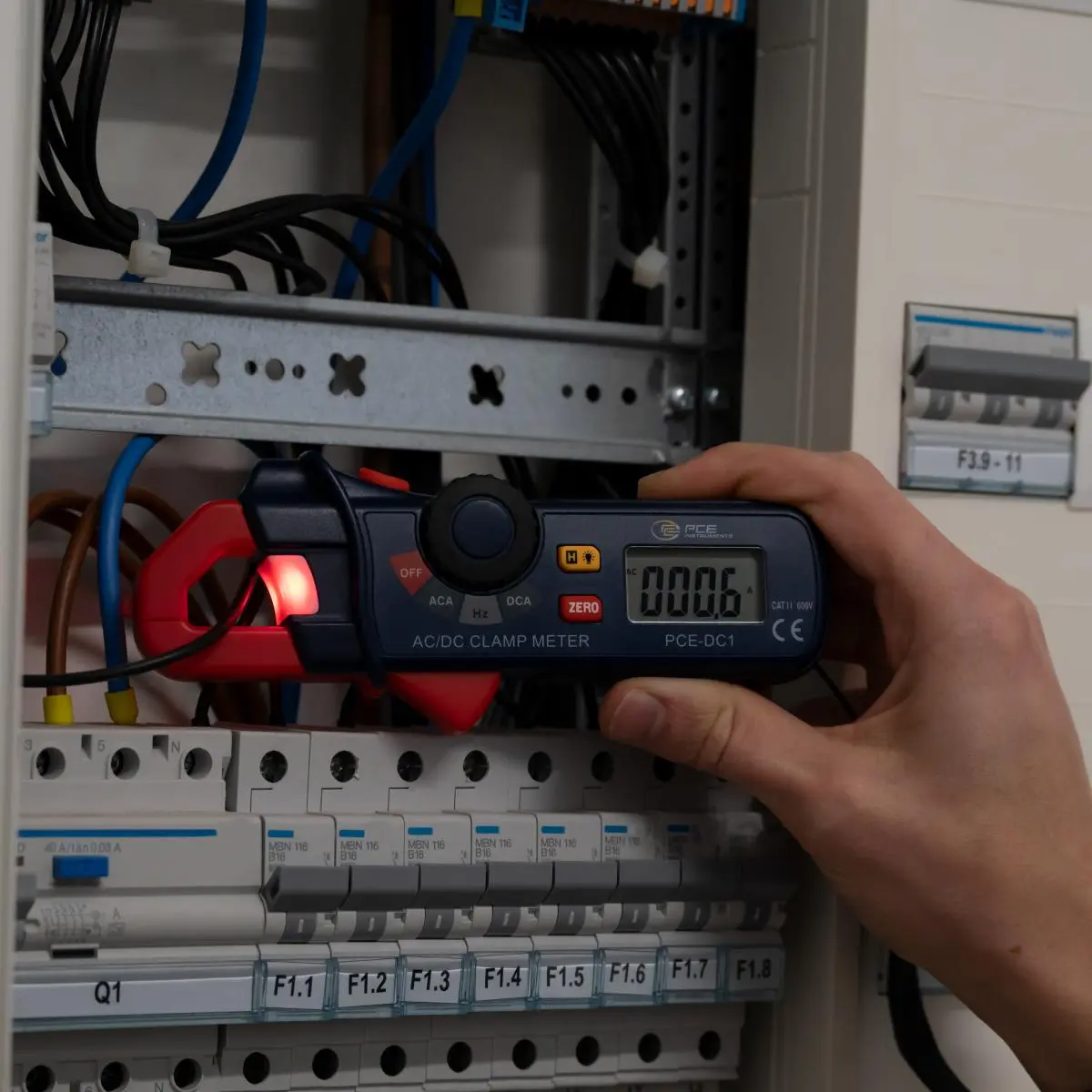

Current Clamp Application picture

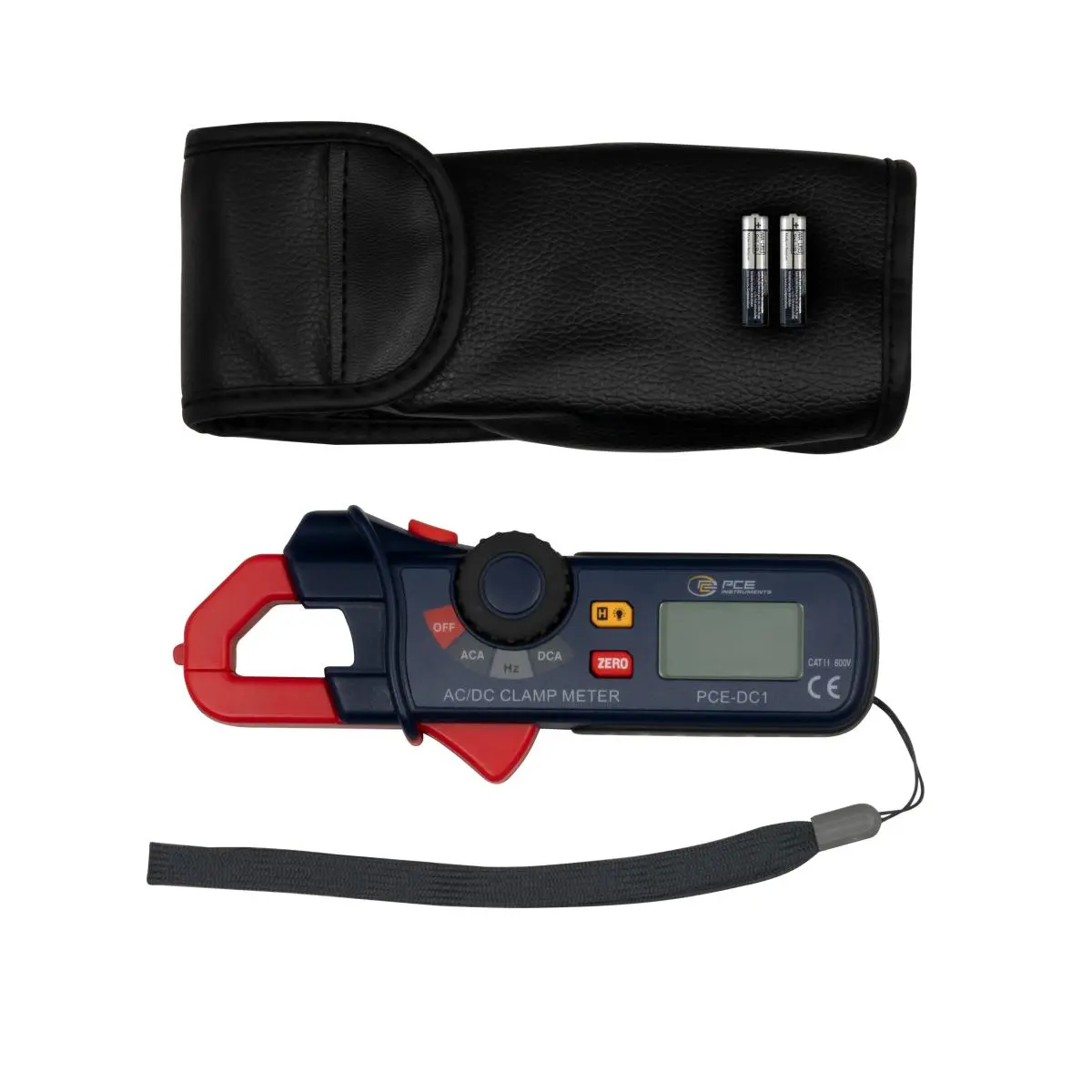

Current Clamp Delivery scope
