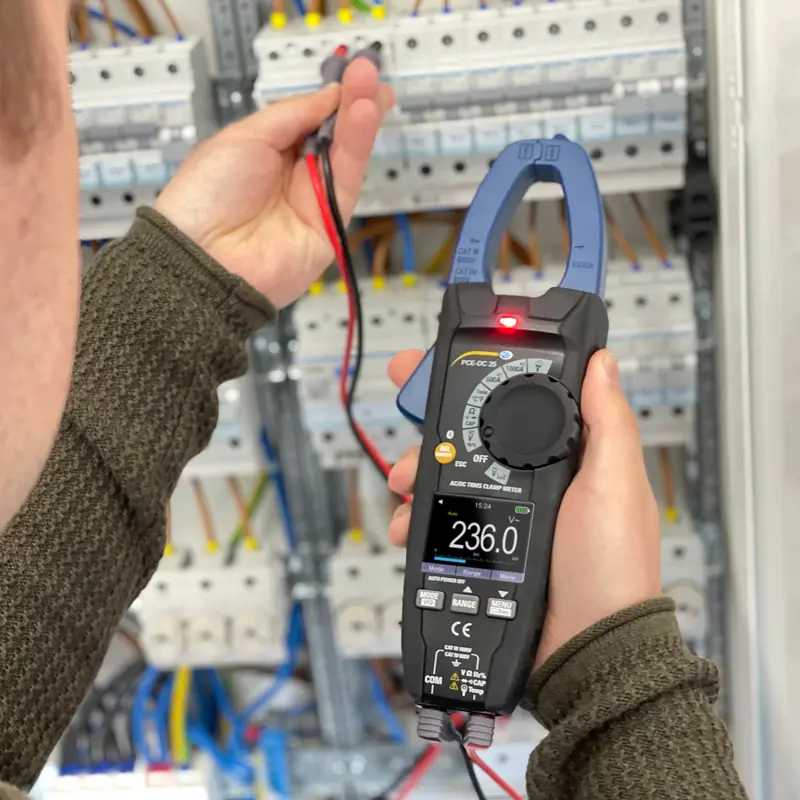

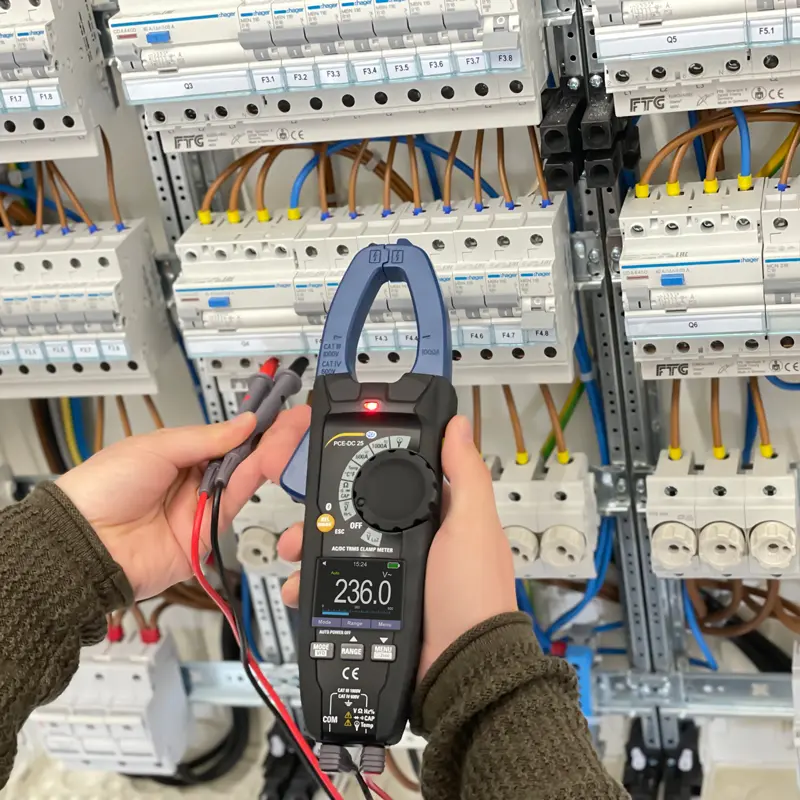

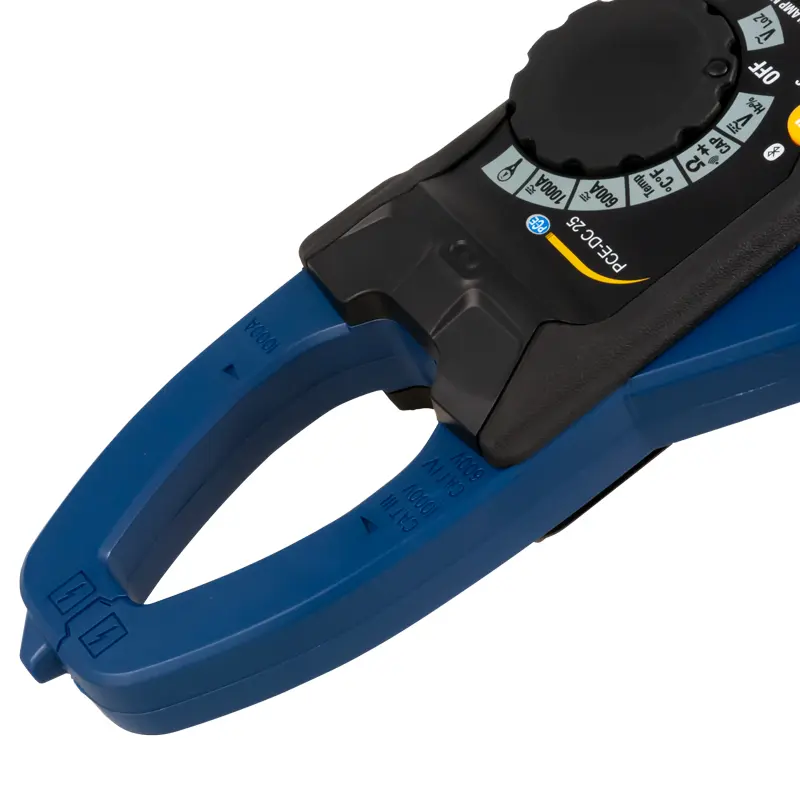

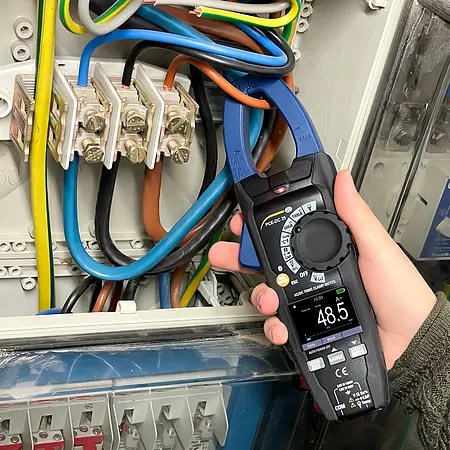

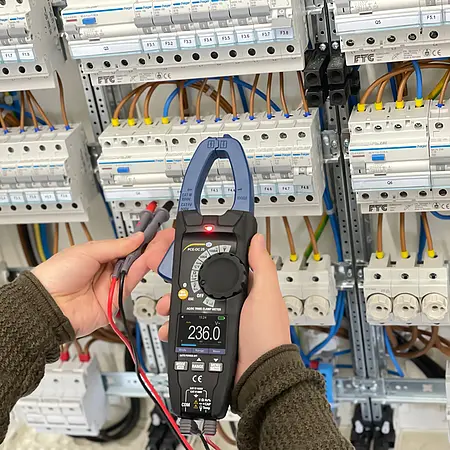

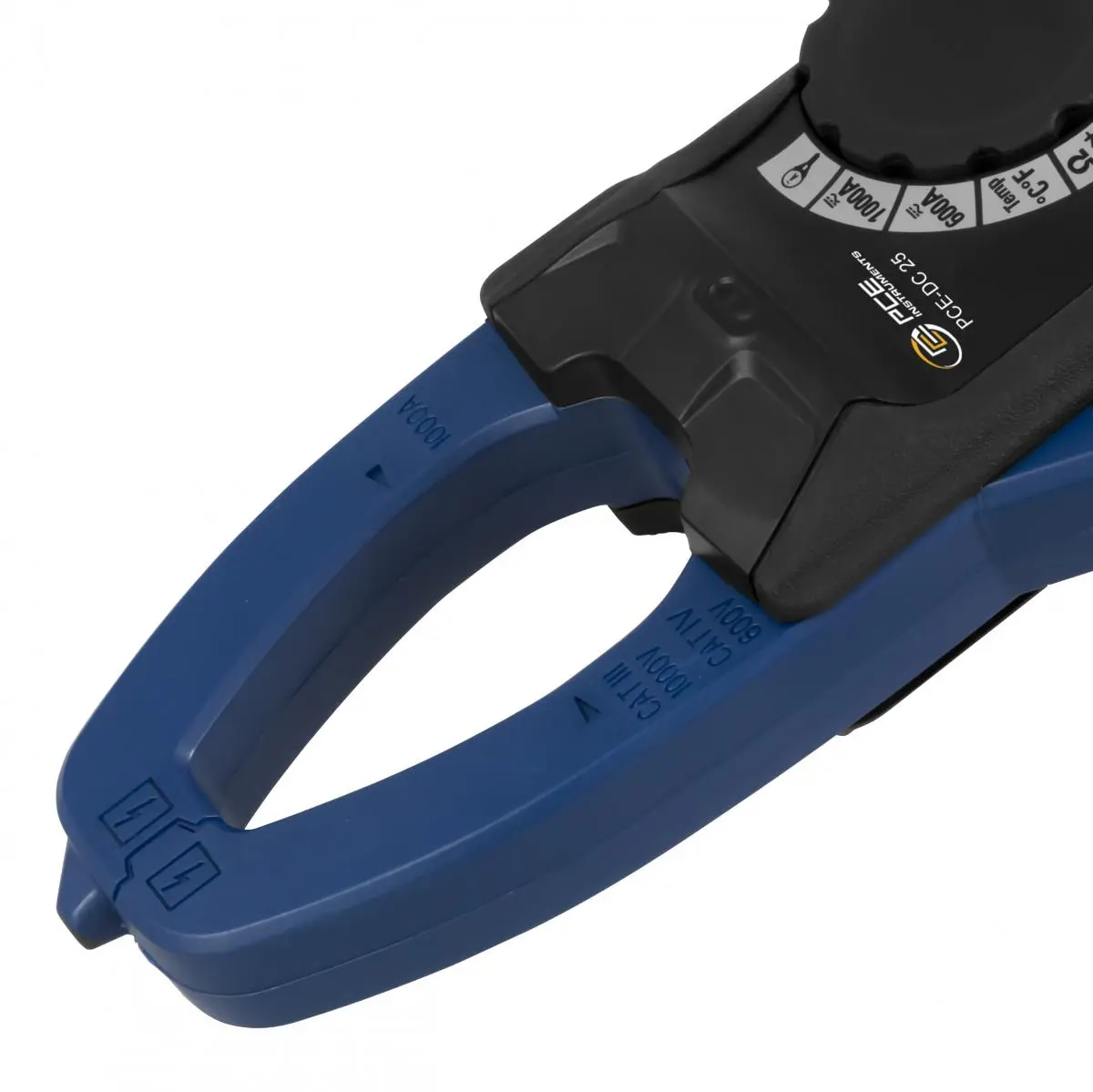

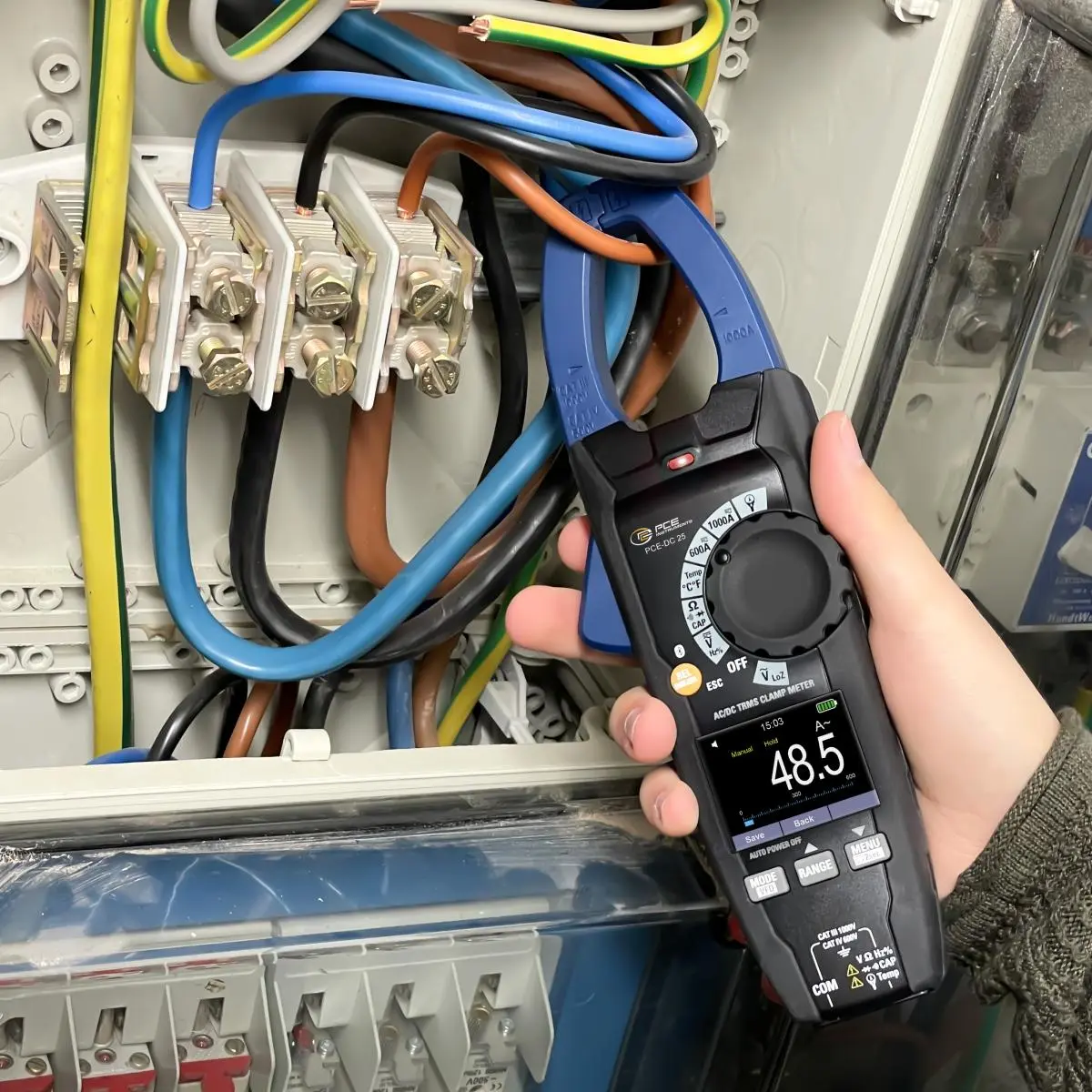

The Current Clamp has a measuring range of 0… 1000 A AC/DC. The current is measured inductively using the clamp on the measuring device. Live supply lines with a diameter of up to 32 mm (1.2") can be connected to the Current Clamp. With the optional Rogowski coil, the measuring range of the Current Clamp can be extended to up to 3000 A AC. The Current Clamp has sub-functions for current measurement. The inrush current can be measured with the Current Clamp. This is a particularly important function, as motors such as those installed in ventilation systems or hall lighting require a particularly high current when switched on.

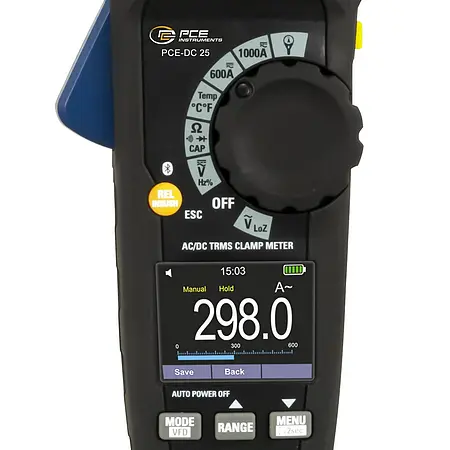

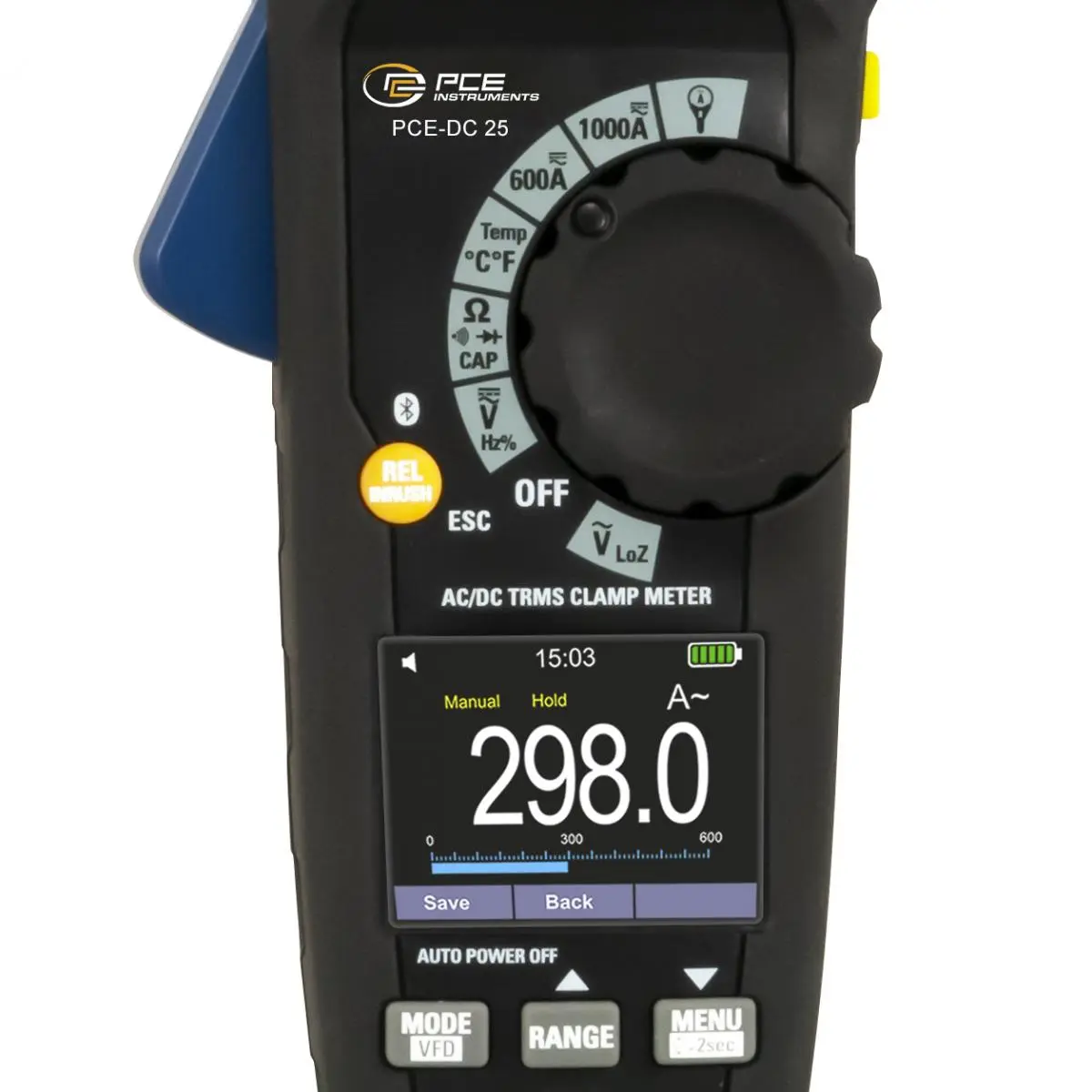

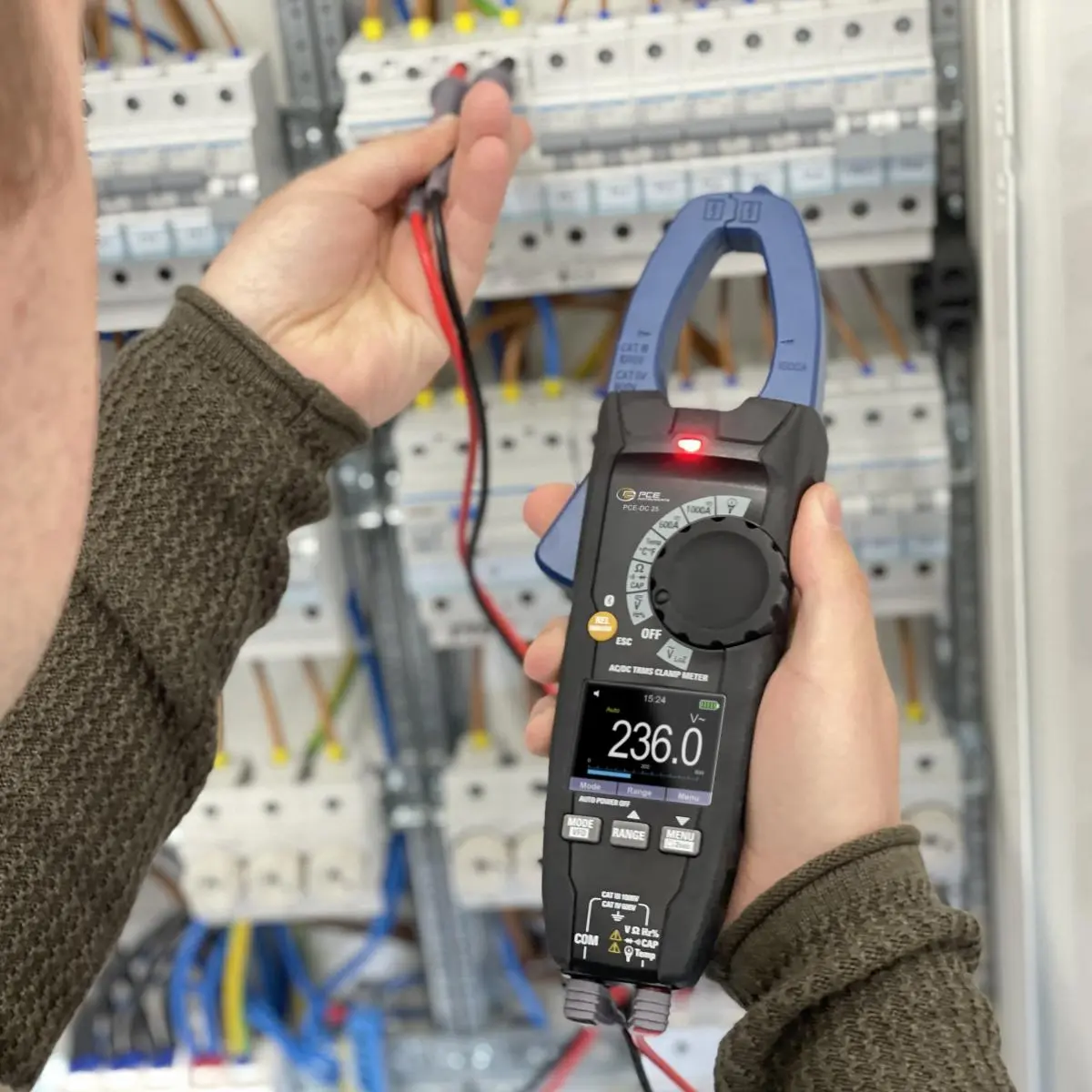

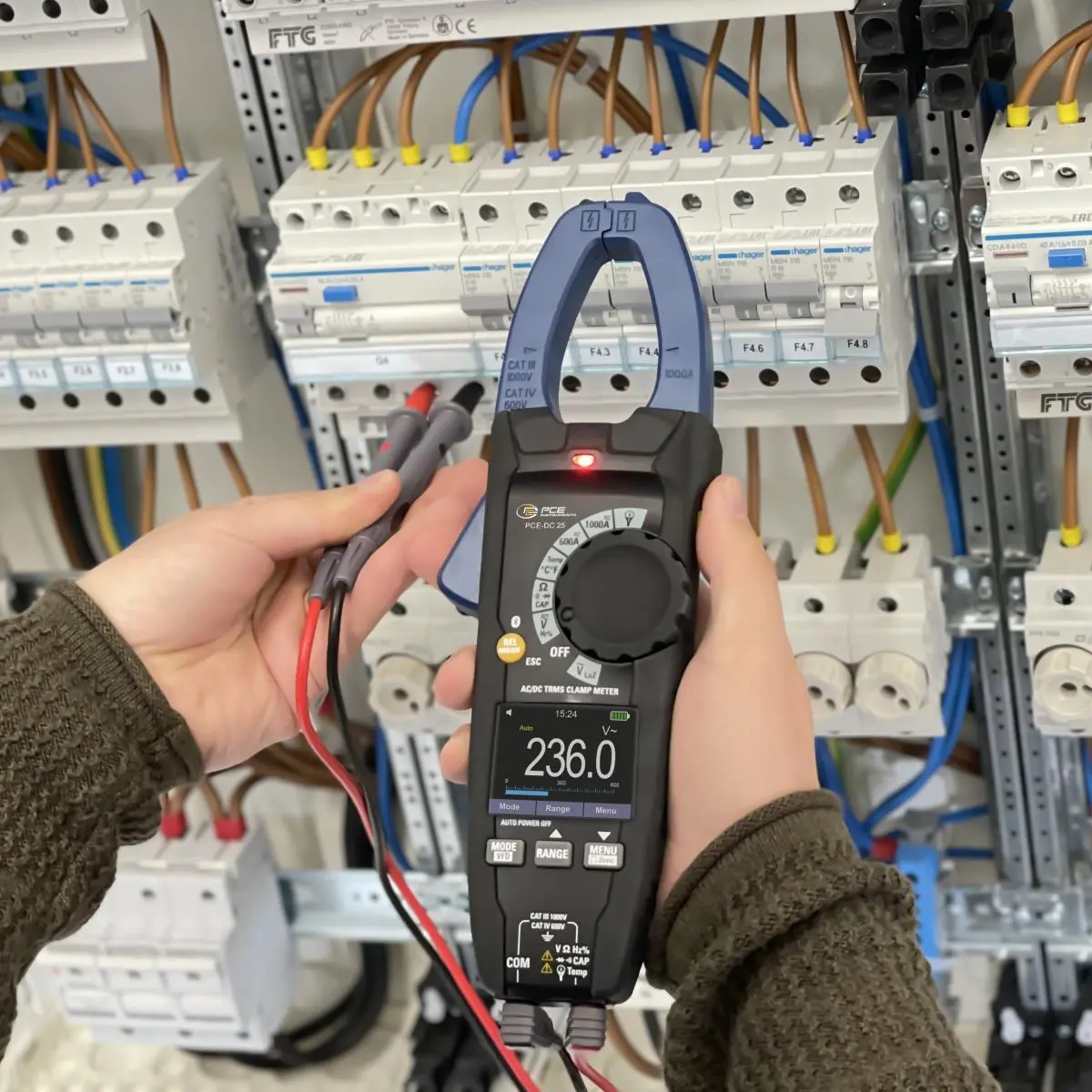

In addition to current measurement, the Current Clamp can also measure voltages from 0… 1000 V AC/DC, resistances, frequencies and capacitances. The functions can be set using the rotary selector switch on the Current Clamp. With the NCV function, the Current Clamp can be used to determine the absence of voltage without contact. As soon as a voltage of 150 V AC is applied, this is indicated by an additional red LED. This function is active for every measuring function selected using the rotary selector switch. An LED lamp is integrated in the Current Clamp for optimal illumination of the measuring point.

The Current Clamp can be connected to an Android or iOS device via the Bluetooth interface. With the free app for the Current Clamp, the measured values ​​can be displayed, saved and further processed. The Current Clamp thus covers a wide range of measuring tasks due to the multitude of functions.
