Conductivity Meter / Conductivity Tester PCE-PHD 1-LF

Conductivity Meter PCE-PHD 1-LF

Order no.: PCE-PHD 1-LF
GTIN (EAN): 4250348721587
431,90 €
526,92 €
price ex. (VAT / delivery)
:
4250348721587
PCE-PHD 1-LF
Delivery time:1-2 working days
Liquids

Description

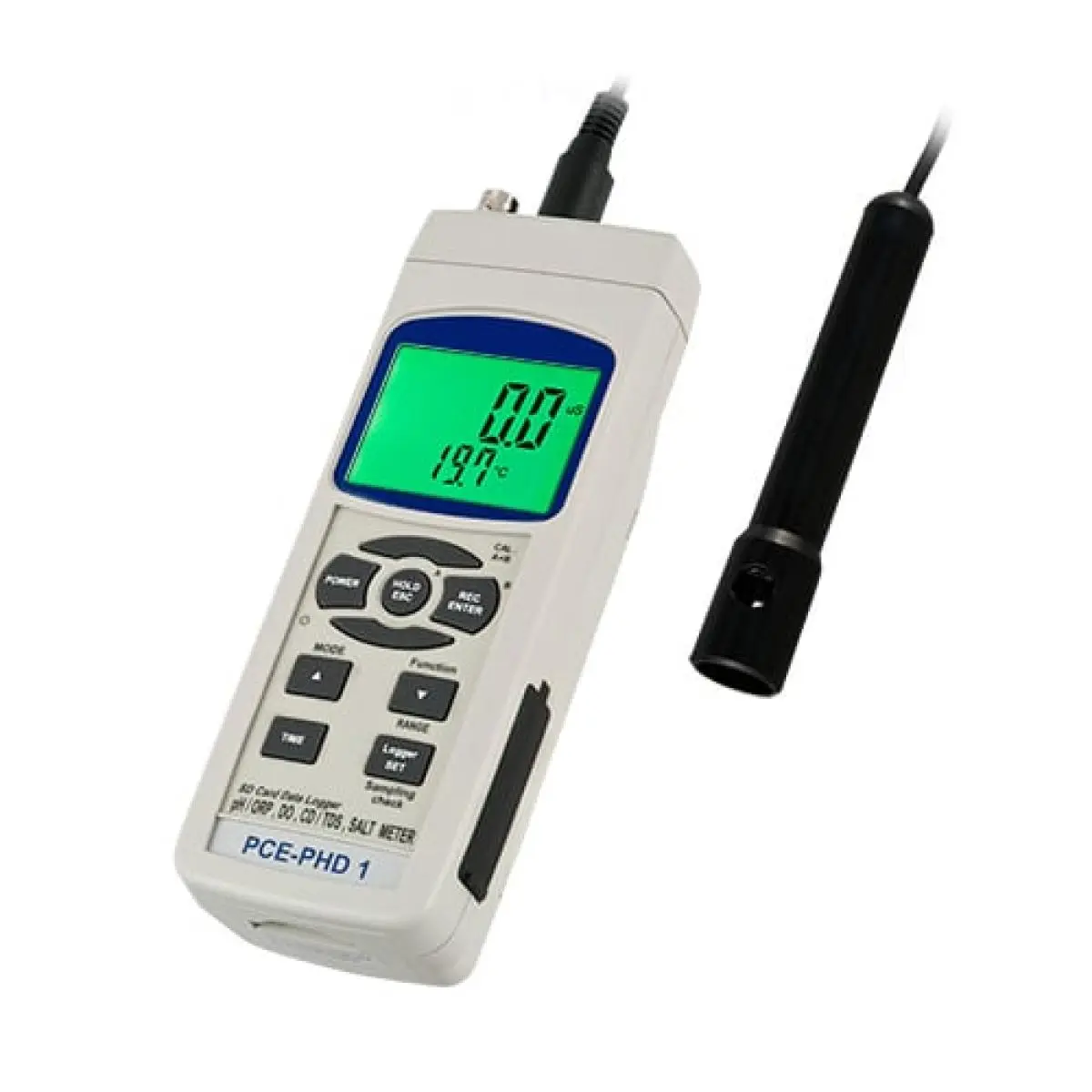

PCE-PHD 1-LF Conductivity Meter
SD card memory (1 ... 16 GB), stored data is stored as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC / Includes a conductivity electrode

PCE-PHD 1-LF Multifunction Conductivity Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.



Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-LF is supplied with a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.


Highlights

- Real-time data logger
- Compatibility with SD cards up to 16 GB
- The stored data is saved directly as an Excel file on the SD card (no
software needed for evaluation)

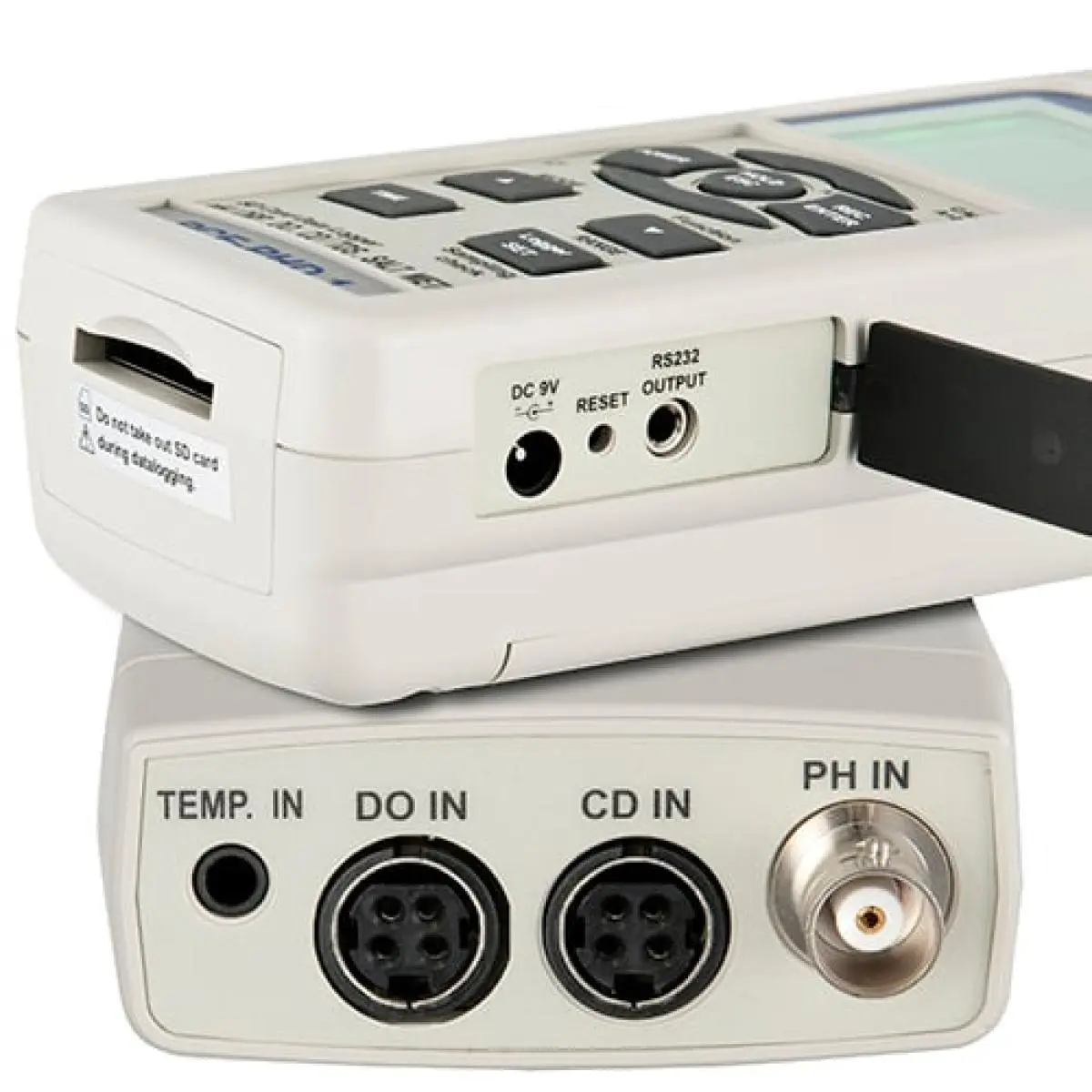

- RS-232 interface for online data transmission
- High precision
- Low battery indication
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site measurement
- Electrode for conductivity included

Specification

Conductivity
Measuring range  0 ... 200 µS/cm
Resolution  0,1 µS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  0,2 ... 2 mS/cm
Resolution  0,001 mS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  2 ... 20 mS/cm
Resolution  0,01 mS/cm
Accuracy  ±(2% FS +1 digit)

Conductivity
Measuring range  20 ... 200 mS/cm
Resolution  0,1 mS/cm
Accuracy  ±(2% FS +1 digit)

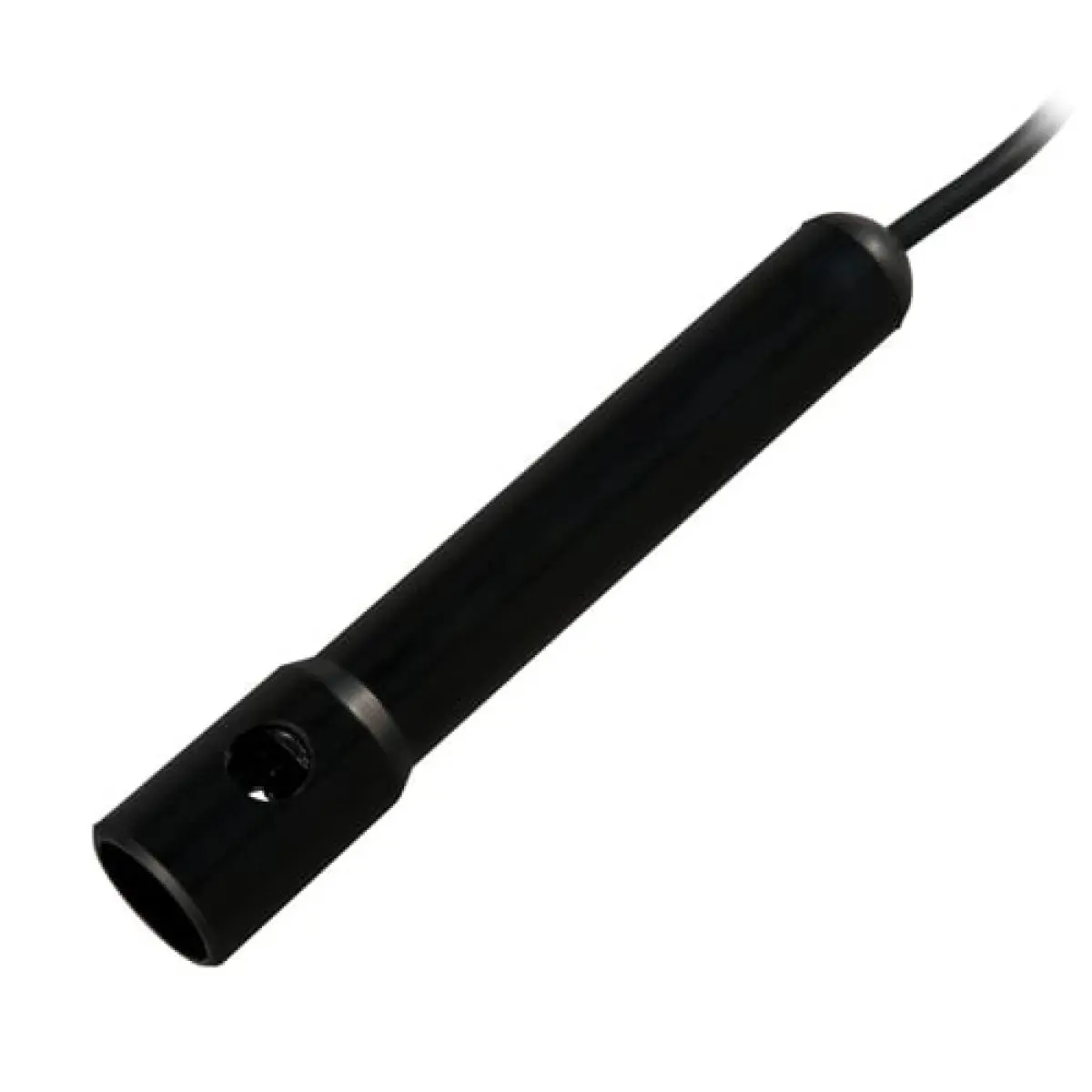

Electrode
Measuring range  0 µS/cm ... 200 mS/cm
Temperature range  0 ... 60 °C
Shank length  120 mm
Shank diameter  22 mm

General technical data
Temperature compensation  automatic, 0 to 60°C / 32 to 140°F
Display type  LCD
Display size  2,54 Inch
Storage medium  SD card
Storage capacity  16 GB
Storage interval from  1 s
Storage interval to  9 h
Interface  RS232
Calibration  at 1413 μS/cm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  177 x 68 x 45 mm
Weight  490 g

Delivery Scope

1 x PCE-PHD 1-LF Conductivity Meter / Conductivity Tester
1 x conductivity electrode
1 x SD memory card 2GB
6 x 1.5 V AA batteries
1 x user manual
