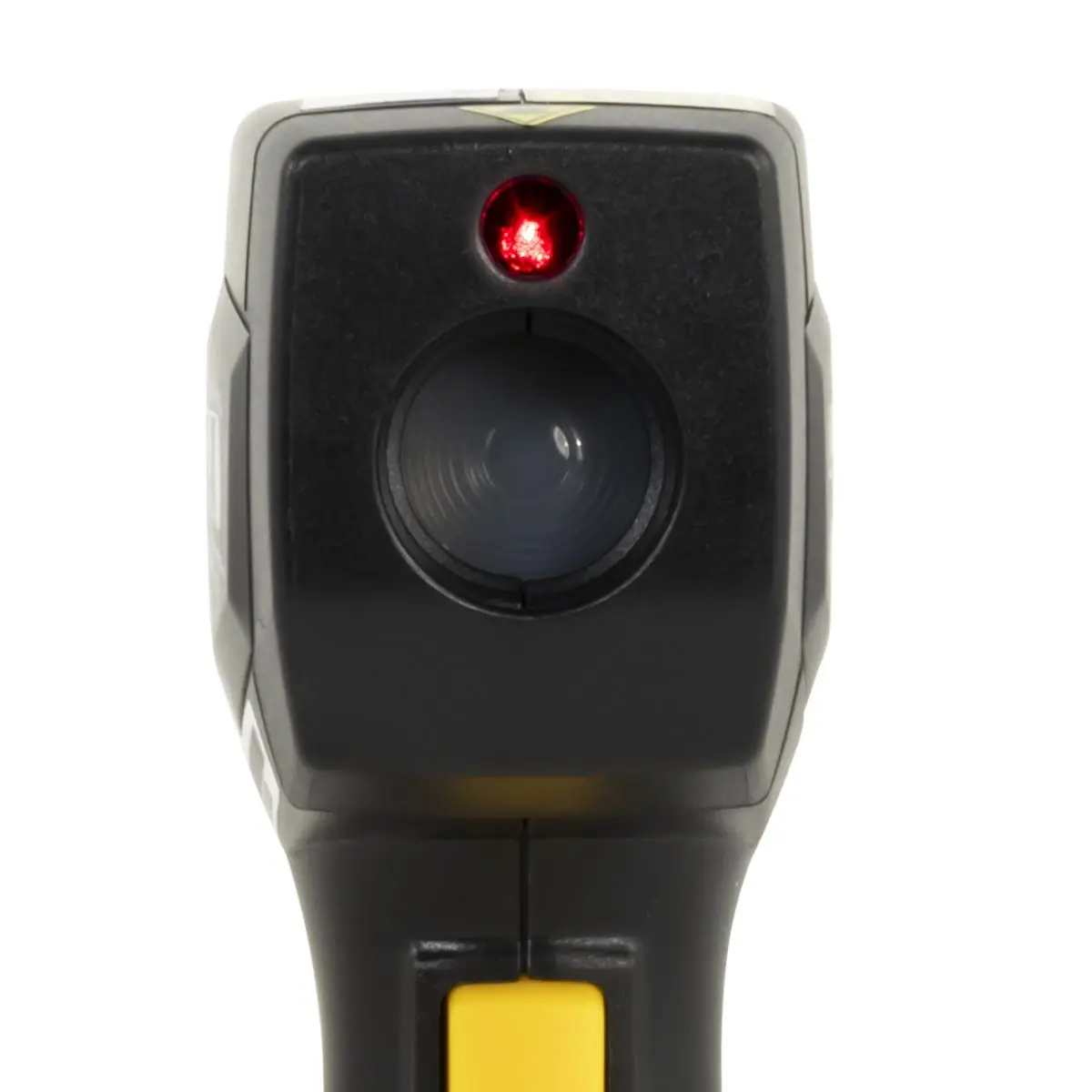

The Condition Monitoring has a measuring range of -50 ... +500 °C and covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 500 °C, the Condition Monitoring is a very precise measuring device. For better orientation of the measuring spot, a laser pointer is built into the Condition Monitoring. This laser has an output power of <1 mW. The emission value of the Condition Monitoring is fixed at 0.95.

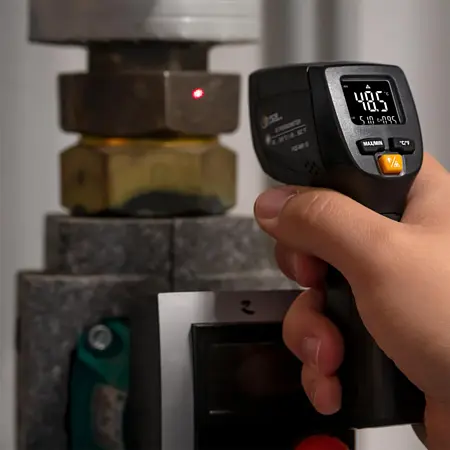

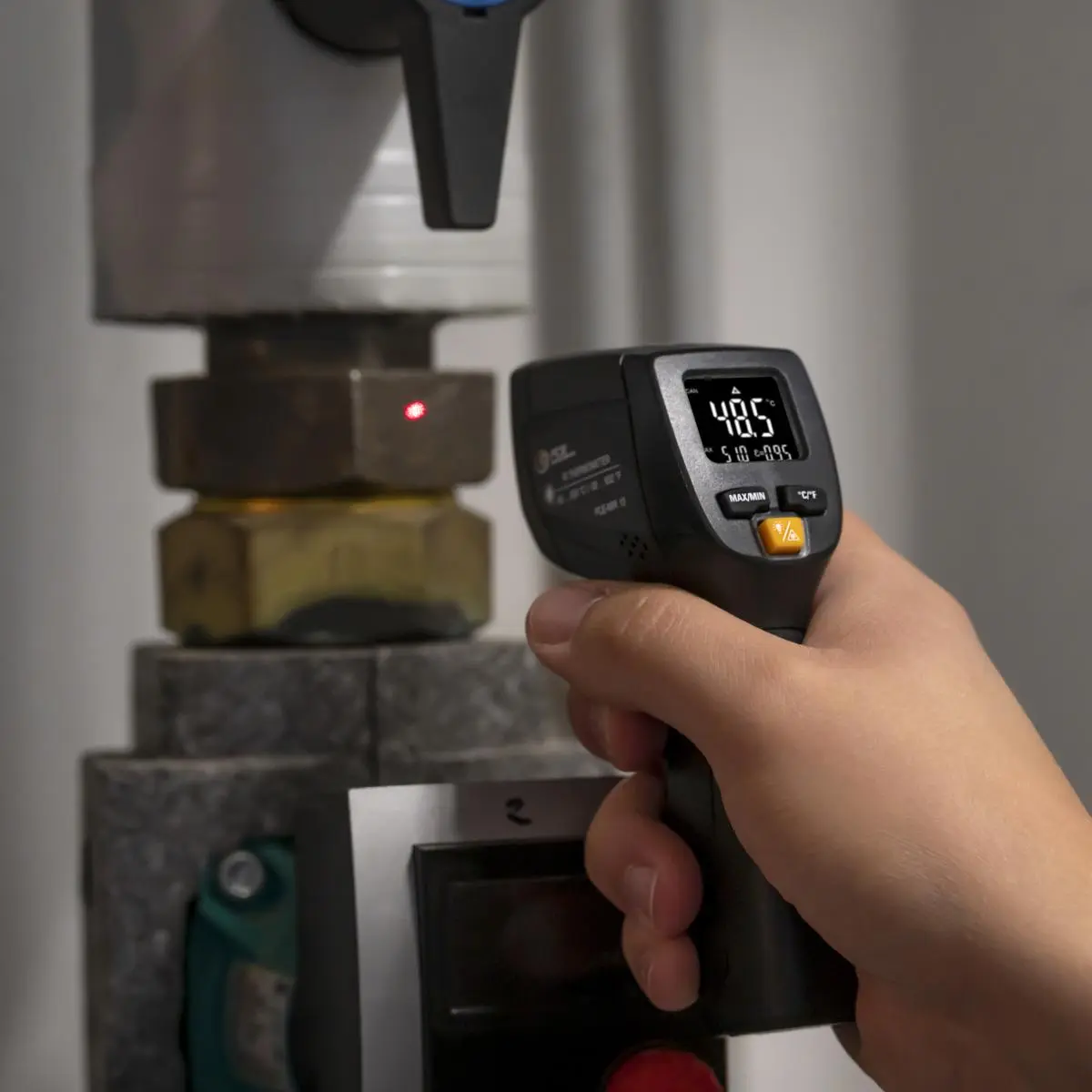

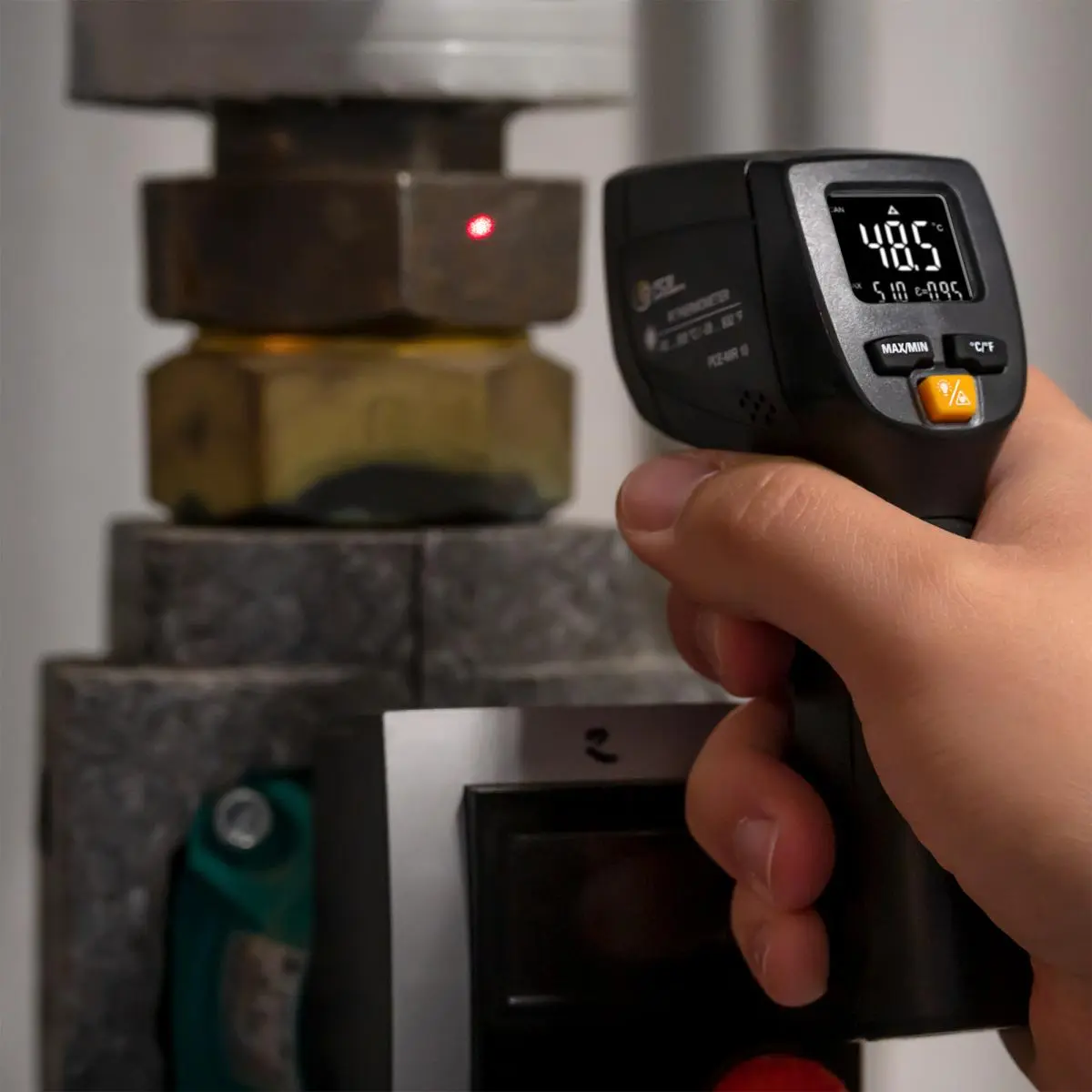

The Condition Monitoring is used, for example, for surface temperature testing of electric motors, combustion engines or heat sinks. Thanks to its compact design, the Condition Monitoring is handy and can be easily stowed away.

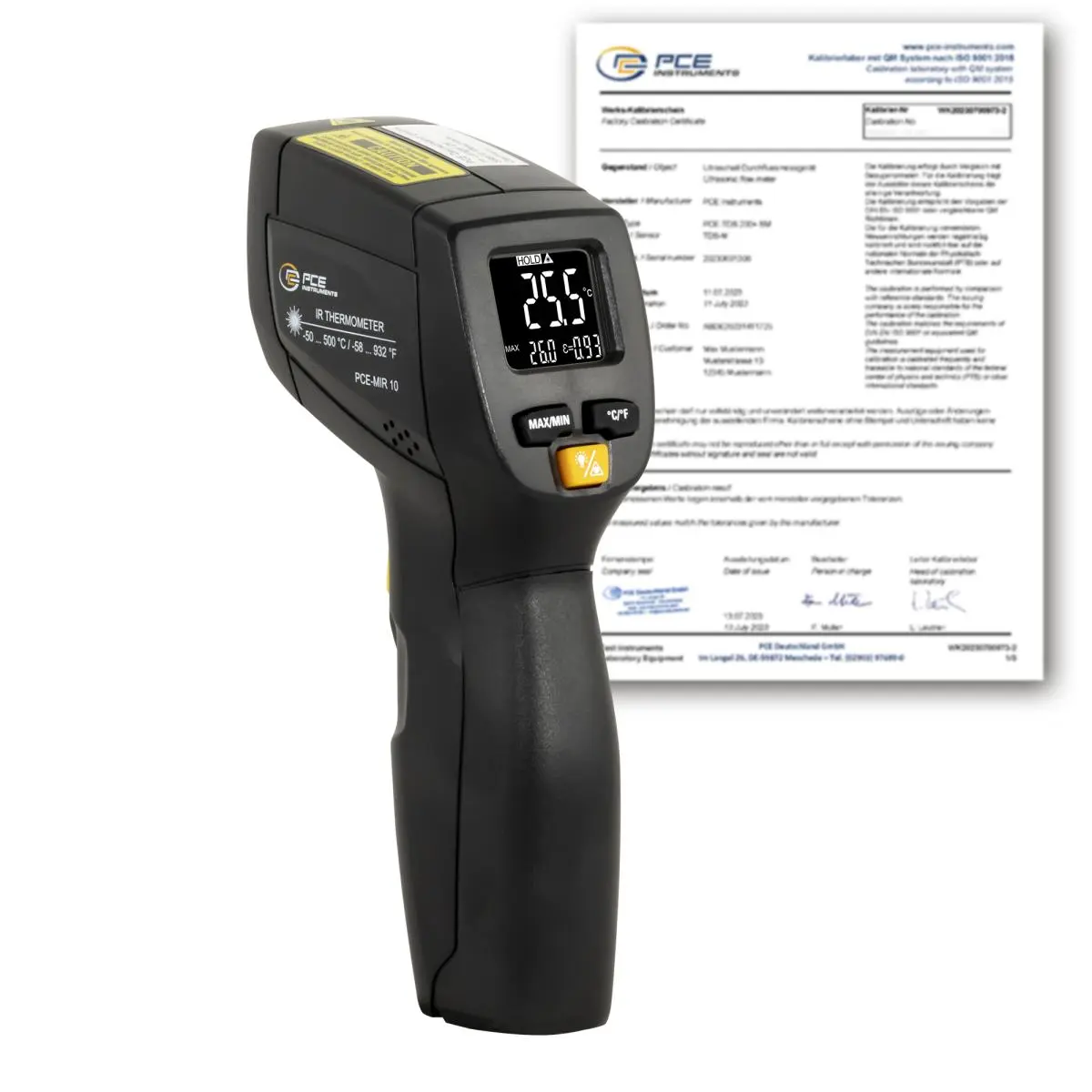

To switch on the Condition Monitoring, press the measuring button. The measurement is then immediately taken by the Condition Monitoring. When the button is released, the last value remains on the Condition Monitoring display until a new measurement is taken. Optionally, the Condition Monitoring can be equipped with an ISO calibration certificate.
| Infrared temperature | |
| Measuring range | -50 ... +20 °C |
| Resolution | 0,1 °C |
| Accuracy | ±3°C |
| Infrared temperature | |
| Measuring range | 20 ... 500 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(2% of reading +2°C) |
| Infrared temperature | |
| Measuring range | -58 ... +68 °F |
| Resolution | 0,1 °F |
| Accuracy | ±5.4 °F |
| Infrared temperature | |
| Measuring range | 68 ... 932 °F |
| Resolution | 0,1 °F |
| Accuracy | ±(2% of reading +3.6°F) |
| General technical data | |
| Repeat accuracy | ±1°C / ±1.8°F |
| Measuring rate | 2 Hz |

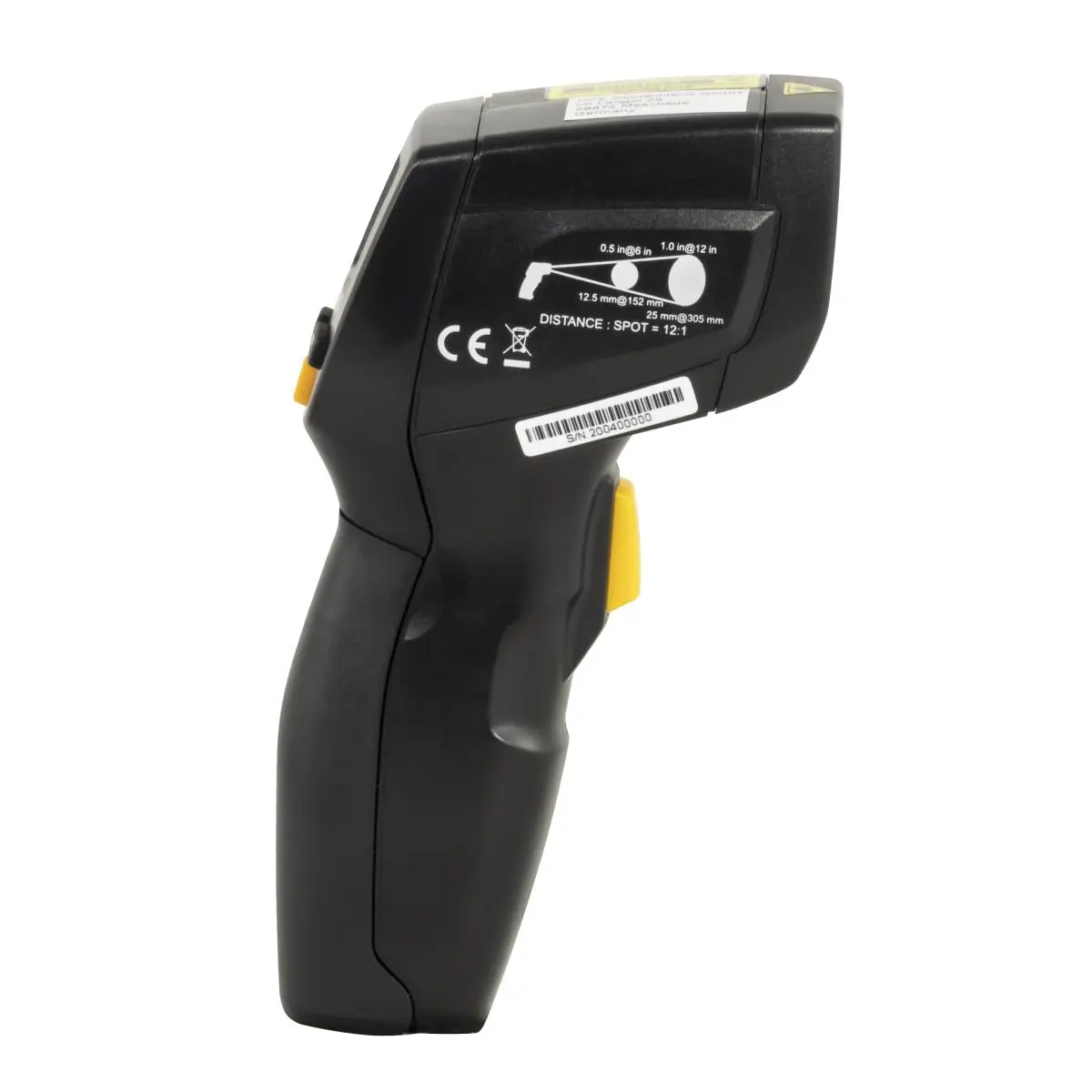

| Measurement spot | 12:1 |
| Laser | Class 2 <1mW |
| Emissivity | 0,95 |
| Spectral range | 8 ... 14 µm |
| Wavelength range | 630 ... 670 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 175 x 75 x 35 mm |
| Weight | 132 g |
