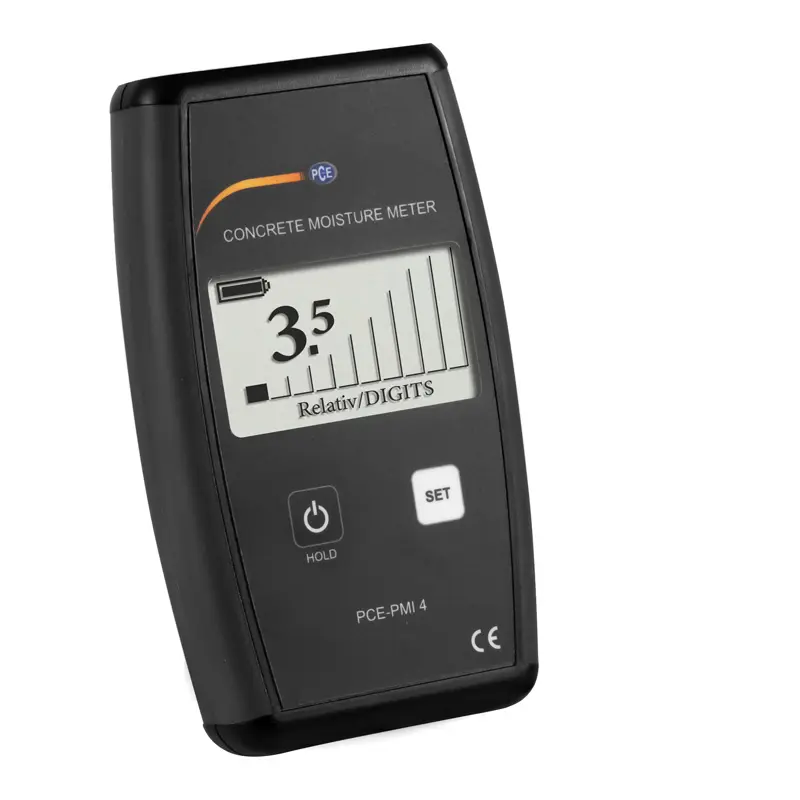

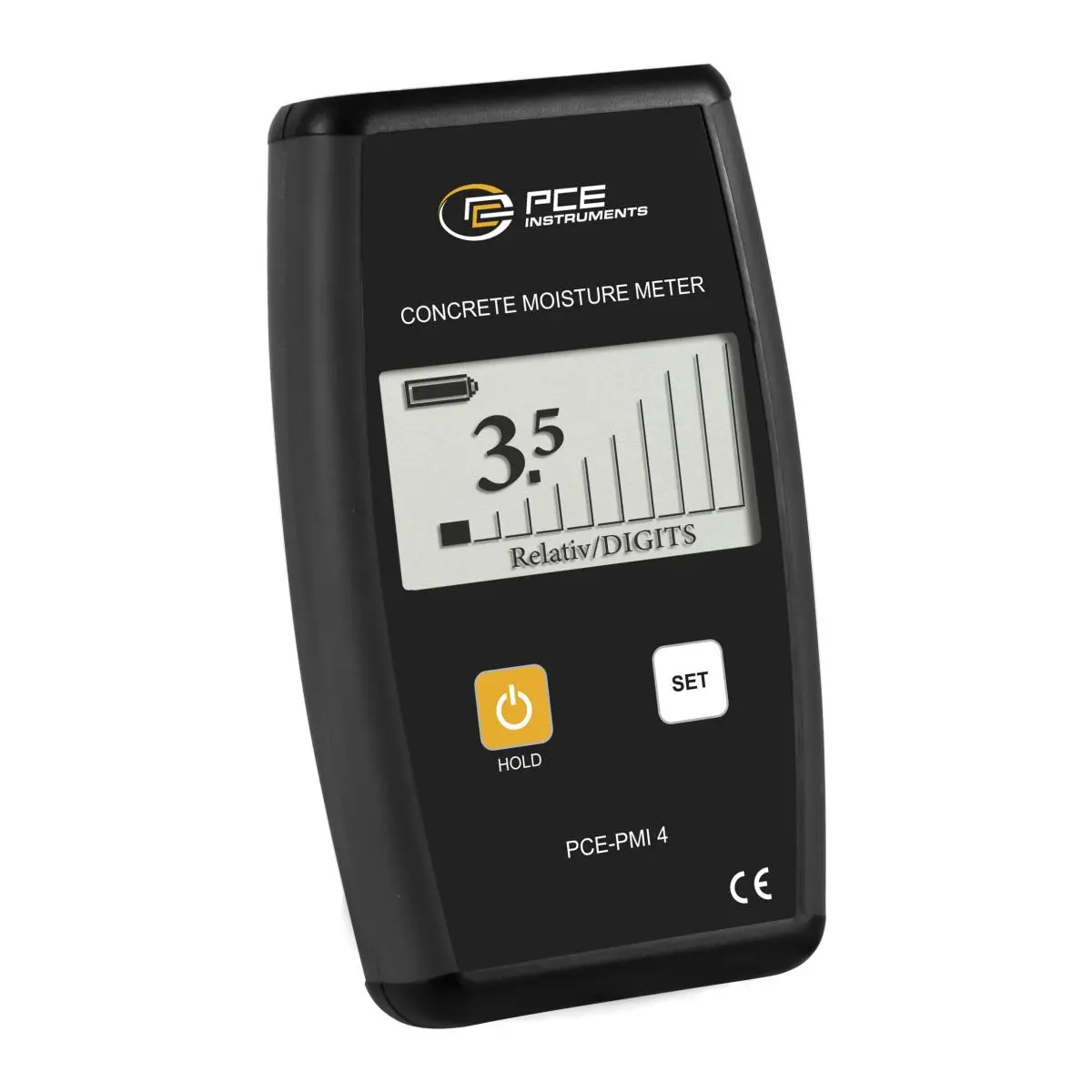

Concrete tester / concrete measuring device PCE-PMI 4

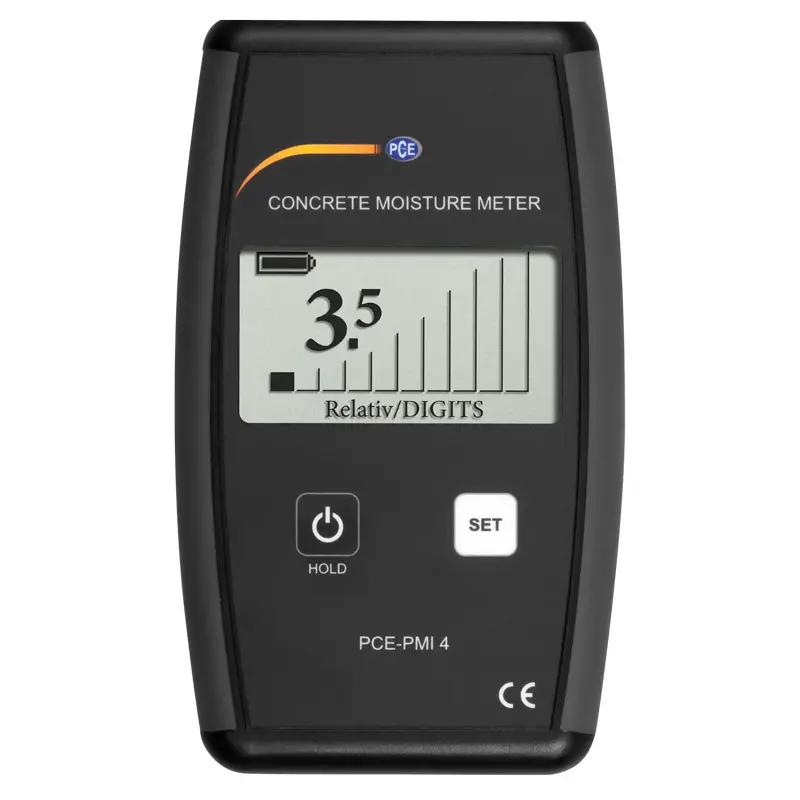

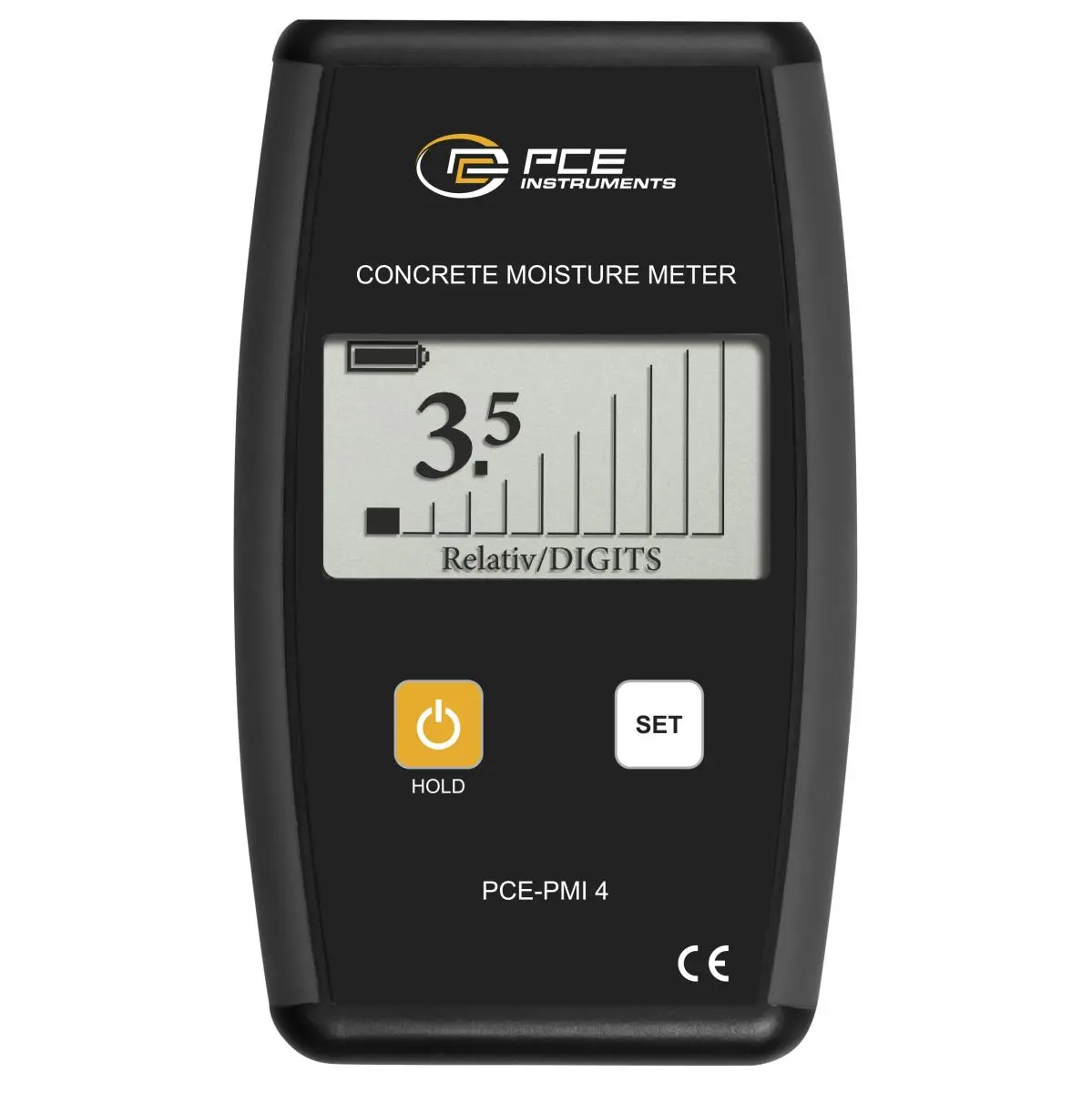

Concrete tester / concrete measuring device Frontal

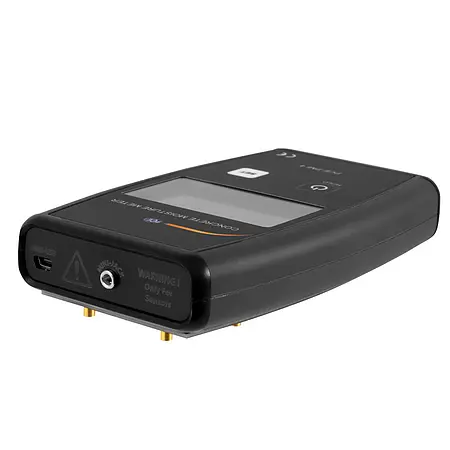

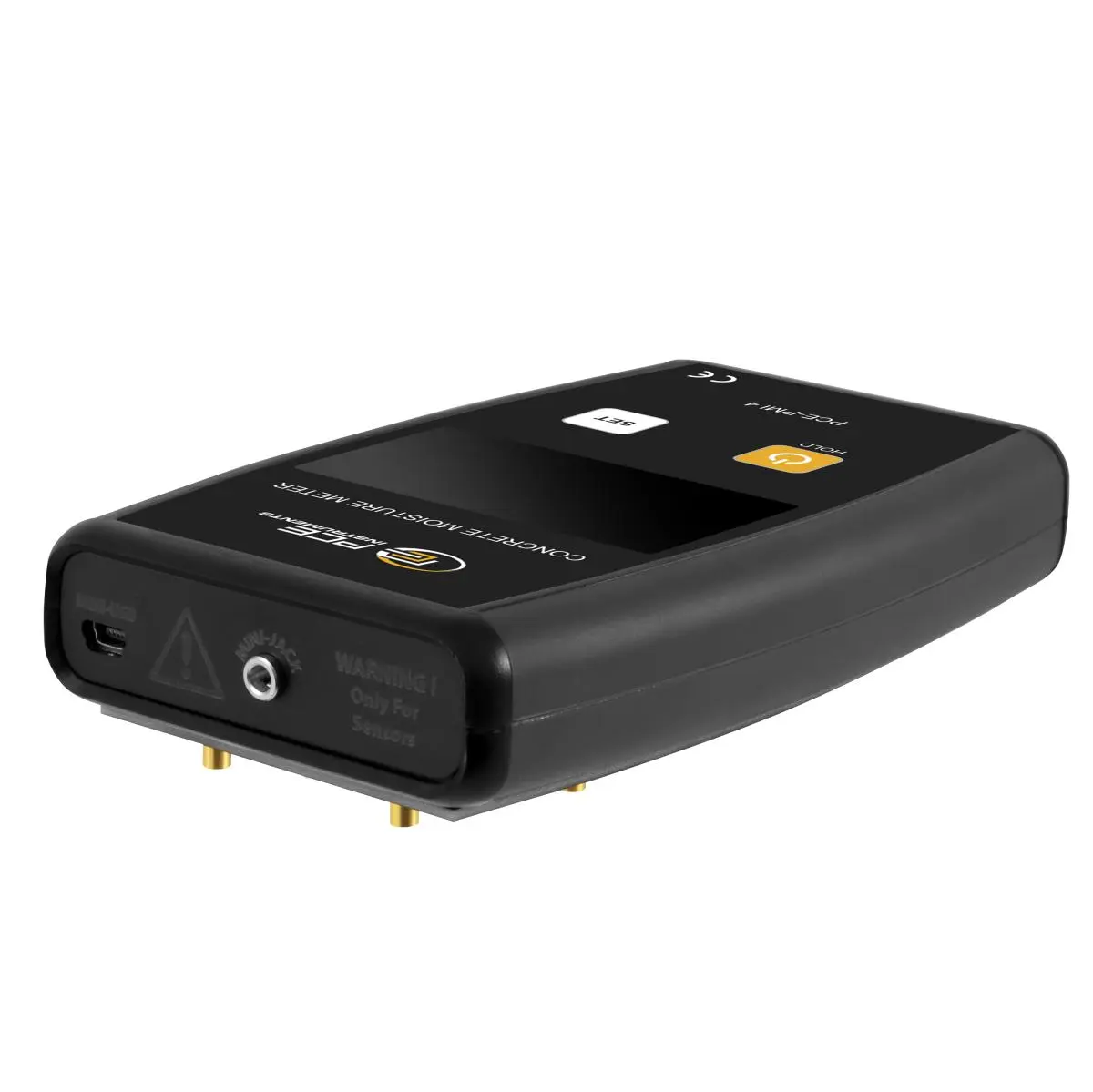

Concrete tester / concrete measuring device Connections

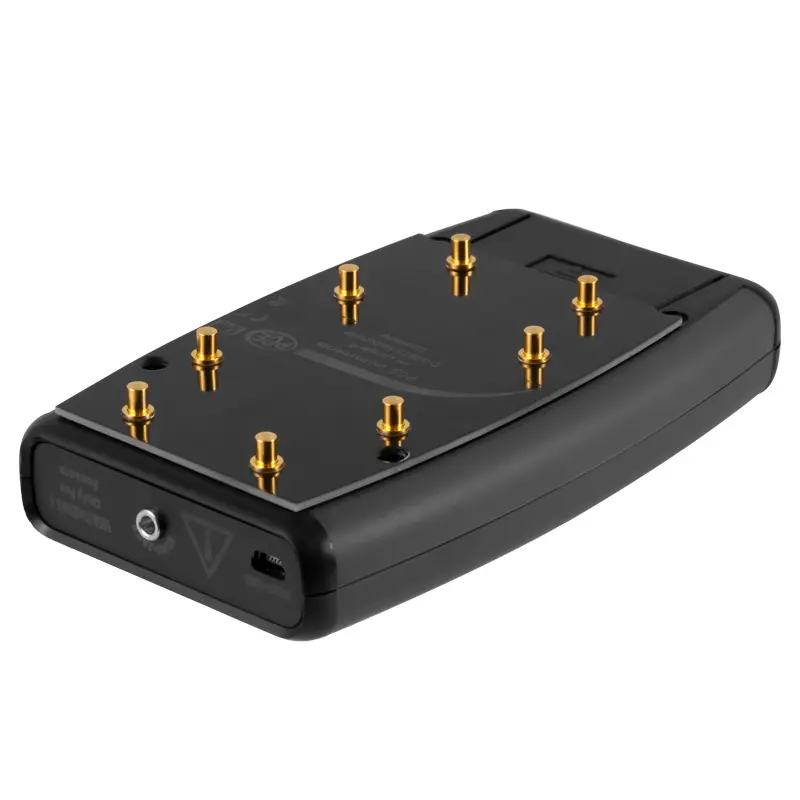

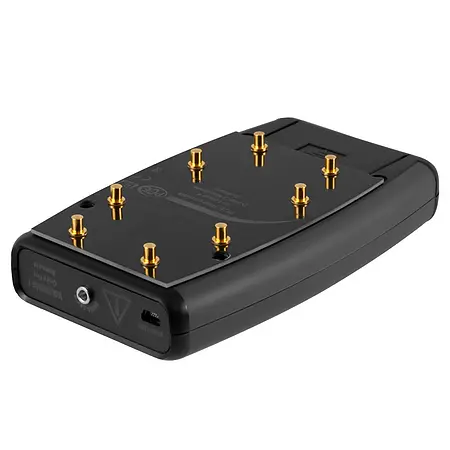

Concrete tester / concrete measuring device Sensor

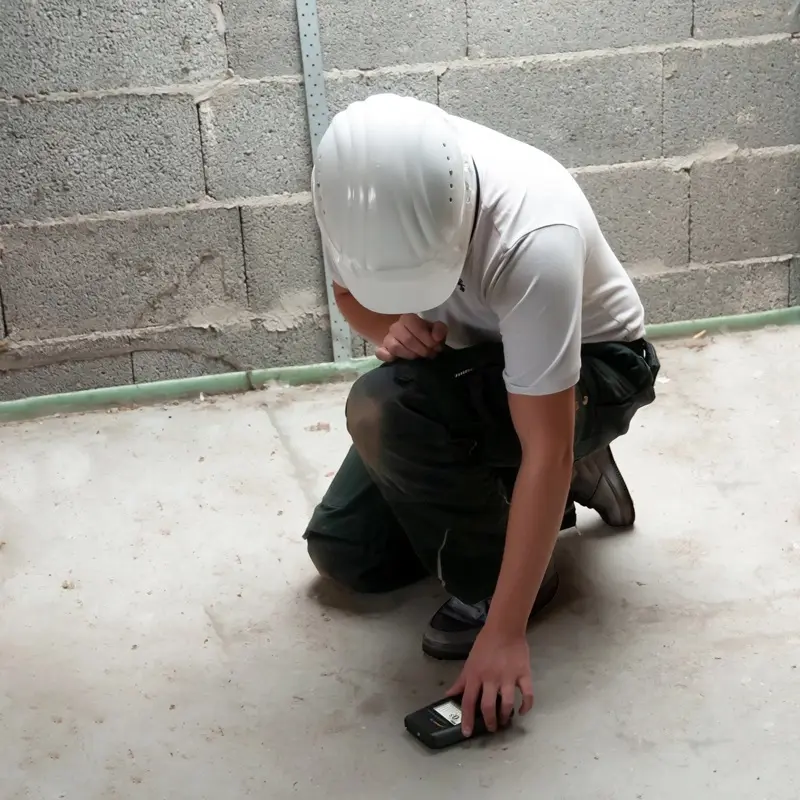

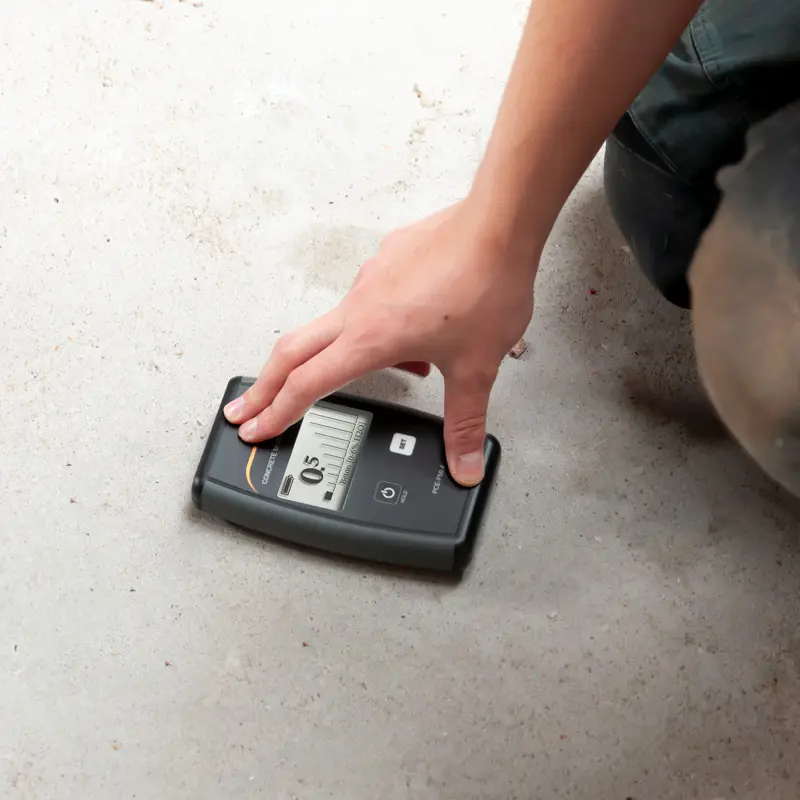

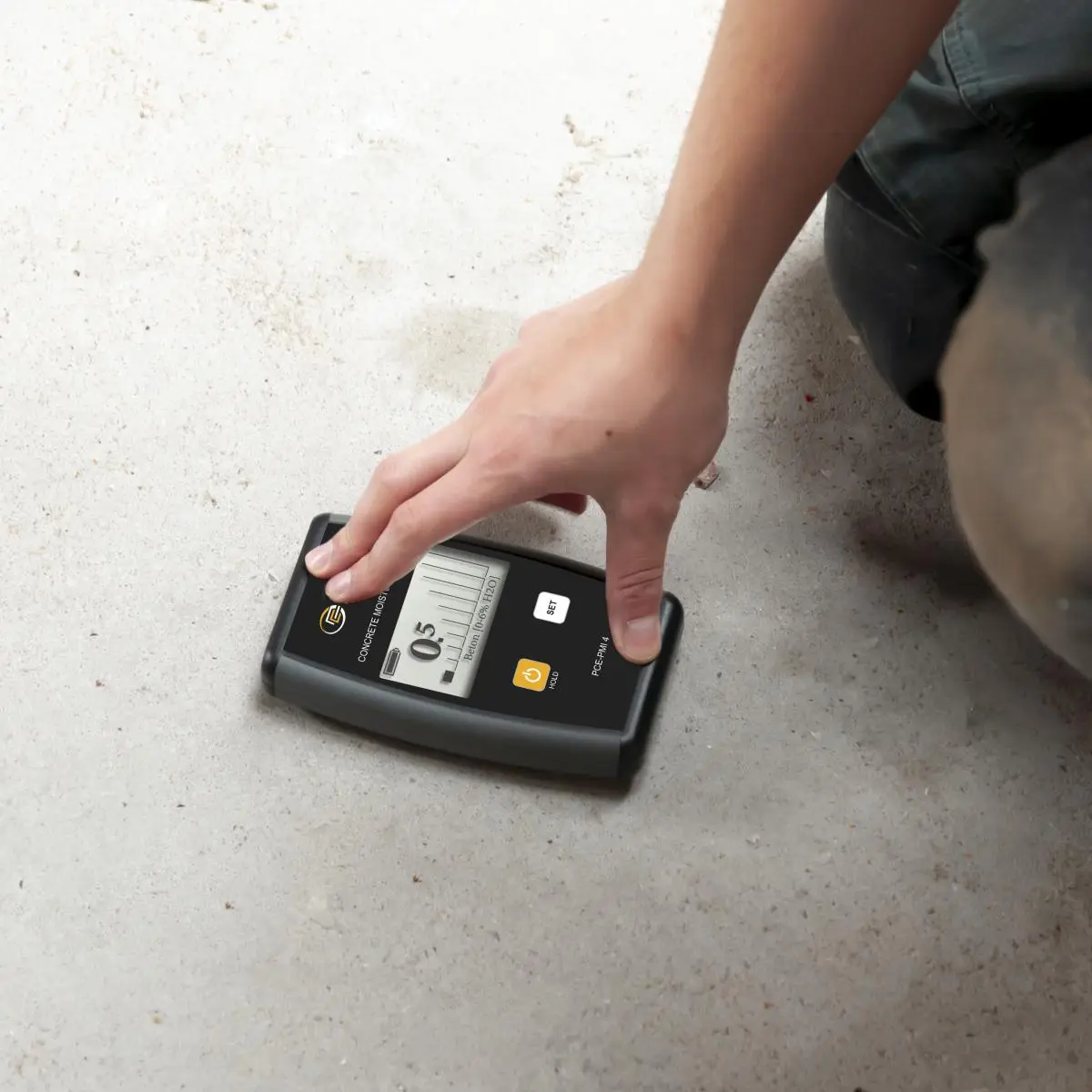

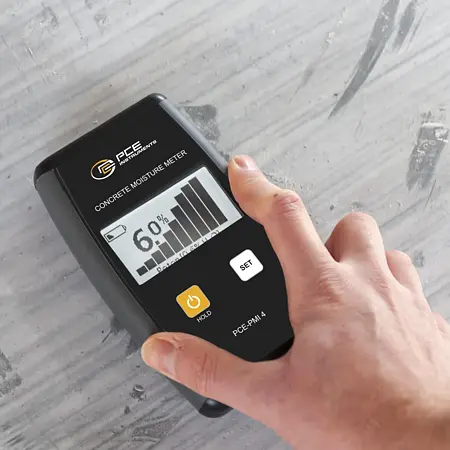

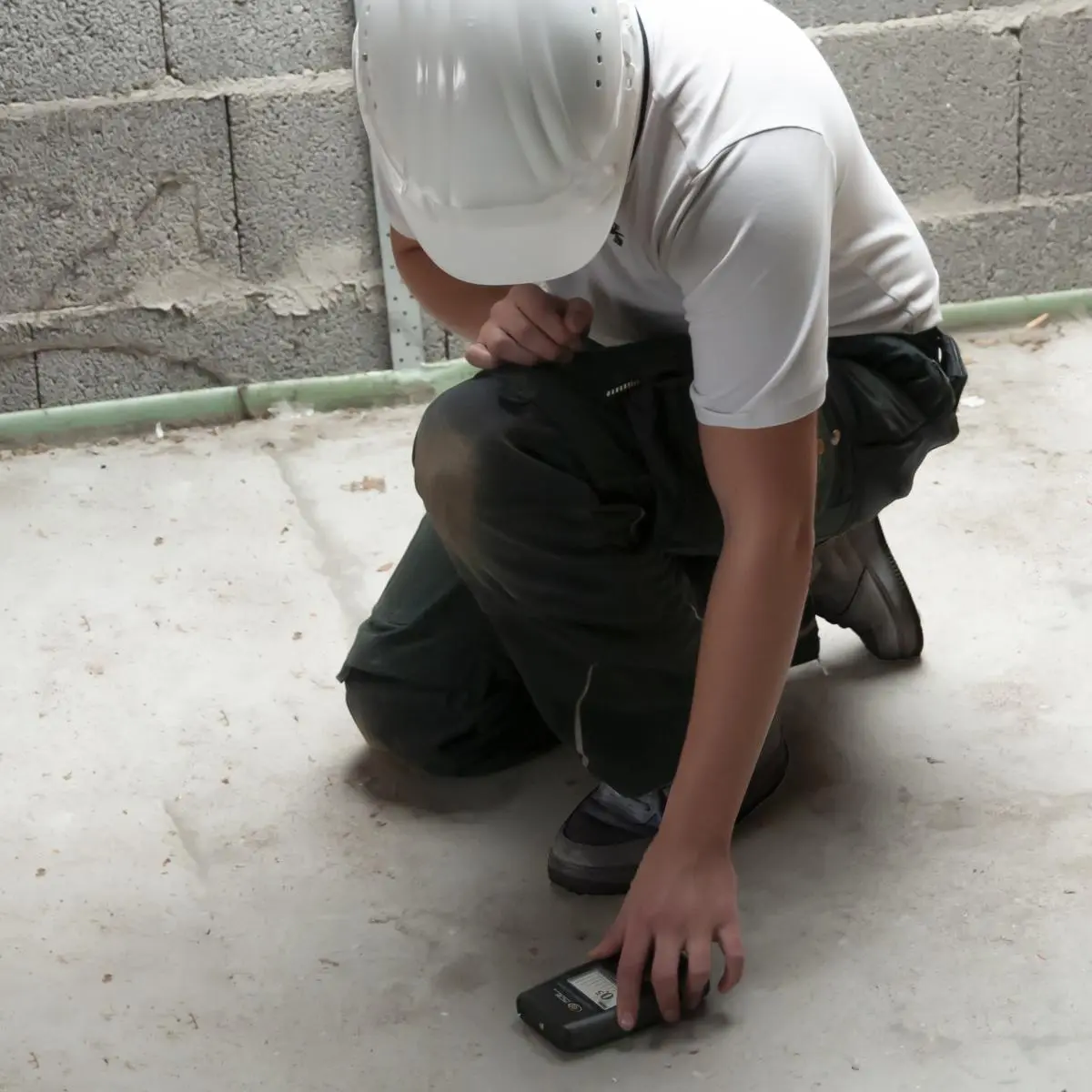

Concrete tester / concrete measuring device Application picture
Concrete tester / concrete measuring device Application picture
Concrete tester / concrete measuring device Application picture

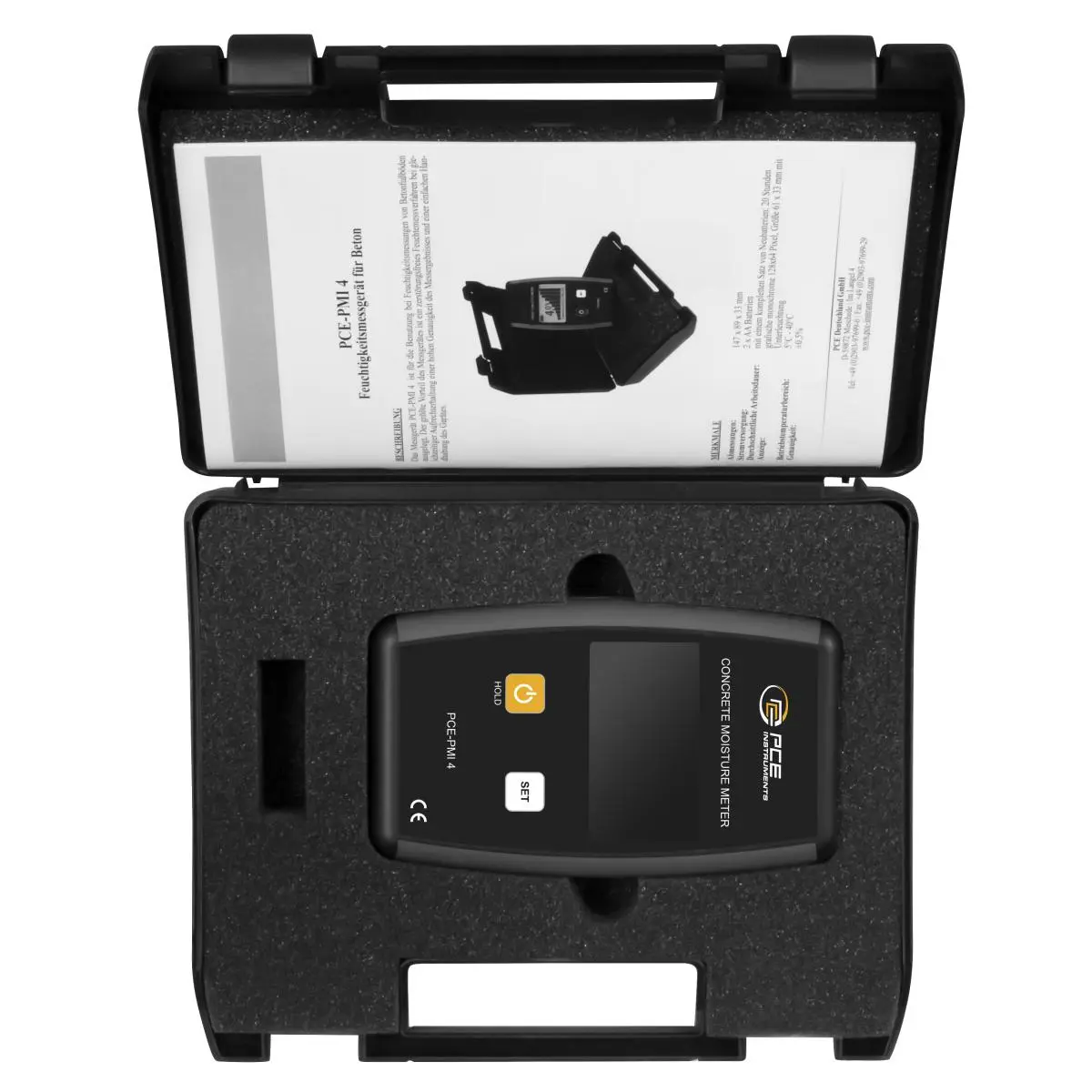

Concrete tester / concrete measuring device Delivery scope

Concrete tester PCE-PMI 4

Order no.: PCE-PMI 4
GTIN (EAN): 4250348722270
499,90 €
609,88 €
price ex. (VAT / delivery)
:
4250348722270
PCE-PMI 4
Delivery time:1-2 working days

Accessory

Description

Concrete tester
Moisture meter with eight spring electrodes / Many scales already deposited /
Non-destructive measurement on floors and walls / Large graphic display /
Measurement display both numerical and graphical / Max HOLD function

The Concrete tester is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the Concrete tester are pressed onto the surface to be tested. Within seconds, the Concrete tester will show the moisture content to the operator. Different scales are already stored in the Concrete tester for a wide variety of surfaces. These are available to the operator directly from the Concrete tester.

As another special feature, the Concrete tester has an automatic shutdown. This feature automatically shuts off the meter if the Concrete tester is not used for 5 minutes. This prevents a sudden discharge of the battery in the Concrete tester. Another function of the Concrete tester is the Max HOLD function. This feature only displays the highest reading to the operator.

Highlights

- For measuring the moisture in concrete and screed
- Numeric and graphical view
- Eight spring electrodes are used for the measurement
- Automatic shutdown
- Ergonomic shape with anti-slip rubber
- Normal measurement and max. HOLD display

Specification

Humidity
Material  Concrete (H₂O)
Measuring range  0 ... 6 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Cement screed (H₂O)
Measuring range  0 ... 6 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Cement screed (CM%)
Measuring range  0 ... 4 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Anhydrite screed (H₂O)
Measuring range  0 ... 3,5 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Anhydrite screed (CM%)
Measuring range  0 ... 1,9 %
Resolution  0,1 %
Accuracy  ±0.5%

Caisson scale
Measuring range  0,3 ... 15,3 m
Resolution  0,1 %
Accuracy  ±0.5%

Relative humidity
Measuring range  0 ... 100 %
Resolution  0,1 %
Accuracy  ±0.5%

General technical data
Display type  LCD with backlight
Display resolution  128x64 pixels
Operating time  20 h
Automatic power-off  5 min
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  5 ... 40 °C , 10 ... 90 % RH
Storage conditions  5 ... 40 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  147 x 89 x 33 mm
Weight  250 g

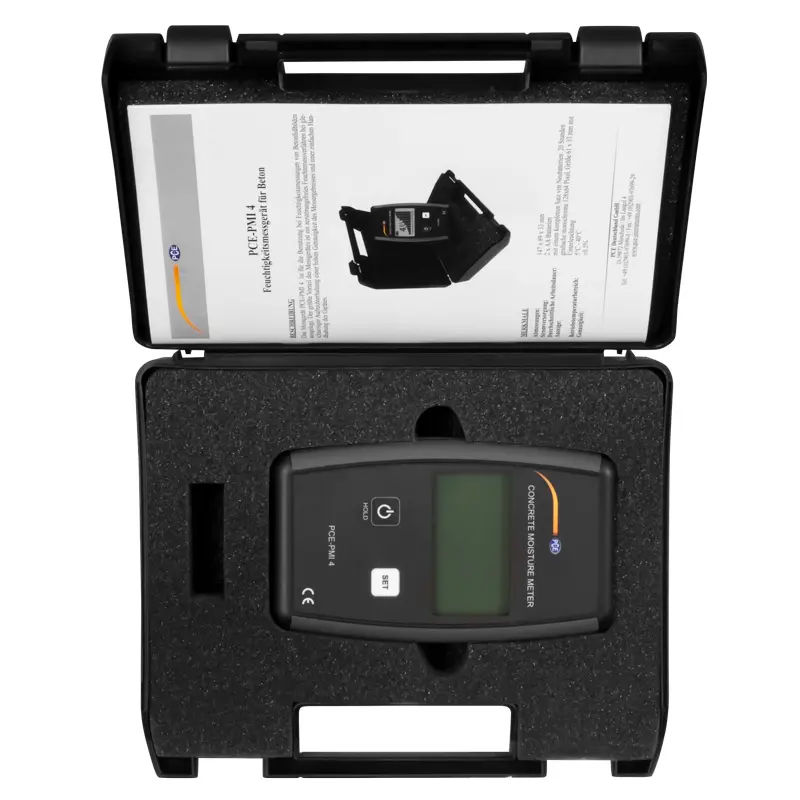

Delivery Scope

1 x Concrete tester / concrete measuring device PCE-PMI 4
1 x Transport case
1 x 2 x 1.5V AA battery
1 x User manual
