Concrete tester / concrete measuring device PCE-PMI 2

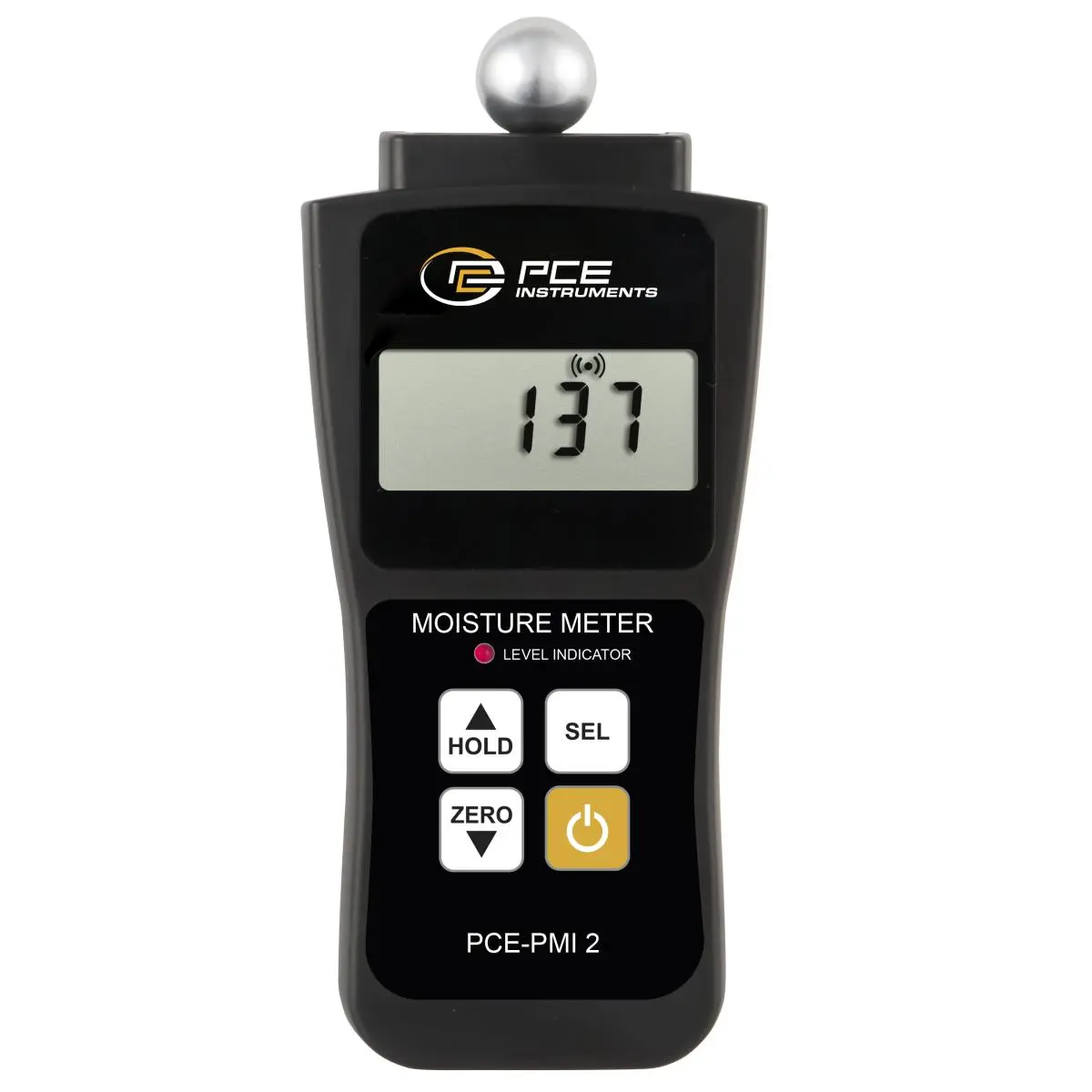

Concrete tester PCE-PMI 2

Order no.: PCE-PMI 2
GTIN (EAN): 4250348714244
154,90 €
184,33 €
price ex. (VAT / delivery)
:
4250348714244
PCE-PMI 2
Delivery time:1-2 working days

Description

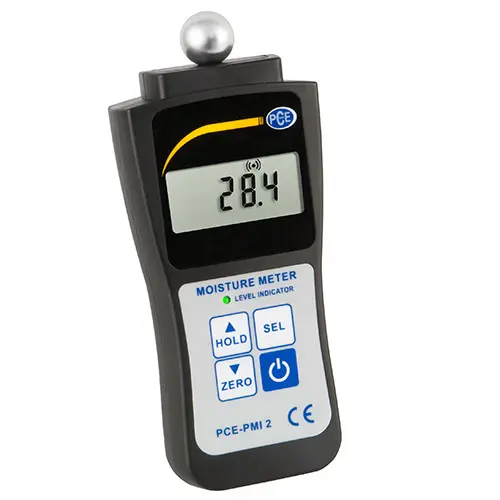

Concrete tester / Optical moisture estimation alarm by LED /
Humidity measurements of concrete, wood, plaster, etc. / Characteristic curves / MAX-Function / Automatic shutdown / LCD display with backlight

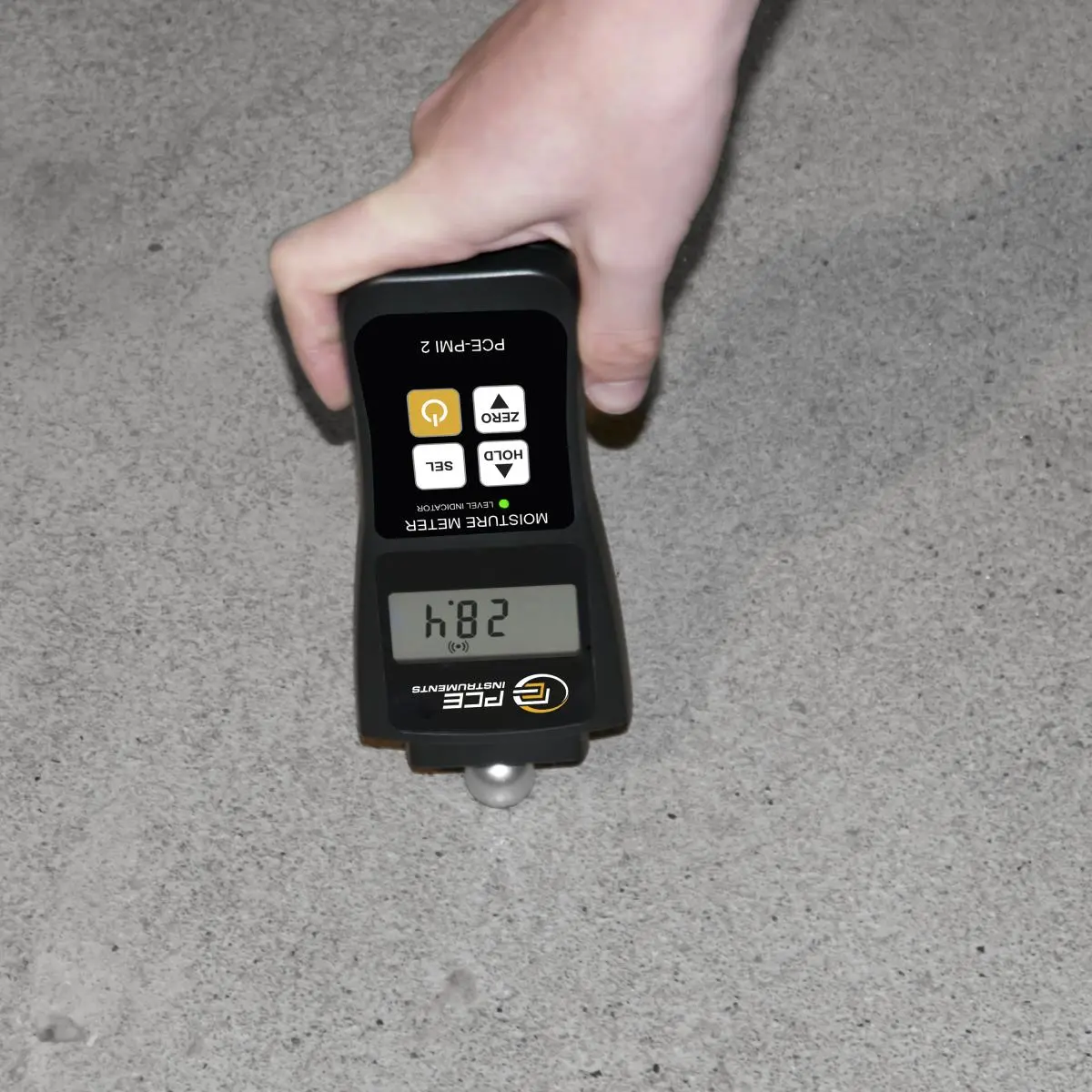

Using the Concrete tester you can quickly perform humidity control of wood, walls, and screeds. The Concrete tester fits well in the hand, thereby ensuring a pleasant measuring process of building materials and other materials. To measure moisture of walls, wood, concrete, charcoal, etc. the Concrete tester provides characteristic curves, based on the density of the material. These are easy to change via the function keys.

Further features of the Concrete tester include an alarm function which can be fully adjusted. The LED above the control panel allows an optical moisture evaluation. It is therefore the ideal companion on construction sites, for material input checks and to reference measurements in production. With the Concrete tester the workforce is therefore optimally equipped for everyday labour.


Highlights

- Electrical resistance measuring principle
- Non-destructive, non-invasive
- Penetration depth up to 50 mm / 1.96 inches

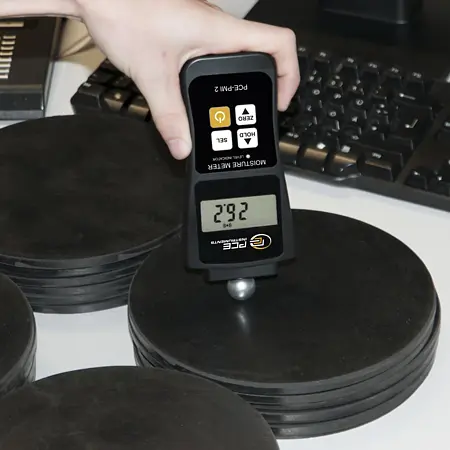

- For concrete, cement, cork, wood, plaster, rubber and more
- Alarm function when exceeding threshold levels

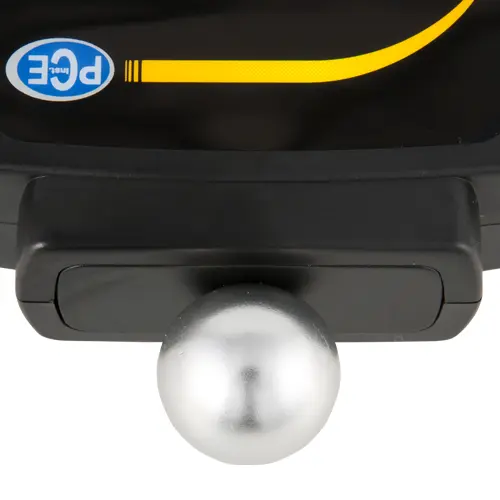

- Metallic sphere or ball sensor
- Adjustable LCD backlight
- Auto-off power-saving function
- Zero / self-calibration function
- Max hold function

Specification

Relative humidity
Measuring range  0 ... 200 Digits
Resolution  0,1 Digits
Accuracy  ±0.5 % of Rd +0.5 digits

General technical data

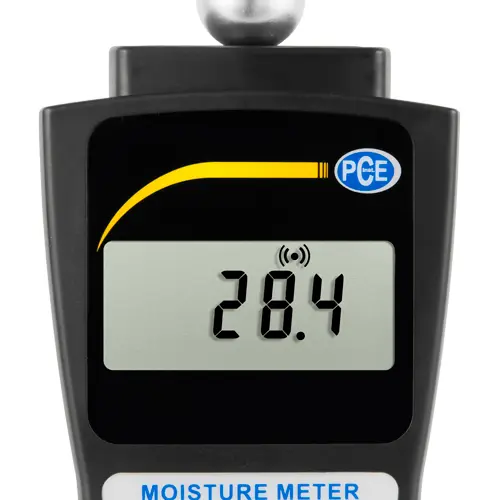

Display type  LCD with backlight
Sensor  Metal spheroid
Measuring method  Capacitive
Measuring depth  50 mm
(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  165 x 72 x 26 mm
Weight  123,5 g

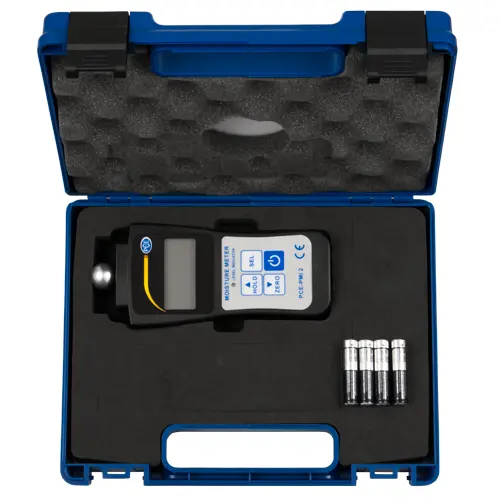

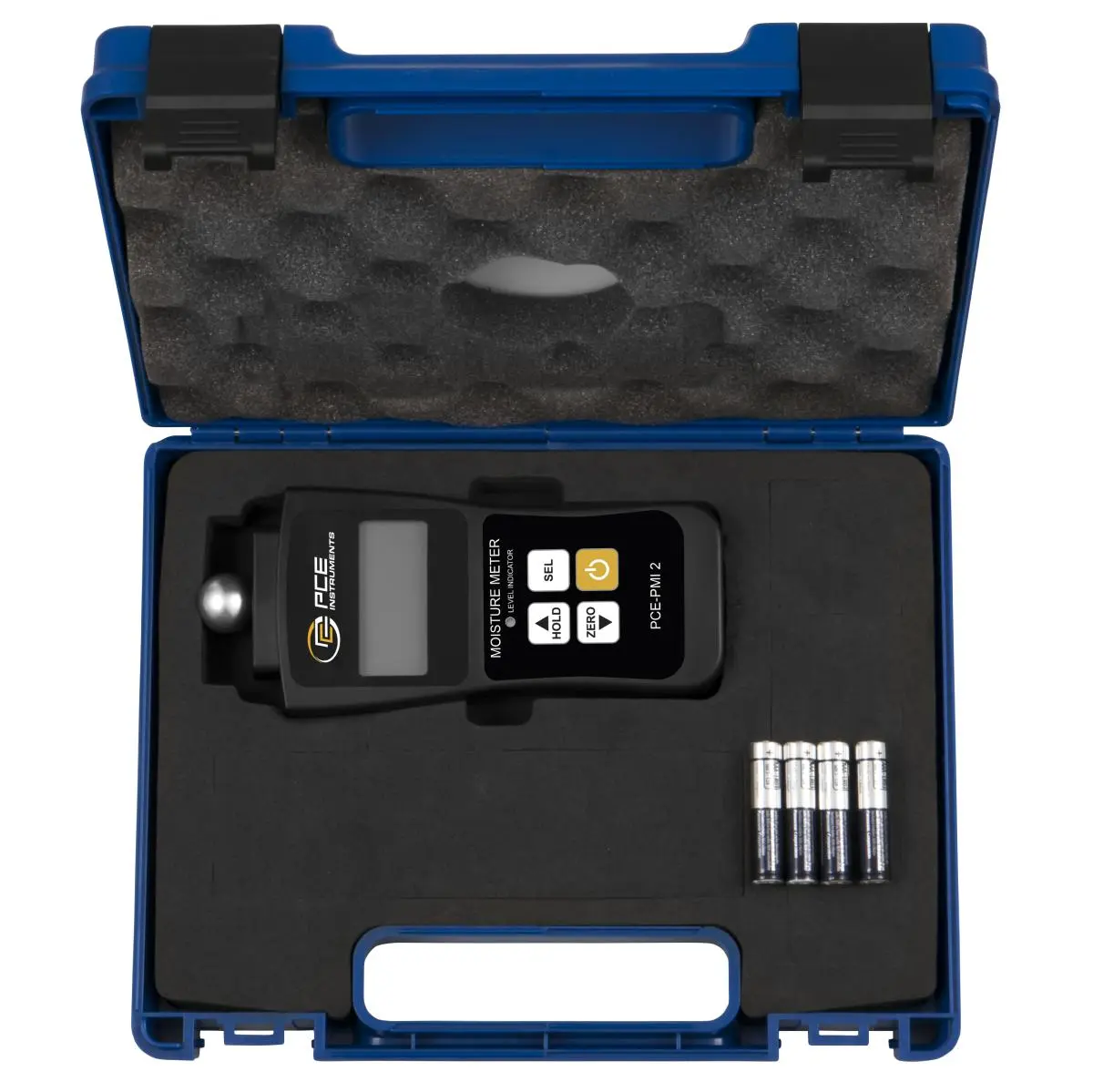

Delivery Scope

1 x PCE-PMI 2 Concrete tester / concrete measuring device
1 x Battery
1 x Carrying case
1 x User manual
