444,90 €
etermination of reference values and samples / White and black calibration

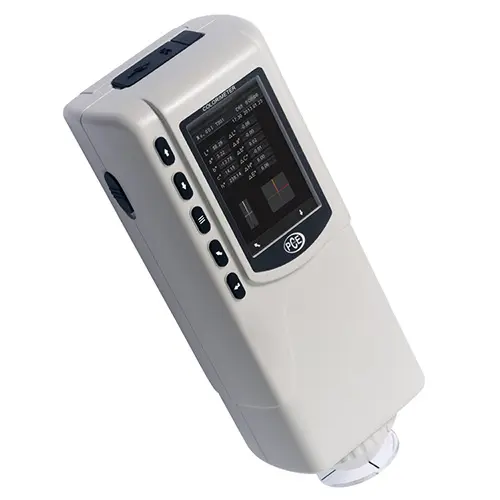

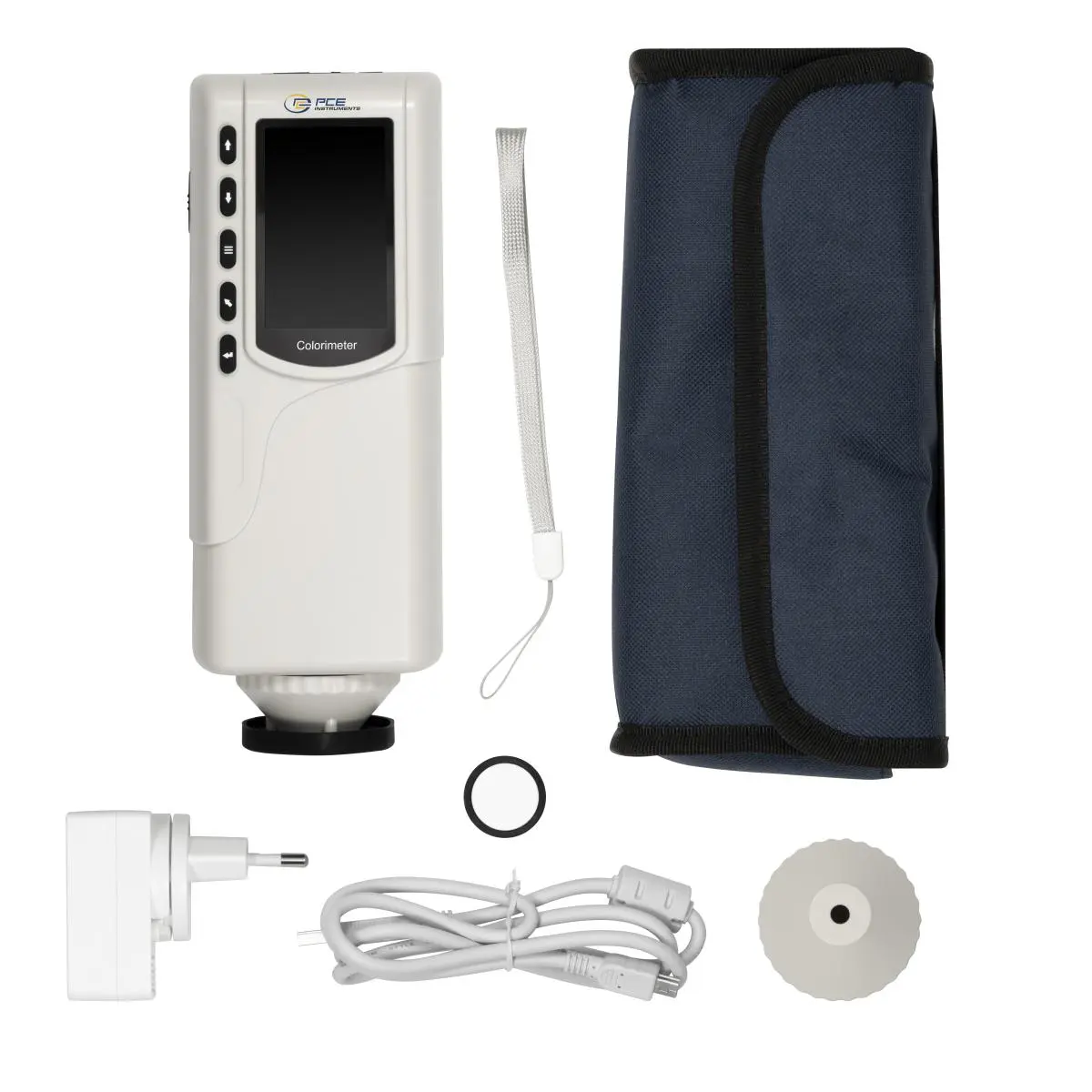

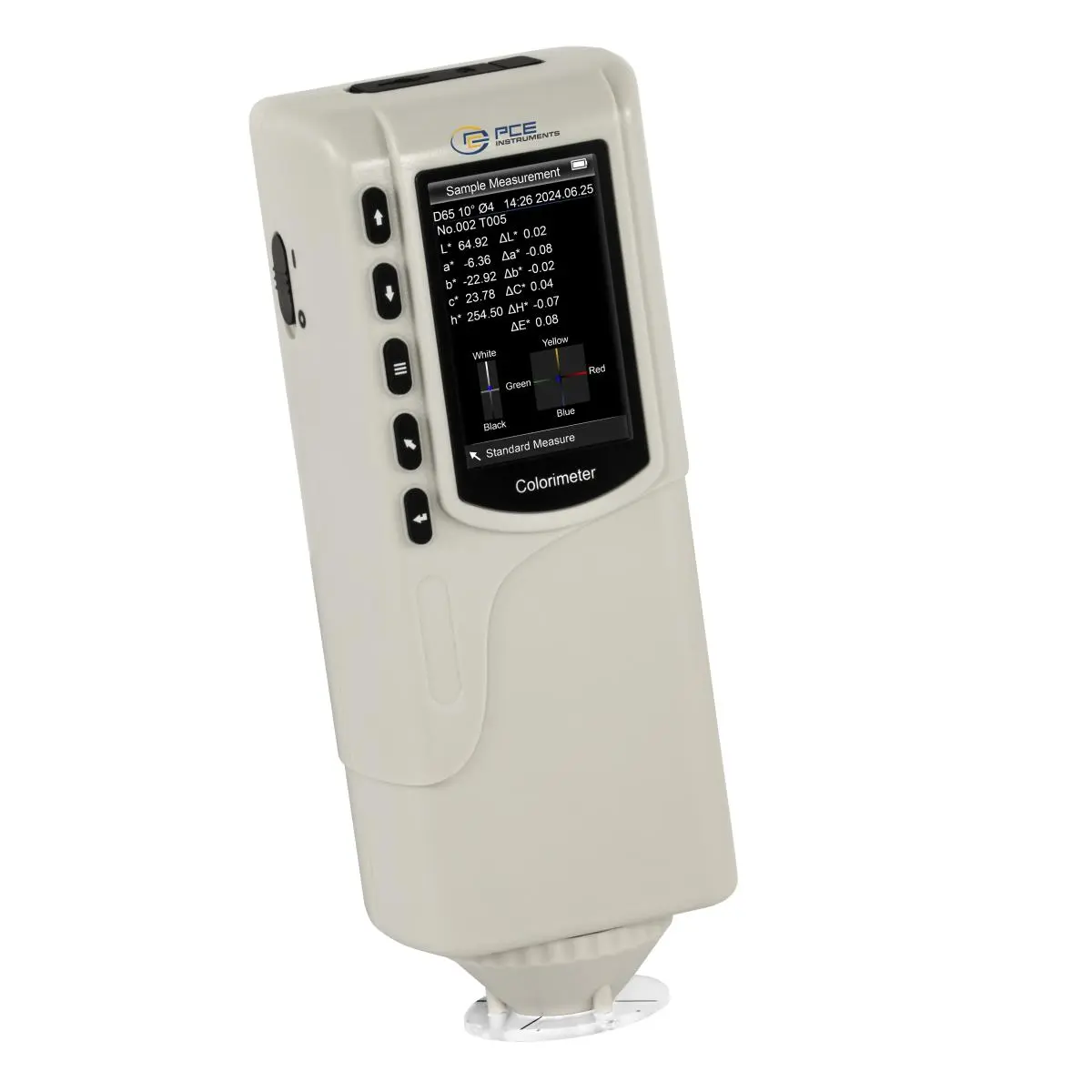

The color meter PCE-CSM 1 was developed for quality control and offers a very high accuracy. When using the color meter, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
| General technical data | |

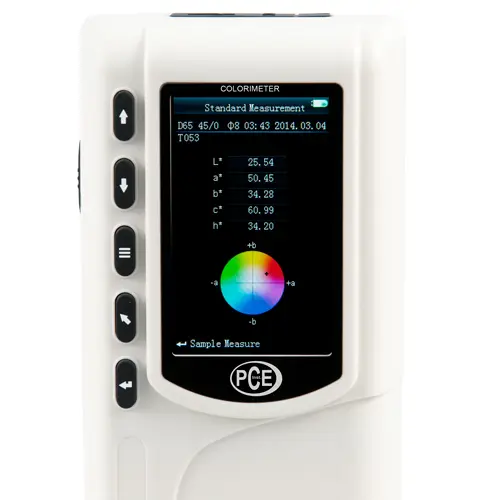

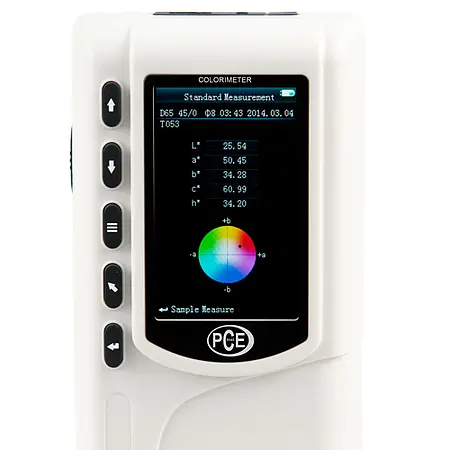

| Display type | TFT colour display |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 20000 Values |
| Memory capacity (additional information) | 100 standards, 20000 samples |

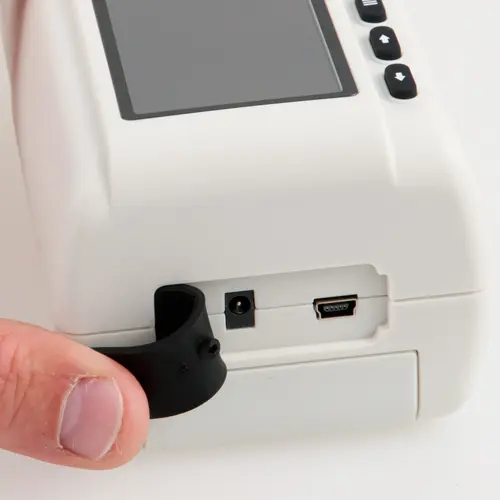

| Interface | Mini-USB |
| Sensor | Silicon photodiode |
| Light source | LED Illuminant: D65 |
| Colour spaces | CIEL*a*b*C*h, CIEL a* b*, CIEXYZ |

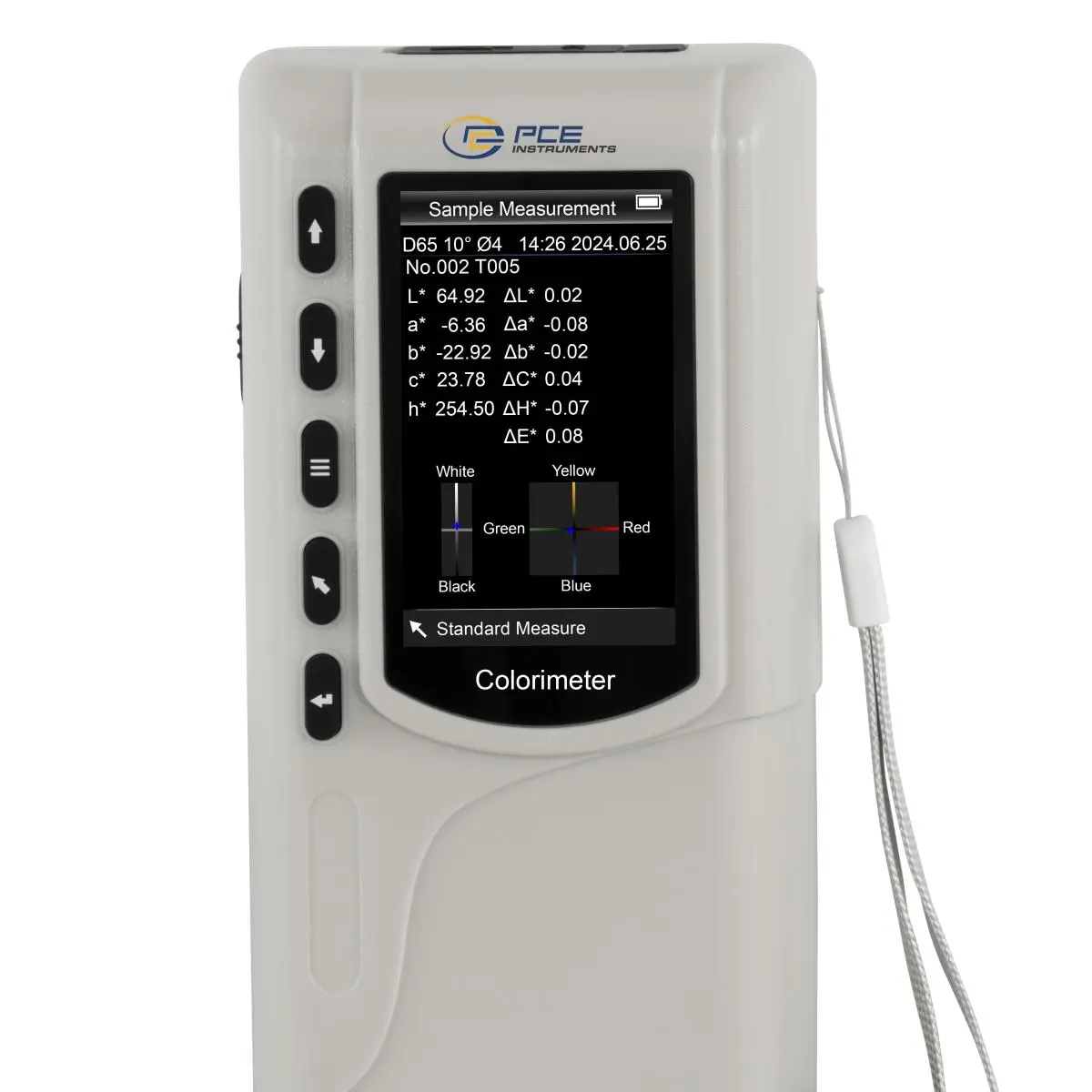

| Colour difference | ΔE*ab ΔL*ab ΔE*C*H |

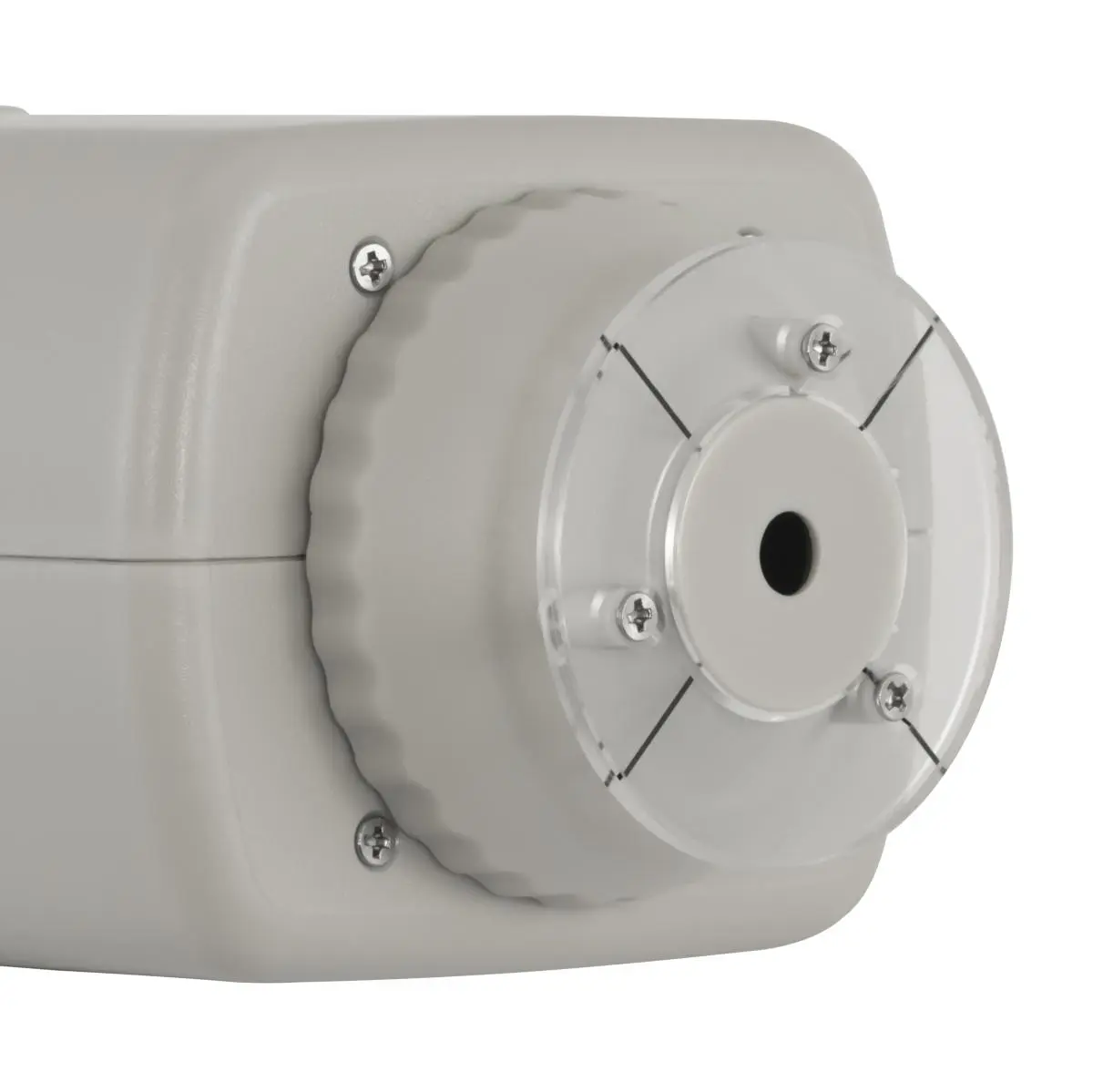

| Measuring aperature | Ø 4 mm |
| Measuring geometry | 8°/d |
| Calibration | White or black calibration selectable |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5 V DC, 2 A |
| Connector type | Device-europlug |

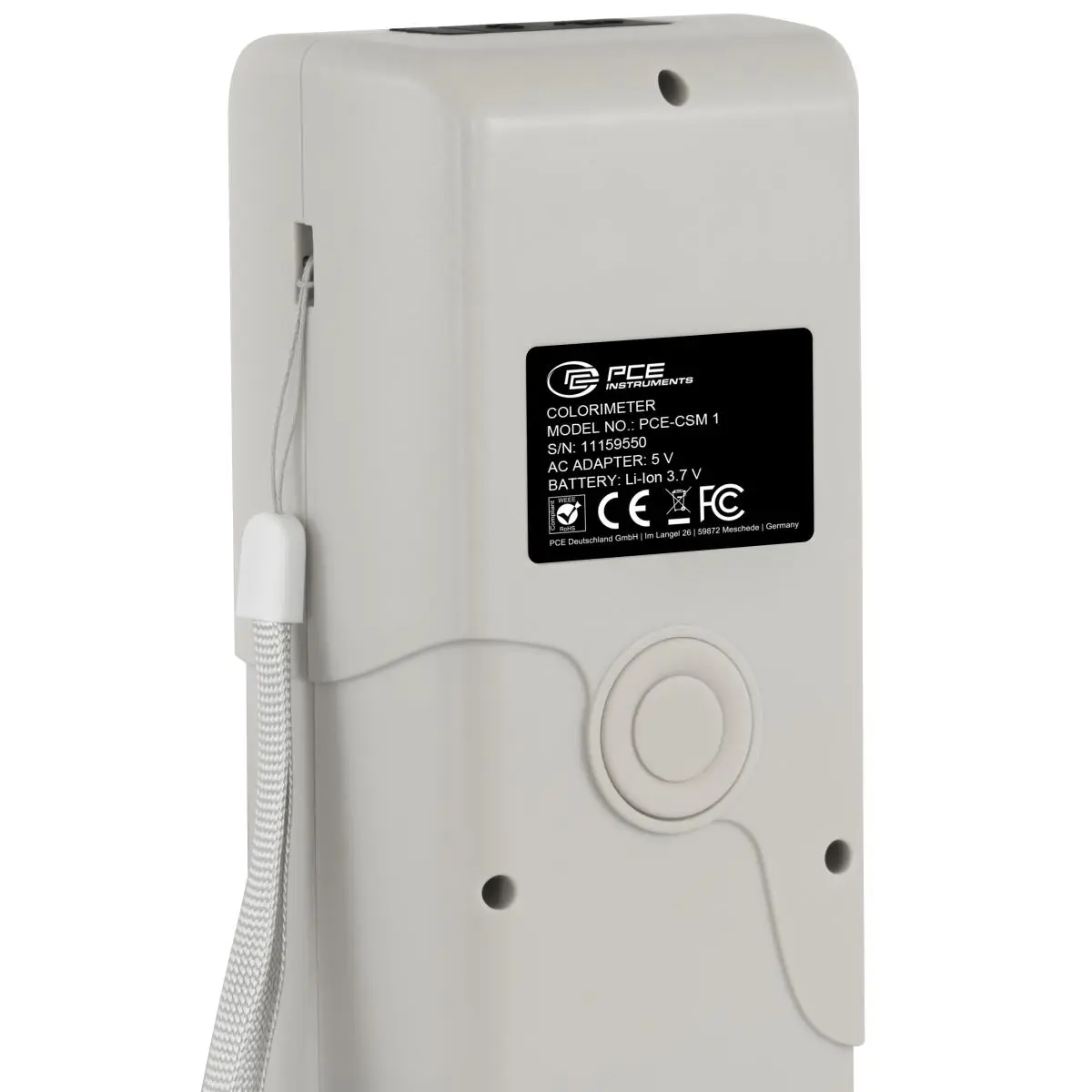

| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 3200 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 205 x 67 x 80 mm |
| Weight | 500 g |
