Closing Force Measuring Device / Closing Force Transducer

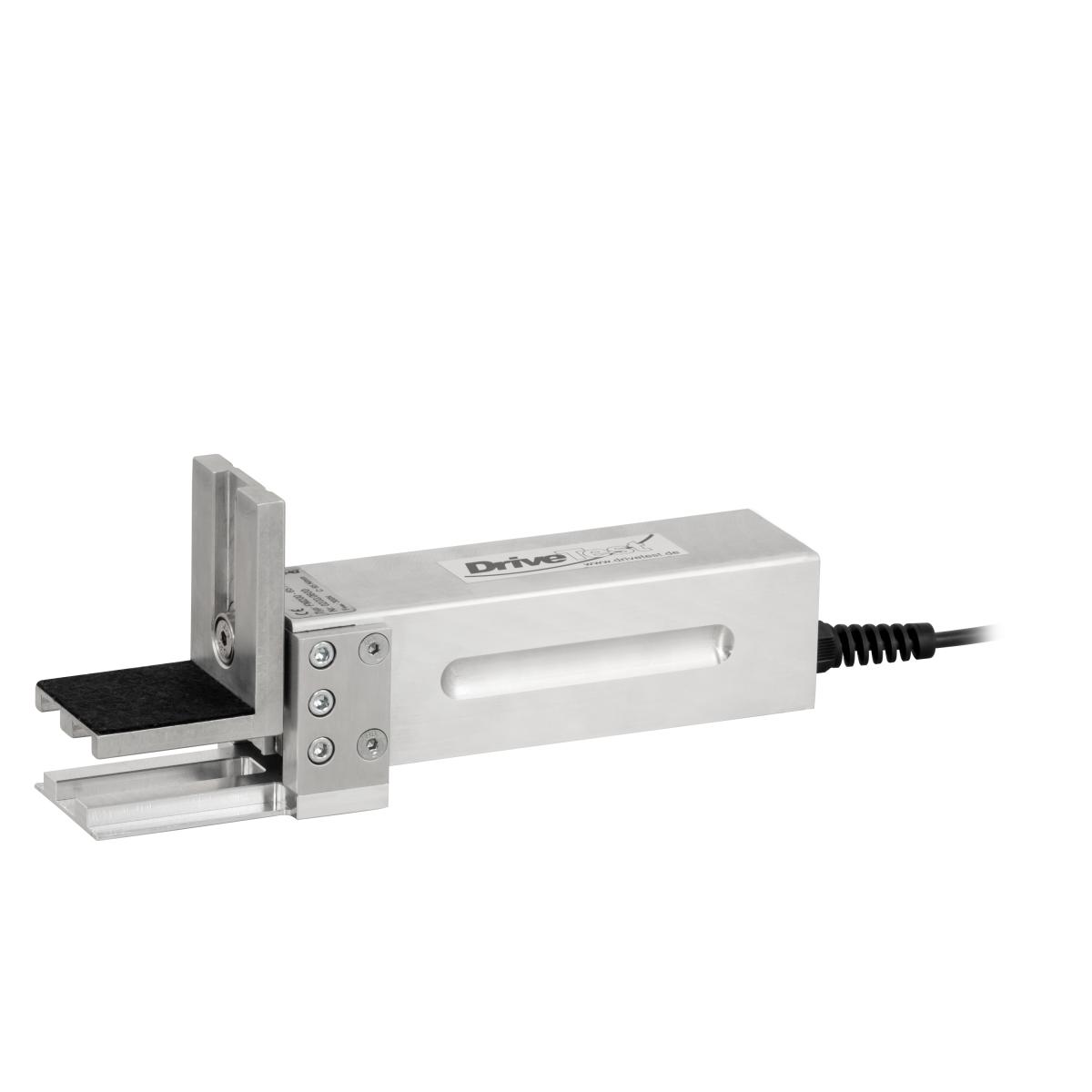

Closing Force Transducer FM200/10 for Sliding roofs, Window lifters, Tailgates

Order no.: FM200-SU-SY-10-200
GTIN (EAN): 4260650210099
3.100,00 €
3.720,00 €
price ex. (VAT / delivery)
:
4260650210099
FM200-SU-SY-10-200
Delivery time:1-2 working days

Description

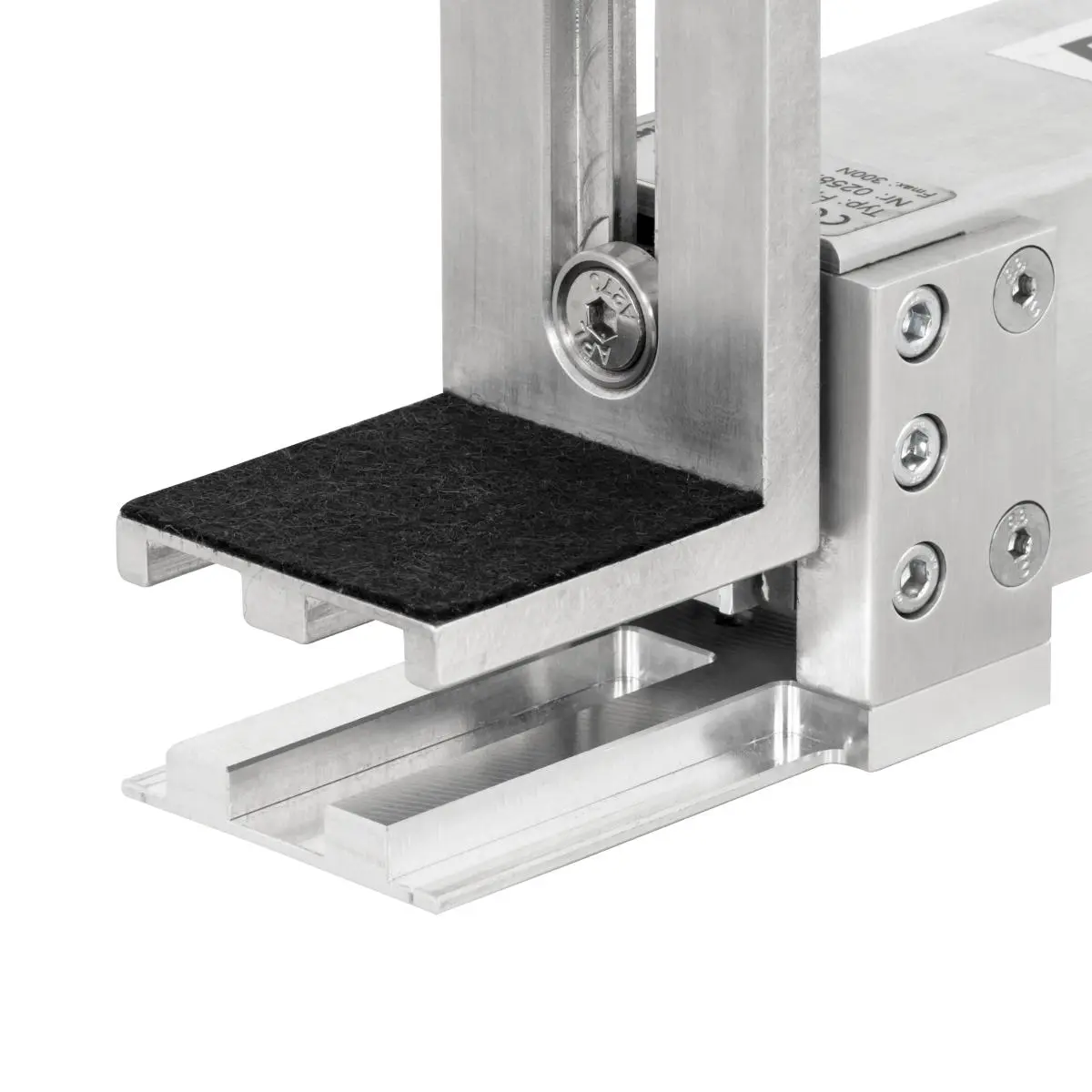

Force transducer
Closing force measuring system for sunroofs, window regulators and tailgates


The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry. It is also increasingly being used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

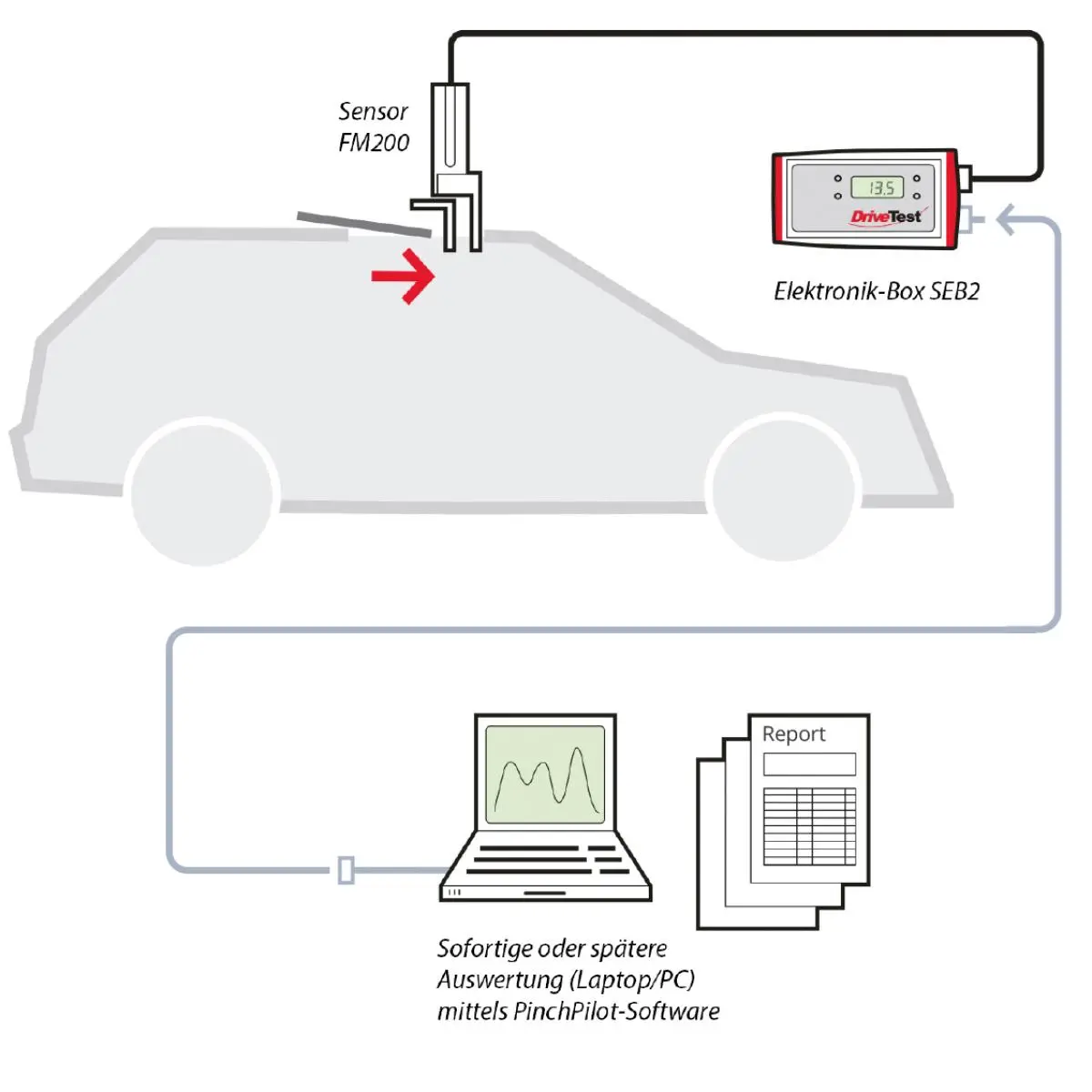

When it comes to measuring setups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.


Highlights

- Support of relevant standards – 2000/4 EG, US Standard FMVSS 118
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design
- Ease of use – single button operation or remote via Microsoft® DLL
interface or National Instruments ® LabVIEW library
- Complete scope of delivery - including high-quality transport case and
software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support - calibration service, standard change service
ensures the
application of the latest version of the standard
- Flexible adjustment - made possible by a variety of available force
introductions:
Customizations also available from DriveTest

Specification

Force
Measuring range  0 ... 200 N
Resolution  1 N
Accuracy  ±3 N or 3 % of Rd

General technical data
Stiffness  10 N/mm
Gap width  4 mm
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP43
Power supply  9V / 640 mAh
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Performance  5,76 Wh
Operating conditions  -10 ... 40 °C , 0 ... 90 % RH
Storage conditions  -40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  240 x 85 x 60 mm
Weight  1300 g

Delivery Scope

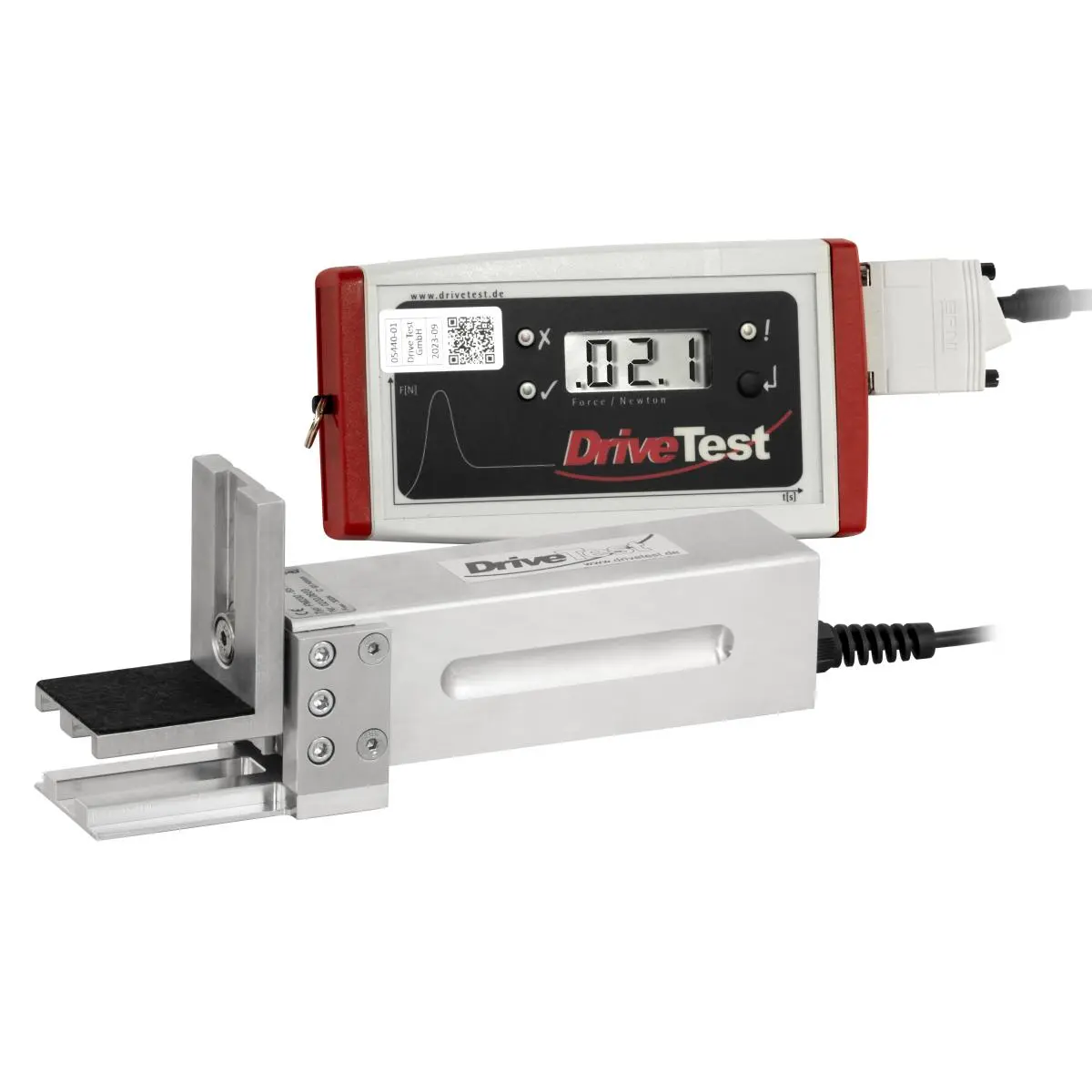

1 x Closing Force Transducer FM200/10
1 x Separate measured value acquisition module (SEB2 display device) with LCD
display, LED display,
membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
