Closing Force Measuring Device / Closing Force Transducer

[zoom]

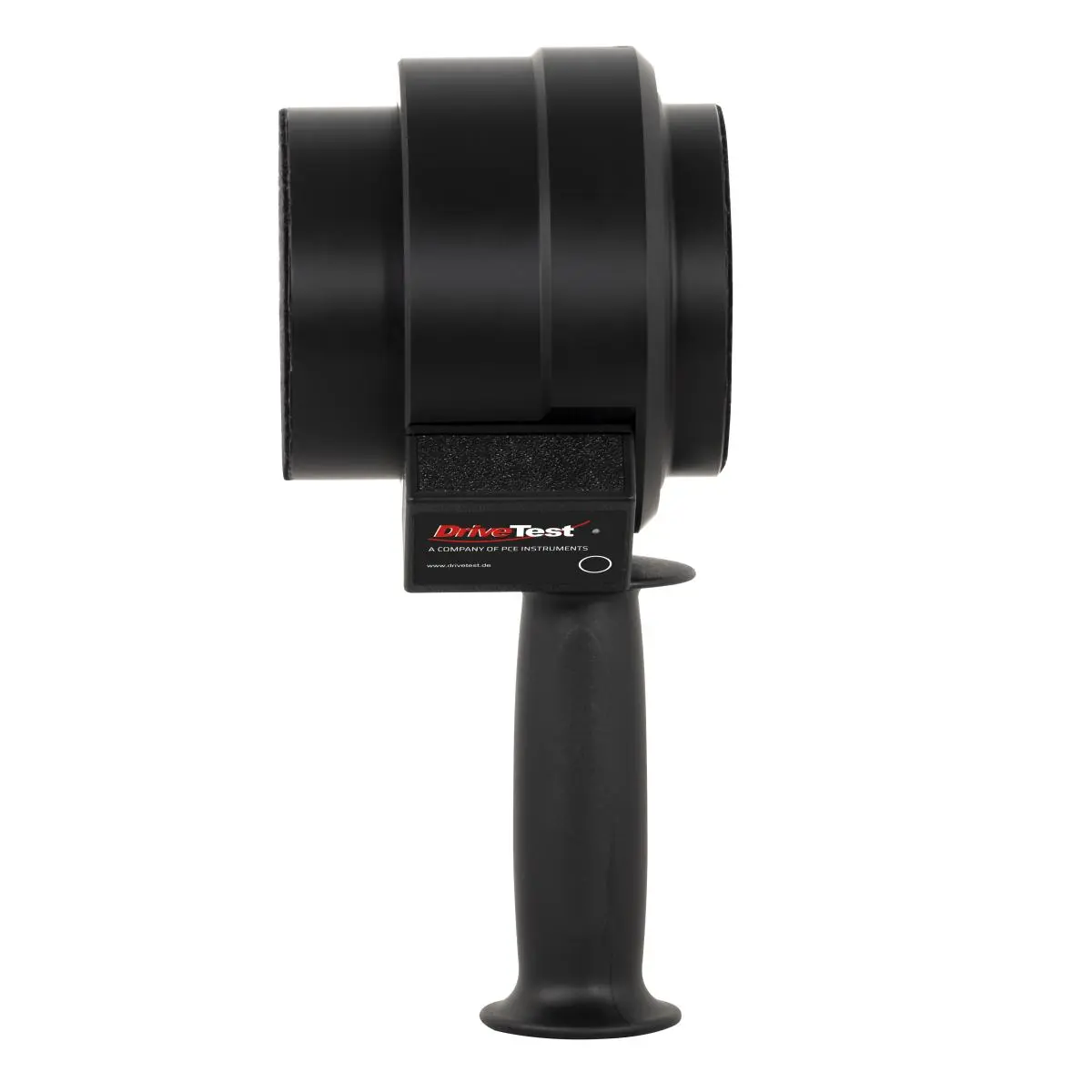

Closing Force Measuring Device / Closing Force Transducer Frontal

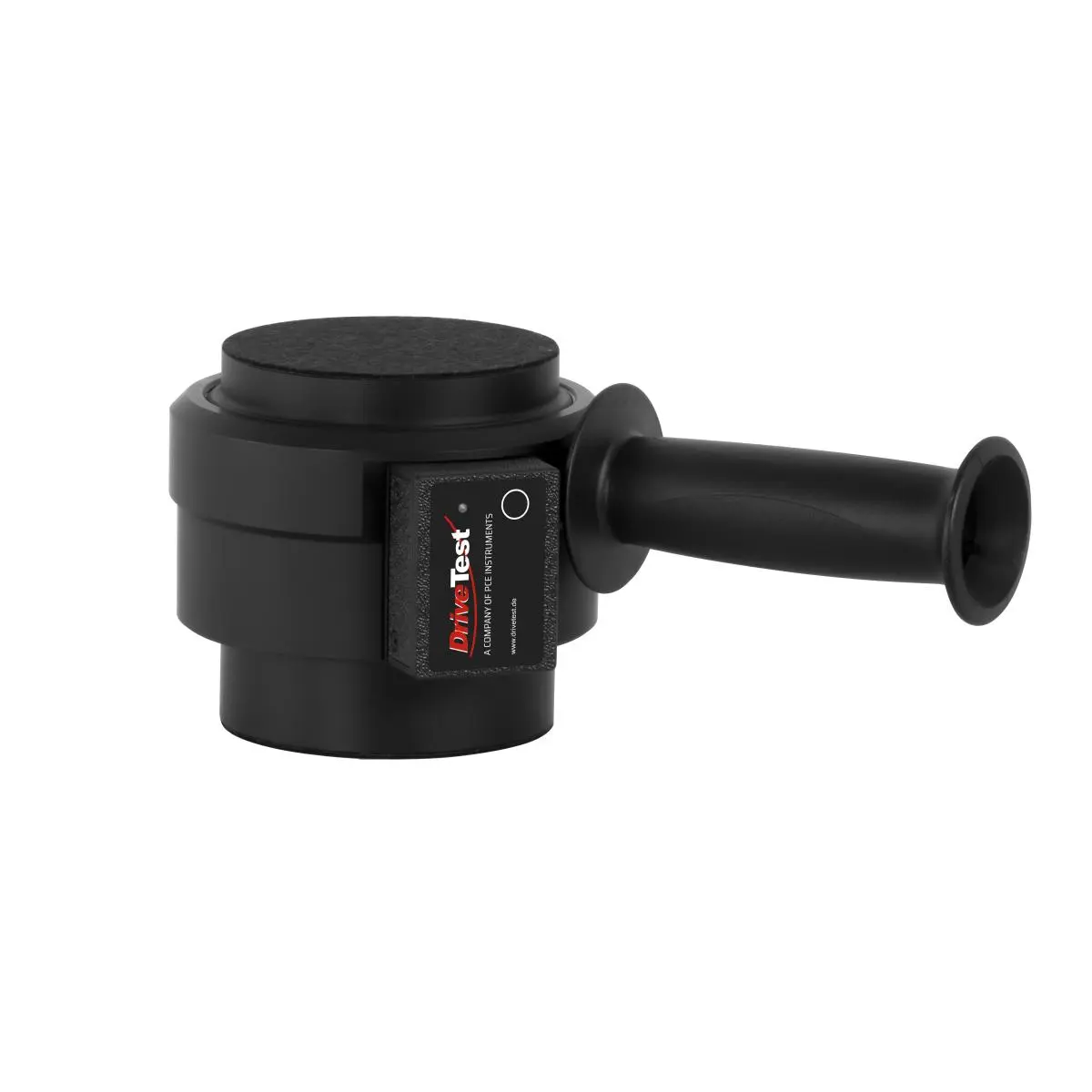

Closing Force Measuring Device / Closing Force Transducer Sensor

Closing Force Measuring Device / Closing Force Transducer Delivery scope

Closing Force Transducer BIA-1 BT for Bus and Train Doors and Sliding Steps

Order no.: BIA1BT-SY-10-310

GTIN (EAN): 4260650210068

Description

Closing force transducer
Wireless closing force measurement system for bus and train doors and sliding steps
Wireless / app downloadable / incl. software

The closing force transducer is a wireless, electronic closing force measuring device for rail vehicle and bus doors and sliding steps. A further development of the tried and tested Original BIA Class 1 measuring device is supplied with the closing force transducer. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Highlights

- Easy to use – implements experience from years of use

Extensive customer service - in-house calibration service and software

updates ensure the

Use of current guidelines

- Immediate evaluation - according to selected guidelines and standards

- Process reliability - integrated test instructions ensure that the

measurement is in line with the guidelines

- Large temperature working range

- Language selection - Available in DE/ EN/ ES/ FR/IT/ CN

- Support of relevant standards

- User guidance and evaluation according to EN 14752:2005, VDV 111, 2001/85/EG

- Precise measurements - granted by six-ball-bearing guide

- Robust design - housing made of high-strength material for a long service

life in tough applications

- Wireless - no more annoying cables

- Measuring point identification - via QR and barcodes (integrated solution)

- Upgrade option – for existing devices

Specification

Force
Measuring range	25 ... 310 N
Resolution	1 N
Accuracy	±3 N or 3 % of Rd

General technical data
Interface	Bluetooth
Stiffness	10 N/mm
Gap width	115 mm
Menu language	English, Spanish, German, French, Italian
Protection class (device)	IP43
Power supply	3.7V / 700 mAh
Connector type	Euro plug
(Rechargeable) battery	1 x 3,7 V LP series , Lithium-ion polymer battery
Capacity	700 mAh
Performance	2,59 Wh
Operating conditions	-10 ... 40 °C , 0 ... 90 % RH
Storage conditions	-40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H x ø )	230 x 130 x 115 x 100 mm
Weight	2100 g

Delivery Scope

1 x Closing force transducer BIA-1 BT

1 x App Force Meter available for download in the Google Play Store

1 x Software PinchPilot (USB stick)

1 x USB Cable

1 x Manual

1 x Transport case with foam insert

1 x ISO calibration certificate
