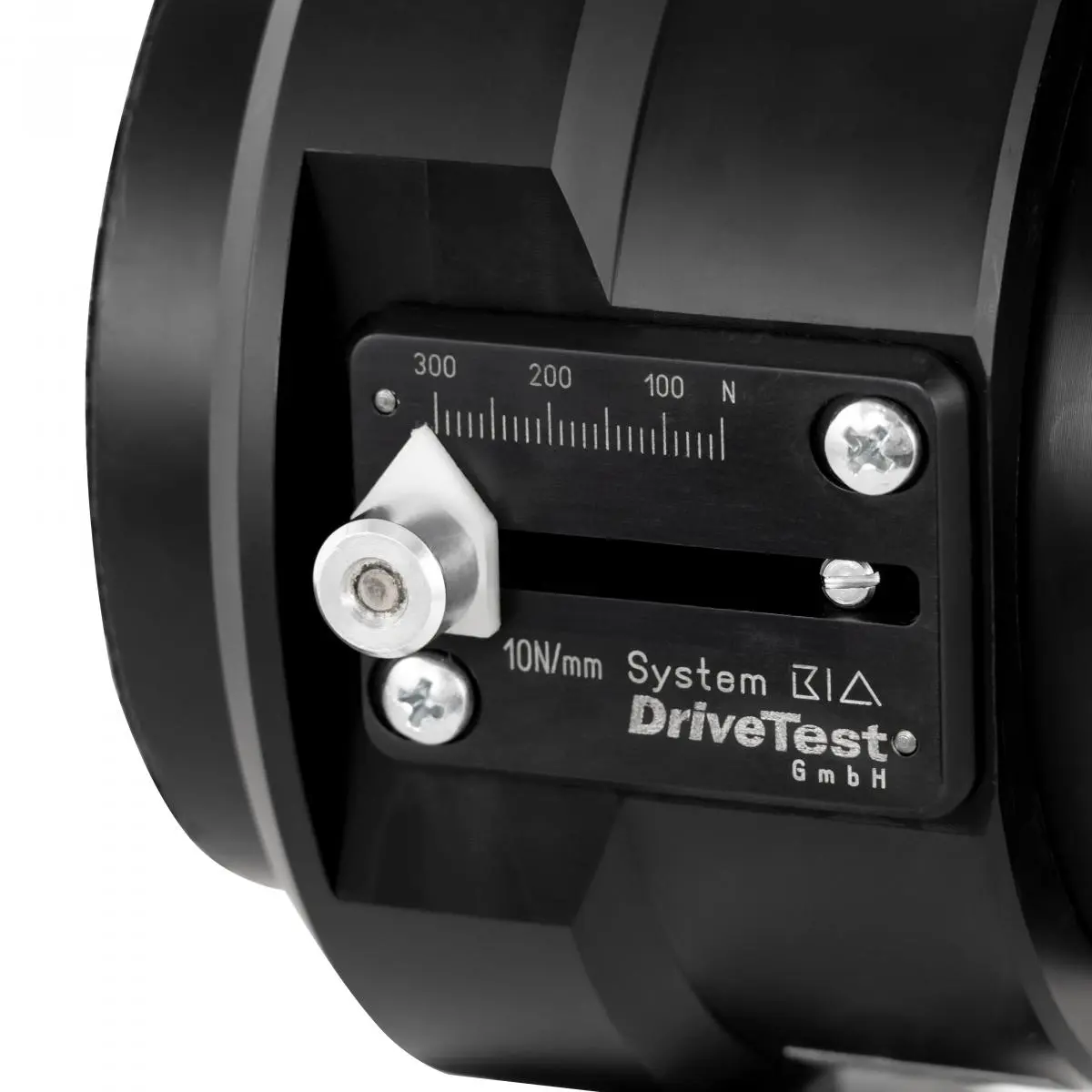

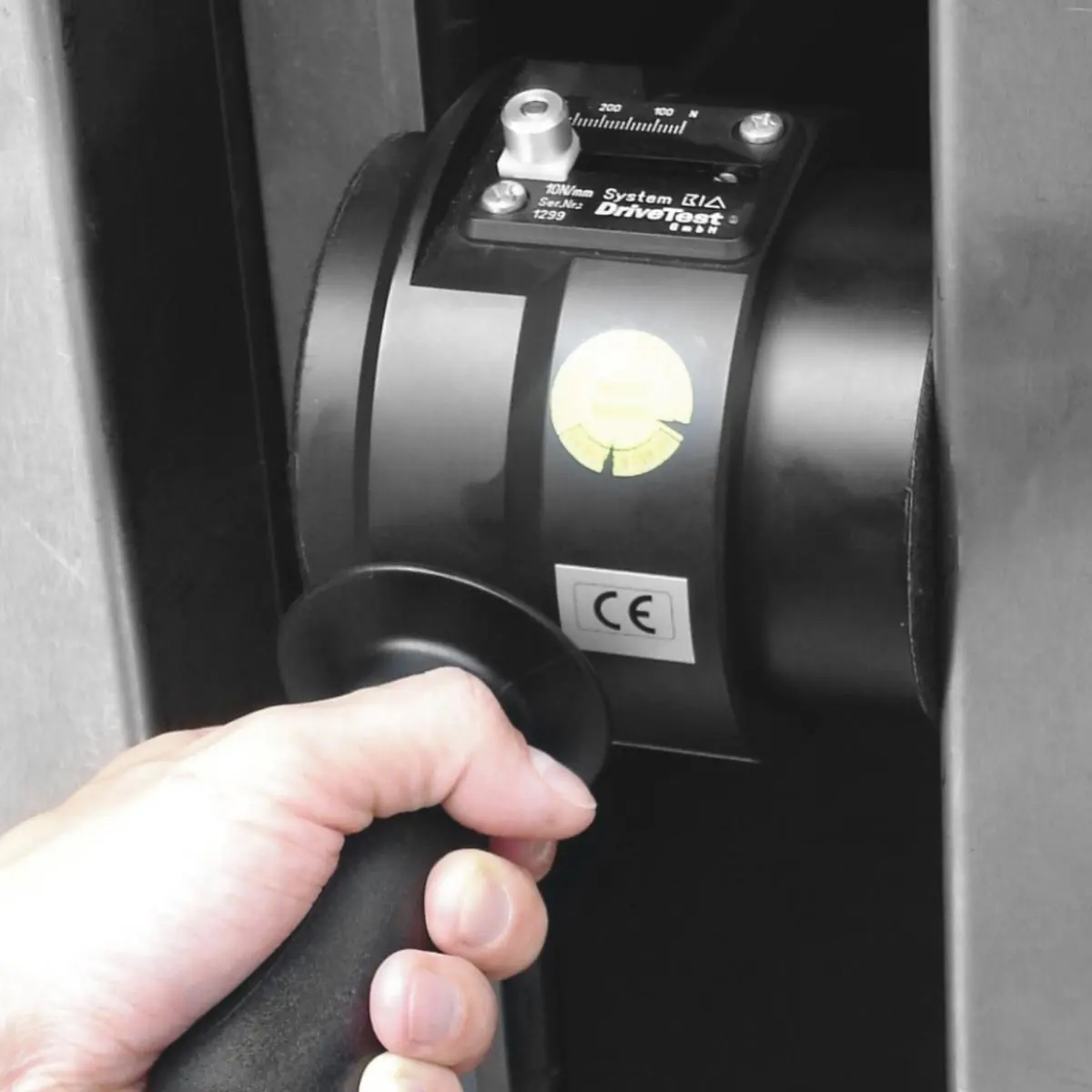

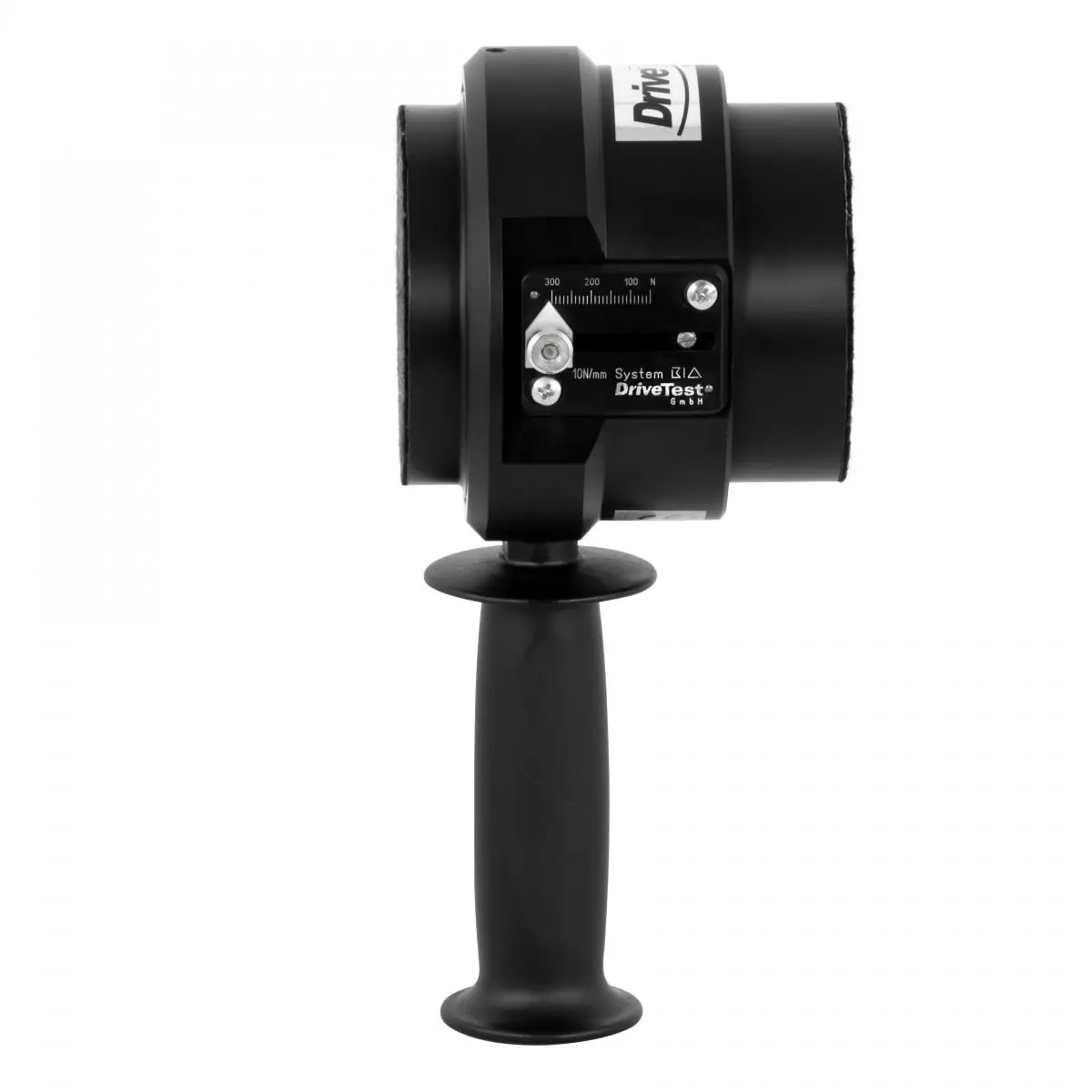

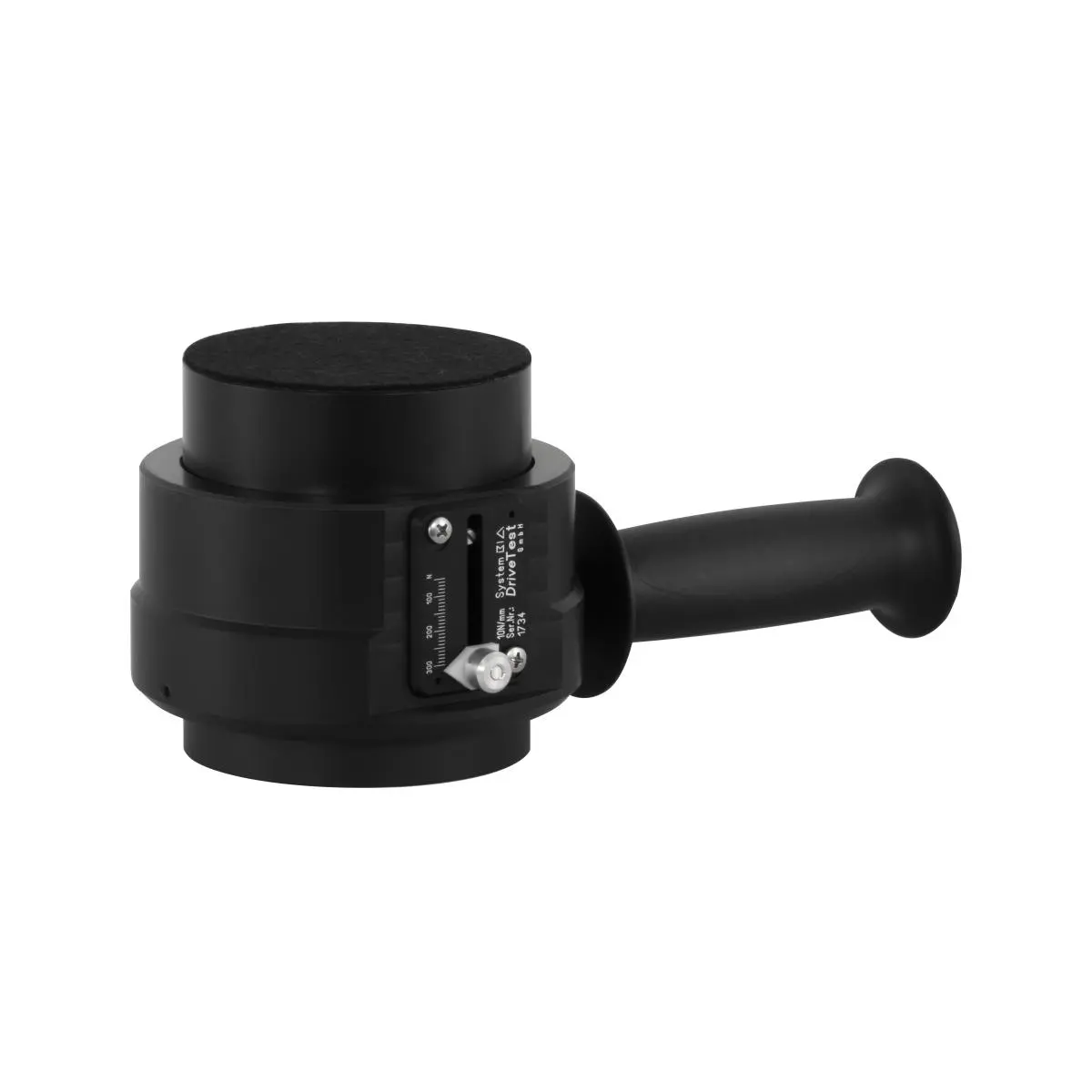

Our Closing Force Measuring Device / Closing Force Transducer BIA Class 2 analogue closing force measuring system is a mechanical dynamometer for bus doors. The sophisticated design of the Closing Force Measuring Device / Closing Force Transducer combines precision with practical robustness. The Closing Force Measuring Device / Closing Force Transducer ensures accurate measured values even after years of use in harsh environments.
| Force | |
| Measuring range | 25 ... 750 N |
| Resolution | 1 N |
| Accuracy | ±10 N or 5% of Rd |
| General technical data | |
| Stiffness | 10 N/mm |
| Gap width | 115 mm |
| Protection class (device) | IP31 |
| Operating conditions | 10 ... 30 °C , 0 ... 90 % RH |
| Storage conditions | -40 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 260 x 130 x 115 mm |
| Other dimensions | Measuring surface: Ø100 mm |
| Weight | 1200 g |
