Car Measuring Device PCE-S 41

Car Measuring Device PCE-S 41

Order no.: PCE-S 41
GTIN (EAN): 4250348701282
151,90 €
180,76 €
price ex. (VAT / delivery)
:
4250348701282
PCE-S 41
Delivery time:1-2 working days
Machine vibration

Description

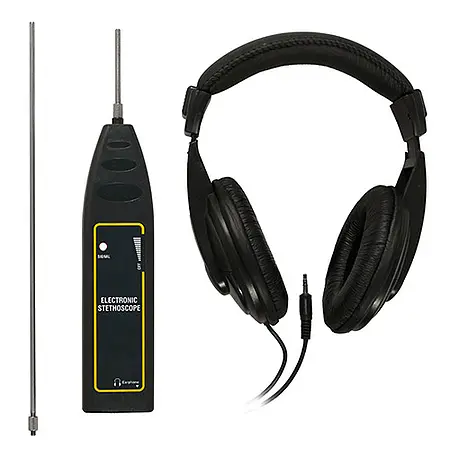

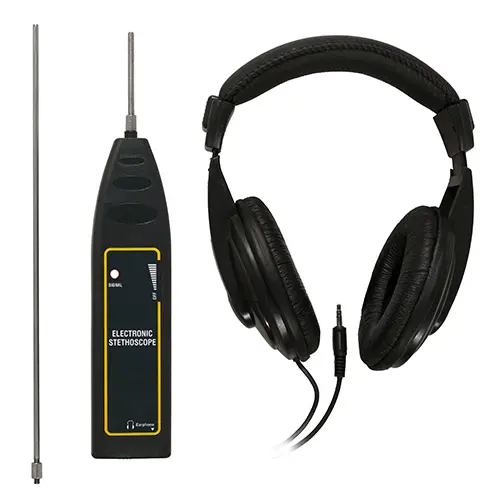

Car Measuring Device PCE-S 41 for use in machinery maintenance and repair

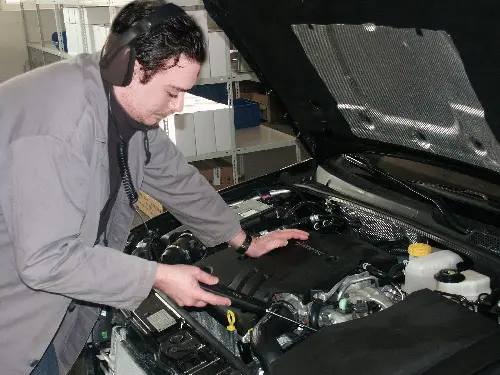

The car measuring device is battery powered and easy to use. This car measuring device can be used for detecting noise in machine components, such as gears, valves, vents and pumps. This makes the car measuring device a useful tool in inspecting noise and vibration, giving the maintenance team the chance to locate the source of a problem before it becomes too costly. The enclosure of the car measuring device is made of ABS plastic which is comfortable to hold and operate. The device uses a piezoelectric transducer which can detect very low resonant noises. The earpiece is equipped with an adjustable headset that has a 2 m cable.

Highlights

- Measuring range : 100 Hz ...10 kHz
- Volume: adjustable
- incl. headphones
- Steel probes: 70 and 290 mm

Specification

General technical data
Frequency  100 ... 10000 Hz
Display type  without display
Operating time  30 h
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Dimensions  Needle probe 1 x 290 mm, 1 x 70 mm (length)
Protection class (device)  IP20
Power supply  Battery
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Dimensions ( L x W x H )  206 x 50 x 32 mm
Weight  240 g

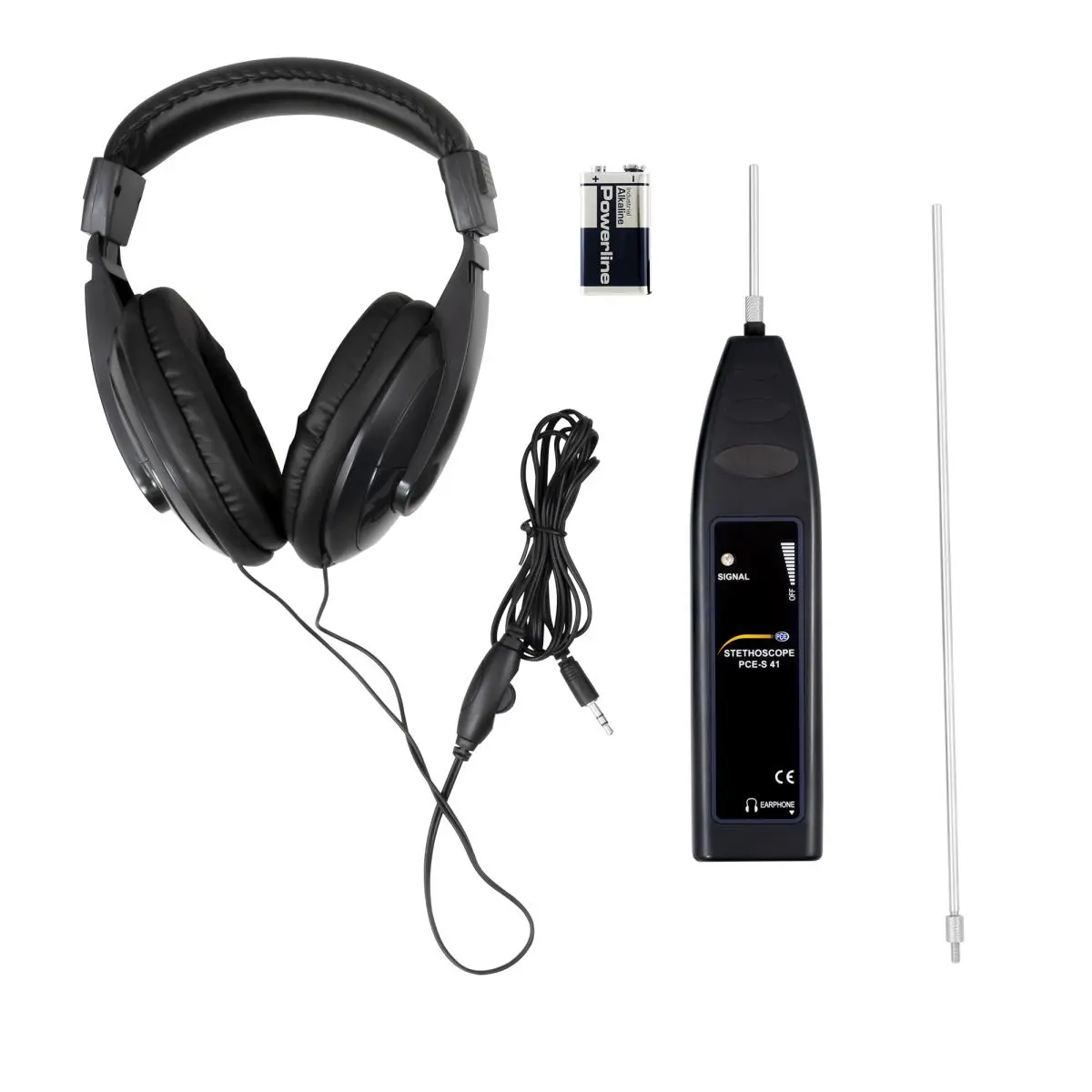

Delivery Scope

1 x Car Measuring Device PCE-S 41
1 x Set of headphones
1 x 70 mm long sensor
1 x 290 mm long sensor
1 x Battery

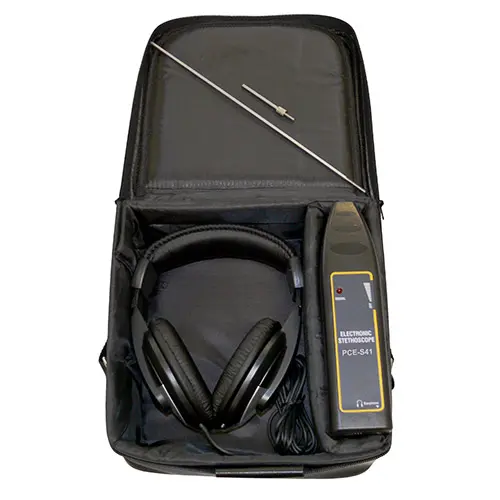

1 x Carrying case
1 x User manual
