Anemometer / Anemometers for all applications PCE-FWS 20N-2

Anemometer Station PCE-FWS 20N-2

Order no.: PCE-FWS 20N-2
GTIN (EAN): 4250348722140
283,90 €
337,84 €
price ex. (VAT / delivery)
:
4250348722140
PCE-FWS 20N-2
Delivery time:1-2 working days
Home area

Description

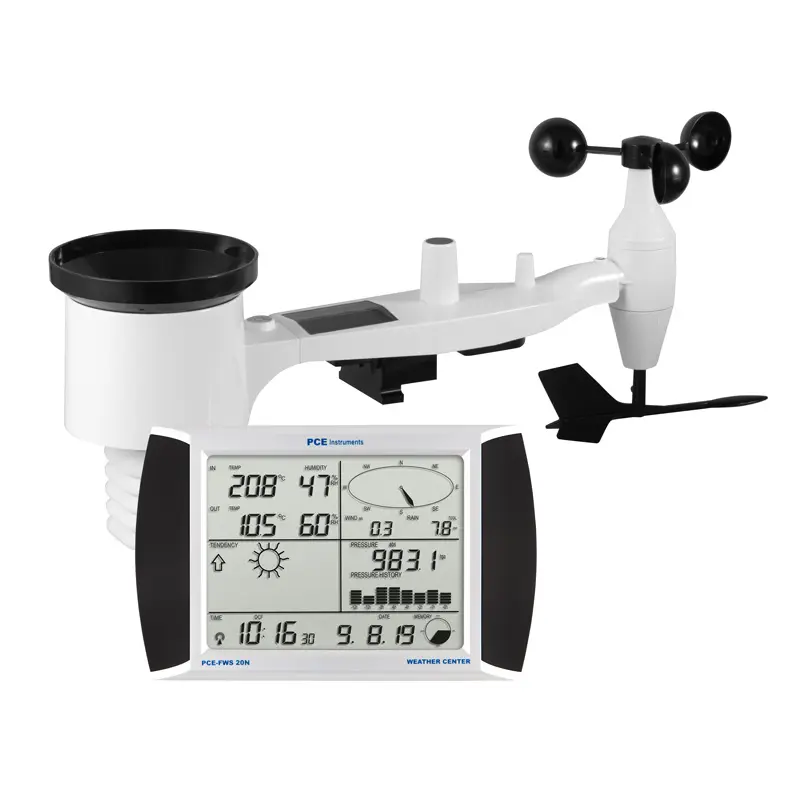

Radio anemometer station to determine the wind direction, wind speed, temperature, relative humidity and rainfall / Adjustable alarm functions / USB interface / Analysis software / Solar module and batteries for powering the transmitter / Transmission frequency: 868 MHz

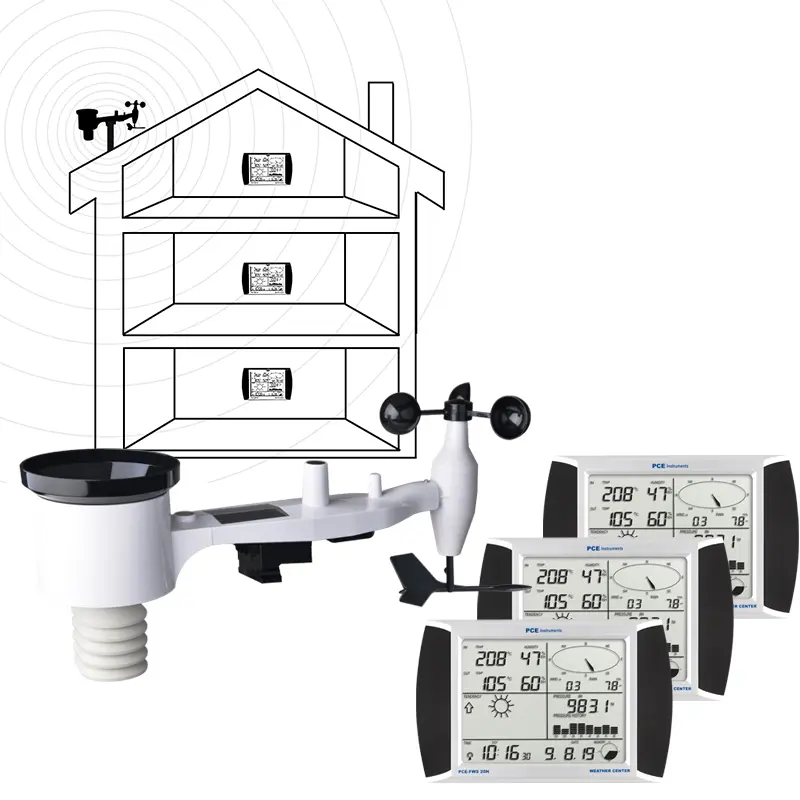

This wireless anemometer station is a true all-rounder that leaves little to be desired. Whether at home or in the office, the wireless weather station will delight the operator with its versatility. This weather station allows accurate recording of wind direction, wind force, temperature, relative humidity and rainfall. This is just a small selection of the possibilities this weather station offers. In addition, the operator has the possibility to activate various alarm functions on the wireless weather station (wind speed, air pressure, ...). With the help of the values displayed on the weather station, the user can, amongst other things, decide which clothes are appropriate, or whether the garden must be watered, and much more. The weather data is sent up to 100 meters by radio signal to the main station.

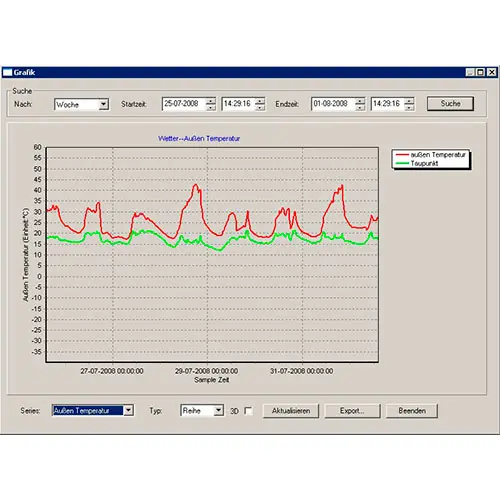

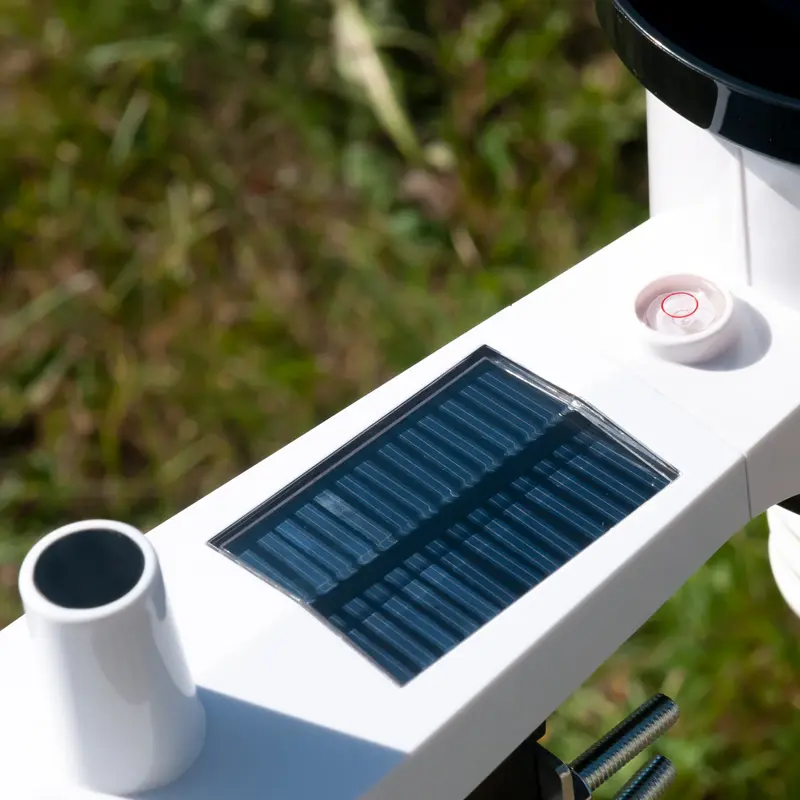

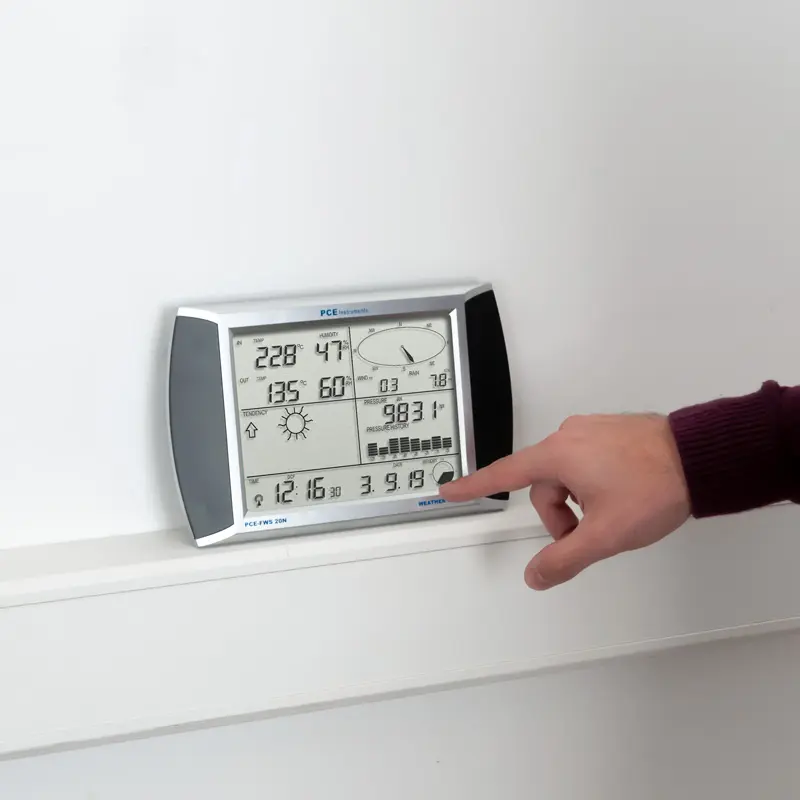

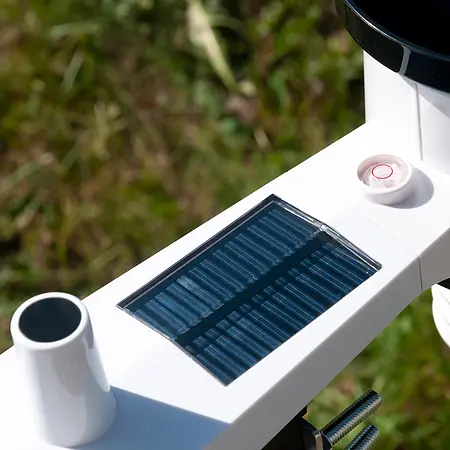

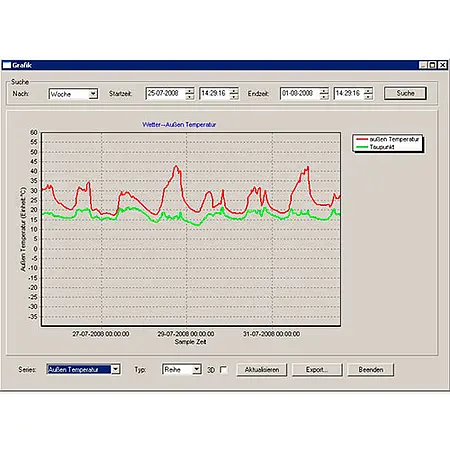

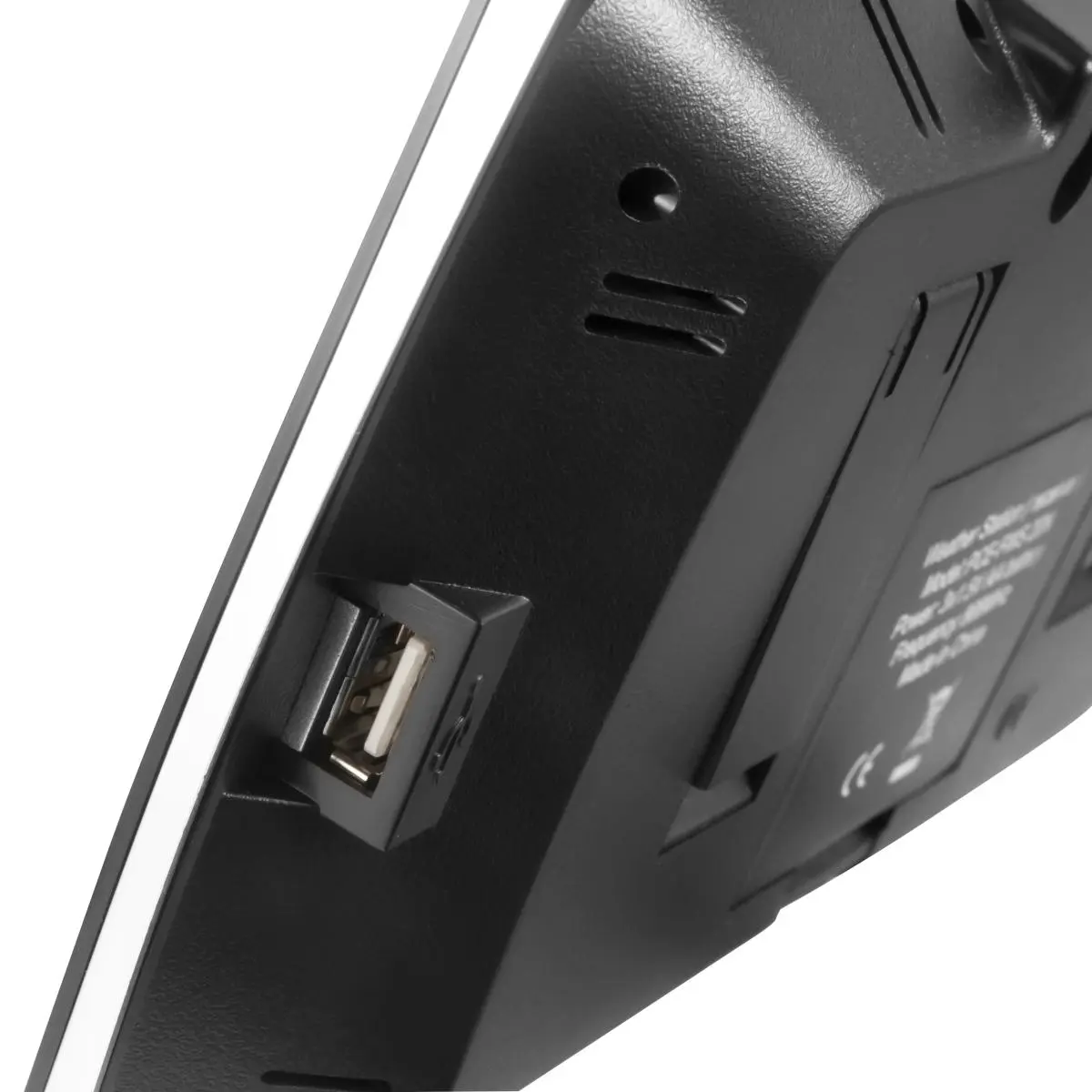

The wireless anemometer station is equipped with the latest technology in weather analysis. The transmitter is powered by a solar panel and the batteries. With the newly developed touch screen display, the weather data can be easily accessed directly from the wireless weather station by simply tapping on the display. With the USB interface and the included USB cable, the weather data can be transmitted directly from the wireless weather station to a PC or laptop. These data are all provided with a time / date stamp in order to be able to assign them even after a longer period of time. Here the weather data can be stored indefinitely. The supplied analysis software then allows you to observe and compare the weather over a longer period of time using graphs and graphics. Everything the user needs for commissioning and use of this wireless weather station is included in the delivery.

Highlights

- Software for analyzing the stored data

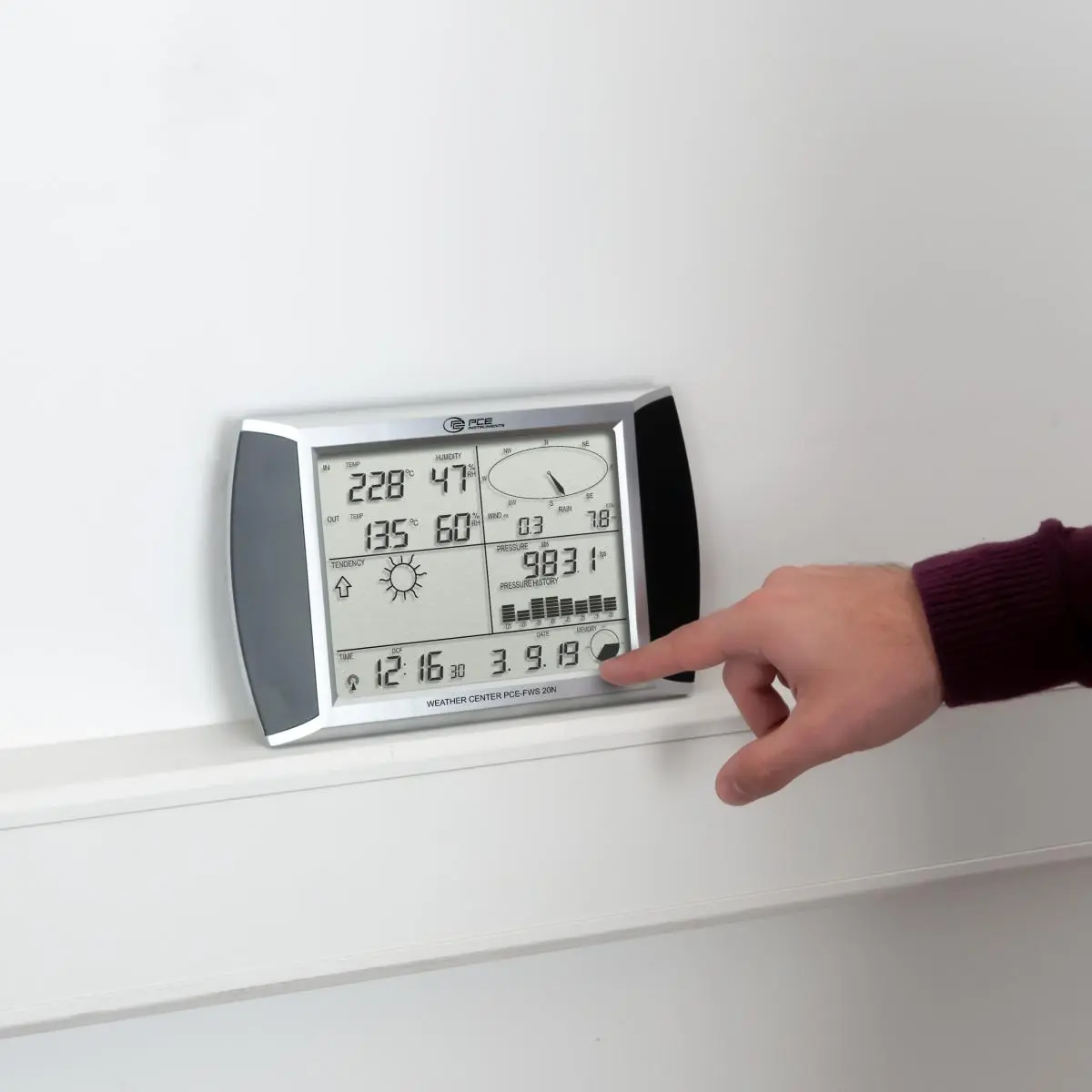

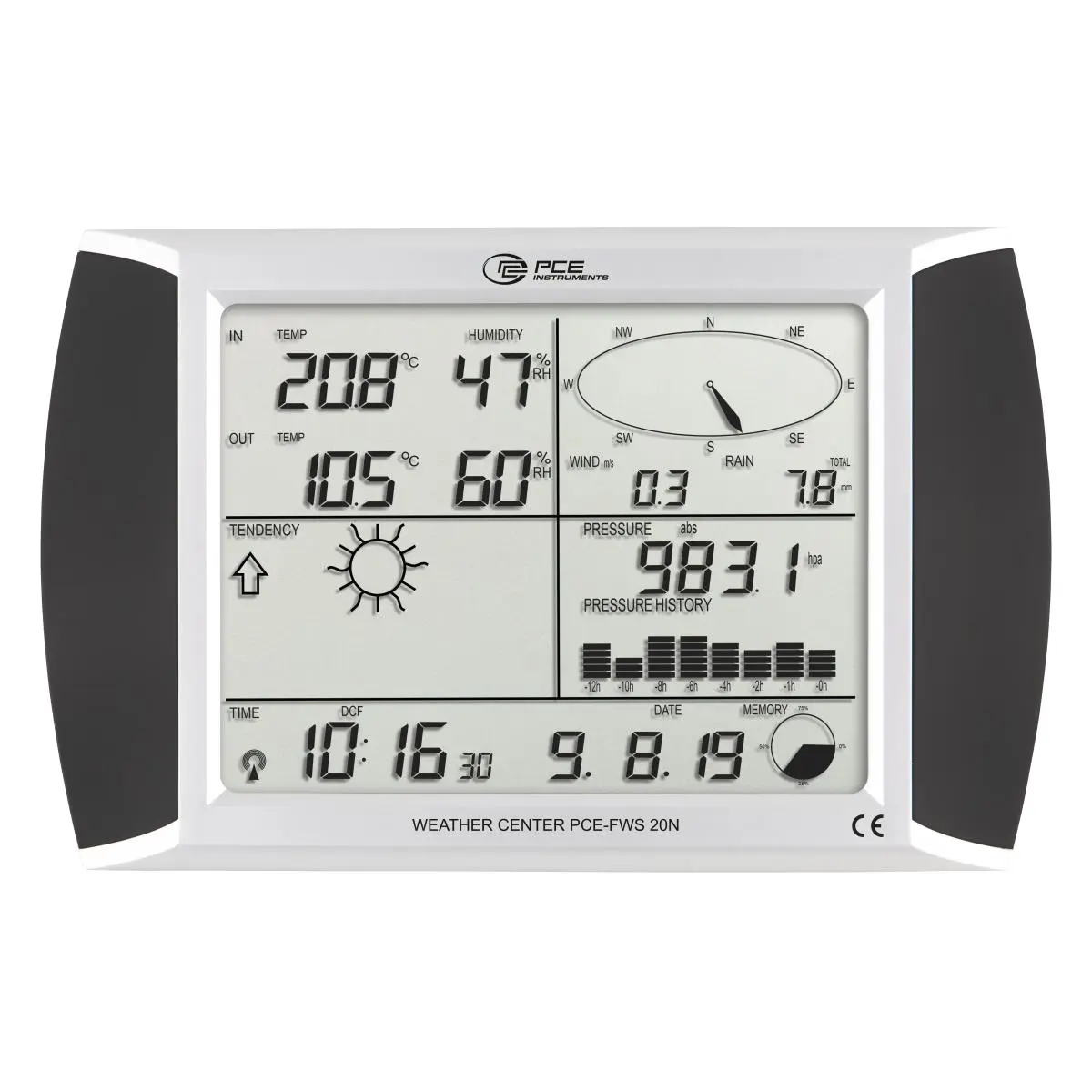

- Backlit 7 inch touch screen
- Weather forecast function
- Automatic time setting thanks to DCF
- Adjustable alarms when the measured value is exceeded
- Wind direction and wind speed
- Temperature and humidity display

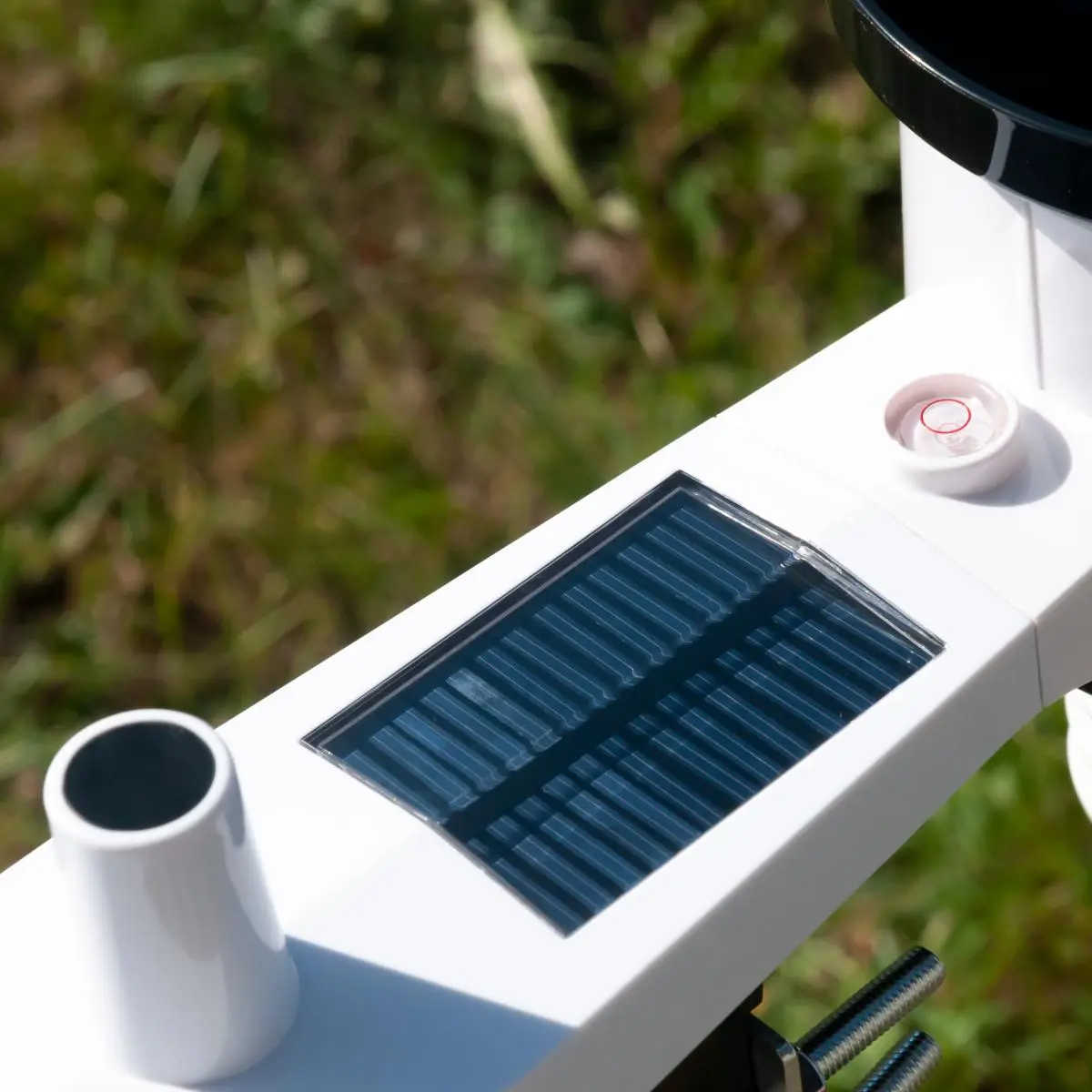

- Solar panel on the outdoor unit to the supply

Specification

Speed
Measuring range  0 ... 4,9 m/s
Resolution  0.1 m/s
Accuracy  ±1 m/s

Speed
Measuring range  5 ... 50 m/s
Resolution  0.1 m/s
Accuracy  ±10 % of Rd

Air pressure
Measuring range  300 ... 1100 hPa
Resolution  0,1 hPa
Accuracy  ±3 hPa (at absolute air pressure in the range 700 ... 1100 hPa)

Precipitation
Measuring range  0 ... 1000 mm
Resolution  0,3 mm
Accuracy  ±6%

Precipitation
Measuring range  1000 ... 9999 mm
Resolution  1 mm
Accuracy  ±6%

Relative humidity
Area of application  Indoor
Measuring range  1 ... 99 %
Resolution  1 %
Accuracy  ±5 %

Relative humidity
Measuring range  1 ... 20 %
Resolution  1 %
Accuracy  ±6%

Relative humidity
Measuring range  20 ... 80 %
Resolution  1 %
Accuracy  ±4%

Relative humidity
Measuring range  80 ... 99 %
Resolution  1 % RH
Accuracy  ±6%

Temperature
Measuring range  0 ... 50 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  32 ... 122 °F
Resolution  0,18 °F
Accuracy  ±1.8 °F

Temperature
Measuring range  -40 ... +60 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  -40 ... +140 °F
Resolution  0,18 °F
Accuracy  ±1.8 °F

General technical data
Units  °C, °F, m/s, km/h, mph, Bft, kn, hPa, inHg, mm, inch, % rel.
Frequency  868 MHz
Display type  LC touch display
Display size  7 in
Storage medium  Internal memory
Storage capacity  4080 Data records
Memory capacity (additional information)  Ring memory
Storage interval from  5 s
Storage interval to  240 min.
Interface  USB
Operating time  2 Year(s)
Operating time additional information  Display: min. 12 months
Outdoor unit: min. 24 months
Alarm  optical, Acoustic
Measuring interval  48 s
Maximum radio range  100 m
Menu language  English, English (GB)
Protection class (device)  IP X3, IP44
Power supply  batteries
(Rechargeable) battery  11 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  -40 ... 60 °C , 1 ... 99 (non-condensing)% RH
Storage conditions  -40 ... 60 °C , 10 ... 90 (non-condensing)% RH
Dimensions ( L x H )  230 x 150 mm
Weight  551 g

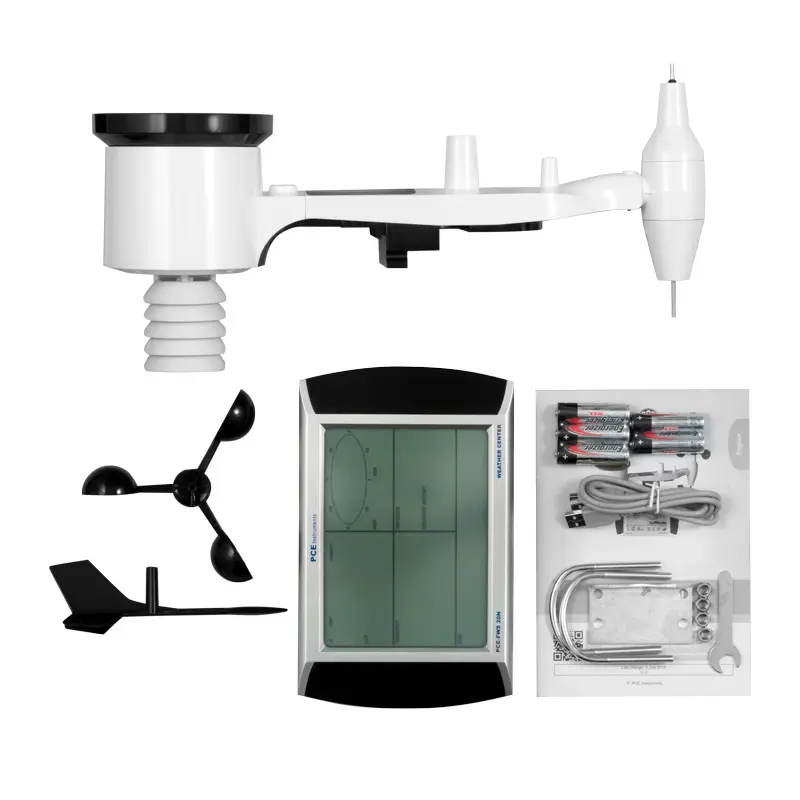

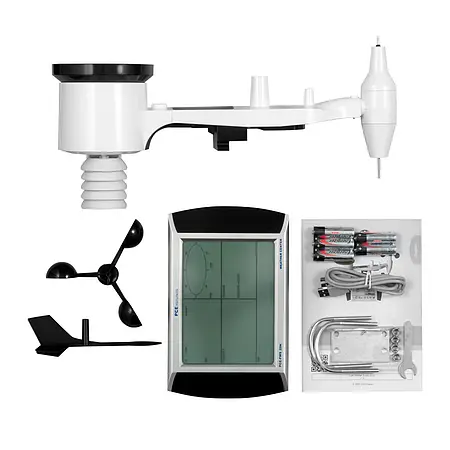

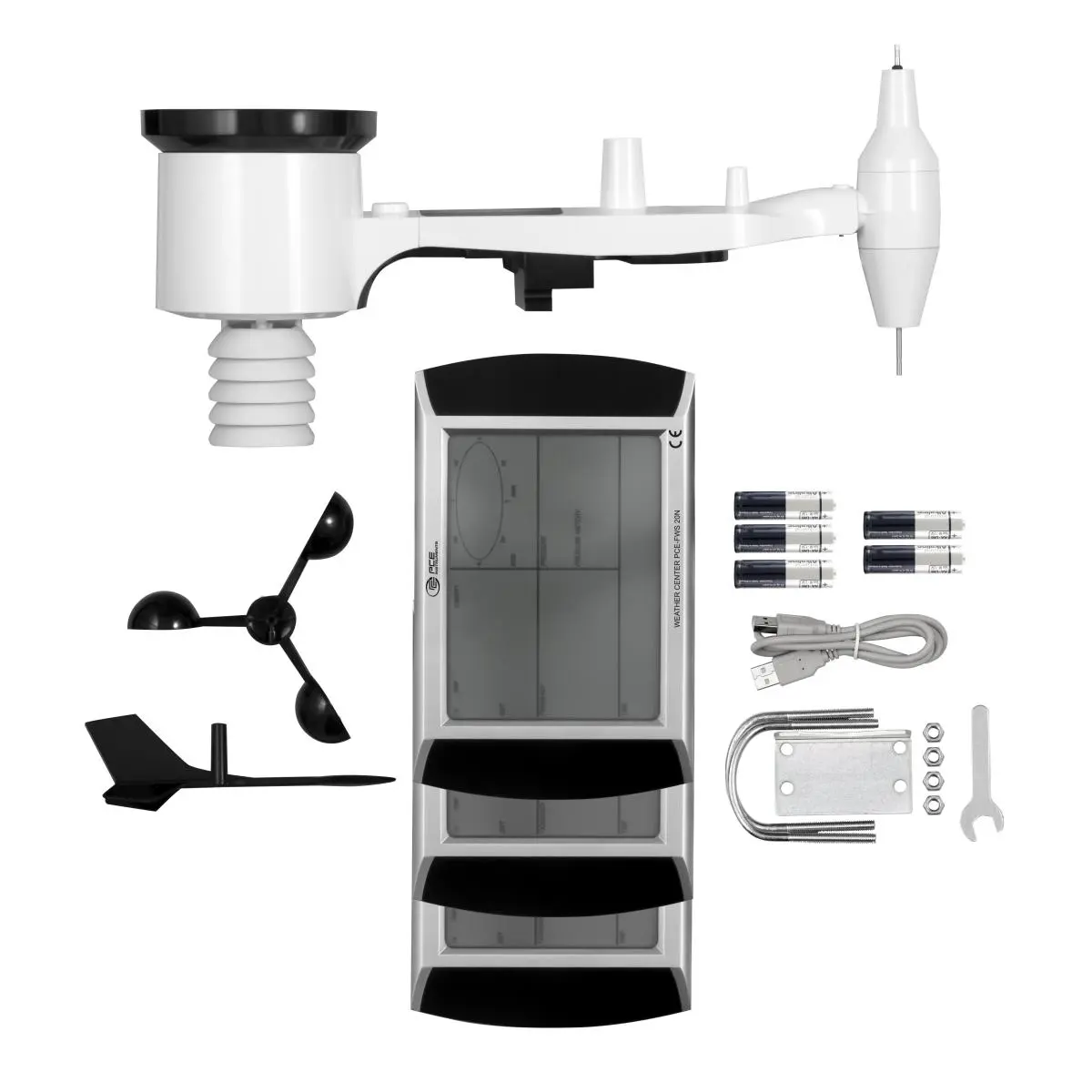

Delivery Scope

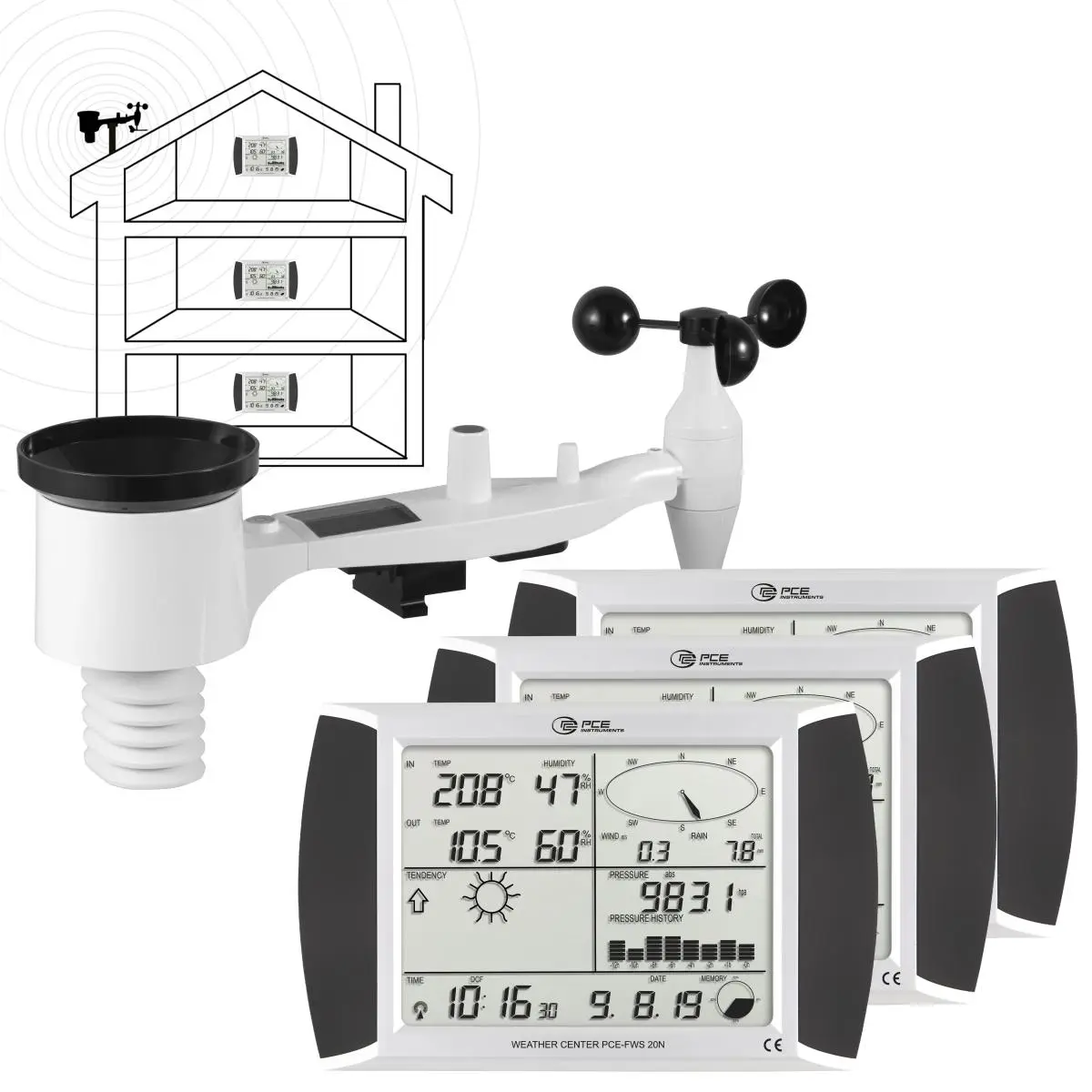

1 x Anemometer / Anemometers for all applications PCE-FWS 20N-2 *+with 3 touchscreen displays
1 x Transmitter
1 x Temperature sensor
1 x Humidity sensor
1 x Solar module
5 x 1.5 V AA batteries
1 x Rain sensor
1 x Wind speed sensor
1 x Wind direction sensor
1 x USB connection cable (approx. 1 m / 3.2 ft)
1 x Weather analysis software
1 x Instruction manual
