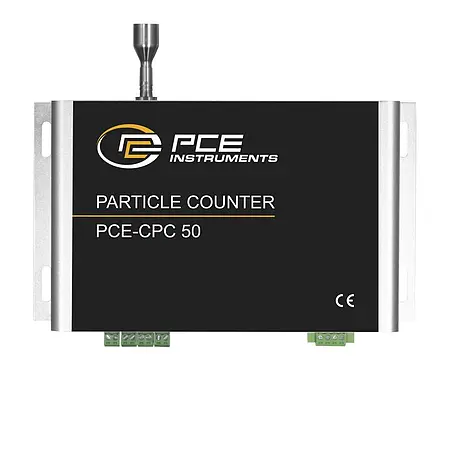

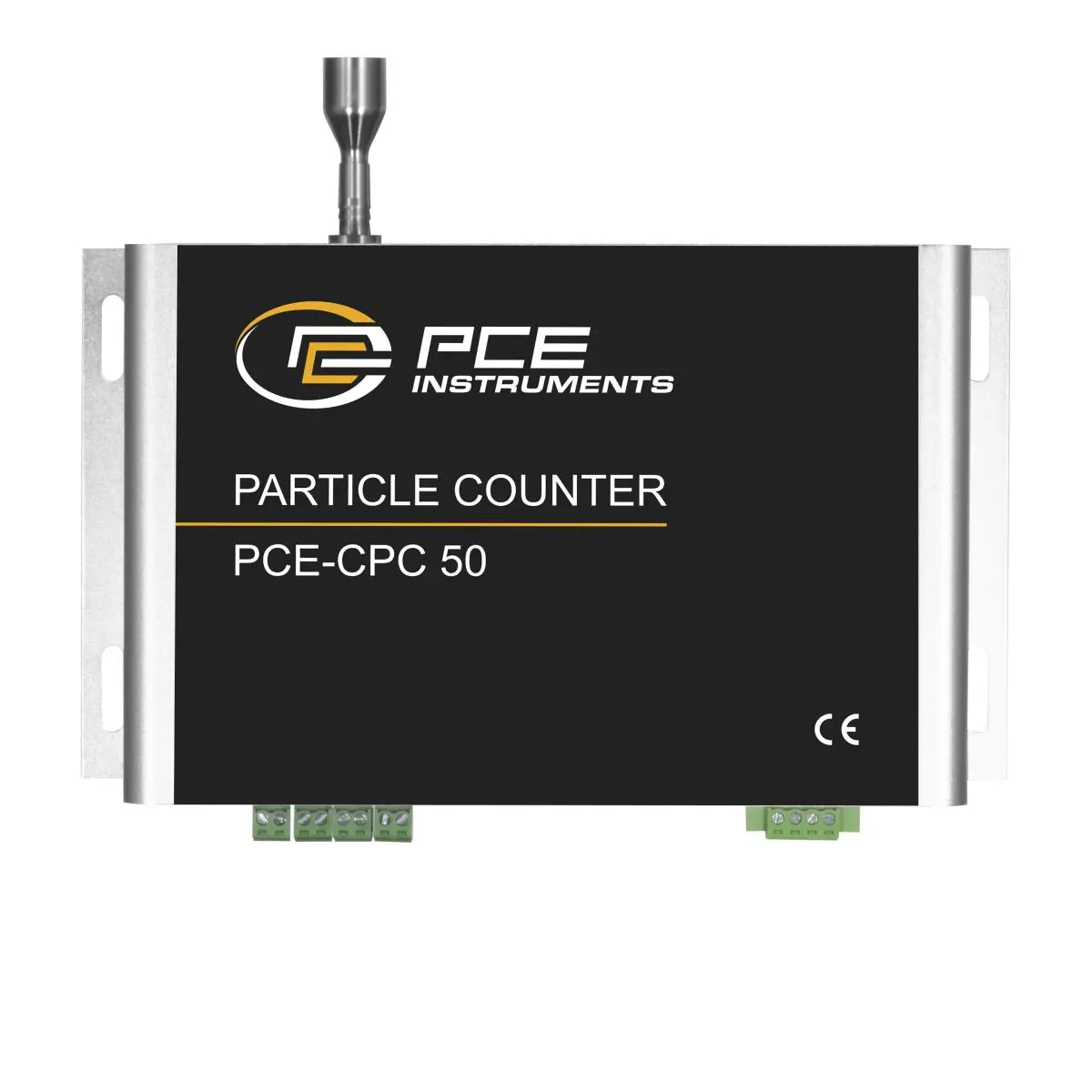

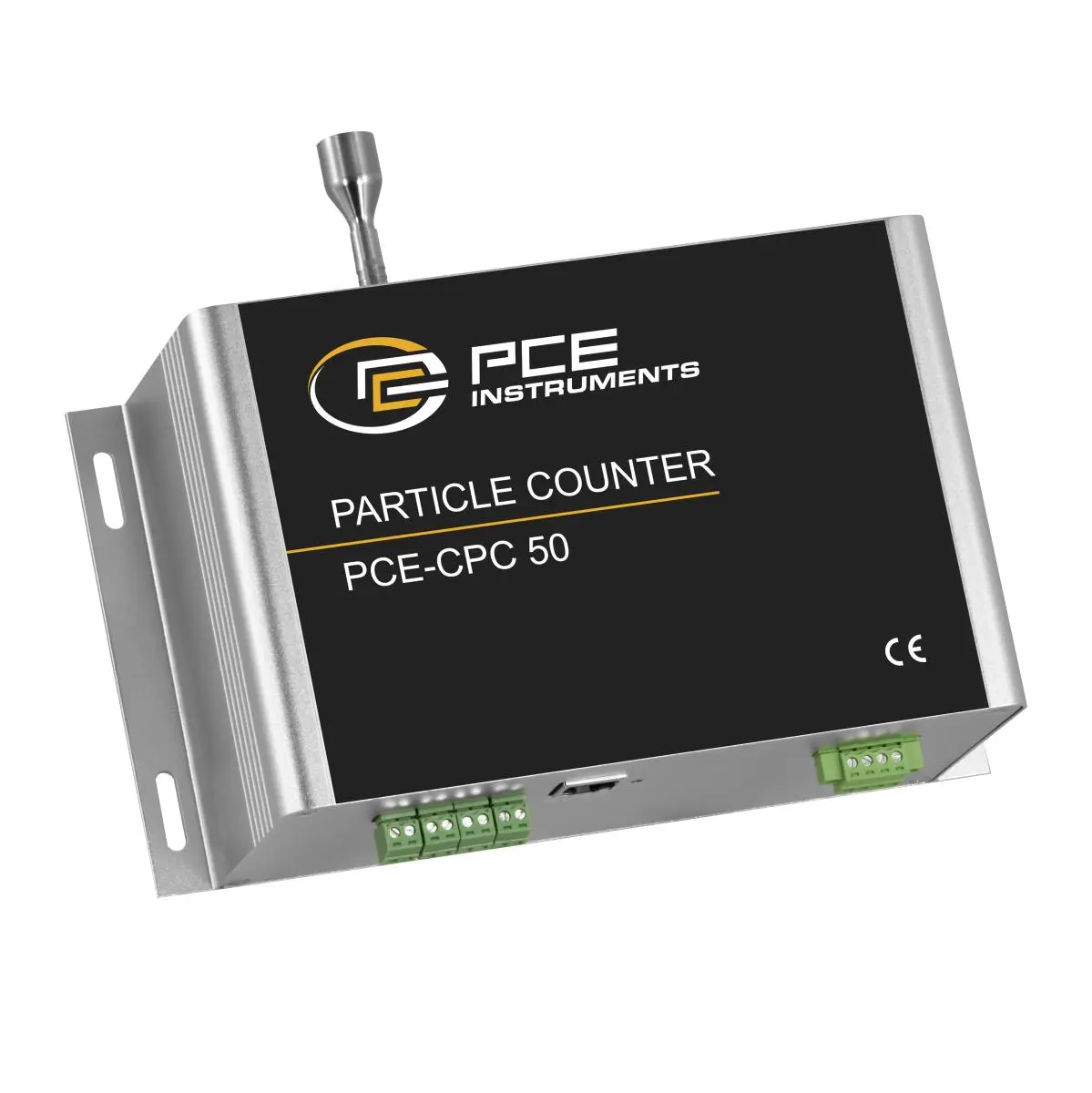

Air Quality Particle Counting PCE-CPC 50

Order no.: PCE-CPC 50
GTIN (EAN): 4250348733733
1.896,90 €
2.257,31 €
Topseller
price ex. (VAT / delivery)
:
4250348733733
PCE-CPC 50
Delivery time: 5-7 working days

Description

Air Quality Particle Counting for fixed installation / Modbus and RJ45 interface / analogue outputs 4 ... 20 mA for 4 measuring channels

The state-of-the-art air quality particle counting enables precise real-time measurement in the range from 0.3 μm to 10 μm to provide a comprehensive picture of the air quality. The results are presented in two units, either in number per m³, number per litre or number per 28.3l. Air sampling is performed by an internal pump. When the particles pass the light source (laser), light scattering occurs; the scattered light is converted into an electrical signal (pulse) by a photoelectric transducer, and the larger the particles, the larger the pulse signal.

The integration of Modbus and MQTT ensures seamless integration into existing networks and enables efficient data communication. The sampling time can be set from 1 to 10 min and the pause time from 1 to 1000 min. This function makes it possible to continuously monitor the cleanliness level and ensure that the premises meet the required standards.


Highlights

- Real-time measurement from 0.3 μm ... 10 μm
- Output in particles/m³, particles/l or particles/28.3L
- Modbus RTU and MQTT via RS485

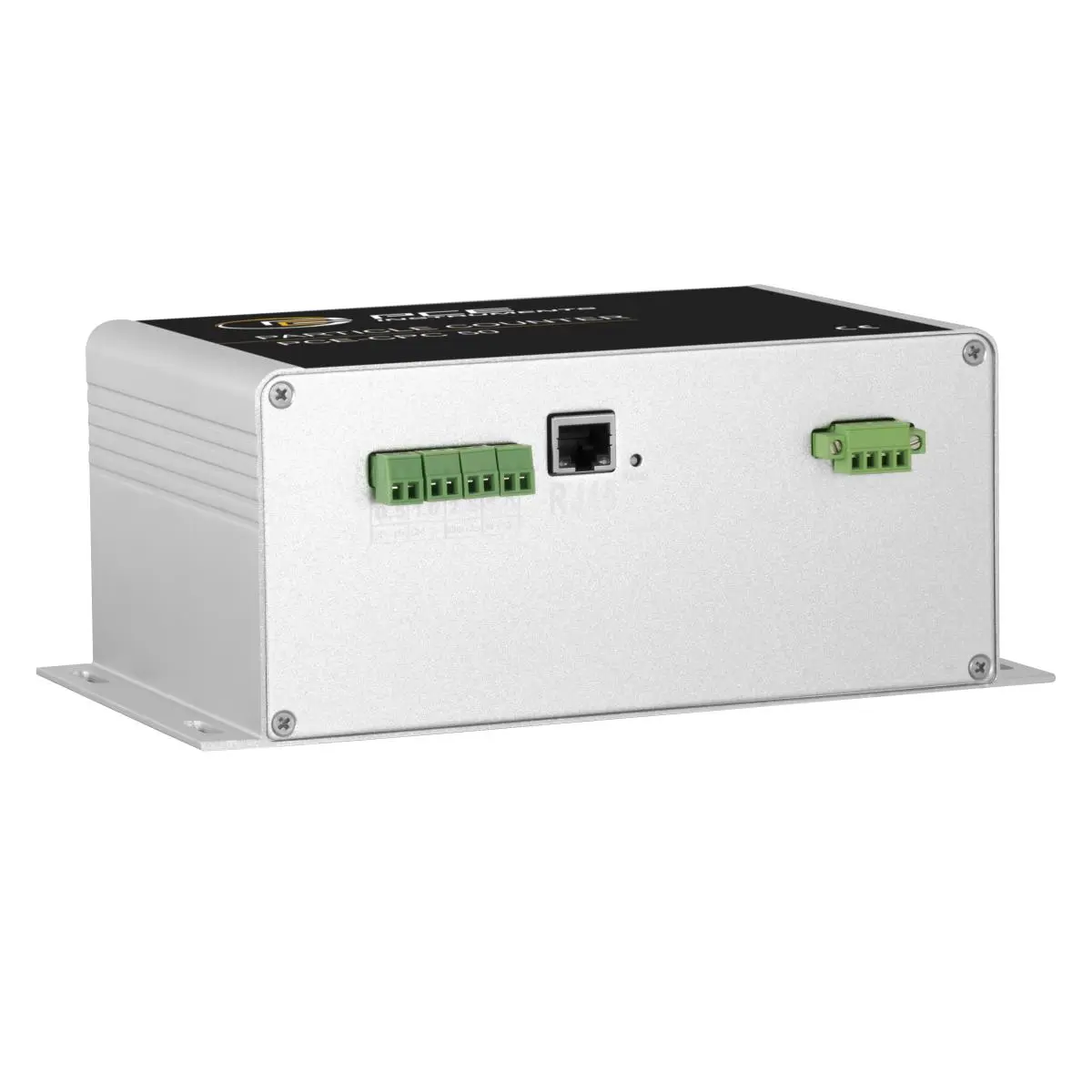

- Robust housing for wall mounting

Specification

Particles
Measuring range  0 pcs/l ... 10000000 pcs/l
Measurement channel sizes  0.3, 0.5, 1.0, 2.5, 5.0, 10 µm
Counting efficiency  Less than 100 pcs/l: ±30 pcs/l
Greater than 100 pcs/l: ±30 % of the weight
at 0 ... 40 °C / 60 % r.h.
Flow rate  2.83 l/min

General technical data
Analogue output  4 ... 20 mA
Interface  RS485, Ethernet
Sensor  Laser scattered light
Response time  8 s
Menu language  English, Chinese
Protection class (device)  IP30
Power supply  12 VDC
Plug type  Protective contact plug
Weight  1293 g
Depth  87 mm
Operating conditions  -30 ... 70 °C , 0 ... 95 % r.H
Storage conditions  -40 ... 85 °C , 0 ... 95 % r.H

Delivery Scope

1 x PCE-CPC 50 air quality particle counting

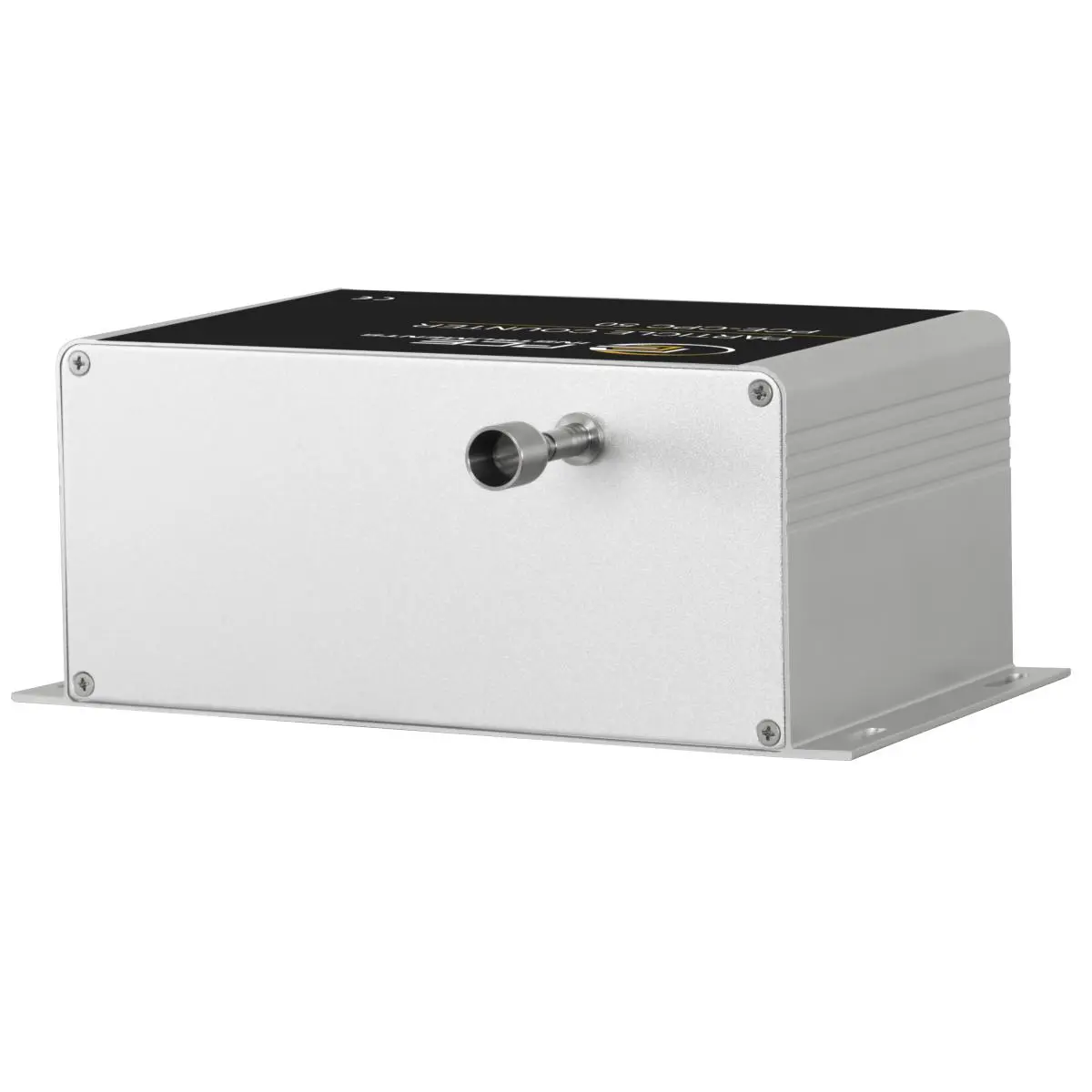

1 x isokinetic probe
1 x operating instructions
