671,90 €
The air humidity meter is available in two versions. The air humidity meter contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration.
The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.
The air humidity meter is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
| Acceleration | |
| Measuring range | -16 ... +16 g |
| Resolution | 0,003906 g |
| Accuracy | ±0.24 g |
| Light | |
| Measuring range | 0,045 lx ... 188 klx |
| Resolution | 0,045 lx |
| Air pressure | |
| Measuring range | 10 ... 750 mbar |
| Resolution | 0,02 mbar |
| Accuracy | ±4 mbar |
| Air pressure | |
| Measuring range | 750 ... 1100 mbar |
| Resolution | 0,02 mbar |
| Accuracy | ±4 mbar |
| Air pressure | |
| Measuring range | 1100 ... 2000 mbar |
| Resolution | 0,02 mbar |
| Accuracy | ±4 mbar |
| Oscillation | |
| Measuring range | -16 ... +16 g |
| Resolution | 0,003906 g |
| Accuracy | ±0.24 g |
| Relative humidity | |
| Measuring range | 0 ... 100 % |
| Resolution | 0,04 % |
| Accuracy | ±1.8 % |
| Temperature | |
| Measuring range | -20 ... +65 °C |
| Resolution | 0,01 °C |
| Accuracy | ±0.2 °C, not during the charging process |
| General technical data | |
| Units | °C, mbar, lx, g |
| Measuring interval | 1 ... 1800 s |
| Display type | without display |
| Adjustable measuring rate | 1 ... 800 Hz |

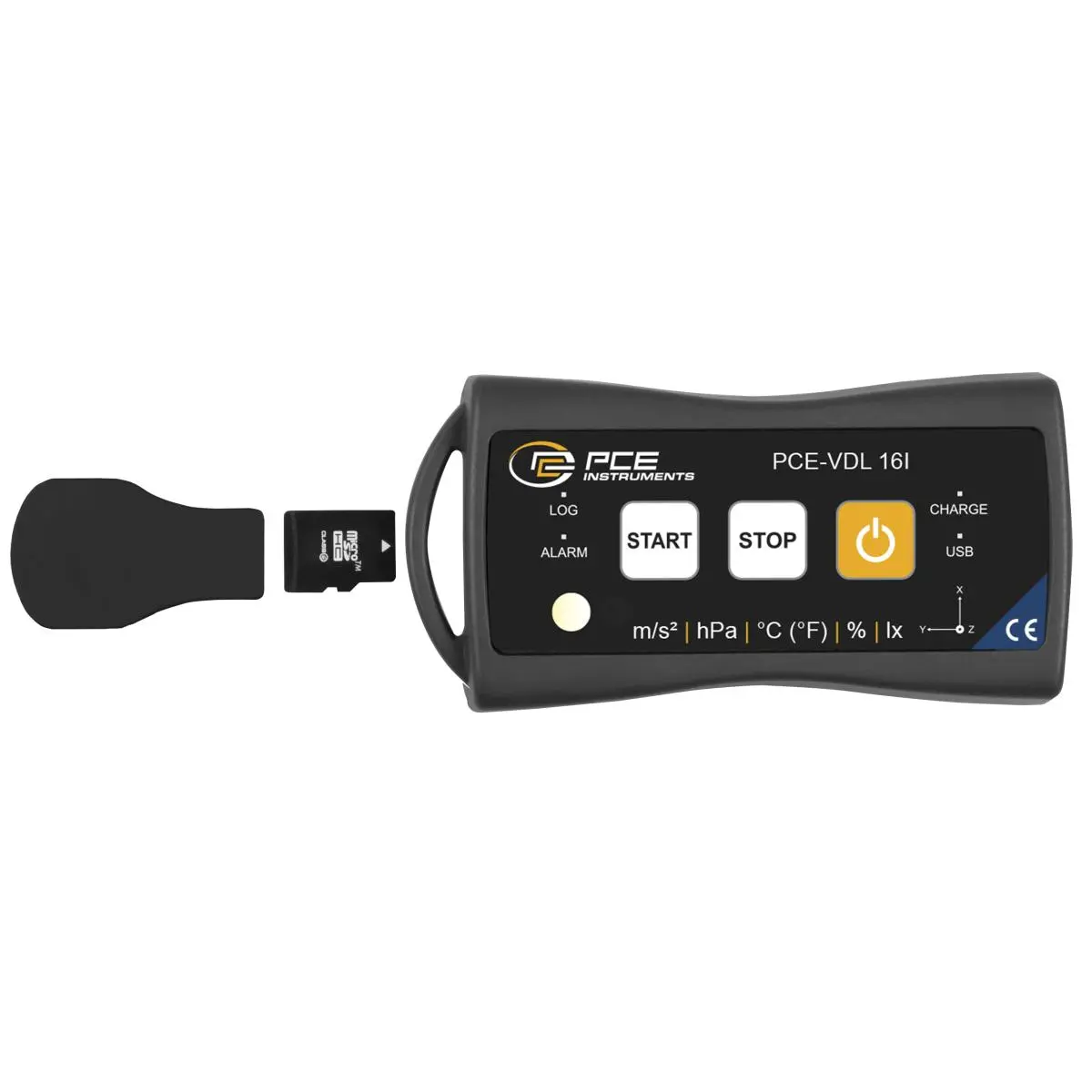

| Storage medium | Micro SD card |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | 3.2 billion readings with included 32 GB micro SD memory card. A new file is automatically created after 200,000 readings |

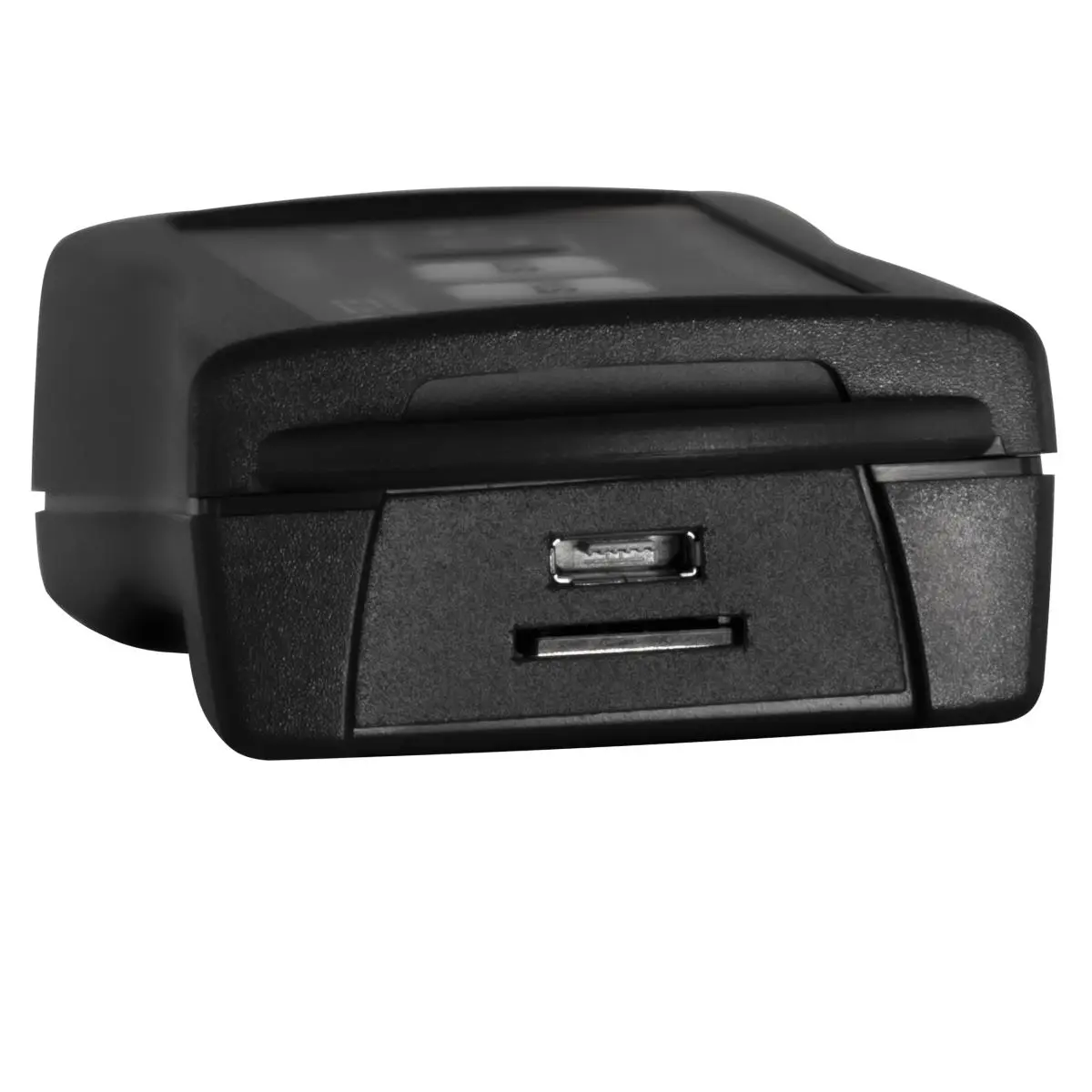

| Interface | Micro-USB |
| Operating time | 1680 min. |
| Protection class (device) | IP40 |
| Power supply | 5 V DC |
| Capacity | 700 mAh |
| Performance | 2,59 |
| Operating conditions | -20 ... 65 °C , 0 ... 100 % RH |
| Storage conditions | 5 ... 45 °C , 10 ... 95 % RH |
| Dimensions ( L x W x H ) | 87 x 44 x 23 mm |
| Weight | 57 g |
