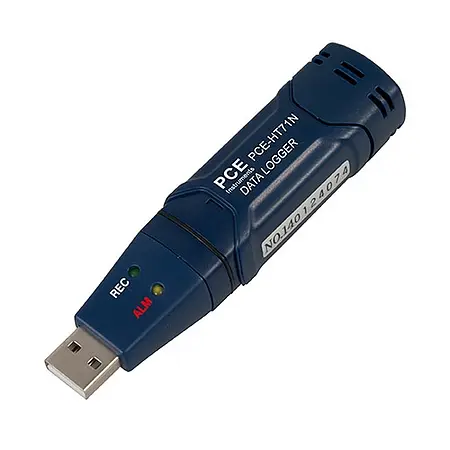

Air Humidity Meter PCE-HT 71N-ICA

Air Humidity Meter PCE-HT 71N-ICA Incl. ISO Calibration Certificate

Order no.: PCE-HT 71N-ICA
GTIN (EAN): 4250348726117
246,90 €
293,81 €
price ex. (VAT / delivery)
:
4250348726117
PCE-HT 71N-ICA
Delivery time:5-7 working days
above 3%
Yes (integrated)

Description

PCE-HT 71N-ICA Air humidity meter incl. ISO calibration certificate
Mini device for prolonged measurement of temperature and relative humidity / 32k memory/ USB port / Software to calculate dew point/ Powered by a long-life lithium battery

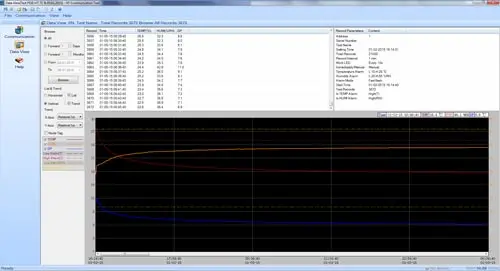

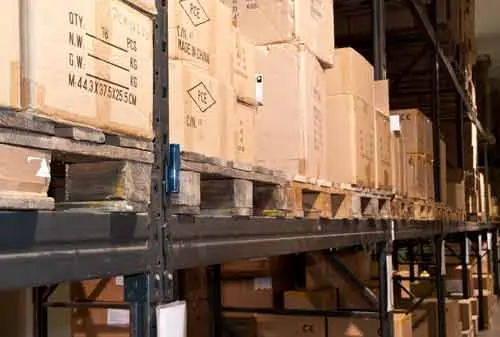

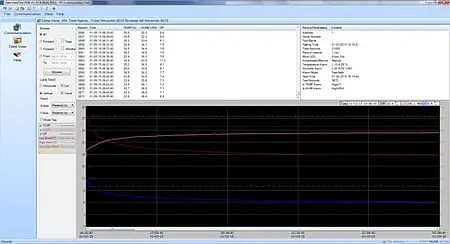

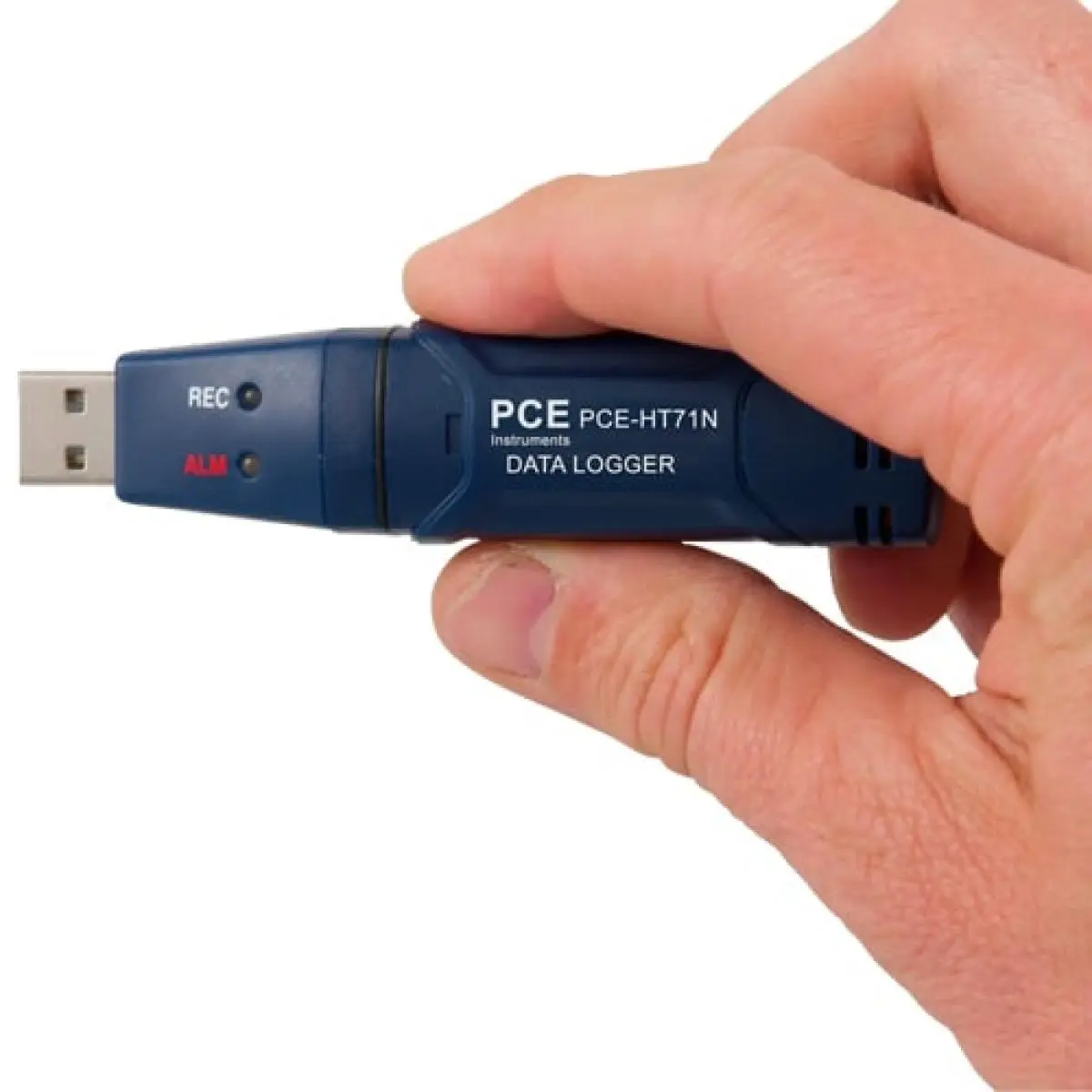

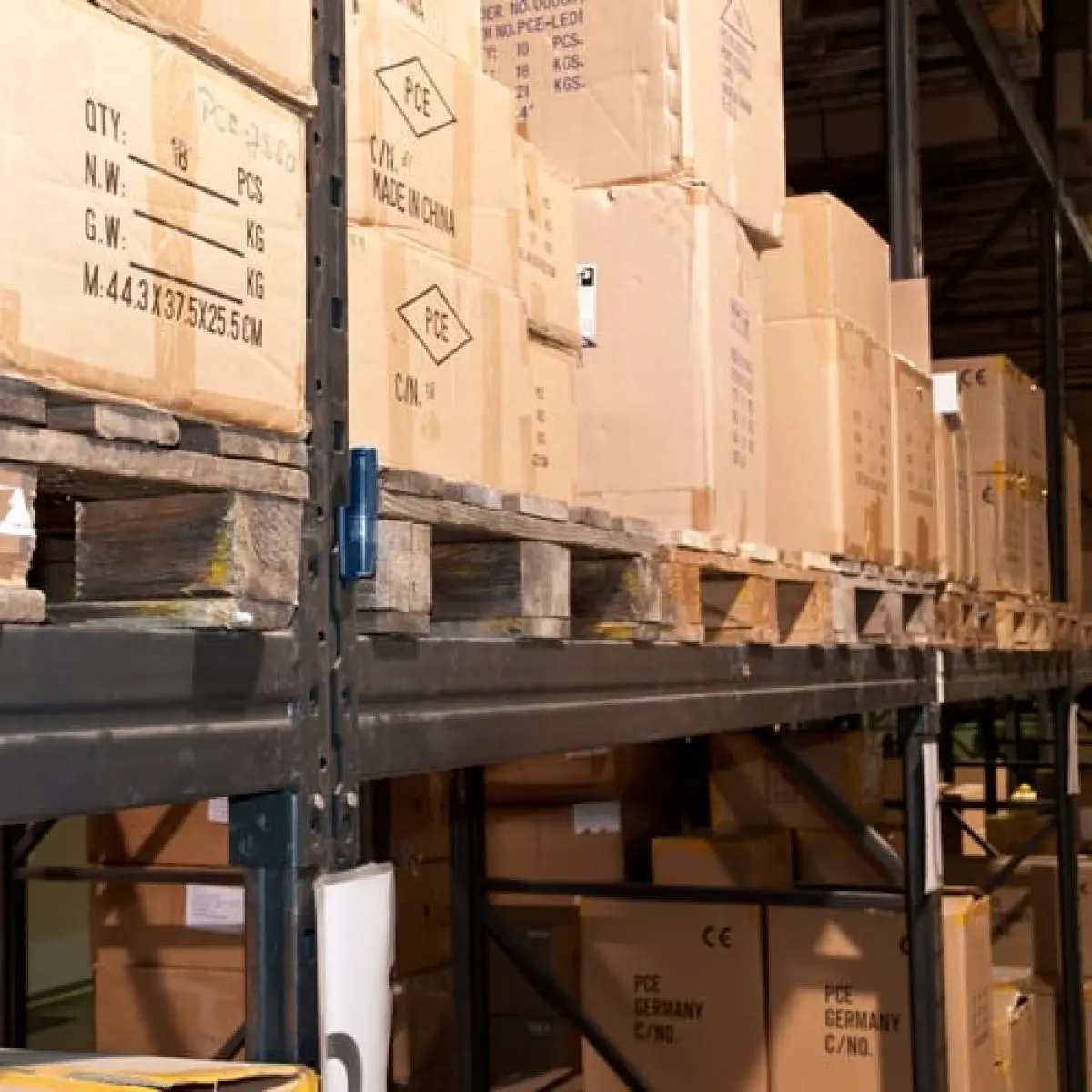

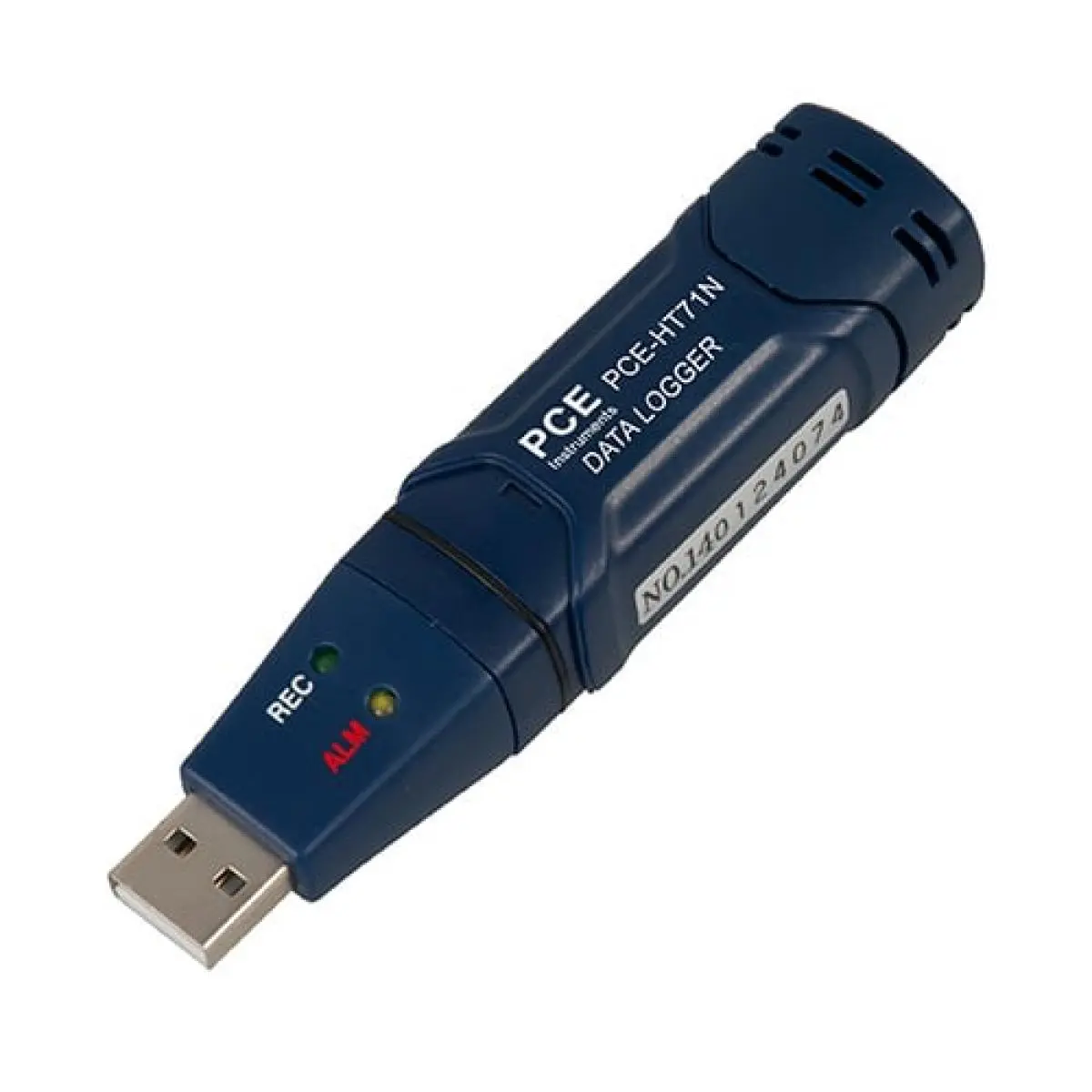

The PCE-HT 71N air humidity meter detects air temperature and humidity and stores readings in its internal memory. The air humidity meter has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a data logger in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature controlled environments. The air humidity meter works as a data logger to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The PCE-HT 71N air humidity meter can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the PCE-HT 71N is that it is powered by a removable 3.6V, long-life lithium battery. The battery life is approximately one year.


Highlights

- Storage capacity: 32 K
- USB port

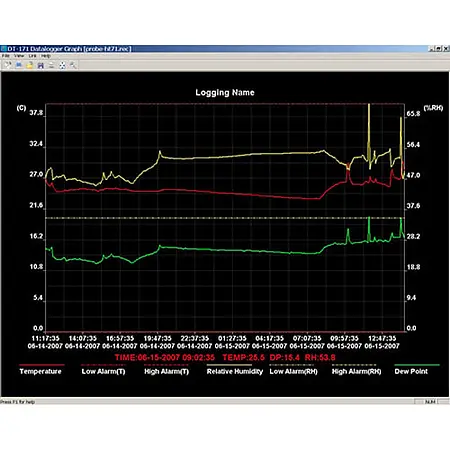

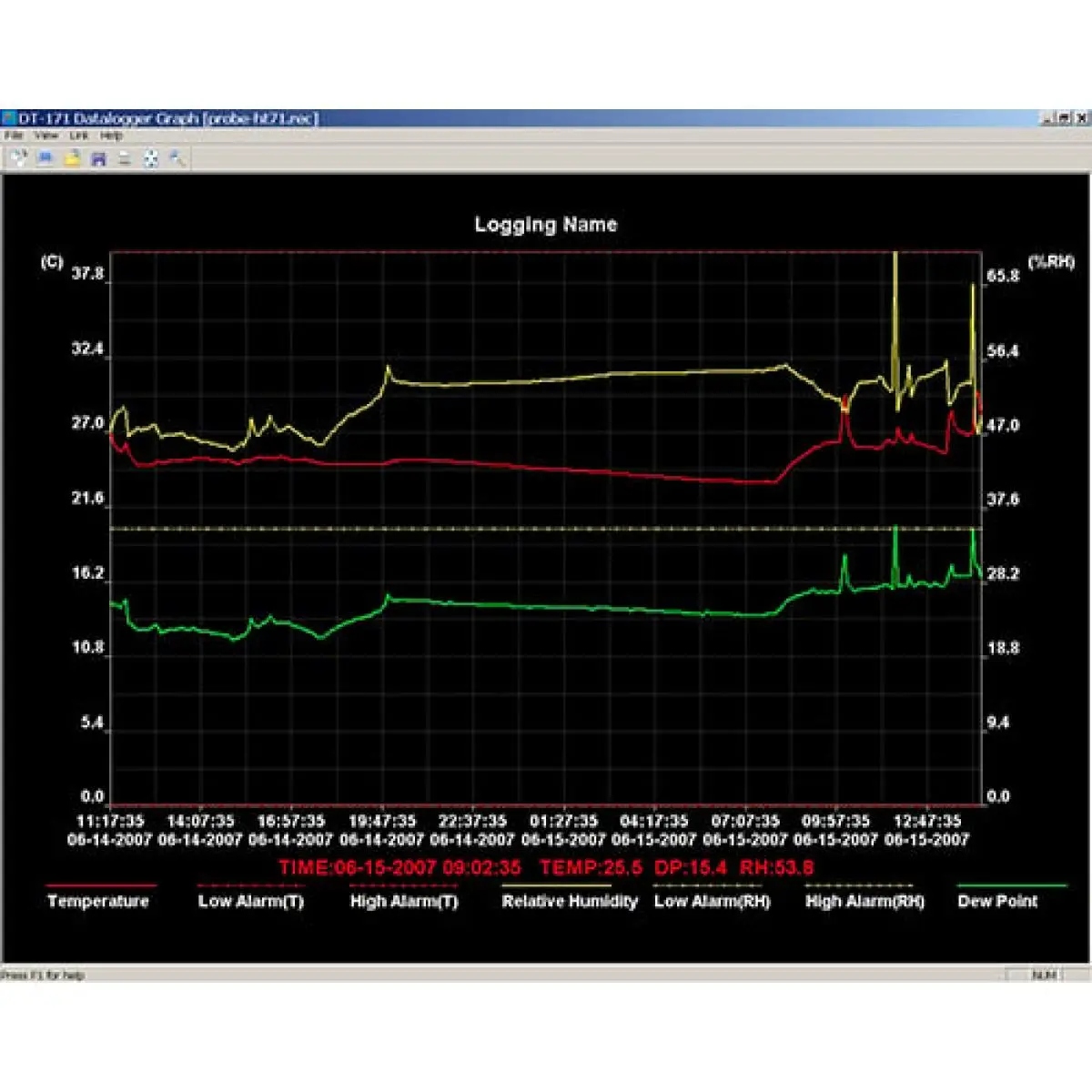

- A software for calculating dew point and analysing data in a computer is
included
- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- non-volatile EEPROM
- staus indicated by 2 LEDs (including alarm)
- programmable alarm limits across entire measurement range
- replacement battery

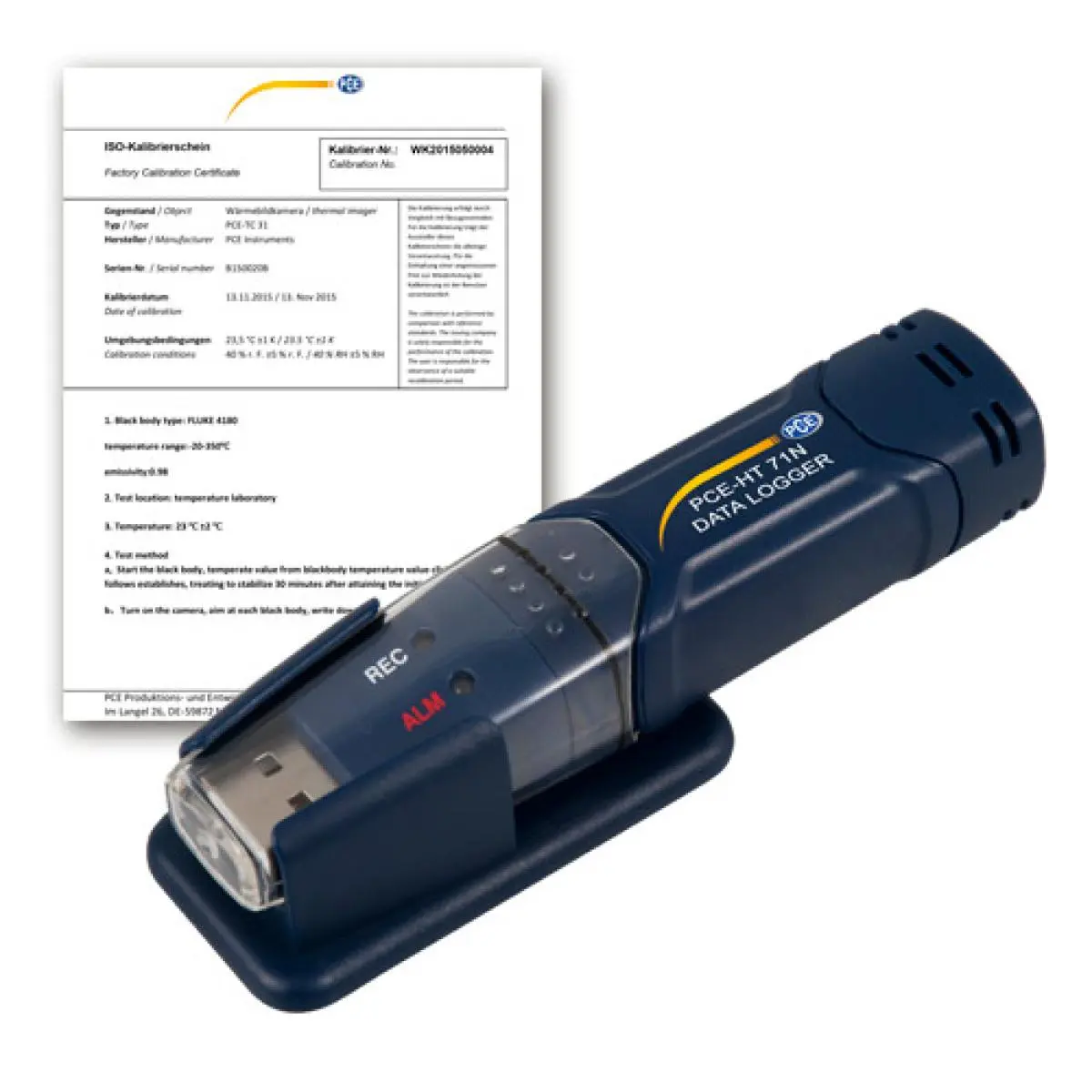

- incl. ISO-Calibration Certificate

Specification

Relative humidity
Measuring range  0 ... 100 % RH
Resolution  0,1 % RH
Accuracy  ±3 % RH

Temperature
Measuring range  -40 ... +70 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Display type  without display
Storage medium  Internal memory
Storage capacity  16000 Data records
Memory capacity (additional information)  A data record consists of one value for temperature and one for humidity.
Storage interval from  2 s
Storage interval to  24 h
Interface  USB
Operating time  1 Year(s)
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Protection class (device)  IP20
(Rechargeable) battery  1 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium
Capacity  1200 mAh
Operating conditions  -40 ... 70 °C , 0 ... 100 % RH
Storage conditions  -40 ... 70 °C , 0 ... 100 % RH
Dimensions ( L x W x H )  130 x 30 x 25 mm
Weight  20 g

Delivery Scope

Delivery contents
1 x PCE-HT 71N-ICA Air Humidity Meter
1 x Wall mount
1 x Battery
1 x Software
1 x User’s manual
1 x ISO-Calibration Certificate
