Airflow Meter PCE-VA 11

Air Flow Meter PCE-VA 11

Order no.: PCE-VA 11
GTIN (EAN): 4250348716811
229,90 €
275,88 €
price ex. (VAT / delivery)
:
4250348716811
PCE-VA 11
Delivery time:1-2 working days
Speed, Temperature, Volume/flow
Impeller
No
Yes (USB)

Description

Air flow Meter PCE-VA 11 for air temperature and infrared temperature / Extreme value measurement / Measurement of air velocity and volume flow / Backlit LCD / Measurement in °C and °F / Measurement of m/s, km/h, ft/min, knot, mph

The air flow meter PCE-VA 11 is an extensively used measuring instrument. The air flow meter provides the opportunity to determine air speeds, air temperature and infrared temperature. The backlit LCD allows comfortable readings and facilitates use in dimly lit areas. To mount the windmill it has a thread on the back. Here it is possible to mount the wind meter on a thread. Thanks to the fast response time of the device, real-time measurement is possible without problems. The large display provides an accurate overview of the measured values and can optionally be backlit, which makes the wind meter useful even in low light conditions. Immediately after the impeller has been connected, the measurement can be started and measured values are immediately displayed on the display. Even if a specific temperature is to be measured at special measuring spots, this is possible by means of simple keystroke. The light laser serves as an orientation point. The measurement of the ambient temperature is then automatically deactivated. In addition to the wind speed, the device can also measure the airflow and the air temperature and is thus a very versatile measuring device, which can be used in different areas.


Highlights

- Multi-functional vane anemometer for measuring air speed, air flow, air
temperature and infrared temperature
- Adjustable measuring units
- Large LCD with backlighting
- Maximum and minimum values
- Suitable for measuring low air velocities
- Data hold, range selection, auto shutdown and average functions

Specification

Speed
Measuring range  1,4 ... 108 km/h
Resolution  0.1 km/h
Accuracy  ±3% ±0.8 km/h

Speed
Measuring range  0,4 ... 30 m/s
Resolution  0.1 m/s
Accuracy  ±3% ±0.2 m/s

Speed
Measuring range  80 ... 5900 ft/min
Resolution  1 ft/min
Accuracy  ±3% ±40 ft/min

Speed
Measuring range  0,9 ... 67 mph
Resolution  0.1 mph
Accuracy  ±3% ±0.4 MPH

Speed
Measuring range  0,8 ... 58 knots
Resolution  0.1 knots
Accuracy  ±3% ±0.4 knots

Infrared temperature
Measuring range  -50 ... -20 °C
Resolution  0,1 °C
Accuracy  ±5 °C

Infrared temperature
Measuring range  -20 ... +500 °C
Resolution  0,1 °C
Accuracy  ±2% of measured value / ±2°C

Infrared temperature
Measuring range  -58 ... -4 °F
Resolution  0,1 °F
Accuracy  ±9.0°F

Infrared temperature
Measuring range  -4 ... +932 °F
Resolution  0,1 °F
Accuracy  ±2% of measured value or ±4°F

Temperature
Measuring range  -10 ... +60 °C
Resolution  0,1 °C
Accuracy  ±2 °C

Temperature
Measuring range  14 ... 140 °F
Resolution  0,1 °F
Accuracy  ±4.0°F

General technical data
Cable length  1,2 m
Measuring functions  MIN, MAX, HOLD, AVG
Display type  LCD with backlight

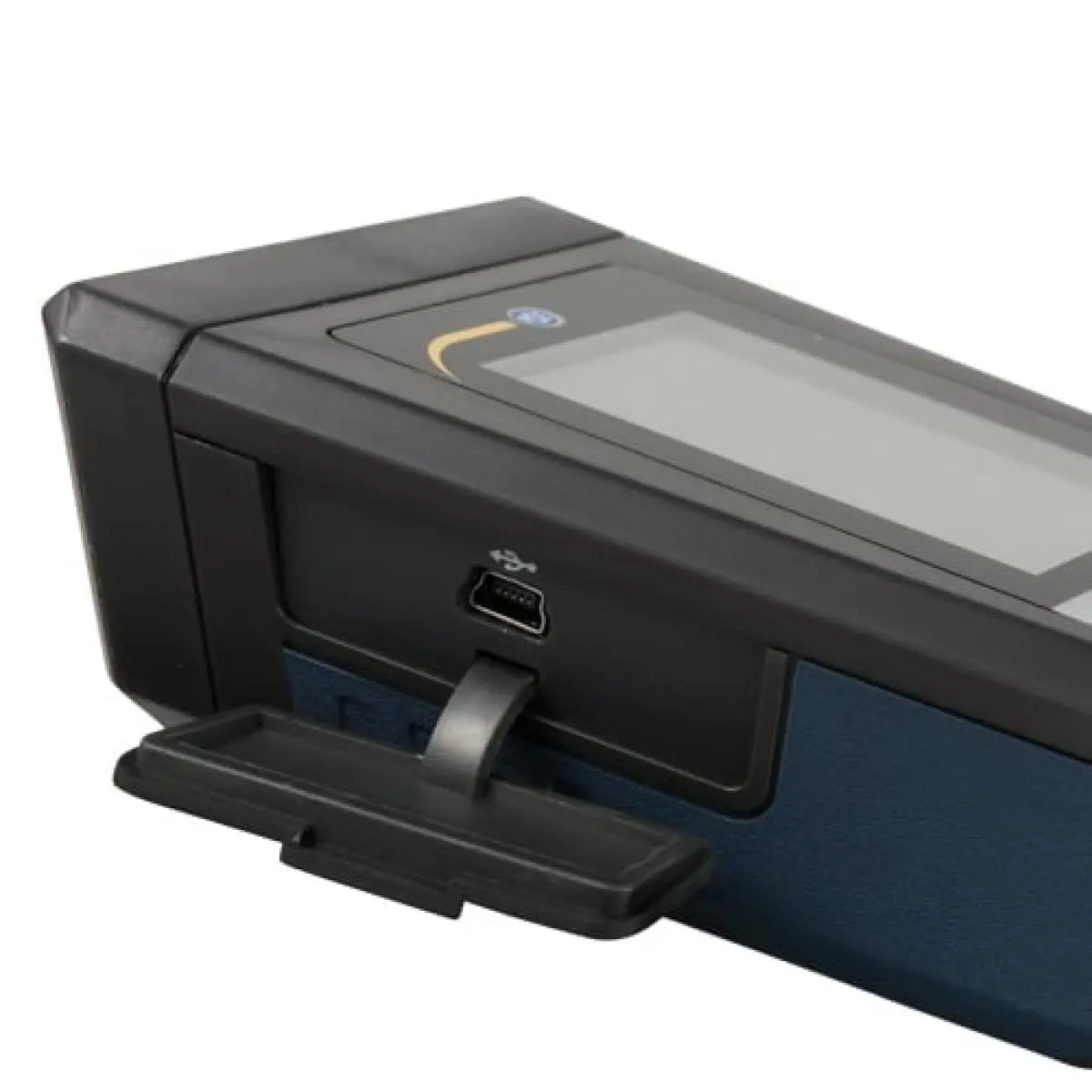

Interface  Mini-USB
Sensor  Vane
Automatic power-off  15 min
Dimensions  Impeller: Ø 72 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  Battery
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 (non-condensing)% RH
Storage conditions  0 ... 50 °C , 0 ... 80 (non-condensing)% RH
Dimensions ( L x W x H )  206 x 95 x 45 mm
Weight  313 g

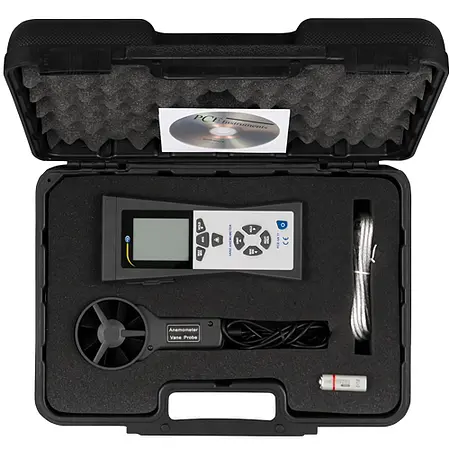

Delivery Scope

1 x PCE-VA 11 Airflow Meter
1 x impeller with 1.2 m / 3.9 ft long cable
1 x USB cable
1 x 9V block battery
1 x PC-compatible software
1 x User manual
1 x Carrying case
