| Technical Datas | |
| Output | 0… 100 Hz |
| Measurement reading range | 0.9 … 40 m/s |
| Accuracy | ± 0.5 m/s or 5 % v. M |
| Load | max. 60 m/s (temporary) |
| Contact Load | 10 VA, max. 42 V DC, max. 0,4 A |

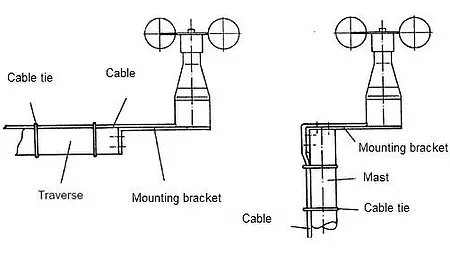

| Assembly | mounting bracket |
| Heating | max. 24 V DC/AC, max. 1 A |
| Ambient temperature | 25 ... +60 °C (in ice-free conditions) |
| Cable (selectable) | 3 m; LiYY 4 x 0,5 mm² 15 m; LiYY 4 x 0,5 mm² |
| Protection class | IP54 |

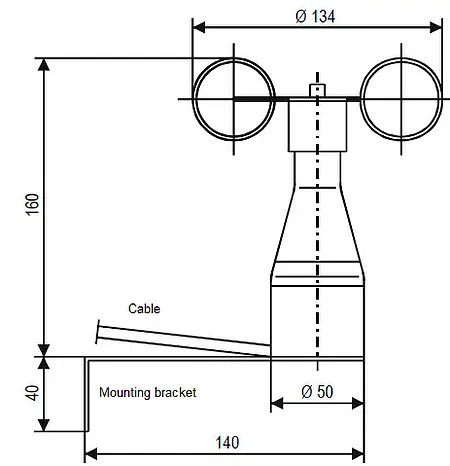

| Dimensions | Ø 134 x 160 mm |
| Weight | Ca. 300g |
