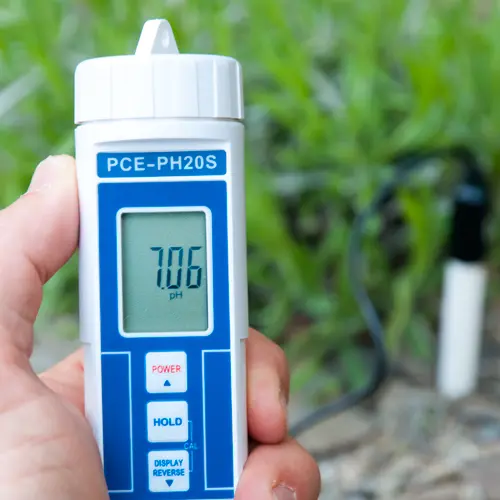

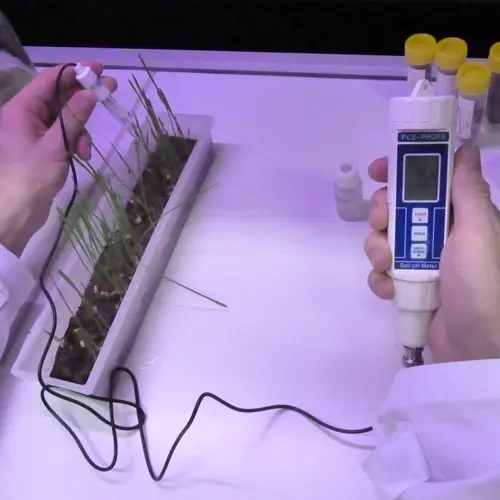

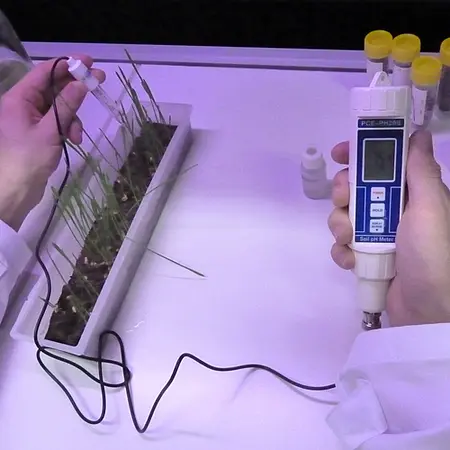

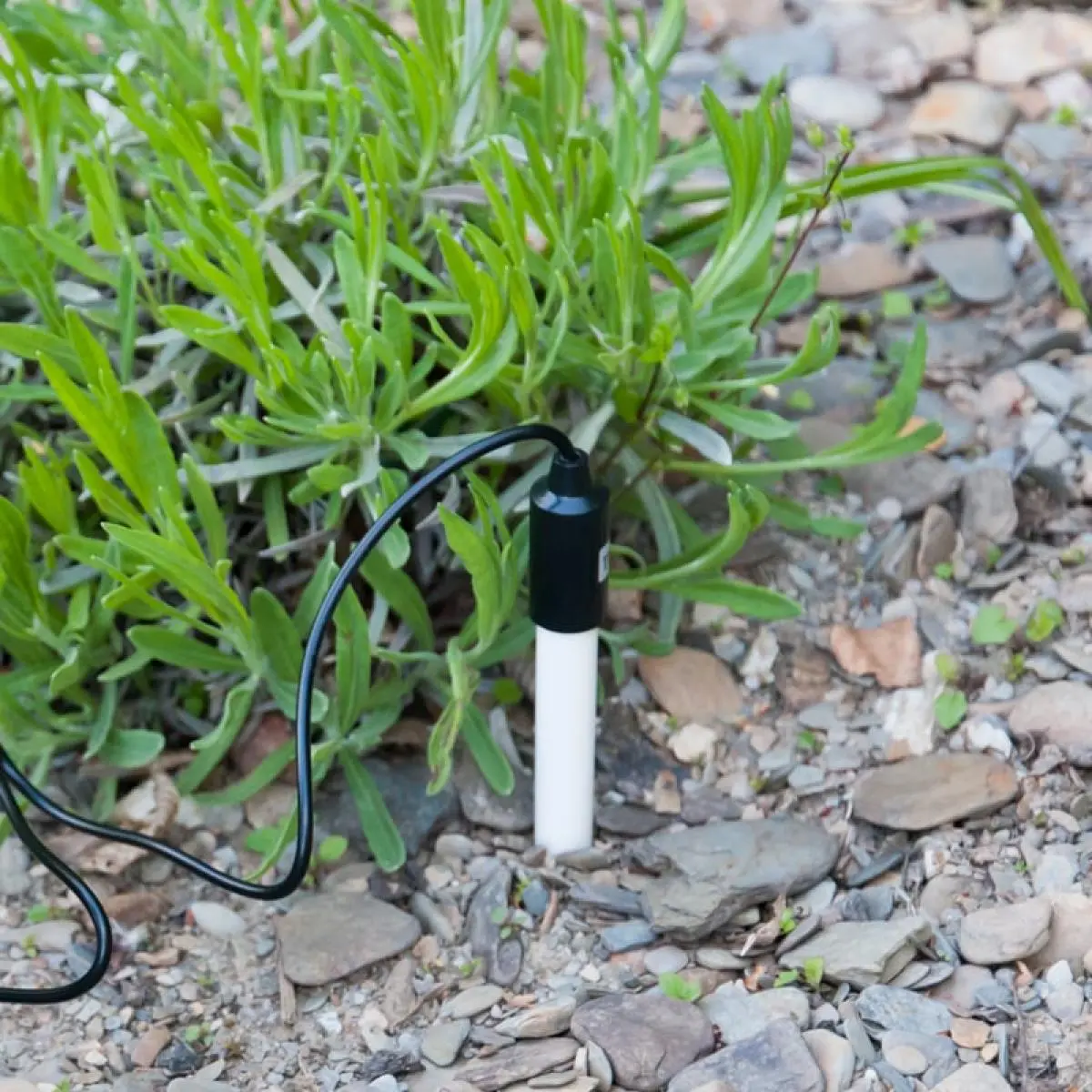

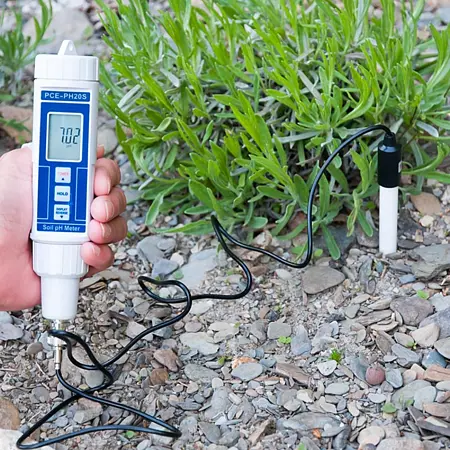

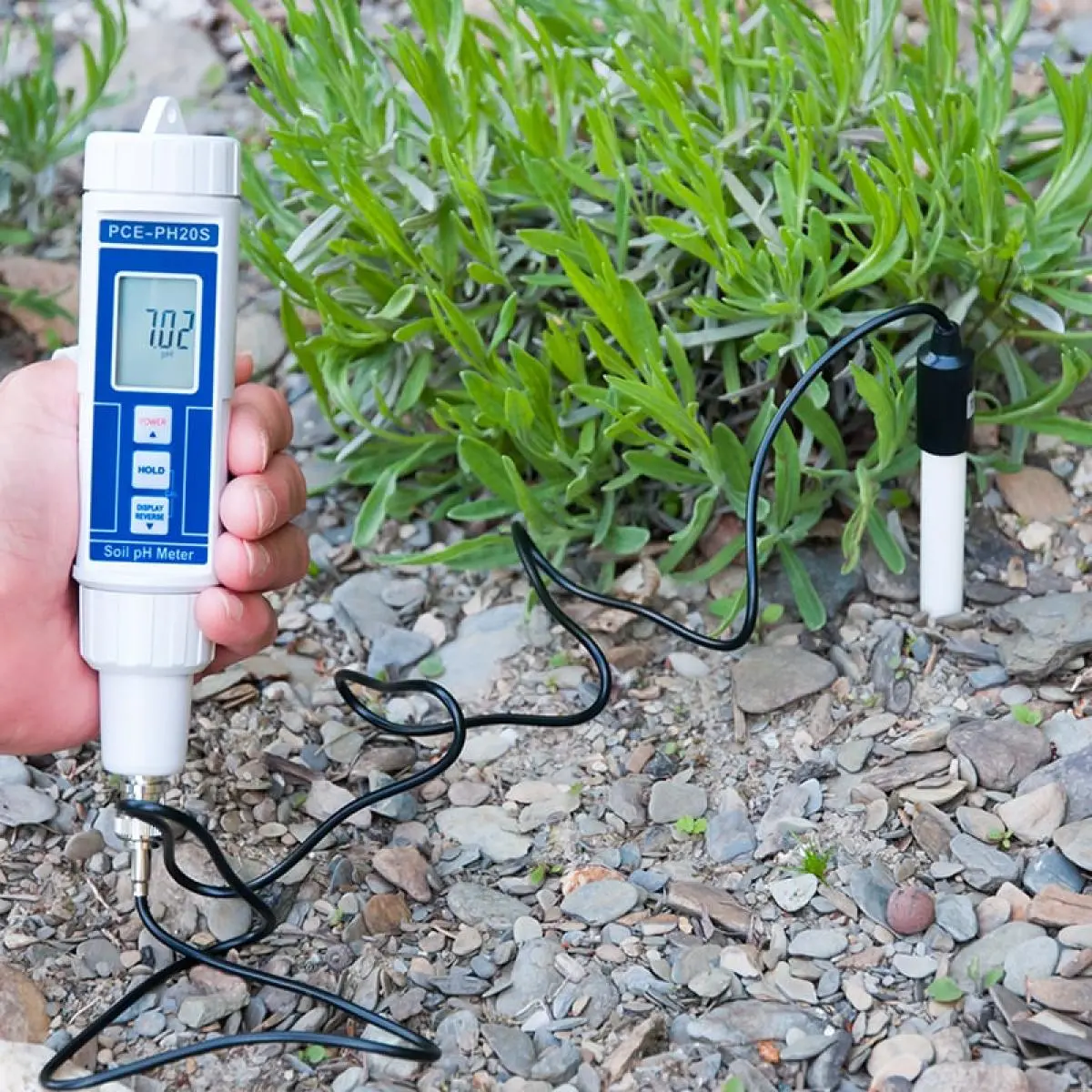

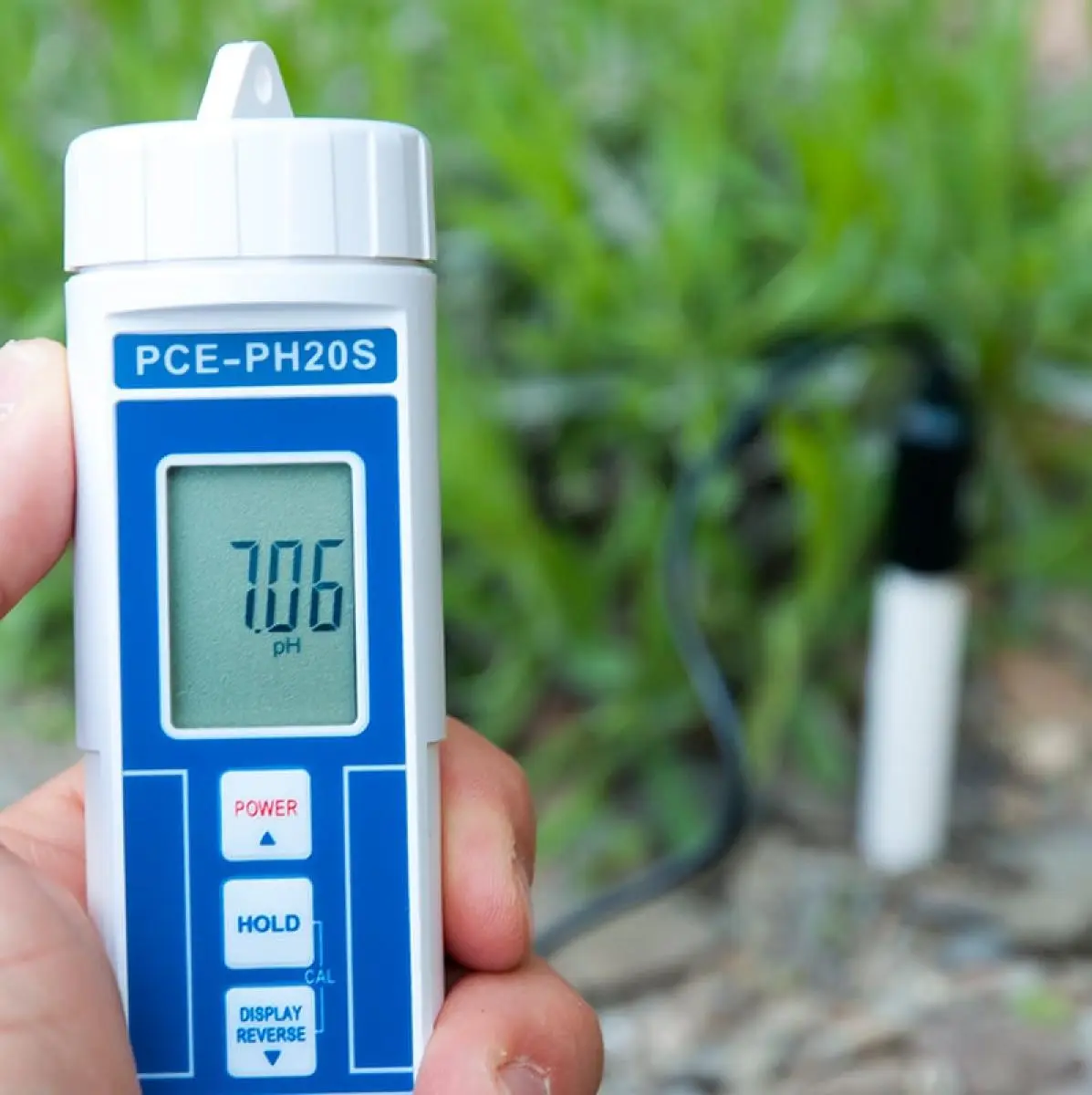

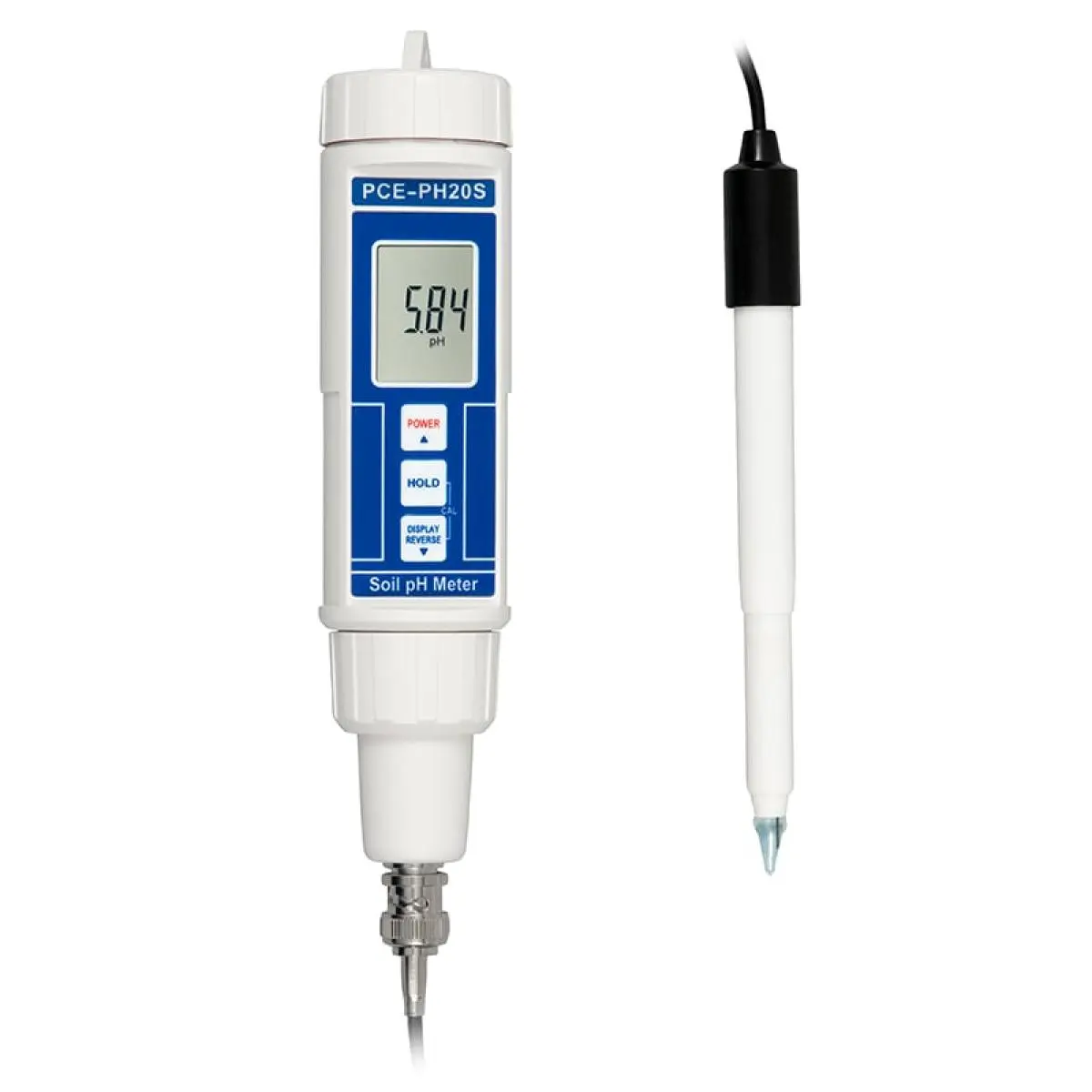

The Agricultural measuring device for soil has been developed with the purpose of finding an effective method for directly determining the pH value of soil. With the help of this Agricultural measuring device, it is possible to quickly and accurately measure the pH value of soil or a sample taken from the soil. To do this, simply insert the electrode into the previously loosened soil and read the pH value on the digital display.

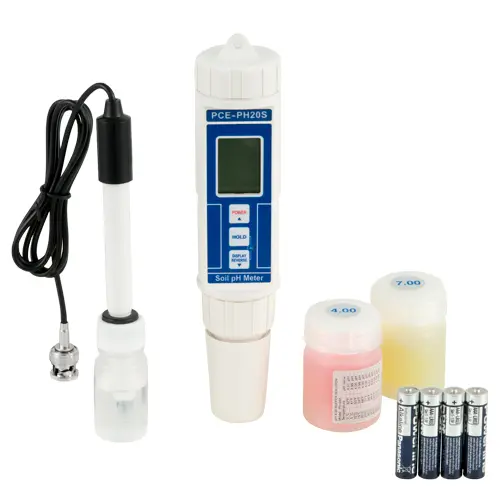

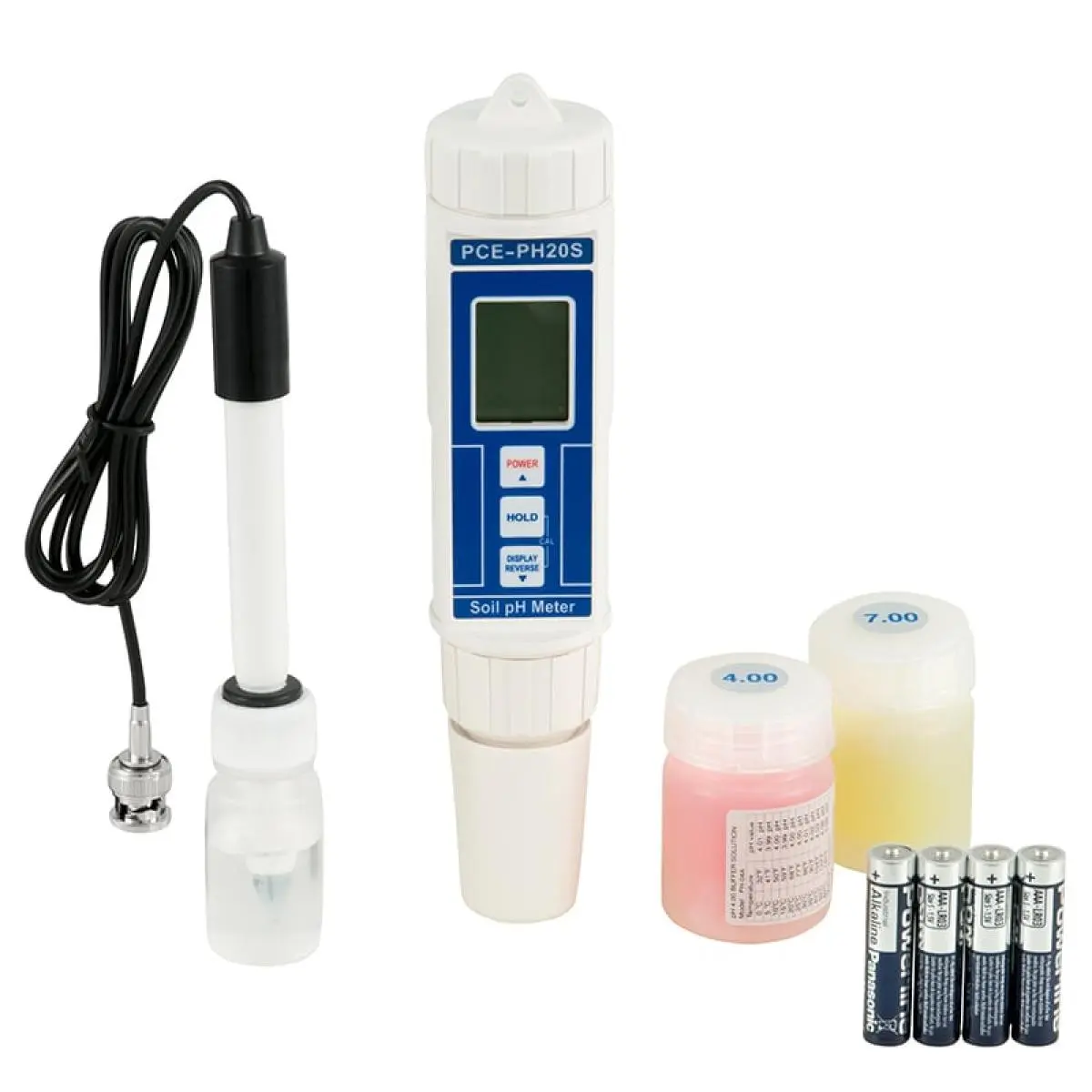

Please, take into account that the first measurement requires that there is humidity in the soil. The device is always pre-calibrated by the manufacturer. The Agricultural measuring device can be constantly recalibrated using the calibration solutions that come with the device. Calibration data remains stored in the device even when the batteries have been changed. If you would like to carry out a measurement according to DIN or if you can not penetrate deep enough into the soil due to soil hardness, then you should prepare a DIN soil solution and use it for the exact measurement.
| pH | |
| Measuring range | 0 ... 14 pH |
| Resolution | 0,01 pH |
| Accuracy | ±0.07 pH (within range 5 ... 9 pH) / ±0.1 pH (within ranges 4 ... 4.9 and 9.1 ... 10 pH) / ±0.2 pH (within ranges 1 ... 3.9 and 10 ... 13 pH) |
| Electrode | |
| Designation | PE-06HDA |
| Measuring range | 1 ... 13 pH |
| Temperature range | 5 ... 60 °C |
| Application | Soil |
| reference system | Ag/AgCl |
| Reference electrolyte | Saturated KCl gel |
| Shank material | Epoxy resin |
| Shank length | 160 mm |
| Shank diameter | 12 mm |
| Cable length | 1 m |
| Connection | BNC |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD |
| Display size | 1,35 Inch |
| Automatic power-off | 10 min |
| Number of calibration points | 3 |
| Calibration | Automatically, at pH 4, pH 7, pH 10 using calibration solutions |
| Protection class (device) | IP67 |
| (Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 180 x 40 x 32 mm |
| Weight | 220 g |
