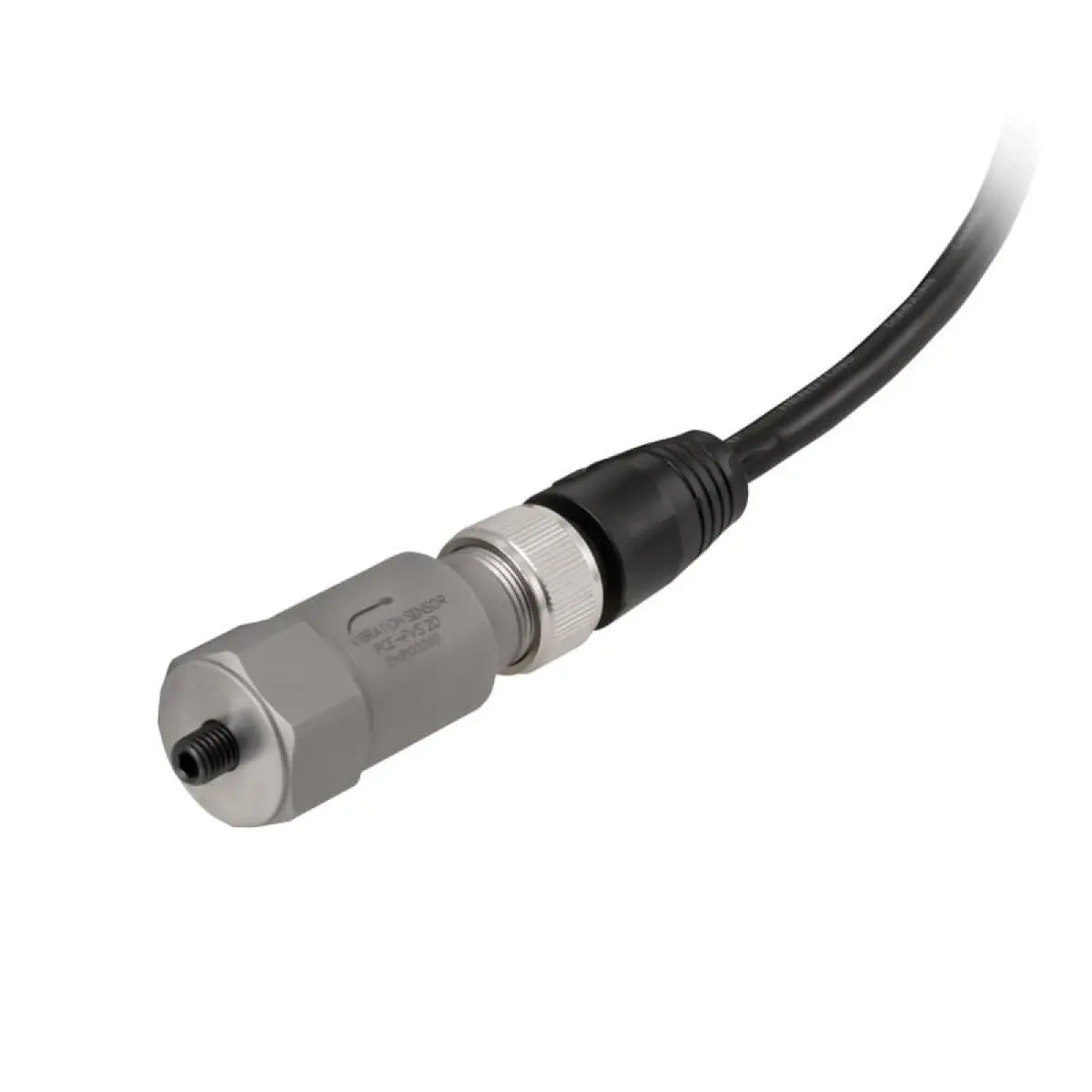

Accelerometer PCE-PVS 20

Accelerometer PCE-PVS 20 [zoom]
Accelerometer PCE-PVS 20
Accelerometer Sensor
Accelerometer Connections
Accelerometer Delivery scope

Acceleration Sensor PCE-PVS 20

Order no.: PCE-PVS 20
GTIN (EAN): 4250348722591
545,90 €
price ex. (VAT / delivery)
:
4250348722591
PCE-PVS 20
Delivery time:1-2 working days
Machine vibration

Accessory

Description

Acceleration Sensor  for monitoring the vibration speed / 4 ... 20 mA output
MIL-C-5015 connection / 3 ... 1500 Hz bandwidth

The Acceleration Sensor has been developed for the continuous monitoring of the vibration speed. The Acceleration Sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Acceleration Sensor measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz.

The measured vibration speed is output as a 4 ... 20 mA process current. The Acceleration Sensor is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Acceleration Sensor can be operated with a voltage of 12 ... 24 V DC.

Highlights

- vertical installation
- Process signal output
- MIL-C-5015 connector
- M6 process connection
- different measuring ranges
- robust construction

Specification

Speed
Measuring range  0 ... 25,4 mm/s
Resolution  0.10 mm/s

General technical data
Outputs  4 ... 20 mA
Outputs  2 conductors 4 ... 20 mA
Cable length  5 m
Connections  2-pin MIL-C-5015
Frequency  3 ... 1500 Hz
Housing  Stainless steel
Bandwidth  3 ... 1500 Hz
Overload protection  ±1000 g (short-term shock)
Mounting  1/4-28 (female thread)
Sensitivity  <5%
Additional description  Isolation from ground: >108 Ω
Output impedance: <100 Ω
Protection class (device)  IP65
Power supply  12 ... 24 V DC in current loop
Operating conditions  -40 ... 85 °C , 10 ... 95 % RH
Storage conditions  -40 ... 85 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  55 x 22 x 22 mm
Weight  82 g

Delivery Scope

1 x Accelerometer PCE-PVS 20
1 x MIL-C 5015 plug to 5 m cable
1 x instruction manual
